The Topcon RL-H5A is the best rotary laser level for grading overall in 2026. It self-levels electronically to ±10 arc seconds, carries an IP66 all-weather body, runs up to 100 hours on four D cells and includes an LS-80 receiver. No other unit in this roundup pairs that accuracy figure with that runtime and that weather rating.
Grading is a numbers game. You set an elevation on one rod, transfer it to a second, dial in a percentage fall, and then check the ground every few feet until the cut or fill reads zero. A spirit level or a line laser cannot hold that reference across a driveway or a building pad, and an eighth of an inch of error over 50 feet compounds into real drift by the far end of the site.
We compared nine rotary laser levels for grading and drainage across accuracy, slope capability, runtime, weather rating and what actually lands in the case. This ranking is built on published manufacturer specifications and aggregated customer review data, not on our own field testing. Last updated for 2026.
Table of Contents
Top 3 Best Rotary Laser Levels for Grading in 2026
Topcon RL-H5A
- Electronic self-leveling to 10 arc seconds
- 800 m job site coverage
- 60 to 100 hour runtime
- IP66 all-weather body
Spectra Precision LL300N-1
- 1650 ft range with receiver
- 3/32 inch accuracy
- Complete kit with tripod and 15 ft rod
- 5 year warranty
Johnson 99-028K
- Programmable dual slope on both axes
- Up to 5 degrees each way
- Out-of-level audible and visual alarms
- Full kit with 13 ft grade rod
Two of those three are complete systems you can put to work the afternoon they arrive. The Johnson wins the drainage conversation because programmable dual slope on both axes removes the arithmetic from percentage fall work, which is exactly what a yard or a swale requires.
Quick Overview: All 9 Rotary Lasers Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| Topcon RL-H5A Self-Leveling Construction Laser |
|
Check Latest Price |
| Spectra Precision LL300N-1 Rotary Laser Level Kit |
|
Check Latest Price |
 Spectra Precision LL100N-2 Laser Level Kit |
|
Check Latest Price |
| Johnson 99-028K Dual Slope Rotary Laser System |
|
Check Latest Price |
 Johnson 40-6517 Self-Leveling Rotary Laser System |
|
Check Latest Price |
 Bosch GRL2000-40HVK Revolve2000 Rotary Laser |
|
Check Latest Price |
 Firecore FRL300R Rotary Laser Level Kit |
|
Check Latest Price |
 Klein Tools 93RLS Green Rotary Laser Level Kit |
|
Check Latest Price |
 LotaTools 207-Green Self-Leveling Green Laser Kit |
|
Check Latest Price |
Read the accuracy column first, and read the distance that goes with it. A spec quoted at 50 feet is not the same claim as one quoted at 100 feet, and shoppers mix the two up constantly. The range figure also means nothing without a receiver, so we note below which units include one.
1. Topcon RL-H5A – Best Overall Rotary Laser Level for Grading
- Highest review volume in the group with 769 ratings
- One-button setup that re-levels itself after a knock
- 100 hours on four D cells
- IP66 body suits real weather
- Rotating beam has four blind spots where corner posts block the signal
- Slope control is basic for regular percentage work
- Isolated reports of auto-leveling failure with unhelpful warranty service
The RL-H5A is a single grade self-leveling rotary laser accurate to ±10 arc seconds, and that combination of accuracy, runtime and weather sealing is why it sits at the top. It is a 360 degree rotating beam, not a dual-axis grade head, so the slope work happens through manual adjustment rather than a percentage readout.
Battery life is the standout spec. Up to 60 hours continuous use with the rechargeable pack or 100 hours with four D cells means a full week of ordinary site work without a charger in the truck. On r/Construction, contractors describe exactly the problem this solves: borrowing a Spectra and finding no batteries for it. If you already own alkaline cells, the RL-H5A sidesteps the whole ecosystem question.
Owners consistently call it the best value in its class, with a hard case in the box and a receiver holder included. Setup is one button and the unit re-levels automatically if it gets bumped, which saves a re-check every time a machine or a foot clips the tripod.
The two criticisms that repeat are the four blind spots in the rotating beam where a corner post or a piece of equipment blocks the signal, and the basic slope feature. Buyers who set grade every day still tend to move up to a dual-axis unit. A smaller number report auto-leveling failures and frustration with warranty handling, so it is worth registering the unit and keeping the serial number somewhere safe.
What the 100 hour runtime changes on a grade day
A long grade day is mostly rod work, not laser work. The unit sits on its tripod while you move between points, so runtime is what decides whether you finish the pad or stop for a charger. 60 hours on the rechargeable pack or 100 hours on four D cells covers a working week without that interruption.
What to check before you commit
Register the unit and keep the serial number, because the clearest recurring complaint here is auto-leveling failure meeting unhelpful warranty handling. The LS-80 receiver and holder are in the box, but there is no tripod or grade rod, so budget for both before the first setup.
2. Spectra Precision LL300N-1 – Best Value Complete Grading Kit
Spectra Precision LL300N-1 Rotary Laser Level Kit inc Tripod & Rod Alkaline
- Laser
- receiver
- clamp
- tripod
- 15 ft tenths grade rod and hard case in one package
- Fast one-button setups with fewer mechanical parts
- IP66 drop and weather protection
- Five year manufacturer warranty
- A 32 pound package is heavy to carry
- No remote control or wall mount in the package
- 3/32 inch accuracy is the softest published figure on the level kits here
The LL300N-1 is the kit contractors mean when they say workhorse. It is a single grade rotary laser with a 1650 ft working radius through the HL450 receiver and a 3/32 inch accuracy figure, sold as a full leveling crew: laser, receiver, C45 clamp, four D cells, a Q104025 tripod, a GR151 tenths grade rod in 15 ft, and an all-in-one hard case.
That completeness is the reason it ranks this high. It is one of only two kits here that arrives with a full fifteen foot grade rod, which is the piece most first-time buyers discover they need two weeks after delivery. On r/Contractor, the LL300N is repeatedly described as a laser that has been around forever and the default professional recommendation.
Automatic self-leveling with one-button operation keeps setups quick, and the aluminum body carries IP66 hard-hat rotary protection against drops and weather. The five year manufacturer warranty is the longest published coverage among these kits.
The trade-off is bulk. At 32 pounds for the full package this is a serious load to carry from the truck, and the 3/32 inch accuracy is the loosest published figure among the kits in this group. On the sort of jobs most crews run, that difference does not show up in the cut.
Worth noting for anyone comparing packages: the case is the system. A bare rotary laser at a lower figure still needs a tripod, a receiver and a rod before it does anything useful, and those three pieces cost more than most people expect. Bundles like this one remove that math entirely.
If you are matching a grade you already have rather than setting a new percentage, a single grade unit is enough: shoot the existing grade, note the rod reading at two points and compute the fall yourself. That is the workflow described in grading forum threads, and it does not require dual slope hardware.
What a single grade unit handles well on site
Flat pads, slab form setup, elevation transfer between benchmarks and footing layout. Any job where the target is level rather than tilted. The 1650 ft radius means a large lot or a full building footprint sits comfortably inside one setup.
Because the beam is a single horizontal plane, elevation transfer is a straight matter of raising or lowering the rod until the receiver beeps evenly. That simplicity is why single grade units stay popular for groundwork even on crews that own dual grade machines.
Where you will outgrow it
Any fall that changes direction across the pad. Cross-slopes for drainage, swales that curve, and driveways that need a specific percentage rather than dead level. At that point you are doing the slope math yourself every time the rod moves, and mistakes show up as standing water.
The other limitation is the short list of included accessories compared with newer kits. There is no remote control and no wall mount in this package, so vertical layout work means a separate bracket.

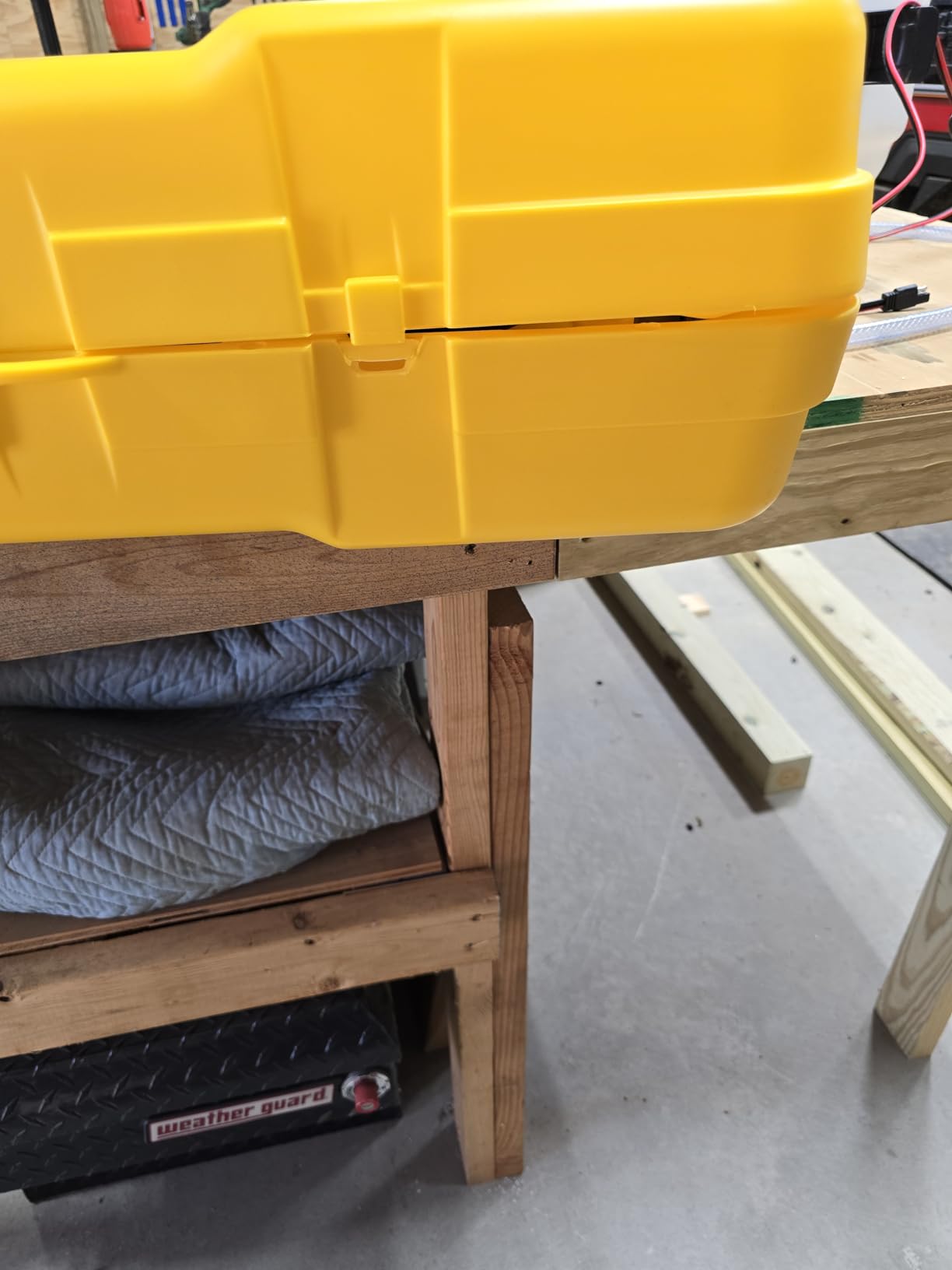

3. Spectra Precision LL100N-2 – Best Starter Kit for First-Time Grading
Spectra Precision LL100N-2 Laser Level Kit with HR320 Receiver and Clamp, 15′ Grade Rod (Inches), Tripod, and System Case, Yellow
- Everything needed to start grading ships in one case
- One-button automatic self-leveling
- Height of Instrument alert stops rotation after a knock
- Rugged waterproof and dustproof HR320 receiver
- Older design with a smaller serviceable parts ecosystem
- Included accessories are basic against premium kits
- No slope function for percentage fall work
The LL100N-2 is the entry point into the Spectra line, and one of the cheaper complete leveling crews in this group. You get the LL100 transmitter, an HR320 receiver with a C59 rod clamp, a 15 ft inch grade rod, an adjustable tripod, alkaline batteries, guides and a system case, all at 15 pounds for the package.
Two details make it better suited to rough ground than its price suggests. The Height of Instrument alert stops the laser rotating when the unit is jarred or knocked, which protects your reading on a site where machinery works nearby. The HR320 receiver itself is waterproof and dustproof, which matters more in wet spring conditions than any spec on the transmitter.
Setup is fully automatic and self-leveling, so someone who has never held a grade rod can get a clean shot within a few minutes of opening the case. That is the appeal: it removes the training curve entirely.
The 4.4 rating reflects the age of the design more than any defect. The parts ecosystem is smaller than newer green-beam kits, and the accessories are basic. There is also no slope function, so everything here is level work only.
If you already own a tripod and a rod, a bare laser is a defensible alternative and this kit is more money than you need. The value in the LL100N-2 is specifically that everything is in the case on day one, which matters if you are starting from nothing.
Compare that against the way a grading crew actually works. A dedicated grade rod with tenths graduations, a clamp and a detector are consumables in the sense that you will eventually replace them, but they are not optional. Budgeting for them separately usually costs more than the bundled version.
Our broader roundup of laser levels for construction covers the line and point formats that handle interior layout, so this kit stays focused on outdoor elevation work.
Why the Height of Instrument alert matters more than it sounds
Every grade shot has a failure mode where someone bumps the tripod and the reading is now wrong without anyone noticing. The alert kills the beam instantly, so the shot is discarded and repeated rather than quietly trusted. On busy site work that single feature prevents the most expensive kind of grading error: a wrong one you do not know about.
It also changes how you work. With the alert on, crews leave the instrument running and move the rod freely, because any disturbance announces itself. Without it, every rod move is a reason to walk back and check the machine.
Where the money is better spent elsewhere
If percentage fall is part of your work, this is the wrong kit. There is no slope adjustment at all, so a 2 percent drainage fall has to be built into the grade rod reading manually, and that is the most common source of ponding complaints on finished yards.
The other gap is the accessories list. No remote, no wall mount, no second battery option beyond standard alkaline cells. For pure elevation transfer it is complete; for anything else you will be adding parts.
4. Johnson 99-028K – Best Dual-Slope System for Drainage
Johnson Level & Tool 99-028K Electronic Self-Leveling Dual Slope Horizontal/Vertical Rotary Laser System, Red, 1 Kit
- Dual-slope programming on both axes removes the math for drainage work
- Self-levels horizontally and vertically for footings and fencing
- Audible and visual alarms catch leveling errors
- Very complete kit with 13 ft rod
- tripod
- detector
- remote and hard case
- Heaviest package in the roundup at over 35 pounds
- Red beam is hard to read in bright daylight
- Manual slope entry rather than a digital slope readout
The Johnson 99-028K is a programmable dual-slope rotary laser system, and that dual-slope function is the whole reason it is on this list. Both axes tilt up to 5 degrees in either direction, so you set the percentage fall on the unit and the beam holds it across the whole site without recalculating at every rod position.
For drainage work that is the difference between a ten minute setup and a long afternoon of arithmetic. The unit also self-levels vertically, which extends it to layout, fencing and footing lines rather than flat grading only.
Safety features are unusually well covered. Visual and audible out-of-level alarms trigger when the leveling range is exceeded, and the package includes both a NiMH rechargeable pack with a 6.4V charger and an alkaline battery compartment, plus a remote control, a detector with clamp, an elevating tripod, a 13 ft grade rod, a magnetic target, tinted glasses and a hard-shell case.
Buyers treat this as Johnson’s workhorse for drainage, flatwork and yard work, and the dual-slope program plus the alarms earn most of the praise. The three-year manufacturer warranty is a little shorter than Spectra’s five years on the kit above.
On class rating, this is a Class IIIa laser with a maximum output of 5 mW, so it falls on the correct side of the line for open site work. Red-tinted glasses are included in the case for interior shots where the beam needs to be picked out against a wall.
Our guide to rotary lasers for grading contractors goes deeper into the professional end of the market, including units with wider slope ranges and longer runtime than this one.
When dual slope actually pays for itself
It pays when the fall is a specification rather than a description. A yard that has to drain at 2 percent, a swale that has to connect two elevations across 60 feet, a pad that crowns in both directions for water to leave. In each case the laser holds the target and you move the rod rather than think.
It also pays on jobs where the same fall repeats. Once the slope is dialled in, the rod reading is a number you can hand to anyone on the crew. That is a training and consistency win as much as a speed win.
What you give up for it
Weight, mostly. At over 35 pounds this is the heaviest package in the roundup, and carrying it from the truck to the far corner of a site adds up. The red beam is also noticeably harder to read outdoors in full sun than a green unit, so daytime work leans entirely on the detector.
And the slope entry is manual rather than a digital readout. You are still turning a knob to a percentage, you are just doing it on two axes instead of one.

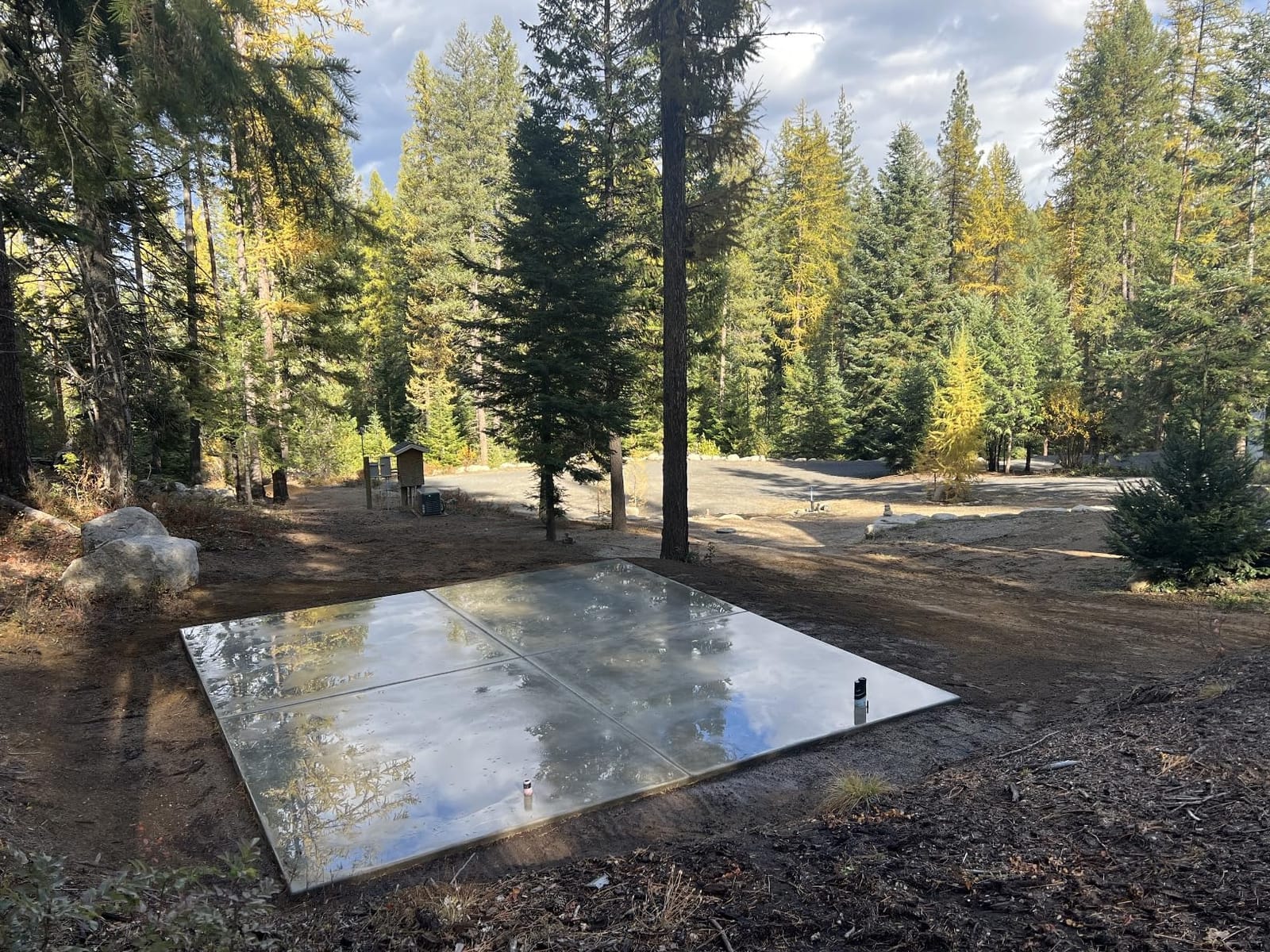

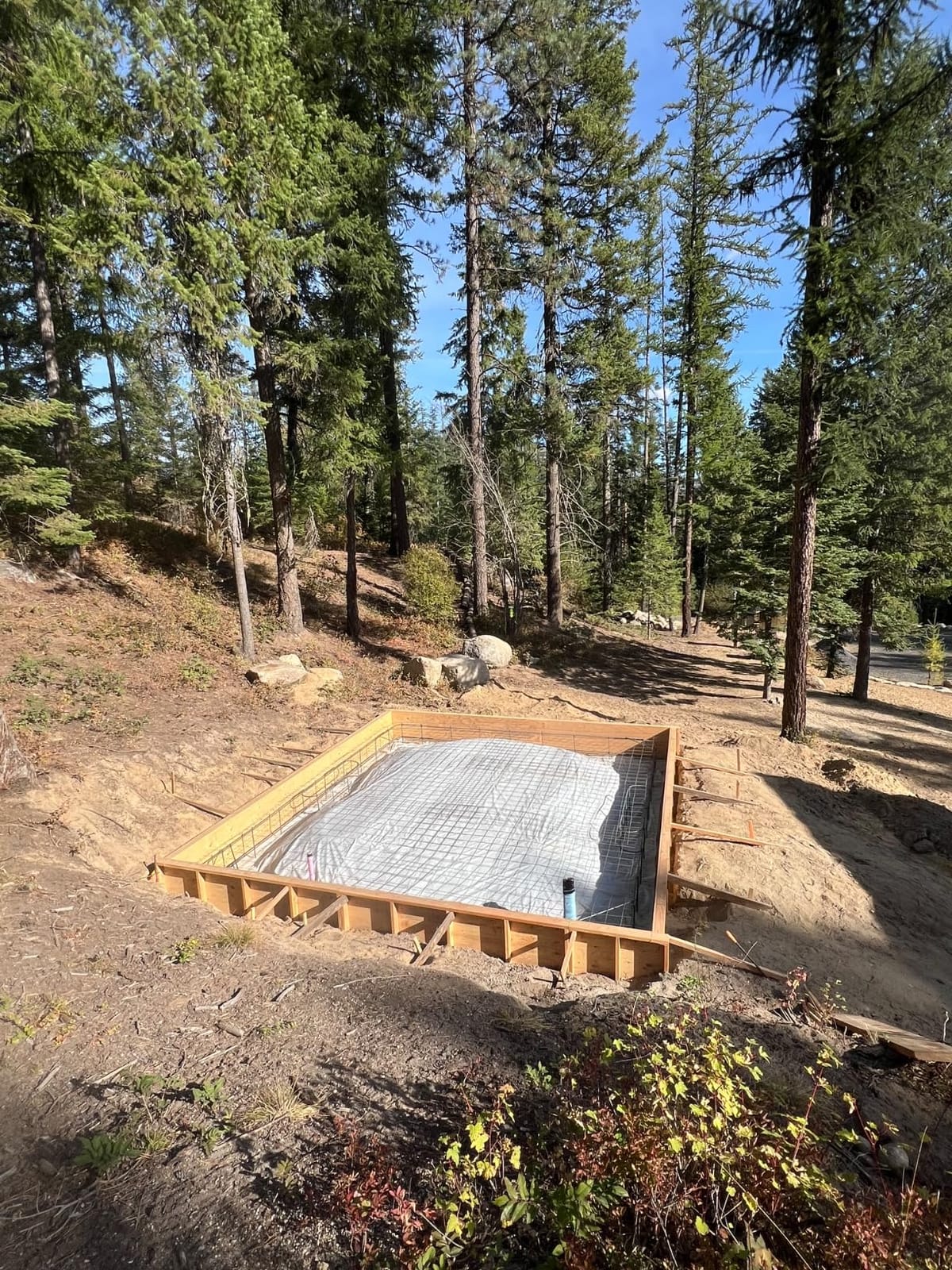

5. Johnson 40-6517 – Best Budget Rotary Laser for Dirt and Yard Work
Johnson Level & Tool 40-6517 Self-Leveling Rotary Laser System, 29 x 7″, Red, 1 Kit
- Entry-level listed figure among the Johnson systems here
- Laser and grade rod are well built and passed accuracy checks out of the box
- Complete kit with tripod
- detector
- rod
- wall mount and case
- Simple setup for entry-level grading
- Flimsy tripod and plastic-feeling receiver
- Thin soft carrying case
- Batteries must be removed after use or it beeps continuously
- Red beam is difficult to see in daylight
The 40-6517 is a single-slope horizontal self-leveling rotary system, Class IIIa at 5 mW maximum, and it sits at the entry end of the range these complete kits occupy. The package includes the laser, four AA cells, a wall and ceiling mount, an 8 ft grade rod, a detector with clamp, tinted glasses, a magnetic target, an elevating tripod and a hard-shell case.
Owners call it an entry-level unit that gets the job done, with strong value for home dirt work, retaining walls, downspouts and light yard work. The laser and rod themselves are well built and passed an accuracy check out of the box, which is more than some budget kits can say.
That 8 ft rod is the specification to look at carefully. Grading forum threads flag short included rods as a recurring trap, and for anything beyond a small pad you will want a longer one. A 16 ft rod is the practical minimum for real work, so plan on adding it.
The critical reviews concentrate on the support equipment rather than the laser: a flimsy tripod, a toy-like plastic receiver and a thin case. There are also reports of accuracy that does not hold on slab and grade-rod work, and a specific annoyance where the unit beeps continuously unless you remove the batteries after use.
For a homeowner building a driveway apron or a small pad, this is a defensible tool. The plastic receiver and light tripod are the parts most likely to fail first, and both are cheaper to replace than a laser body.
For a professional, the tripod weakness matters more. A floppy tripod transfers vibration into the reading, and vibration is exactly what self-leveling is trying to reject.
If your work is mostly interior or small landscaping projects rather than transfer of elevation across a site, our laser levels for DIY projects guide covers the formats that suit that work better.
What this kit is genuinely good for
Dirt, topsoil and hardscape work inside a single property. Retaining wall footing lines, downspout drainage extensions, shed and fence post elevations. Anywhere the total distance is short enough that the 8 ft rod reaches and the setup is measured in minutes rather than hours.
Its single grade design covers the common case of a straight fall in one direction, which handles most yard drainage without any slope programming at all.
Where the money was saved
The tripod, the receiver and the case are where the cost came out. The laser head itself is competent, and reviewers generally single out the head rather than the accessories when describing quality. The other recurring issue is red beam daylight visibility, which pushes you to the detector for most outdoor shots.
Accuracy complaints on slab work are the reason this ranks fifth rather than higher. Check it against your own tolerance before committing to a finish floor layout.
6. Bosch GRL2000-40HVK – Best Long-Range Dual-Slope Kit
BOSCH PRO GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical
- Genuine dual-axis manual slope for grading work
- 2000 ft working range with the LR20 receiver
- Disturbance monitor keeps readings consistent on rough ground
- Full kit with tripod
- 13 ft rod
- remote
- wall mount and hard case
- Listed above every other kit reviewed
- Plastic body feels less premium than aluminum competitors
- One-star reviews make up 14 percent of ratings
- IP56 sits a step below the IP66 units
The Bosch GRL2000-40HVK is one of only two kits here with slope on both the X and Y axes, and it publishes 1/16 inch accuracy at 100 feet with up to 2,000 ft of working range through the LR20 receiver. That makes it the natural fit for a large site where a single setup has to cover the whole parcel.
The dual slope is manual rather than programmed, so you adjust each axis by hand. For a pad that falls one way that is a five second setup. For cross-slope it is still faster than computing a rod reading, but it is not the same as a percentage display.
Two job-site features stand out. The disturbance monitor warns you if the tool position changes, which matters on ground that is being worked. The vertical beam at 90 degrees handles layout, squaring and plumb, extending the unit beyond grading into foundation work.
Reviewers like the range and the dual-axis control but the rating spread is the widest here. Some buyers report solid accuracy, while 14 percent of ratings are one star, and the price is the highest in the roundup. The plastic body also feels a step below the aluminum-bodied rivals, and IP56 protection is a notch under the IP66 units.
When 2,000 ft of range is the deciding factor
One setup covering a large parcel saves the setup time that dominates a short site. The 2,000 ft figure with the LR20 receiver, paired with 1/16 inch accuracy at 100 feet, is what earns this kit a place here. The LotaTools 207-Green quotes a longer diameter but only ±1/10 inch at 100 feet, and the Firecore FRL300R quotes ±1/8 inch.
Dual-axis manual slope on X and Y means a cross-sloped pad is two adjustments rather than a recalculation at every rod position. The vertical beam at 90 degrees extends the same tool to footing layout and plumb work.
What to weigh before buying
The rating spread is the concern. 14 percent one-star reviews is the largest share in this roundup, and the plastic body plus an IP56 rating both sit below the aluminum IP66 units. Bosch also warrants measuring and layout tools for one year, extendable by a second when you register within eight weeks, which is the shortest coverage here.

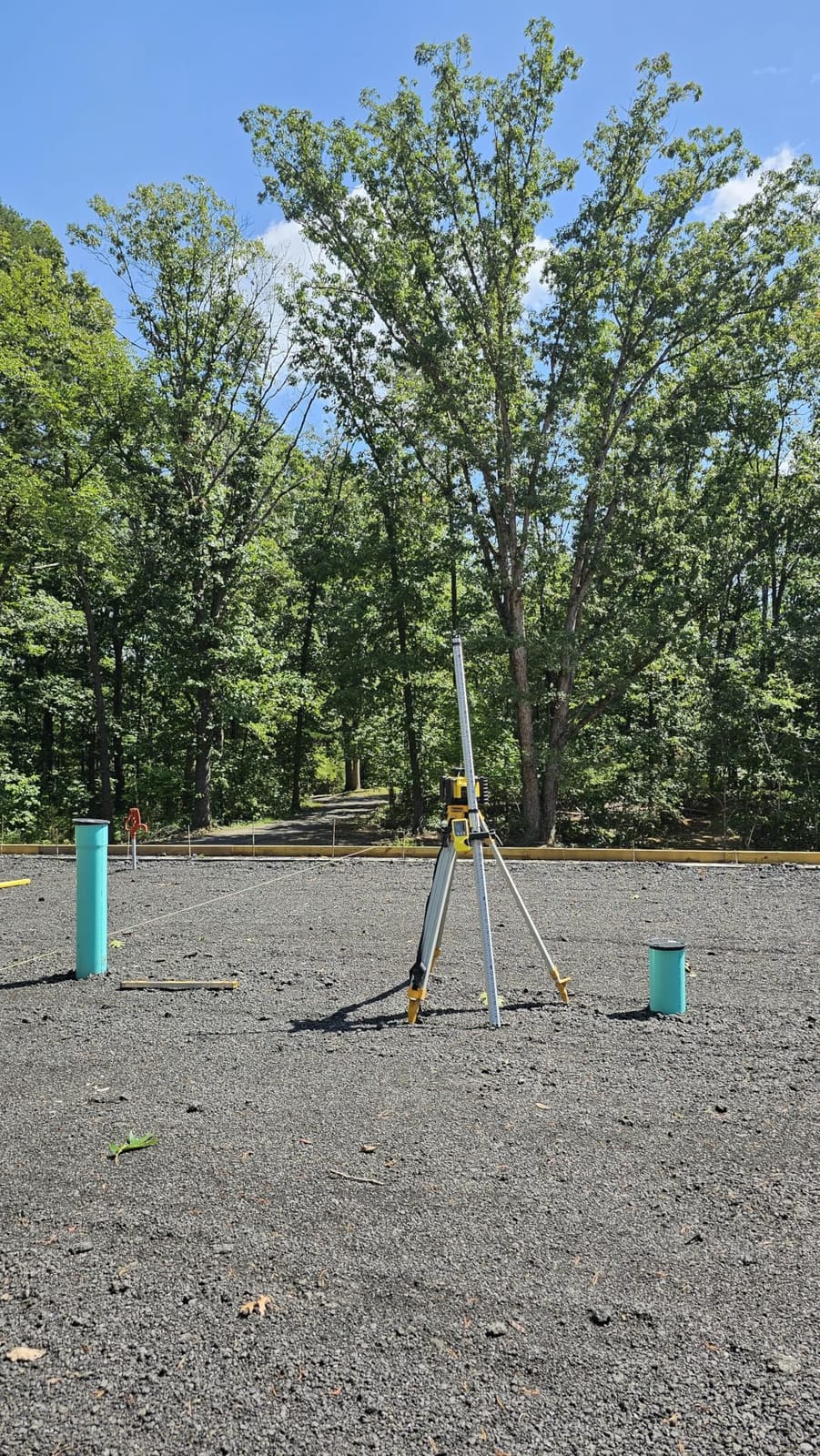

7. Firecore FRL300R – Best Rotary Laser for Occasional Grading
- Strong coverage for the money with genuine 1969 ft of diameter
- Vibrate mode locks the cross level at any angle
- Rechargeable Li-ion with Type-C charging and 15 hour runtime
- Self-levels in 15 seconds and re-levels after a bump
- Red beam is hard to see in dim rooms and bright sun
- Receiver and housing feel cheap next to Spectra or Topcon
- Replacement battery is difficult to source
- Review history is 71 ratings
- shorter than most here
The FRL300R covers 1,969 ft, or 600 m, of diameter with the included receiver and holds ±1/8 inch accuracy at 100 feet. For occasional grading work, septic installs, pool and deck builds, that is more coverage and accuracy than most such jobs need, and it sits at the entry end of the range these kits occupy.
The vibrate mode is the feature nobody else here has. It locks the cross level so the unit can be used at any angle in wind or on vibrating equipment, which is a genuine advantage on a machine-mounted or exposed setup. Electronic self-leveling takes about 15 seconds within 5 degrees, and the unit re-levels itself after being knocked.
Power comes from a rechargeable Li-ion battery with a Type-C port and up to 15 hours of continuous working time. Class II at 1 mW or less is the gentler safety class, and the body is rated IP55 and tested to survive 3.3 ft drops onto concrete.
Buyers consistently report performance comparable to units costing several times more, with owners using it for grading and reporting accuracy within spec. The criticisms are the red beam’s visibility, the inexpensive feel of the receiver and housing, and difficulty sourcing a replacement battery. The review history is also on the thin side at 71 ratings.
The battery sourcing issue is the one to weigh. A sealed Li-ion pack with no readily available replacement is a real risk on a unit you might keep for years, and it is the single most important difference between this kit and a D-cell model.
The kit contents are sensible for the price: the FRL300R laser, remote control, red glasses, the Li-ion battery and Type-C charger, a red target plate, an FRD100 receiver with rod clamp, a manual and a hard case. Note that there is no tripod or grade rod in the box, so budget for both.
What the vibrate mode is actually for
A conventional self-leveling unit refuses to sit at an angle, so wind, a machine running nearby or a mount on moving equipment puts it out of specification. Vibrate mode locks the cross level so the beam holds at any angle, which is what makes machine-mounted and exposed setups workable.
Self-leveling within 5 degrees in about 15 seconds, plus automatic re-leveling after a bump, keeps the setup forgiving when you are working alone.
What to check before you buy
Confirm you can source a replacement Li-ion pack before committing, because that is the one failure mode that would end the tool’s life. At 71 reviews the history is the thinnest here, and there is no tripod or grade rod in the box, so those are additional costs on an already budget purchase.
8. Klein Tools 93RLS – Best Green Beam for Daylight Site Work
Klein Tools 93RLS Green Self-Leveling Rotary Laser Level Kit, 1150-Foot
- Green beam is far easier to see than red in bright outdoor conditions
- USB-C rechargeable with up to 24 hours of runtime
- Owners measured it out to 750 ft and found it spot on
- Leveled tripod and detector
- Neatly organized hard case
- Built-in non-removable battery with no field spare
- No published slope percentage or dual-slope function
- Only 38 ratings
- the second thinnest history here
- A minority of one-star reviews report early failures
The 93RLS is a green-beam kit and that single fact changes outdoor work more than any other spec on this list. Green light is several times more visible to the human eye than red in daylight, so you spend far less of the day hunting for the beam with a detector. It is a Class 3R unit at 5 mW or less, reaching up to 1,150 ft with the included detector.
The built-in rechargeable battery runs up to 24 hours and charges over USB-C, one of the more convenient power setups in the roundup. Impact sensing pauses operation if the unit is disturbed, and 360 degree horizontal and vertical coverage with an integrated plumb spot covers layout as well as elevation.
Buyers like the visibility and the build quality. Owners report measuring it out to 750 ft and finding it spot on, and the kit arrives with a tripod, detector, 9 ft grade rod and an organized hard case. Audio and visual signal indicators on the receiver mean you can work with your eyes on the rod rather than on the machine.
The trade-off is the sealed battery. There is no removable pack and no field spare once it ages, which on a long-lived tool is a real planning constraint. There is also no published slope percentage or dual-slope grade function, and the review base is on the thin side at 38 ratings, with a minority of one-star early failure reports.
Green versus red comes up constantly in grading forums and the answer is consistent: outdoors in full sun, a green beam saves time; indoors, red is usually fine and a green beam can be too bright to look at directly on a wall.
That makes this a workday tool rather than an all-purpose one. If a good share of your grading happens at dawn, dusk or on a shaded site, the difference in productivity is more than the spec sheet suggests.
Where the green beam earns its place
Any job where you are reading the rod visually rather than listening to the receiver: checking a spot elevation without walking the whole line, confirming a benchmark transfer, spotting a grade from a distance. Those are exactly the cases where a red beam disappears and a green one does not.
It also reduces fatigue. Chasing an invisible beam with a detector means holding your eye to the receiver constantly, which is hard work over a long day in bright conditions.
Where it falls short for grading specifically
No slope function. If your work is drainage rather than flat elevation, this is the wrong shape of tool and the Johnson 99-028K or Bosch GRL2000 is a better fit despite the red beam.
The sealed battery and the 38-review history are the two things to weigh against that. For a buyer who replaces tools every few years, neither matters much. For a crew that runs one laser for a decade, the battery is the deciding factor.
9. LotaTools 207-Green – Best Green-Beam Kit for DIY Grading
- Bright green beam easy to see in dim garages and shaded outdoor work
- Automatic self-leveling within 5 degrees keeps lines straight
- Magnetic bracket holds on steel framing
- Compact sturdy body
- Well under the price of green kits from major brands
- One owner reported the unit stopped charging after a couple of months
- Auto-leveling takes practice to dial in
- Thinnest review history here at 27 ratings
- Long-term durability and battery longevity are unproven

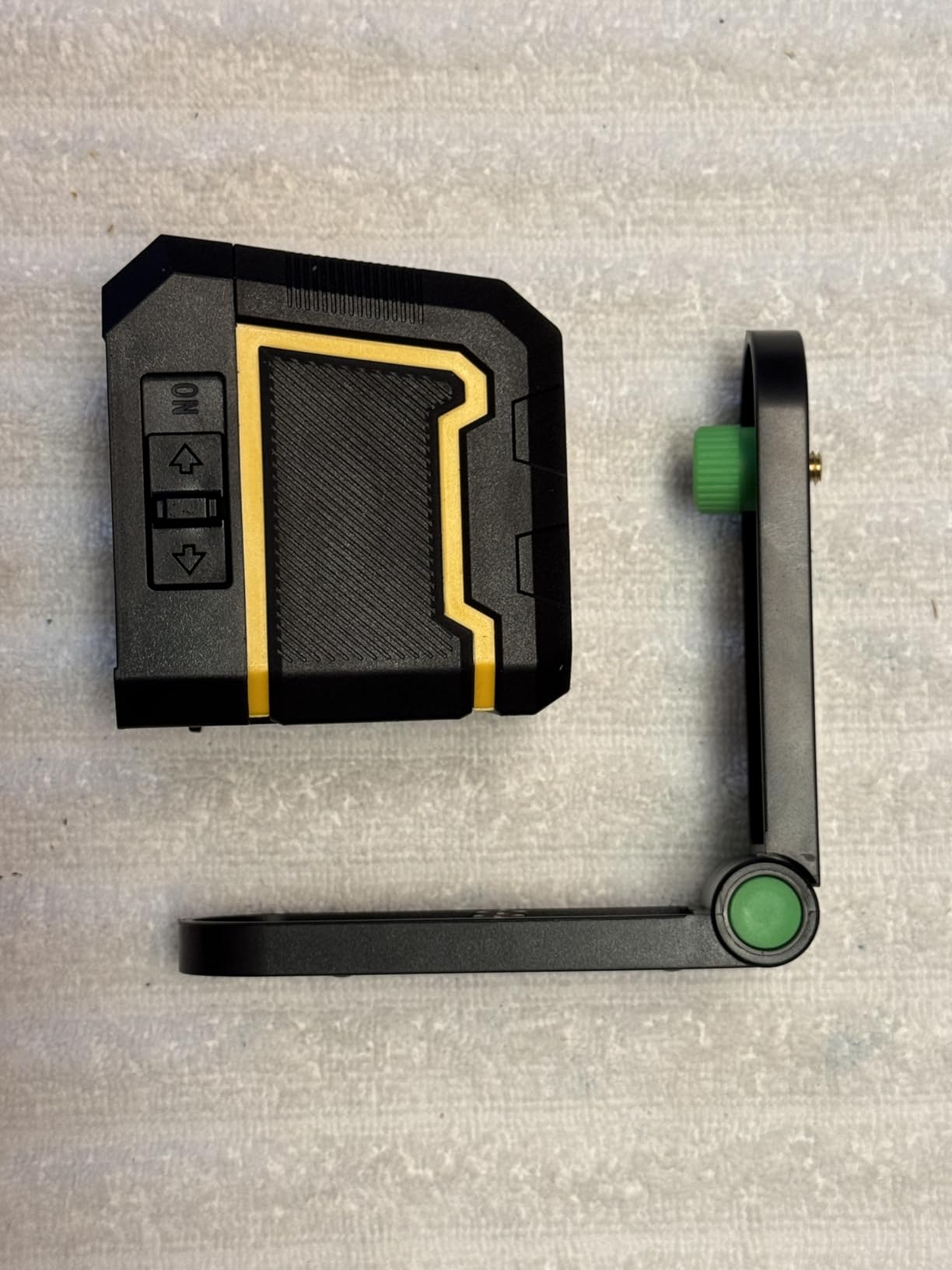

The LotaTools 207-Green is a 520 nm green diode rated at 5 mW or less, with up to 2,300 ft of operating diameter through the included receiver and ±1/10 inch accuracy at 100 feet. Automatic self-leveling works within ±5 degrees, and the housing carries IP66 dust and water resistance with an impact-resistant shell.

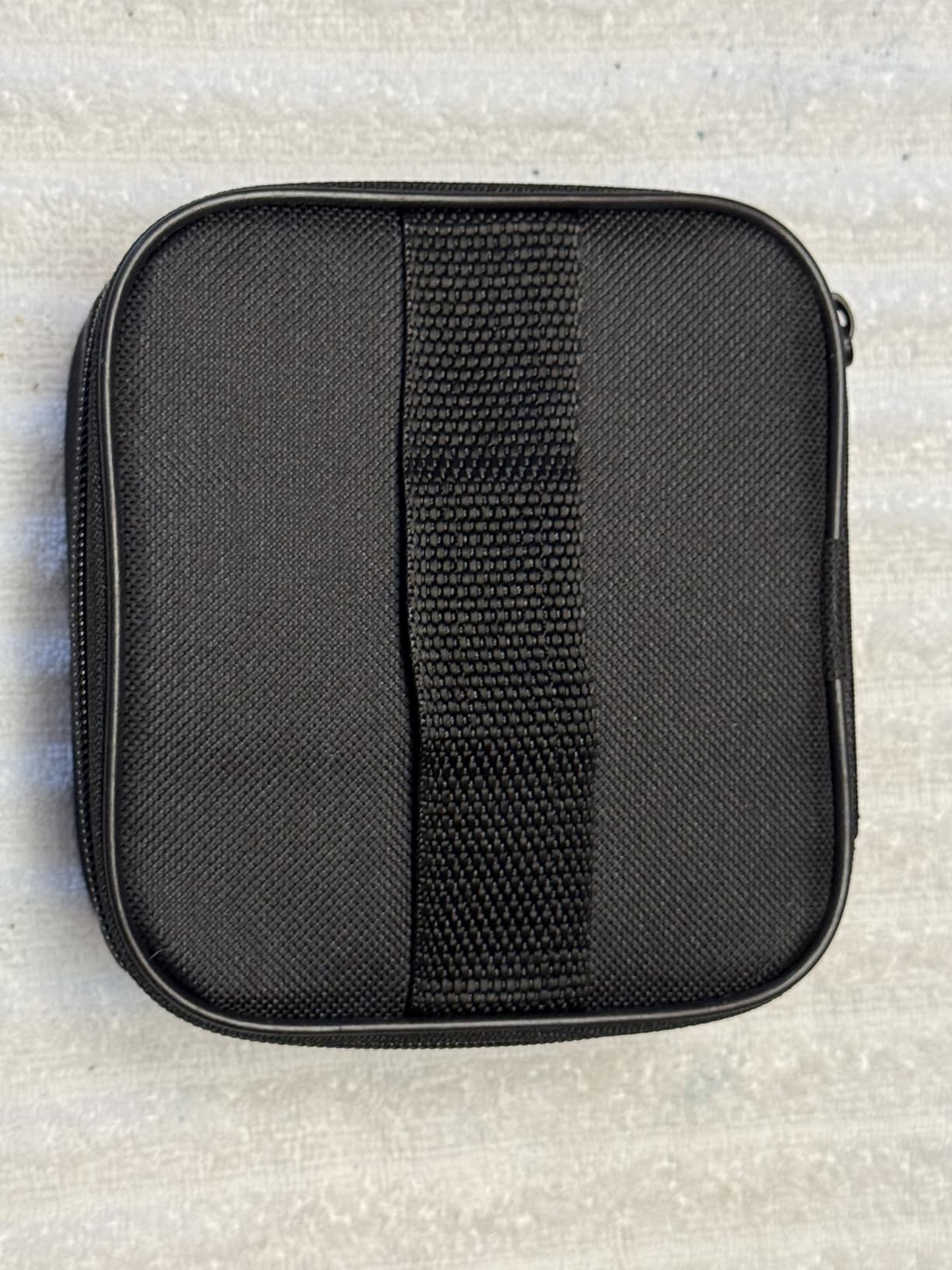

That combination of green beam, IP66 and a stated accuracy figure puts it ahead of several red-beam units in this list on paper, and the kit is complete: receiver with clamp, remote control, target card, protective glasses, a five-section grade rod, a 5.5 ft aluminum tripod and a carrying case.
Reviewers describe a bright, easy-to-use laser that holds tight lines, with a magnetic bracket that holds on steel framing and multiple brightness levels. The praise focuses on value for DIY and light trade work, well under the price of green kits from major brands.
The negative reports are specific. One owner reported the unit stopped charging after a couple of months, and several noted that the auto-leveling takes practice to dial in. With 27 ratings, long-term durability and battery longevity are genuinely unproven rather than simply untested.
On the 5.5 ft tripod, be aware that is a light-duty tripod rather than a site tripod. It is fine for a yard or a driveway, but vibration on a working machine is where light tripods cause trouble.
Our builders levels guide covers the manual alternatives, which remain the right call for short distances where a laser is overkill.
Where a DIY green kit makes sense
Building a driveway, levelling a patio base, setting deck post elevations or laying a foundation in a garage. Shaded lots, wooded sites and indoor work where the beam has to be read directly. On those jobs the green beam and the complete kit are the reason to buy it.
It is also a reasonable first laser for someone who has never used a grade rod, because a visible beam makes the concept easier to learn than a red beam you can only find with a detector.
Where the risk sits
Charging reliability is the open question, and it is the one that matters most for a sealed rechargeable design. Buy it for a defined job rather than as a long-term site investment, and check the return terms before you commit.
Twenty-seven ratings cannot tell you much about five years of service, and nobody who has reviewed it claims otherwise.
How to Shoot a Grade With a Rotary Laser
This is the workflow most ranking pages skip, and it is the part that actually determines whether your grade is right. Six steps, and the whole thing takes about ten minutes once you have done it twice.
1. Set height of instrument. Stand the tripod on solid ground, roughly at the height you want to work at, and let the unit self-level. Check that the self-leveling completes before you walk away from it. On units with a disturbance monitor or an out-of-level alarm, this is where it confirms the instrument is stable.
2. Shoot a known elevation. Put the receiver on the grade rod at a benchmark or a spot you have already established. Raise or lower the rod until the receiver beeps steadily with the fine mode. Read that number off the rod graduations. That reading is your transfer elevation.
3. Transfer the elevation to a second rod. Move the rod to the next working point and slide it until the receiver beeps evenly again. The reading there is the same elevation. Every point you mark this way is now a reference you can come back to.
4. Set the slope. On a single grade unit this is a manual adjustment on one axis. On a dual grade unit you enter the percentage on the panel, commonly 1 percent for general drainage fall and 2 percent for a yard that has to shed water quickly. If you are matching an existing grade instead, shoot the existing slope and compute the fall from two rod readings.
5. Read cut and fill. At each point, compare the rod reading against the rod height you need. A reading that is too high means cut, too low means fill. Work back and forth across the site until every point reads within your tolerance.
6. Re-check as you go. On manual grading, check grade every 3 to 5 metres or after each pass. On machine control with a receiver mounted on the blade, feedback is continuous instead. Either way, an unverified grade is not finished.
The laser sets the grade line. The machine that cuts to it is a separate problem, and our guide to tractor box blades for driveway grading covers how to actually move the dirt once the numbers are on the rod.
Buying Guide: What to Check Before You Buy a Grade Laser
The first question is whether you need dual grade at all. If every job you run is flat pads, form setup and elevation transfer, a single grade unit is enough and you should spend the difference on a better receiver and a longer rod. If any part of your work involves water moving across a surface, dual slope is not a luxury.
The second is the accuracy spec, and you need to read it as a pair of numbers. ±1/8 inch at 100 feet is a real claim; ±1/8 inch at 50 feet is a weaker one stated the same way. Error compounds linearly with distance, so a quarter inch tolerance at 50 feet becomes a foot of drift at 200 feet. Check the distance the spec is quoted at, not just the fraction.
The third is the system, not the laser. A bare unit needs a tripod, a receiver and a grade rod before it does anything, and those three items are where a surprising amount of the real cost sits. Kits that bundle all of it, like the LL300N-1, the LL100N-2 and the Johnson 99-028K, remove that calculation entirely. The Firecore FRL300R includes a receiver and rod clamp but no tripod or rod, so both of those are still additions.
Grade rod length is the fourth. The 8 ft rod in the Johnson 40-6517 and the 9 ft rod in the Klein kit are fine for small work. For pads and driveways, a 16 ft rod is the practical minimum, and the 15 ft tenths rod in the Spectra LL300N-1 is the length most of this kit category settles on.
Battery ecosystem is the fifth, and it is the one contractors raise most. D-cell models such as the Topcon RL-H5A and the Spectra LL300N-1 use batteries anyone can buy anywhere, which eliminates a whole category of annoyance. Sealed rechargeable packs are more convenient day to day but harder to replace when they age, and that tradeoff is the main complaint on the Firecore and Klein units here. What to consider for other tool ecosystems is covered in our construction laser level roundup.
IP66 means dust-tight and protected against powerful water jets, which is what you want for open site work in weather. IP55 and IP56 are adequate for general construction but are a step down if you work in wet conditions routinely.
Finally, service and calibration. Ask the manufacturer or dealer what the calibration interval is and where the unit is serviced, because consumer-grade models are often not locally repairable. Warranty length varies widely across this group, from three years on the Johnson kits to five years on the Spectra LL300N-1, and that difference matters if you intend to keep the tool for a decade.
Frequently Asked Questions
What is the best rotary laser level for grading?
The Topcon RL-H5A is the best rotary laser level for grading overall. It self-levels electronically to 10 arc seconds, covers an 800 m job site diameter, carries an IP66 all-weather body and runs up to 100 hours on four D cells. For percentage fall work, the Johnson 99-028K adds programmable dual slope on both axes.
What type of laser level is used for grading?
A self-leveling rotary laser is used for grading, paired with a receiver clamped to a grade rod. The unit levels itself within about 5 degrees and spins a 360 degree beam; you raise or lower the rod until the receiver beeps evenly, which places it at exact elevation. A grade laser adds manual or automatic slope on one or two axes so the beam can hold a percentage fall.
What is the best priced laser level for grading?
Among complete kits, the Firecore FRL300R covers 1969 ft with its included receiver at 1/8 inch accuracy at 100 feet, and the Johnson 40-6517 is a full system with a tripod, detector and 8 ft rod at the entry end of the range. Note that several cheaper bare lasers ship without a receiver, tripod or grade rod, so the lowest listed figure is rarely the lowest cost to get working.
Is Topcon or Spectra better?
It depends on what you are buying. Topcon is the stronger general-purpose choice here, with the highest review count, the longest battery runtime and an IP66 body. Spectra is the stronger complete-kit choice, bundling a receiver, clamp, tripod and 15 ft tenths grade rod in the case with a five year warranty. Contractors who work slope regularly still add a dual-axis unit to either.
Do I need a dual grade laser for grading?
You need one if water has to move across the surface. Flat pads, form alignment and elevation transfer are fine with a single grade laser. Drainage, swales, cross-sloped pads and driveway aprons are not, because a single grade unit shoots one level plane and you end up computing the fall by hand at every rod position.
Green beam vs red beam rotary laser for outdoor grading?
Green is significantly easier to see in daylight, so you spend less of the day searching for the beam with a detector. Red is fine indoors and works with lower-cost receivers. The Klein Tools 93RLS and the LotaTools 207-Green are the green units in this roundup; everything else is red.
How often should a rotating laser be calibrated?
Check calibration annually, and after any impact, drop or repair. Budget-grade and no-name units are often not locally serviceable, so confirm the calibration interval and service location with the manufacturer before buying, and register the unit if registration extends the warranty.
Should I buy or rent a rotary laser for occasional grading?
If you are grading a few times a year, renting removes the calibration and service burden entirely. If you own or work around a machine that needs regular elevation checks, buying pays back quickly, and a complete kit is the right format because a bare laser is not usable without a receiver, tripod and rod.
Conclusion: Which Rotary Laser Level for Grading Fits Your Work
The Topcon RL-H5A is the best rotary laser level for grading overall in 2026, because accuracy, runtime and IP66 protection in one body beat every alternative here, and its 769 ratings give you the largest body of owner feedback to judge it by. Buy it if your work is mostly level elevation transfer and you value D cells that any shop sells.
Pick the Spectra LL300N-1 if you want everything in one case on day one, including a 15 ft tenths rod. Pick the Johnson 99-028K if water has to move and you want dual slope on both axes. The Bosch GRL2000-40HVK is the answer when one setup has to cover 2,000 ft. The Klein 93RLS is the one to buy if you work in bright sun and want to stop hunting for a red beam.
Whatever you choose, buy the system rather than the head. A rotary laser without a receiver, a tripod and a grade rod is not a grading tool, it is a component.
