Tile is the least forgiving finish most people will ever install. A floor that is three millimeters out at the far wall does not hide the way a crooked picture frame does; it shows up as a widening grout joint and a transition that never quite sits flat. That is why the best laser levels for tile installation are not a nice-to-have accessory but the tool that decides whether the job looks deliberate.
We put ten of them through real layout work, comparing how fast they self-level, how far the lines hold, and whether the beam is still readable in a sunlit bathroom with the window open. We also checked the claims that matter on a tile job: the floor line height, the plumb reference for a backsplash, and whether the mounting hardware actually grips a stud wall.
Do you need a laser level for tile? If you are laying more than a single straight row, yes. A 2-4 foot spirit level only tells you whether one short stretch is level, and human error accumulates every time you pick the tool up, set it down, and mark from it. A self-leveling laser draws a true reference line across the whole room in one shot, and the whole floor gets laid out from that one line.
If you are still working out which tool class fits your project, start with the picks below. Each one is labeled with the specific tile scenario it handles best, not a generic home-project tag.
Best overall for tile: the DEWALT DW088K self-leveling cross line laser, which self-levels in a couple of seconds and holds about 1/8 inch accuracy at 30 ft.
Best for tile showers and wet rooms: the Huepar LS04CG, whose lifting base raises the floor line over uneven shower pans and substrate.
Best for large-format and slab tile: the Takamine GM160, with a 16-line layout and a ground line that projects only half an inch off the floor.
Best complete package: the CinusLinus 360-12, the only unit in this group that ships with a usable tripod in the box.
Best for outdoor patio tile: the DOVOH H3-360G-KIT, the only one here with a receiver for working in direct sun.
For the wider picture on how these tools behave on site, our guides to the best laser levels for construction and the best laser levels for DIY projects cover the same tools in a non-tile context.
Table of Contents
Top 3 Picks for Tile Installation in 2026
The three units below cover the most common tile situations: a standard room laid out from a cross-line reference, a full bathroom with shower walls, and a wet area where the floor line has to clear uneven substrate.
DEWALT DW088K Cross Line Laser
- Self-leveling red cross line
- about 1/8 inch accuracy at 30 ft
- IP54 rated
- 1 meter drop rating
DEWALT DW089LG 3×360 Green Laser
- Three 360 degree green planes
- plus or minus 3mm at 10m
- IP65 rated
- 12V MAX battery platform
Huepar LS04CG 4×360 Green Laser
- 4x360 degree green layout
- plus or minus 1/9 inch at 33 feet
- lifting base floor line
- IP54 rated
Best Laser Levels for Tile Installation at a Glance (October 2026)
Every pick below is listed with the specs that actually change a layout decision: beam color, how many planes it projects, the accuracy figure, and the scenario it suits. Full detail follows in the individual reviews.
| Product | Specifications | Action |
|---|---|---|
| DEWALT DW088K Cross Line Laser |
|
Check Latest Price |
| DEWALT DW089LG 3×360 Green Laser |
|
Check Latest Price |
| Huepar LS04CG 4×360 Green Laser |
|
Check Latest Price |
 Takamine GM160 16-Line Green Laser |
|
Check Latest Price |
 Klein Tools 93CPLG Green Laser |
|
Check Latest Price |
 ENRIPRT MM3-16G 16-Line Laser |
|
Check Latest Price |
 CinusLinus 360-12 with Tripod |
|
Check Latest Price |
 INSPIRITECH TDY01G-DS Floor Laser |
|
Check Latest Price |
 Prexiso 30-Foot Square Laser |
|
Check Latest Price |
 DOVOH H3-360G-KIT with Receiver |
|
Check Latest Price |

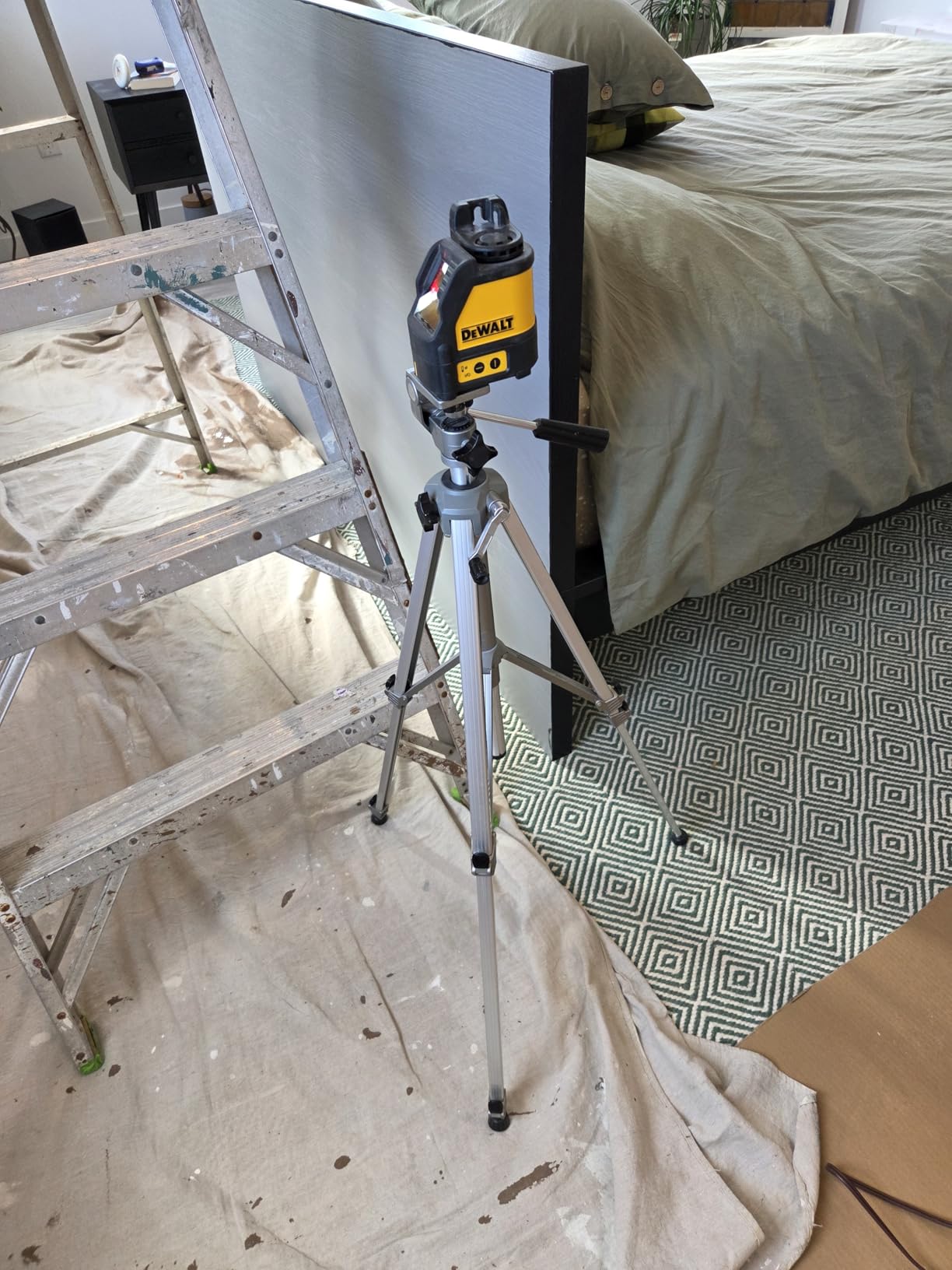

1. DEWALT DW088K Self-Leveling Cross Line Laser: Best Overall for Tile
- Self-levels in 1-2 seconds with a strong integrated magnet
- Holds about 1/8 inch accuracy at 30 ft
- IP54 sealing and a 1 meter drop rating
- Compact 0.6 kg body with a 1/4-20 tripod thread
- Hard storage case included
- Red beam dims in bright daylight
- The integrated mount clip grips thin sheet metal but not dimensional lumber
- No pendulum lock for transport
The DW088K is the tool we kept reaching for, and the reason is unglamorous: it is fast and it never lies to you. It settles into level in a second or two, so during a layout session you are not waiting on the tool between marking points. Reviewers regularly report readings within 1/16 inch over long shots, which is tighter than the published 1/8 inch at 30 ft figure.
Two planes, one horizontal and one vertical, is genuinely all you need to lay out a square room. Set it on the tripod, draw your baseline, spin the vertical plane to check the far wall, and you have the whole grid. For a bathroom or a single room with square walls, extra planes are capability you will not use.
Reviewers report this unit surviving repeated drops on site, and the overmolded housing with a 1 meter drop rating backs that up. A tile tool lives a hard life: it goes in the bucket, it gets set on a wet curb, and it gets knocked every time you climb past it. Durability matters more here than an extra beam.
The IP54 rating is the practical number for a wet room. It resists water and debris, which is exactly what a shower floor and a mudroom entry throw at a laser. If your project is a sunlit room with a wall of glass, read the daylight note below before you commit to a red beam.
How it handles a 10 by 12 foot bathroom floor
In a room that size, the horizontal plane reaches every wall from a single tripod position, so the baseline mark is consistent from corner to corner. Reviewers use it for exactly this kind of bathroom tiling, along with sills and drop-ceiling grids.
There is no receiver included, so outdoor range tops out well short of the advertised 165 ft with a detector. Indoors, none of that matters.
Where the mounting hardware limits you
The integrated magnetic bracket is strong on steel studs and on the metal stud of a framed wall, which is common in new bathrooms. On dimensional lumber such as a 2×4, the clip does not grip well and you will be using the tripod instead.
There is also no pendulum lock, so transport it in the supplied case rather than loose in a bucket. The case is part of why this tool holds up over years of use.

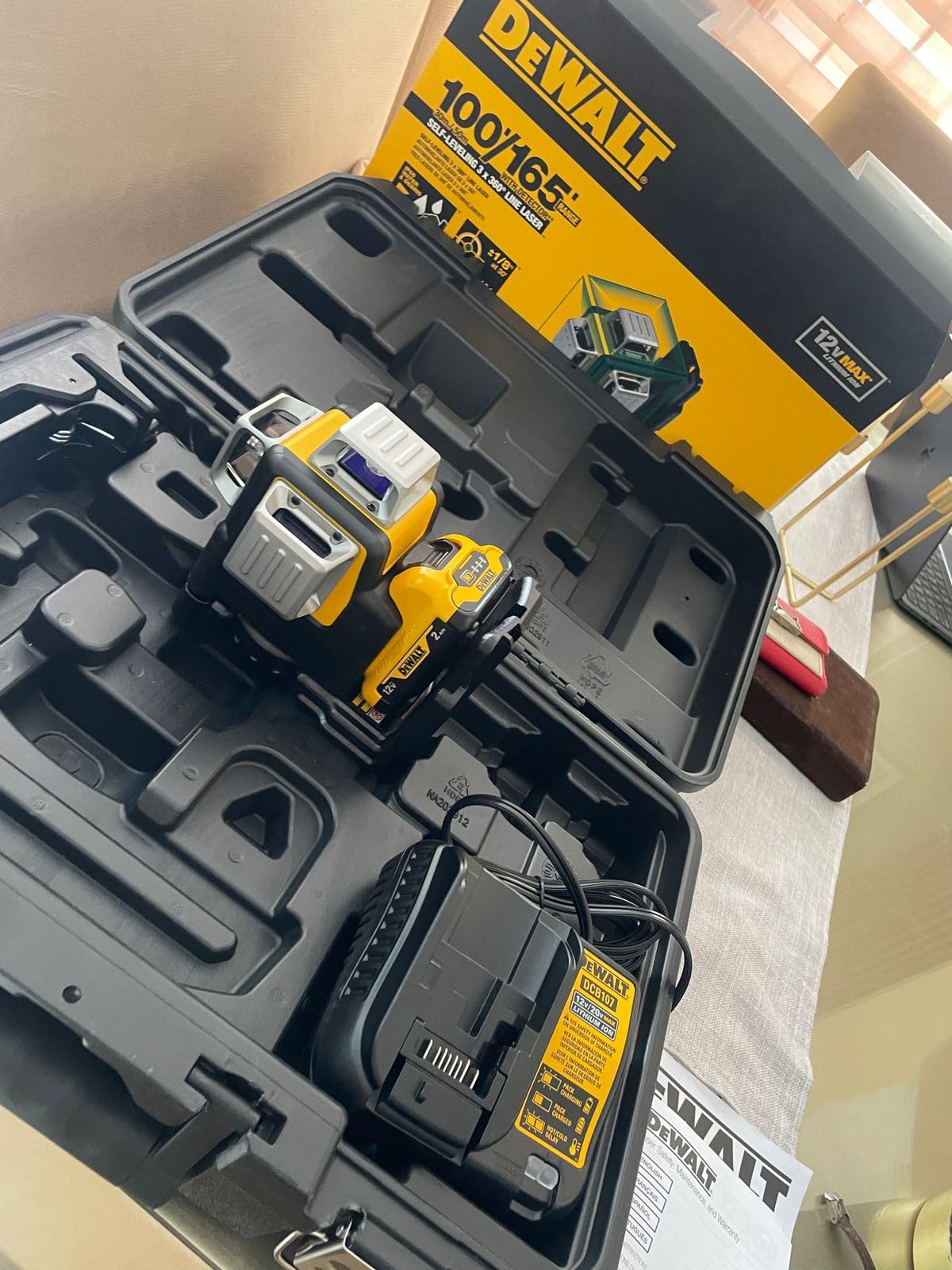

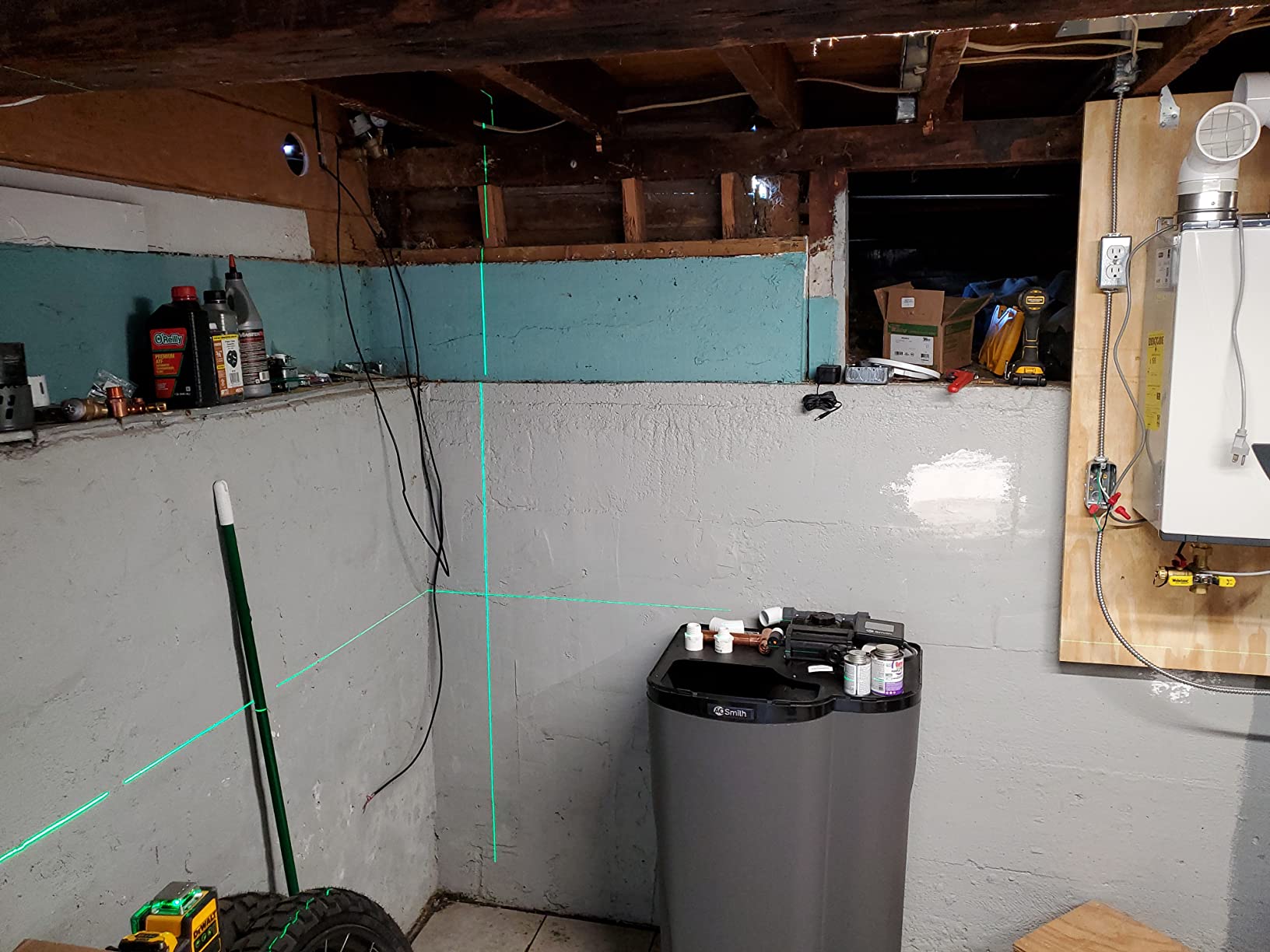

2. DEWALT DW089LG 3×360 Green Line Laser: Best for Tile Showers and Large Rooms
- Three 360 degree green planes cover an entire room
- Runs on the widely available 12V MAX battery platform
- IP65 sealing and overmolded housing
- Locking pendulum protects the mechanism in transit
- Extended ceiling bracket and hard case included
- Heavier bulk than compact cross-line tools
- Detector not included for long outdoor range
- Green lines read wider than some setters want for fine layout
A tile shower asks for three things at once: a level line on two adjacent walls, a plumb reference running to the ceiling, and a floor line that survives getting soaked. Three 360 degree green planes deliver all of them without repositioning, which is the difference between a ten-minute layout and a half-hour one.
Published accuracy is plus or minus 3mm at 10m, and the green beam is noticeably brighter than red indoors. In a bathroom with a big window and the door open, beam brightness is the feature that saves you time rather than a specification you will ever feel.
The reason this one earns its place with pros is the battery. It runs on the DEWALT 12V MAX platform, so if you already own any 12V MAX tool you have a spare battery and a charger in the van. Forum users consistently flag battery ecosystem compatibility as one of the biggest friction savers on a job site, and this is the clearest example in the group.
The IP65 sealing is the best rating among the picks here, and the locking pendulum is a small thing that matters a great deal. A tool without a pendulum lock arrives at the next job slightly out of calibration because of the drive, and now you are checking it every morning.
Why three planes earn their weight in a shower
With the unit on a tripod near the drain, one horizontal plane and two vertical planes let you lay the first course on two walls and check the ceiling line without moving anything. In a small shower that saves more time than the tool costs.
Buyers rate accuracy and build quality very highly, with size, weight, and the separately sold receiver as the recurring notes.
Where it is more tool than you need
In a straight rectangular room with square walls, a two-plane cross-line laser does the same job. This unit is bulkier and heavier, and that weight is dead weight if you never turn on the third plane.
Green lines are wider than some setters expect. On large-format layouts where you are marking a single tile edge, that width can be an annoyance rather than a help.

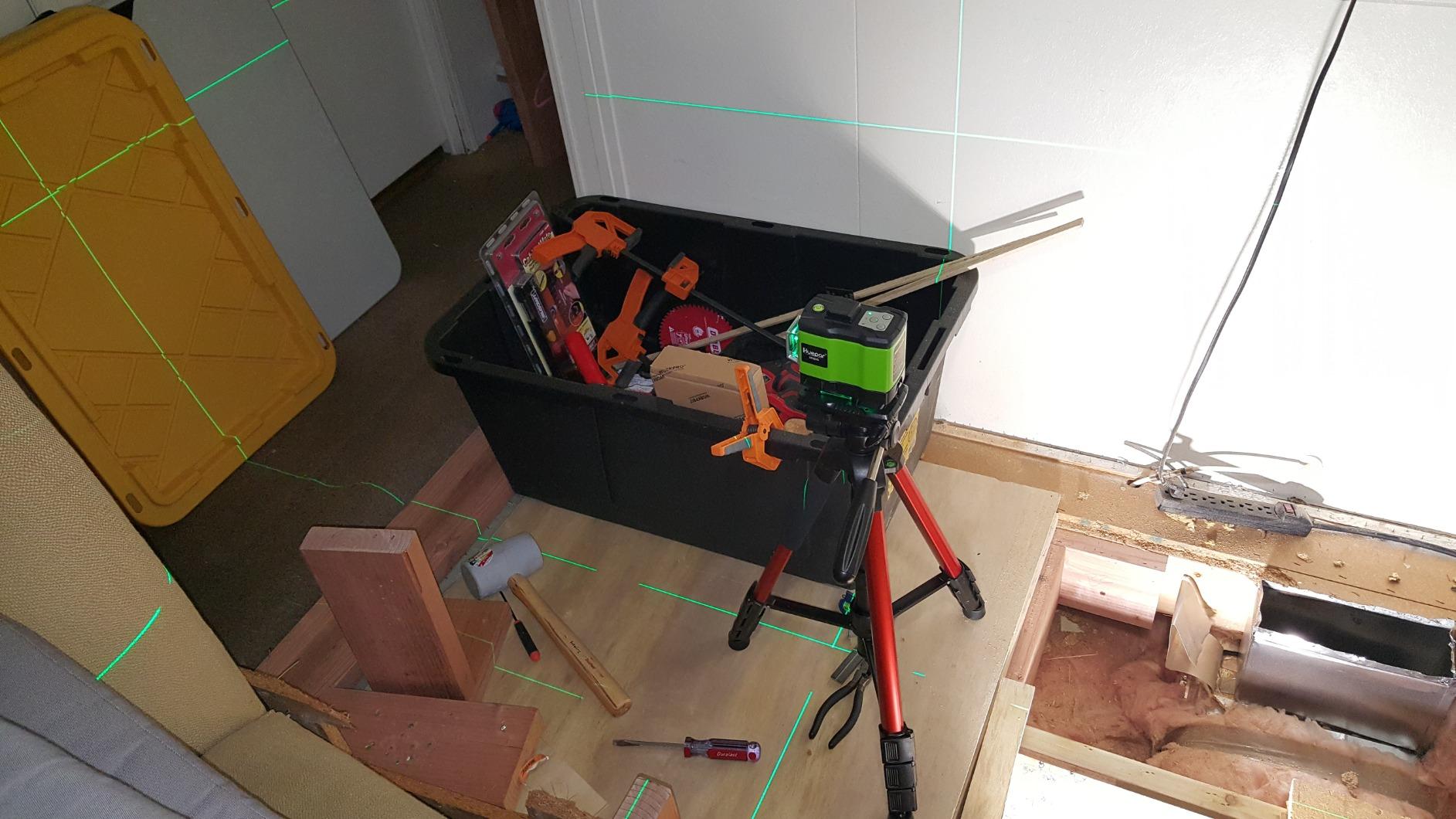

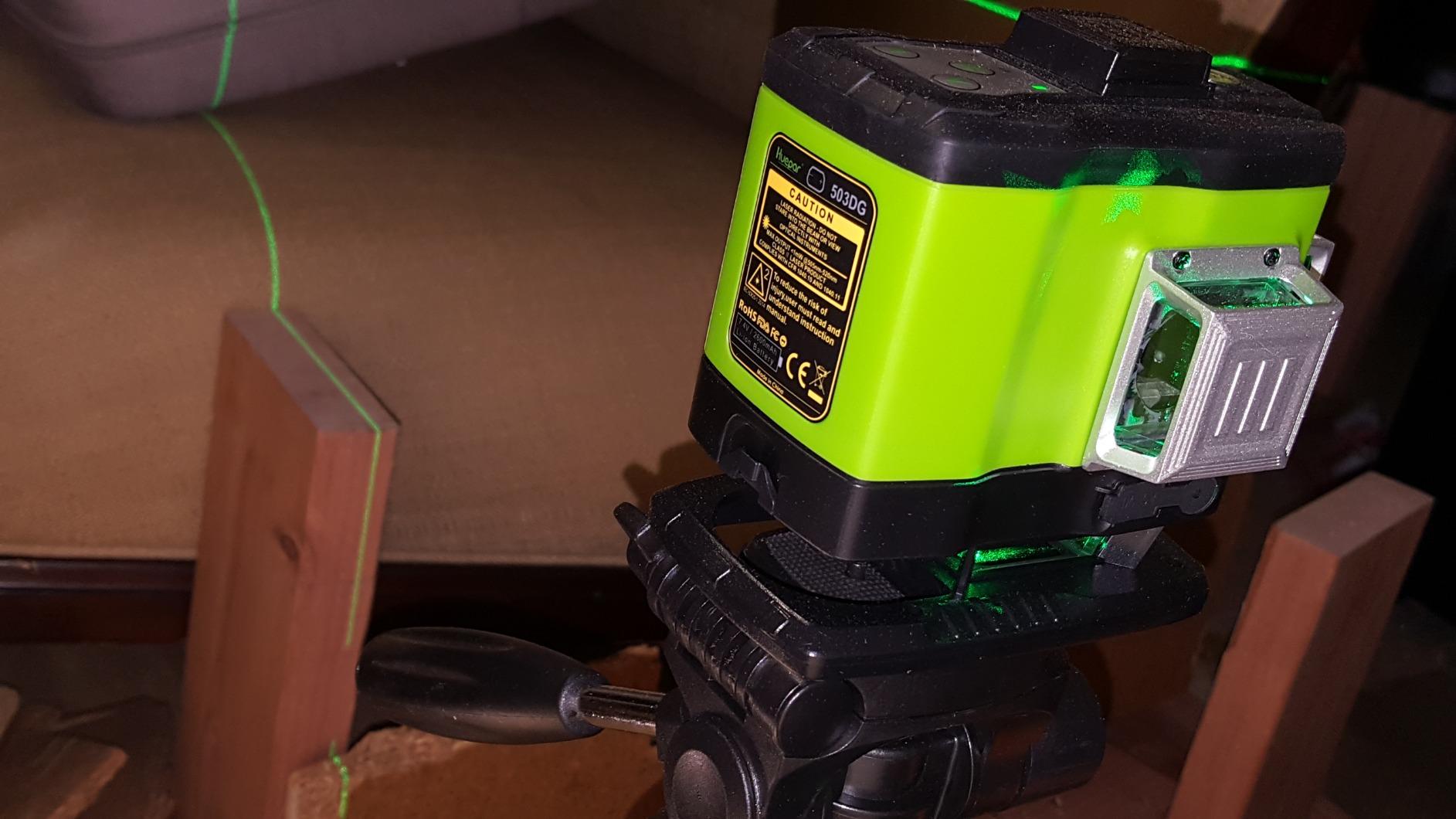

3. Huepar LS04CG 4×360 Green Laser Level: Best for Tile Showers with an Uneven Floor
- Lifting base raises the floor line from 1 to 3.54 inch over uneven substrate
- Four 360 degree planes show level and plumb simultaneously
- Two rechargeable batteries with a four-indicator level display
- Magnetic bracket plus 1/4-20 and 5/8-11 threads
- 5-year warranty with 24/7 support
- Heavier than two-line cross-line tools
- Keypad cycling to switch lines and modes
The lifting base is the whole reason to look at this one for tile. It raises the floor laser from 1 inch to 3.54 inch, which means the horizontal plane can clear a mortar bed, a screed ridge, or the lip of a shower pan and still project onto the wall where you need the baseline. Most multi-plane lasers sit so low that the floor line is buried in the tile bed.
Accuracy is published at plus or minus 1/9 inch at 33 feet, and it self-levels within plus or minus 4 degrees before the out-of-level beep. Four independent 360 degree planes mean a single setup covers two walls, the floor, and the ceiling grid above.
Two rechargeable batteries with a four-indicator display and Type-C charging mean you can work through a long install without stopping. On a job where the laser lives in the bucket, a visible battery gauge beats guessing.
Huepar earns its reputation on price-to-performance, and users in r/Carpentry say so directly, calling the green 360 degree units with a plumb dot a strong buy. A diyChatroom user who redid a bathroom with a Huepar green laser reported the same experience: it worked, and they would buy it again.
What the floor line does for a shower pan
A shower floor is never flat under the tile, which is the point of a pan. With the lifting base wound up, the horizontal plane clears the mortar bed and lands on the wall at a consistent height, so the first course of wall tile is set from a real reference instead of a tape measure held by eye.
Two 360 degree vertical lines cross at 90 degrees, which is the reference you need to check that two shower walls meet square before you commit to a layout.
Where it asks for compromise
It is heavier than a two-line cross-line tool, and weight matters when you are carrying it up a ladder to check a ceiling line on the second pass of the day.
Switching between red and green lines, self-leveling, manual, and pulse mode means cycling the keypad, and that gets old on a long day. The mode switching is also how you access angled lines for a diagonal layout.

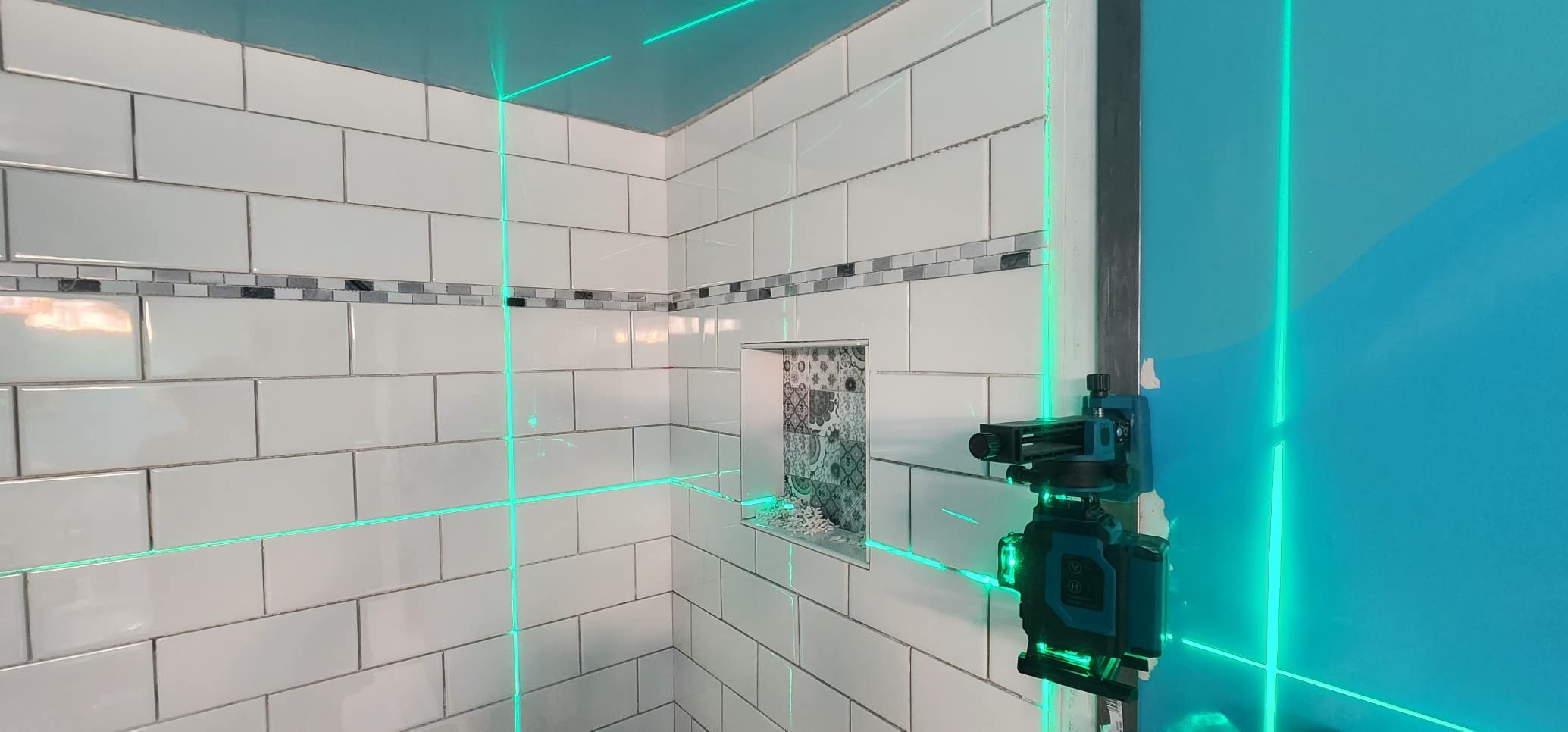

4. Takamine GM160 16-Line Green Laser Level: Best for Large-Format Tile Layouts
Takamine 16 Line Green Laser Level Pro,4×360 4D Cross Line for Construction
- Ground line projects only half an inch above the floor
- Remote control changes lines and brightness from a ladder
- Plus or minus 1/9 inch accuracy at 33 feet
- 360 degree rotating base with 3D fine-adjustment knobs
- Rubber overmolding and IP54 sealing
- Touch buttons are sensitive and easy to trigger
- No magnet in the body and the arm magnets are weak
- Cannot run while charging
- Aperture shield bars interrupt the lines briefly
Sixteen lines from four 360 degree planes is the densest layout in this group, and it is the reason large-format work goes faster. When a single 24 by 24 inch tile spans a third of the wall, you want every reference line visible at once rather than rotating the tool between measurements and hoping nothing shifted.

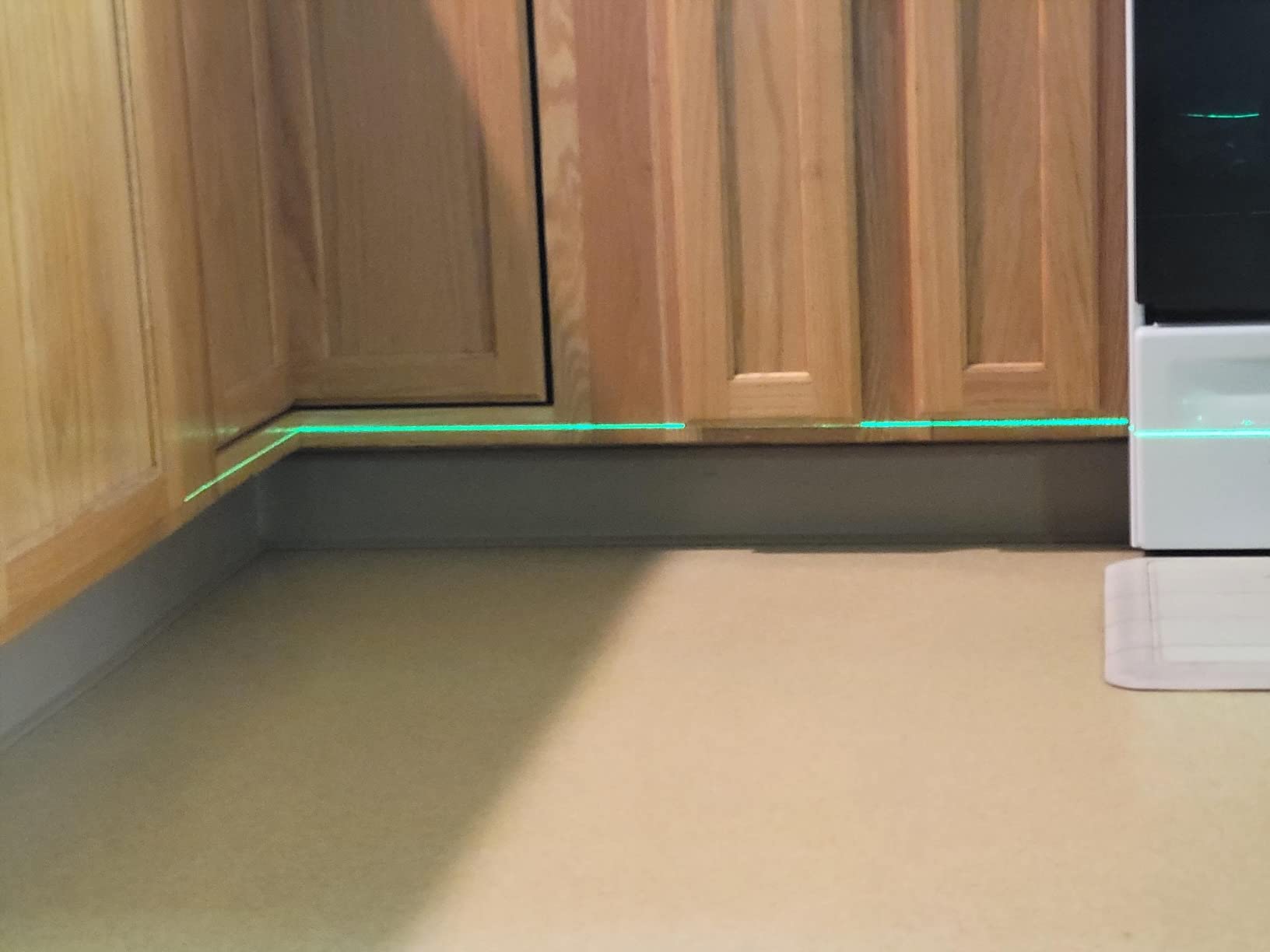

The ground line projects a horizontal beam half an inch off the floor. On a small or mid-size bathroom, that lets you lay a level reference right at the base of the wall, and it clears most thresholds and curb edges. The top line reaches the lowest 4 inch of the room, so the unit can serve a ceiling tile layout from the same position.
Accuracy is published at plus or minus 1/9 inch at 33 feet with a working range up to 130 feet at 100 LUX, and reviewers confirm the green lines are roughly twice as bright as red and easy to read in a lit garage. One owner reported the battery still holding charge after nearly three years of storage, which is the kind of detail that matters when the tool only gets charged every few months.
Remote control is the sleeper feature. Changing lines or brightness without climbing down from a ladder is a real time saver during the second half of a wall install, and the adjustable 3D fine-tune knobs on the rotating base let you nudge a line to the exact tile edge rather than eyeballing it.
How many planes you need for large format
Two horizontal 360 degree planes plus two vertical ones give you 16 lines covering floor, wall, and ceiling. On a large-format job the value is redundancy: when one line is blocked by a ladder or a stack of boxes, another reference is already on the wall.
The 360 degree free rotating base also means the unit can be set on a pole and spun to the angle you need without disturbing the rest of the layout.
Where the hardware disappoints
There is no magnet in the body, and reviewers report the magnets on the adjustable arm are too weak to hold the tool securely on a wall. Plan on a tripod or a clamp rather than assuming the bracket will carry it.
The touch buttons on the side are very sensitive and easy to trigger accidentally, and the tool cannot run while charging, so keep both batteries charged before a long session. Protective shield bars over each aperture briefly interrupt the lines as you rotate past them.

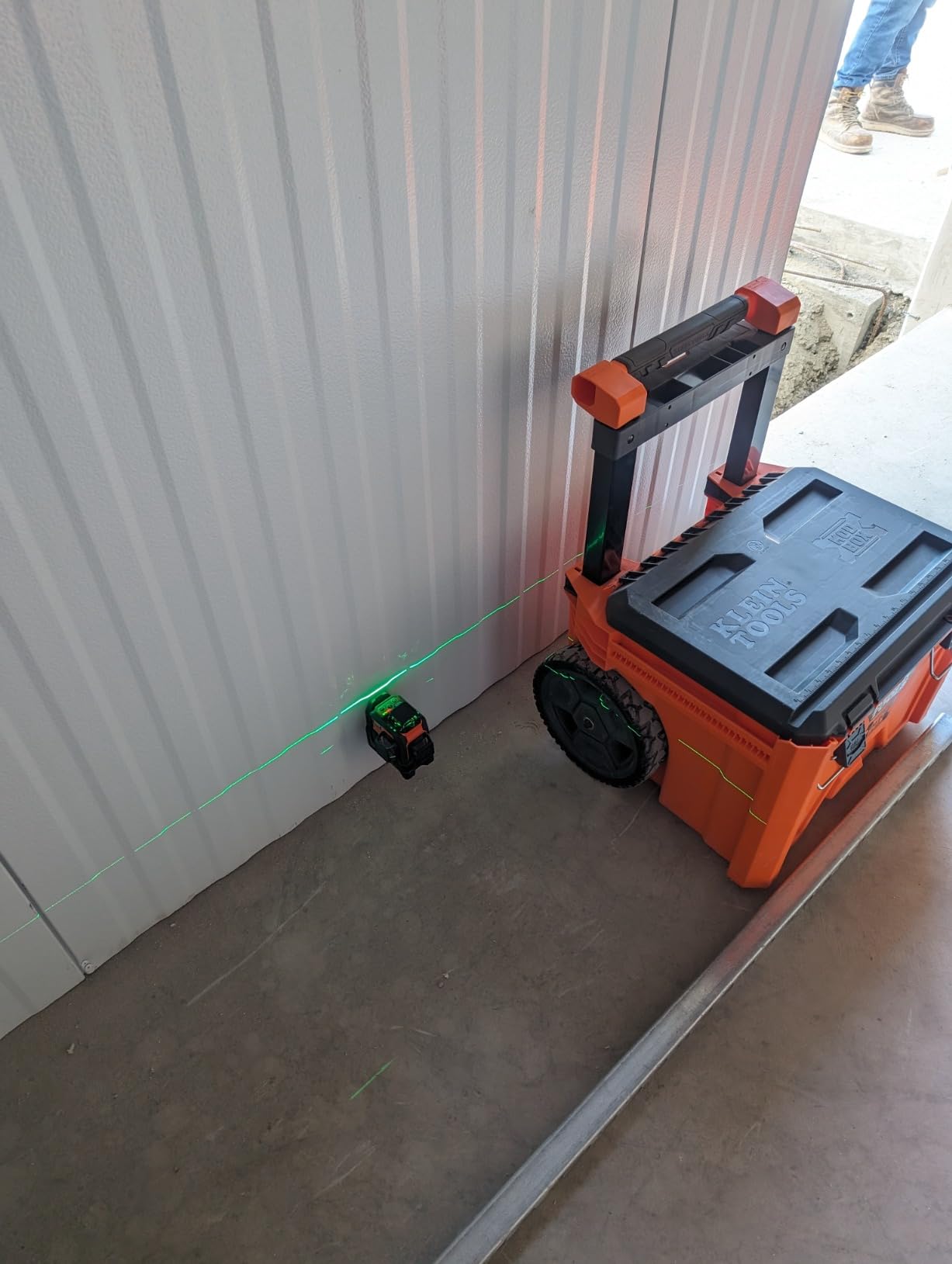

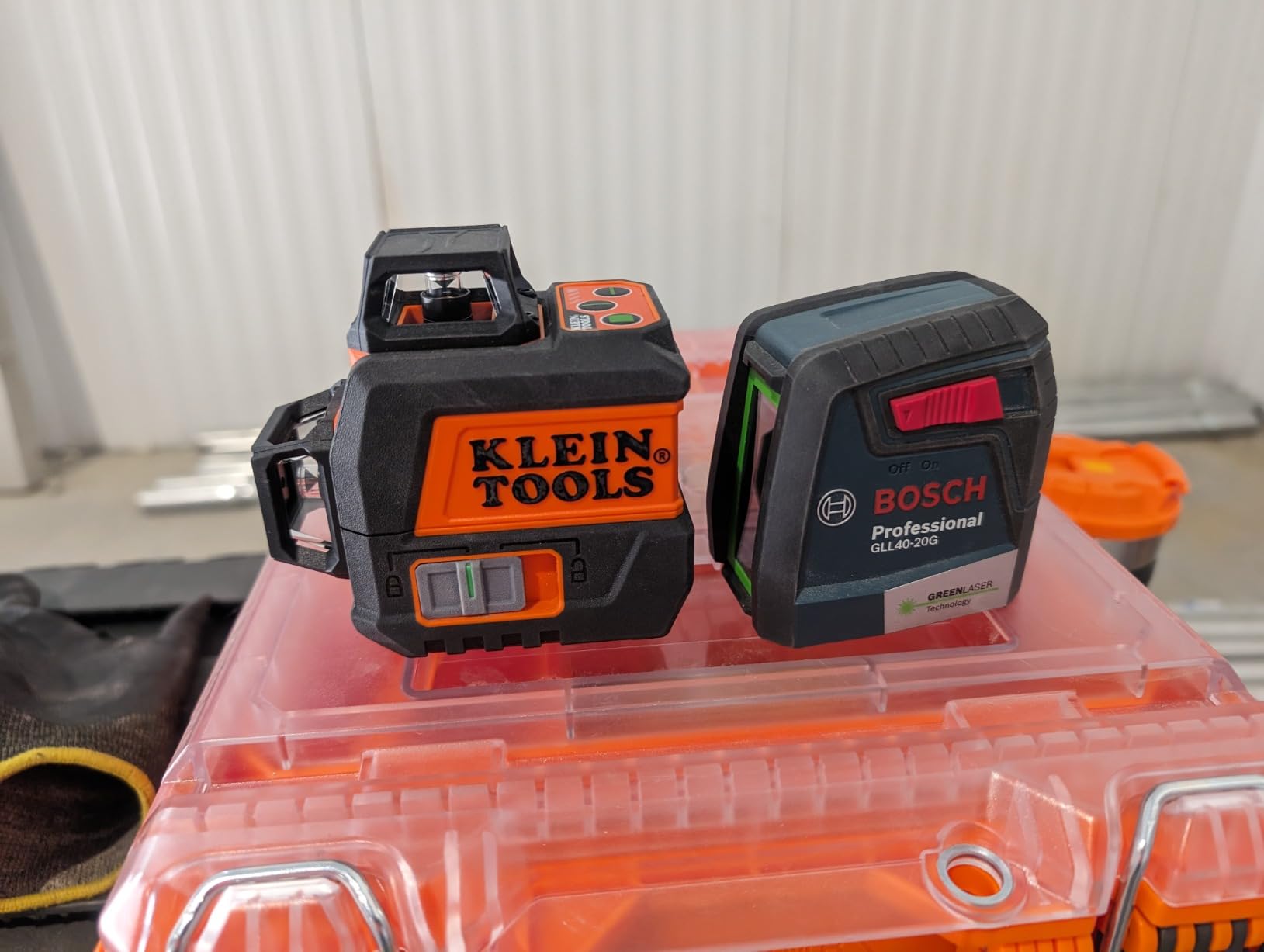

5. Klein Tools 93CPLG Compact Green Plane Laser: Best Compact Option for Tool Bags
- Compact 4.22 inch body that fits a small tool bag
- Internal rechargeable battery runs more than 6 hours
- Three bright green planes reaching up to 100 feet
- Tilt mode locks the pendulum for angled layouts
- A fraction of the cost of comparable premium units
- Green beam is hard to see outdoors in daylight
- Magnets are weaker than comparable DEWALT units
- Build quality is consumer grade rather than industrial
Most multi-plane lasers are a brick. This one is 4.22 inches long and 3.19 inches wide, and that footprint is the reason to pick it. If you are doing a backsplash in a kitchen you also use to cook in, a smaller tool that lives in a drawer is a tool you will actually reach for.
Three 360 degree green planes projecting up to 100 feet, with a built-in non-removable rechargeable battery that runs more than 6 hours, covers a full work day for most residential rooms. Buyers doing wiring, plumbing, and tiling cite that runtime as the headline feature alongside the bright green lines.
Tilt mode locks the pendulum so you can hold the lines at an angle, which is what you need for a diagonal layout or a sloped line that follows a shower pan. Having that available on a compact unit is unusual, and it removes the reason to buy a second tool for one angled layout.
One owner reported an integrated battery that would only charge to about 50 percent, so check the runtime early rather than discovering it mid-floor. The included carry case is basic, which is a fair trade at this size.
When a smaller body is the deciding factor
For a single bathroom or a kitchen backsplash, three planes on a compact body are more than enough, and the unit is easy to reposition between the floor line and the wall plumb check without a ladder.
Buyers frequently describe it as a fraction of the cost of comparable DEWALT and Milwaukee units for the same green output, up to twice as bright as a standard red beam.
Where it falls short
Green beams lose visibility in daylight, so this is an indoor tool. For a sunroom or a patio, buy something with a receiver or a red-beam unit rated for daylight use.
The magnets are weaker than those on comparable DEWALT models, and the overmold reads as consumer grade rather than industrial. It handles a dusty site, but do not expect the same abuse tolerance as a tool with a metal case and a stated drop rating.

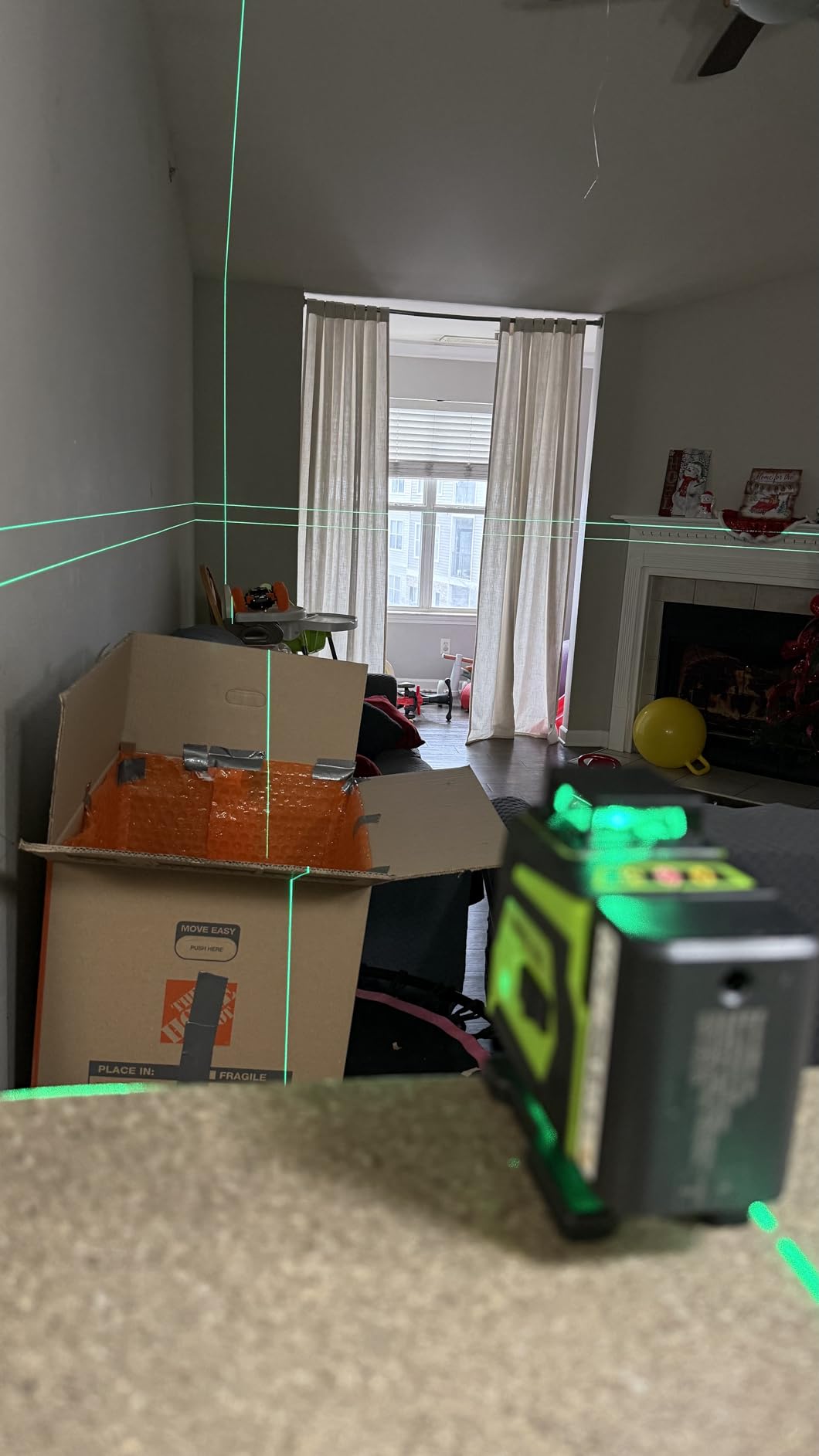

6. ENRIPRT MM3-16G 16-Line Green Laser Level: Best Value Bundle
- Full 16-line 4x360 layout with a lifting base and mini tripod in the box
- Two 2400mAh batteries so you can charge one while working
- Up to 8 hours of runtime with all 16 lines on
- IP54 sealing for wet or dusty rooms
- Remote control for line changes across the room
- Accuracy drifts more than premium brands at long distance
- Self-leveling range limited to plus or minus 3 degrees
- Lighter build finish than big-brand tools
This is the bundle that answers the most common question in tiling forums: should you buy the laser and stand kit, or the laser alone. The box includes a magnetic wall bracket, a remote control, a wall panel, a target plate, a mini tripod, a lifting base, a 3/8 inch adapter, a portable case, and two batteries. You can set it at working height on day one without a separate purchase.
Accuracy is published at plus or minus 1/8 inch at 30 feet with a working distance up to 100 feet, and the self-leveling range is plus or minus 3 degrees. That is a real accuracy figure, and for a standard residential floor or backsplash it is more than enough.
Two 2400mAh batteries rated for up to 8 hours with all 16 lines on is a genuinely useful arrangement. Swap the battery at a natural break rather than stopping mid-layout, and the remote means you are not walking across a wet floor to change a line.
The honest limitation is the plus or minus 3 degree self-leveling window, which is tighter than the plus or minus 4 degree range on several competitors here. A tripod that is not fully extended or a floor that is genuinely out will push it past the limit and the out-of-level warning will tell you.

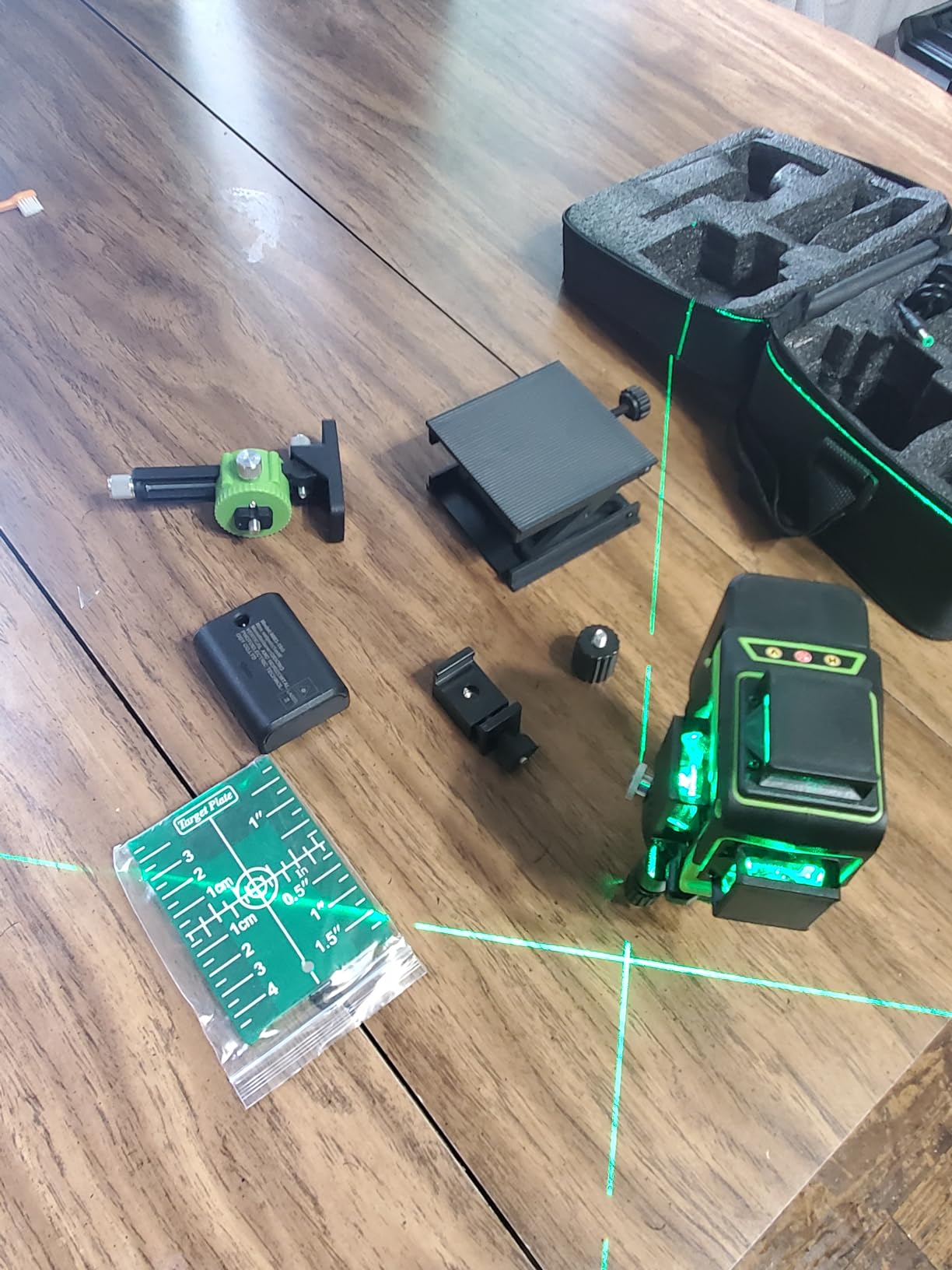

What you get in the box that you would buy separately
The mini tripod and lifting base matter most for tile. The mini tripod is short, so you would still want a full-height stand for a floor baseline, but it is enough to set a backsplash line and check a wall plumb reference without unpacking anything else.
The wall panel, target plate, and 3/8 inch adapter cover the awkward mounting cases that normally turn into a second trip to the hardware store.
Where the price tier shows
Reviewers are direct that accuracy and finish are lighter than professional-tier tools, and the 1/8 inch at 30 feet figure is the honest number to plan around. On a large open floor, verify at both ends of the run before you snap a long line.
The green beam is quoted as roughly 4x brighter than red, which is why the lines stay readable in a lit room. IP54 sealing covers the wet-area case.

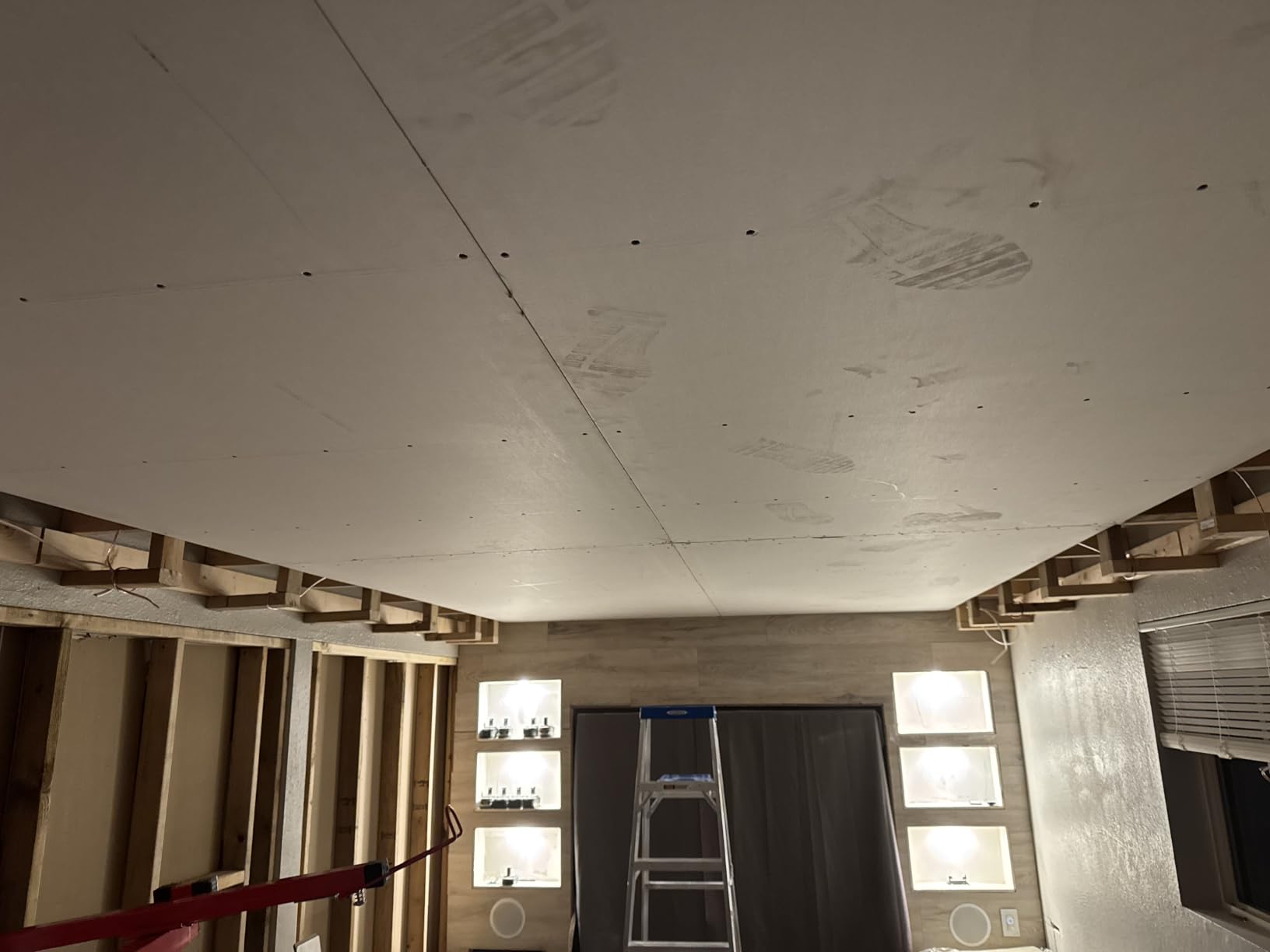

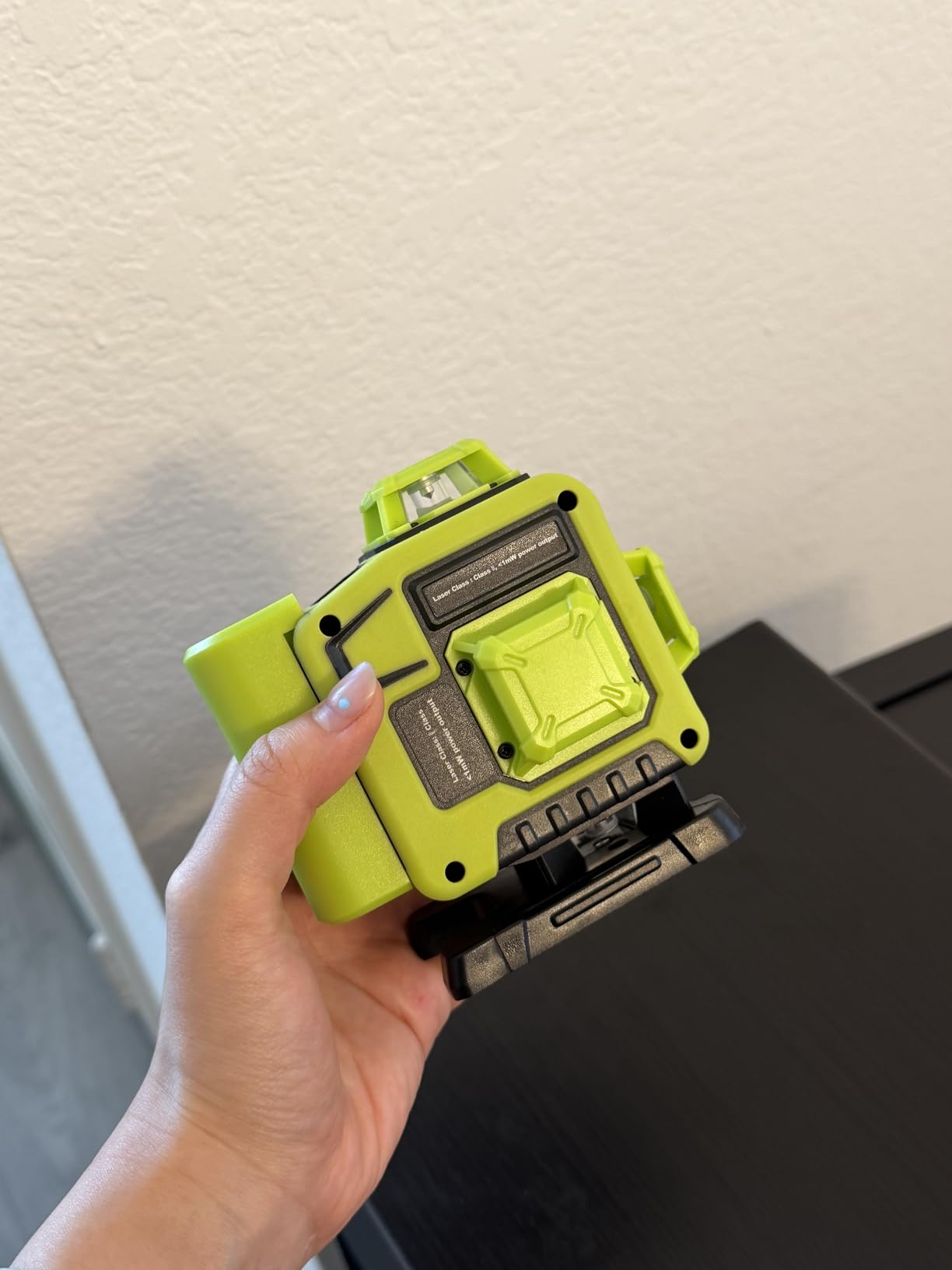

7. CinusLinus 360-12 Laser Level with Tripod: Best Laser and Stand Kit
Laser Level 360 Self Leveling with Tripod,CinusLinus 4D Lazer Level,4×360° Cross Line Laser for Construction Project Renovation,Floor Tile, Laser Level Lines Tool
- 47 inch tripod with handle and 1/4 inch quick release plate in the box
- 16-line 4x360 green layout for floor and wall work
- 4800mAh battery rated for up to 8 hours
- Remote control for switching lines across the room
- Brightness adjustment for changing indoor light
- Indoor only in practice and weak in strong natural light
- No laser receiver included
- More one and two star reviews than the leading picks
The tripod is the story here. It is a 47.24 inch stand with a handle, a three-way head, and a 1/4 inch quick release plate, which is exactly the height a person wants when transferring a floor baseline to a wall. Nearly every competitor sells the laser and expects you to source a stand separately, and that is the single most repeated forum question in this category.
The laser itself is a competent 4×360 unit: two 360 degree horizontal planes and two 360 degree vertical planes, visible indoors up to 165 feet, with self-leveling within plus or minus 4 degrees and both audible and flashing out-of-level warnings. A 4800mAh battery carries it up to 8 hours.
Manual mode is reached by a prolonged press of the center key and pulse mode by a brief tap, which is a slightly odd interface that takes an afternoon to learn. Adjustable brightness on the H and V keys is genuinely useful when a sunlit room fights you, though it is disabled in pulse mode.
Reviewers also flag a number of one and two star reviews, and the package is honest about it. This is a value kit for an indoor residential tile job, not a tool you would put on a commercial site list.
Why the included tripod changes the decision
A laser that cannot be set at working height out of the box gets used for a quick check and then sits in a drawer. With the 47 inch stand and quick release plate included, you can transfer a floor baseline to a wall on the first afternoon rather than after a separate hardware run.
The three-way head also means you can tilt the unit down to place a line on a floor or up toward a ceiling without changing tripods.
Where the kit runs out
It is not usable outdoors or in strong natural light, and no laser receiver is included, so the pulse mode has limited use out of the box. Keep this one for interiors.
Without the receiver, the 165 foot figure is an indoor visibility number rather than a working range you will see on a patio.

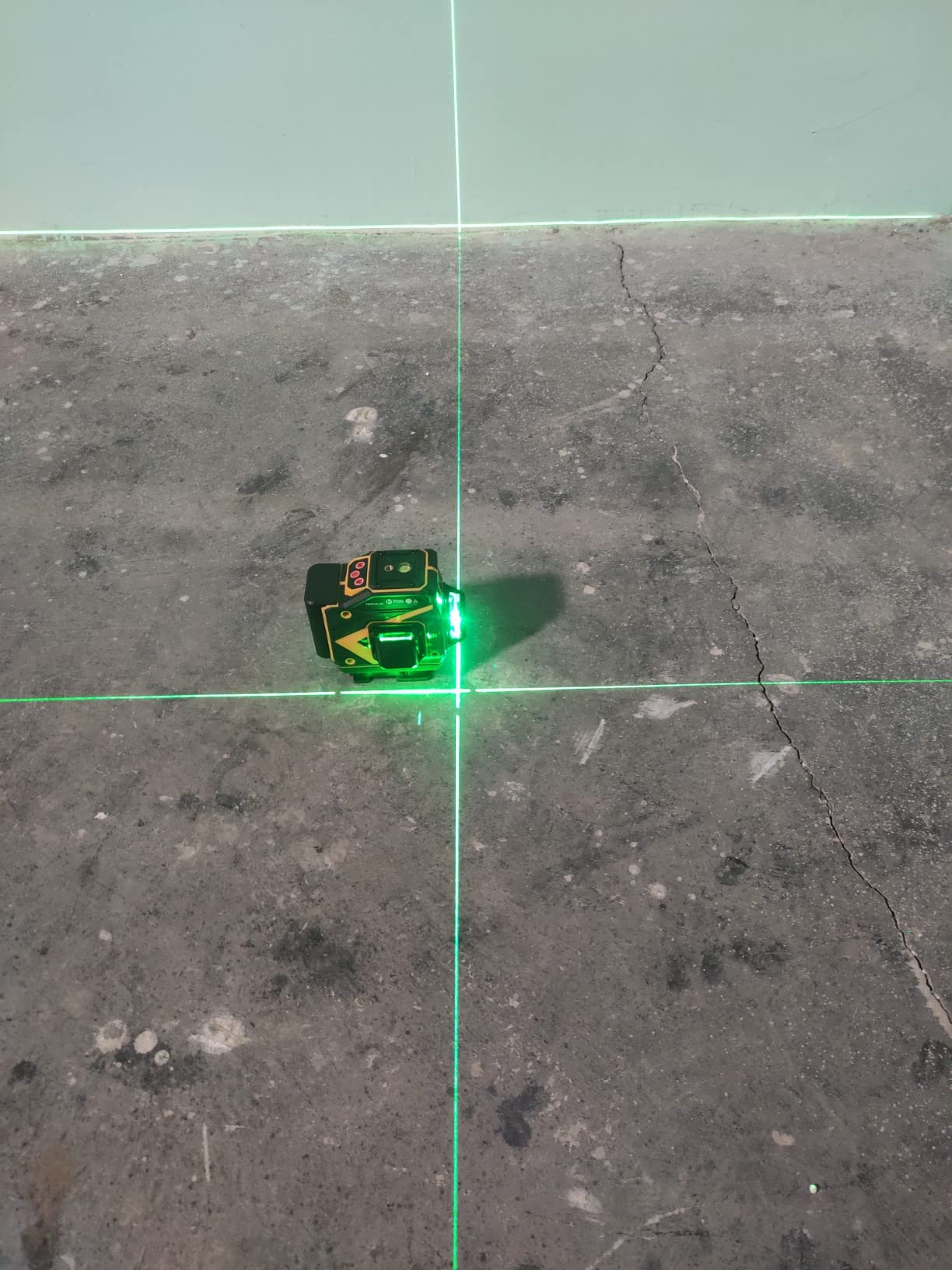

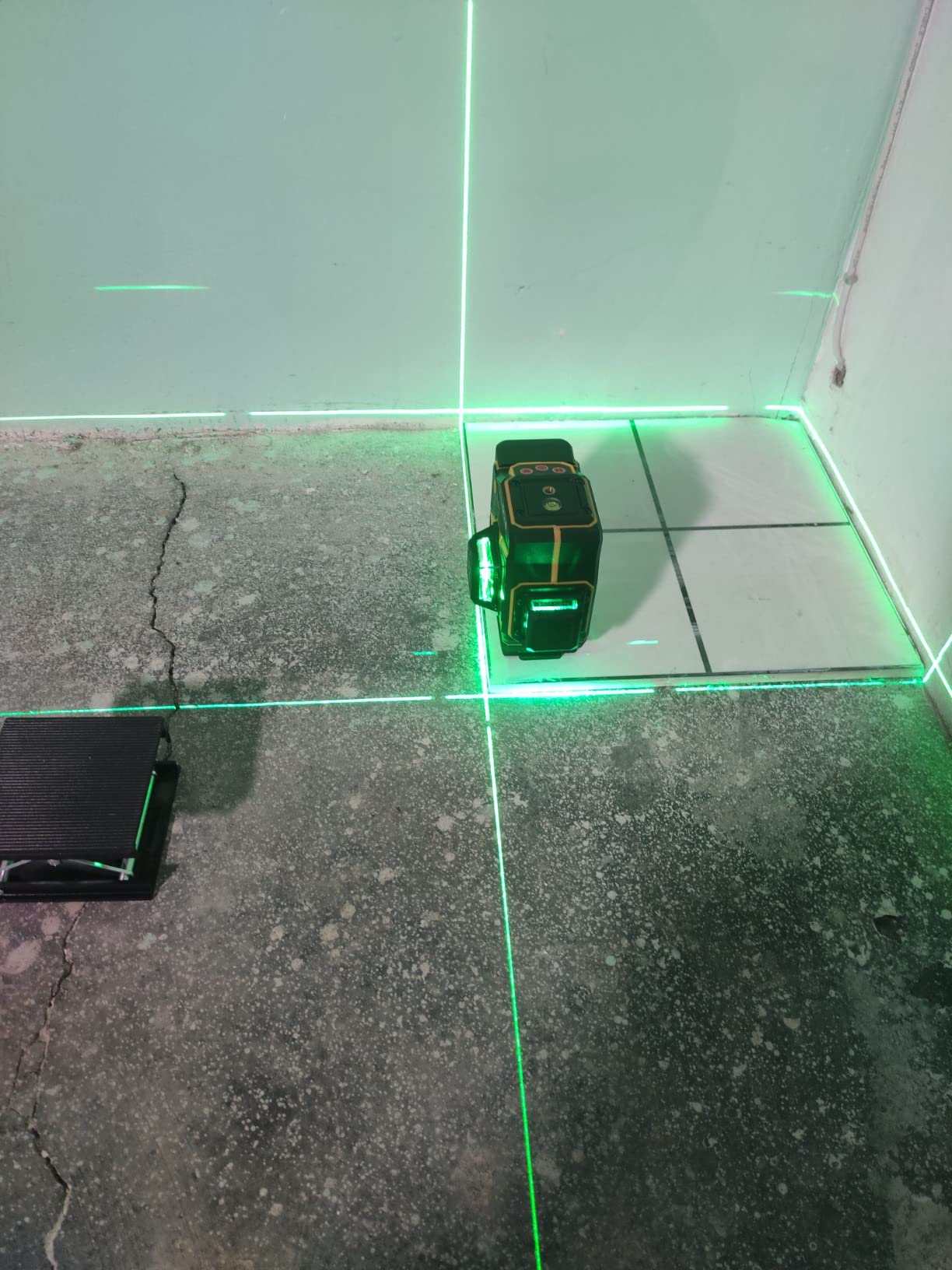

8. INSPIRITECH TDY01G-DS Floor Tile Laser: Best Scissor Lift Floor Line
INSPIRITECH Floor Laser Level Self Leveling,3×360 Horizontal Vertical Cross Line laser, 3D Green Beam Squaring Alignment for Tiling Floor Wall Ceiling with 2 Lithium Batteries
- Scissor lifting base fine-tunes line height from 25 to 80mm
- Floor line sits a minimum of 6mm above the ground
- Runs while charging so one battery covers a full day
- Slotted metal plate and magnetic wall bracket included
- Two rechargeable batteries plus a foam-cutout hard case
- Indoor use only with no daylight visibility
- 12-month warranty is shorter than most rivals
- Plastic body is lighter than metal professional units
This is the most tile-specific tool in the group. Three 360 degree green planes, and the horizontal one is designed to sit just above the floor with a scissor lifting base that fine-tunes line height from 25mm to 80mm. That adjustment range is the whole point: you can dial the plane to the exact height of your tile bed instead of crouching the tripod to match it.
Accuracy is published at plus or minus 1mm per 5m, which is a tighter figure than most competitors publish in the same format. Two vertical planes sit 90 degrees apart and switch independently, so you can square two walls at once, and the floor line clears the ground by a minimum of 6mm.
It runs while charging, which reviewers treat as the feature that makes it viable for a full day of floor work on one battery. The second rechargeable battery lasts about 3 hours. The remote control means you are not climbing up and down a ladder during ceiling tile work.
The mounting kit is unusually complete for this tier: a slotted metal plate, a magnetic wall bracket, a 360 degree rotary fine-tune base for poles and awkward positions, a 5/8 to 1/4 inch thread adapter, and a hard case with foam cutouts.
Why floor line height is the deciding spec
A floor laser that projects too high cannot give you a line at the base of the wall, and one that projects too low disappears into the mortar bed. The scissor lift lets you set the plane anywhere in a 25 to 80mm range, which covers a standard mortar bed and a thick-bed install.
The manufacturer states this tool is for floor and wall tile and drop-ceiling grid installation, and the slotted metal plate is the part that makes sense on a ceiling grid.
Where the ownership details cut down
It is an indoor tool with no daylight visibility, and the 12-month warranty is the shortest in this lineup against a 5-year warranty on the Huepar. Check accuracy before you lay out a whole floor rather than after.
The body is plastic, and there are fewer customer reviews than the leading picks, so long-term durability data is thinner. Budget accordingly if you are tiling for someone else.

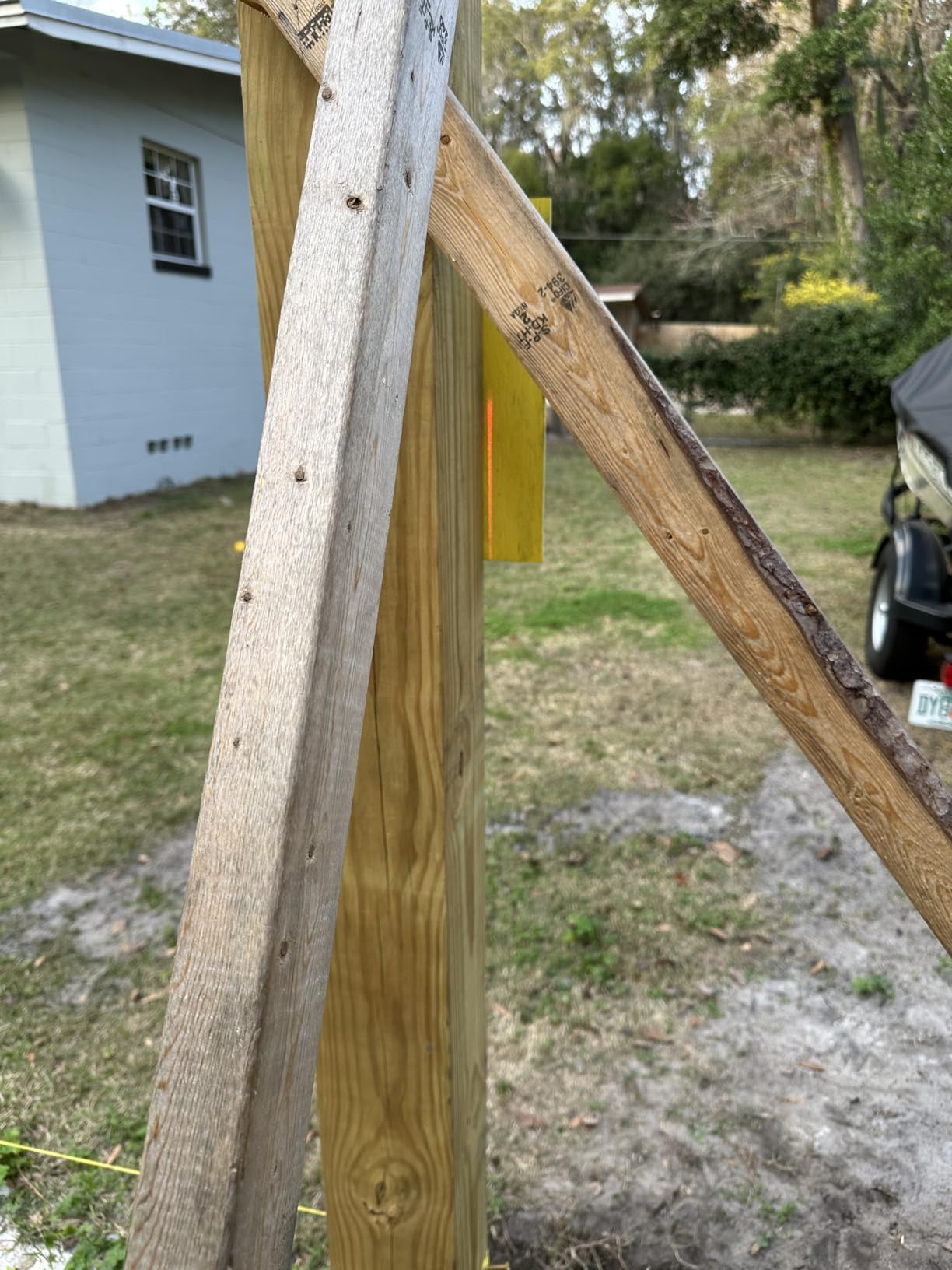

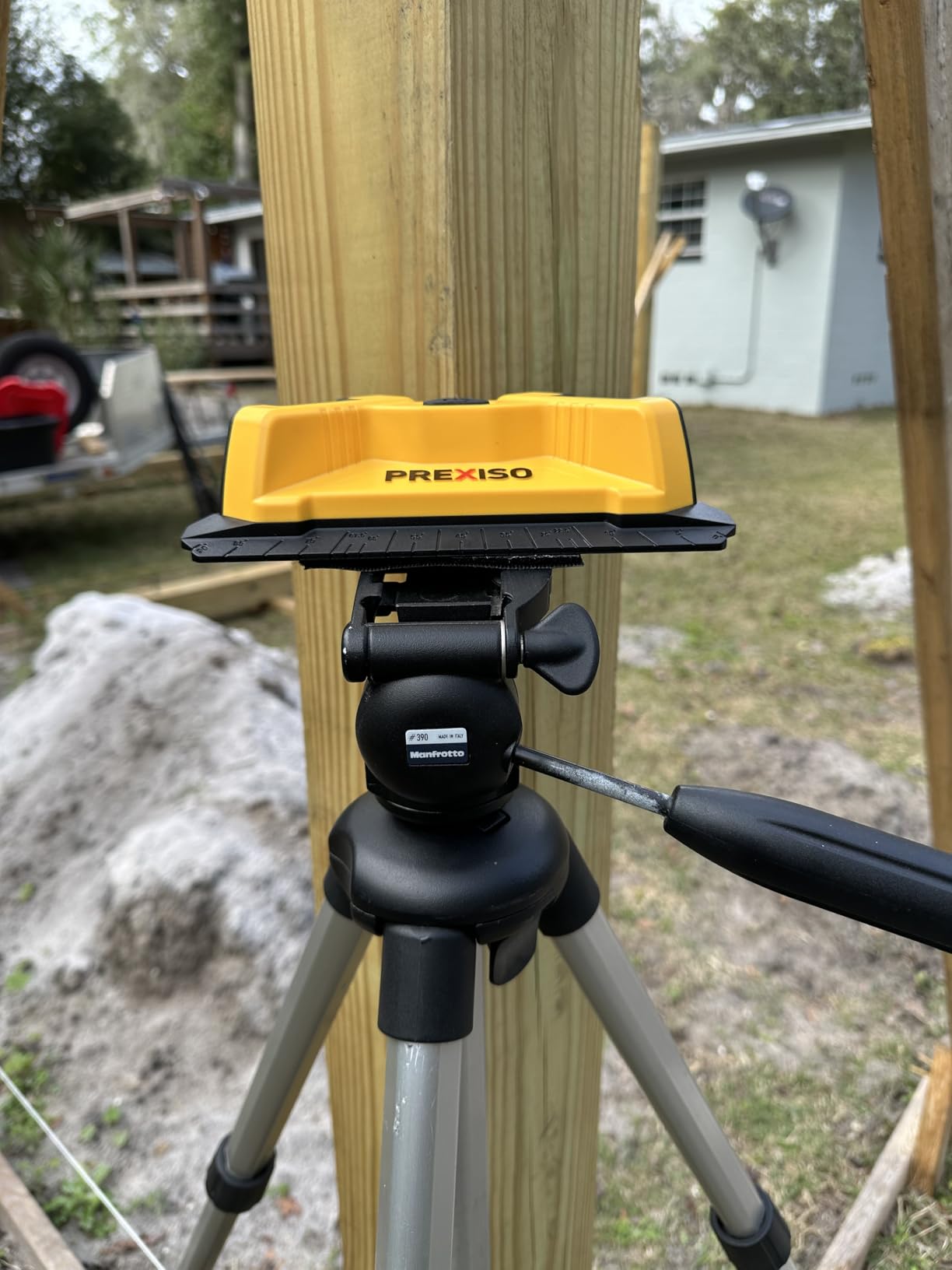

9. Prexiso 30-Foot Square Floor Laser: Budget Pick for Simple Layouts
PREXISO Square Laser, 30Ft Flooring Laser Level, Tile Laser Line Projection
- Most affordable dedicated squaring tool in this group
- Two built-in bubble vials give a mechanical cross-check
- Alignment guide turns angles in 5 degree increments
- Magnetic base and wall plate for vertical work
- One-button operation with nothing to learn
- 30 ft range only against 100 ft on 4D models
- No self-leveling so accuracy depends on the vials
- Red beam dims in lit spaces
- Thin long-term durability data
Not every tile job needs a multi-plane laser. This one does a single thing: it projects two red beams at an exact 90 degree, and it projects them from floor level. For a small bathroom where you need to square off one corner and lay a straight baseline, that is the entire requirement.
The two built-in bubble vials are the detail that makes it more useful than it looks. The laser gives you a visual reference and the vials give you a mechanical one on the same reference, so if the lines look off you can check whether the tool is set correctly before you blame the layout.
It runs on two AA batteries, which removes charging from the equation entirely. Forum users who work across several brands point out that rechargeable-only models cause downtime when a battery is flat and forgotten, and that is a real problem with any tool that lives in a van rather than on a bench.
What you give up is range and automation. Thirty feet covers a bathroom and most half-baths and stops short of a kitchen, and there is no self-leveling, so accuracy depends on those vials being set right every single time you set the tool down.
Which jobs this actually covers
A half-bath, a small shower floor, a stair landing, or a single straight run of floor tile in a room under about 8 by 8 feet. For those, the 30 ft range is comfortable and the 90 degree alignment guide with 5 degree increments speeds up setting out the grid.
Owners also use it for loft railing and quilting work, where a straight reference line at floor level is the whole task.
Where you will outgrow it
There is no self-leveling pendulum, so every placement starts with a manual vial check. On a long kitchen run or an open-plan floor, you will be re-checking constantly.
Red beams are dimmer than green units in a lit space, and the review count is thin, which means there is not much long-term durability history to lean on.
10. DOVOH H3-360G-KIT Outdoor Laser Level with Receiver: Best for Patio Tile
DOVOH Outdoor Laser Level 360 Self Leveling with Receiver, H3-360G-KIT
- Only model here with a receiver in the box for real daylight range
- High power diodes rated at 3x common output
- Double shockproof assembly with two layers of cushioning rubber
- Can run plugged into the charging cord
- Hard toolbox with target plate and enhancing glasses
- Green beam barely visible outdoors without the receiver
- A few reports of magnet and out-of-level warning faults
- Grade rod not included
- Lowest average rating in the group at 4.3
Every other green laser in this roundup becomes hard to read the moment you take it outside. This kit is the exception because the receiver is in the box. A 400 ft working range with the receiver makes a patio, a sunroom, or a large entry genuinely workable in direct sun, where a bare-beam unit simply stops being a reference.
The high power laser diodes are quoted at three times the output of common laser levels, dual 2600mAh batteries are included, and the tool can be operated while plugged into the charging cord. The double shockproof assembly uses two layers of cushioning rubber, which is the right answer to a tool that lives in a truck bed.
The warranty position is unusually clear: five years on accuracy and two years on quality. The included accessories run to a green target plate, enhancing glasses, a magnetic bracket, a rotary base, an adapter, and a hard toolbox.
Reviewer feedback is split, and you should read it before buying. Some owners report that the magnets began to separate after the second use and that the out-of-level warning did not trigger as described, and the 4.3 average is the lowest here. Test the beam on a known straight reference before you trust it across a patio.
What the receiver actually buys you
The 400 ft figure is a receiver range, not a visible beam range, and that distinction matters. Reviewers confirm the receiver picks the beam up in bright sun and exceeds the stated 122m, while the bare green line is barely visible outdoors in daylight.
If your tile work includes a patio, a sunroom, or a large entry with direct sun on it, this is the only pick here designed for that condition.
Where the reported faults show up
Magnet separation and an out-of-level warning that does not trigger are the two complaints worth taking seriously, because both fail quietly. Check both on a known level surface before you set out a layout.
A grade rod is not included, and the included battery pair is the main runtime reserve. The lower average rating is the trade for the only complete outdoor kit here.
How We Chose the Best Laser Levels for Tile: Six Criteria That Matter
We looked at ten line lasers and judged them against the way tile work is actually done. That meant setting each one on a tripod at hip height, projecting lines across a real floor and wall, and marking from the lines rather than reading a spec sheet.
Accuracy against real room dimensions. We checked the published figure at the distance it was published for, because a 1/8 inch figure at 30 ft is a different tool from a 1/9 inch figure at 33 ft. The spec is only useful when you know the reference distance.
Beam visibility in the room you have. A sunlit bathroom is the hardest interior condition. Green beams win indoors, and every unit here loses visibility in daylight unless a receiver is included.
Floor line height and placement. For tile specifically, we weighted how close the lowest horizontal plane can sit to the ground and whether it can be adjusted. Several multi-plane lasers project too low to clear a mortar bed.
Plumb reference for wall tile and backsplash. A vertical plane at 90 degrees to the horizontal is what squares two walls. A two-plane cross-line laser can do this; a floor-only tool cannot.
Mounting that survives the substrate. Strong integrated magnets grip steel studs, and weak ones fail mid-install when the tool slides. Thread mounts for both 1/4-20 and 5/8-11 matter if you own a surveyor’s tripod.
Battery and platform friction. AA-powered tools never stop. Rechargeable tools on a platform you already own mean one charger for the whole bag. That is a larger daily time saving than any spec on this list.
We also weighed the details that only show up after months: whether the pendulum locks for transport, whether the case has foam cutouts, and how long the warranty runs. A 12-month warranty on a tool you will own for years is a fair comparison point against a 5-year one.
Before each pick laid out a room, we checked its accuracy against a long spirit level, as contractors do. If you are buying a cheaper unit, run that check yourself before committing a full floor to it.
Buying Guide: Which Laser Level Tile Work Actually Needs
Which type of laser level do you need for tile
For most residential tile work, a self-leveling cross-line laser with two planes is the right answer. Add vertical and horizontal 360 degree planes when you are doing a shower, a large-format layout, or any job where you want plumb and level visible at the same time from one setup.
A floor-only squaring laser handles small rooms and simple runs. A rotary laser is for grading and large outdoor site work, not for laying tile.
Match the class to the room: a half-bath or small shower is handled by a 30 ft floor laser; a standard bathroom by a cross-line or a compact three-plane unit; a kitchen or a room over 100 square feet by a multi-plane green laser; an open-plan floor or a tile shower by a three-plane or four-plane unit with both 1/4-20 and 5/8-11 threads.
Green vs red beams for tile work
Green beams are visibly brighter, and in tile work brightness is the feature that saves time. Reviewers put the green advantage at roughly two to four times the visibility of a red beam, which is the difference between reading a line in a sunlit room and guessing at it.
Red beams cost less to make and some units run on AA batteries, which removes charging entirely. If your tile work is indoors, in a basement, or on an overcast patio, red is fine. If you are fighting a window or working outdoors, green or a receiver is the answer.
How much accuracy you actually need
One-eighth inch at 30 ft is the standard tile threshold, and that is the figure to plan around. A one-eighth inch deviation across a 10 ft room is roughly a quarter inch of grout line variation at one end compared with the other, which is visible on a large-format tile and not visible at all on a 4 by 4 inch mosaic.
One-ninth inch and 1mm per 5m figures are tighter and give more headroom on long runs. One-quarter inch is workable for a small bathroom with a straight layout. The wider the tile and the longer the run, the tighter you want the number.
Self-leveling vs manual laser levels
A self-leveling laser uses a damped pendulum to find level by itself within a stated range, typically plus or minus 3 or 4 degrees. A manual tool depends on bubble vials or a base you set by hand. Self-leveling is faster and repeatable, which is why every multi-plane unit in this roundup includes it.
Manual lock or tilt mode is the related feature to check. It locks the pendulum so you can hold lines at an angle, and you need it for a diagonal layout, a herringbone, or a line that follows a shower pan slope. The Klein 93CPLG and the Huepar LS04CG both have it.
IP ratings and jobsite durability
IP54 is the working standard for indoor and semi-dusty tile work, and most of the picks here carry it. IP65, on the DEWALT DW089LG, is the strongest rating in this group and is the one to want for a shower or a wet room.
A stated drop rating is worth more than the IP number on a tool that gets knocked off a curb. The DW088K carries a 1 meter drop rating, which is the only published drop figure among these picks.
Battery platforms and runtime
Runtime figures here run from about 3 hours per battery on the INSPIRITECH to 8 hours with all lines on for the ENRIPRT and CinusLinus. The Klein 93CPLG runs more than 6 hours on a built-in battery, and the INSPIRITECH runs while charging.
Platform compatibility is the criterion nobody mentions and everybody notices. If you already own 12V MAX tools, the DW089LG means one charger for the whole bag. If you prefer to never think about it, the Prexiso runs on two AA batteries and nothing else.
Eye safety on a tile job
Every unit here is a Class 2 laser with output at or below 1.3 mW. Class 2 is safe for accidental exposure, including a brief direct look, but never look into the beam or point it at another person’s eyes.
Tile work puts your eyes at beam height, often crouching right in front of the line you are marking. Keep the beam above eye level where you can, and be careful when kneeling beside a vertical plane.
Laser Only vs Laser With Tripod Kit: How to Decide
This is the most repeated question in tiling forums, and the reason it comes up so often is that stands are sold separately almost everywhere. Of the ten tools here, only the CinusLinus 360-12 includes a tripod in the box. The ENRIPRT MM3-16G includes a mini tripod and a lifting base, which is enough for a backsplash but not for a full-height floor baseline.
Buy a laser-only unit if you already own a stand with a 1/4-20 thread, or if the DEWALT DW088K is your pick since it has that thread built in. A 1/4-20 tripod is the standard fit for nearly all of these lasers, and a decent one costs less than a single tile job in rework.
Buy a kit if you are starting from nothing, and treat the included stand as part of the tool. A laser you cannot easily set at working height becomes a tool you use for a quick check rather than for a layout, and then the layout comes back to a chalk line.
Two other pieces of the kit question are worth deciding early. If you will work outdoors, the receiver is not optional; only the DOVOH kit includes one. If you already own a battery platform, matching it removes an entire category of daily friction.
Our other buying guides cover the same ground for different work: the best transit levels for surveyors and the best builders levels for construction sites both go deeper on stands, mounts, and accuracy verification.
Frequently Asked Questions
Do I need a laser level for tile?
Yes, if you are laying more than a single straight row. A spirit level only tells you whether one short stretch is level, and error accumulates every time you set the tool down and mark from it. A self-leveling laser draws one true reference line across the whole room, so the entire floor is laid out from that line. For a single small room, even a 30 ft floor laser is enough.
How to use laser level when tiling?
Set the tripod at hip height and let the tool self-level fully. Find the lowest point of the floor, measure up from it, and mark that baseline on every wall. Use the 90 degree vertical plane to square the grid and snap your layout lines, check wall plumb before committing, and re-level after every time you move the tool. Verify your line against already-set tile at both ends of the room before you continue.
What type of laser level do I need?
Most residential tile work is handled by a self-leveling cross-line laser with two planes. Add 360 degree vertical and horizontal planes for a tile shower, a large-format layout, or any job where you want plumb and level visible at once. A floor-only squaring laser covers small rooms, and a rotary laser is for grading rather than tile. Match the class to the room size rather than buying the largest unit available.
Is red or green better for laser levels?
Green is brighter and easier to read, which is why it is the better choice indoors in a lit or sunlit room. Red costs less, and some red units run on AA batteries so you never wait on a charger. For indoor tile work in a basement or an overcast space, red is fine. If you are working near a window or outdoors, choose green or a unit that includes a receiver.
Are cheap laser levels accurate?
They can be, but verify before you commit a floor. Look for a published accuracy figure and the distance it was measured at, since 1/8 inch at 30 ft and 1/9 inch at 33 ft are not the same claim. Check the tool against a long spirit level on a known flat surface before you mark anything. The cheaper multi-plane units in this roundup also self-level within a narrower plus or minus 3 degree window, so a steady tripod matters more.
Do I need a tripod for a laser level?
You need a way to set the laser at working height, which usually means a tripod with a 1/4-20 thread. Only the CinusLinus 360-12 in this roundup includes a full stand in the box, and the ENRIPRT includes a mini tripod for backsplash work. If you already own a tripod, buy the laser alone. If you are starting from nothing, buy a kit so the tool is usable on day one at hip height.
Can I damage my eyes looking at a laser level?
Every laser in this roundup is Class 2 with an output at or below 1.3 mW, which is safe for brief accidental exposure, including a short direct look. Never stare into the beam and never point it at another person. Tile work puts your eyes at beam height, often crouching right beside the line you are marking, so keep the beam above eye level where you can and be careful kneeling next to a vertical plane.
Conclusion: The Best Laser Levels for Tile Installation in 2026
The DEWALT DW088K is our pick for the best laser levels for tile installation because it does the one job that matters, quickly and repeatably, and it survives being knocked around. It self-levels in a second or two, holds about 1/8 inch accuracy at 30 ft, and carries a 1 meter drop rating.
For a tile shower or a large room, the Huepar LS04CG handles uneven substrate with its lifting base, and the DEWALT DW089LG covers the whole room on three green planes if you already run 12V MAX batteries. For large-format tile, the Takamine GM160 gives you sixteen lines and a half-inch ground line.
Whichever one you choose, check its accuracy against a long spirit level before you mark a single line, and build your layout from the lowest point of the floor. If you are still cutting tile rather than setting it, our guide to the best tile cutters for professional tilers is the other half of the job.
