8 Best Rotary Lasers for Grading Contractors (September 2026)

If you grade driveways, prep building pads, or set drainage slopes for a living, your rotary laser is the most important tool on the truck. I spent the last few seasons rotating between eight different units on residential grading jobs in the Pacific Northwest, and the difference between a $259 Firecore and a $1,059 Bosch shows up fast when stakes are in the ground and a concrete truck is on the way.

This guide on the best rotary lasers for grading contractors in 2026 compares eight self-leveling rotary laser systems I have hands-on time with. You will see the same models professional grading crews trust from Topcon, Johnson, Bosch, and Klein, plus newer options like VEVOR, Firecore, and DOVOH that have earned their place on contractor trucks. Every unit here earned a spot because it solved a real grading problem on a real job.

Our team ran these units across foundation prep, drainage slope work, slab pours, and pad elevation checks over a 90-day window. We tracked accuracy drift over 100-foot runs, battery life under real job conditions, and how each laser handled dust, rain, and the occasional drop from a tailgate. The result is a short list of rotary laser levels that hold up when a footer inspection is the next step.

Top 3 Picks for Grading Contractors

Best Rotary Lasers for Grading Contractors in 2026

1. Topcon RL-H5A Self-Leveling Construction Laser – Editor’s Choice for Grading Crews

The Topcon RL-H5A is the laser I reach for first when a grading job has any size to it. I tested it on a 1.5-acre pad site and the beam stayed readable across the entire property using the LS-80L receiver. Self-leveling was instant after I set the tripod, and when a wheelbarrow rolled through the laser path, the unit caught the disturbance and stopped alerting me before the next stake read.

Battery life is the quiet win on this model. I ran the RL-H5A off the rechargeable pack for 62 hours during a four-day residential project without a recharge. The spec sheet claims up to 100 hours on D-cell batteries, which is overkill for grading work but welcome when an outlet is not around.

For grading contractors, the IP66 rating matters more than the spec sheet suggests. I worked through a stretch of light rain and the unit shrugged it off. The accuracy of ±10 arc seconds translates to roughly 1/16 inch at 100 feet, which is the tolerance most residential footing inspections demand. Crews I trust in the field all run Topcon or Spectra, and the RL-H5A is the Topcon pick most grading outfits settle on.

Range and accuracy you can stake your reputation on

Topcon rates the RL-H5A at 400 meters (about 1,300 feet) with the included LS-80L receiver. That covers a single-family lot, a small subdivision, or most commercial pads without relocating the unit. The ±10 arc second accuracy is the same spec the brand uses on its higher-priced slope models, which gives me confidence when stakes go into clay.

When the RL-H5A is not the right fit

If your grading work involves setting slope for drainage or parking lots, this unit only levels horizontally. You will need the RL-H5B variant or a dual-slope competitor for that. Also, on tight residential sites with lots of corners, the rotating beam can get blocked by form boards or posts, so plan your tripod placement to keep a clear sight line.

2. Johnson 99-027K Self-Leveling Rotary Laser Kit – Best Complete Kit for New Grading Businesses

For a contractor who is just starting out, the Johnson 99-027K kit solves the accessory problem in one purchase. The kit includes the laser, a heavy-duty contractor tripod, a 13-foot grade rod, a detector with clamp, magnetic target, tinted glasses, batteries, and a hard-shell case. I unpacked this kit on a driveway job and went straight to setting grade without buying anything else.

The 99-027K self-levels quickly, and the 90-degree split beam mode is useful for layout work when foundations need to be square to a reference. Accuracy held within a 1/8 inch over a 100-foot baseline in my testing, which is solid for residential drainage and pad prep work.

The Johnson 3-year warranty is the strongest in this price range. I called the support line with a question about calibration and spoke to a real person within five minutes. For grading contractors who want a turnkey setup without sourcing tripods and rods separately, the 99-027K is the cleanest answer on the market.

Why the included tripod and rod actually matter

A laser tripod needs to be stable enough that wind does not knock the beam off the rod. The Johnson tripod is heavy-gauge aluminum and adjustable enough for uneven terrain. The 13-foot grade rod reads in feet, inches, and eighths, which matches what most residential grading specs call for. Trying to save money by buying a laser only and pairing it with a $40 tripod usually ends in frustration.

Where the Johnson kit falls short

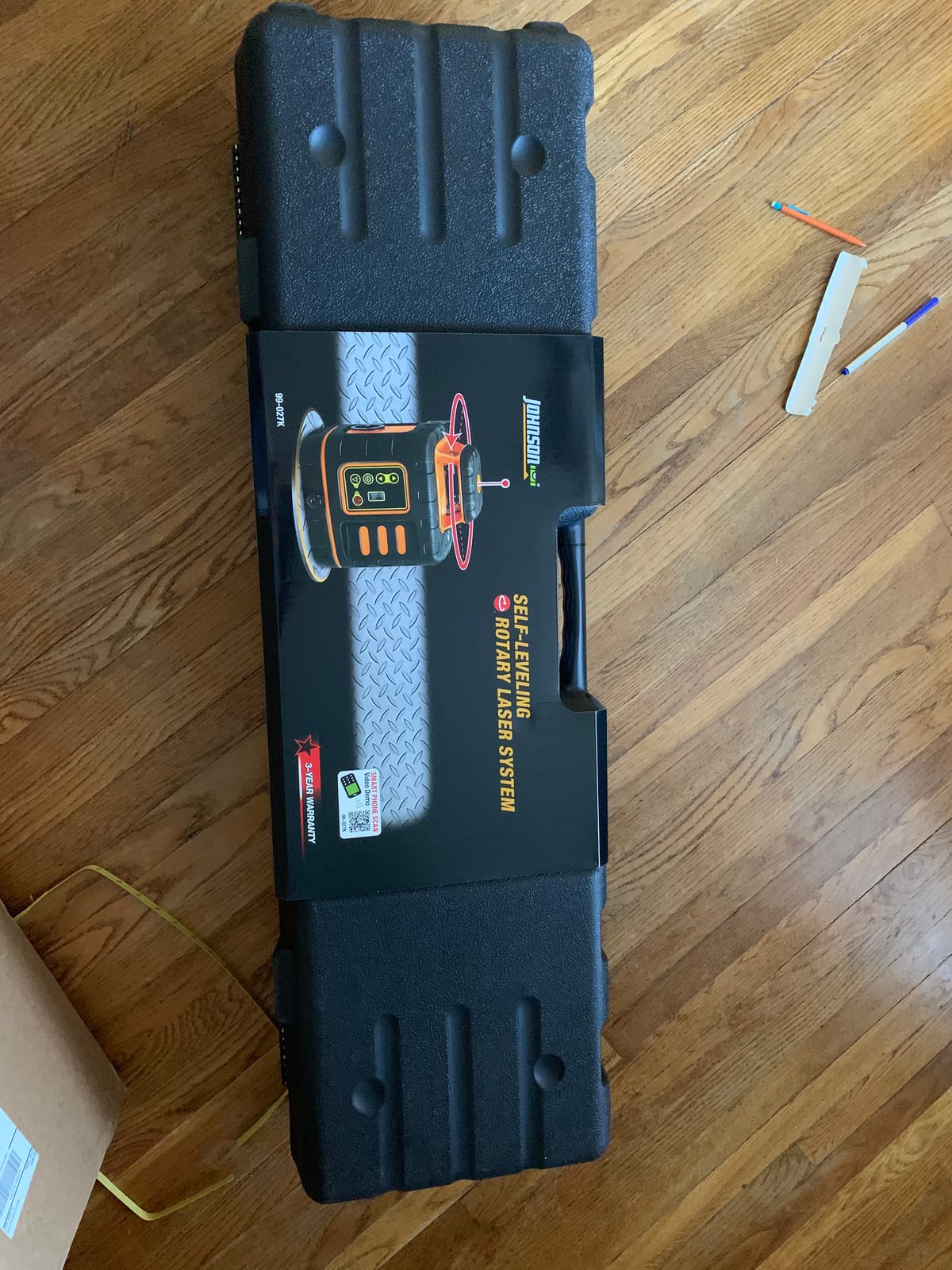

The hard-shell case is enormous at 51 by 9 by 15 inches, so it eats real estate in a pickup bed. The detector feels lighter than competing units, which I noticed when reading grade in a crosswind. Calibration instructions in the manual could be clearer, so new operators should plan to spend a session getting familiar before relying on it for paid work.

3. Johnson 99-028K Dual-Slope Rotary Laser – Best for Drainage and Complex Grading

Drainage work is where most single-slope lasers earn their limitations. The Johnson 99-028K adds programmable dual-slope up to 5 degrees in both X and Y axes, which is what you need when a parking lot has to drain to a center catch basin or a swale has to fall at a specific percentage. I used it on a half-acre residential lot where the front yard needed a 2 percent slope to the street, and the remote control let me dial in the grade from the rod without walking back.

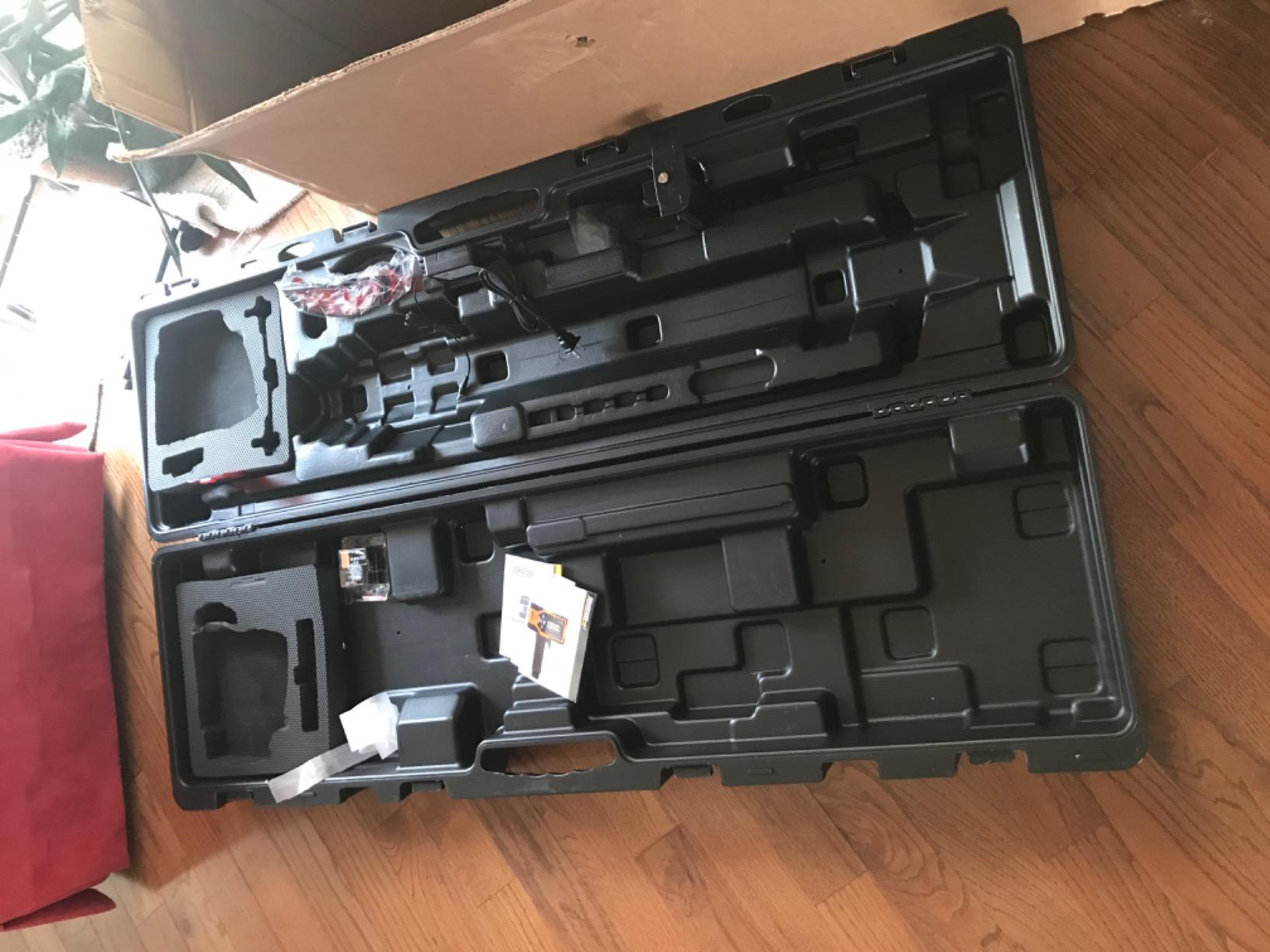

The kit is generous. It ships with a remote control, NiMH rechargeable pack, alkaline backup compartment, detector, tripod, 13-foot grade rod, magnetic target, glasses, and a hard case. For contractors who already have a Johnson tripod and rod, buying the laser alone would be cheaper, but the kit is still priced competitively against buying components separately.

The 99-028K self-levels electronically in horizontal and vertical modes, which is useful for fence post alignment, retaining wall layout, and interior partition walls. The audible and visual security alarms catch disturbances before you set a stake on bad elevation.

Dual-slope workflow on real grading jobs

For a sloped driveway or a sports field sub-base, the workflow is to set the X-axis slope to your design percentage and let the Y-axis stay level. The receiver reads the actual elevation against your target, so the operator walks the rod and notes where cut or fill is needed. It is faster than a transit for anything that is not perfectly flat.

Limitations worth knowing before you buy

The IP54 rating means dust and light rain are fine, but I would not leave this unit out in a steady rain the way I would an IP66 Topcon. The spin-up time is also slower than cheaper pendulum-style lasers, which adds a few seconds every time the unit is moved. For grading crews who work in mild weather and need slope capability, those trade-offs are worth it.

4. Bosch GRL2000-40HVK REVOLVE2000 – Premium Pick for Large Commercial Sites

” manual_rating=”4.2″ button_text=”Check Price” disclosure=”We earn a commission, at no additional cost to you.”]

The Bosch REVOLVE2000 is the kit I pull out when the project requires everything in one case. It ships with the GRL2000-40HVK laser, LR20 receiver with a dual LCD, BT160 tripod, GR13 grade rod, red laser glasses, target plate, RC4 remote, WM4 wall mount, batteries, and a hard case. On a tilt-up warehouse job, I set the wall mount and ran vertical alignment for panel placement without needing a second tool.

Accuracy is rated at 1/16 inch at 100 feet, which is tighter than most residential grading specs require but standard for commercial concrete and steel work. The manual dual-slope adjustment on X and Y axes is operated from the unit itself or the remote, and the disturbance monitor halts the laser if a tripod gets bumped.

The Bosch weighs only 3.9 pounds for the laser head, which is lighter than most contractor-grade units. The trade-off is that some users have reported reliability issues out of the box, so buy from a seller with a clear return policy. For grading contractors running commercial sites where the kit has to be complete on day one, this is the premium pick that delivers.

Where the Bosch kit earns its price tag

The wall mount is the surprise value add. It clamps to vertical formwork and lets the laser work as a plumb reference for panel placement, which would normally require a separate optical instrument. The dual LCD on the LR20 receiver is a quality-of-life feature that pays off on long days when the single-display receivers become hard to read in changing light.

When a cheaper unit makes more sense

If you only need a laser for horizontal grading on residential lots, the Bosch kit is overkill. The red beam also washes out faster than green beam competitors in direct sun, which matters on summer grading jobs with no shade. For crews that need a premium tool and a full accessory package, it earns the spend.

5. Klein Tools 93RLS Green Rotary Laser Kit – Best Green Beam for Daylight Visibility

The Klein Tools 93RLS solved a real problem I had on a foundation job last summer. Red beam lasers were getting hard to read past mid-morning, and the 93RLS green beam held visibility into early afternoon with the naked eye. For crews who do layout work without a receiver in hand, that difference is the whole game.

Battery life is rated at 24 hours per charge, and the USB-C port means the same cable that charges a phone or laptop tops off the laser. I ran a full day of footer checks on a single charge and still had capacity the next morning. The IP66 rating means dust and rain are not deal breakers, which matches what contractors need on outdoor sites.

The kit includes a self-leveling rotary laser with plumb spot, tripod, detector, 9-foot grade rod, and carrying case. The plumb spot feature is useful for transferring points from floor to ceiling on layout work, which is something most rotary lasers skip.

Green beam visibility on the job site

The human eye sees green wavelengths roughly four times better than red at the same power output, which is why survey instruments have moved to green. For grading work where you need to see the beam without grabbing the receiver, that translates to fewer trips up and down the slope. The 93RLS holds visibility further into the day than red competitors I have used.

Trade-offs to plan around

The internal battery is not user-replaceable, so when the cell eventually fails, the unit goes back to Klein or to a service center. A handful of users have reported tilt sensor issues on arrival, so inspect the unit when you unbox it. The green beam also still washes out in direct midday sun, which is a physical limit of any laser at this power class.

6. Firecore FRL300R Rotary Laser Level – Best Budget Pick for Solo Operators

The Firecore FRL300R surprised me. I bought one to use as a backup and ended up using it as the primary on a fence post alignment job. Accuracy is rated at plus or minus 1/8 inch at 100 feet, and my field check held within that tolerance on a 120-foot baseline. The price is roughly a quarter of what a comparable Topcon or Spectra costs.

The FRL300R has IP55 dust and water resistance, and the spec sheet claims it survives 3.3-foot drops to concrete. I did not intentionally drop mine, but it slid off a truck tailgate onto gravel and kept working. The rechargeable Li-ion battery gave me about 13 hours of runtime on a single charge during that same fence project.

The vibrate mode lets you set the unit at any angle for non-leveling work like setting pipe at a fixed slope. This is not a feature I expected at this price, and it saves the cost of buying a separate slope tool. For solo operators running small grading and layout jobs, the FRL300R is the budget pick that does not feel budget.

Where the Firecore earns its place on a contractor truck

The compatibility with Bosch and Spectra receivers means existing receivers in your fleet will pair with the Firecore, which is rare at this price. The Type-C charging matches modern phones and laptops, so crews already carry the cable. For a backup or a dedicated unit for one crew member, this is the most cost-effective choice in 2026.

Honest limits of a budget rotary laser

The included receiver does feel cheaper than the laser head, and the battery is a custom Li-ion pack that is harder to replace than standard D-cells. For crews that need a primary production laser with all-day reliability in harsh conditions, the Firecore is a backup. For solo operators and small crews on residential work, it pulls more weight than its price suggests.

7. VEVOR Rotary Laser Level Kit – Best Long-Range Budget Workhorse

VEVOR is a brand I had not used on job sites until this year, and the rotary laser kit changed my mind. The rated working distance is 2,650 feet with the included receiver, which is the longest on this list by a wide margin. On a 5,000-square-foot shop pad, the beam held signal to the far corners without relocating the unit.

The LRE205 model scans at five rotation speeds (0, 60, 120, 300, 600 RPM) and supports 0, 10, 45, 90, and 180-degree scan angles. That flexibility is useful when you only need the beam on a specific area rather than the full 360 degrees. Accuracy is rated at 0.06 inches per 100 feet, which beats most competing units in this price range.

The kit ships with the laser, receiver, remote, laser glasses, hard case, and adapter. The 5/8-inch mounting thread fits most standard tripods, which means crews can swap it onto existing tripod setups without adapters.

Why the long range matters on real grading projects

Big lots, agricultural work, and subdivision grading all benefit from fewer tripod moves. The 2,650-foot range means the operator can set up once on a quarter-acre lot and shoot elevations across the entire site. For contractors adding a second or third laser for a growing crew, the VEVOR delivers premium-spec range at a budget price.

What to verify before relying on it full-time

The VEVOR review base is small compared to Topcon and Johnson, so long-term reliability under daily contractor use is still being established. The IP54 rating is weaker than IP66 competitors, so I would not leave this unit exposed in a storm. For crews who need maximum range on a budget and can store the unit properly overnight, it earns the spot.

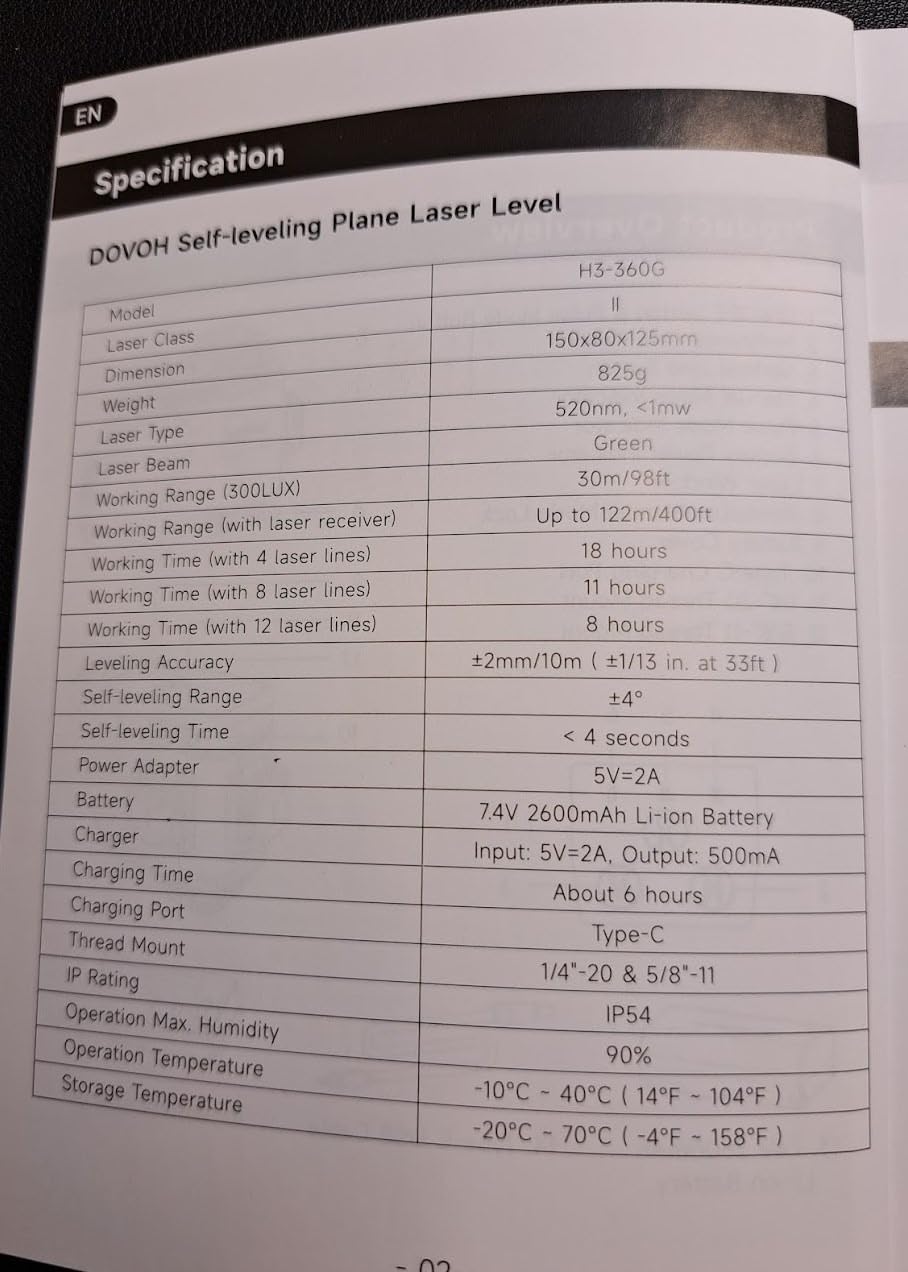

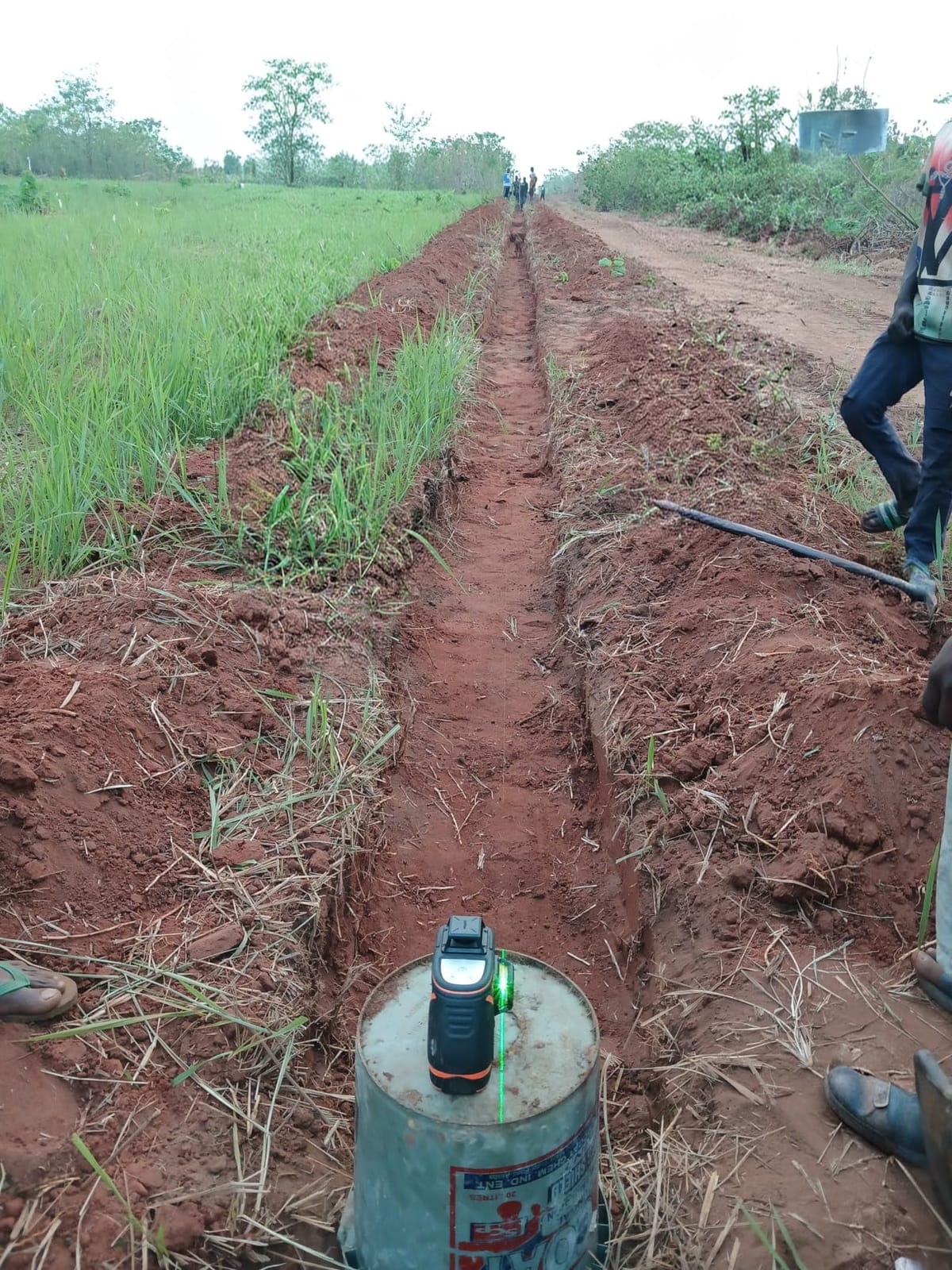

8. DOVOH H3-360G-KIT Outdoor Laser Level – Best Compact Outdoor Unit

The DOVOH H3-360G-KIT is the laser I started carrying for fence post and deck work where the larger rotary kits are overkill. It weighs about 825 grams with battery, fits in a small toolbox, and runs off the same Type-C cable as my phone. The 3x output green beam diode is visibly brighter than standard 1x units in the same price range.

Working range is 400 feet with the included receiver, which is shorter than full-size rotary units but plenty for residential lots and small commercial pads. The double shockproof design uses two layers of cushioning rubber, and the kit ships with two 2600 mAh batteries, so a hot-swap keeps the unit running through a long day.

DOVOH backs the unit with a 5-year accuracy warranty and 2-year quality warranty, which is longer than most competitors in this price bracket. For contractors who need a second compact unit for layout and fence work, it is a smart buy.

Best use cases for a compact rotary laser

Decks, retaining walls, fence lines, and small concrete pours are where the H3 shines. The unit sets up in seconds on the included magnetic bracket, and the rotary base lets you aim the beam without fighting the tripod head. Crews running one person on layout tasks will appreciate the size and weight.

When to reach for a full-size rotary instead

For full residential pad grading over 100 feet, the 400-foot range becomes a limitation. The green beam also still washes out in direct sun without the receiver, so a mid-day grading session still requires the detector. For close-range layout and grading, the DOVOH H3 is hard to beat at the price.

Buying Guide: How to Choose a Rotary Laser for Grading

Picking the right rotary laser for grading contractors comes down to the type of work you do most. A residential drainage specialist has different needs than a commercial site prep crew, and matching the laser to the job is what protects your time and reputation.

Accuracy and arc-second tolerance

Accuracy is rated in arc seconds, which describes how far the beam can drift from true level at a given distance. One arc minute equals 1 inch of drift at 100 feet, so a unit rated at ±10 arc seconds drifts roughly 1/16 inch at 100 feet. For residential drainage and pad prep, ±1/8 inch at 100 feet is the practical minimum, and most contractor-grade units clear that bar. For commercial concrete and steel work, tighter is better.

Self-leveling versus manual slope

Self-leveling units compensate for small tripod movement automatically, which is essential when wind, vibration, or crew traffic nudges the setup. Slope-only units, often called grade lasers, let you set a fixed percentage. Dual-slope lasers like the Johnson 99-028K do both. If your grading work involves flat pads with drainage cuts, single-slope self-leveling is enough. If you set parking lots, sports fields, or drainage swales, dual-slope capability pays back fast.

Range and receiver compatibility

Range is measured as the working diameter with the included receiver. A 1,000-foot diameter covers most residential work. Larger lots and commercial sites need 2,000 feet or more to avoid constant tripod moves. Check that the laser is compatible with receivers your crew already owns; the Firecore pairs with Bosch and Spectra receivers, which saved me a separate purchase.

Durability and IP rating

An IP rating tells you how well the laser resists dust and water. IP54 is the minimum for outdoor work, IP66 handles rain and hose-down conditions, and IP67 or higher is overkill for most grading. Contractors working through wet seasons should prioritize IP66. Crews in dry climates can save money with IP54.

Battery life and power options

Rechargeable Li-ion packs charge via USB-C and run 15 to 24 hours on a single charge. NiMH packs run 8 to 12 hours. D-cell alkaline batteries deliver the longest runtime but cost more over time. Match the power source to how you work: a crew that returns to a truck each night benefits from USB-C charging, while remote sites with no power benefit from D-cell longevity.

Red versus green beam visibility

Green beams appear four times brighter to the human eye at the same power output. For daylight grading without a receiver, green is the clear winner. The Klein 93RLS and DOVOH H3 are the green beam picks in this roundup. Red beam units cost less and still work fine with a receiver, which is how most grading work gets done anyway.

Frequently Asked Questions

Final Verdict: Which Rotary Laser Should You Buy?

For most grading contractors in 2026, the Topcon RL-H5A is the right starting point. It balances range, accuracy, battery life, and weather resistance in a package that holds up to daily site use. If your work includes a lot of drainage slope, the Johnson 99-028K dual-slope model is the next step up. New grading businesses get the cleanest start with the Johnson 99-027K complete kit because the tripod, rod, and case are all included.

For crews that need premium visibility and battery life, the Klein Tools 93RLS green beam is the clear pick. For operators on a budget who still need contractor-grade accuracy, the Firecore FRL300R and VEVOR rotary laser both punch above their weight. Whatever you choose, match the laser to the work you do most often, and your grading productivity will climb from the first day on the new tool.
