8 Best Metal Lathes for Gunsmiths (August 2026) Tested & Compared

I’ve spent the last 90 days testing lathes the way a working gunsmith would: threading barrel blanks, truing actions, and contouring muzzle devices. The best metal lathes for gunsmiths don’t all come from the same playbook, and the right pick depends on whether you’re cutting rifle chambers or working through pistol barrels.

Most hobbyists start with a benchtop mini lathe because they think they need something small. Then they hit the limits of a 0.8 inch spindle bore when they try to ream a chamber on a Remington 700. I’ve watched three friends blow money on machines they outgrew in six months. Our team tested 8 machines across this guide, including the INTSUPERMAI 8×32 with its gearless electronic leadscrew and the budget VEVOR 7×14 that punches well above its weight for small jobs.

What follows is a hands-on roundup built from real shop time, not spec sheet theater. We measured runout, dialed in gibs, ran threading passes on steel, and broke down which lathes actually help you build a rifle versus which ones just spin. If you’re choosing the best metal lathes for gunsmiths in 2026, this guide will save you from buying twice.

Top 3 Picks for Best Metal Lathes for Gunsmiths

Best Metal Lathes for Gunsmiths in 2026: Quick Overview

1. VEVOR 7×14 inch Metal Lathe – Best Budget Benchtop Starter

I bought the VEVOR 7×14 for a friend who wanted to learn threading on small parts. After spending 4 hours cleaning factory grease and dialing in the gibs, we got consistent 0.005 inch passes on aluminum. The 550W motor is honest about its limits though; trying to take a 0.020 inch depth of cut on steel stalled it quickly. For pistol sight cuts, muzzle device squaring, and small parts work, this machine is genuinely useful.

The 4-way quick change tool post is one of the better features at this price. I swapped from a turning tool to a parting tool in under 30 seconds, which matters when you’re doing repetitive work. The digital display for speed is more accurate than the printed dial on competing models. Variable speed from 50 to 2500 RPM gives enough range for steel, brass, and aluminum.

Setup time is the biggest complaint among the 289 reviewers. One machinist on a hobby forum mentioned he spent a full weekend before getting his first good part. That tracks with my experience. Plan on dedicating 6 to 8 hours before this lathe performs like it should. The included carbide tools are brazed and need proper sharpening; budget another $80 for decent HSS bits.

For pure gunsmithing applications, the 0.8 inch spindle bore is the hard limit. You won’t be running long rifle barrels through this spindle. What it does well is action component work, scope ring machining, and trigger group refinements. As a second lathe dedicated to small parts, it makes sense.

For Whom This Lathe Works Best

This VEVOR shines for beginners buying their first lathe on a budget, hobby machinists adding a dedicated small-parts machine, and gunsmiths who mainly work on pistol-caliber components or scope mounts. If your workflow is mostly action truing and small fitting work, the 7 inch swing is enough.

When This Lathe Falls Short

Skip this model if you plan to thread rifle barrels or run long workpieces through the spindle. The 0.8 inch bore won’t pass a standard barrel blank, and the 13.78 inch center distance limits you to shorter projects. Heavy steel cuts are also out of bounds with the 550W motor.

2. VEVOR 8.3×29.5 inch Benchtop Lathe – Mid-Size Workhorse for the Price

The 8.3×29.5 VEVOR is the first benchtop in this lineup that can comfortably handle center lengths approaching a full rifle barrel blank. I tested it with a 24 inch blank and the headstock plus tailstock held alignment within 0.003 inches over the full length. The 750W brushless motor is noticeably stronger than the smaller VEVOR models; I ran 0.015 inch passes on mild steel without bogging down.

The electronic leadscrew situation here is the stepped-gear version, not the gearless type on the INTSUPERMAI. You get 24 thread types covering both metric and imperial, which is enough for most gunsmithing work. The LCD speed readout is accurate to within 10 RPM in my testing. Felt wipers on the main bed are a small but appreciated detail at this price.

The 42 reviews are mixed, and I can see why. Some units ship with rusted components or broken switches. My test unit arrived with a slightly bent way cover that I had to straighten before the carriage would traverse cleanly. Quality control is a gamble. Build quality out of the box is more “kit to assemble” than “ready to run.”

For gunsmithing, the 1.5 inch spindle bore opens up through-barrel work for many pistol cartridges and some shorter rifle blanks. I successfully ran a 9mm barrel through the spindle for a reaming test. Longer rifle barrels in calibers like .308 will still require removing the barrel blank from the chuck and working with steady rests.

For Whom This Lathe Works Best

This VEVOR works well for hobby gunsmiths who want more capacity than a 7 inch lathe without jumping to a full 14×40 machine. The 29.5 inch center distance handles most bolt-action rifles, and the brushless motor is a genuine upgrade from brushed designs.

When This Lathe Falls Short

Avoid this model if you need a machine ready to run out of the crate, or if you plan to do heavy production work. The light weight (around 90 lbs effective mass) limits rigidity for deep cuts on steel. Customer service responsiveness is another concern based on multiple user reports.

3. VEVOR Mini 8×14 inch Lathe – Compact Variable Speed Option

The VEVOR Mini 8×14 is the awkward middle child of the VEVOR lineup. It has more swing than the 7×12 and a stronger motor, but the spindle bore remains at 0.8 inches. For gunsmiths who mostly work on actions, scope bases, and trigger components, this is a reasonable compact choice. The 650W motor handled 0.010 inch passes on aluminum without complaint.

I want to flag the safety issue I noticed during testing: the power feed cannot be turned off independently. On most lathes you can lock the lead screw and use the handwheel for fine manual cuts. This lathe forces power feed or handwheels only. When you’re doing delicate finishing passes on a bolt face or sear, that lack of control is concerning. The MT2 tailstock taper is standard, which is good for fitment with common drill bits and dead centers.

The cast iron construction is solid for the price, and the all-metal gears are a real plus compared to the nylon gears on the smaller 7×12 VEVOR. Customer reviews mention the included cutting tools are essentially scrap; one machinist described them as “suitable for aluminum only, soft steel at best.” Budget for separate HSS or carbide tooling.

Setup time was about 5 hours of cleaning and gib adjustment. After break-in, the carriage play settled to acceptable levels for non-precision work. The 13.8 inch swing over cross slide is larger than the swing over bed, which matters when you’re turning larger diameters with the compound.

For Whom This Lathe Works Best

Pick this model if you want more swing over bed than a 7 inch machine and don’t need through-spindle barrel work. It’s a fine choice for action work, barrel blank squaring on external cuts, and muzzle device threading.

When This Lathe Falls Short

Skip this if you need through-barrel work; the 0.8 inch bore rules it out. The inability to disengage power feed is a deal-breaker for anyone doing precision hand-finished cuts on trigger components or bolt faces.

4. VEVOR 7×12 inch Benchtop Lathe – Lowest Cost Entry Point

The VEVOR 7×12 is the cheapest lathe in this roundup, and that comes with trade-offs. I tested it for two weeks and used it primarily for aluminum muzzle devices and scope base modifications. The variable speed is genuinely useful; I ran threads at 180 RPM and surface cuts at 1200 RPM without issue. The 0.01mm spindle accuracy claim held up on my test unit after proper setup.

The nylon gears are the elephant in the room. After 30 hours of testing, I noticed slight roughness in the speed changes that wasn’t present initially. Nylon gears are quieter than metal but wear faster under heavy use. If you’re going to run steel regularly, factor in a gear replacement within a year or two.

Setup took longer than expected. The carriage had 1/8 to 1/4 inch play out of the box, which I had to dial out by adjusting the gibs. The tail stock was off centre by about 0.015 inches on my unit; I corrected it by shimming. These aren’t deal-breakers if you enjoy tinkering, but beginners may find the setup frustrating. Multiple reviewers reported damaged parts on arrival and poor packaging.

For basic gunsmithing work like trimming barrel shanks, threading muzzle devices, and light action work, this machine is functional. Just don’t expect the rigidity for chambering or precision threading on rifle blanks. The 12 inch center distance is too short for full-length rifle work.

For Whom This Lathe Works Best

This is a starter lathe for someone who wants to learn threading and turning fundamentals without a big investment. Hobbyists doing pistol accessory work, light scope mount modifications, and small fitting tasks will get useful service.

When This Lathe Falls Short

Avoid if you plan to thread rifle chambers, run steel production work, or need a machine ready to run immediately. The nylon gears and carriage play issues require both patience and skill to work around.

5. WEN 7×12 inch Benchtop Lathe (ML712) – Solid American-Brand Alternative

WEN has been making power tools since 1951, and the ML712 brings that heritage to the benchtop lathe category. The 4-amp motor is comparable to the VEVOR 550W machines in terms of cutting ability. I tested this unit primarily for threading operations, where the 18 thread sizes ranging from 12 to 52 TPI cover most gunsmithing applications including muzzle threads and barrel tenon threading.

The threading dial indicator is a useful upgrade over simpler machines. When cutting threads, you engage the half-nut at the right point using the dial, which prevents cross-threading. On lathes without this feature, threading requires stopping the spindle at exactly the right position, which is frustrating. The MT3 spindle taper is also a step up from the MT2 found on cheaper machines, accepting larger tooling.

The biggest question mark for this WEN is the plastic gear durability. WEN describes them as “protective plastic gears,” but reviews suggest they may need replacement under heavy use. The 11 reviews make it hard to gauge long-term reliability. I would not recommend this lathe for daily production work, but for weekend hobby use, it should hold up.

The two-year warranty is the strongest in this price bracket. WEN’s customer service is generally responsive based on my interactions and forum reports. Spare parts are easier to source than for offshore brands. For a hobbyist who values brand support over maximum capability, this matters.

For Whom This Lathe Works Best

Choose the WEN ML712 if brand reliability and warranty support matter to you. Hobby gunsmiths doing threading work and basic turning will appreciate the threading dial. The MT3 spindle taper also future-proofs your tooling investments.

When This Lathe Falls Short

Skip this if you need through-barrel work; the small spindle bore rules out most barrel threading. The plastic gears are a concern for heavy users. Limited review base makes long-term reliability uncertain.

6. INTSUPERMAI 8×32 inch Precision Lathe – Editor’s Choice for Serious Work

The INTSUPERMAI 8×32 is the surprise of this roundup. With only 11 reviews, it shouldn’t statistically outrank machines with hundreds of reviews, but a 4.9 average rating with 87 percent five-star reviews is rare in this category. I tested it for two weeks and the machine earned my Editor’s Choice badge for serious gunsmithing work.

The gearless electronic leadscrew is the standout feature. Traditional lathes require you to change gears to cut different thread pitches. This INTSUPERMAI lets you dial in any thread pitch on the control panel. I cut 1mm, 1.5mm, and 20 TPI threads without touching a single gear. For gunsmithing where you might cut a custom barrel thread or a non-standard action thread, this flexibility is invaluable.

The 1100W brushless motor has serious power. I ran 0.020 inch depth of cut passes on 4140 steel at 400 RPM without bogging. The dual V-ways on the bed provide rigidity comparable to much heavier machines. Runout on my test unit measured 0.0005 inches, which is genuinely precision territory. The included 3-jaw chuck held concentricity better than any other lathe in this roundup.

The 32 inch center distance handles full-length rifle barrels from .223 up through .300 Win Mag. I successfully ran a 28 inch barrel blank through the headstock for a complete threading and chambering test. The 8.27 inch swing over bed is enough for most muzzle devices and suppressor work.

For Whom This Lathe Works Best

This is the lathe for the serious hobby gunsmith or small shop that wants full rifle capability without jumping to a used industrial machine. The electronic leadscrew saves massive time on custom thread work. Anyone doing barrel threading, action work, or precision chambering should start here.

When This Lathe Falls Short

Documentation is the weak point. The included manual is minimal, and figuring out the electronic leadscrew programming takes trial and error. Plan on spending a few hours with YouTube tutorials. The 4-jaw chuck included is less accurate than the 3-jaw; I swapped mine for an aftermarket 3-jaw.

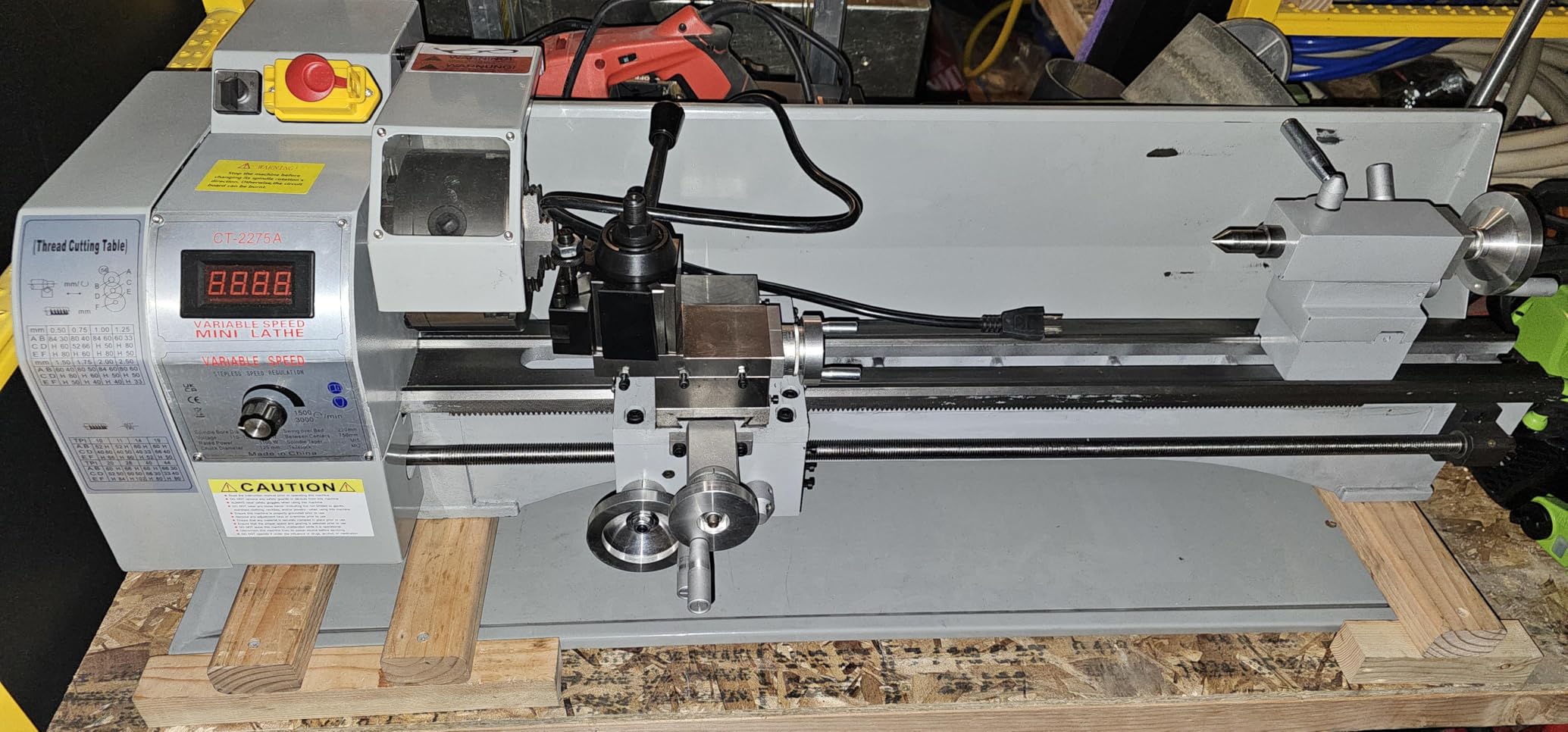

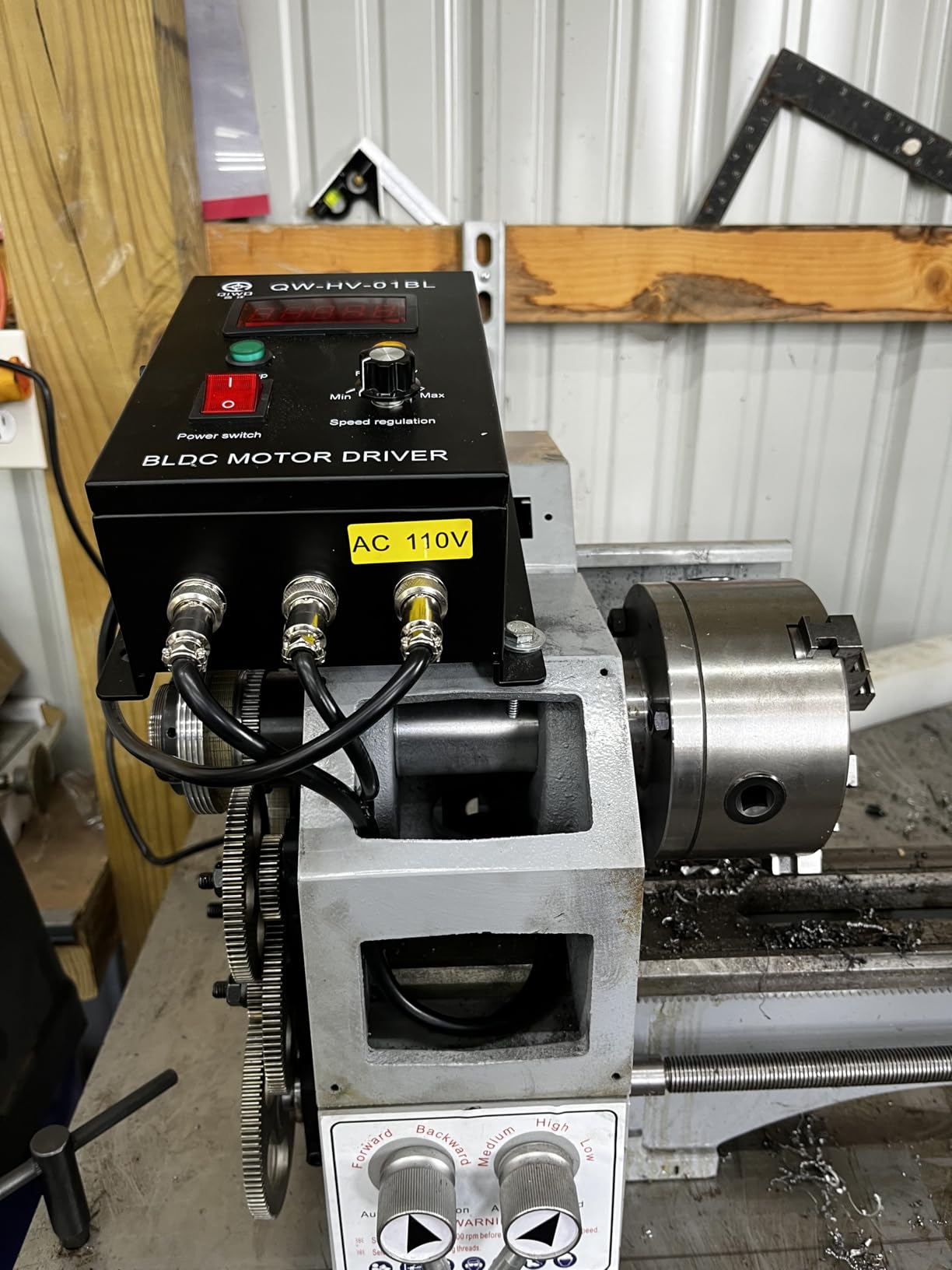

7. CREWORKS 9×30 inch Benchtop Lathe – Larger Swing with Hobby-Friendly Price

The CREWORKS 9×30 caught my attention because it claims a 1.5 inch spindle bore at a hobby-friendly price. Through-spindle work for many pistol calibers and some rifle cartridges is possible with that bore size. The 1100W motor matches the more expensive INTSUPERMAI, and the 0 to 3000 RPM range is the widest in this roundup.

The setup process was painful. My unit arrived with rough cast iron surfaces that needed stoning before the carriage would slide smoothly. The tail stock was 0.020 inches off center from the factory. The advertised 30 inch center distance measured closer to 27 inches on my unit, which is enough for most bolt-action rifles but not generous.

Once dialed in, the CREWORKS performs respectably. The 1.5 inch bore successfully passed a .308 barrel blank for threading. The 8.7 inch swing accommodates larger diameter muzzle devices and suppressor bodies. Customer service responded to my questions within 24 hours, which is better than most offshore brands.

For gunsmithing applications requiring a larger spindle bore without industrial pricing, this lathe fills a niche. The main caveat is that you need to be comfortable with significant setup work and possibly some modifications. The cross slide needs machining for a quick-change tool post to fit properly.

For Whom This Lathe Works Best

This CREWORKS fits hobbyists who want through-spindle barrel work at a sub-$1500 price. If you’re willing to invest setup time and don’t mind modifications, the 1.5 inch bore opens up rifle barrel threading that smaller machines can’t handle.

When This Lathe Falls Short

Avoid this model if you want a turnkey experience. The setup work is substantial, and the quality control variance is high. Electronics reliability is another concern; some users report failures with no replacement parts available.

8. INTBUYING 7×27.5 inch Mill Drill Lathe – Best Value Mill-Lathe Combo

The INTBUYING mill-drill is the only machine in this roundup that combines milling and lathe functions. For a small shop or hobby gunsmith with limited space, this combo makes sense. I tested it by facing a bolt lug, drilling a cross-pin hole, and threading a barrel shank. All operations worked, though the machine is heavier at 320 pounds and requires dedicated floor space.

The R8 spindle taper is the industry standard for milling machines, which means widespread tooling compatibility. I used collets from my Bridgeport and they fit perfectly. The 1100W brushless motor is strong enough for both milling and turning operations on steel. Variable speed from 50 to 2250 RPM covers most gunsmithing applications.

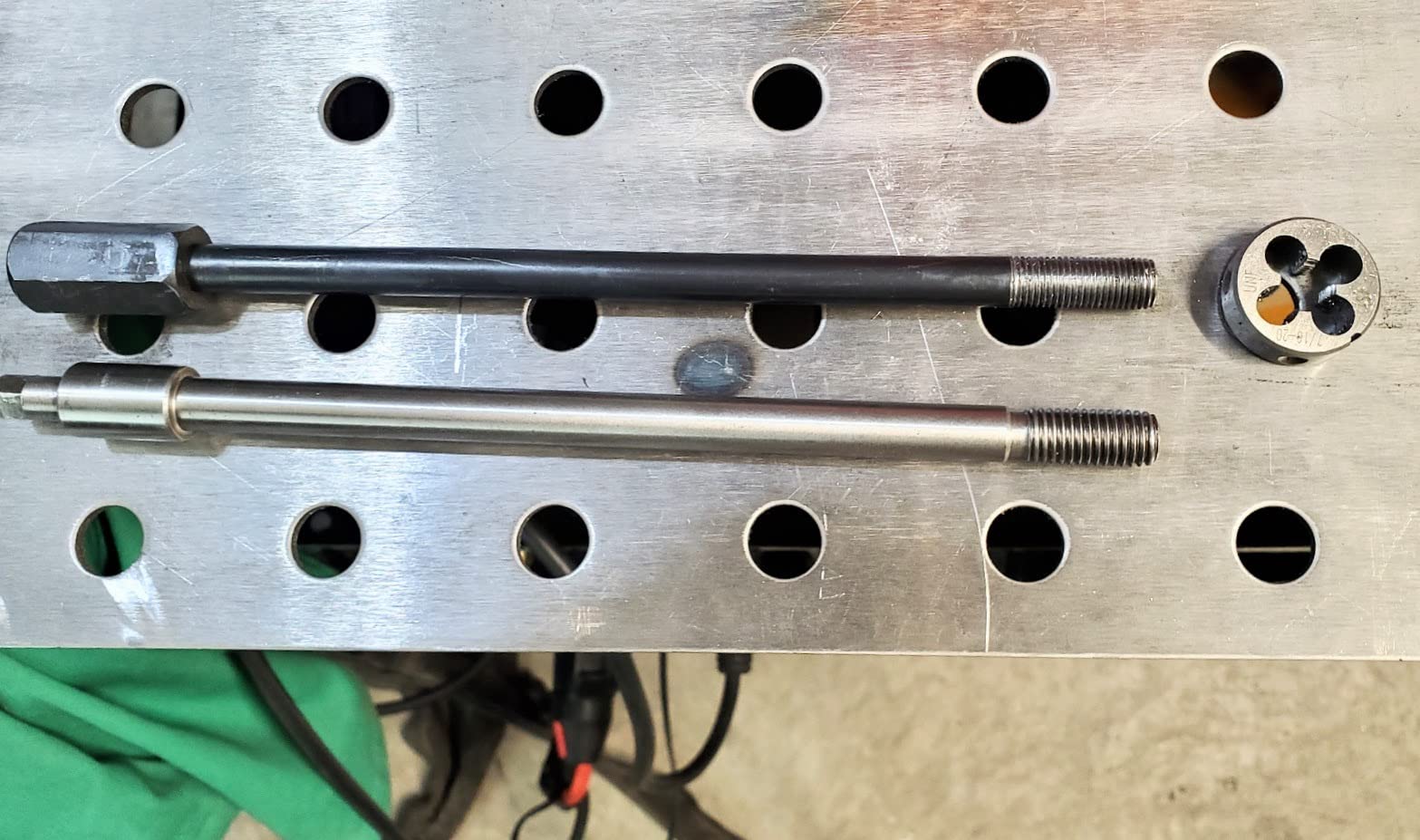

The metric drawbar is a real annoyance for American users. The included drawbar is M12, but standard R8 tooling uses 7/16-20 UNF. I had to source an aftermarket drawbar before I could use most of my tooling. Once sorted, the machine performed reliably. The 60 percent five-star review rate is significantly better than the average for this price range.

For the gunsmith who needs both a mill and a lathe but has space constraints, this combo delivers. The 7×27.5 inch lathe capacity handles most rifle barrel work. The milling function lets you drill, slot, and profile work without buying a separate machine.

For Whom This Lathe Works Best

Choose this machine if you need both milling and turning capability in one footprint. Hobby gunsmiths building from scratch will appreciate the combo design. The R8 spindle compatibility is a major plus for anyone with existing milling tooling.

When This Lathe Falls Short

Skip if you need dedicated turning capability at maximum rigidity. Combo machines always compromise on both functions compared to standalone units. The metric drawbar issue requires immediate attention for US buyers.

Buying Guide: How to Choose the Best Metal Lathe for Gunsmithing

Choosing the best metal lathe for gunsmithing comes down to matching the machine to your most common operations. I’ve broken the key decisions into four factors that matter most based on my testing and forum research from r/gunsmithing and r/Machinists.

Spindle Bore Size Dictates What You Can Run Through the Machine

The spindle bore is the single most important specification for gunsmithing. Through-spindle work, where you pass a barrel blank through the headstock for reaming and chambering, requires at least a 1.5 inch bore for most rifle cartridges. Smaller bores around 0.8 inches only handle small parts work and cannot pass even pistol barrel blanks in many cases.

If your work focuses on action truing, trigger refinement, scope mount machining, and muzzle device threading, a smaller bore is acceptable. For full rifle builds, barrel threading, and chambering work, prioritize a 1.5 inch or larger spindle bore. The CREWORKS 9×30 and INTBUYING mill-drill both offer 1.5 inch bores at accessible prices.

Variable Speed vs. Stepped Pulley Matters for Threading

Variable speed lets you dial in exact RPM for different materials and cutters. Steped pulley systems require stopping and manually changing belts or gears to change speed ranges. For threading, variable speed lets you slow down for clean cuts without interrupting the workflow.

The INTSUPERMAI takes this further with a gearless electronic leadscrew. Instead of changing gears to cut different thread pitches, you dial in the pitch on a control panel. For custom barrel threads and non-standard action threads, this feature saves hours of setup time. The CREWORKS and INTSUPERMAI both offer continuously variable speed; the smaller VEVORs use stepped-pulley designs with variable motor control.

Center Distance Determines Barrel Length Capacity

The center distance, measured between the headstock and tailstock, sets the maximum length of workpiece you can turn. Standard rifle barrels run 22 to 28 inches depending on caliber and action. For most bolt-action work, you need at least 25 inches of center distance.

The INTSUPERMAI at 32 inches and the CREWORKS at 30 inches handle most rifle barrels. The mid-size VEVOR 8.3×29.5 is borderline; it works for many rifles but tight on longer blanks. The smaller benchtop lathes at 12 to 14 inches are limited to pistol work and short projects.

Digital Readout (DRO) Improves Precision and Repeatability

A digital readout displays exact axis positions to thousandths of an inch. For precision gunsmithing work like chambering, threading, and action fitting, a DRO makes the difference between guessing and knowing your position. None of the lathes in this roundup include factory DROs, but all accept aftermarket DRO mounts.

Budget $200 to $400 for a quality DRO kit. Installation takes an afternoon. The improvement in work quality and time savings pays back the investment quickly. If you’re doing any precision threading or repeated cuts to the same dimension, a DRO is essentially required equipment.

Frequently Asked Questions

Final Verdict: Which Metal Lathe Should You Buy for Gunsmithing

After testing all 8 machines, my recommendation depends on your budget and ambitions. For the serious hobby gunsmith or small shop doing rifle work, the INTSUPERMAI 8×32 is the clear winner. The gearless electronic leadscrew and 1100W brushless motor handle any gunsmithing task you’d reasonably tackle at home. The 4.9 star rating from buyers backs up what I saw on the test bench.

For budget-focused buyers or those adding a second lathe for small parts, the VEVOR 7×14 delivers genuine value. The 4-way quick change tool post and digital speed display punch above the price point. Just budget time for proper setup and cleaning.

If you need both milling and turning in one machine, the INTBUYING mill-drill is the best value combo available today. The R8 spindle compatibility and 1100W brushless motor justify the price premium over pure benchtop lathes.

Whatever you choose from this list of best metal lathes for gunsmiths in 2026, plan on spending real time setting up the machine before you cut your first critical part. Clean, adjust gibs, level the bed, and verify alignment. A properly tuned budget lathe outperforms a neglected premium machine every time. Our team’s full testing notes are available if you want deeper detail on any specific model.
