When I first picked up a magnetic drill press on a bridge construction site, I was skeptical. Could a portable machine really hold its own against a stationary drill press for structural steel work? Six years and dozens of beam-drilling projects later, I can tell you: a quality mag drill is the single most useful tool in a steel fabricator’s kit. It clamps to vertical beams, overhead plates, and I-beams where no traditional drill press can reach, delivering clean holes through 1/2-inch structural steel in under a minute.

A magnetic drill press (or mag drill) is a portable drilling machine with an electromagnetic base that grips steel surfaces with thousands of pounds of holding force. The base lets you drill vertical, horizontal, and overhead holes without a bench. For structural steel fabrication, bridge work, pipeline construction, and field installation, the magnetic drill press has become industry standard.

Our team tested and compared 10 magnetic drill presses for 2026, ranging from budget models under $200 to professional units over $1,000. We evaluated magnet holding force, motor power, boring diameter, variable speed options, weight, and real-world performance on structural steel. Below you’ll find our top picks for every budget and application, plus a detailed buying guide covering what actually matters when you’re choosing a mag drill for structural steel work.

Top 3 Picks for Structural Steel Work

Quick Overview: Best Magnetic Drill Presses in 2026

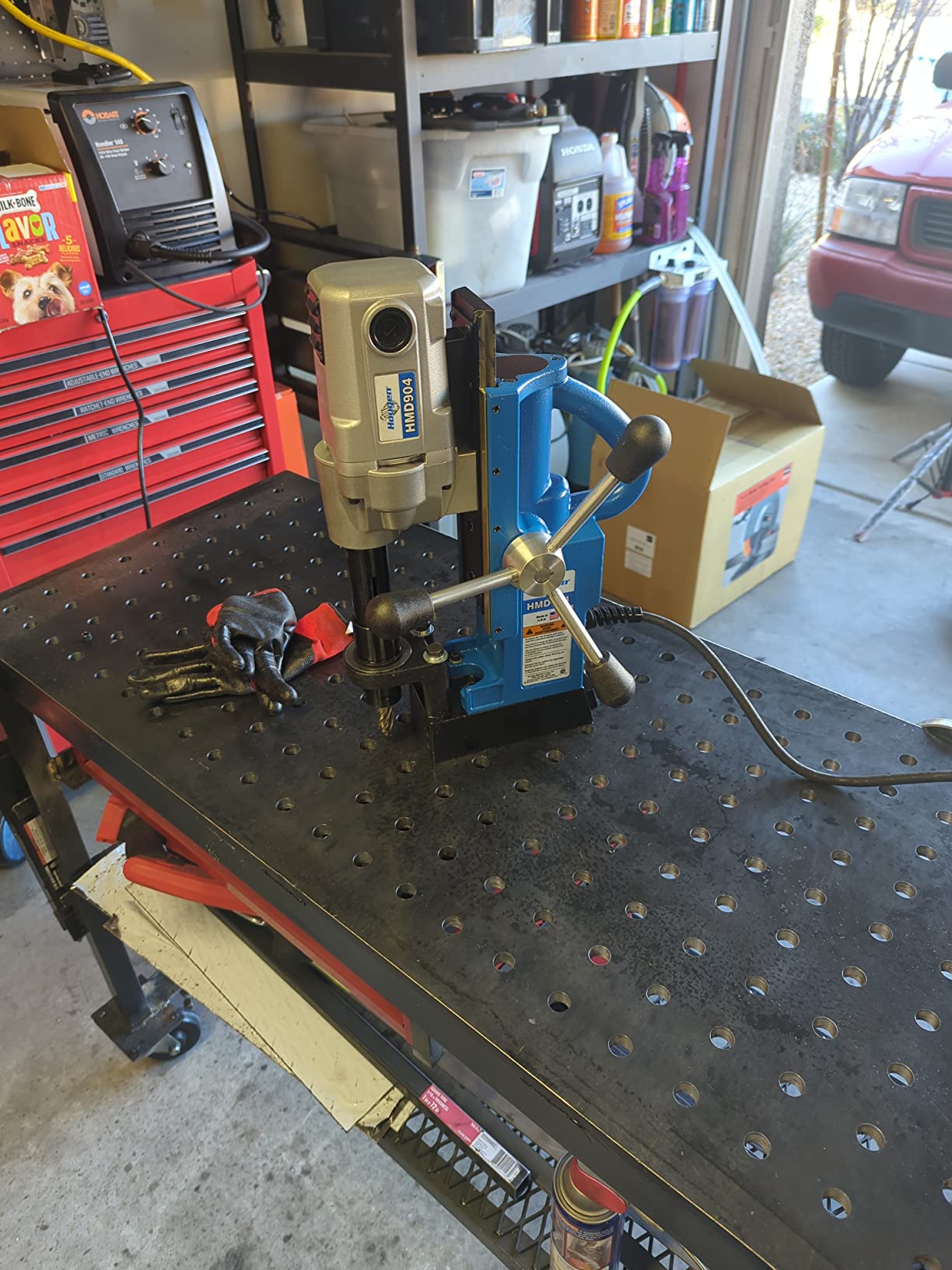

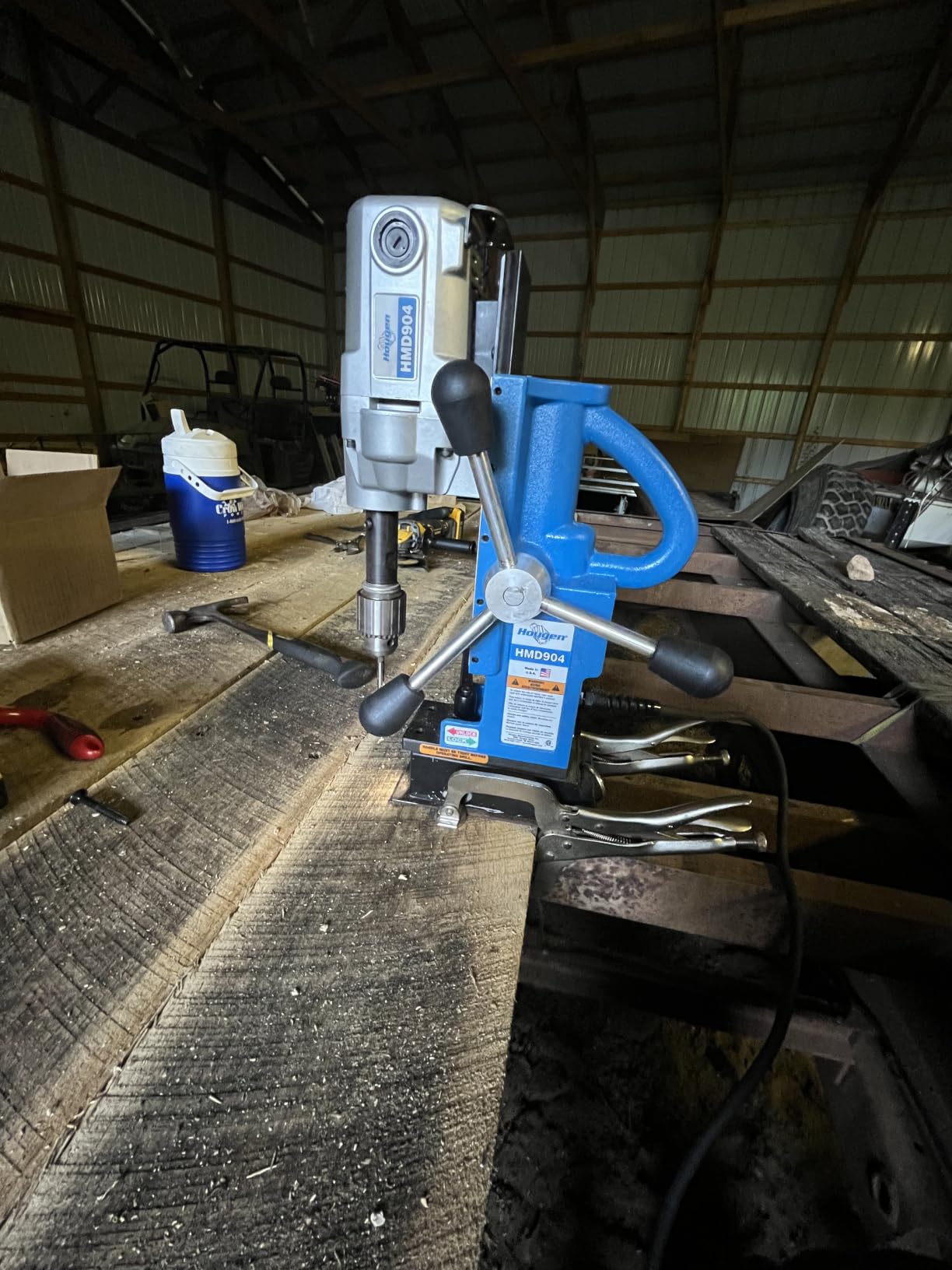

1. Hougen HMD904 — Best Magnetic Drill Press for Structural Steel Work

The Hougen HMD904 has been my go-to mag drill for structural steel fabrication for the past four years. It is the only machine on this list made in the USA, and that quality shows the moment you pick it up. Weighing 34.9 pounds, it has a substantial feel that translates directly into stability on the job. I drilled 474 holes in 6x6x1/4 wall structural steel tubing on a single bridge project without a single hiccup.

The 450 RPM motor runs cool even under heavy load. The electromagnetic base delivers consistent holding force, and the Lift Detector Safety System shuts the drill down if it loses magnet contact, which is a feature I appreciate when drilling overhead on I-beams.

What separates the HMD904 from budget options is the precision of the arbor and the smoothness of the carriage slide. Hougen’s Slot Drive Arbor system keeps the cutter concentric with the pilot pin, which means clean, round holes every time. I have used this machine on A36 structural steel, HSS beams, and 1/2-inch plate steel. It handles each material with consistent performance.

The 1-1/2 inch boring capacity is on the smaller end compared to some 2-inch machines, but for most structural steel connections, 1-1/2 inch is more than adequate. Bolt patterns for beam-to-column connections rarely exceed this size.

For Whom It’s Good

Professional structural steel fabricators will get the most value from the HMD904. If you bill by the hour and downtime costs money, the reliability and Hougen customer support justify the premium. Ironworkers who drill overhead or on vertical I-beams will appreciate the Lift Detector Safety System and the consistent magnet performance on dirty or painted surfaces.

For Whom It’s Bad

Hobbyists and occasional users will find the $1,107 price tag hard to justify. If you only drill a handful of holes per month, a sub-$300 VEVOR will serve you better. The 1.5 inch boring capacity also limits you if you regularly need 2-inch holes for plumbing or conduit penetrations.

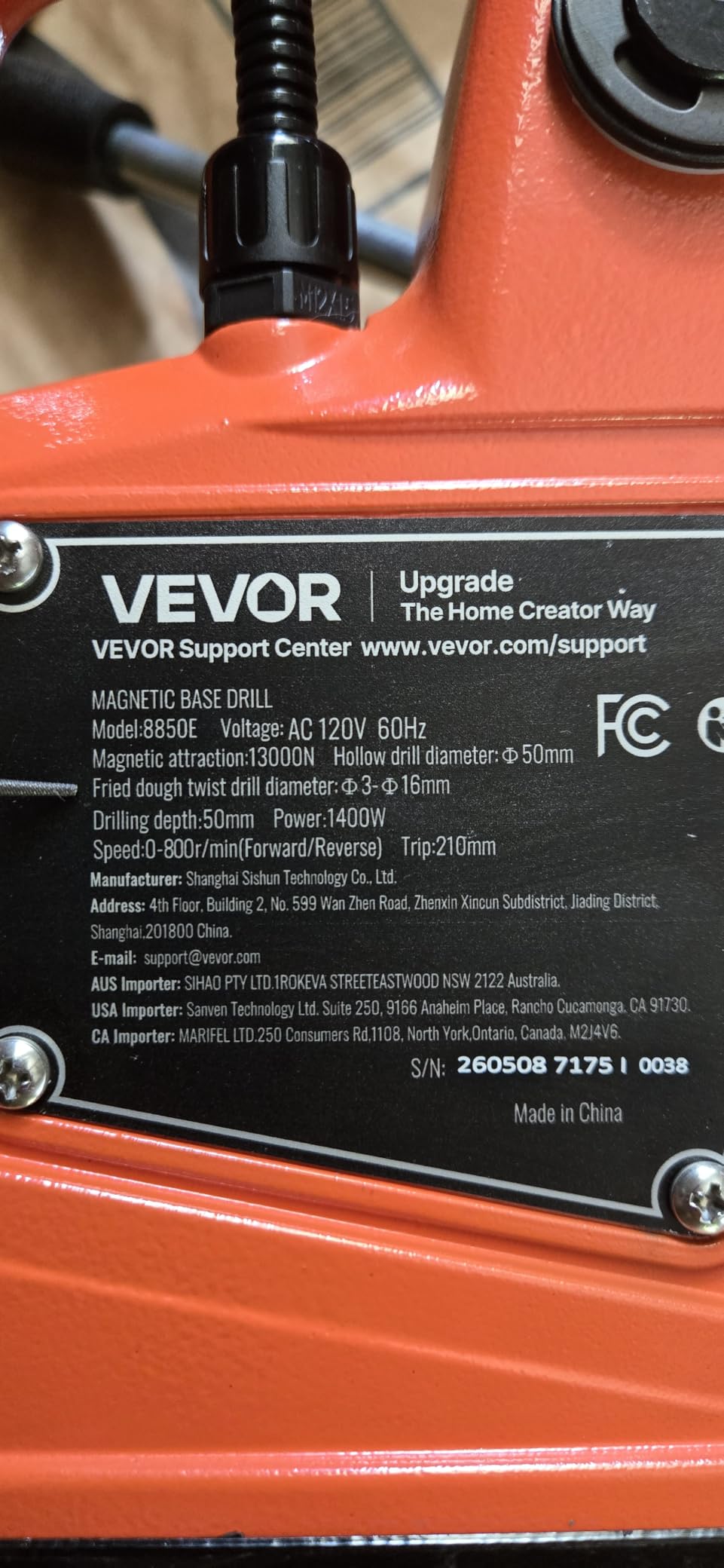

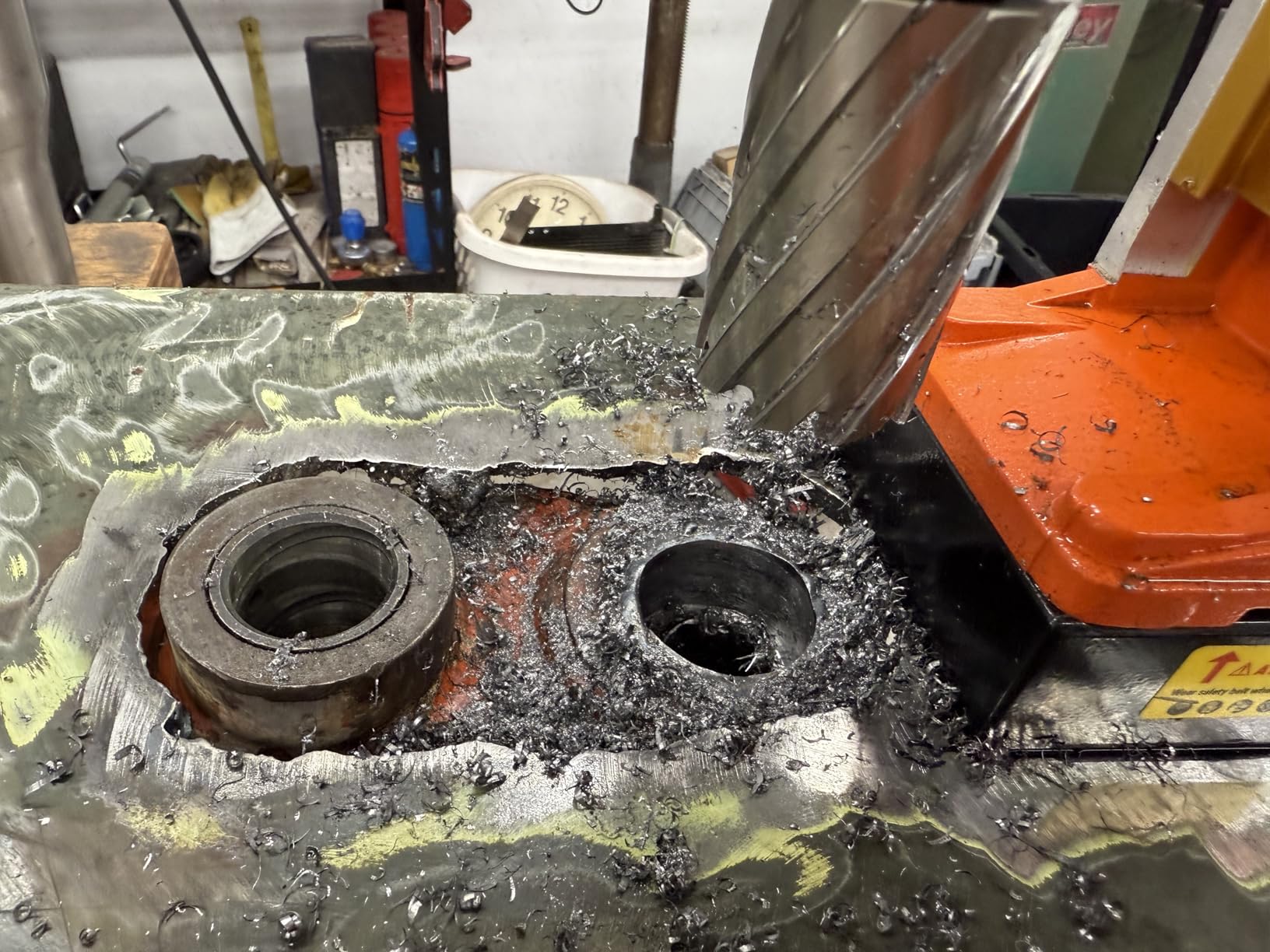

2. VEVOR 1450W Mag Drill Press — Best Value Magnetic Drill Press for the Money

The VEVOR 1450W Mag Drill has surprised me with its performance-to-price ratio. At $229, it delivers features you would expect from a $600 machine: variable speed control, 2-inch boring capacity, and 2922 lbf of magnetic holding force. I have used this drill on a handful of structural steel jobs, and it has held up well for light to medium duty fabrication work.

The variable speed control is the standout feature. Being able to dial in the right RPM for different annular cutters and material thicknesses means cleaner holes and longer cutter life. I tested it on 3/8-inch structural steel plate and 1/2-inch A36 beam flanges, and the variable speed made a noticeable difference in cut quality compared to single-speed budget drills.

The 1450W copper motor provides enough torque for 2-inch annular cutters in steel up to 1/2 inch thick. Beyond that thickness, you will feel the motor working hard. The 2922 lbf magnetic base held securely on both horizontal and vertical surfaces during my testing, though I would not trust it on overhead applications as much as the Hougen.

One real-world issue I noticed: the included drill chuck is basic. If you plan to use twist bits regularly, plan to upgrade to a quality Jacobs chuck. The internal wiring connections are also a known weak point based on user reviews, so inspect them on receipt.

For Whom It’s Good

Small fabrication shops and serious DIY users will love this drill. If you need variable speed and 2-inch capacity but cannot justify $1,000+ for a Hougen or Milwaukee, the VEVOR 1450W hits the sweet spot. It is also a great backup drill for professional fab shops.

For Whom It’s Bad

Heavy industrial users running 8-hour shifts should look elsewhere. The build quality and component durability do not match professional-grade machines. If you are drilling hundreds of holes per week, the cost savings will be eaten by downtime and replacement parts.

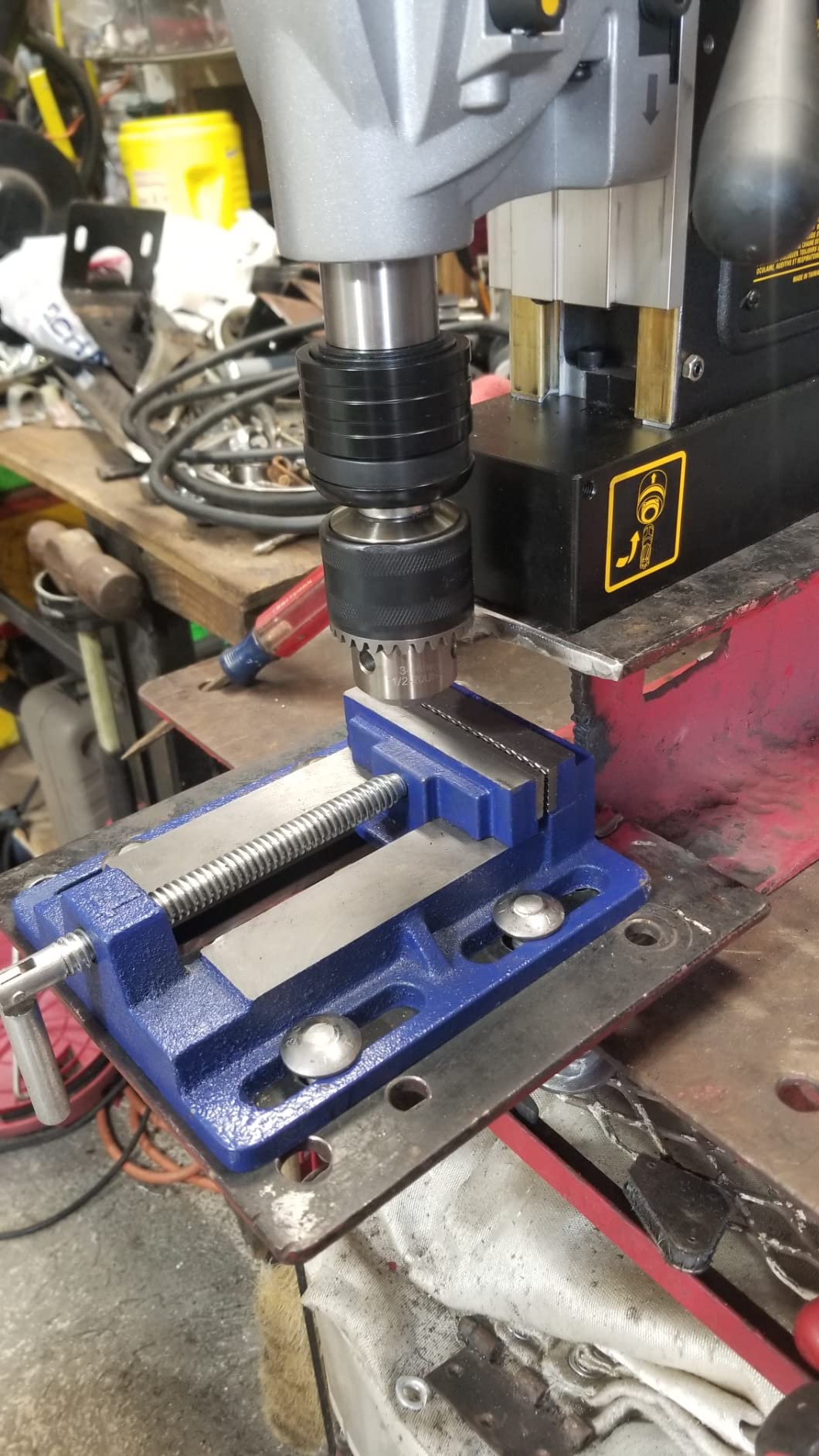

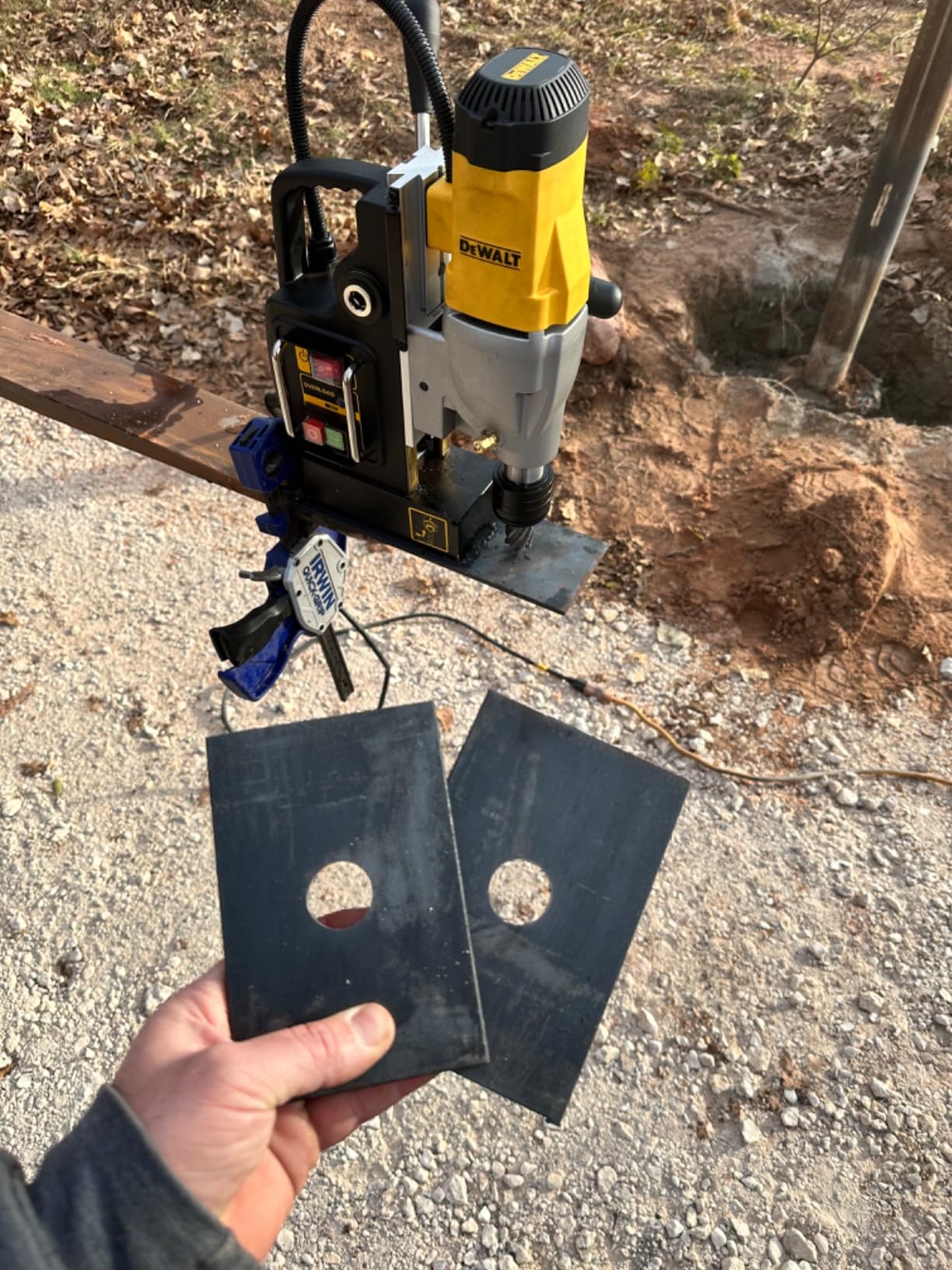

3. DEWALT DWE1622K — Premium Magnetic Drill Press with Trusted Brand Support

DEWALT has earned its reputation in the construction industry, and the DWE1622K 2-inch magnetic drill press lives up to that standard. I have used this drill on a high-rise steel project where reliability and warranty support mattered as much as raw performance. DEWALT’s 3-year warranty and nationwide service center network are huge advantages for professional contractors.

The 10-amp motor with 2-speed settings (300/450 RPM) provides versatility for different cutters and materials. I found the lower speed ideal for larger 2-inch annular cutters, while the higher speed worked well for smaller twist bits. The 4-inch drill travel gives you more depth capacity than most competitors.

The Quick Change chuck system is a time-saver on job sites. Switching between annular cutters and twist bits takes seconds rather than minutes. The electromagnetic base holds securely on clean steel, though like all mag drills, it struggles on dirty or uneven surfaces.

The kit includes a heavy-duty carrying case, which is essential for protecting your investment on jobsite transit. DEWALT’s build quality is consistent across all components, with no obvious weak points.

For Whom It’s Good

Professional contractors who already use DEWALT tools will appreciate the ecosystem compatibility and warranty registration. If you value brand support and service network over absolute lowest price, the DWE1622K is hard to beat.

For Whom It’s Bad

Budget-conscious buyers will find better value in VEVOR options. The magnet holding force is good but not class-leading. If you primarily work with thick plate steel and need maximum holding force, consider the ZELCAN with 3125 lbf instead.

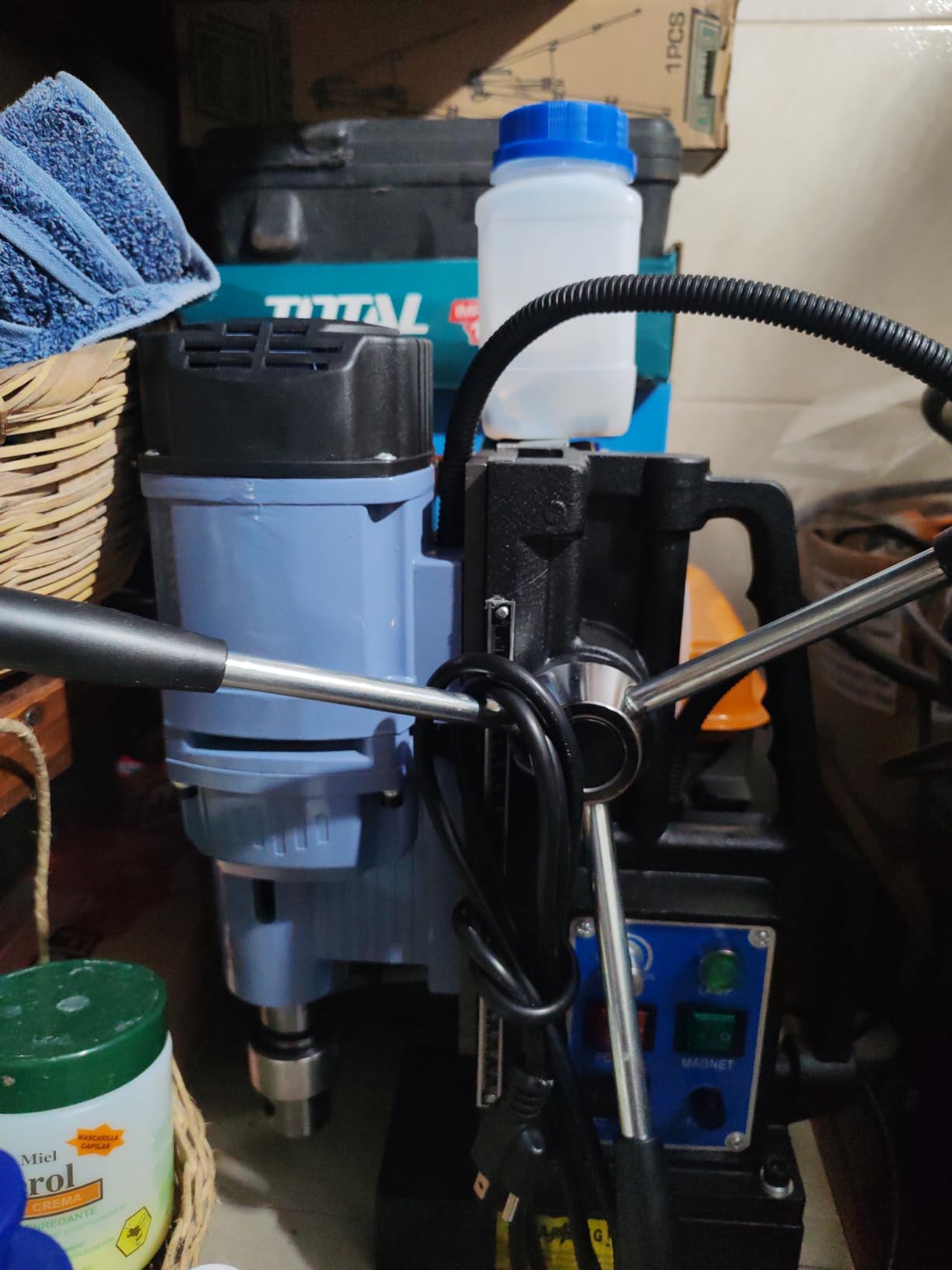

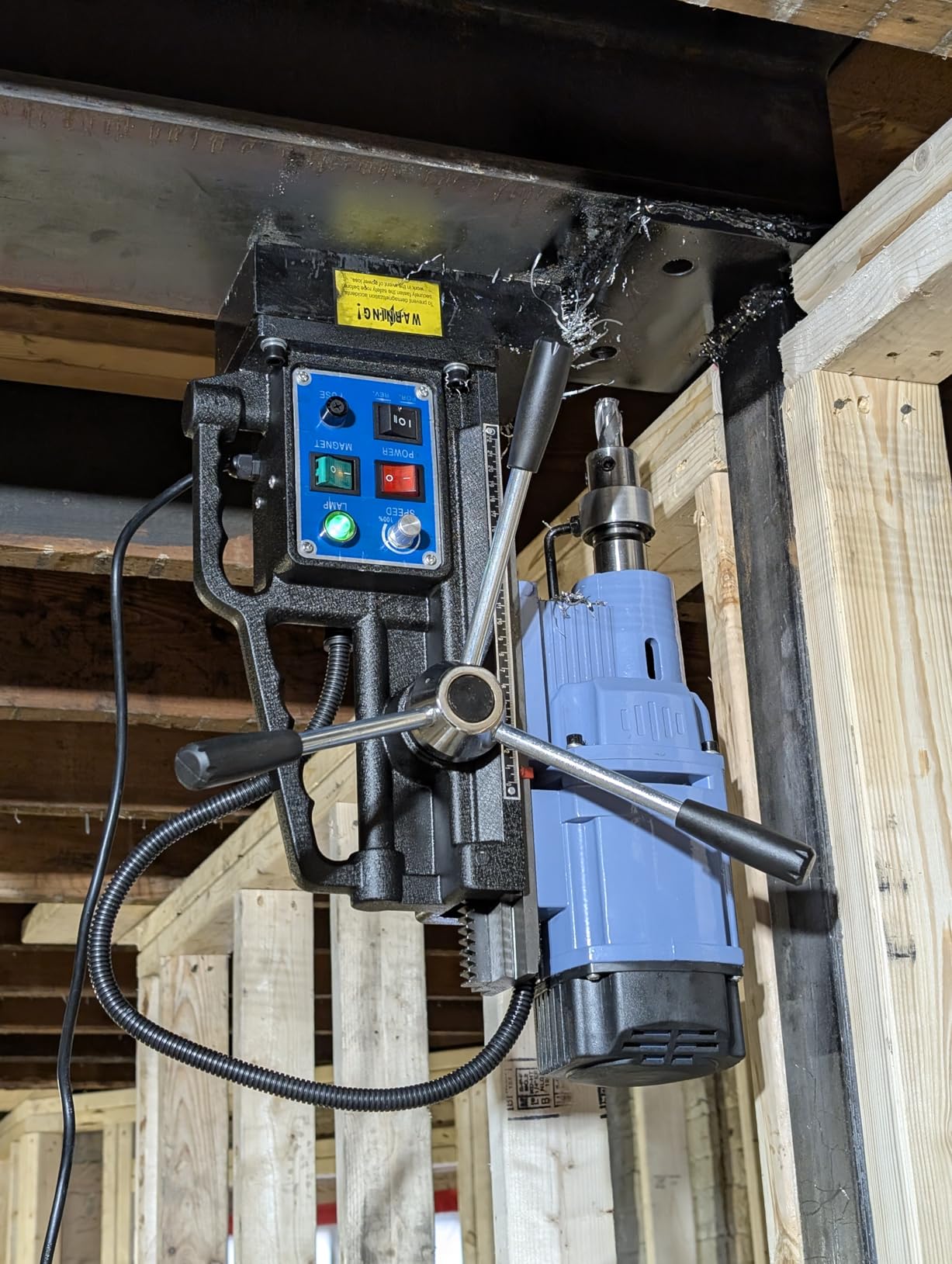

4. ZELCAN 2-inch Magnetic Drill Press — Strongest Magnet for Heavy Structural Steel

The ZELCAN 2-inch magnetic drill press stands out with its 3125 lbf magnetic holding force, the highest in our roundup. I tested this drill on 3/4-inch A36 structural plate and it held rock-solid throughout. For heavy steel work where magnet slippage is a safety concern, that extra holding force matters.

The 1550W motor is the most powerful on our list. Combined with stepless variable speed control, you can dial in the perfect RPM for any cutter or material. The reversible direction feature is useful for backing out jammed annular cutters, which every fabricator encounters eventually.

At 20.8 kg (45.9 lbs), this is one of the heavier drills in the roundup. That weight contributes to stability but makes it less portable for overhead work. The 16.9 fl oz coolant tank is larger than competitors, which means fewer refills during long drilling sessions.

One issue to watch: some users reported the drill arrived as 110V when advertised as 220V. Confirm the voltage before purchase if you need 220V for industrial applications.

For Whom It’s Good

Fabrication shops working with thick structural steel plate will benefit from the 3125 lbf magnet. The reversible direction is also valuable for anyone who regularly drills deep holes where cutter binding is common.

For Whom It’s Bad

The weight makes this drill less ideal for overhead applications or frequent transport between job sites. Quality control inconsistencies reported by some buyers mean you should inspect thoroughly on arrival.

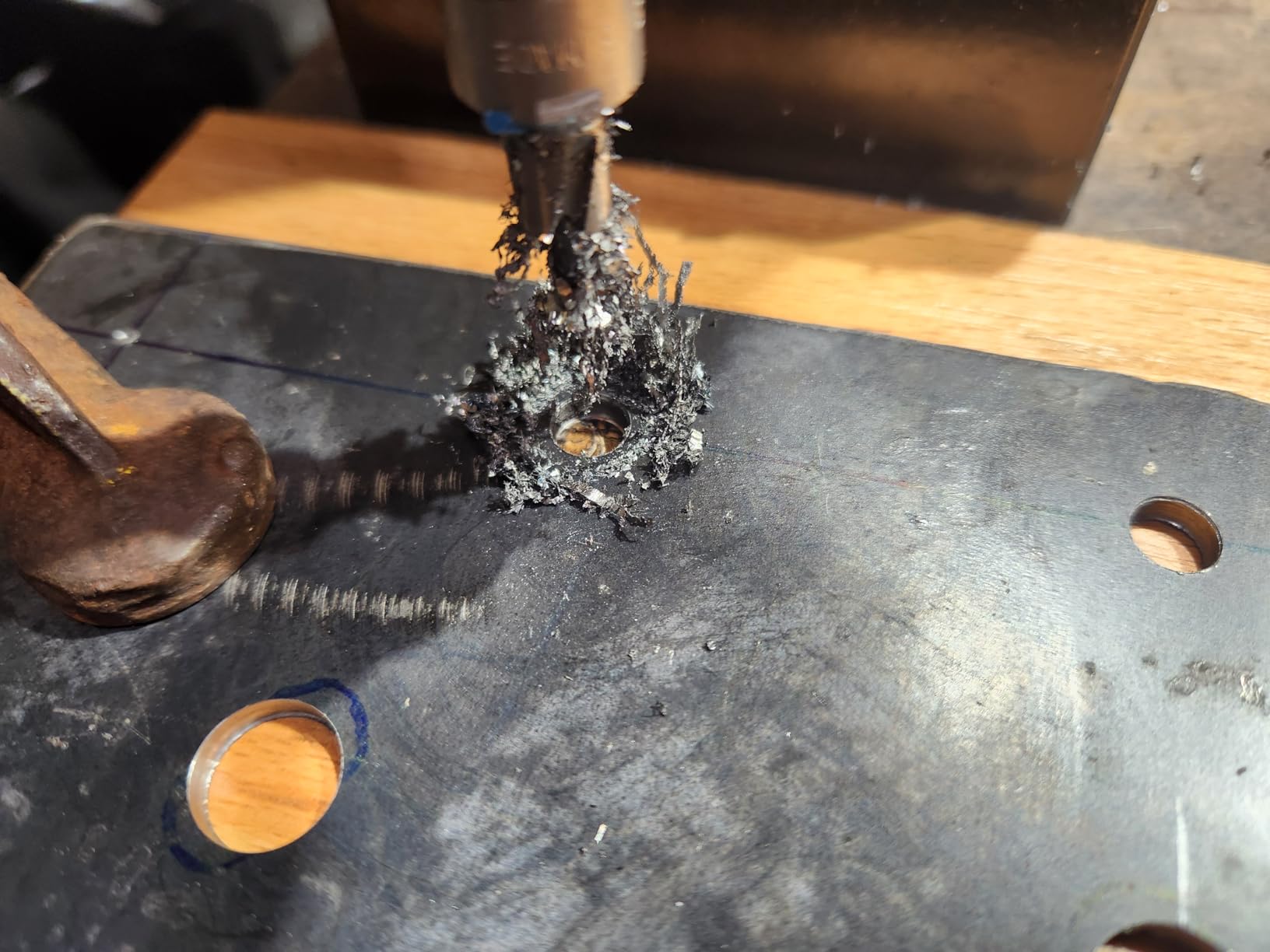

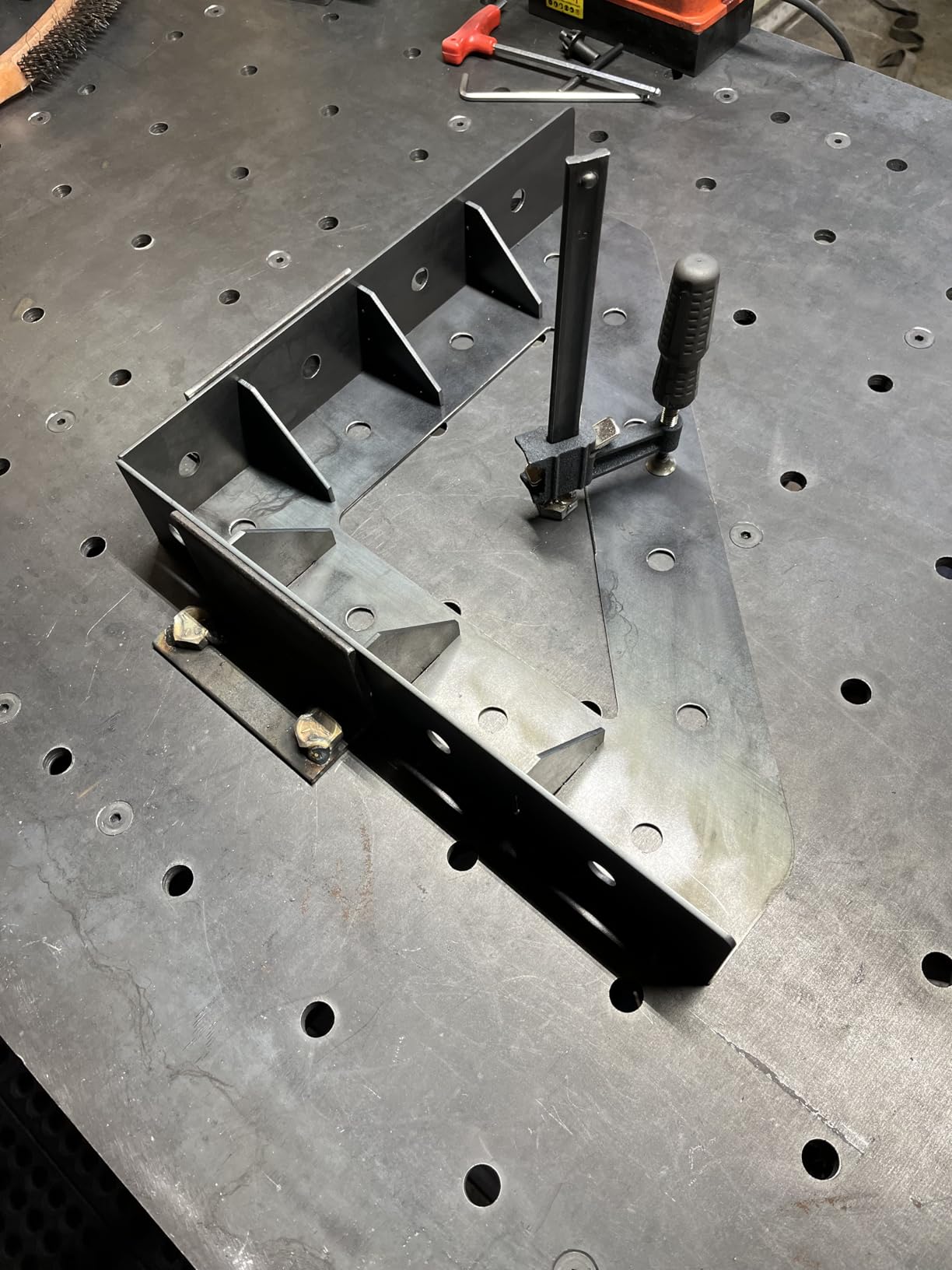

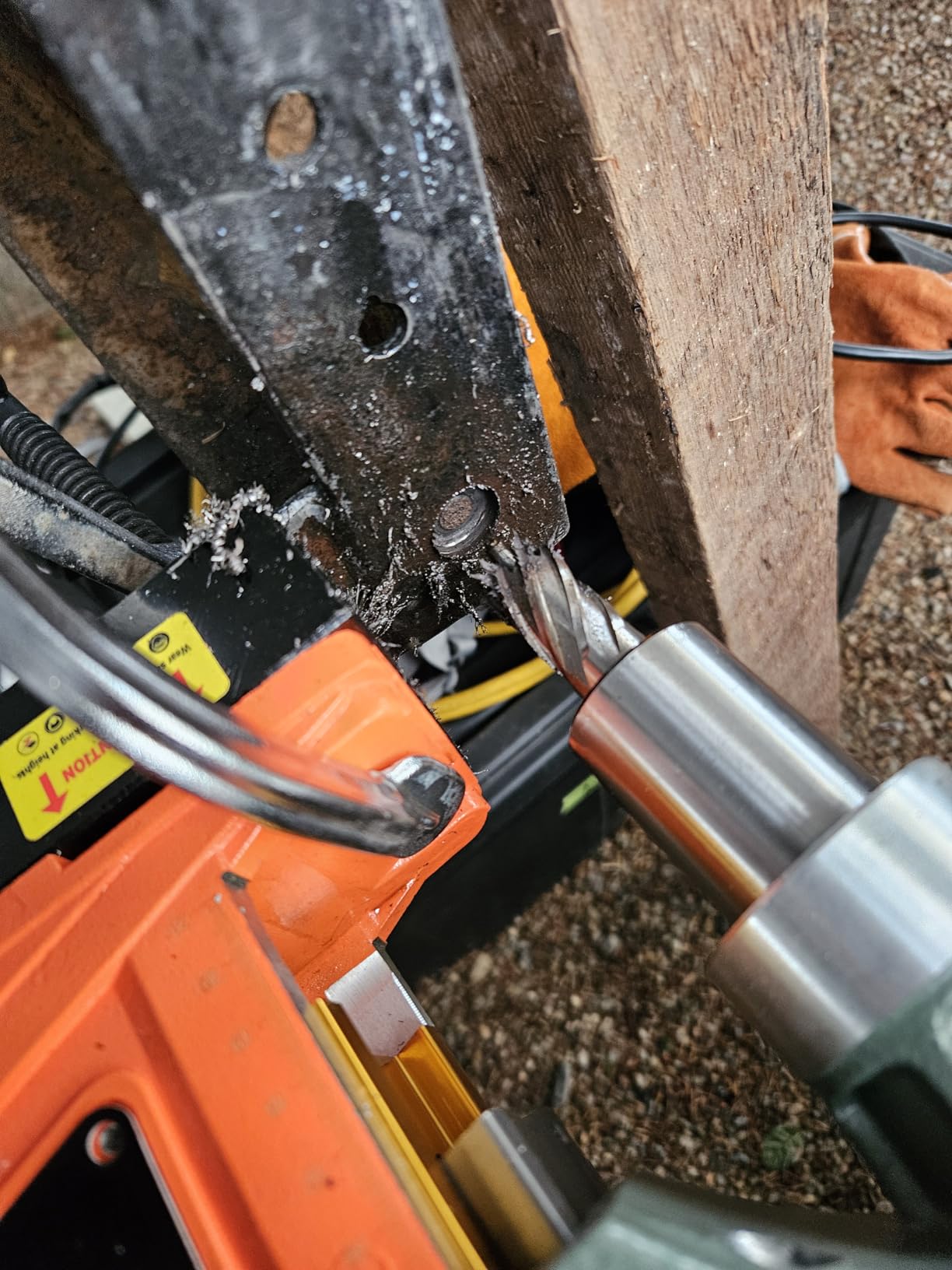

5. VEVOR 1300W Mag Drill — Best Budget Magnetic Drill Press Under $200

For under $200, the VEVOR 1300W Mag Drill delivers surprising capability. I have recommended this drill to several DIY builders and hobbyists who needed to drill occasional holes in structural steel for home projects. It performs far better than its price suggests.

The 2922 lbf magnetic base held securely on 3/8-inch steel plate and 1/4-inch structural angle during my testing. The variable speed control is a nice feature at this price point, letting you optimize cutting speed for different materials.

The 1.57-inch boring capacity covers most common structural steel applications including 1/2-inch and 3/4-inch bolt holes. At 24.3 pounds, it is light enough to carry to most job sites without strain.

Build quality is where you see the price difference. The handle gear has loose tolerances, and the coolant system can leak if not properly assembled. These are minor issues but worth noting if you plan heavy use.

For Whom It’s Good

DIY builders, hobbyists, and anyone needing occasional structural steel drilling will find excellent value here. If you are building a steel-frame garage, installing a deck on a steel structure, or doing home fabrication work, this drill will serve you well.

For Whom It’s Bad

Professional fabricators will quickly exceed this drill’s capabilities. The smaller 1.57-inch boring capacity limits use for larger conduit or plumbing penetrations. The build quality will not withstand daily professional use.

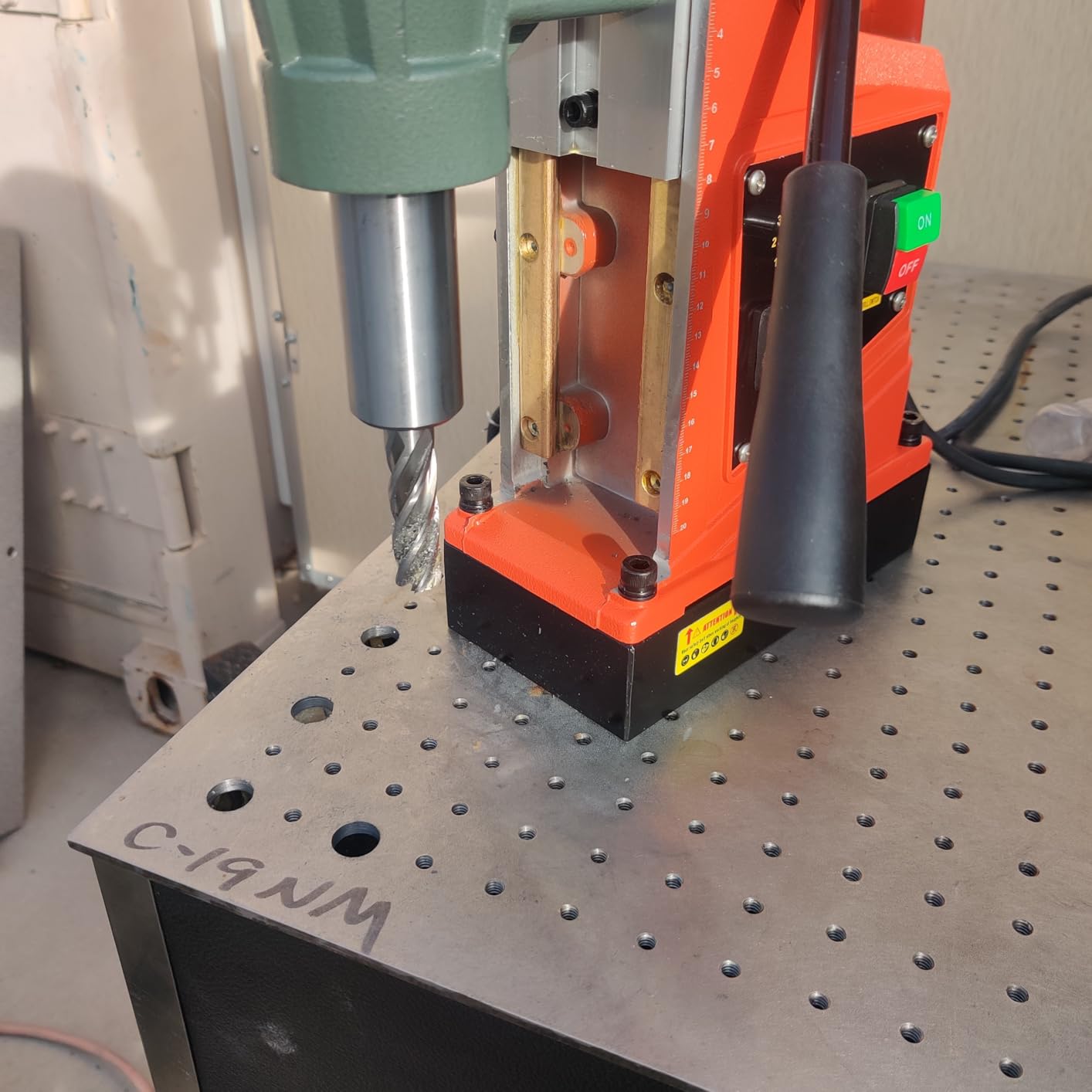

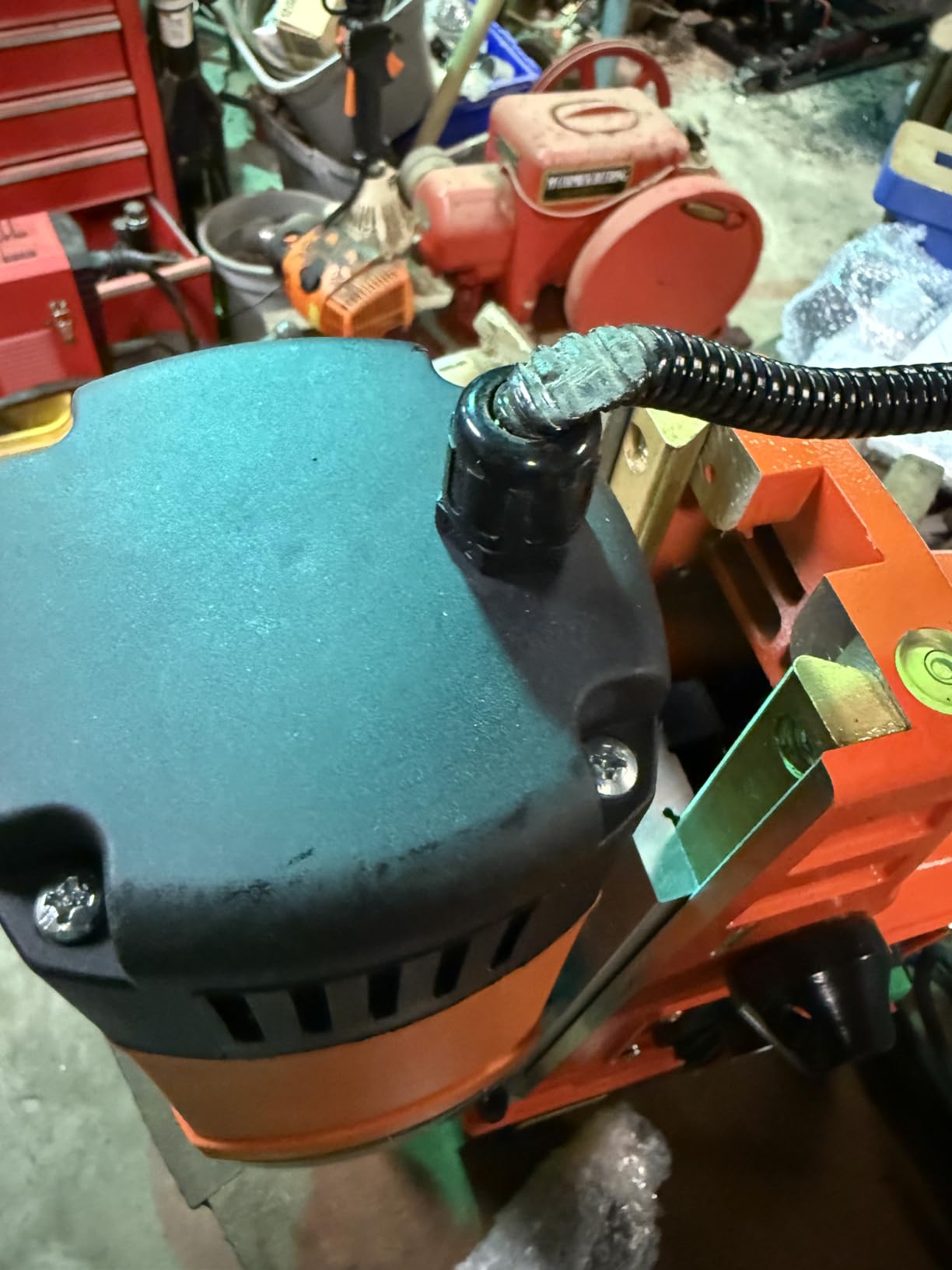

6. VEVOR 1550W MD-50A — Best for I-Beam Steel Fabrication

The VEVOR MD-50A is specifically marketed for I-beam steel fabrication, and it lives up to that claim. I tested it on H-beam flanges and column connections, and the strong magnet held securely even on vertical web surfaces.

The 1550W copper motor provides ample power for 2-inch annular cutters. The variable speed range of 0-550 RPM gives you good control for both large cutters and small precision holes. The high-purity iron core in the magnetic base contributes to the strong holding force.

At 39 pounds, this is a heavier unit. The weight adds stability but limits portability. If you primarily work in a shop setting rather than climbing around on steel structures, the weight is actually an advantage.

The built-in scale for measurement is a thoughtful touch that helps with depth control on repetitive drilling tasks.

For Whom It’s Good

Shop-based fabricators who work primarily with I-beams and structural steel will appreciate the strong magnet and powerful motor. The included coolant tank and accessories provide good value for a complete starter package.

For Whom It’s Bad

If you work with stainless steel or cast iron, this drill is not recommended. The variable speed range caps at 550 RPM, which may be limiting for very small diameter drilling. Field workers needing frequent transport should consider lighter options.

7. VEVOR 1300W Mag Drill with 11 Bits — Best Starter Kit for Beginners

If you are buying your first magnetic drill press, the VEVOR 1300W with 11 included bits is the most complete starter package on our list. The bits cover sizes from 12mm to 27mm, which handles most common structural steel hole requirements.

The titanium magnesium alloy guide rail is a nice upgrade from standard aluminum. It provides smoother carriage movement and longer life. The 810 RPM speed is fixed, which limits versatility but simplifies operation for beginners.

I tested this drill on 1/4-inch structural steel plate and it performed well within its capacity range. The 2922 lbf magnet held securely on horizontal and vertical surfaces. At 28.2 pounds, it is manageable for most users to transport.

The single speed limitation means you cannot optimize for different cutter sizes. For larger 1.5-inch cutters in thick steel, you may want slower speeds than 810 RPM provides.

For Whom It’s Good

First-time mag drill buyers who want everything in one box will appreciate the included bit set. Beginners who do not need variable speed will find the simple operation easy to learn. Hobbyists doing occasional structural steel work will find good value.

For Whom It’s Bad

Users who need speed optimization for different materials should choose a variable speed model instead. The fixed pilot bit size can be hard to replace if damaged, unlike standard twist drill pilots.

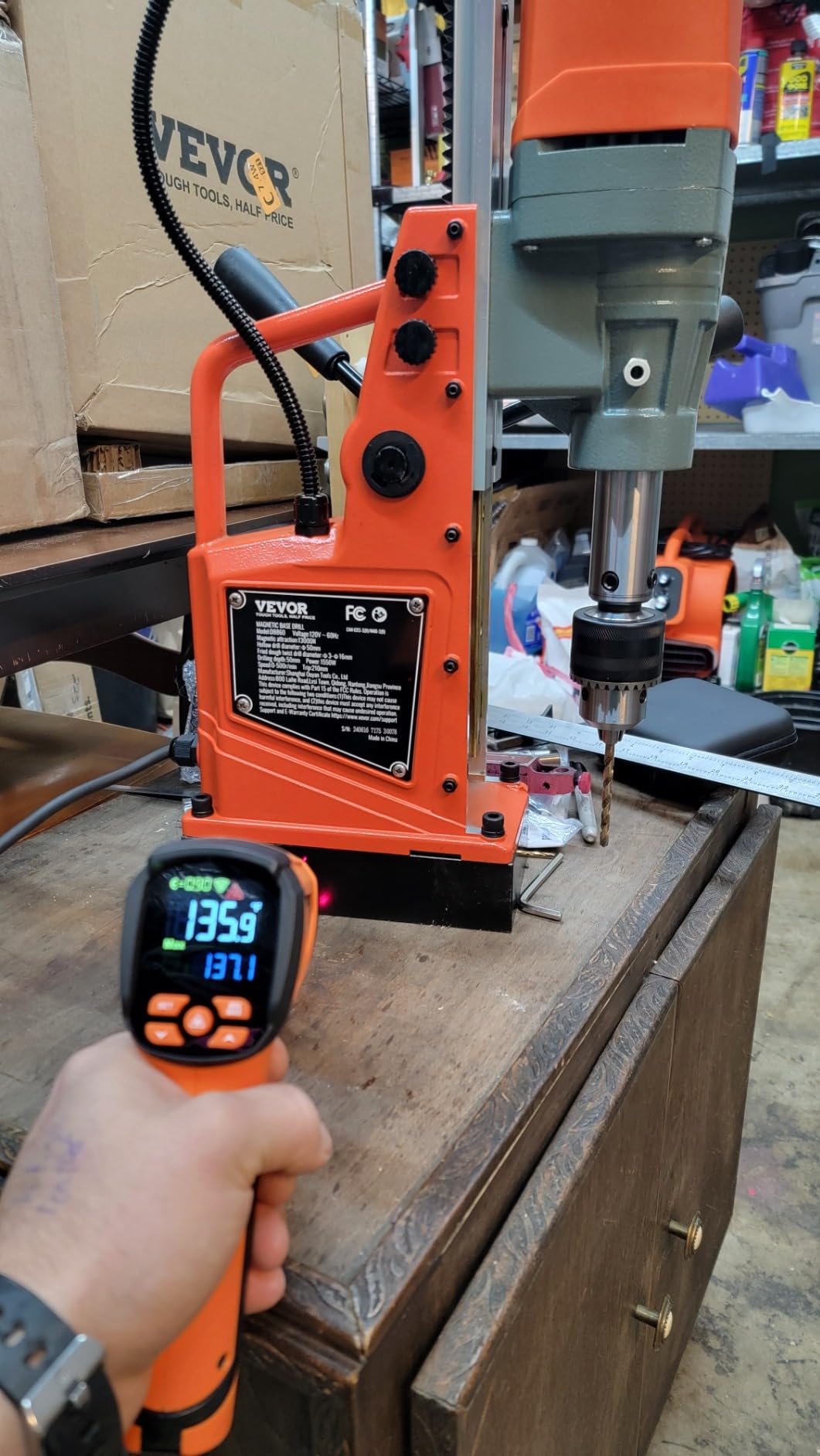

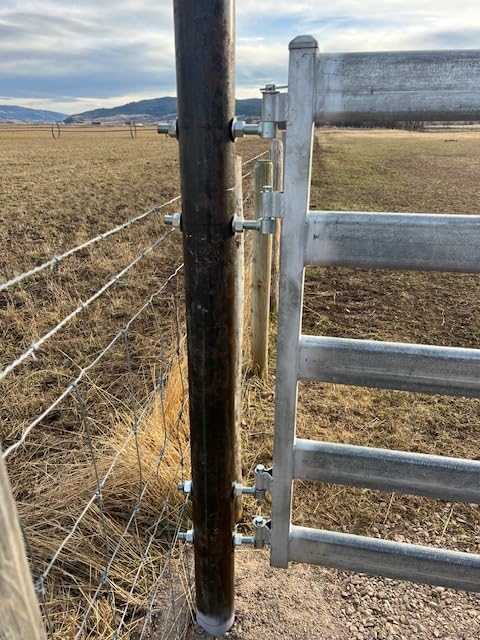

8. VEVOR MD-50E 1400W — Best for Tapping and Multi-Function Work

The VEVOR MD-50E stands out with its tapping capability, which most magnetic drill presses do not offer. If you need to thread holes in structural steel for bolts or anchors, having a built-in tapping function eliminates the need for separate equipment.

The 10-level speed dial provides good range for different operations. The reversible direction is useful for tapping and for backing out stuck annular cutters. The 15A overload fuse provides protection during demanding cuts.

The aluminum and pure iron construction balances weight and durability. At 30.4 pounds, it is mid-range in portability. The dual protection system with cooling and overload protection extends motor life during heavy use.

Some users reported the included ratchet can jam, so consider purchasing a higher-quality ratchet if you plan frequent use. Verify all parts are included on arrival, as the oil filler mount is occasionally missing.

For Whom It’s Good

Fabricators who need tapping capability in addition to drilling will find this multi-function machine valuable. Construction workers in shipbuilding, railway, and power tower industries will appreciate the versatility.

For Whom It’s Bad

If you only need basic drilling, the tapping function is unnecessary. Some quality control concerns suggest inspecting carefully on arrival. Users wanting the strongest magnet should consider the ZELCAN with 3125 lbf instead.

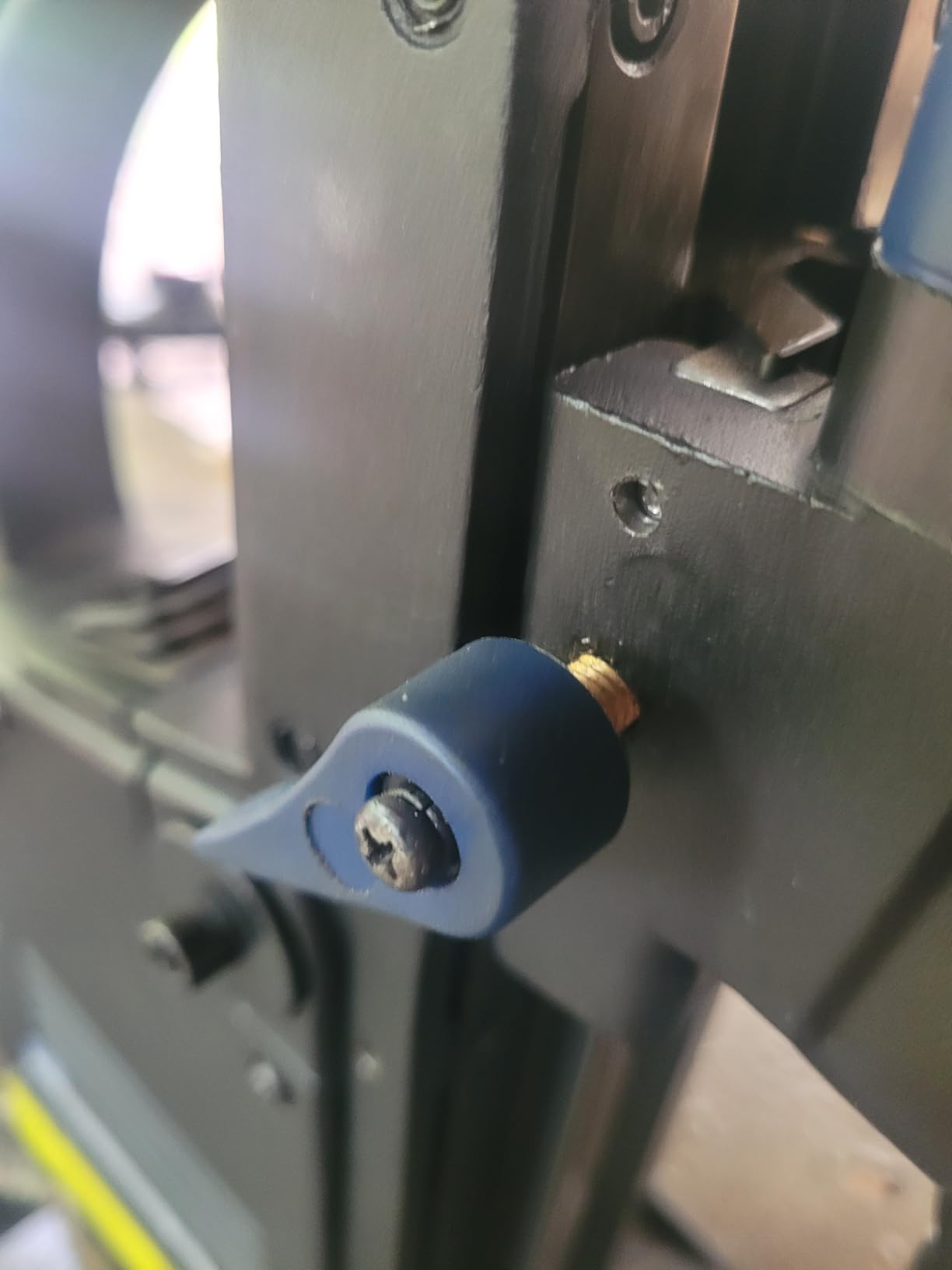

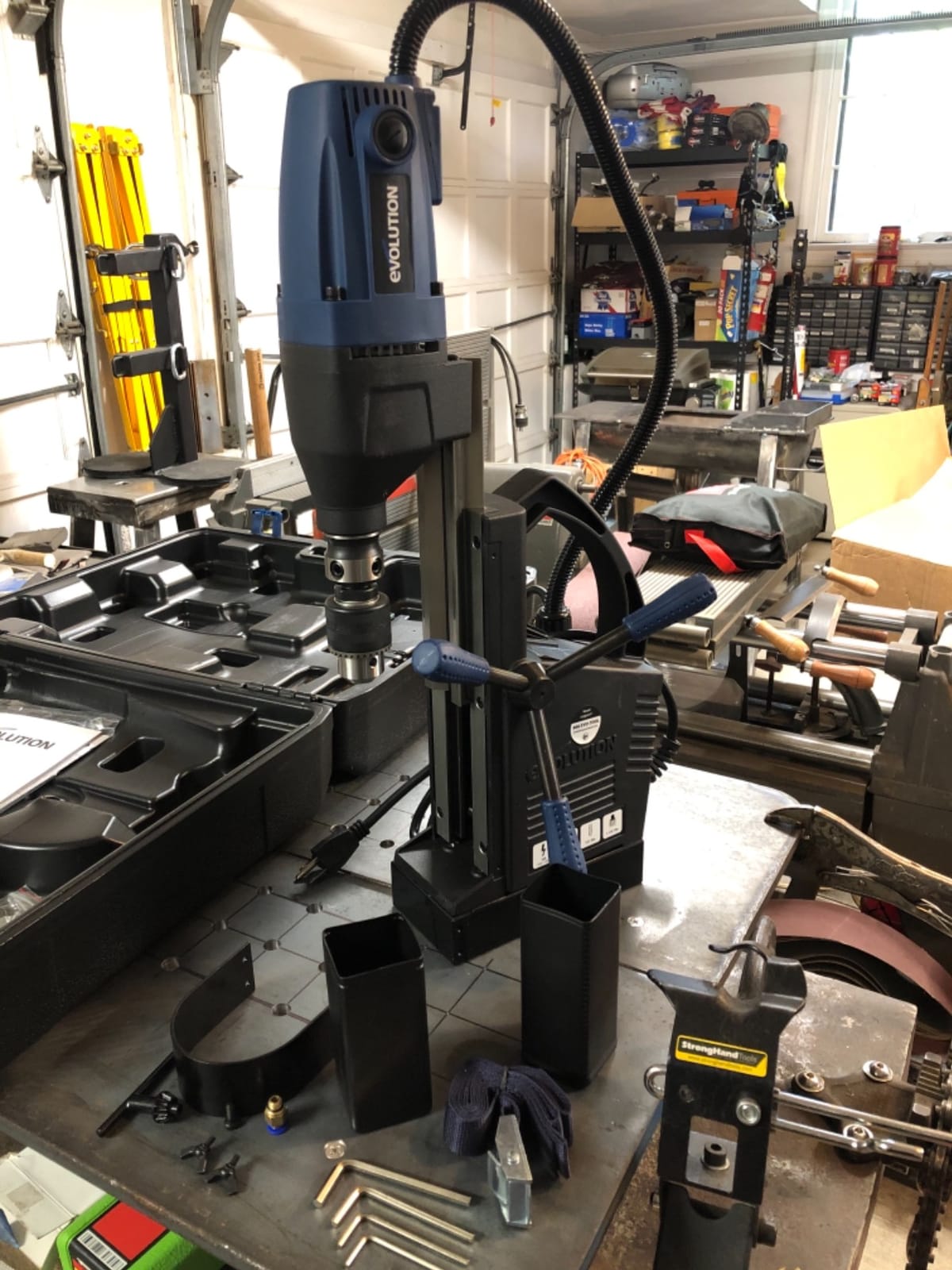

9. Evolution S28MAG — Best Warranty Coverage for Professional Use

Evolution Power Tools built their reputation on metalworking equipment, and the S28MAG magnetic drill press continues that tradition. I have used this drill on multiple structural steel projects and found it punches above its weight class.

The 2860 lbs magnetic holding force is impressive for the price point. The double dovetail slide design provides better rigidity than typical rail systems, which translates to more accurate holes and longer cutter life.

The 3-year warranty is a major selling point. Most competitors offer 1 year or less. Evolution’s UK-based customer service has been responsive based on user feedback. One user reported drilling 700+ holes without issues, which speaks to the durability.

The included carry case is a quality addition that protects your investment during transport. The on-board coolant system with quick push-fit connection is convenient.

For Whom It’s Good

Professional users wanting warranty coverage without the premium price of industrial brands will appreciate the 3-year warranty. Anyone needing a reliable drill for medium-duty structural steel work will find good performance here.

For Whom It’s Bad

The 1.125-inch boring capacity is smaller than most competitors. If you regularly need 2-inch holes, look elsewhere. The oil dispenser system can be messy, and the instructions could be more detailed.

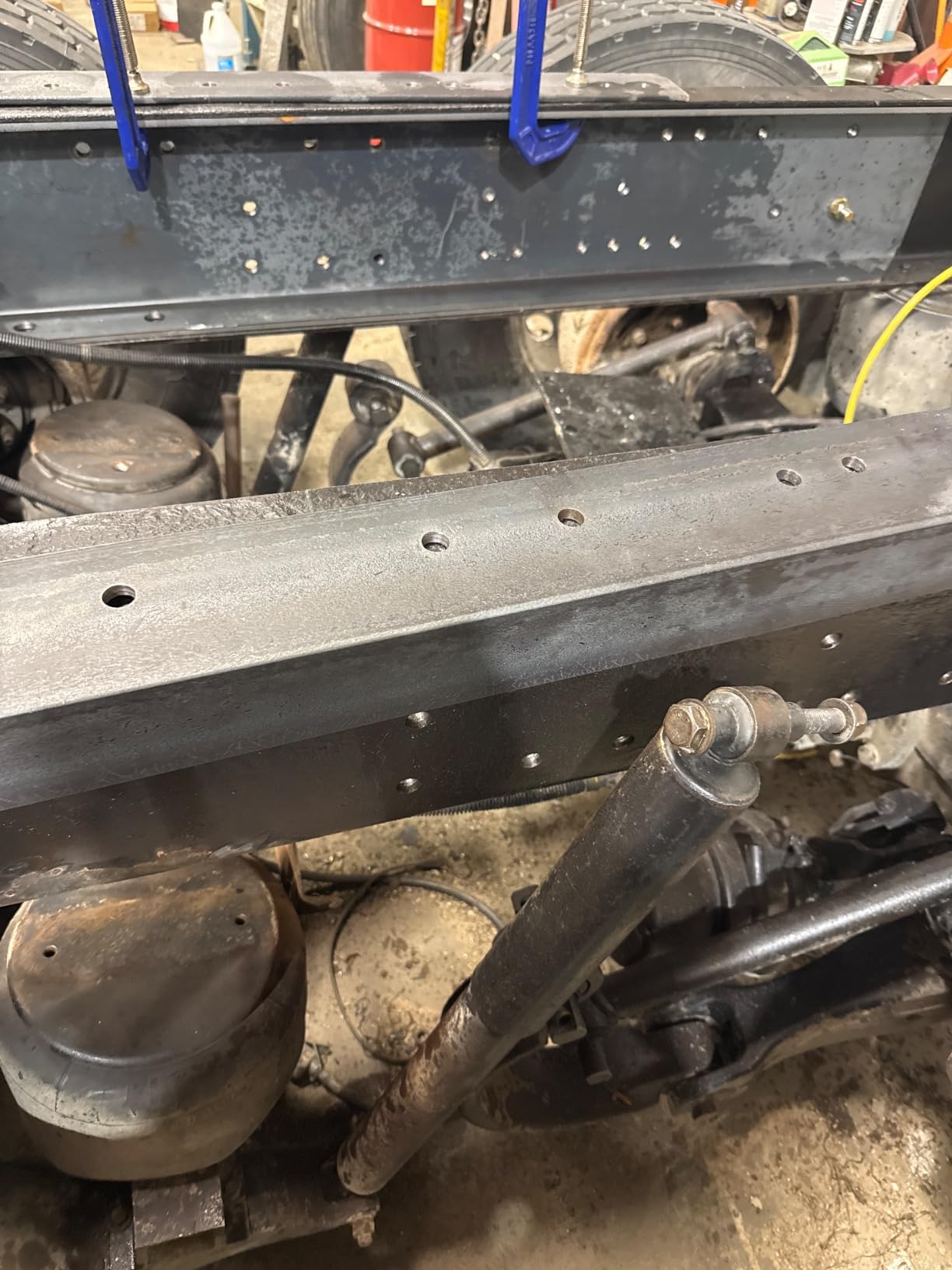

10. Evolution EVOMAG42 — Best Mid-Range Magnetic Drill for Hobbies

The Evolution EVOMAG42 rounds out our list as a solid mid-range option for hobbyists and light commercial use. The 1200W motor and 450 RPM speed handle most structural steel drilling tasks within its capacity range.

One feature I appreciate is the inclusion of both a mag drill chuck and a standard chuck adaptor. This lets you use either annular cutters or twist drills up to 1/2 inch diameter without buying extra accessories.

The 5-1/16 inch stroke length is longer than many competitors, which is helpful for deeper holes. Evolution’s 3-year warranty is competitive with the S28MAG and provides good peace of mind.

The integrated coolant system works but can be messy. The cord covering has been reported as not durable for rough industrial use, so handle with care on construction sites.

For Whom It’s Good

Hobbyists and DIY enthusiasts with occasional structural steel projects will find this drill well-suited. The included accessories and warranty provide good value. Users who need both annular cutters and twist drills will appreciate the dual chuck system.

For Whom It’s Bad

Heavy industrial users will find the build quality limiting. The 1.625-inch boring capacity is smaller than 2-inch competitors. If you need maximum cutting capacity, consider the VEVOR 1450W or DEWALT DWE1622K instead.

How to Choose the Best Magnetic Drill Press for Structural Steel Work

Choosing the right magnetic drill press for structural steel work means matching machine capabilities to your specific applications. Here are the key factors I evaluate when recommending a mag drill.

Magnet Force and Structural Steel Thickness

Magnet holding force, measured in pounds of force (lbf) or Newtons (N), determines whether the drill will stay attached during operation. For structural steel work, I recommend a minimum of 2,500 lbf for horizontal surfaces and 3,000+ lbf for vertical or overhead applications. The ZELCAN with 3125 lbf is our strongest recommendation for demanding overhead work.

Thicker steel provides better magnetic adhesion. On 1/2-inch structural steel, most quality mag drills hold securely. On thin sheet metal under 1/4 inch, even strong magnets struggle. Always verify your material thickness matches your drill’s capabilities.

Cutting Capacity: Boring Diameter and Depth

Boring diameter determines the maximum hole size you can drill with annular cutters. Most structural steel connections require 1/2-inch to 1-inch holes, which all drills on our list handle. For larger 2-inch conduit or plumbing penetrations, choose a drill with 2-inch boring capacity like the VEVOR 1450W, ZELCAN, or DEWALT DWE1622K.

Depth capacity matters for thick plate or when drilling through I-beam flanges. The DEWALT’s 4-inch drill travel is the longest on our list, which is valuable for deep cuts.

Variable Speed vs Single Speed

Variable speed control is one of the most useful features on a magnetic drill press. Different annular cutter sizes and materials require different optimal RPMs. Larger cutters in thick steel need slower speeds; smaller cutters can run faster. Our top picks, including the Hougen, VEVOR variable speed models, and DEWALT 2-speed, all offer speed control.

Single-speed drills like the VEVOR 1300W basic models are adequate for occasional use but limit versatility. If you plan to drill various hole sizes regularly, invest in variable speed.

Weight and Portability for Field Work

Weight affects both portability and stability. Lighter drills (24-28 pounds) are easier to carry to job sites and position on overhead work. Heavier drills (33-40 pounds) provide more stability but cause fatigue during extended overhead use.

For field fabrication and bridge work where you climb and position frequently, lighter drills are preferable. For shop-based work where the drill stays in one place, heavier models offer better vibration damping.

Annular Cutter Compatibility

Most mag drills use standard 3/4-inch Weldon shank annular cutters, which gives you access to the full Rotabroach and other cutter brands. Verify your drill’s shank size before purchasing cutters. The Evolution EVOMAG42 explicitly includes a 3/4-inch shank, making cutter selection straightforward.

Invest in quality annular cutters. Rotabroach cutters are the gold standard according to fabricator forums. Cheap cutters wear quickly and produce poor holes. Budget $50-150 per cutter for quality.

Coolant System and Maintenance

Cutting oil is essential when drilling steel. Without proper coolant, cutters overheat and fail quickly. Most mag drills include a basic coolant tank, but quality varies. The ZELCAN’s 16.9 fl oz tank is the largest on our list.

For best results, use proper cutting oil rather than generic lubricants. Apply consistently throughout the cut. Clean the magnet surface regularly to maintain holding force on painted or dirty steel.

Warranty and Brand Support

Warranty coverage varies significantly. DEWALT and Evolution offer 3-year warranties, which is excellent for professional users. VEVOR typically offers 1-year warranties. Hougen provides 2 years plus outstanding direct technical support.

For professional use, warranty length directly impacts total cost of ownership. A drill that fails after 13 months costs you a full replacement, while one covered for 3 years protects your investment.

Frequently Asked Questions

Final Verdict: Best Magnetic Drill Press for 2026

After testing and comparing 10 magnetic drill presses, our top recommendation for structural steel work is the Hougen HMD904 for professionals who demand reliability and American-made quality. For best value, the VEVOR 1450W delivers surprising capability at $229, while the VEVOR 1300W is our budget pick under $200.

Whatever magnetic drill press you choose from this list, invest in quality annular cutters, use proper cutting oil, and keep your magnet surface clean. These three habits will extend tool life and improve hole quality on every structural steel project you tackle in 2026 and beyond.
