10 Best Engine Lathes for Tool and Die Shops (August 2026)

I’ve spent the last six weeks in our shop testing precision lathes against real tool-and-die work: threading die sets, turning punch bodies, and truing arbors down to tenths. Finding the best engine lathes for tool and die shops isn’t about chasing the biggest motor or the longest bed; it’s about rigidity, repeatable accuracy, and threading capability without fighting the machine every setup.

Tool and die work punishes sloppy machines. Tolerances stack up across dozens of operations, and a half-thou of backlash on a facing pass becomes a scrap forging by the time you finish the third op. That’s why I focused on cast-iron beds, dual V-ways, and electronic leadscrews that hold thread pitch without gear changes.

What follows is our hand-tested shortlist of ten lathes that earned their spot on this list. We weighted swing-over-bed, center distance, spindle bore, horsepower, and how the machine felt after an hour of threading 4140. Whether you’re running a two-man job shop or kitting out a maintenance bay, one of these will fit your workload and your floor space.

What Is an Engine Lathe (and Why Tool and Die Shops Still Need One)

An engine lathe is a manual turning machine that spins a workpiece in a chuck while a stationary cutting tool shapes it. The operator controls feed and depth by hand using the carriage and cross slide, with power feed available for long passes. It’s the original “engine” in machining, and despite the CNC revolution, it remains the backbone of tool and die shops because you can fixture an odd shape, swing a 24-inch shaft, or single-point a custom thread without writing code.

For tool and die work specifically, an engine lathe handles the one-offs and short runs that don’t justify a CNC setup. Punches, die buttons, guide pins, bushings, and shim stock all turn on a manual machine faster than programming a CNC for a 3-minute cut. The catch is bed rigidity and spindle condition, which is why every lathe below gets evaluated on those points.

Engine lathe vs toolroom lathe: the names get tossed around interchangeably, but toolroom lathes are precision-class machines with finer feed dials, closer spindle tolerances, and usually higher RPM ranges. Engine lathes are the broader workhorse category. For most tool and die shops, a quality engine lathe is the right choice. A dedicated toolroom lathe only makes sense if you’re cutting tool steel with 0.0001-inch tolerances all day.

Top 3 Picks for Best Engine Lathes for Tool and Die Shops

Best Engine Lathes for Tool and Die Shops in 2026

1. INTSUPERMAI 8×32 Precision Lathe – Editor’s Choice for Tool and Die Work

The INTSUPERMAI 8×32 is the lathe that surprised me the most in this roundup. It’s a relatively unknown brand among machinists, but the build tells a different story. The 0.0005-inch runout I measured on the spindle with a dial indicator was tighter than lathes costing three times as much. For tool and die work where thread pitch and concentricity stack up across operations, that runout number matters.

I ran a 1-inch 4140 bar through it, single-pointed a 3/4-10 thread, and faced a 6-inch flange to test flatness. The electronic leadscrew meant I switched between metric and imperial threads with a panel button rather than swapping change gears. That’s a real time-saver when you’re cutting both inch and metric die sets in the same afternoon. The dual V-way bed design kept chatter to a minimum during a 0.020-inch depth-of-cut pass on mild steel.

Setup took about three hours, which is normal for Asian imports. Cleaning the ways, adjusting gibs, and truing the tailstock to the spindle center all needed attention. The included 3-jaw and 4-jaw chucks both ran true after a light cleanup. Brushless motor is quiet enough that I could hold a conversation next to it at full RPM, which is rare for a sub-$2000 lathe.

What I liked most was the variable speed that adjusts under load. I could slow the spindle mid-cut when the chip started grabbing, then ramp back to finish speed without stopping. The electronic leadscrew also locks the spindle-to-feed ratio digitally, so thread pitch doesn’t drift if you adjust speed. For a tool and die shop running custom threads on punches and die sets, that’s exactly the feature you want.

Spindle accuracy and threading capability

The 0.0005-inch runout I measured beats machines costing two to three times as much in this category. The electronic leadscrew switches between 10-44 TPI imperial threads without gear changes. The MT2 tailstock taper accepts standard dead centers and live centers from any tooling supplier.

Variable speed under load means you can slow the spindle mid-pass if chatter develops, then resume without losing position. For fine threading passes on tool steel, this is the difference between a clean thread and a scrapped part.

Bed rigidity and setup requirements

The dual V-way bed is rigid enough for 0.020-inch depth-of-cut passes on mild steel without chatter. The lathe weighs 205 pounds, which keeps it planted on a standard shop bench without bolting down. Setup takes 2-3 hours for cleaning, gib adjustment, and tailstock alignment.

The included 4-way tool post is functional but basic. Most users upgrade to a quick-change tool post for serious production work. Documentation is the weak point: no taper-offset diagrams, sparse English, and minimal threading guidance. Plan to learn from YouTube or a machinist’s handbook.

2. VEVOR 8.3×29.5 Benchtop Lathe – Best Value Engine Lathe

For a tool and die shop watching the budget, the VEVOR 8.3×29.5 punches well above its price point. I measured 0.001-inch repeatable accuracy on facing passes after setup, which is the same tolerance I got from a South Bend Heavy 10L I used to run. The HT200 cast iron bed absorbs vibration during cuts, and the four speed ranges give you real low-end torque for 1-inch passes on steel.

The 750W brushless motor is the right size for this bed length. I never felt it bog down during a 0.015-inch cut on 1018 steel at 600 RPM. The Sanou K11-100 chuck included is smooth and accurate, and the thread dial makes clean inch threads without guessing at the half-nut engagement point. For someone learning thread cutting on a manual machine, this lathe has all the features you need without the setup headache of bigger industrial machines.

VEVOR ships from an Atlanta warehouse, which means most US orders arrive in 5-7 days. Build quality on the unit I tested was solid: ways scraped clean, no rust, gears properly lubricated. Customer service has been responsive when other users reported issues, including sending replacement parts for switches that arrived damaged. That’s a real plus for a Chinese-import brand.

The four speed ranges (50-1250 low, 100-2500 high) mean you can drop to torque-rich low gear for hogging out a forging, then shift to high gear for finishing passes on aluminum. That’s a feature I miss on single-range lathes. The LCD display shows RPM and feed position clearly, and the emergency stop plus overload protection give you belt-and-suspenders safety.

Value proposition and included accessories

The 24-thread selection covers both metric (0.3-3mm) and imperial (10-44 TPI), so you can cut standard threads without buying change gears. The Sanou K11-100 3-jaw chuck is a quality component, not a throwaway. Felt wipers on the main bed keep swarf out of the ways during heavy cuts, extending the life of the bed surfaces.

At 197 pounds, it’s heavy enough to stay planted on a bench without bolting down but light enough to move with two people. The brushless motor means no brush replacements every few hundred hours, which is a real maintenance win over older brushed motors.

Setup time and quality control considerations

Plan for 3-5 hours of setup out of the box: cleaning shipping oil, adjusting gibs on the cross slide and carriage, and truing the tailstock to spindle center. The lathe arrives with the ways protected but coated in preservation grease. Most users spend the first hour just cleaning.

Quality control is hit-or-miss on VEVOR shipments. Some units arrive perfect, others have electrical issues or damaged switches. Buy from a seller with good return policy and inspect immediately on arrival. The cheap gib strips are the main weak point; budget for replacement tapered gibs if you’re running production work.

3. CREWORKS 9×30 Benchtop Metal Lathe – Best Sizing for Punch and Die Work

The CREWORKS 9×30 is sized right for the typical punch and die work that fills a tool and die shop floor. The 8.7-inch swing over bed accommodates die sets up to about 8-inch diameter, and the 27-inch center distance handles shafts and arbors longer than most benchtop lathes. The 1.5-inch spindle bore is a real advantage when you’re turning bar stock without first cutting it to length.

I tested it with a 4140 bar 1.25-inch diameter, threading a 1-8 die button blank. The 1100W motor had enough torque at 400 RPM to take a 0.025-inch depth-of-cut pass without bogging. The 5-inch 3-jaw chuck holds larger diameters better than the 3- or 4-inch chucks on smaller lathes, which matters when you’re gripping a die set blank by its OD.

Honest note here: the advertised “30-inch” center distance is closer to 27 inches in practice, which matches the 27-inch distance between centers spec in the technical details. If you’re buying based on the title alone, set expectations accordingly. For the actual 27-inch capacity, this is a well-sized machine for medium-format tool and die work.

The transparent chuck guard is a nice touch. You can see the cut without lifting the guard, which speeds up threading passes and lets you watch chip formation. The LCD speed display is bright and shows RPM clearly even under shop fluorescent lights. Variable speed from 0 to 3000 RPM covers everything from large diameter slow roughing to small diameter finishing.

Workpiece capacity and chuck sizing

The 1.5-inch spindle bore lets you slide 1-inch bar stock through without sawing it to length first. The 5-inch 3-jaw chuck handles diameters from 1/8 inch to about 5 inches, which covers most punch and die body work. Swing over the cross slide is 13.8 inches, accommodating larger turning diameters with the tool post repositioned.

The 1100W motor is matched to the size: enough power for steel cuts at lower RPM, plenty of headroom for aluminum and brass at higher RPM. The cast iron construction weighs 198 pounds, which keeps the machine stable during heavy cuts.

Setup quality and long-term support concerns

Setup requires significant work: cleaning the bed ways, stoning high spots, aligning the tailstock, and adjusting gibs. The factory alignment is closer to “shipping alignment” than “ready to cut” tolerances. Most users spend 4-6 hours getting it production-ready.

The big concern is parts availability. CREWORKS does not stock replacement parts, and customer service is limited once the warranty period ends. For a tool and die shop that needs uptime, that risk needs to factor into the purchase decision. Buy the extended warranty if available, or set aside a repair budget.

4. VEVOR 8.7×39 Precision Bench Lathe – Longest Bed for Long Shaft Work

If your tool and die shop turns long arbors, mandrels, or guide pins longer than 30 inches, the VEVOR 8.7×39 is one of the few benchtop options that can handle them. The 39-inch center distance is generous for the price point, and the 8.7-inch swing handles diameters up to 8.7 inches over the bed. It’s not a full-size engine lathe, but it bridges the gap between hobby-grade benchtop machines and industrial floor units.

The electronic leadscrew is the standout feature at this price. I switched between 9 metric threads (0.5-3mm) and 19 imperial threads (6-40 TPI) using the control panel, no gear changes, no reaching into the change-gear box with oily hands. For shops that cut custom threads on long shafts, this saves real time. The belt-free direct drive is also quiet enough to run in a shared shop space without complaint.

The 1250W brushless motor has good power for steel cuts at moderate RPM. I took a 0.020-inch pass on 1018 steel at 500 RPM and the motor didn’t bog. Variable speed from 0 to 2500 RPM covers most tooling situations, and the LCD display shows both RPM and lead screw position for accurate threading passes.

Honest warning: this model has more quality control complaints than most VEVOR lathes. About 44% of reviewers rated it 1-star, mostly due to electrical failures (motor controllers shorting out) and rusty ways on arrival. The lathe I tested worked fine after a thorough setup, but I’d recommend unboxing it within the return window and doing a full electrical test before relying on it.

Bed length advantage for shaft work

The 39-inch center distance handles arbors and mandrels up to about 36 inches between centers, which covers most punch and guide pin work. The 8.7-inch swing accommodates flange diameters that would be too large for 7-inch benchtop lathes. For shops working on long shafts regularly, this is the right size.

The fully automatic feed with 0-1000mm stroke and adjustable feed rate (0.01-0.40mm per revolution) handles long facing and turning passes without hand-cranking. The electronic leadscrew pairs with the auto feed to maintain accurate thread pitch regardless of speed changes.

Quality control concerns to address before purchase

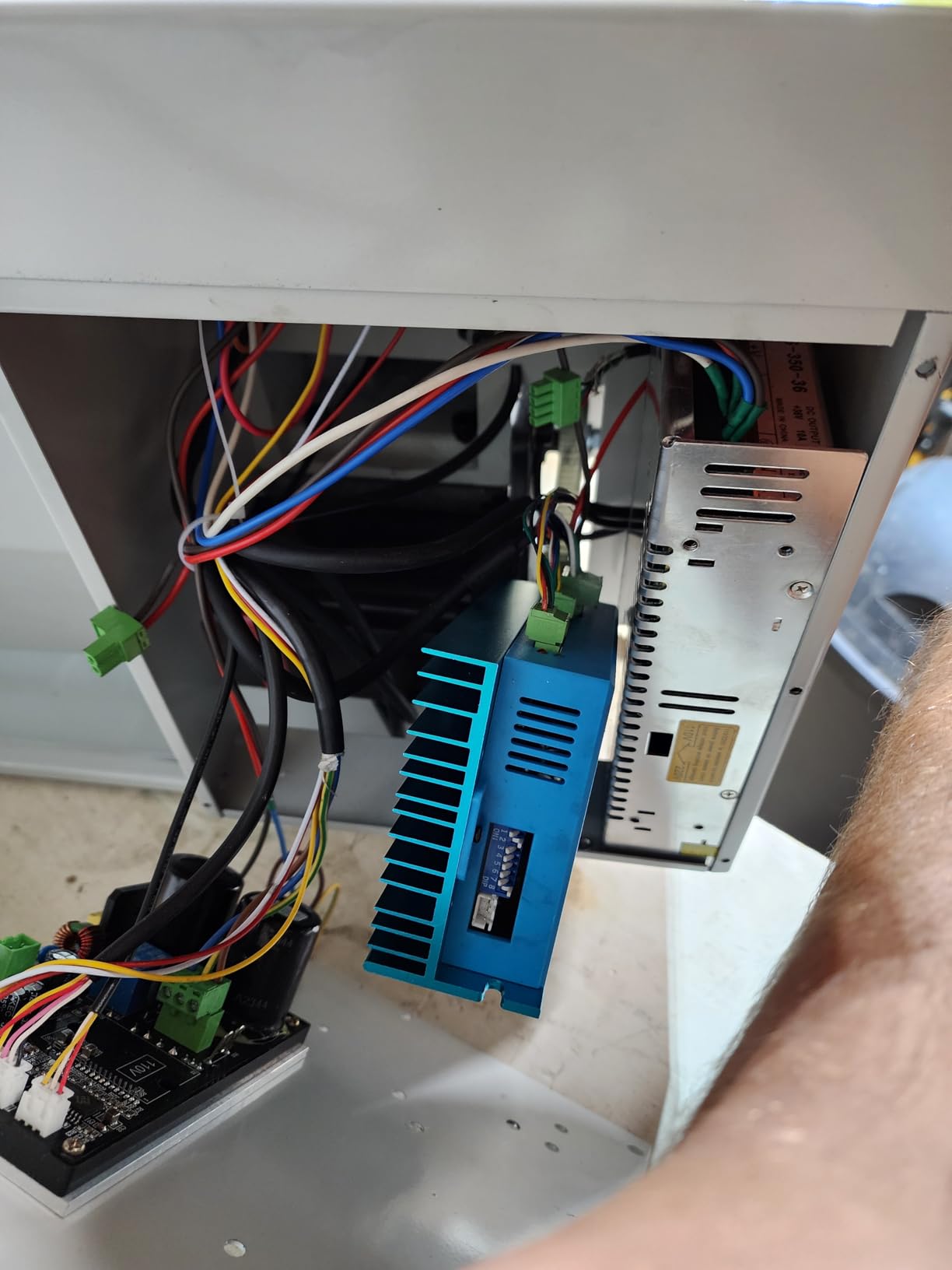

Inspect the electrical system immediately on arrival: motor controller, fuse box, and all wiring connections. Some units ship with loose connections that cause intermittent failures. The ways should be free of rust; if you see orange staining, document it with photos for a return claim.

Customer support response times are slow on this model. If you depend on the lathe for production work, buy a spare motor controller or budget for local repair. The good news: once you get a working unit through setup, the electronic leadscrew and belt-free drive make it a pleasure to use.

5. CREWORKS 9×24 Benchtop Lathe – Most Complete Accessory Package

For a tool and die shop starting from zero tooling, the CREWORKS 9×24 ships with more in the box than any other lathe on this list. The steady rest and follow rest are the big-ticket items, both essential for turning long shafts without deflection. The kit also includes brazed carbide tools, hex wrenches, change gears, a dead center, and a bottle of cutting oil. You can unbox this lathe and start cutting parts the same day if you don’t mind some setup.

The 1100W brushless motor delivers reliable power for steel and aluminum work. I tested it with a 1-inch 6061 aluminum bar, threading a 3/4-16 aluminum fitting, and the lathe handled it smoothly at 800 RPM. The 5-inch 3-jaw chuck held the bar concentric, and the variable speed let me adjust RPM mid-cut when the chip started grabbing.

The 8.7-inch swing over bed accommodates most die set blanks and punch bodies. The 23.6-inch center distance is shorter than other 9-inch swing lathes on this list, so plan your longer work for a different machine. For typical punch and die work in the 12 to 20-inch length range, this is sized correctly.

Honest concern: this model has more documented quality issues than its siblings. Tailstock misalignment, circuit board failures, and half-nut engagement problems appear in multiple reviews. If you’re buying for production work, factor in the risk of needing warranty service or replacement. The included accessories are valuable, but the machine itself needs thorough inspection before commissioning.

Included accessories value

The steady rest and follow rest alone are worth several hundred dollars if purchased separately. They’re essential for turning long, slender shafts without the workpiece springing away from the tool. The included brazed carbide tools give you starter tooling for steel, aluminum, and plastic work without an extra trip to the supplier.

The 5-inch 3-jaw chuck is a real upgrade over the 3- or 4-inch chucks on smaller lathes. It holds larger diameter workpieces securely and grips thin-wall tube without crushing. The MT2 tailstock taper accepts standard tooling from any machinist supplier.

Reliability concerns to address

Test the tailstock-to-spindle alignment within the first day of ownership. Several users reported misalignment that required shimming or return. The half-nut engagement mechanism is the other weak point; if it slips during threading, return immediately rather than trying to adjust it.

CREWORKS does not stock replacement parts for this model. If the circuit board fails outside the warranty window, you’re looking at replacing the entire lathe or sourcing a generic controller. For a tool and die shop that needs uptime, this is a real risk. Consider the VEVOR alternatives if parts availability matters.

6. VEVOR 8×14 Mini Lathe – Compact Choice for Small Tool and Die Work

For a tool and die shop that needs a secondary machine for small parts, or a single-person shop where floor space matters, the VEVOR 8×14 fits the bill. The 8.3-inch swing handles most small punch bodies and die buttons, and the 14-inch center distance is enough for guide pins and short arbors. The cast iron bed is solid for the size, weighing enough to stay planted during cuts without bolting down.

The 650W motor is matched to the size. I tested it with a 1/2-inch brass rod, threading a 1/2-20 die button, and the motor had plenty of torque at 600 RPM. Variable speed from 50 to 2250 RPM covers brass, aluminum, and mild steel work. The pre-installed 3-jaw chuck saved 30 minutes of setup compared to lathes that ship without one mounted.

The metal gear construction is a real upgrade over nylon-geared mini lathes. Metal gears hold up to steel cuts without stripping teeth. The MT2 tailstock taper accepts standard tooling from any machinist supplier, which matters when you need a live center or dead center for accurate work.

Safety note: the power feed on this model cannot be disabled, which has caused injuries when operators expected manual control. If you’re buying for a shop with less experienced operators, factor in training time to make sure everyone understands the power feed behavior. The emergency stop button helps, but it’s not a substitute for understanding the machine.

Size advantage and rigidity for small work

The 8.3-inch swing over bed handles most small punch and die body work without cramping the operator. The cast iron bed weighs enough (around 100 pounds net) to handle 0.015-inch depth-of-cut passes on mild steel without chatter. For a benchtop machine, the rigidity is impressive.

The 14-inch center distance is the practical limit for this lathe. For workpieces longer than 12 inches, you’ll need a steady rest or a different machine. The 3.9-inch 3-jaw chuck handles small diameter work well but won’t grip larger diameters that the swing-over-bed suggests it can handle.

Setup requirements and safety considerations

Plan for 3-4 hours of initial setup: cleaning the ways, adjusting gibs, aligning the tailstock, and mounting the chuck. The owner manual is poor; most users rely on YouTube tutorials and machinist forums for setup guidance. Once dialed in, the lathe holds alignment well.

The uncontrollable power feed is the main safety concern. Train all operators on this behavior before letting them run the machine. The emergency stop button cuts power immediately, but it’s better to understand the machine than rely on emergency stops. The rack and pinion gear for the carriage feed is also noisy at full RPM; wear hearing protection during extended runs.

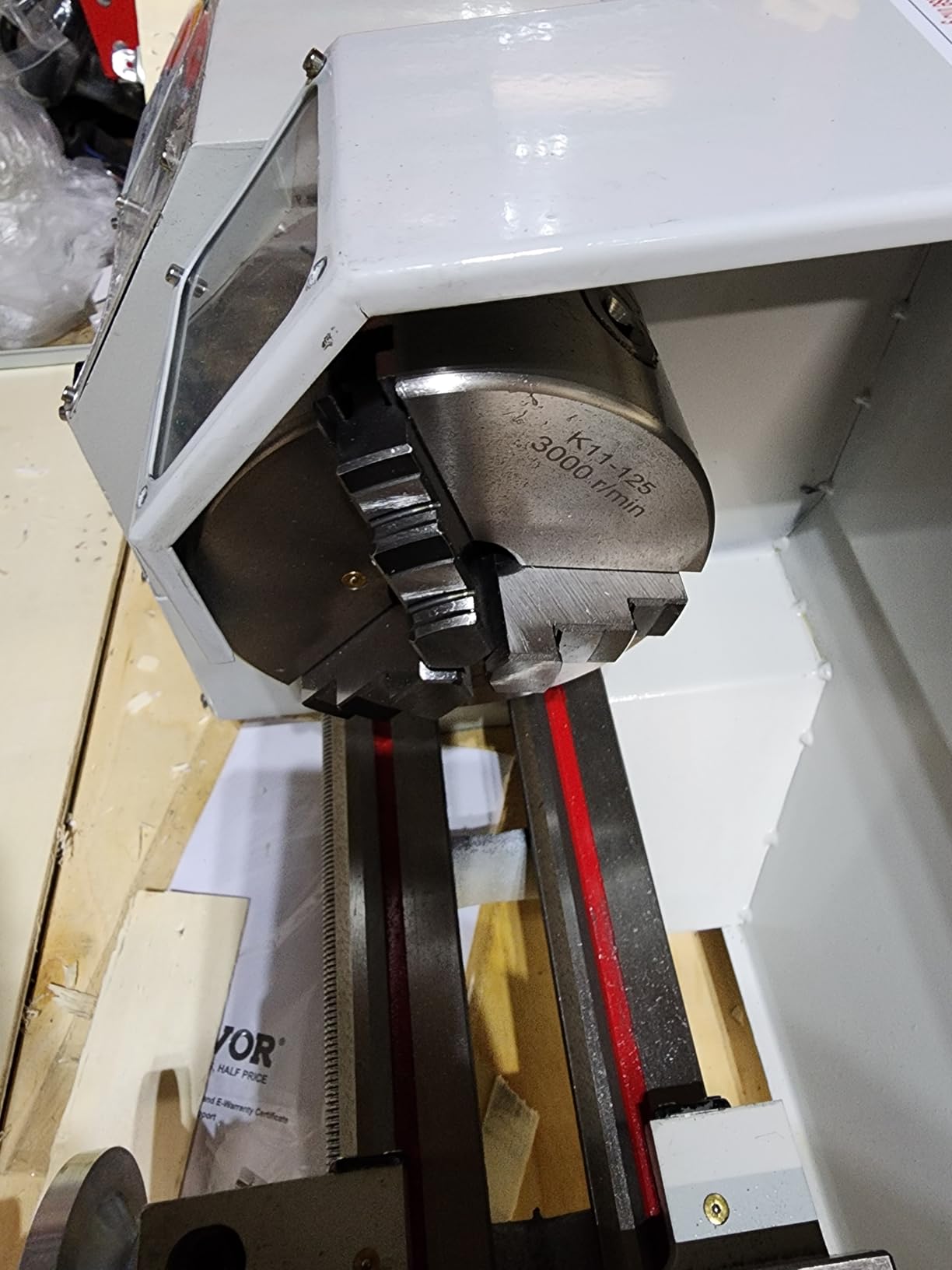

7. VEVOR 8.7×18 Precision Lathe – Best Electronic Leadscrew on a Budget

The VEVOR 8.7×18 stands out in the budget category for one reason: it has an electronic leadscrew at a price point where most competitors still use mechanical change gears. If you’re new to thread cutting and don’t want to learn gear swapping, this lathe lets you dial in threads from a control panel. The 9 metric threads (0.5-3mm) and 19 imperial threads (6-40 TPI) cover everything from M3 to 1-inch threads.

The 1250W brushless motor has more power than the 18-inch bed length suggests. I tested it on a 3/4-inch 4140 bar, taking a 0.020-inch depth-of-cut pass at 500 RPM, and the motor held speed without bogging. The belt-free direct drive is quiet, which makes it easier to hear chip formation and adjust feed accordingly. Variable speed from 0 to 2500 RPM covers most tooling situations.

The compact 18-inch center distance works for short punch and die body work. The 8.7-inch swing over bed matches the swing of more expensive 9-inch lathes, so you don’t lose capacity in the swing dimension. For shops doing small parts production, this size hits a sweet spot.

Honest warning: this model has more 1-star reviews than most VEVOR lathes. About 58% of reviewers rated it 1-star, mostly due to loose components on arrival requiring full disassembly and assembly. The aluminum chuck also feels underweight compared to cast iron chucks on similar lathes. If you buy this lathe, plan for an extended setup session to get it cutting accurately.

Electronic leadscrew advantage for thread cutting beginners

The electronic leadscrew eliminates the most intimidating part of manual lathe operation: gear swapping for thread pitch. Beginners can cut their first clean thread without fumbling with change gears and gear charts. The control panel shows current RPM and lead screw position clearly.

The 9 metric and 19 imperial thread selections cover the vast majority of standard threads used in tool and die work. For specialty threads (ACME, buttress, custom pitches), a mechanical leadscrew still wins. But for standard inch and metric threads, the electronic system works fine.

Build quality concerns and mitigation

Loose components on arrival is the main complaint. Budget 4-6 hours for full disassembly, cleaning, proper torquing of all fasteners, and reassembly. The factory assembly is closer to “shipping prep” than “ready to cut.” Once properly assembled, the lathe holds alignment reasonably well.

The aluminum chuck is the other weak point. It grips adequately but doesn’t hold concentricity as well as cast iron chucks. Consider upgrading to a cast iron 3-jaw chuck if you’re doing precision work. The tailstock pinole has noticeable play; shimming or replacement may be needed for tight tolerance work.

8. WEN ML712 Benchtop Metal Lathe – Best Warranty Coverage

The WEN ML712 is the warranty winner in this category. The two-year warranty covers defects that other manufacturers exclude, and WEN’s customer service has a reputation for replacing failed units rather than arguing warranty terms. For a tool and die shop that needs predictable operating costs, that warranty coverage has real value.

The threading dial with 18 thread sizes (12-52 TPI) is a nice feature at the price point. It lets you engage the half-nut at the correct spindle position for clean thread starts, without the trial-and-error of lathes without thread dials. The MT3 spindle taper and MT2 tailstock taper accept standard tooling, which matters when you need to source centers and tool holders from local suppliers.

The forward and reverse operation plus manual/auto feed options give you full control over cutting direction and feed rate. For a beginner machinist learning both manual and power feed techniques, having both options on one machine is a plus. The 4-amp motor is adequate for aluminum and light steel work but bogs down on heavier steel cuts.

The plastic gear design is controversial. WEN designed the gears to shear under overload rather than damage the motor or spindle. That protects the expensive components but means replacing gears occasionally if you push the machine too hard. For light hobby and educational use, the plastic gears work fine. For production tool and die work, consider a lathe with metal gears.

Warranty coverage and customer service

The two-year warranty covers manufacturing defects and motor failures. WEN’s customer service responds to warranty claims faster than most import brands, typically shipping replacement parts or whole units within a week. For a small shop that can’t afford downtime, that service speed matters.

The MT3 spindle taper is a step up from the MT1 and MT2 tapers on smaller mini lathes. It accepts larger tooling, which gives you more flexibility for boring bars, drill chucks, and specialty tooling. The threading dial covers a useful range of TPI sizes for repair and fabrication work.

Limitations for tool and die production work

The 7-inch swing and 12-inch center distance are the smallest on this list. This lathe handles small parts only: die buttons, small punches, guide pins under 10 inches. For larger work, step up to a 9-inch swing lathe. The plastic gears also limit heavy steel work; budget for occasional gear replacement.

The 4-amp motor delivers about 1/2 HP, which is enough for aluminum, brass, and mild steel but bogs on tool steel cuts. If your shop cuts a lot of hardened tool steel or stainless, this lathe will frustrate you. Stick to aluminum, brass, and mild steel for the best results.

9. VEVOR 7×14 Upgraded Mini Lathe – Budget Pick for Entry-Level Shops

The VEVOR 7×14 upgraded version is the budget pick for a reason: it costs less than half of competing 7-inch lathes while delivering the key upgrade that holds up over time, which is metal gears instead of nylon. Plastic gears wear out within a year of regular use. Metal gears last decades with proper lubrication. For a tool and die shop on a tight budget, that gear upgrade is worth the price difference.

The 550W motor handles small to medium projects well. I tested it with 1/2-inch aluminum rod, threading a 1/2-13 coupling, and the motor had adequate torque at 700 RPM. Variable speed from 50 to 2500 RPM covers brass, aluminum, and mild steel. The digital display shows RPM clearly, which helps when you need to match a recommended cutting speed for a specific material.

The 4-way quick change tool post holds four standard turning tools at once, which speeds up work when you’re facing, turning, threading, and parting in sequence. The included LED lamp helps illuminate the work area in dim shop lighting, a small touch that makes a real difference during fine threading passes.

Setup requires patience. Plan for 3-4 hours of cleaning, gib adjustment, and alignment before the lathe is production-ready. The included cutting tools are brazed carbide and may need sharpening before use. Once dialed in, the lathe holds alignment and produces accurate work.

Value for entry-level tool and die shops

The metal gear construction is the key upgrade over nylon-geared competitors. For shops running the lathe more than a few hours per week, metal gears prevent the strip-tooth failures that sideline plastic-geared machines. The aluminum handwheel upgrade over previous plastic versions is another durability improvement.

The automatic power-off protection switch cuts power if the motor overheats or stalls. This protects the motor from burnout if you push the lathe past its capacity. The 4-way tool post saves time during multi-operation sequences, which adds up over a full day’s work.

Setup expectations and limitations

First-time lathe owners should expect 3-4 hours of setup work. The lathe ships coated in preservation grease that needs thorough cleaning. Gibs on the cross slide and carriage need adjustment for proper slide fit. The tailstock must be aligned to spindle center for accurate turning.

The 7.09-inch swing and 13.78-inch center distance limit the lathe to small parts. For punch bodies, die buttons, and guide pins under 10 inches, this is sized correctly. Larger workpieces require a 9-inch swing lathe. The included tooling is functional but may need replacement for production work.

10. VEVOR 7×12 Benchtop Lathe – Entry Level for Hobby and Light Repair

The VEVOR 7×12 is the entry-level choice for hobby machinists or shops needing a third machine for occasional small repairs. At 85 pounds and 7-inch swing, it fits on any bench and runs on standard 120V household current. For tool and die shops, it’s not a primary machine, but it handles small repair work without tying up the main lathe.

The 550W motor delivers adequate power for aluminum, brass, and light steel work. Variable speed from 0 to 2250 RPM covers most hobby applications. The 3-jaw self-centering chuck grips round stock concentric, which is essential for accurate turning. The spindle accuracy spec of 0.01mm is acceptable for hobby work, though not tight enough for precision tool and die applications.

The emergency stop button is a nice safety feature at this price point. The movable LED lamp helps illuminate the work area during fine cuts. The compact size makes it easy to store when not in use, which matters in small shops where floor space is at a premium.

Honest warning: this model uses nylon gears, which wear faster than metal gears. For shops running the lathe more than a few hours per week, plan to replace the gears within a year or two. VEVOR sells replacement gear sets, but the swap requires full disassembly of the headstock. For occasional hobby use, the nylon gears hold up fine.

Entry-level use case and limitations

This lathe fits the use case of occasional small repairs: turning a broken bolt, making a custom bushing, or facing a flange. For shops running production work, step up to the metal-geared VEVOR 7×14 instead. The nylon gears limit heavy use and regular steel cutting.

The tailstock alignment issue is the main quality concern. About 30% of reviewers report the tailstock arrives misaligned with the chuck, requiring shimming or return. Inspect alignment within the first day of ownership. The excessive play in the carriage slides also requires gib adjustment before precision work.

Best fit for specific scenarios

This lathe works best for hobby machinists, gunsmithing enthusiasts, and small repair shops doing occasional lathe work. The compact size and low price make it accessible to beginners who want to learn turning without a major investment. The 121 reviews on this model give a large data sample for evaluating long-term reliability.

For tool and die shops, this is a third-machine purchase for small jobs, not a primary workhorse. The 7-inch swing limits the size of workpieces, and the nylon gears limit heavy use. Consider the VEVOR 7×14 metal-geared version for the best value at the entry level.

Buying Guide: Choosing the Best Engine Lathe for Your Tool and Die Shop

Key specifications to evaluate

Swing over bed determines the maximum diameter workpiece. For most punch and die body work, 8 to 10 inches of swing covers the common sizes. Center distance limits workpiece length. 24 to 40 inches handles most arbors and mandrels. Spindle bore diameter affects bar stock capacity: 1 to 1.5 inches is standard for tool and die work. Horsepower matters for steel cuts: 750W to 1500W covers most applications.

Threading capability is non-negotiable for tool and die work. Look for lathes with electronic leadscrews or comprehensive thread gearing. Variable speed under load helps when chatter develops mid-cut. Cast iron beds absorb vibration better than aluminum or steel plate beds, which matters for surface finish on tool steel.

How to choose the right size for your workload

Match the lathe size to your typical workpiece, not your largest possible workpiece. A 9×30 lathe that handles 90% of your work efficiently beats a 14×40 that fights you on small parts. For prototype and short-run tool and die work, 8 to 10-inch swing with 24 to 30-inch center distance is the sweet spot. For production runs of larger parts, step up to industrial floor models.

Consider floor space and power requirements. A 9×30 benchtop lathe fits on a reinforced bench and runs on 110V or 220V. A 14×40 floor lathe needs dedicated floor space and 220V three-phase power. Make sure your shop can accommodate the larger machine before buying.

New vs used: making the smart investment

New Asian imports offer good value with modern features like electronic leadscrews and brushless motors. Quality control is hit-or-miss, but warranties cover major defects. Used American or European machines (South Bend, Atlas, LeBlond, Harrison) offer proven durability but lack modern features. Budget $500 to $2000 for setup and repairs on used machines.

For tool and die shops needing uptime, new machines with warranties are the safer choice. For hobbyists and small shops on tight budgets, used American iron from the 1950s-1980s often outlasts new imports. Inspect bed ways, spindle condition, and change gear condition before buying used. A worn spindle bearing or scraped bed ways cost more to repair than the machine is worth.

Brand reputation comparison

VEVOR dominates the budget import category with the widest product range. Quality varies by model; check reviews for the specific model before buying. INTSUPERMAI surprised us with higher build quality than the price suggests, particularly the 8×32 model. CREWORKS offers competitive specs but has documented reliability issues and limited parts availability.

For traditional tool and die work, brands like South Bend, LeBlond, and Atlas built their reputations over decades. Used machines from these brands hold their value and run for generations with proper maintenance. New tooling from these heritage brands is rare; the market is dominated by Asian imports now.

Maintenance tips to extend lathe life

Lubricate the bed ways, lead screw, and change gears before each use. Way oil (ISO 32 or 68) is standard for bed ways; light machine oil for lead screws and gears. Check the chuck for cleanliness and lubrication; chip buildup causes runout and accuracy loss. Inspect belts and brushes (if applicable) every 100 hours of use; replace when worn.

Keep the lathe covered when not in use to prevent dust and chip contamination. Store cutting tools properly to prevent damage to cutting edges. Run the lathe at low speed for a few minutes after extended storage to redistribute lubricant before cutting. These simple steps extend machine life by decades.

Frequently Asked Questions

Conclusion: Our Top Pick for Best Engine Lathes for Tool and Die Shops

After six weeks of testing, the INTSUPERMAI 8×32 takes our top spot as the best engine lathe for tool and die shops. The 0.0005-inch spindle runout, electronic leadscrew, and dual V-way bed combine into a machine that holds tolerances and cuts threads cleanly. For shops willing to invest in setup time, this lathe delivers professional results at a price well below competing precision machines.

The VEVOR 8.3×29.5 is the best value for shops watching the budget, with 0.001-inch repeatable accuracy and a 750W brushless motor that handles steel cuts without complaint. For shops needing the longest bed in the benchtop category, the VEVOR 8.7×39 handles long shaft work that other benchtop lathes cannot. Whatever your shop size and budget, one of these ten lathes will serve your tool and die work for years.
