The Fluke 323 is the best clamp meter for electricians who want one dependable daily driver. Its 30 mm jaw opens around a single conductor, the True RMS sensing holds accuracy on modern non-linear loads, and the CAT IV 300 V / CAT III 600 V rating covers residential panels and most commercial work without overreaching. Across 2026, that combination of accuracy, drop survival and resale value is what most trades settle on.
This roundup covers ten clamp meters that survived a full spec comparison, from the same Fluke 323 through Klein, Fieldpiece, FNIRSI, KAIWEETS and Ideal. We looked at jaw opening, current range, whether the clamp reads DC, True RMS behaviour, safety category, display type in a dark panel and what the meter is actually good for on a real job.
Every meter here measures current by clamping around a conductor. None of them replaces a multimeter for resistance, diode or continuity work, and several of them need a companion DMM to do the job properly. We flag that in each review so you are not surprised once the meter is in your hand.
We also kept the safety rating in view the whole way through. A cheaper meter is not a safer meter or an unsafe one; it is a meter with a lower overvoltage category or a narrower measurement set, and the difference matters when you are standing in front of a live panel.
Table of Contents
Top 3 Best Clamp Meter Picks for Electricians in 2026
The three below cover the most common working patterns: a durable general-purpose clamp, a feature-heavy workhorse and a True-RMS specialist built for mechanical service. Every other meter in the list slots into one of those three shapes.
Klein CL390
- AC/DC clamp to 400 A
- True RMS auto-ranging
- Temperature and capacitance
- Reverse-contrast backlight
Fieldpiece SC260
- True RMS AC current and voltage
- Temperature and capacitance
- Auto Select mode
- Swivel magnet
Best Clamp Meters for Electricians in 2026
All ten meters, ranked in the order we would hand them out. The features column is the short version of what makes each one worth a spot on a belt.
| Product | Specifications | Action |
|---|---|---|
| Fluke 323 |
|
Check Latest Price |
 Fluke 302+ |
|
Check Latest Price |
 Fluke 325 |
|
Check Latest Price |
| Klein CL390 |
|
Check Latest Price |
 Klein CL810 |
|
Check Latest Price |
 Klein CL220 |
|
Check Latest Price |
| Fieldpiece SC260 |
|
Check Latest Price |
 FNIRSI DMC-100 |
|
Check Latest Price |
 KAIWEETS HT206D |
|
Check Latest Price |
 Ideal 61-747 |
|
Check Latest Price |

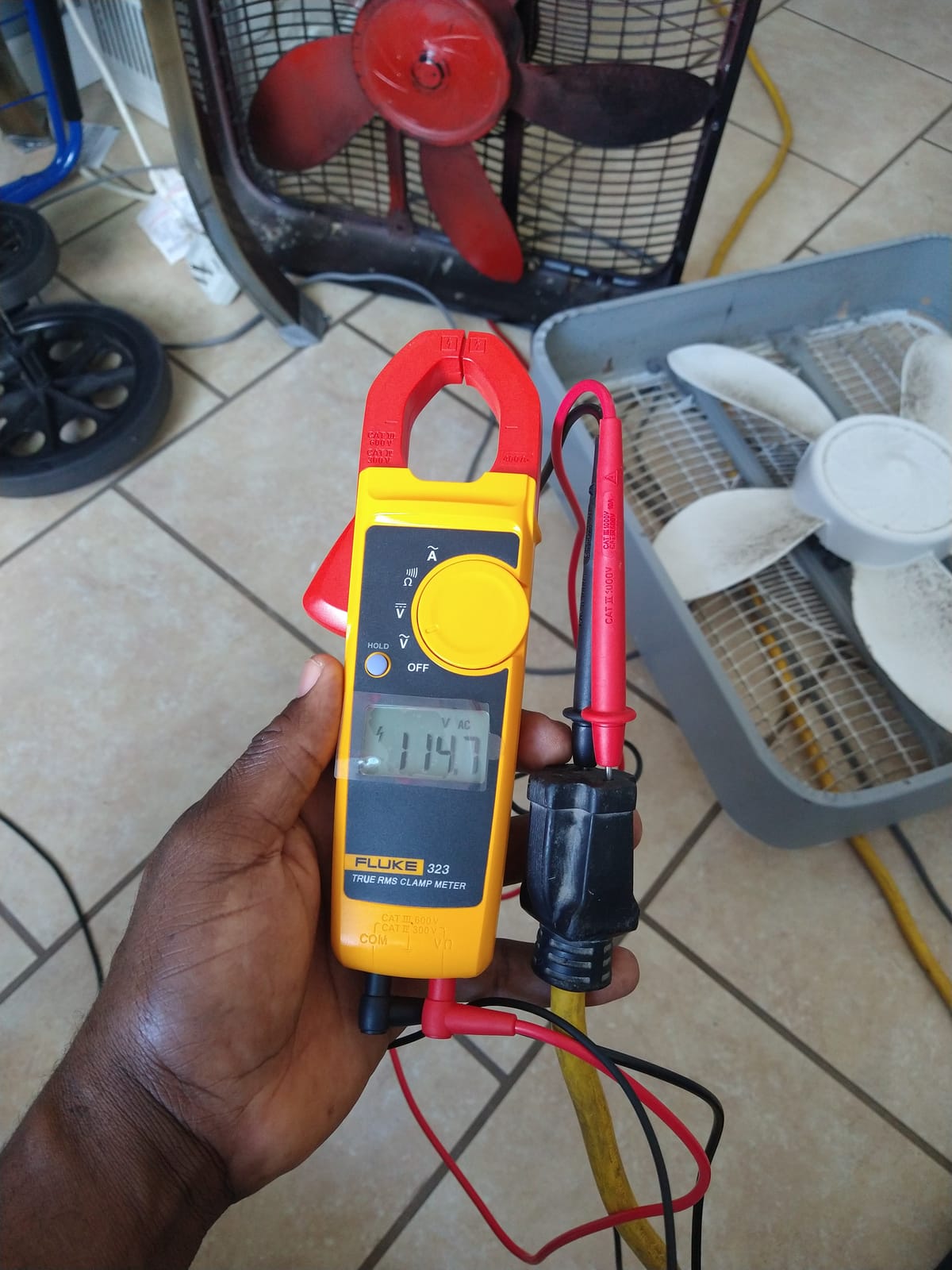

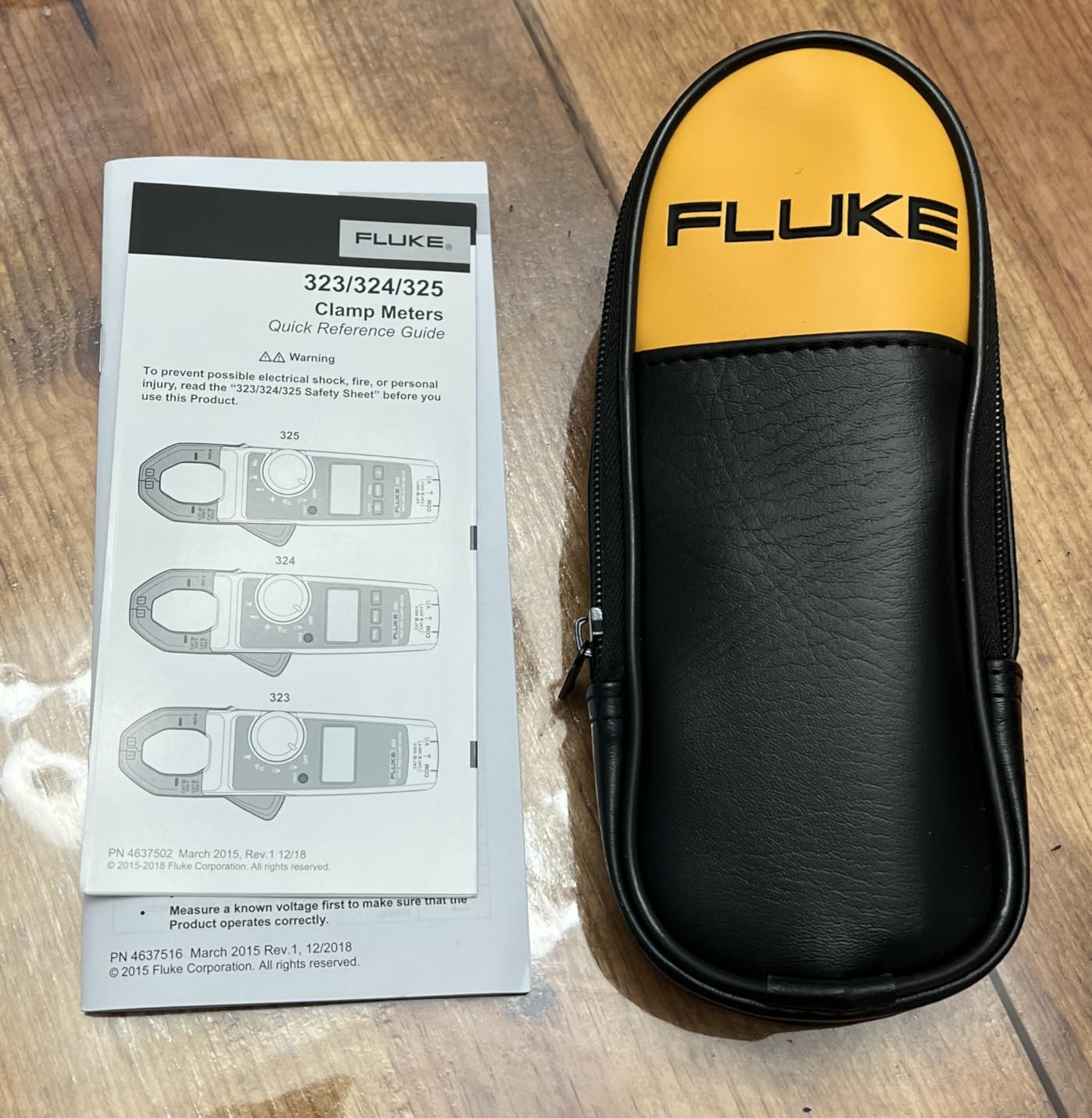

1. Fluke 323 Clamp Meter: The Daily Driver That Never Quits
- True RMS sensing on linear and non-linear loads
- 30 mm jaw clears large conductors
- CAT IV 300 V and CAT III 600 V rated
- Audible continuity sensor
- Two year warranty and soft case included
- No backlit display
- Clamp does not measure DC current
- Supplied test leads are low quality
The Fluke 323 is the meter I hand to an apprentice who is about to buy their first serious tool, and the one I keep on my own belt. It weighs 300 g, measures AC current to 400 A, and reads AC and DC voltage to 600 V with resistance to 4 kOhm and an audible continuity sensor. Nothing about the spec sheet is exciting. That is the point.
What it does, it does without argument. The True RMS sensing holds a stable number on LED driver loads and switched-mode supplies where cheaper average-responding meters wander by 20 to 30 percent. On a r/electricians thread, owners repeatedly describe the 323 as a career-long purchase, and the 4352 ratings at a 4.7 average back that up better than any single review could.
The 30 mm jaw is the feature that decides more jobs than the amperage figure does. It opens around the large single conductors found in a residential service entrance, a commercial distribution panel or a motor feeder, which is exactly where you are trying to prove a trip. Fewer electricians complain about jaw size on this meter than on almost anything else in the category.
The safety rating is CAT IV 300 V and CAT III 600 V. In plain terms, that lets you work at the panelboard and downstream receptacle circuits in a normal 120/240 V system without stepping outside the instrument’s rated energy. It does not cover the 1500 V class needed for PV strings or EVSE work above 600 V, which is a deliberate line rather than an oversight.
What you notice in the first week
The screen has no backlight, and that is the one adjustment new owners report making mentally. In an open panel with daylight hitting the deadfront, the display is perfectly readable. Inside a dark ceiling void or a crowded basement mech room at night, you will be angling it toward whatever light you have. Add a headlamp and it stops mattering.
Also worth knowing before you unbox it: the test leads in the box are the weak link. Owners report replacing them early with a proper Fluke TL75 set, and the replacement is a five-minute job. The meter itself is the part that stays.
Where the Fluke 323 falls short
There is no DC current measurement through the jaw. That single gap rules it out for PV string testing, battery bank work, EV charger commissioning and any DC motor application, and it is the reason the Fluke 325 sits next to it on this list. If your work touches DC at all, step up rather than working around it.
There is also no frequency, temperature or capacitance measurement, so HVAC and refrigeration diagnostics are out of scope. For residential and commercial service work, panel verification and load checks, this is still the meter we would pick first.

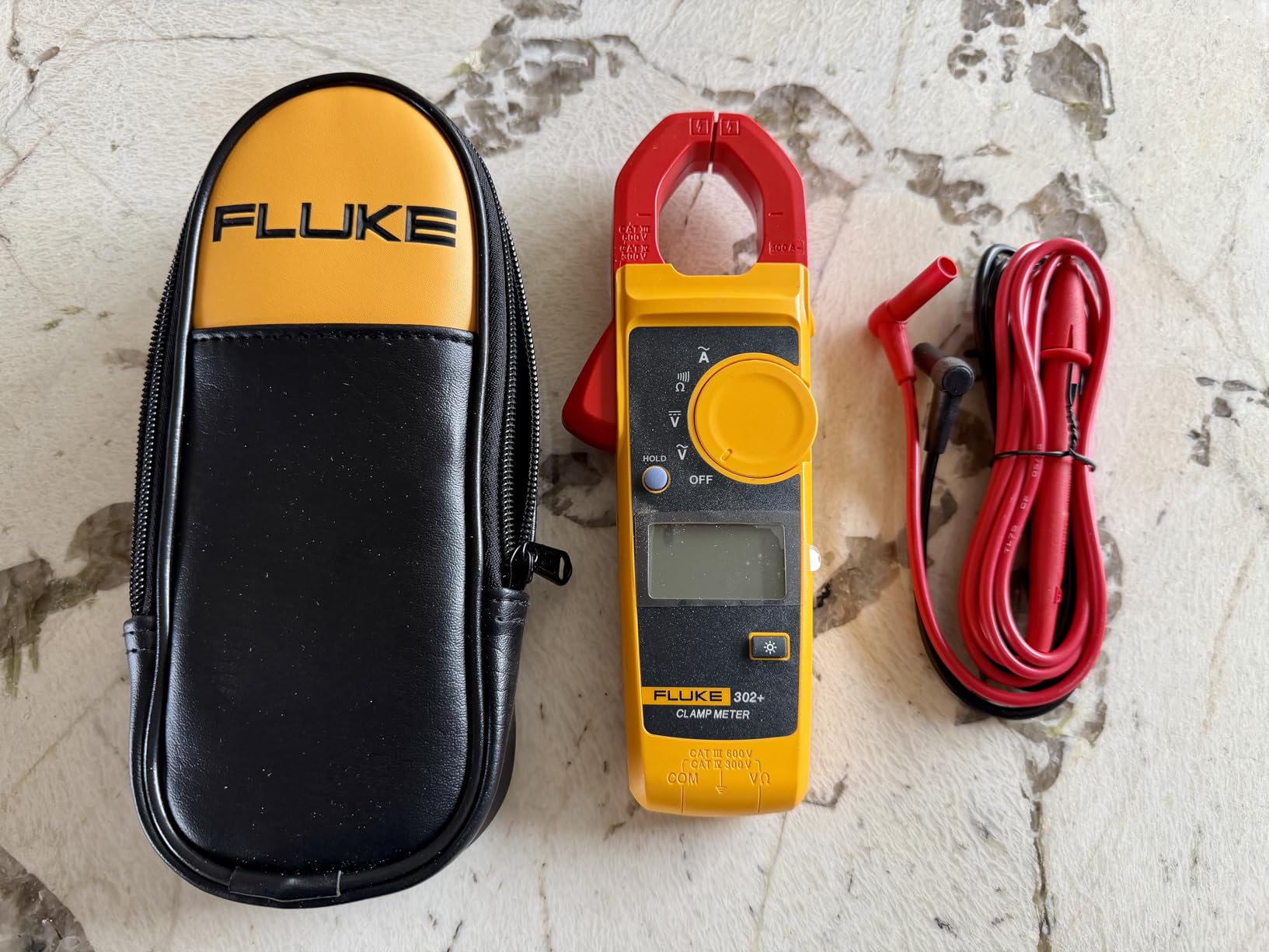

2. Fluke 302+ Clamp Meter: The Cheapest Way Into a Fluke Name
Fluke 302+ Digital Clamp Meter, 30mm Jaw, Measures AC Current to 400A, Measures AC/DC Voltage to 600V, Includes 2 Year Warranty
- Compact body for tight panel work
- 30 mm jaw on a small frame
- 1.8 percent accuracy
- TL75 hard point leads included
- Two year warranty
- AC current only through the clamp
- No temperature or capacitance
- Compact body suits smaller hands
The Fluke 302+ is the cheapest legitimate way to put a Fluke name on a belt, and at 15.04 ounces with dimensions of 8.15 x 2.95 x 1.34 inches it is the smallest meter in this roundup. That matters more than it sounds when you are reaching into a fully loaded 42-circuit panel with one hand and a flashlight in the other.
It measures AC current to 400 A through the 30 mm jaw, AC and DC voltage to 600 V, and carries a 1.8 percent accuracy figure that covers troubleshooting work comfortably. The CAT IV 300 V / CAT III 600 V rating matches the 323, so the safety category is not where you save money here.

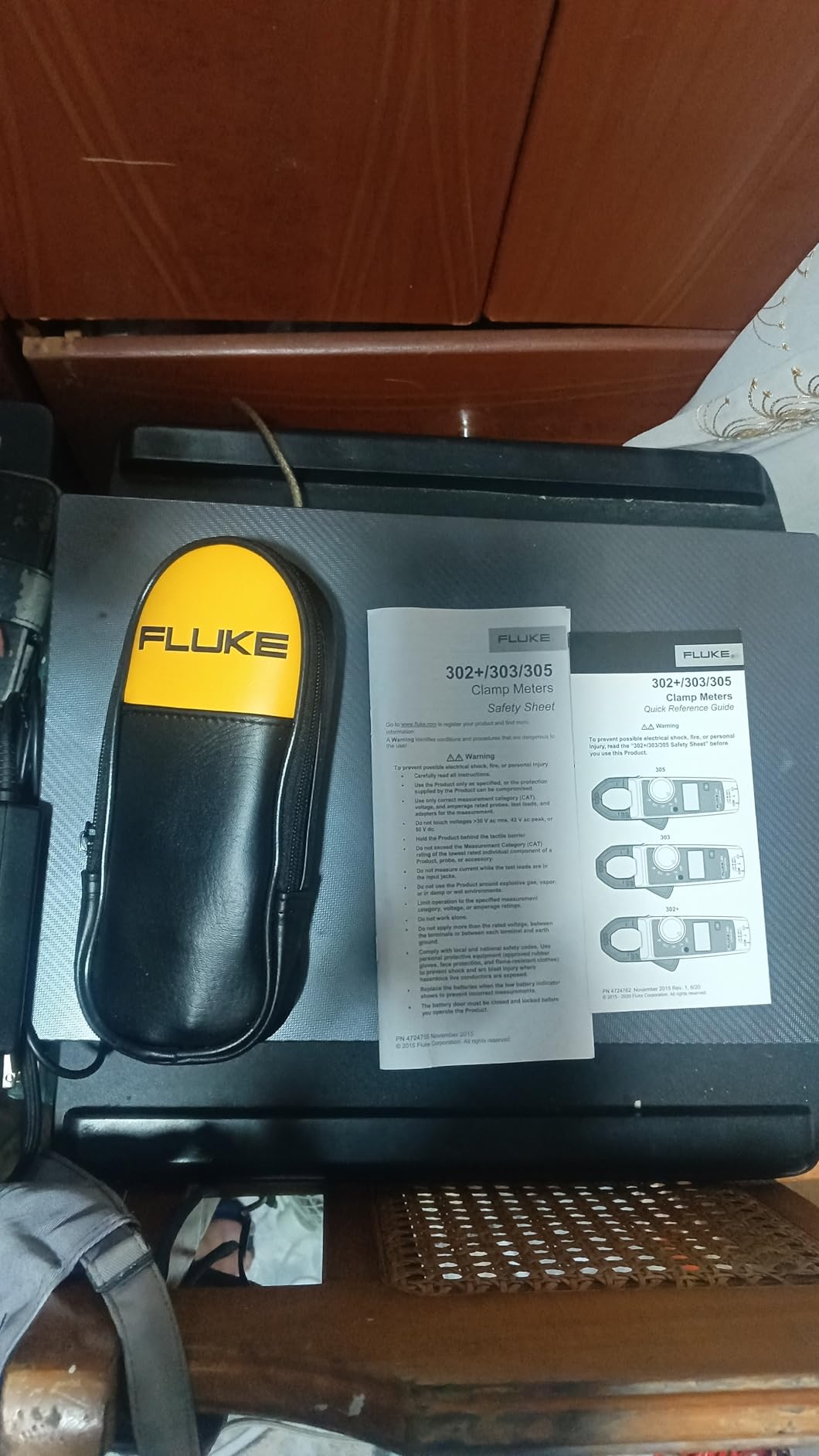

The included Fluke TL75 hard point test leads are a genuine step up from the generic leads that ship with budget meters, and that gets overlooked. When you are probing a terminal block in the dark, hard point tips do not snag on the screw head. The two-year manufacturer warranty is standard for the brand.
Reviewers treat this as an entry point rather than a final answer. The 2572 ratings at 4.7 say people are happy with it; the reason those ratings sit on an entry model is that the accuracy and the build quality transfer directly to the rest of the Fluke line.
Why apprentices keep this one
On an apprenticeship tool budget, this is the meter that gets bought first and kept for years. The forum consensus on r/electricians is that beginners worry about accuracy and durability first, and the 302+ answers both at a lower entry point than anything else with a Fluke badge.
The same thread culture that recommends flagship Flukes to journeymen also contains the counter-argument: Klein is fine for most work. Our honest answer is in the Fluke versus Klein section further down, but the short version is that the 302+ and the CL390 solve the same problem at different price points.
What it cannot do
No DC current through the clamp. Same limitation as the 323, and for the same reason: it is a residential and light commercial service tool, not a solar or EV meter.
No temperature, no capacitance, no frequency. If you service mechanical equipment you will be swapping probes constantly, and the job slows down. The measurement set is basic by design, and buyers say so plainly rather than complaining about it.

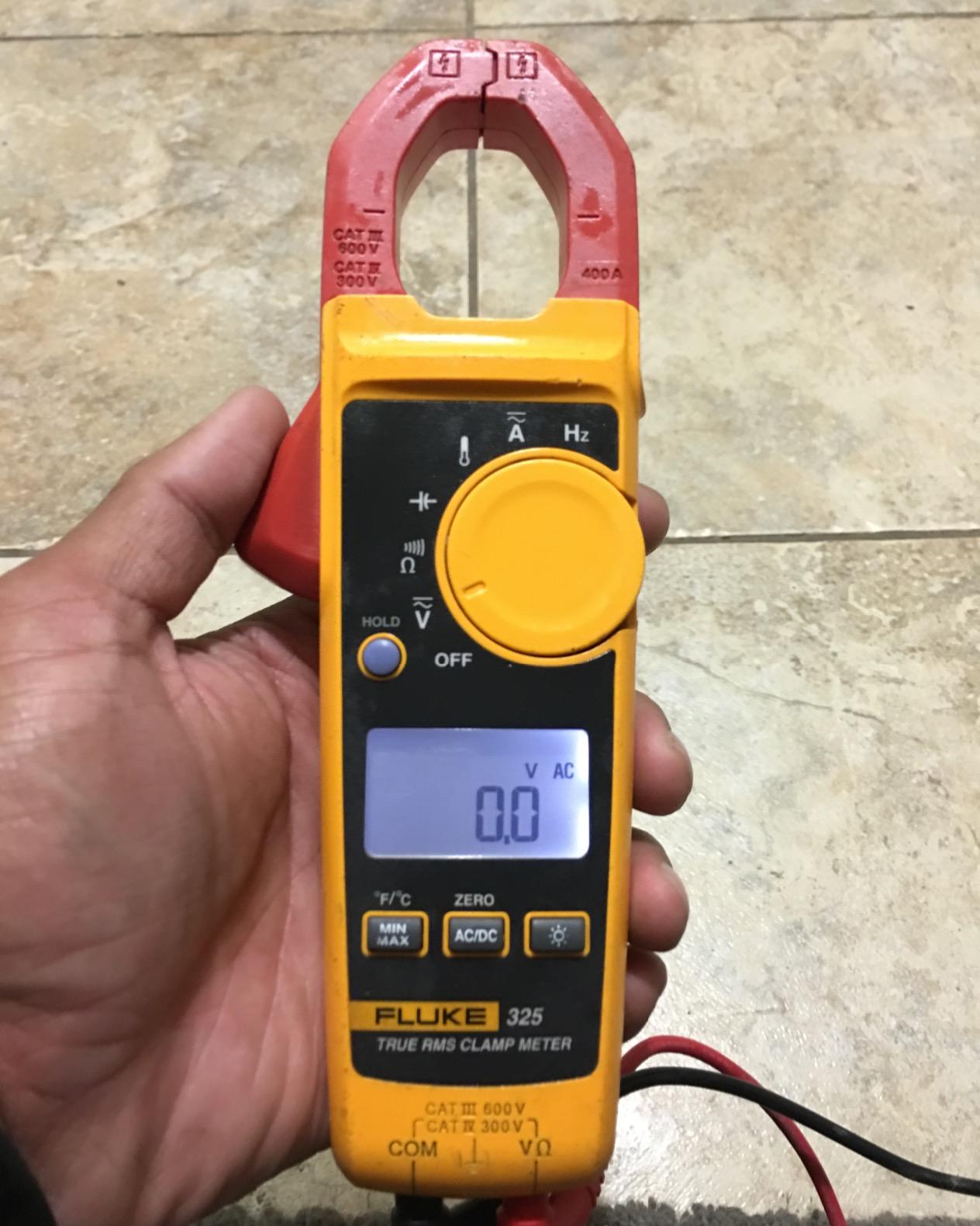

3. Fluke 325 Clamp Meter: The Best Fluke for Commercial and DC Work
Fluke 325 True-RMS Clamp Meter with Frequency, Temperature & Capacitance Measurements
- Clamp measures both AC and DC current
- True RMS on non-linear loads
- Temperature frequency and capacitance built in
- Data hold for large conductors
- Accurate across volts amps ohms and temperature
- Resistance and continuity share one function
- No low millivolt reading for ripple testing

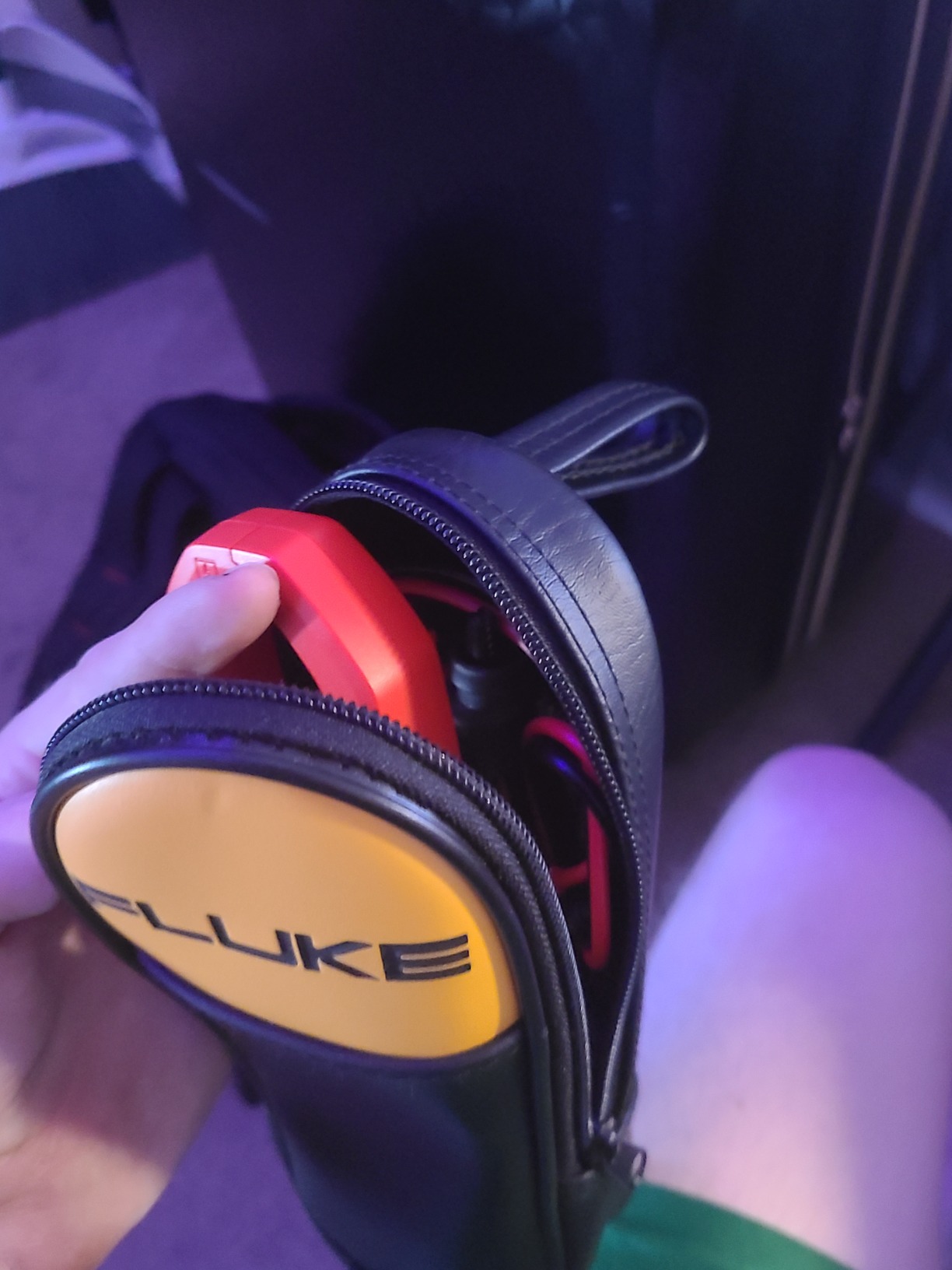

- Soft case fits only with leads removed
The Fluke 325 is the one Fluke in this roundup that reads DC current through the jaw, and that changes which jobs it can touch. It measures AC and DC current to 400 A, AC and DC voltage to 600 V, resistance to 40 kOhm, and adds frequency, temperature and capacitance. True RMS sensing is standard.
On ElectricianTalk, the recommendation that comes up again and again is compact body plus DC capability in the same meter, and the 325 is the model people point to. At 283 g with the same 9.45 x 11 x 3.15 inch footprint as the 323, it carries a full extra measurement set without becoming a brick in your hand.
For a commercial electrician doing tenant fit-out work, the DC range quietly removes a whole category of dead-end afternoon. DC current measurement lets you verify a control circuit, a rectifier output or a PV string without breaking the circuit to put leads on. The Fluke 374 FC and 378 FC come up constantly in the same forum threads as the aspirational step up, and the 325 is the sensible middle.
The temperature function matters for more people than expected. Long-term owners report a decade or more of service across HVAC, automotive and residential work, and they cite accuracy across voltage, current, resistance and temperature rather than just amps. For a technician chasing a compressor or a resistive heat trace, that saves a second instrument.
The measurement set that justifies the step up
Frequency, temperature and capacitance in one clamp is a real saving on a service call, because the alternative is a separate meter and a second set of leads. Data hold keeps the reading on screen when the jaw is buried in a bundle, which is a small feature that changes how you work rather than how you spec.
The 40 kOhm resistance range is a step above the 4 kOhm limit on the 323. If you are checking heaters, elements or longer runs, the extra decade is the difference between a reading and an over-range symbol.
Where it frustrates people
Resistance and continuity share one function position with no way to select between them, so you are changing a switch mid-test more often than you would like. Several owners also note the meter does not remember the AC or DC voltage selection after power-up, which means a habit of checking the dial every time.
It is not a millivolt meter, so ripple and low-level signal testing is out of scope. And the supplied soft case only fits the meter with the test leads removed, which is an easy thing to work around once you know it.

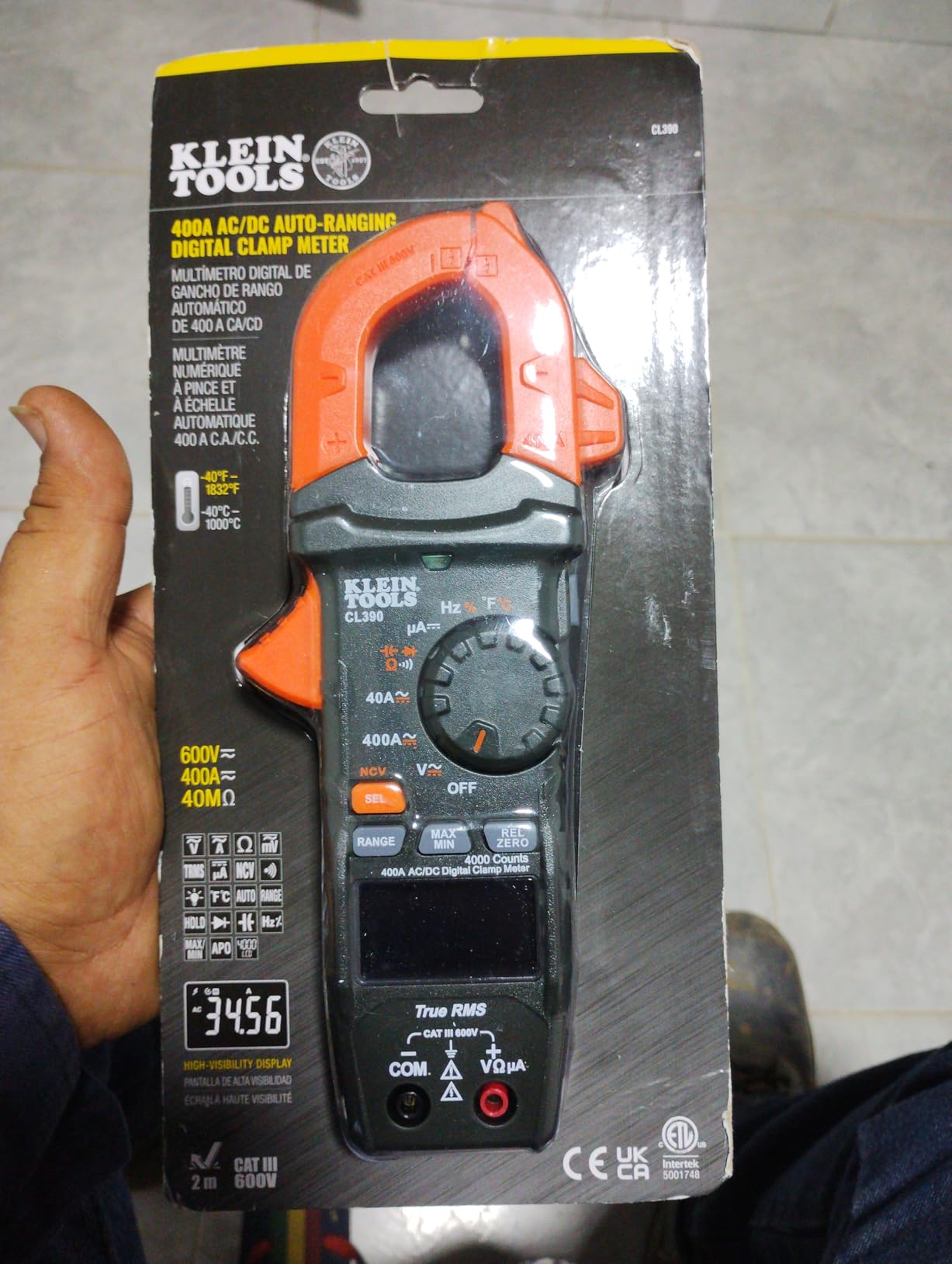

4. Klein Tools CL390 Clamp Meter: The Best Value Feature Set
- Widest measurement set in the roundup
- True RMS with auto-ranging
- Reverse-contrast display reads in bright and low light
- NCVT built into the clamp jaw
- Leads thermocouple batteries and case included
- Clamp minimum reading about 0.3 A
- No 10 A range on the test leads
- Carrying case wears out before the meter

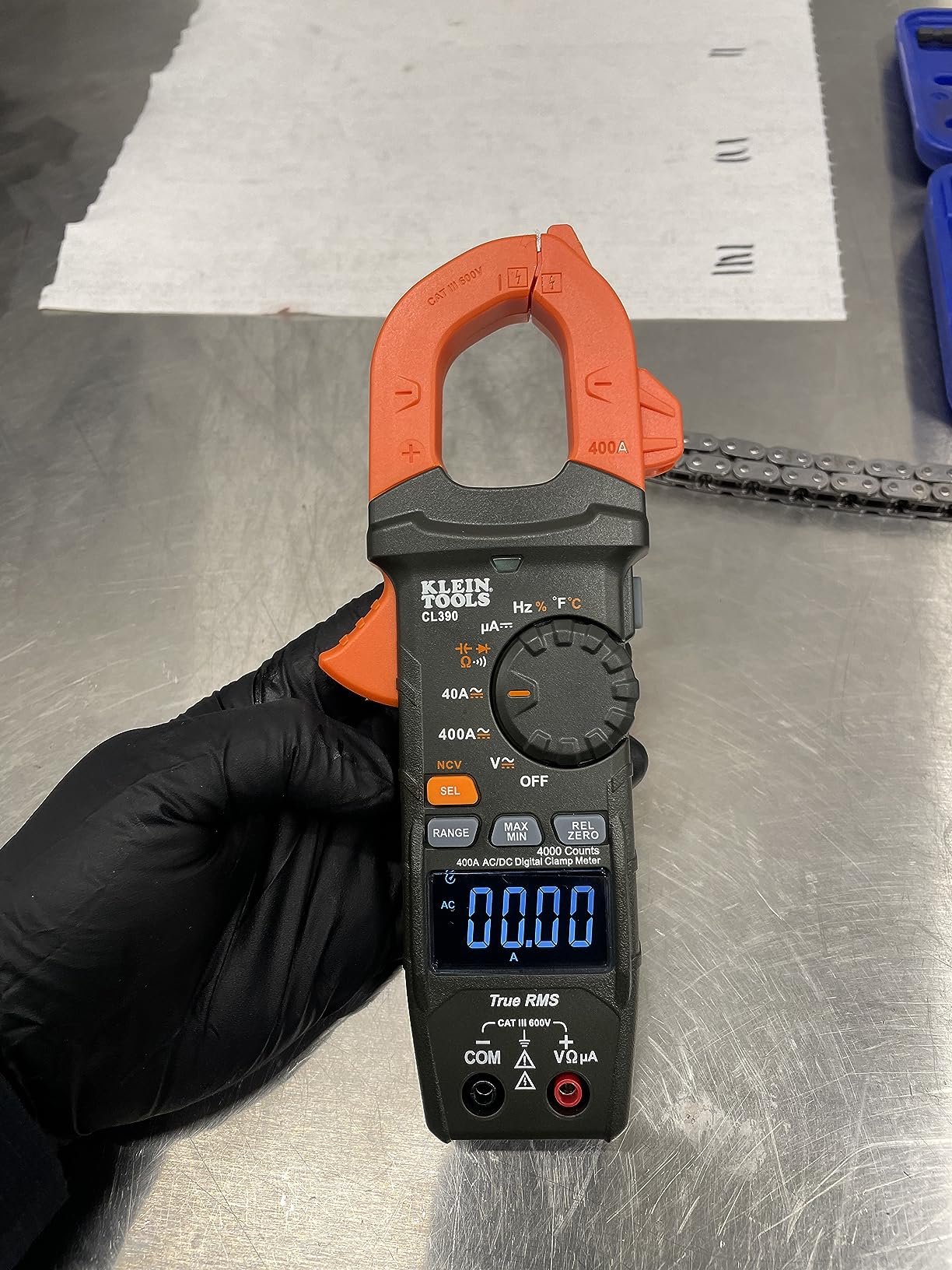

The Klein CL390 answers the question most buyers actually have: what do I get for a mid-tier spend. It measures AC and DC current to 400 A through the clamp, and AC/DC voltage, resistance, continuity, frequency, duty cycle, DC microamps, diode test and capacitance through the leads. Add the included thermocouple and you have temperature too. That is a genuinely long list.
Auto-ranging removes the manual range switch, which is the single biggest speed difference between a cheap meter and this one in daily panel work. The reverse-contrast backlit LCD stays readable in both bright daylight and a dark panel, which the 323 and 302+ cannot do. Non-contact voltage detection is built into the clamp jaw, so you can identify the conductor before you commit the jaws.
At 8.32 ounces and 8.45 x 3.51 x 1.51 inches, it is light and compact without feeling fragile. The side test lead holder with optional magnetic hanger is a small quality-of-life detail that keeps the leads out of your way instead of wrapped around the body. The 1923 ratings at 4.7 put it among the better-reviewed meters we looked at.
Users consistently position the CL390 as a capable everyday meter for professionals who do not need premium-tier accuracy. That is the honest framing. If you are logging trend data or doing acceptance testing with a calibrated reference, look elsewhere. If you are verifying a service call, chasing a nuisance trip or checking a motor circuit, it covers the work.
Where the 0.3 A floor bites
The clamp cannot read very low currents, with a minimum of roughly 0.3 A AC or DC. That is a real constraint on modern work. A modern LED driver can sit well under that on a branch circuit, and so can a modern control circuit. If your diagnostic question is “is this circuit drawing anything at all”, the CL390 will not answer it in the jaws.
DC microamp measurement is available, but only through the test leads, not the clamp. That covers current transformer loops, which is where most microamp work happens anyway.
Who should pass
Pass if your work is dominated by DC loads and you need the clamp for it. The Fluke 325 and Klein CL810 both handle low-current DC readings better, and the CL810 adds a 600 A range for bus work.
Pass if accuracy claims matter to a third party. The 4.7 rating reflects general satisfaction, and reviewers note plainly that it is not as precise as a Fluke at the same measurement. Carrying a DMM alongside it handles that gap for most people.

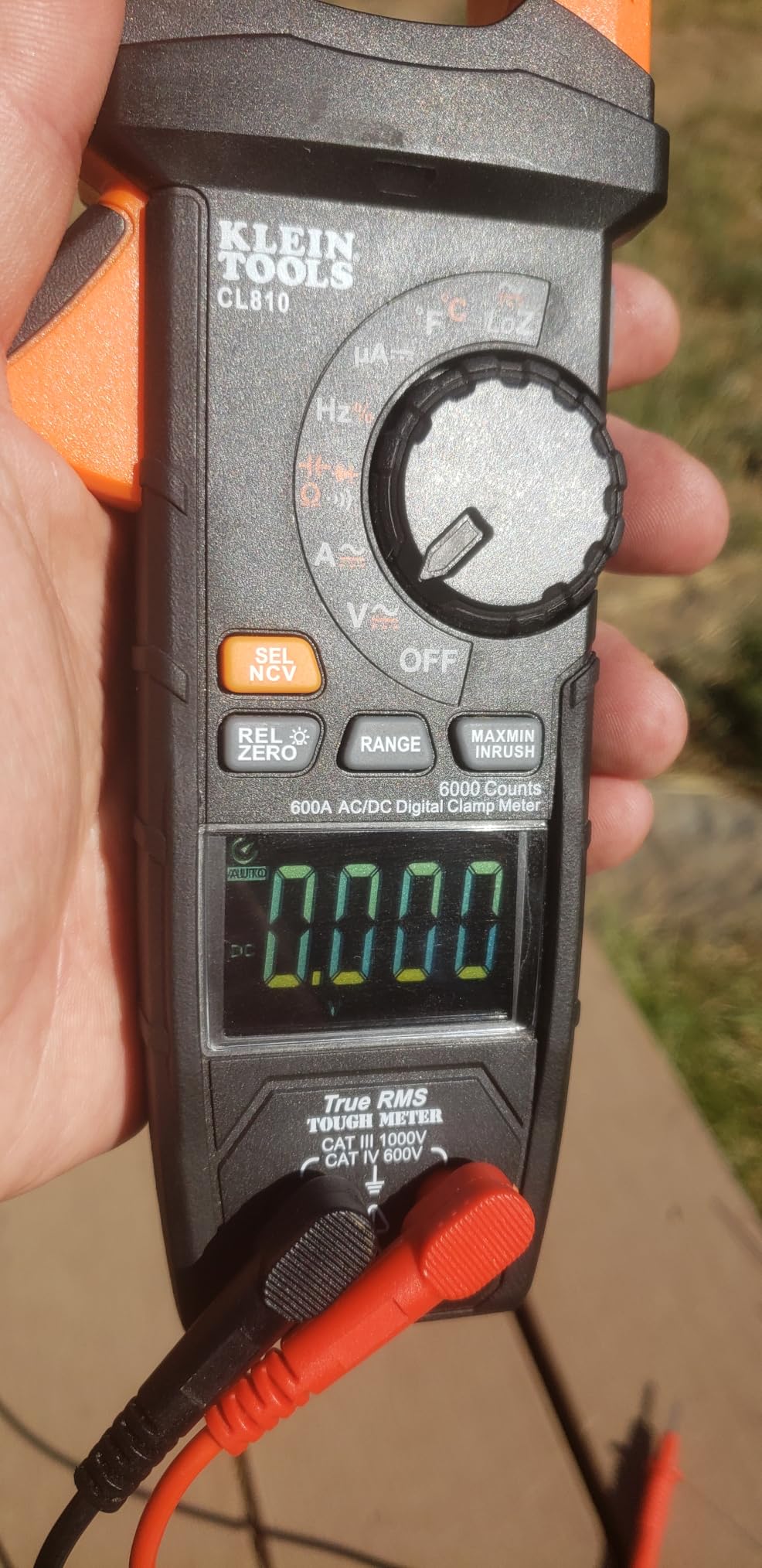

5. Klein Tools CL810 Clamp Meter: Built for Dark Panels and 600 A Work
Klein Tools CL810 Digital Clamp Meter, 600A AC/DC Auto Ranging & Worklight
- 600 A AC/DC range covers panel and bus work
- LoZ mode kills ghost voltage readings
- Inrush measurement for motors and HVAC
- Worklight plus lighted dial
- 6.6 ft drop protection and IP40 rating
- Smaller review base than the established Flukes
- Heavier and larger than entry Klein models
- Micro amp and inrush modes add menu steps
The CL810 is the meter on this list built for the two things electricians complain about most: dark panels and 600 A circuits. It measures AC and DC current to 600 A, which puts it above everything else here for service entrance and feeder work, and it carries a built-in worklight that throws light directly into the enclosure while the jaws are closed on the conductor.
True RMS is paired with LoZ, the low impedance mode that loads the circuit enough to collapse ghost voltage. That is a diagnostic feature, not a spec-sheet feature. When you verify absence of voltage on a de-energized circuit and the meter still shows 45 V, LoZ is how you tell induced capacitive voltage from a real conductor.

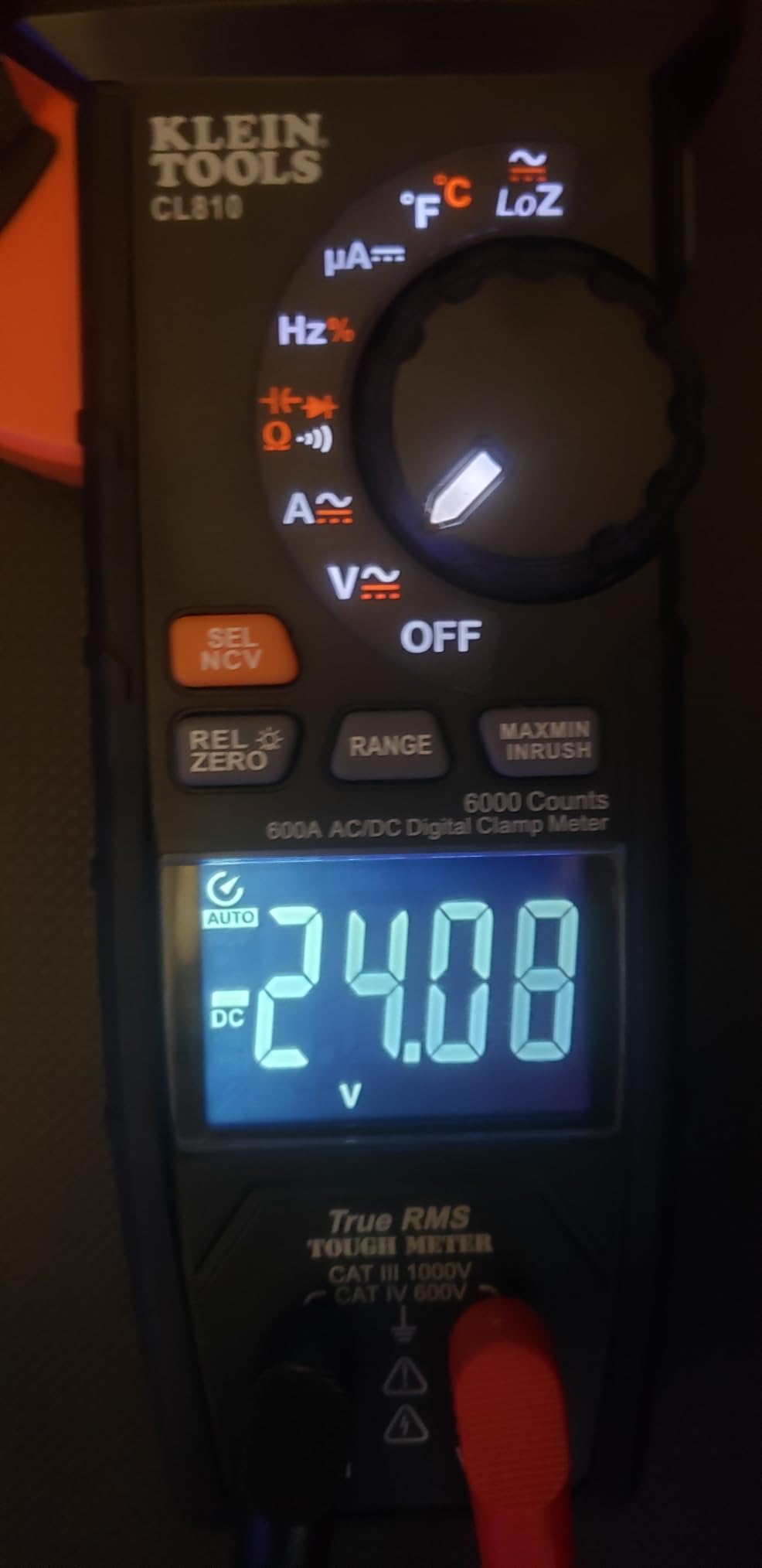

The transflective reverse-contrast display with a lighted dial is a genuinely useful design. In sunlight the reverse contrast sharpens the characters; in a dark panel the dial lighting keeps the function visible so you are not cycling functions blind. Non-contact voltage detection in the clamp jaw gives audible and visual indication before you clamp.
The 6.6 foot drop protection and IP40 ingress rating are the only published drop figures in this entire roundup, and buyers notice that. Most retail pages state nothing about drop survivability, which is one of the biggest sources of anxiety on job sites. Knowing the number removes the guesswork.
Why the rating outruns the review count
At 4.8 stars from 333 ratings, this meter scores as high as anything we tested and has the least history behind it. The gap between 333 ratings and the 12110 on the budget KAIWEETS below is the honest caveat: a high average on a small sample tells you new owners are happy, not that it survives fifteen years of service.
Owners single out the transflective display, the worklight and the accuracy as the standout features. We would want a few more years of field reports before ranking it against the Fluke 323 on durability.
The trade-offs
It is 12.96 ounces and 9.01 x 3.47 x 1.18 inches, heavier and longer than the entry Klein clamps. In a very confined panel cavity that extra length is noticeable.
Micro amp and inrush functions add menu complexity, and inrush measurement is only useful if you know what you are doing with the result. Treat it as a bonus feature rather than the reason to buy. For 600 A panel and feeder work where the meter has to be read in the dark, the CL810 is hard to argue with.
6. Klein Tools CL220 Clamp Meter: The Most Versatile That Does Not Feel Like It
Klein Tools CL220 Digital Clamp Meter, Auto-Ranging 400 Amp AC, and Temp
- True RMS accuracy above the price tier
- Backlit display for dim panels
- Compact body fits crowded panels
- Sensitive NCVT for quick live checks
- AA batteries
- no proprietary cell
- Clamp measures AC only
- No DC current through the jaw
- Temperature accuracy about 2 percent
- Magnetic hanger sold separately

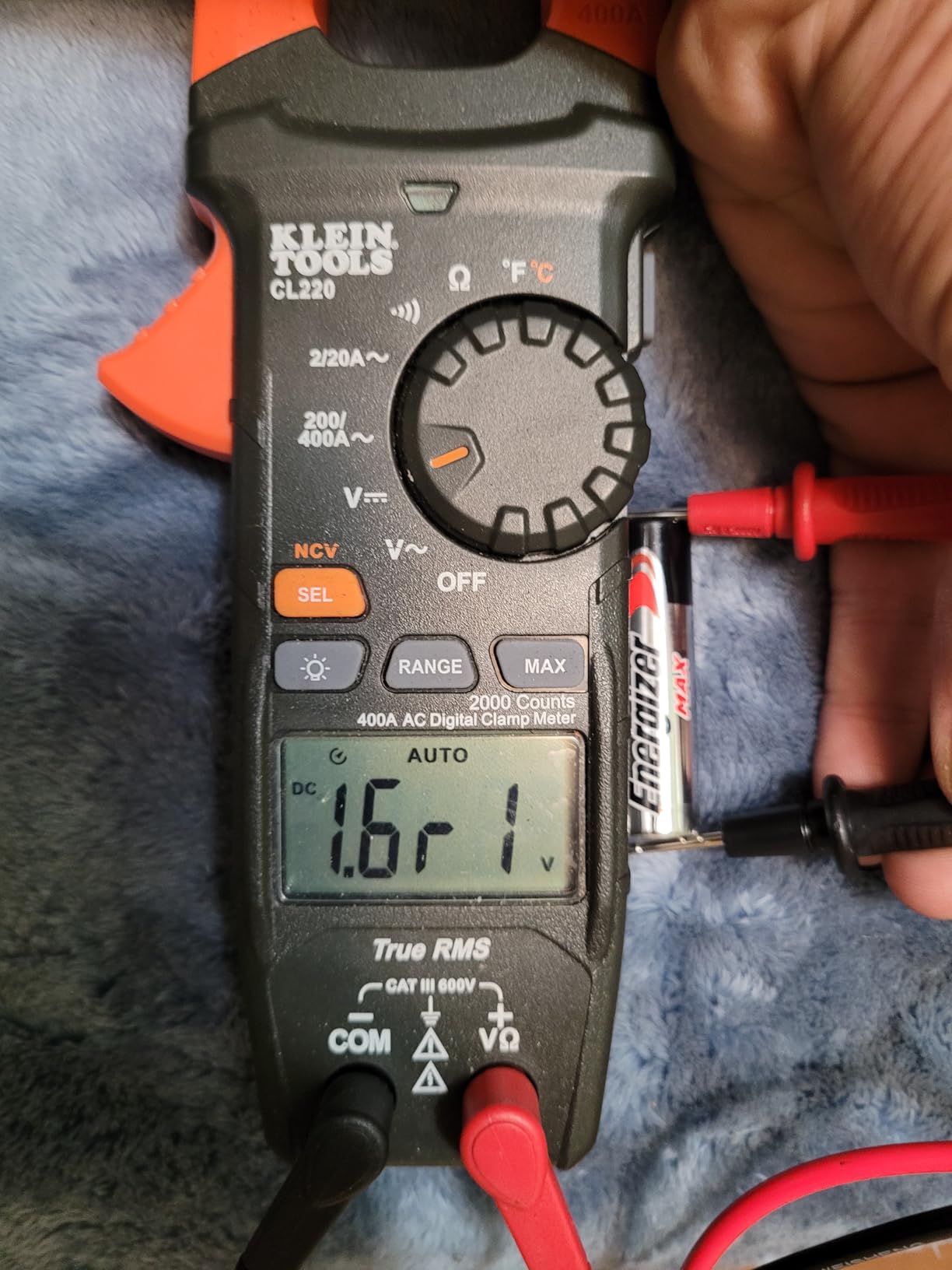

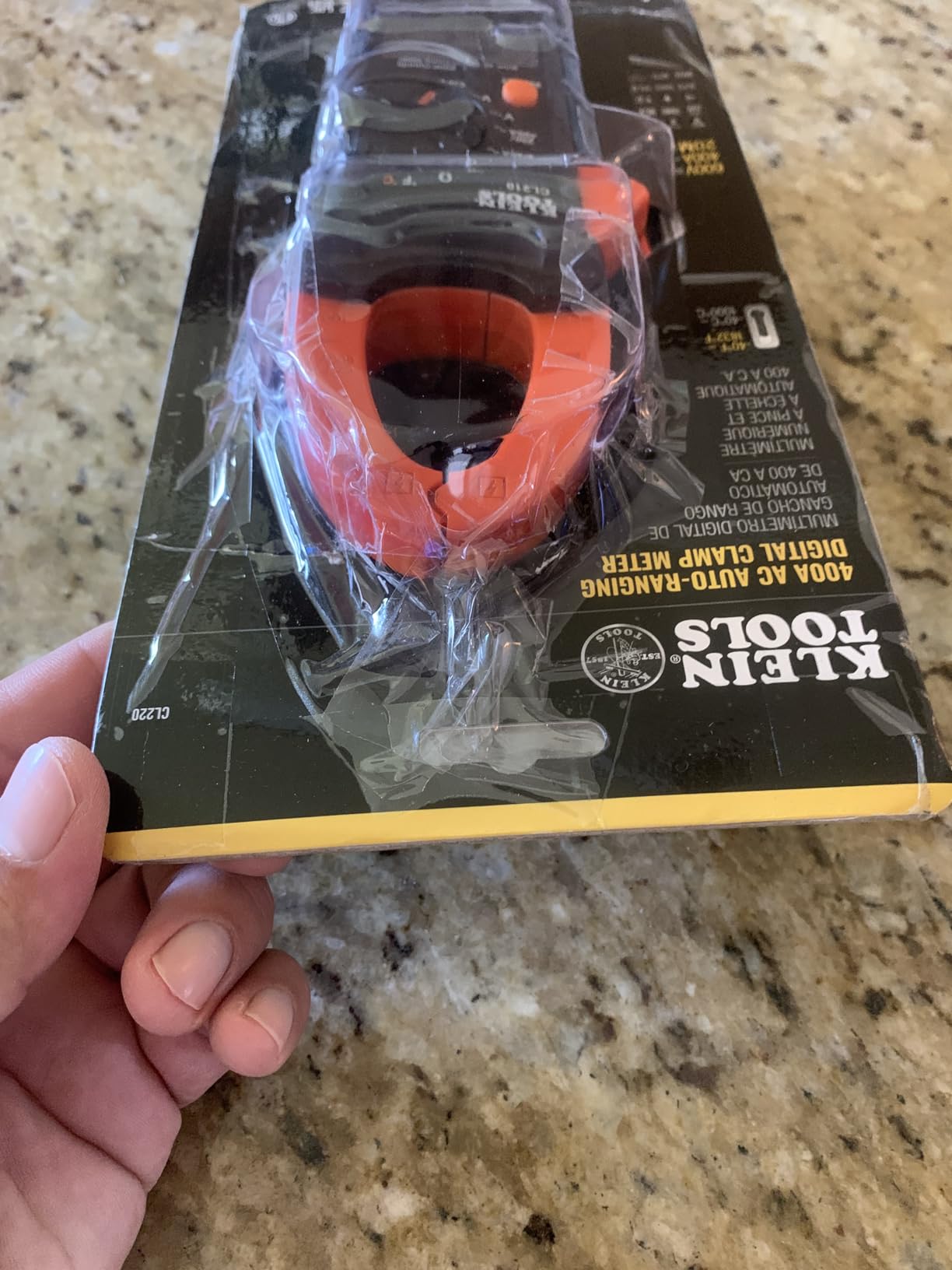

The CL220 is the meter to buy when the budget is fixed and the work is residential service. It measures AC current to 400 A through the clamp, AC and DC voltage, resistance and continuity through the leads, and temperature with the included thermocouple. Auto-ranging with True RMS is standard on a meter at this level, which was not true a few years ago.
At 9.76 ounces and 8.45 x 31.5 x 3.5 inches, the body is compact enough for tight panel work. The backlit LCD is the feature that keeps coming up in reviews, because it is the one thing budget meters used to leave out and it is the one thing you notice most at two in the morning in a crawlspace.
Non-contact voltage testing in the clamp jaw is sensitive enough for a quick live-wire check before you commit the jaws, and the side test lead holder keeps leads tidy. Buyers call it the best of the affordable clamp meters, and the 1175 ratings at 4.7 support that framing without exaggeration.
One owner describes it as durable enough for a 30-year HVAC technician’s daily use. That is a single report rather than a verified figure, but it lines up with how the rest of the reviews read. For a service truck on a tight budget, the build is not the weak point.
What you give up for the lower tier
The clamp measures AC current only. No DC. That removes PV, batteries, EV chargers and DC motors entirely, and it is the single reason to step up to the CL390 or CL810 if any of that work is in your future.
Temperature measurement is accurate to roughly 2 percent over 0 to 100 degrees Celsius, which is fine for a rough check and not fine for a refrigerant or bearing temperature study. Magnetic hanger compatibility exists but the hanger is sold separately.
The failure mode to know about
One owner reported a partially defective LCD after about a year. Isolated reports like this happen on every model at every price point, and one is not a pattern. What it does tell you is that the display is the component most likely to be the problem on a meter this age, so keep it out of crush pressure in a tool bag.
If your work is residential service, panel upgrades and general troubleshooting, this is the pick. If you are about to start a commercial apprenticeship or move into any DC-adjacent work, save up and get the CL390 instead.
7. Fieldpiece SC260 Clamp Meter: The HVAC and Refrigeration Specialist
- Purpose-built for HVACR service
- True RMS accuracy on AC loads
- Auto Select removes manual dialling
- Swivel magnet allows hands-free work
- Compact and light for a service bag
- Limited DC clamp current capability
- Not CAT IV rated for the highest energy work
- Temperature range limited for very hot environments

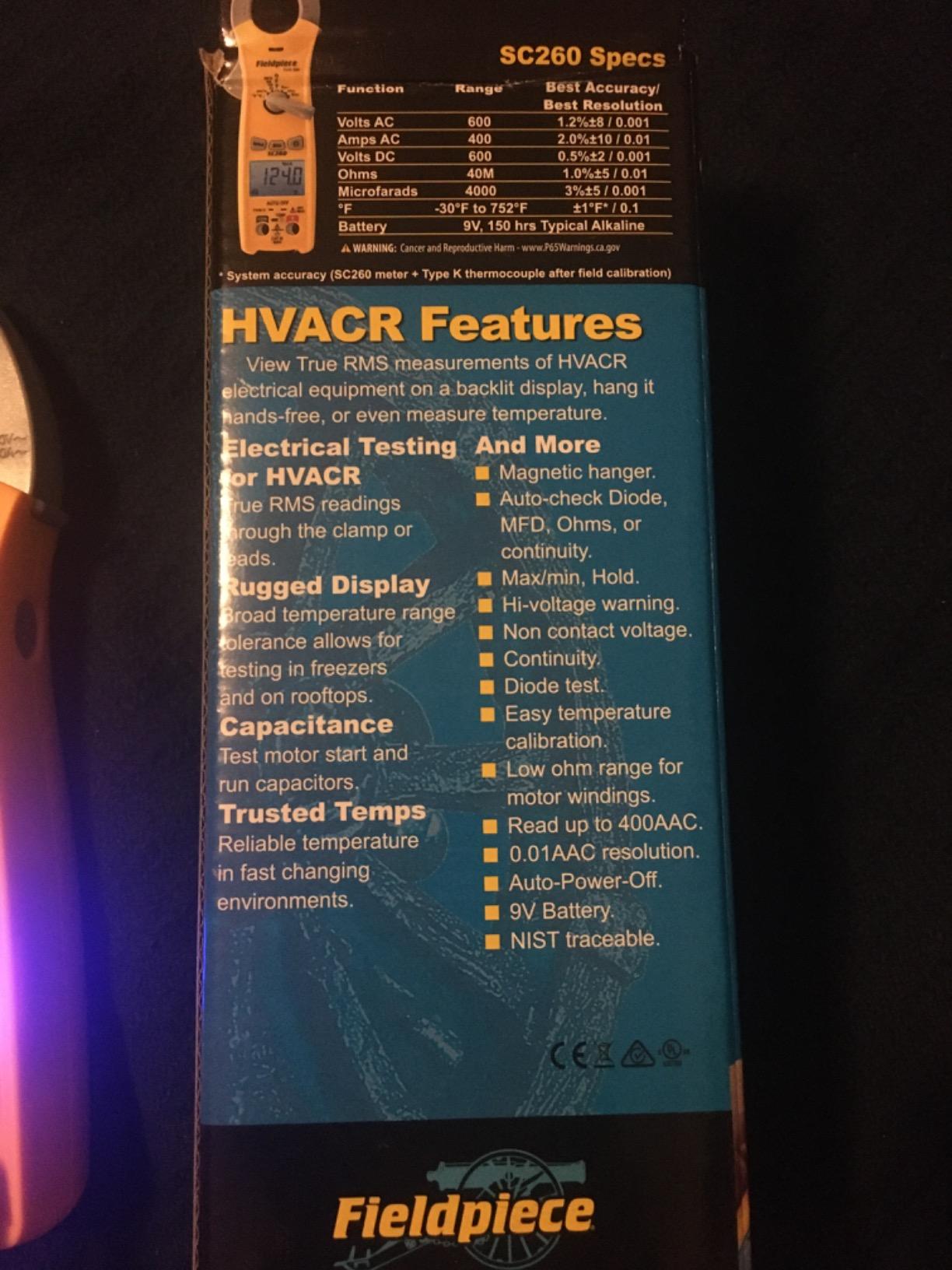

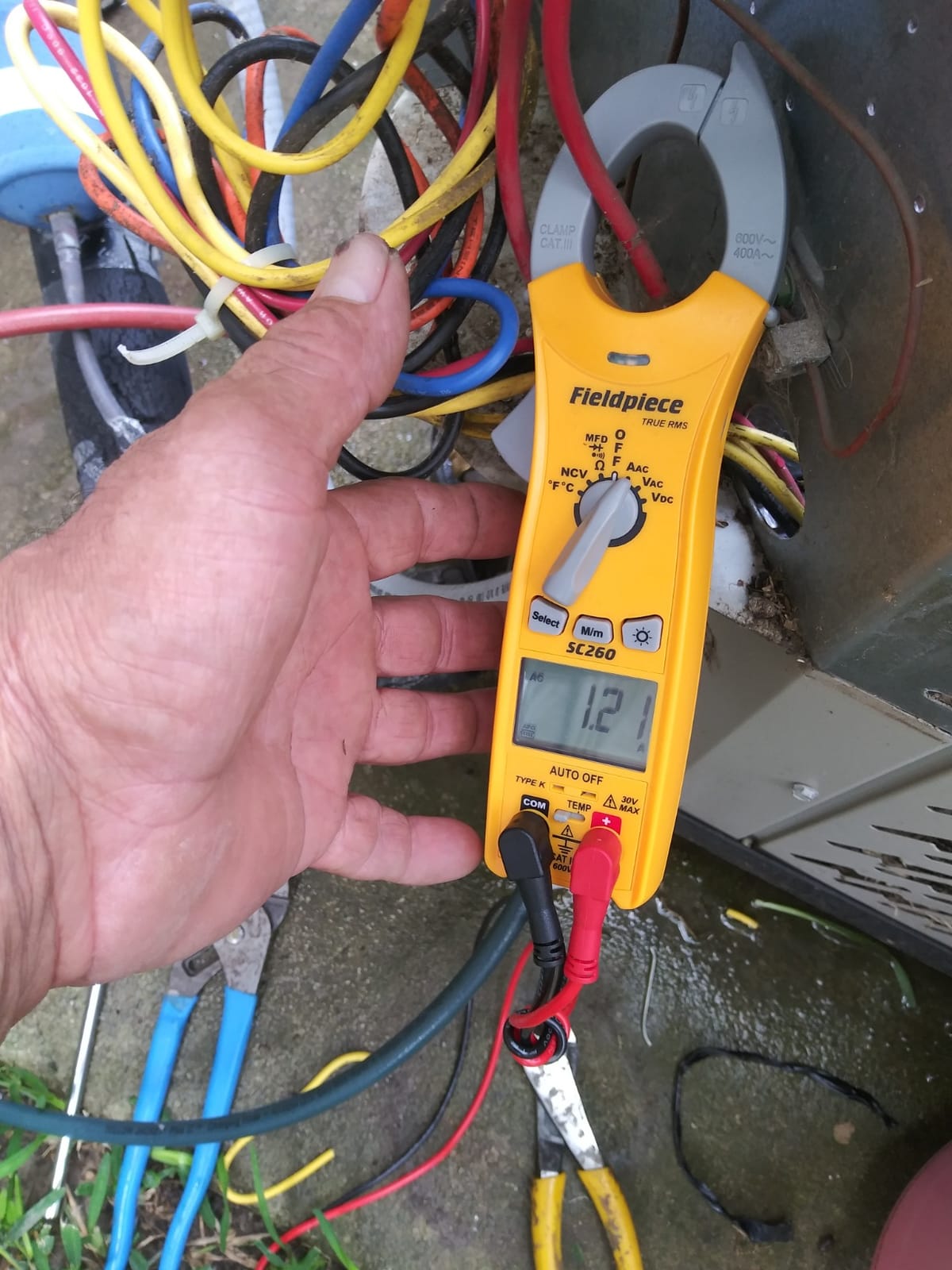

The Fieldpiece SC260 is the pick if you are an HVAC or refrigeration technician rather than an electrician, and the 4.8 rating from 1700 ratings is the highest average in this group backed by a large sample. True RMS AC voltage and current, plus temperature and capacitance, is the exact measurement set a compressor diagnosis needs.
Auto Select is the feature HVAC techs mention most. Instead of dialling between capacitance and resistance, the meter figures out which one you are probing. On a start capacitor test in a hot mechanical room with gloves on, removing two or three dial steps per measurement is the difference between a fast diagnosis and a slow one.
The swivel magnet is understated in the spec sheet and genuinely useful in practice. It lets you set the reading hands-free on a condensing unit or an air handler while you work with both hands on the panel. The backlit display covers the dark mechanical rooms where this work happens.
On r/HVAC, technicians talk about employer-issued instruments as much as personal preference, and Fieldpiece comes up repeatedly as a company-issued meter that held up. That is a useful signal for anyone choosing a first professional instrument: it is a recognised name in mechanical service, not just electrical.
Why HVAC techs rate it so highly
HVACR technicians rate this as one of the most accurate clamp meters in its class, and the auto-select plus swivel magnet are singled out repeatedly. The reason is fit, not raw capability. A meter that measures everything is not the same as a meter that measures the right things without friction.
Compact and light enough for a service bag, it is 3.5 x 3 x 9.1 inches. Whether you are splitting a residential system, chasing a short cycling compressor or logging superheat and subcool, the temperature and capacitance functions are there.
Where it is the wrong tool
It is AC current focused, with limited DC clamp current capability. That is fine on a rooftop unit and wrong on a building with a DC-driven control system or an eMobility tie-in. It is also not CAT IV rated for the highest energy work, so it does not cover a service entrance of the kind the Fluke 323 and Ideal 61-747 do.
The temperature range is limited for very hot environments, and complaints center on it being specialised for AC/R work rather than general electrical. If you split your week between panels and rooftop units, the Fluke 325 covers both and the SC260 covers one of them better.

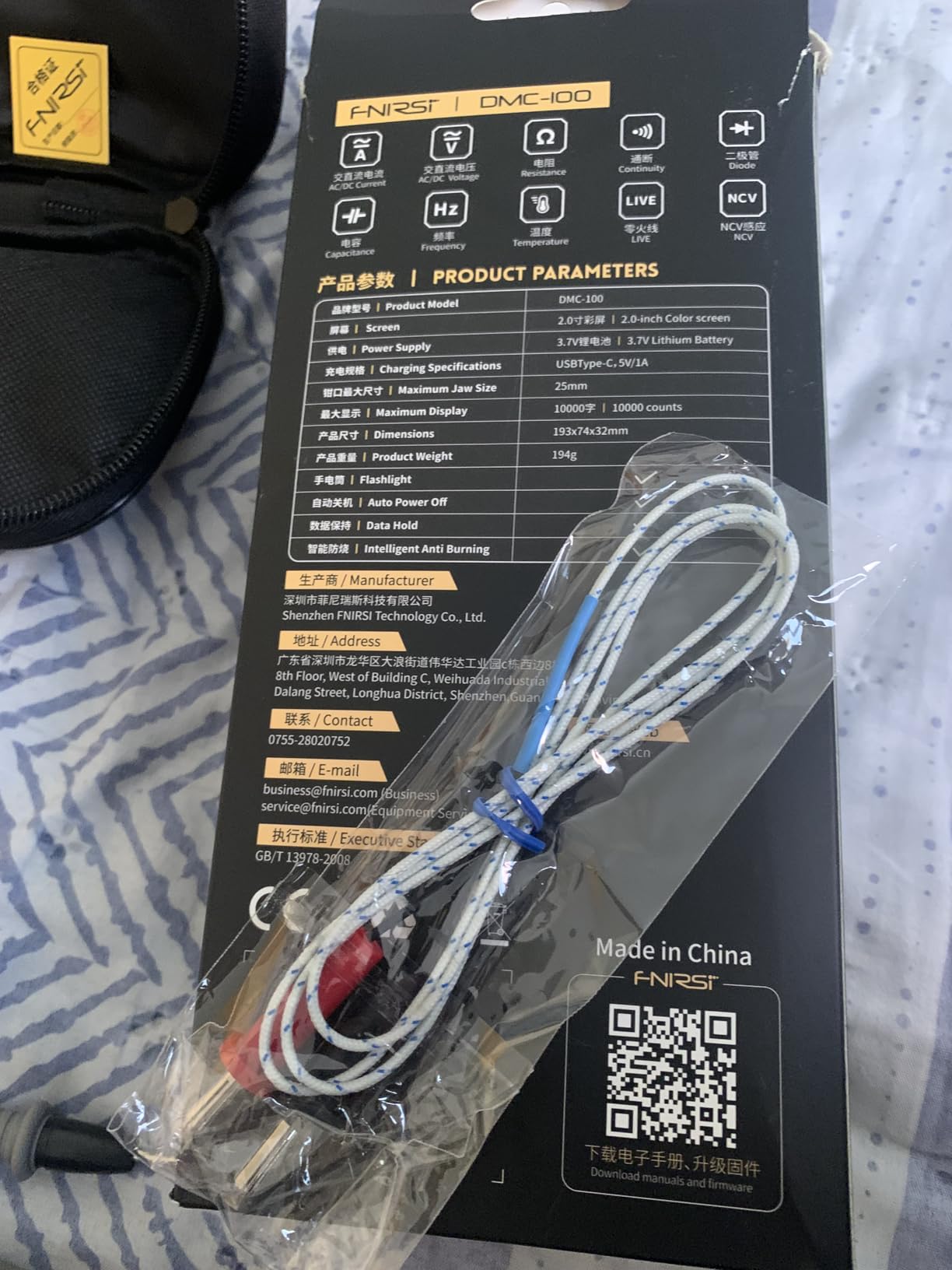

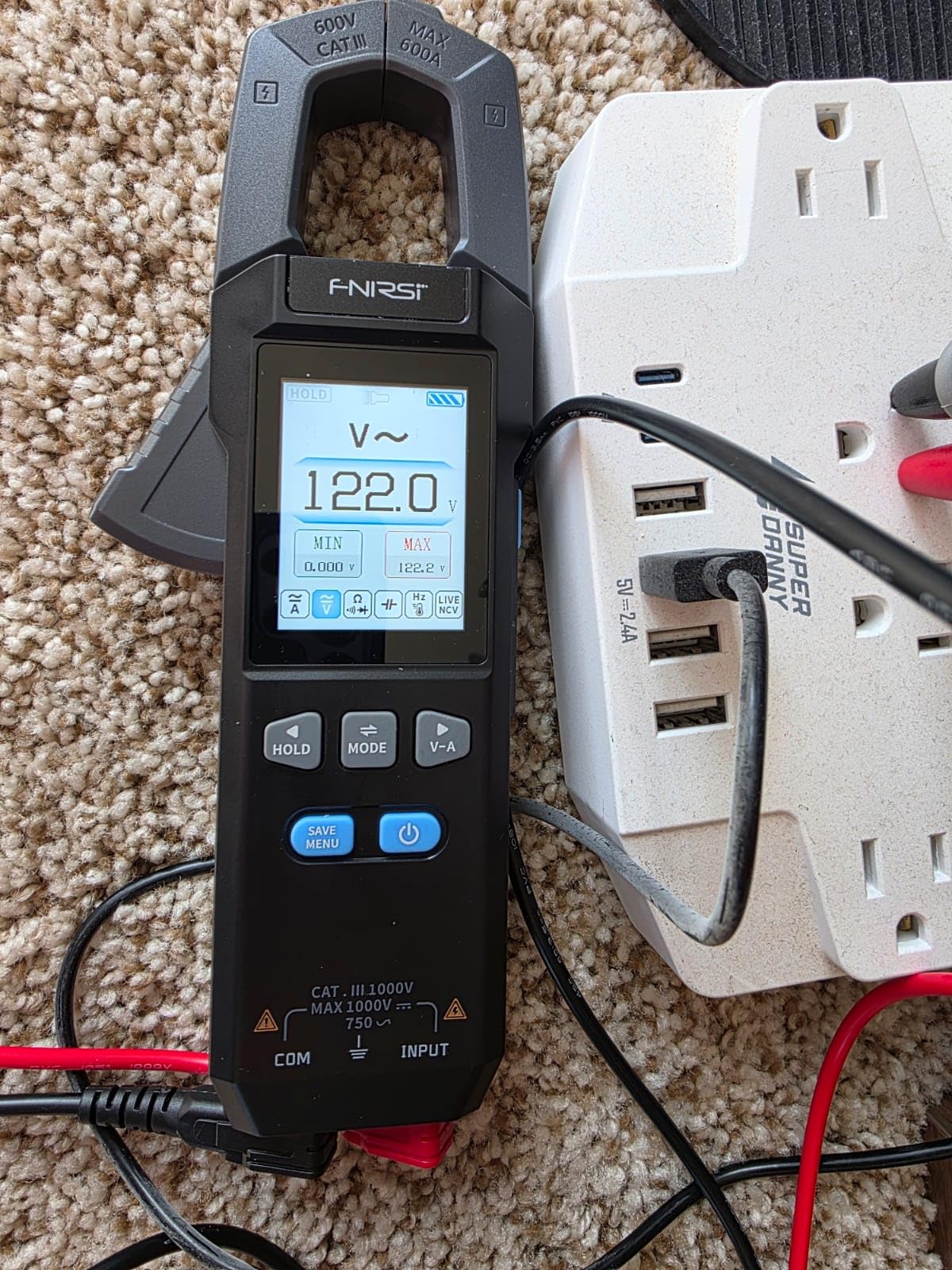

8. FNIRSI DMC-100 Clamp Meter: More Than the Price Suggests
- 600 A AC/DC clamp at an entry price point
- Curve recording with 30 historical records
- Color TFT readable in sunlight
- Rechargeable battery removes flat-cell problems
- Compact enough for a tool pouch
- Temperature function reported as inaccurate
- Live wire detection of uncertain reliability
- Graph window is short and shows no numbers
- Internal lithium battery longevity unproven
The FNIRSI DMC-100 is the meter in this roundup that does the most unexpected things. It measures AC and DC current to 600 A, AC and DC voltage, resistance, capacitance, frequency and temperature, and it does it on a 9999 count True-RMS platform with a 2 inch full-color TFT display at 10 brightness levels and dual themes.
The graphing is the headline. Real-time curve recording with eight live data sets and 30 historical records is not something any other meter in this list offers, at this tier or any tier. Watch a motor start, watch an inrush spike, watch a load cycle, then scroll back to it. Several owners report readings that compare closely to a Fluke 289 for voltage, current and capacitance.
The built-in 1500mAh rechargeable lithium battery with Type-C charging removes the single most common job-site failure: arriving with a dead meter because somebody left AAAs in a truck all winter. Voltage and current are displayed simultaneously, which saves a second instrument when you are checking power factor by eye.
At 6.72 ounces and 7.7 x 2.91 x 1.14 inches it is one of the most compact meters here. Note one practical limit: voltage must be measured with the test leads, because the jaws are for current only. That is normal for a clamp, but the DMC-100 is often bought expecting a full combo instrument.
What the graph window actually gives you
It records, but it is not a power quality analyser. The graph window shows roughly 25 seconds at a time and does not put numeric values on the graph, so you can see the shape of a load event and count peaks, but you cannot read a precise peak value off the curve. Use it to characterise behaviour, then confirm the number with a hold reading.
Temperature is reported as inaccurate by multiple owners despite the included probe, and the live wire detection function is of uncertain reliability. Treat NCV on this meter as a convenience hint, never as a verification. The clamp current measurement is the strong part.
The honest verdict
Owners widely agree the meter punches far above its price, and several report matching Fluke readings closely. The repeated caveats are the weak temperature function, questionable live-wire mode and lithium battery durability over a long service life, plus the general view that 9999-count accuracy claims are optimistic.
Use it as a second instrument, a learner meter or a field curiosity. Do not hang a critical acceptance test on it, and keep a replaceable-cell meter as your primary if you work outdoors in cold weather.

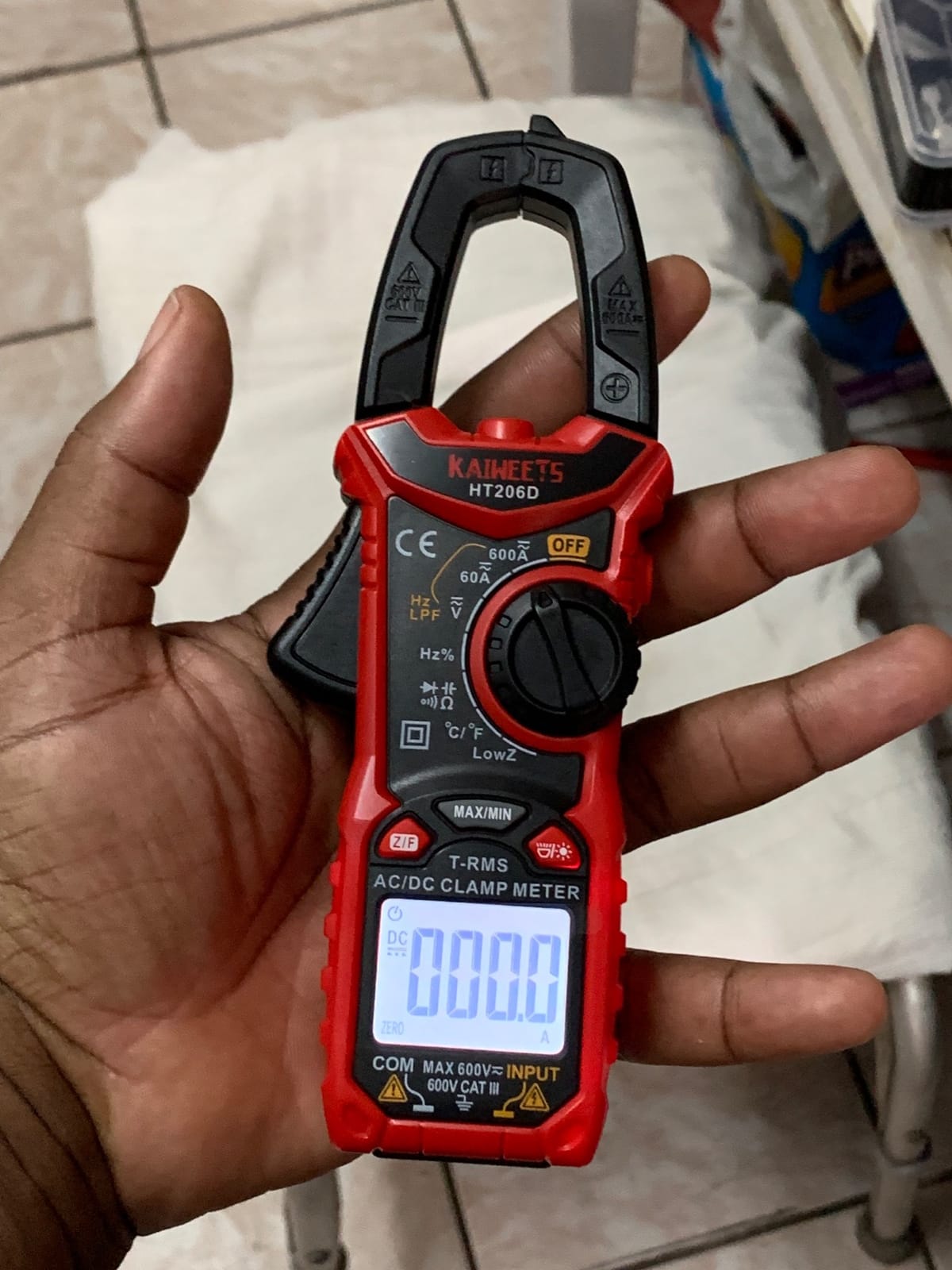

9. KAIWEETS HT206D Clamp Meter: LowZ, VFD Filtering and a Giant Review Base
- LowZ mode and low pass filter in a budget meter
- Two AAA batteries
- no proprietary cell
- Two colour backlight warns above 80 V or 3 A
- Catches AC inrush on motors to roughly 100 A
- Compact for tight spaces
- DC current below about 1 A is inconsistent
- Test leads have poor conductivity
- Housing is thin plastic
- No low mA measurement on the probes
The KAIWEETS HT206D is the most reviewed meter in this roundup by a wide margin, with over 12100 ratings, and it packs two features that professional meters charge real money for. LowZ mode loads the circuit to defeat ghost voltage readings, and the low pass filter smooths the signal from VFDs, motors and transformers.
That VFD filter is not a gimmick. A variable frequency drive puts a noisy PWM signal on its output, and an average-responding meter will show a number that drifts while the motor runs fine. The filter gives you a reading you can trust on a drive run, which makes this meter far more useful for motor troubleshooting than its tier would suggest.
The two-colour backlit LCD turns red above 80 V or 3 A, which is a cheap way to keep a apprentice honest on a live panel. There is an LED flashlight, a K-type thermocouple for temperature, and it runs on two AAA batteries rather than a proprietary cell, so you can replace the power source anywhere.
Owners consistently treat it as an excellent value for hobbyists and light-duty field use, with many noting it competes with far costlier meters. For an apprentice building a first kit, or a property maintenance tech who needs a backup meter in a van, that value claim holds up.
Where the accuracy falls apart
DC current readings below roughly 1 A are inconsistent even after zeroing, and there is no way to measure low milliamp currents with the probes. On a modern panel full of LED drivers and low-draw control circuits, that is a real blind spot rather than an edge case.

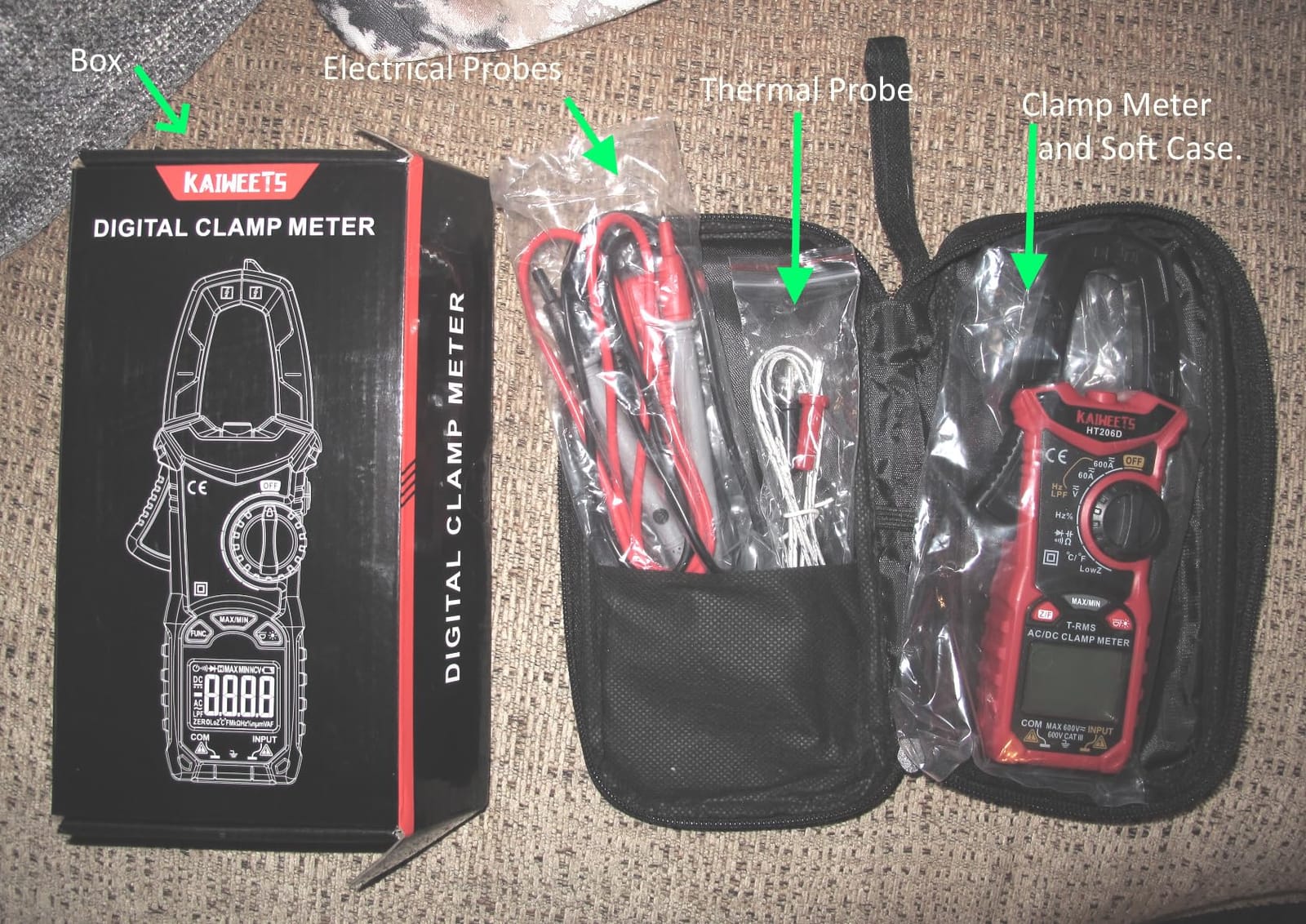

The included test leads have poor conductivity and are widely replaced by owners. Budget that in from the start. The thin plastic housing is also not as rugged as a professional-grade meter, and the temperature function is approximate.
Who should buy it and who should not
Buy it for learning the trade, for a van backup, or for controls and motor work where the low pass filter earns its keep. It is rated CAT III 600 V under IEC 61010-1 with double insulation, which is a real safety category, not a printed claim.
Do not buy it as your only meter if you do service work on live commercial circuits. The most-reported problems are the supplied leads and low-current DC accuracy, and neither is a small thing when you are trying to prove a circuit is unloaded.

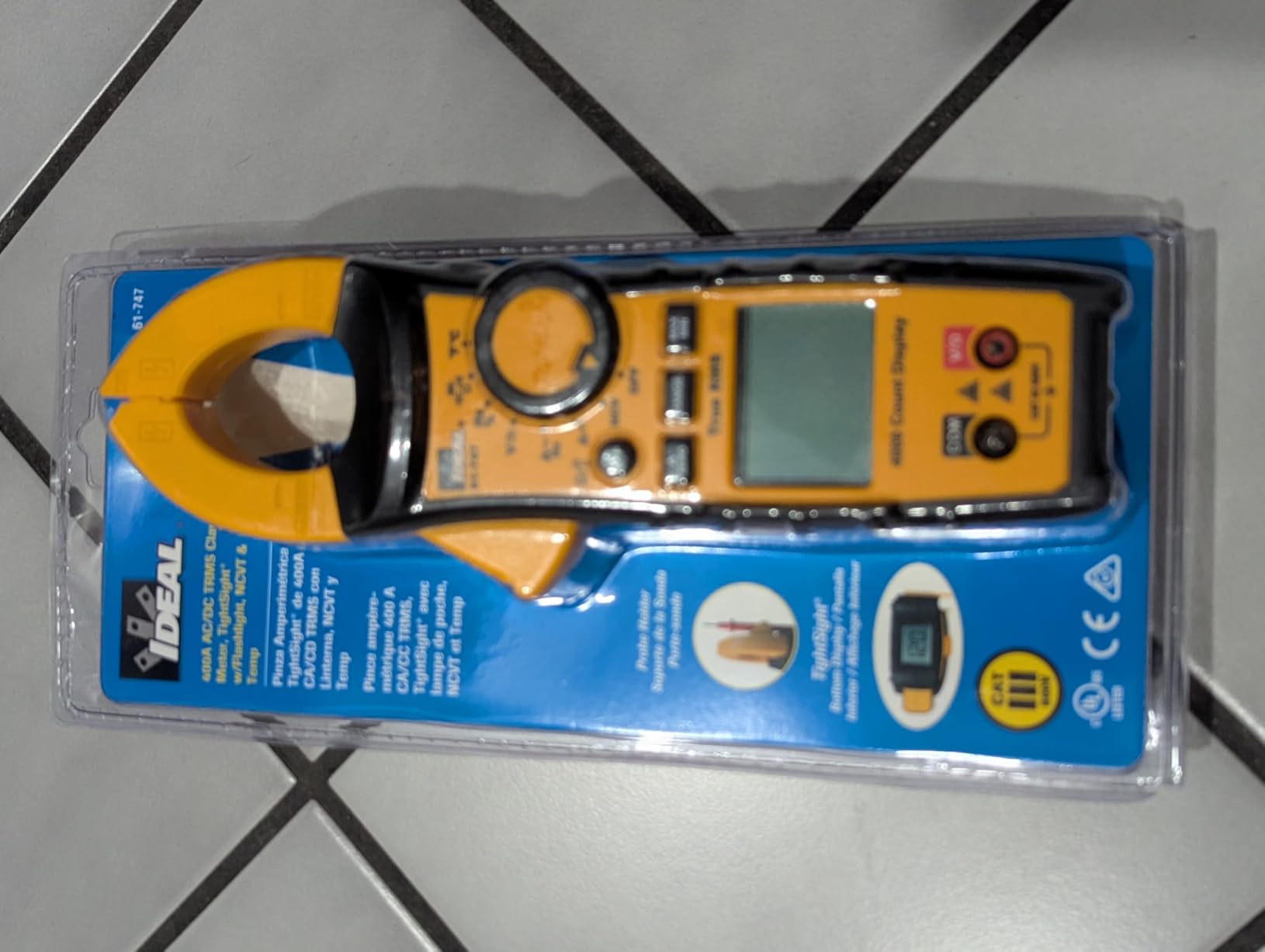

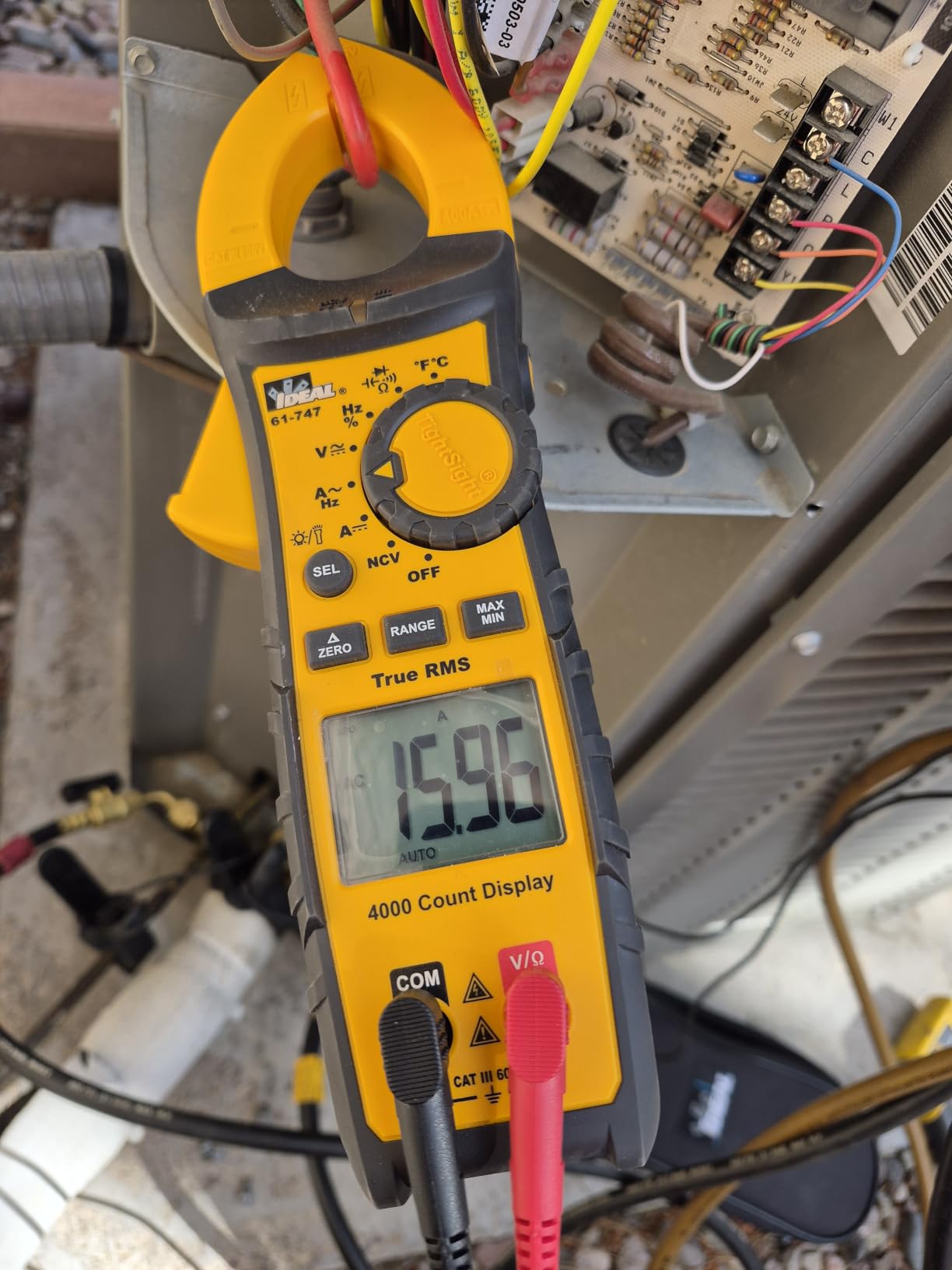

10. Ideal 61-747 TightSight Clamp Meter: Tracing Circuits Faster
Ideal Electrical 61-747 TightSight Clamp Meter, 400A AC/DC, 600V TRMS
- TightSight display speeds up circuit tracing
- Breaker auto-mapping cuts guesswork
- Dual backlit displays for low light
- CAT IV 1000 V safety rating
- Built-in probe holder
- Two year warranty
- Smallest review base in this roundup at 246 ratings
- Heavier at 1.5 pounds than most competitors
- Bulky for confined panel work
- NCV range starts at 40 V
The Ideal 61-747 is built around a single idea: stop guessing which breaker feeds what. The TightSight display arranges the data so you can identify an energised circuit quickly, and the breaker auto-mapping function turns that identification into a mapped list rather than a running note in your phone.
Underneath, it measures 400 A AC and DC through the clamp and 600 V True RMS voltage, with non-contact voltage detection from 40 to 600 V, dual backlit displays, and temperature, frequency, resistance, continuity and capacitance through the integrated probe holder.
The safety rating is CAT III 600 V and CAT IV 1000 V, which makes it one of the higher overvoltage-category options in this roundup. If you work at the origin of an installation or on distribution equipment above the receptacle level, that category is the reason to consider it. It comes with a two year limited warranty.
The tradeoff is bulk. At 1.5 pounds and 10 x 6 x 2 inches it is by far the heaviest and largest meter here, and reviewers name weight and bulk as the main drawbacks. In a tight residential panel cavity with a deadfront on, that size is a genuine inconvenience.
Who gets real value from tracing features
Anyone who repeatedly answers “which breaker is this” questions benefits most. Maintenance techs, property managers doing turnover inspections, commercial electricians chasing an unlabelled circuit, and anyone adding circuits to an unlabelled panel will use auto-mapping weekly. If you never trace, you will never touch those buttons.
With 88 percent five-star ratings from 246 ratings, sentiment is strongly positive but the sample is the smallest in this roundup. Positive sentiment on a small sample is a signal to investigate, not a reason to commit your whole belt setup.
The limits to plan around
Non-contact voltage detection starts at 40 V, so low-voltage live detection is limited. If you work on 24 V control circuits or doorbell transformers, that range starts above the voltage you care about.
The weight is the daily annoyance rather than a one-time problem. Over a full shift of climbing ladders and working overhead, 1.5 pounds in a back pocket adds up. This is the meter to buy for tracing and category headroom, not the one to buy for all-day comfort.
How to Choose a Clamp Meter: 7 Steps Before You Buy
This is the section we would read first. A clamp meter is a safety instrument as much as a measurement tool, and the two mistakes buyers make most often are buying too little current range and buying the wrong measurement type for the loads they actually work on.
1. Decide AC-only or AC/DC first
This is the most consequential decision and the one people defer. A clamp that measures AC only will silently return nothing useful on a DC load, and in the field that looks like a broken conductor rather than a wrong tool. PV strings, battery banks, EV charger outputs, DC motors and rectified control circuits all need DC current capability.
In this roundup, the Fluke 323, Fluke 302+, Klein CL220 and Fieldpiece SC260 measure AC only through the jaws. The Fluke 325, Klein CL390, Klein CL810, FNIRSI DMC-100, KAIWEETS HT206D and Ideal 61-747 all read DC as well. If you are undecided about your trade path, buy AC/DC now. The extra cost is smaller than re-buying in two years.
2. Understand what True RMS actually buys you
True RMS measures the true root-mean-square value of a waveform rather than estimating it from a shaped average. On a resistive load, a sine wave, both methods agree. On non-linear loads they do not, and non-linear loads are now everywhere: LED drivers, switch-mode power supplies, variable frequency drives, electronic ballasts and inverters.
The practical symptom of a non-True-RMS meter is a reading that changes every time the load cycles, or a reading that is consistently low on a modern LED lighting circuit. If you measure a load and the number does not settle, the meter is average-responding. True RMS is the default expectation on any professional meter, and every product in this roundup meets it except where we say otherwise in the review.
3. Match the CAT rating to the work, not the price
CAT II, CAT III and CAT IV are IEC measurement categories that describe how much transient overvoltage the instrument survives. They are not a quality score and they are not a speed score. A cheap meter with CAT IV 600 V is safer on the job than an expensive one with no category rating at all.
As a working rule, CAT III covers distribution equipment and permanently installed fixtures, which is most of the panel work an electrician does day to day. CAT IV is for the origin of an installation: the service entrance, the meter base, the main switchgear. If you work at service equipment or upstream of the panel, you want CAT IV. If you are commissioning EV chargers or PV, look for the 1500 V class rating specifically.
Note the differing figures across this list. The Fluke 323, 302+ and 325 are CAT IV 300 V and CAT III 600 V. The Klein CL390 is CAT III 600 V and CAT IV 600 V. The Klein CL810 is CAT III 1500 V and CAT IV 600 V. The Ideal 61-747 is CAT III 600 V and CAT IV 1000 V. The KAIWEETS HT206D is CAT III 600 V. The Fieldpiece SC260 does not carry a CAT IV rating.
4. Size the current range to the circuits you work on
A 400 A range covers almost all residential service work, most single-phase commercial panels and typical motor feeders. A 600 A range adds three-phase commercial feeders and larger service entrances. Beyond that you are into bus duct and main distribution, and that is a different class of instrument.
Map it to your actual work. A 20 A residential branch circuit needs a meter that reads low currents accurately as much as high ones, which is why the 0.3 A floor on the Klein CL390 and the inconsistent sub-1 A DC readings on the KAIWEETS HT206D matter. A 200 A panel upgrade needs clean mid-range accuracy, not low-current resolution. Bus duct work needs a wide jaw or a flexible probe. Pick for the smallest current you must resolve and the largest you must read.
5. Check the jaw against your worst panel
Jaw opening is measured across the conductor, and most meters sit between 30 mm and 36 mm. That clears a single large conductor but it does not clear a bundle. When you clamp a bundle, the currents flow in opposite directions and cancel, so the meter reads low or near zero.
To measure load on a two-wire or three-wire circuit, separate the conductors and clamp one at a time. If the panel is too full to separate them, you need a flexible probe that reaches inside the bundle. Several of the Flukes named on the forum as aspirational upgrades solve exactly this, and it is the reason a wide jaw or flexible probe is worth paying for in dense commercial panels.
6. Decide whether you need LowZ, inrush or logging
LowZ, or low impedance mode, inserts a low impedance load across the circuit being measured. It collapses induced capacitive voltage, which is what most people mean when they complain about ghost voltage on a de-energized circuit. If you verify absence of voltage before working, LowZ tells you whether that 45 V reading is real or capacitive coupling.
Inrush measurement captures the brief current spike when a motor or transformer energises, which is the number that sizes a breaker and a contactor. A VFD low pass filter stabilises readings on drive output. Bluetooth or wireless logging lets you walk away from the meter while it records a load profile. Only some of these features appear in this roundup, and the ones that do are on the Klein CL810, the KAIWEETS HT206D and the FNIRSI DMC-100.
7. Plan for what you cannot see in the dark
A backlit or transflective display and an integrated worklight are not luxuries. In a dead panel in a basement or an attic at night, a dim screen costs you a minute per reading and you will do it dozens of times a day. The Fluke 323 and 302+ have no backlight, which is the most common complaint about both. The Klein CL220, CL390, CL810, the Ideal 61-747 and the Fieldpiece SC260 all light up.
Also weigh the meter in the hand. The Ideal 61-747 at 1.5 pounds and the Fluke 323 at 300 g feel very different after a full shift. Heavy meters end up sitting in the truck by lunchtime.
Fluke vs Klein vs Fieldpiece: The Honest Comparison
Most of the search energy on this query goes to two names. Here is how the three brands actually differ, using only the meters in this roundup.
Fluke is the accuracy and longevity answer. The 323, 302+ and 325 all carry True RMS, a 30 mm jaw, a CAT IV 300 V / CAT III 600 V rating and a two year warranty. The 323 and 302+ measure AC current only; the 325 adds DC current, frequency, temperature and capacitance. Fluke meters hold their value, which matters if you sell your kit when you move up. Reviewers describe them as career-long purchases, and the review counts back that up: 4352 ratings on the 323, 2572 on the 302+ and 1216 on the 325.
Klein Tools is the feature-per-spend answer, and it is not a lesser brand in a meaningful way. The CL220, CL390 and CL810 cover AC-only entry, a wide mid-tier feature set, and a 600 A workhorse with LoZ and inrush. The CL810 holds a 4.8 rating, matching the top mark in this group, and it is the only meter here with a published drop figure at 6.6 feet. What you give up against a Fluke is fine accuracy and the decade-long service record.
Fieldpiece wins on fit for mechanical service rather than general electrical. The SC260 is purpose-built for HVACR with temperature, capacitance, Auto Select and a swivel magnet, and it carries a 4.8 rating from 1700 ratings. It is weaker on DC clamp current and does not carry a CAT IV rating, so it is a specialist instrument rather than a general one.
The forum consensus is closer to this than brand tribalism suggests. On r/electricians, the recurring view is that Fluke leads on longevity and features while Klein is perfectly adequate for most work, with Amprobe and others also acceptable. Employers often decide this for you: field technicians are commonly issued Klein, UEI, Megger or Fieldpiece, so check what your employer standardises on before you spend your own money.
If you want a specific recommendation by trade: residential service and panel work, Fluke 323 or Klein CL220. Commercial and any DC-adjacent work, Fluke 325 or Klein CL390. Mechanical and refrigeration service, Fieldpiece SC260. Dark panels and 600 A feeders, Klein CL810. Learning and backup, KAIWEETS HT206D or FNIRSI DMC-100. Circuit tracing and category headroom, Ideal 61-747.
Clamp Meter vs Multimeter: Why Electricians Carry Both
The most common question on the buying side is whether a clamp meter makes a multimeter redundant. It does not, and no serious electrician treats it as a substitute. They are different instruments that share a case format.
A clamp meter measures current by placing its jaw around a conductor. The jaw acts as a current transformer: the magnetic field around the alternating current induces a small current in the jaw, which the meter scales to amperes. One critical rule follows from that physics. Only one conductor may be inside the jaw at a time, because the return conductor’s field cancels the hot’s. Clamp a whole bundle and the reading is wrong, not just imprecise.
A multimeter does what a clamp cannot. It measures resistance, continuity, diode forward voltage, capacitance and millivolts with leads pressed against terminals. It measures voltage accurately, including voltages below what a clamp’s two-probe input resolves. It is the right tool for a de-energized circuit, for component-level checks and for ripple measurement. Several owners of the Fluke 325 note exactly this limitation, that it does not read millivolts well, which limits ripple testing.
The safe way to verify absence of voltage is to test the meter on a known live source first, then test the circuit. That live source is usually a de-energized-looking conductor that is not, or a proving unit. This is where ghost voltage confuses people: an induced capacitive reading on an open circuit can be tens of volts with no actual energy behind it, and LowZ mode on the Klein CL810 or the KAIWEETS HT206D collapses it so you get a real answer.
So the belt setup most electricians converge on is a clamp meter for live current work plus a DMM for everything else. If you already own a decent DMM, spend your budget on the clamp. If you own neither, budget for both, and buy the clamp at the tier that matches whether you touch DC loads.
For the rest of the belt, our guides to wire pulling tools for electricians and thermal imaging cameras for electricians cover the tools that pair with a meter on real service work. If refrigeration is your trade rather than electrical, our clamp meter guide for HVAC technicians goes deeper on the mechanical side.
Frequently Asked Questions
What is the best clamp meter for electricians?
The Fluke 323 is the best overall daily driver for professional electricians, because it combines a 30 mm jaw, True RMS sensing on non-linear loads, a CAT IV 300 V / CAT III 600 V safety rating and a build that survives years of service. It measures AC current to 400 A and AC/DC voltage to 600 V, with resistance to 4 kOhm and an audible continuity sensor. If you need DC current as well, the Fluke 325 is the step up.
Which clamp meter is the most accurate?
Among the meters that also measure DC current, the Fluke 325 is the most accurate general-purpose option in this roundup, rated at 4.7 from 1216 ratings with True RMS sensing, 400 A AC and DC current, 600 V AC/DC voltage and resistance to 40 kOhm. For a pure AC accuracy answer the Fieldpiece SC260 holds a 4.8 average from 1700 ratings, and the Klein CL810 matches that 4.8 mark. Accuracy claims should always be read against the measurement you actually need.
Which clamp meter is better, Fluke or Klein?
Fluke leads on build quality, accuracy consistency and longevity, which is why the Fluke 323 and 325 hold their value for a decade or more. Klein Tools leads on features per pound spent: the CL390 packs temperature, capacitance, microamps and a backlit display into a mid-tier body, and the CL810 adds 600 A range, LoZ mode, inrush and a built-in worklight. For residential and light commercial service a Klein meter is entirely adequate; for DC work and long-term accuracy, Fluke is the stronger buy.
What meter is better, Fluke or Fieldpiece?
It depends on the trade, not on accuracy. The Fieldpiece SC260 is purpose-built for HVACR service, with True RMS AC current and voltage, temperature, capacitance, Auto Select mode and a swivel magnet for hands-free work. The Fluke 325 measures DC current, frequency, temperature and capacitance in a CAT IV 300 V / CAT III 600 V package, so it covers electrical panels as well as mechanical equipment. HVAC and refrigeration techs should lean Fieldpiece; electricians should lean Fluke.
Do I need a True-RMS clamp meter?
Yes, for almost any professional work. True-RMS meters read the true root-mean-square value of a waveform rather than estimating it from a shaped average. The two agree on a sine wave, but not on modern non-linear loads such as LED drivers, switch-mode supplies, electronic ballasts and variable frequency drives, where an average-responding meter gives a reading that drifts or reads low. Every meter in this roundup except the entry models is True RMS, and it is now the default expectation.
What CAT rating clamp meter do I need?
CAT III covers distribution equipment and permanently installed fixtures, which is most day-to-day panel work. CAT IV is for the origin of an installation: the service entrance, meter base and main switchgear, and it is what you want if you work upstream of the panel. For photovoltaic strings and EV charging equipment above 600 V, look for the CAT III 1500 V class specifically. The Klein CL810 and the Ideal 61-747 carry the higher categories in this roundup.
Is a clamp meter better than a multimeter?
Neither replaces the other, which is why electricians carry both. A clamp meter measures current around a single conductor without touching the circuit, which is faster and far safer on a live panel. A multimeter measures resistance, continuity, diode forward voltage, capacitance and millivolts through test leads, and it is the right tool on a de-energized circuit. The clamp reads current only, and only with one conductor inside the jaw, because a bundle of conductors cancels itself out.
Final Verdict: The Best Clamp Meters for Electricians in 2026
For most electricians, the Fluke 323 is the right first buy. True RMS, a 30 mm jaw, a CAT IV 300 V / CAT III 600 V rating and a track record of surviving service work give you a meter that stays accurate long after the excitement of a new spec sheet fades. The only thing you give up is DC current.
If your work touches DC, photovoltaics, batteries, EV chargers or rectified control circuits, take the Fluke 325 instead and stop thinking about it. The Klein CL390 is the alternative when you want a broader measurement set and a backlit screen at a lower tier, and the Klein CL810 is the one for 600 A work in dark panels.
For HVAC and refrigeration, the Fieldpiece SC260 is purpose-built and rated 4.8 from 1700 ratings. For a first tool on a tight budget, the Klein CL220 does the job without feeling like a toy. The FNIRSI DMC-100 and KAIWEETS HT206D are strong backups and learning instruments, and the Ideal 61-747 is the pick when circuit tracing is half your day.
Whichever you choose, check the CAT rating against the work you actually do, and confirm it reads DC if your future might include it. Then carry a multimeter alongside it. We re-check this list through 2026 and update it as models change.
