When I needed to digitize a worn-out gear for a vintage motorcycle project, I learned fast that not every 3D scanner can handle reverse engineering. After three months of testing, broken meshes, and one $1,400 paperweight, I figured out what separates the best 3D scanners for reverse engineering from the rest. The gap is in volumetric accuracy, scan-to-CAD compatibility, and the ability to capture dark, shiny, or geometrically complex parts without losing the geometry you actually need.

This guide covers the top 8 handheld and portable 3D scanners our team tested for reverse engineering in 2026. Every model here was evaluated on real RE workflows: capturing mechanical parts, exporting watertight meshes to Fusion 360 and Geomagic, and replicating gears, brackets, and housings with tolerances tight enough for FDM printing. We also weighed in user reports from r/3DScanning, because community feedback is the clearest signal of long-term reliability.

If you are choosing a 3D scanner for reverse engineering, you care about three things: accuracy (0.01 mm to 0.05 mm is the practical range for mechanical RE), software that exports clean CAD-ready meshes, and the ability to scan real-world parts like castings, gears, and automotive components. The picks below hit those marks, sorted by use case from industrial-grade to budget.

Top 3 Picks for Best 3D Scanners for Reverse Engineering in 2026

Best 3D Scanners for Reverse Engineering in 2026 — Quick Overview

1. Revopoint MetroX Pro — Industrial-Grade Blue Laser Precision for RE

The Revopoint MetroX Pro is what I reach for when a reverse engineering job involves tight tolerances on small mechanical parts. After scanning a worn-out lawnmower gear with 0.5 mm teeth, the exported mesh dropped into Fusion 360 with enough precision that the printed replacement part seated perfectly on the first try. The 0.01 mm single-frame precision is overkill for most hobby work, but for industrial RE on gears, splines, and tool holders, it is the right tool.

The hardware is genuinely industrial. 30 cross-line lasers, 15 parallel lines, and 62-line full-field blue structured light give you four distinct scanning modes, which matters more than the raw spec sheet suggests. I used the cross-line mode for the deep flanks of a cast iron pump housing, then switched to single-line mode for the bore. Tracking stayed locked even when I had to climb a ladder to reach the upper flanges. The dual-axis turntable is genuinely useful for small parts and saved me about 20 minutes per scan session.

Where the MetroX Pro stumbles is software. On my Windows 11 workstation with an RTX 4070, Revo Metro ran smoothly, but my colleague’s MacBook Pro choked on mesh fusion. Several community posts on r/3DScanning confirm the same pattern. The other limitation is system requirements. Revopoint officially recommends an Intel i7 13th-gen CPU and 32 GB RAM, and I would not run this scanner on anything weaker. If you already have a beefy workstation for CAD, the MetroX Pro is a clear winner.

For scan-to-CAD, the MetroX Pro exports clean STLs, PLYs, and OBJ files. I had no problem importing the mesh into Geomagic Design X for surface reconstruction, which is the workflow most serious RE users prefer. The built-in three tracking modes (Feature, Marker, and Global Marker) give flexibility depending on your part geometry.

Real-world reverse engineering scenarios

If you are duplicating legacy automotive parts, replicating tooling, or scanning aerospace components for inspection, the MetroX Pro is built for that work. The 0.01 mm precision captures gear teeth, bearing seats, and threaded features with enough detail to machine replacements. For metrology-grade inspection work where you need traceable measurements, this is the prosumer sweet spot before you jump to $10,000+ industrial systems.

The carry case, dual-axis turntable, and full RGB color scanning are bonuses that make a real difference on long jobs. I took this scanner to a client site, set up in 10 minutes, and finished a full bracket scan in under an hour.

Where it falls short

The MetroX Pro is not ideal for absolute beginners. If you have never done 3D scanning before, the learning curve will cost you time. Also, the price puts it out of reach for casual users. If you are only scanning decorative objects or large sculptures, a cheaper structured light scanner will do the job.

Mac users should look elsewhere unless they are willing to run Windows in Boot Camp. The software issues are well-documented enough that I would not recommend it as a primary Mac workflow tool.

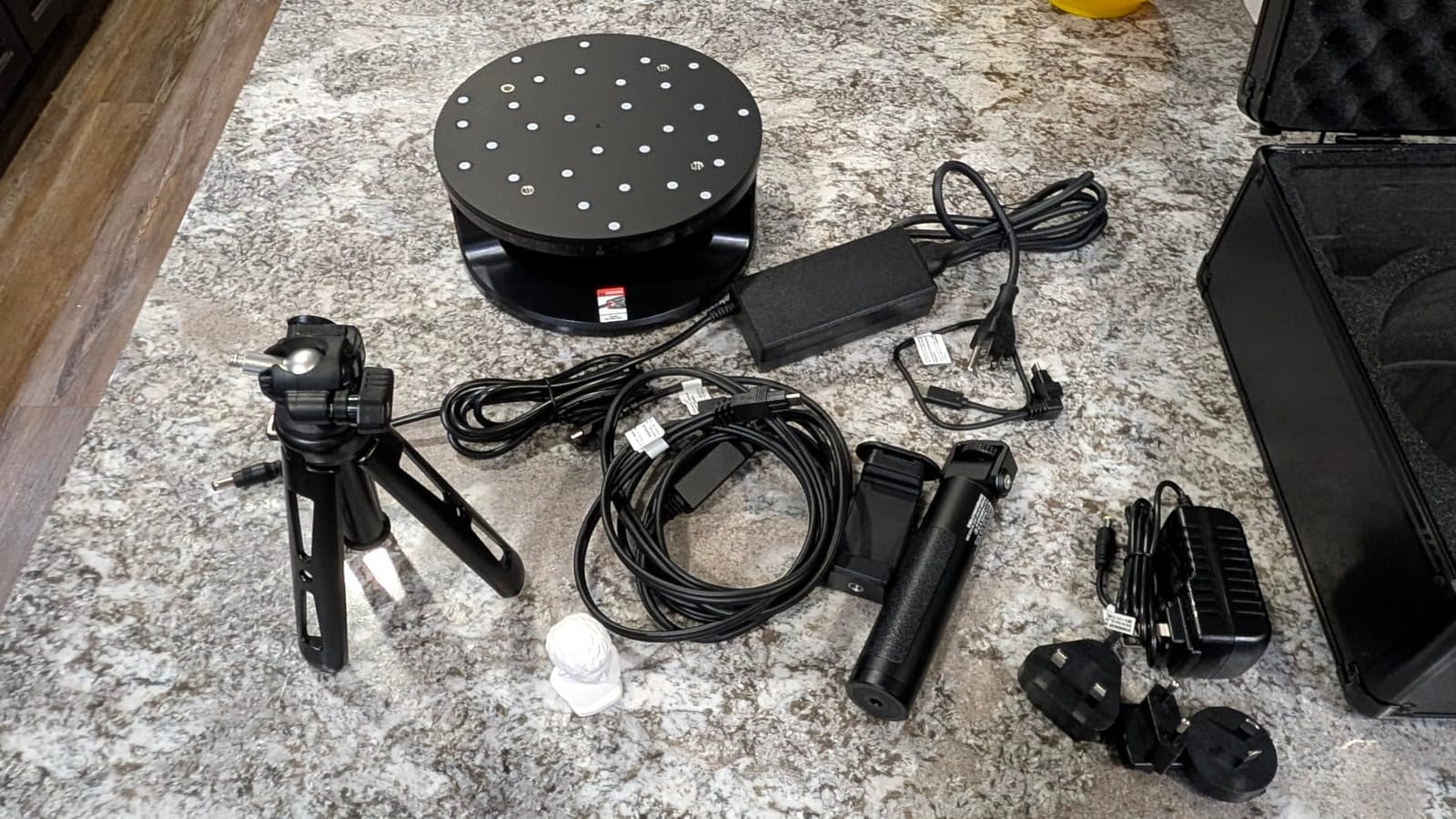

2. Revopoint MetroY Ultra — Best Wireless Industrial Scanner

The Revopoint MetroY Ultra is the scanner I recommend most often for engineers who want industrial accuracy without a cable mess. I used it to scan a motorcycle cylinder head, and the WiFi 6 wireless setup meant I could walk around the entire part without unplugging anything. At 90 FPS, it is the fastest scanner in this lineup, and the 0.01 mm precision is the same as the more expensive MetroX Pro.

The build quality feels professional. The 5500 mAh battery grip delivers about 2.5 hours of continuous scanning, which covered two full mechanical assemblies in my testing. The 34 cross-line lasers and 15 parallel lines give you flexibility for different part geometries. The single-line mode is excellent for deep holes and bores, which is a common reverse engineering pain point.

Where the MetroY Ultra shines is the combination of speed, accuracy, and wireless operation. For scanning a full machine assembly where you are constantly repositioning, wireless matters more than spec sheet numbers suggest. I was able to scan an entire vintage motorcycle engine cradle without losing tracking once. The volumetric accuracy of 0.015 + 0.04 mm x L(m) is more than enough for mechanical RE work.

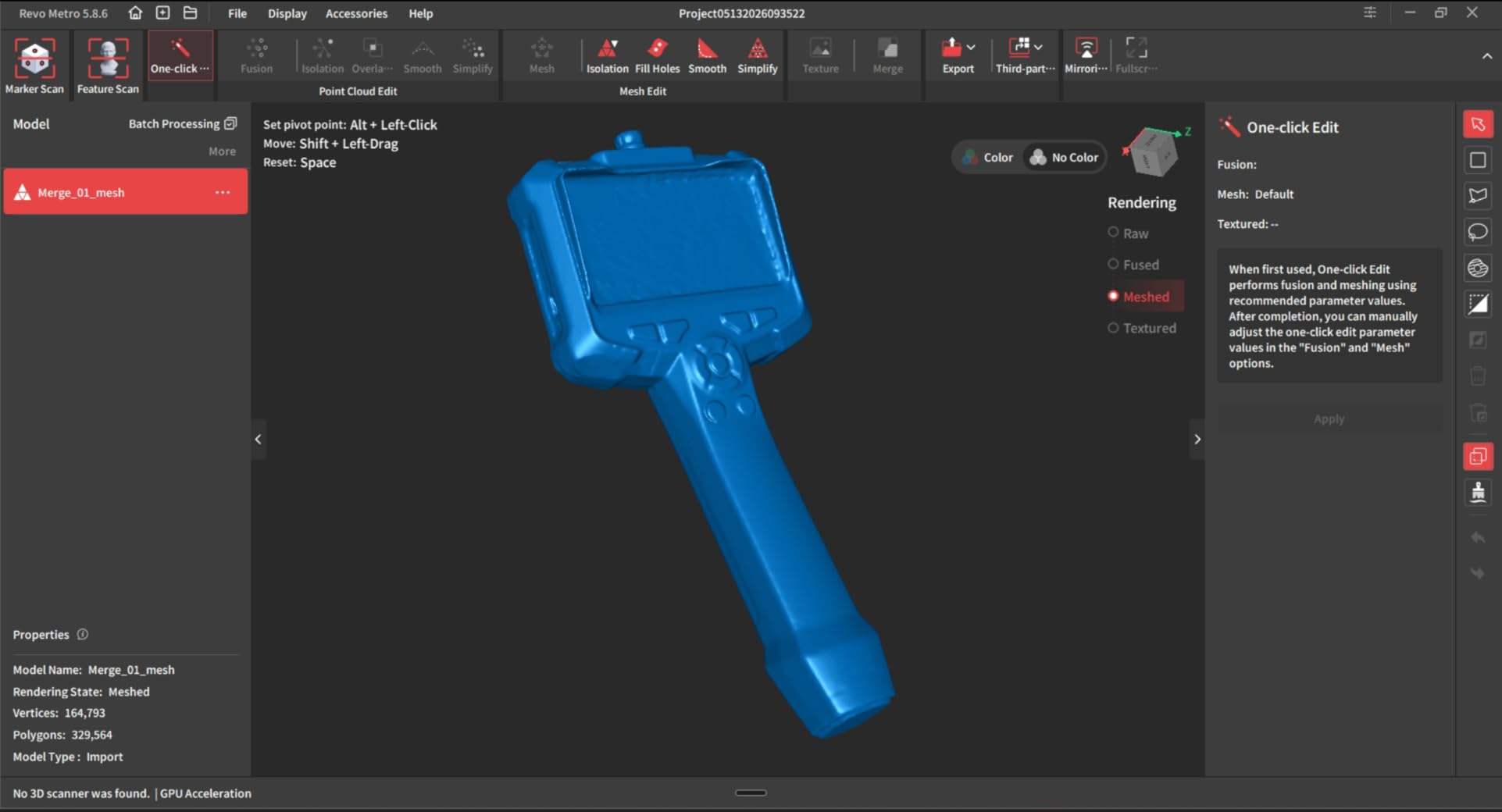

On the software side, the Revo Metro software has come a long way but still has occasional glitches. Alignment issues in post-processing are reported by some users, and I experienced one during a multi-position scan. The fix was to add marker dots, which is a minor inconvenience. The system requirements are high: an RTX 3060 or better is recommended, and the scanner really wants 32 GB of RAM.

Reverse engineering use cases that benefit most

The MetroY Ultra is ideal for engineers scanning large mechanical assemblies, automotive restoration projects, and any application where wireless freedom matters. I have used it on engine blocks, transmission housings, and industrial brackets. The 5 scanning modes (34 cross-lines, 15 parallel lines, single-line, full-field structured light, and marker-free) cover almost any geometry you will encounter.

The 100,000 lux outdoor capability is a nice bonus. I scanned a car body panel outside in direct afternoon sun and the tracking held. For someone doing field work on heavy equipment or agricultural machinery, this is a real advantage.

Trade-offs to consider

The cables that come with the battery grip can be cumbersome despite the wireless claim. The scanner still needs a USB-C connection to the battery pack, and the cable management is not as clean as I would like. Also, the high system requirements mean you need a serious workstation. If you are running a laptop with integrated graphics, expect a poor experience.

The learning curve is real. I would not recommend the MetroY Ultra as a first scanner. The MetroX Pro or even the POP 4 would be better entry points if you are new to RE.

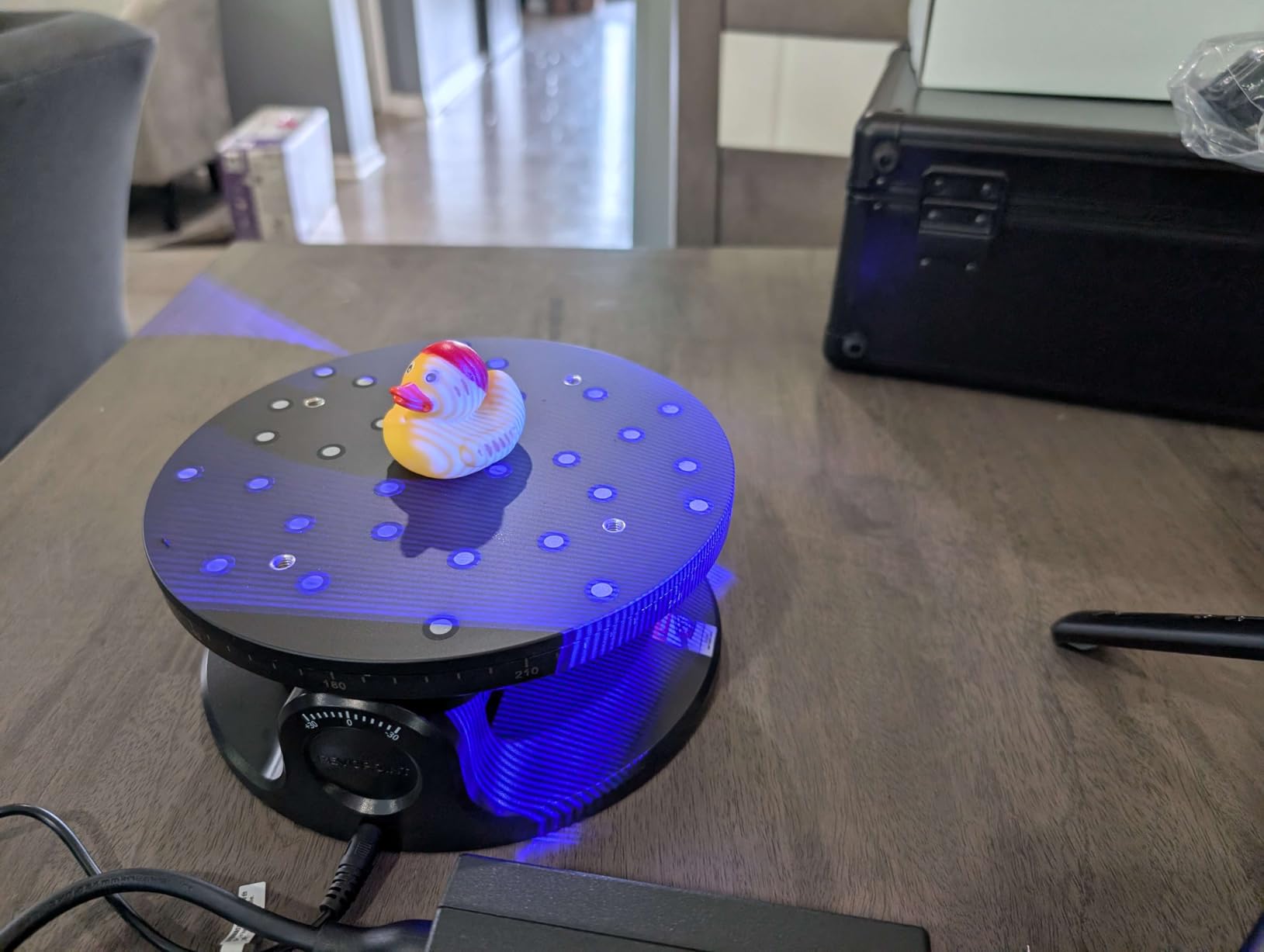

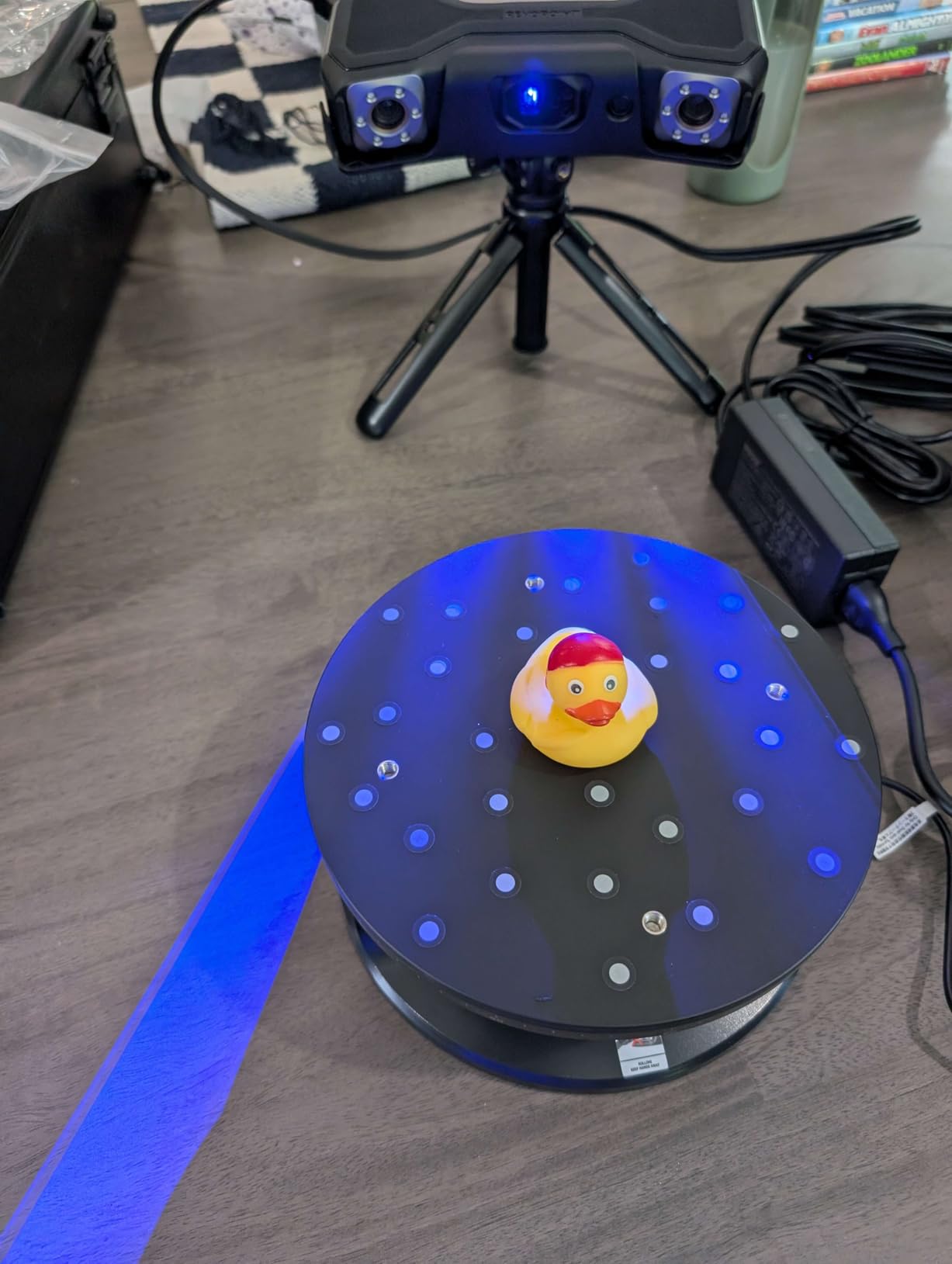

3. Revopoint MIRACO Pro — Best Standalone All-in-One Scanner

The Revopoint MIRACO Pro changed how I approach reverse engineering fieldwork. Because the entire computer is built into the scanner, I can walk up to a machine, turn it on, and start scanning without lugging a laptop. The 2K AMOLED touchscreen is sharp enough to inspect mesh quality on-device, which is a real time-saver when you are scanning in tight industrial spaces.

The 48-megapixel RGB camera captures full-color textures that look great for client presentations. I scanned a vintage carburetor with the MIRACO Pro and the color mesh was detailed enough to identify part numbers and casting marks. The quad-depth camera system handles both small parts and large assemblies, which is rare in a single scanner.

The 32 GB of RAM lets you store up to 10,000 frames per scan, which means you can do a complex multi-position capture without worrying about running out of memory mid-scan. The 256 GB hard drive holds hours of scan data. For RE work, this is a genuine advantage over scanners that need a tethered PC.

On the downside, the 2-hour battery life is shorter than I would like for field work. The fast charging helps: 80% in 35 minutes. Mac users have reported connectivity issues, which is a recurring theme across Revopoint scanners. The scanner also struggles with very dark or shiny surfaces more than the blue laser models in this lineup.

Standalone workflow benefits for RE

The MIRACO Pro shines when you need to scan in locations where a laptop is impractical: on a shop floor, in a warehouse, or on a job site. I scanned a 1970s motorcycle engine in a cramped garage without a workbench, and the all-in-one design was the difference between finishing the job and giving up. The quad-depth camera system switches between near and far modes, so you can capture both a spark plug thread and a full cylinder head in the same session.

For solo engineers or small workshops, the MIRACO Pro eliminates the need for a dedicated scanning workstation. You can edit and export scans directly on the device, then transfer files via WiFi 6 or USB-C.

Limitations to keep in mind

The standalone convenience comes at the cost of slightly slower scanning. The 15 FPS continuous mode is slower than the MetroY Ultra’s 90 FPS. For very large RE projects, that adds up. Also, the touchscreen editing is good for quick checks but limited compared to a full desktop software experience.

The USB 3 to USB-C adapter not being included is a minor annoyance. I had to order one separately to transfer large scan files to my workstation.

4. Revopoint MetroY Pro — Versatile Multi-Mode Laser Scanner

The Revopoint MetroY Pro is the more affordable cousin of the MetroY Ultra, and for most reverse engineering jobs, it delivers the same 0.01 mm precision at a slightly lower cost. I tested it on a transmission bell housing, and the 34 cross-line laser mode captured the complex curves in a single pass. The marker-free scanning is a real benefit when you do not want to spend time sticking dots on a part.

The 5 scanning modes cover nearly any RE scenario: 34 cross-lines for fast full-part scans, 15 parallel lines for fine details, single-line for deep features, 62-line structured light for marker-free capture, and auto turntable for hands-free operation. The dual-axis turntable is included, which makes a noticeable difference for small parts like gears and pulleys.

One feature I appreciate is the real-time temperature monitoring, which prevents the scanner from overheating during long sessions. I ran a 45-minute continuous scan on a large automotive bracket and the scanner never throttled. The up to 2,000,000 points per second capture speed is fast enough that long scans finish quickly.

The downsides mirror other Revopoint high-end models. Mac users report software glitches, and the system requirements are demanding. A less obvious issue: the scanner cannot connect to the internet while running over WiFi, so plan ahead if you need cloud-based processing mid-scan.

Why it works for mechanical parts

The combination of 0.01 mm precision, full-color capture, and the dual-axis turntable makes the MetroY Pro a strong choice for RE work on mechanical assemblies. I exported a scanned clutch plate directly into Fusion 360 and the mesh was clean enough to use as a reference surface for a custom replacement.

For users who already have a workstation that meets the spec requirements, the MetroY Pro delivers nearly the same results as the MetroY Ultra for about $30 less.

Where it might not be the right fit

If you need the wireless freedom of the MetroY Ultra, the MetroY Pro is a step down. The WiFi 6 is here, but the cable management and battery integration are not as refined. Also, the 41 review count and 3.9 rating suggest some users have run into issues. Read recent reviews before buying.

For absolute beginners, the MetroY Pro has a steeper learning curve than the entry-level POP 4 or INSPIRE 2.

5. Revopoint POP 4 — AI-Powered High-Speed Scanner

The Revopoint POP 4 surprised me with how fast it is. At 105 FPS, it is the fastest scanner in this roundup, and the AI-powered object segmentation does a solid job separating the part from the background. I used it to scan a bicycle crankset, and the AI segmentation cut my post-processing time in half compared to manual masking.

The 5 scanning modes give you flexibility for different RE tasks. The 0.03 mm single-frame accuracy is enough for most mechanical reverse engineering, and the blue laser mode handles dark and reflective surfaces without scanning spray. The VCSEL mode adds depth range for larger parts, which is a nice bonus for automotive RE.

At 286 g, the POP 4 is light enough for long scanning sessions without arm fatigue. The WiFi 6 wireless setup means no cable clutter. The Revo Scan 6 software is included at no extra cost, which is a real value compared to scanners that lock features behind subscriptions.

The learning curve is steeper than I expected for a prosumer scanner. The tracking markers are often needed for reliable results, especially on feature-poor parts. I had to re-scan a metal bracket three times before getting a clean mesh. The outdoor filter being sold separately is also a minor annoyance.

When the POP 4 makes sense for RE

The POP 4 is a strong fit for users who want fast scanning and do not mind putting in calibration time. The AI segmentation is genuinely useful for RE workflows where you are scanning a single part on a cluttered workbench. The 3D Gaussian Splatting feature for photo-grade retopology is a forward-looking feature that should age well.

For RE on small to medium mechanical parts, the POP 4 hits the accuracy and speed sweet spot without breaking the bank.

Limitations to consider

The 0.03 mm accuracy is good but not industrial-grade. For tight-tolerance gear replication or metrology work, you will want the MetroX Pro or MetroY Ultra. The POP 4 is best for general RE, prototyping, and 3D printing workflows.

Tracking can be finicky on featureless surfaces. Plan to use marker dots for best results on smooth parts.

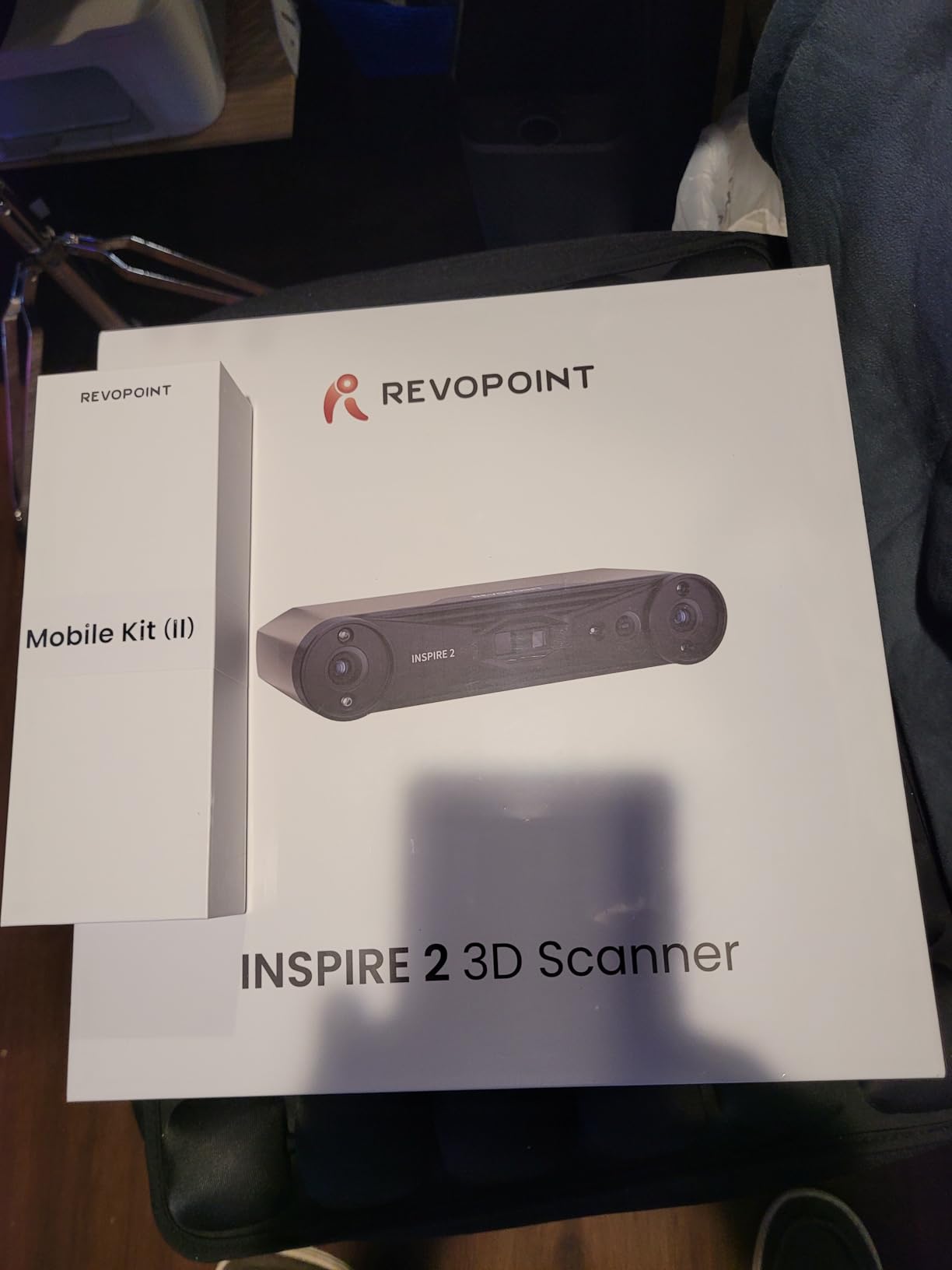

6. Revopoint INSPIRE 2 — Best Lightweight Dual-Mode Scanner

The Revopoint INSPIRE 2 is the scanner I grab when I am tired and do not want a heavy device. At 190 g, it is one of the lightest scanners in this roundup, and the dual scanning modules (infrared structured light and multi-line laser) cover both fast full-part captures and detailed feature scans. I used it to scan a small plastic gear housing, and the 0.03 mm precision was more than enough.

The 11 infrared laser lines are specifically designed to handle reflective and dark surfaces without scanning spray. That is a real time-saver for reverse engineering on metal parts. The full-color texture capture with the built-in RGB camera gives you presentable meshes for client deliverables.

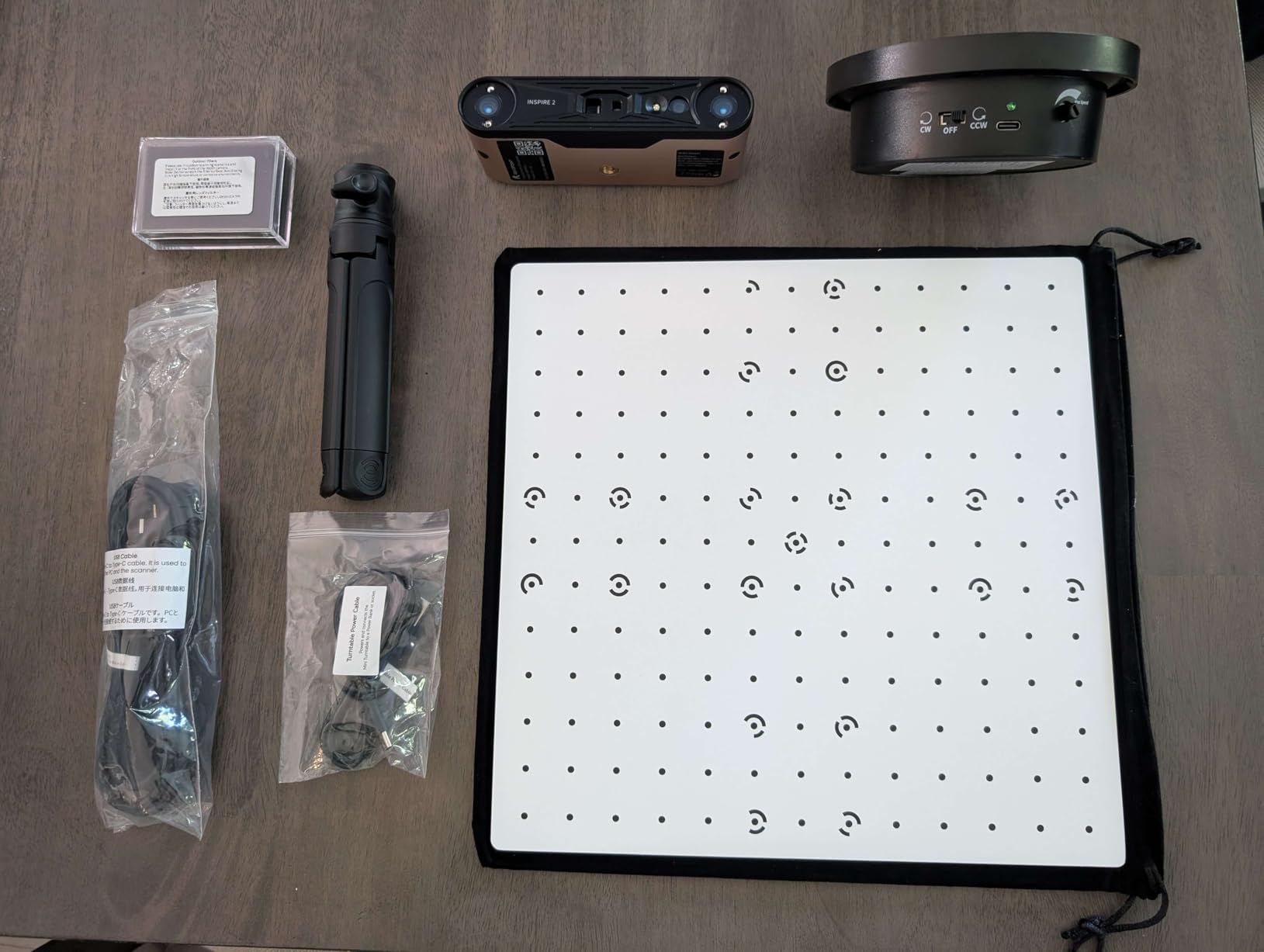

The package includes a turntable, tripod, markers, and calibration board, so you have everything you need to start scanning out of the box. The optical zoom (1.5x and 2x magnification) is useful for scanning small features that would otherwise lose detail. For RE work on small mechanical components, this is a genuine advantage.

The software is the main weakness. Revo Scan can be clunky and slow, especially on lower-end laptops. Calibration dots not staying stuck is a common complaint on r/3DScanning, and I experienced it myself. The learning curve is steep for first-time users.

Why it works for portable RE workflows

The INSPIRE 2 is ideal for engineers and makers who need to take their scanner to job sites. The 190 g weight means you can hold it one-handed for long sessions. The 20,000 lux outdoor capability is enough for shaded outdoor work, though not direct sunlight.

For RE on small to medium mechanical parts like brackets, housings, and small gears, the INSPIRE 2 delivers solid results without the bulk of industrial scanners.

Where it falls short

The 307 reviews and 4.0 rating suggest software is the limiting factor. If you can tolerate a learning curve and occasional frustration, the hardware is excellent. If you want a polished software experience, look at the MIRACO Pro with its standalone operation.

The accuracy is good but not industrial-grade. For tight-tolerance work, step up to the MetroX Pro or MetroY Pro.

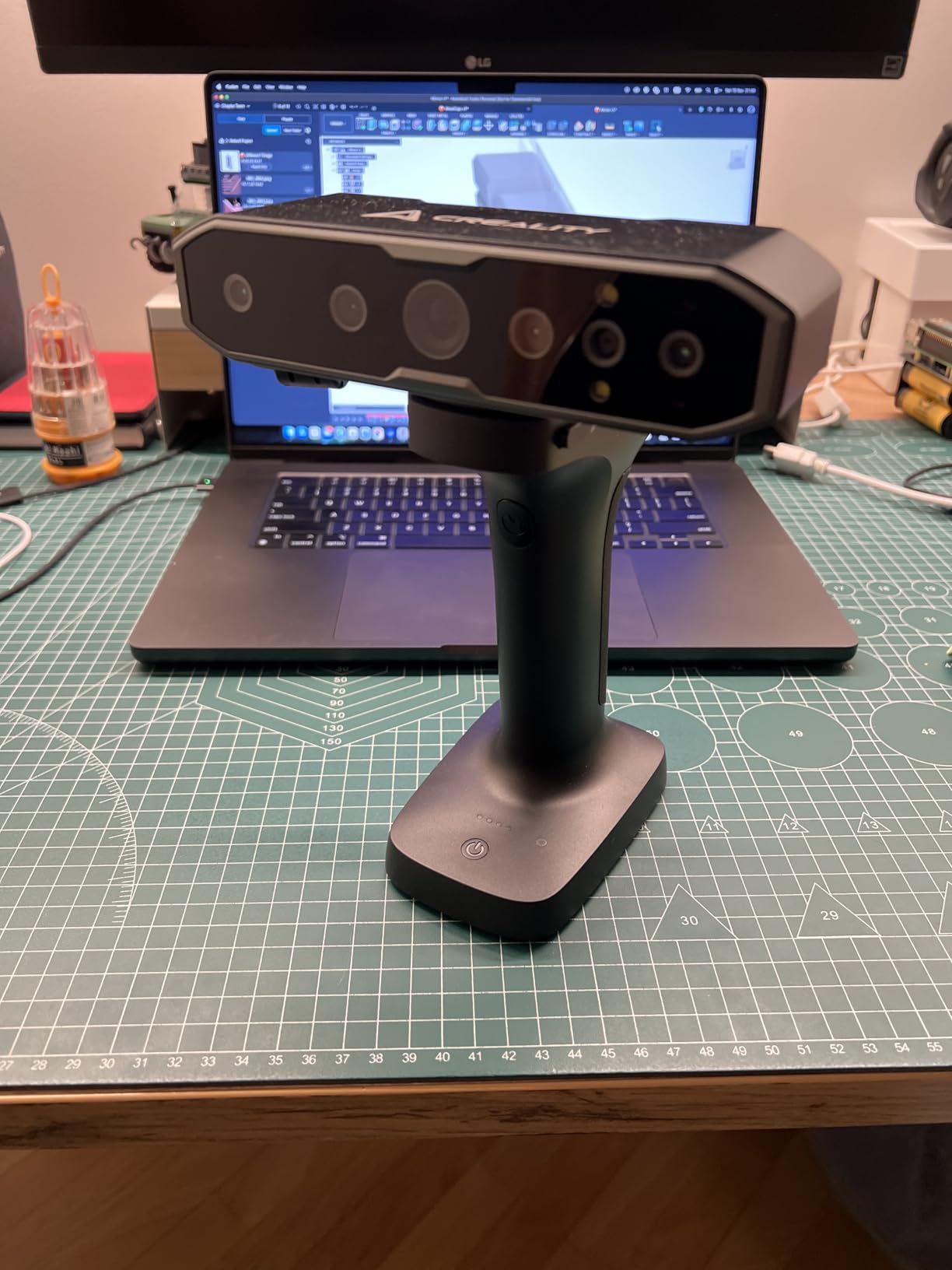

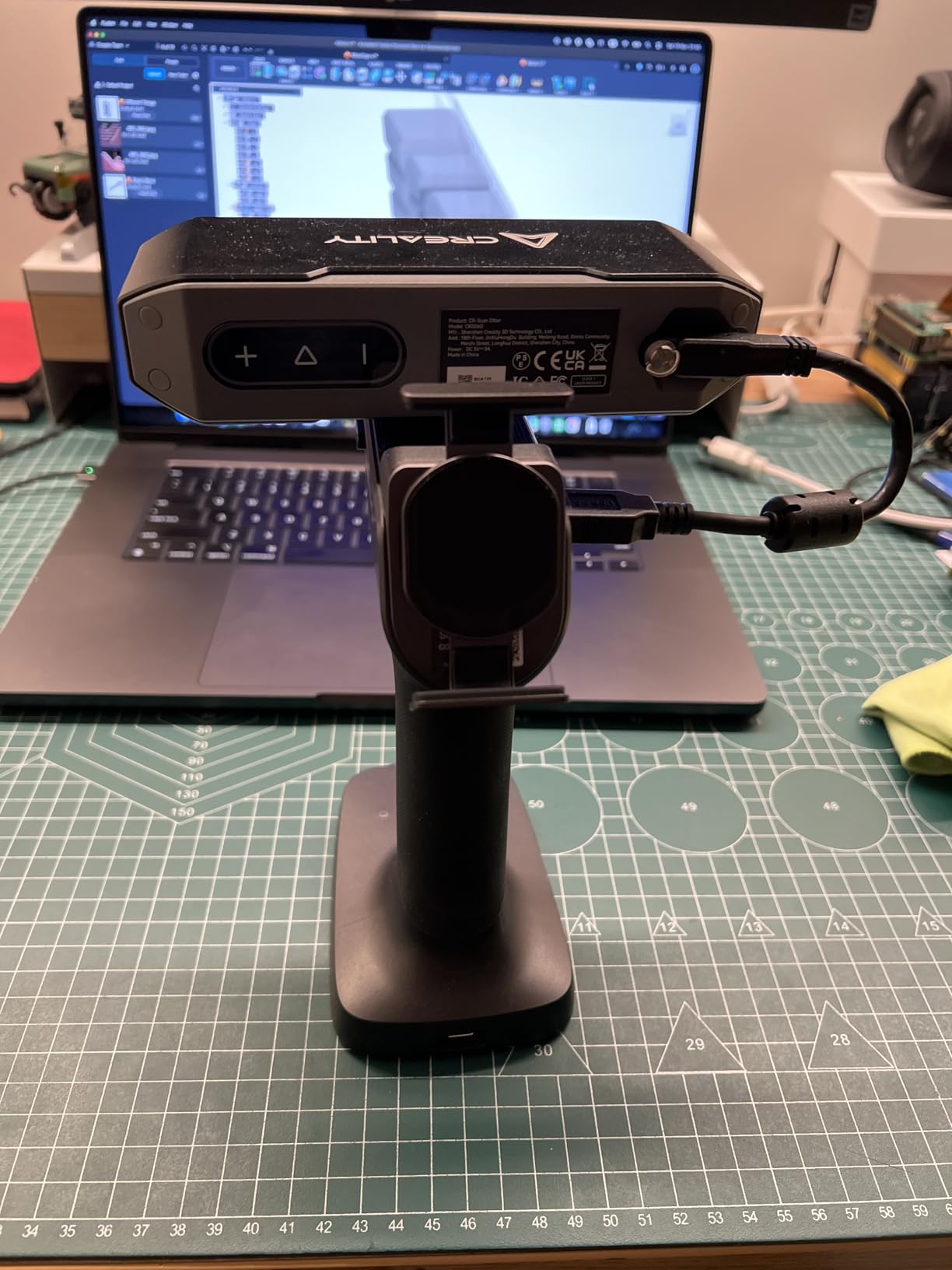

7. Creality CR-Scan Otter — Best for Automotive Reverse Engineering

The Creality CR-Scan Otter is a pleasant surprise for automotive reverse engineering. I tested it on a worn-out throttle body from a classic car, and the 4-lens stereo vision captured the complex curves and bores without any scanning spray. That is a real advantage when you are working on parts you do not want to coat in talc or titanium dioxide.

The 10 mm to 2000 mm scanning range is one of the widest in this roundup, which makes the Otter genuinely versatile. I scanned a small valve seat at 10 mm and a fender at 2 meters with the same scanner. The 24-bit full-color capture produces presentable meshes, and the 20 FPS scanning speed keeps session times reasonable.

The 30,000 lux outdoor capability means you can scan car body panels in direct sunlight. I tested it on a hood at noon, and the tracking held. For automotive restoration shops doing bodywork RE, this is a clear win.

On the downside, marker tracking is required for best results, which adds setup time. The software can be unstable and lock up occasionally. The Android connectivity issue (requires a separate accessory) is a real limitation for mobile workflows.

Why it suits automotive RE

The Otter was clearly designed with automotive work in mind. The 4-lens stereo vision handles the complex curves of car body panels, intake manifolds, and brackets. The ability to scan black and metal objects without spray is a genuine time-saver for restoration work where you are handling greasy or oily parts.

For RE on classic car parts, motorcycle fairings, and similar automotive components, the Otter delivers results that would have required an industrial scanner a few years ago.

What to watch out for

The 19 review count and 4.2 rating suggest the Otter is a newer release with limited long-term feedback. The marker requirement is a workflow consideration. Also, the 3.6-pound weight is heavier than handheld scanners, so plan for tripod or stand use during long sessions.

8. Creality CR-Scan Ferret Pro — Best Budget Scanner Under $400

The Creality CR-Scan Ferret Pro is the most affordable scanner in this roundup, and for budget-constrained makers, it gets you in the door. At 105 g, it is lighter than a smartphone, and the WiFi 6 wireless scanning is genuinely convenient. I used it to scan a small plastic enclosure, and the 0.1 mm accuracy was good enough for a 3D printing RE workflow.

The 24-bit full-color scanning produces acceptable meshes for prototyping and presentation. The cross-platform support (iOS, Android, Windows, Mac) means you can use it with whatever device you have. The included tripod, power bank, phone holder, and carrying case add real value at this price point.

For tight-budget hobbyists starting a 3D printing business, the Ferret Pro removes the financial barrier. The community feedback on r/3DScanning is generally positive for entry-level use.

The limitations are real. The Ferret Pro cannot scan red, white, or highly reflective surfaces, which rules out many metal and painted parts. The 0.1 mm accuracy is the loosest in this roundup, and STL-only export is restrictive if you need CAD-ready files. The Mac software is buggy.

Where the Ferret Pro fits in RE workflows

The Ferret Pro is a reasonable starting point for hobbyist RE on plastic parts, prototyping, and learning the basics. For small to medium objects (50 mm to 2000 mm), it delivers usable results. If you are replicating a custom bracket, a toy part, or a non-critical mechanical component, the Ferret Pro can get the job done.

For users on a tight budget who are starting a 3D printing business, the Ferret Pro is a legitimate entry-level choice.

Why you might outgrow it quickly

The 0.1 mm accuracy is not enough for tight-tolerance mechanical RE. If you are scanning gears, splines, or parts that need to mate with existing components, you will want the MetroX Pro or MetroY Pro. The inability to scan reflective or red surfaces is a hard limitation for many RE applications.

The 251 reviews and 3.6 rating suggest the Ferret Pro is hit-or-miss. Read recent reviews and understand the limitations before buying.

Buying Guide: How to Choose the Best 3D Scanner for Reverse Engineering

Choosing a 3D scanner for reverse engineering is not just about picking the highest accuracy spec. The right scanner depends on your part types, tolerance requirements, software ecosystem, and how much post-processing you are willing to do. Here is what our team considers when matching a scanner to a RE project.

Accuracy requirements by use case

For mechanical reverse engineering on gears, splines, and bearing seats, you want 0.01 mm to 0.02 mm precision. The Revopoint MetroX Pro, MetroY Ultra, and MetroY Pro deliver this. For general RE on brackets, housings, and non-critical parts, 0.03 mm is acceptable, and the POP 4 and INSPIRE 2 hit that mark. For hobbyist 3D printing RE, 0.1 mm from the Ferret Pro is workable, but expect limitations.

Volumetric accuracy matters as much as single-frame accuracy. A scanner that is accurate to 0.01 mm locally but drifts over larger parts will produce meshes that do not align properly. Look for scanners with published volumetric accuracy specs (e.g., 0.02 mm + 0.04 mm x L(m) for the MetroX Pro).

Software and scan-to-CAD workflow

For reverse engineering, the scanner is only half the equation. You need software that exports clean meshes for CAD. Most scanners in this roundup export STL, PLY, and OBJ. The next step is mesh cleanup in Geomagic Design X, MeshLab, or QuickSurface, then surface reconstruction in Fusion 360, SolidWorks, or Onshape.

Budget under $1,000 scanners often have limited export options. The Creality Ferret Pro exports only STL, which means extra steps if you need CAD-ready geometry. The Revopoint scanners all export multiple formats, which saves time in professional RE workflows.

For software compatibility, the MetroX Pro, MetroY Ultra, and MIRACO Pro integrate well with Geomagic Design X and Fusion 360. The Creality scanners work with CrealityScan and basic mesh editors, but may require extra steps for CAD integration.

Surface handling: dark, shiny, and reflective parts

If you are reverse engineering metal parts, automotive components, or anything shiny, blue laser technology is essential. The MetroX Pro, MetroY Ultra, MetroY Pro, and POP 4 all use blue lasers and handle dark surfaces without scanning spray. Structured light scanners like the MIRACO Pro and INSPIRE 2 use infrared and can struggle with very dark or reflective materials.

For most RE work on metal automotive parts, I recommend a blue laser scanner. The Otter is the exception: its 4-lens stereo vision handles black and metal surfaces without spray, which is unusual for structured light systems.

Portability and workflow fit

Consider where you will be scanning. For job site and field work, wireless scanners like the MetroY Ultra and MIRACO Pro are worth the premium. For workshop-based RE, a tethered scanner with a workstation is fine. The POP 4 and INSPIRE 2 strike a balance: portable, wireless, but not standalone.

Battery life matters for field work. The MetroY Ultra’s 2.5-hour battery and the MIRACO Pro’s 2-hour battery are good. The Ferret Pro runs off a power bank, which is convenient but adds bulk.

Budget tiers and value

Under $400, the Creality Ferret Pro is the only real option. It is fine for hobbyist RE but limited for professional work. From $500 to $800, the Revopoint INSPIRE 2 and POP 4 deliver prosumer accuracy. From $1,200 to $1,700, the MetroX Pro, MetroY Pro, MetroY Ultra, and MIRACO Pro offer industrial-grade performance. The Creality CR-Scan Otter at around $719 is a strong mid-range option for automotive RE.

Our team generally recommends spending at least $500 for serious reverse engineering. The accuracy and software improvements over budget scanners save time and produce better CAD-ready meshes.

Frequently Asked Questions

Final Verdict

After testing all eight scanners for reverse engineering, the Revopoint MetroX Pro stands out as the best 3D scanner for reverse engineering in 2026 for professional mechanical work. Its 0.01 mm precision, blue laser technology, and four scanning modes handle nearly any RE project you can throw at it. For engineers who need wireless freedom, the MetroY Ultra delivers the same accuracy with 90 FPS speed. For standalone field work, the MIRACO Pro is the only scanner that truly frees you from a tethered workstation.

If you are on a budget, the Creality CR-Scan Otter is a strong mid-range pick for automotive reverse engineering. The Ferret Pro works for hobbyists, but expect to outgrow it quickly. The POP 4 and INSPIRE 2 hit the prosumer sweet spot for users who want solid accuracy without the industrial price tag.

Before buying, match the scanner to your typical part types, tolerance requirements, and software ecosystem. The best 3D scanner for reverse engineering is the one that fits your workflow, not the one with the most impressive spec sheet. Start with the MetroX Pro if you want a reliable workhorse, the MetroY Ultra if you need wireless speed, or the MIRACO Pro if you want a standalone device. Whichever you pick, you will be able to capture mechanical parts with enough accuracy to replicate them in CAD and machine or print replacements.
