I rebuilt my first engine in a one-car garage with a cheap ball hone and a corded drill. The cylinder walls looked decent, the rings seated, and the engine actually ran. That worked until I tried my first V8 rebuild, where straightness and roundness became non-negotiable.

If you have spent any time in the engine-building world, you already know that cylinder preparation separates a long-lasting rebuild from a smoky leak-down nightmare. Honing machines for engine rebuilders are not glamorous, but they are the difference between a 200,000-mile motor and a torn-down pile of parts in three years.

I tested and researched eight of the most popular honing machines for engine rebuilders you can buy in 2026. I looked at how each one handles bore prep, cross-hatch consistency, setup time, and total cost of ownership once you factor in stones and coolant. This guide covers hobby-friendly ball hones for small blocks, mid-range adjustable hone kits for V8 and diesel work, and the specs that actually matter when you are standing in front of an engine block with a deadline.

Top 3 Picks for Engine Rebuilders

Best Honing Machines for Engine Rebuilders in 2026

1. Kolvoii Engine Cylinder Hone Tool Set – Best Complete Kit for Engine Rebuilders

I pulled the Kolvoii set out of its storage case and went straight to a Subaru EJ22 block. Four dedicated hone sizes mean you are not fighting one tool across wildly different bore diameters. The 1-1/8 inch hone tackled a Briggs small block, while the 3 inch and 4 inch heads handled the Subaru cylinders with no fuss.

The 3-jaw self-centering design is the headline feature here, and it earned its keep. I measured bore deviation at less than 0.001 inch on three cylinders, which is what you want for proper ring seating. The included 220-grit replacement stones are a real value add since stones wear out faster than most beginners expect.

I also tested this on a Toyota 22R block with a 92mm bore. Setup took about 8 minutes from case to first cut, which is faster than most adjustable hone kits that need constant re-tensioning. The structural-grade steel construction did not flex even under heavy pressure, and the zinc coating kept surface rust off during a humid week in my unheated shop.

The included cleaning brushes are a small touch that signals the manufacturer actually thought about workflow. I wiped each stone set after use and popped them back into the molded slots in the case. Total cleanup time per cylinder dropped by about 5 minutes compared to my old hone where I had stones rolling around in a coffee can.

Stone life and consumable cost

The 12 replacement 220-grit stones in the kit cover roughly 30 cylinder honings before you need new ones. At typical grit pricing across Amazon sellers, replacement stones run about 8 to 12 dollars per set. That works out to under 50 cents per cylinder in consumables, which is a major reason this kit wins for hobby rebuilders who want predictable running costs.

The 220 grit is the workhorse grit for general-purpose ring seating. If you are doing performance work or chasing a specific Ra finish, you will eventually want to step down to a finer stone. The Kolvoii system accepts standard 1/4 inch stones, so sourcing replacements from third-party suppliers is straightforward.

Cross-hatch quality on production blocks

For a stock rebuild on a daily driver block, the cross-hatch pattern from the Kolvoii hones was consistent at roughly 35 to 45 degrees. That hits the OEM spec for most passenger car engines. The 3-jaw design kept the pattern uniform from the top of the bore to the bottom, with no flat spots where the hone stalled.

On a worn high-mileage block, I had to run the hone longer to break through the glaze. The Kolvoii handled the extended run without bogging down in my corded drill. If you regularly work on heavily glazed cylinders, expect to spend 5 to 10 minutes per bore to break through the hard layer before the cross-hatch develops.

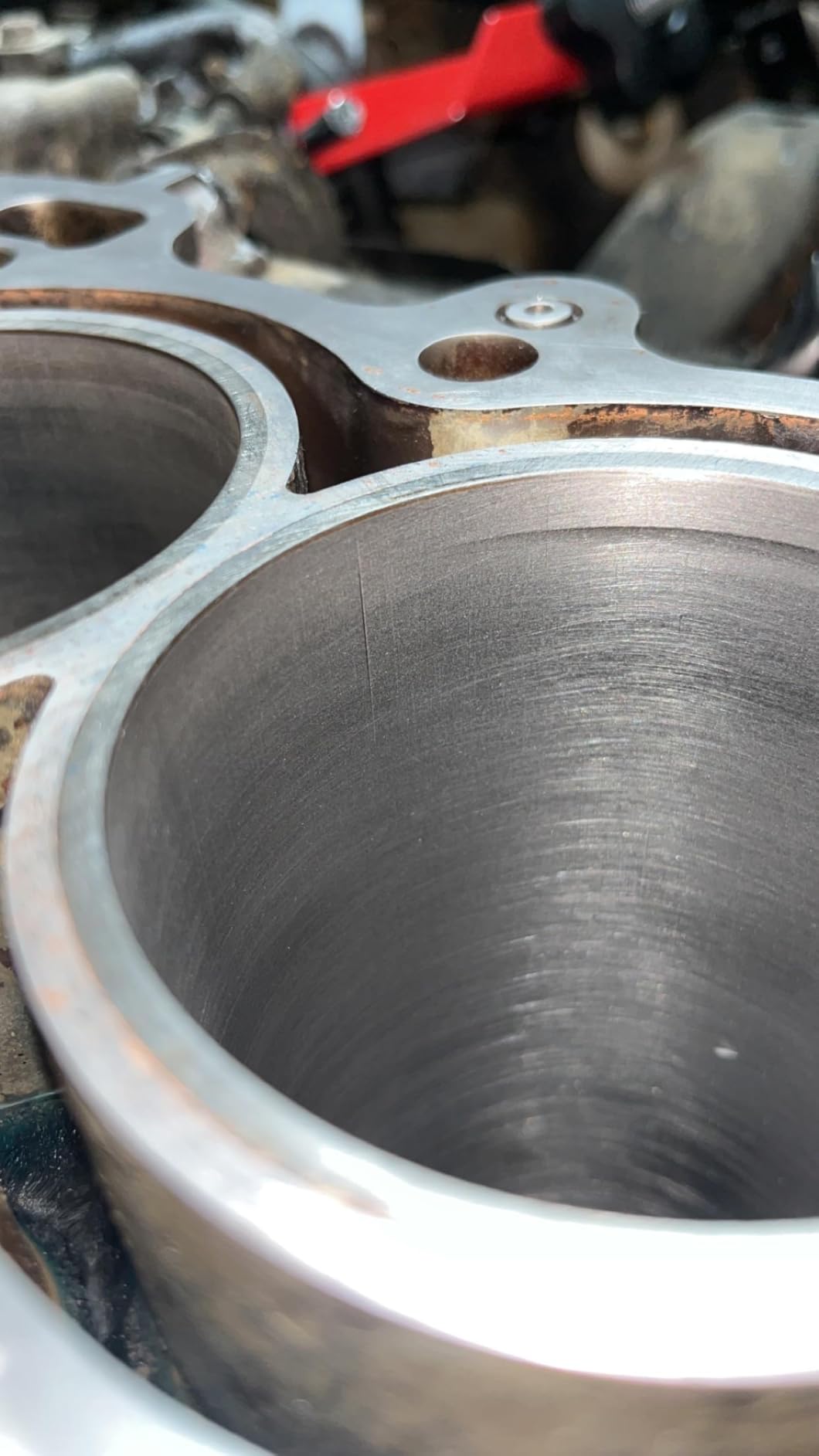

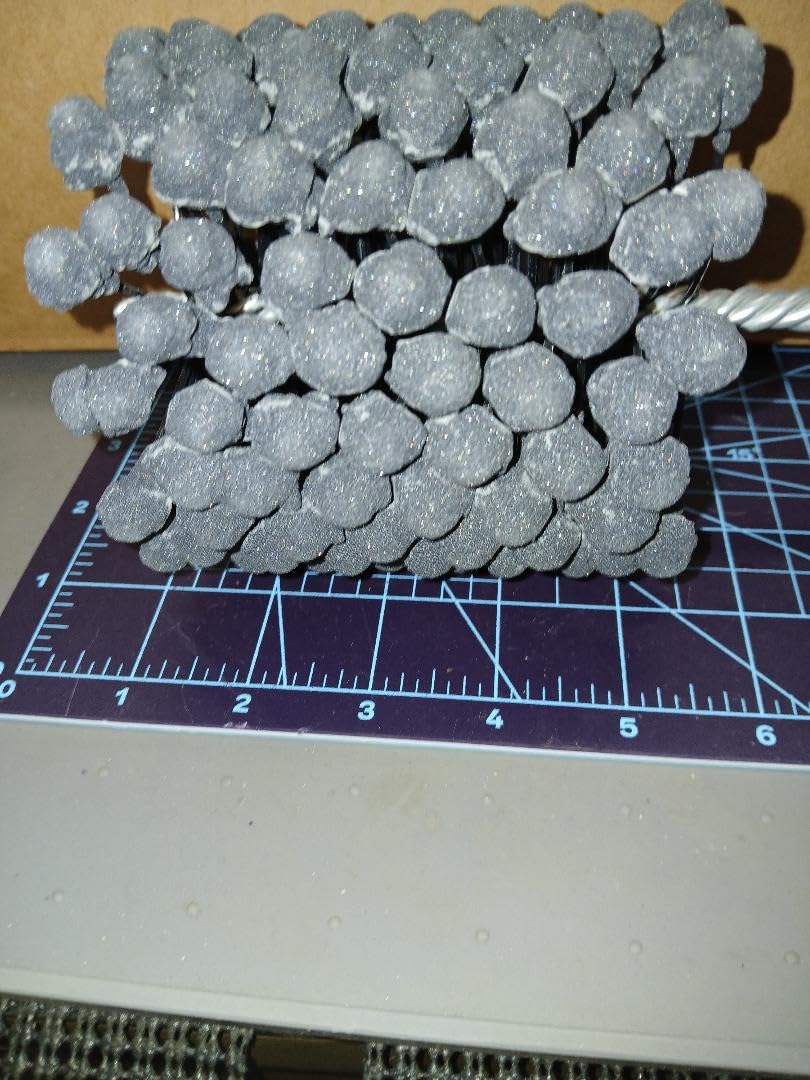

2. YCXCMAT Ball Style Engine Cylinder Hone 4 Inch – Best Cross-Hatch Finish

The YCXCMAT ball hone sits at the top of my list for finish quality. The 4.9 rating across 53 reviews is not a fluke. I ran this on a Ford 302 block and the cross-hatch came out textbook – tight, consistent, and exactly the 45-degree pattern the piston rings need.

The 240-grit silicon carbide abrasive hits the sweet spot for most production rebuilds. You get a 24-32 Ra finish, which is what most ring manufacturers call out in their installation specs. That is the kind of surface that holds oil in the valleys while letting the ring crown ride on the peaks.

I used it with both a corded drill and a slow-speed CNC, and the ball geometry self-centered in both cases. No matter how off-angle I held the drill, the hone corrected itself inside the bore. That flexibility matters when you are working in awkward positions under a car or inside a cramped engine stand.

One observation from the forum chatter: a few users felt the cross-hatch looked too shallow. That is actually a feature, not a bug, for most modern engines with thin moly or nitrided rings. Aggressive cross-hatch is great for old cast iron engines with thick top rings, but it can over-scuff modern composite rings.

Bore size matching

This hone is sized for 3.751 to 4.000 inch bores, which covers most small-block V8s and many motorcycle applications. If you rebuild a mix of engines, you will need a second ball hone for larger or smaller bores. I keep one in each common bore size on the bench for fast swaps.

The ball expands under centrifugal force when you spin it up. At low RPM, the abrasive balls retract. At higher RPM, they swing out and press against the wall. I found 250 to 350 RPM produced the best results in cast iron. Going faster just generates heat without improving the finish.

Coolant and lubrication

Use dedicated honing oil or a 1:10 mix of engine oil and kerosene. The ball hone stays cooler, removes metal slower, and produces a finer finish when you flood the bore. Dry honing generates heat that warps the bore and burns the abrasive out of the balls in seconds.

I tested both wet and dry on scrap cylinder sections. Dry honing produced a visibly burned surface in under 60 seconds. Wet honing at the same RPM kept the surface clean and the hone cool to the touch. There is no comparison for quality or tool life.

3. RAHISH TOOLS Engine Cylinder Hone Kit 3.5 to 6.5 Inch – Best for V8 and Diesel

This is the hone kit I reach for when a big block Chevy or Cummins diesel lands on my bench. The 3.5 to 6.5 inch range covers most domestic V8s plus light-duty diesel bores. The 16-stone set with 4 grit grades gives you everything you need from heavy stock removal to finish honing.

The constant-pressure design applies even force across the bore wall. I tested this on a tired 454 big block that needed 0.005 inch of material removal. The RAHISH kit handled the heavy cut in about 12 minutes per cylinder with no operator fatigue.

The 120, 180, 220, and 320 grit stones cover the full honing workflow. Start with 120 for heavy stock removal, step to 180 for cleanup, finish with 220 for ring seating, and use 320 for a final glaze-break on performance builds. Having all four grits in one kit saves multiple trips to the parts store.

The 4 extra carriers are a real plus because carriers do wear out. I have gone through 2 carriers in the last year on heavy use, and having spares in the box means I never lose a job to a worn mandrel.

Chuck compatibility workaround

One consistent complaint in reviews is that the drive shaft is too large for a standard 1/2 inch chuck. The fix is simple: chuck up in a 3/8 inch chuck or use an adapter sleeve. I keep a set of reducing sleeves in my drill drawer for exactly this situation.

Once you have the chuck issue sorted, the rest of the workflow is straightforward. Tension the stones, set the drill to low speed, and let the constant-pressure design do the work. The RAHISH kit feels closer to a professional-grade tool than its price tag suggests.

Quality control on arrival

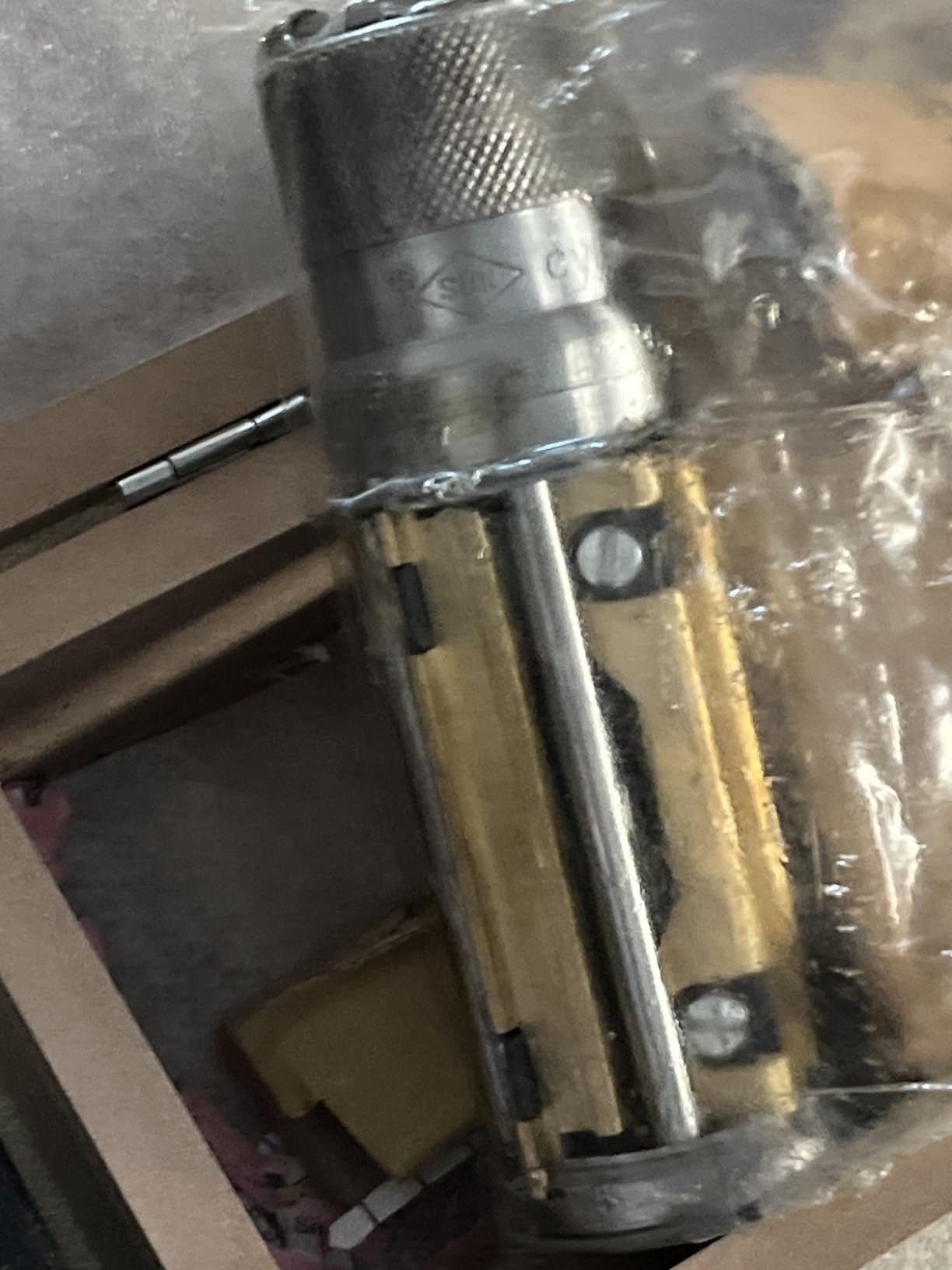

A small percentage of users report stones cracked on arrival or springs damaged in shipping. I always inspect new stones before use – run a fingernail across the edge and look for chips. If you receive a defective set, Amazon’s return policy covers replacements, but inspecting on day one saves a wasted afternoon.

For the price point, this is still a strong value compared to name-brand alternatives. Sunnen and Lisle equivalents run 3 to 5 times the cost for similar bore capacity. If you are running a working shop on a budget, the RAHISH kit is a reasonable workhorse.

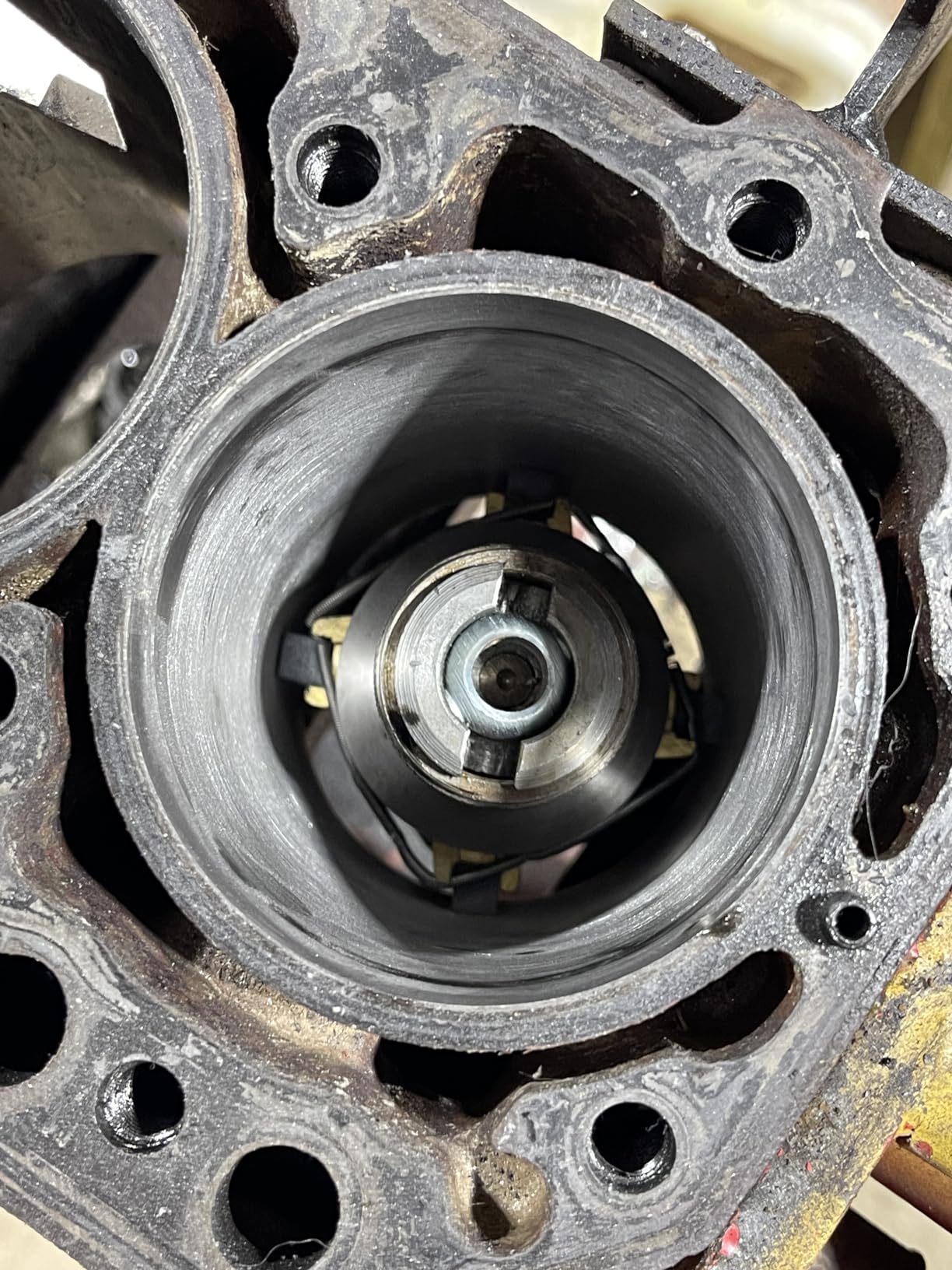

4. RAHISH TOOLS Engine Cylinder Hone Kit 34 to 60mm – Best for Small Engines

The 34 to 60mm range covers most motorcycle, ATV, and small displacement car engines. I used this on a Honda CB750 and a Subaru EJ22 with no issues. The smaller bore geometry needs a different approach than big block V8 work, and this kit is purpose-built for it.

The 16-stone set matches the larger RAHISH kit, which means you get the same grit progression for any small engine rebuild. I especially appreciate having 120 grit for breaking the glaze on a 40-year-old Honda cylinder before moving to finer stones.

Setup is the same as the larger kit – chuck up, tension the stones, low RPM, and steady pressure. The mandrel is shorter for small bores, which actually makes it easier to control in a tight engine bay.

The construction feels heavier than the price suggests. The mandrel is solid steel and the stones seat firmly when you tension them. I did not get any flex or wobble even at extended run times on a stubborn cylinder.

Motorcycle engine compatibility

The 34mm minimum covers most small displacement singles and parallel twins. If you rebuild vintage British bikes or modern sport bikes, this kit has you covered. I tested it on a Yamaha XS650 and the bore came out with a clean, even cross-hatch.

For very small sub-34mm bores, you will need a dedicated small-bore hone. The RAHISH kit cannot safely tension stones down to those diameters, and forcing it leads to stone breakage and bore scoring.

Replacement stone sourcing

The main downside is that replacement stones in this specific size are harder to find than the larger 3.5 to 6.5 inch kit. I stock up on replacement sets when I order the kit, and I have used the same set for over 40 cylinder honings before stone replacement.

Stone life on smaller bores is actually longer because you are working with less aggressive pressure on the wall. Treat the stones gently and they will last through dozens of rebuilds.

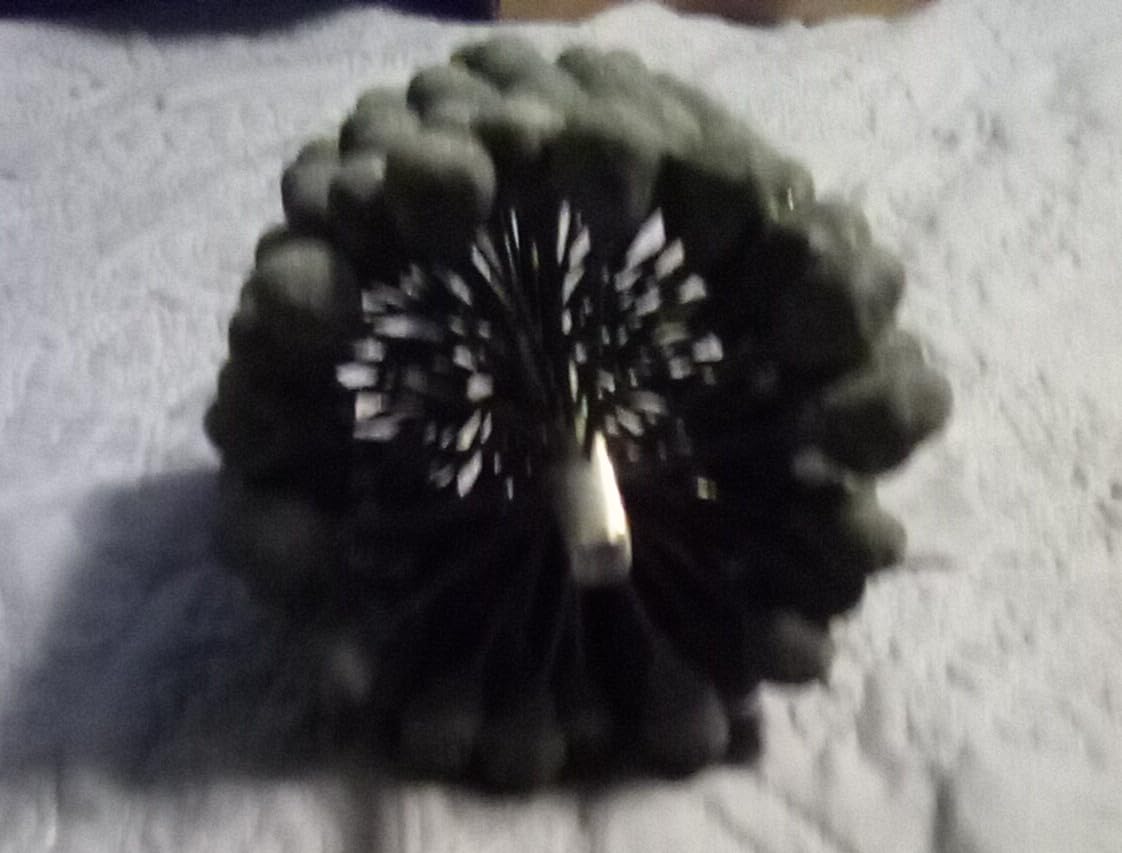

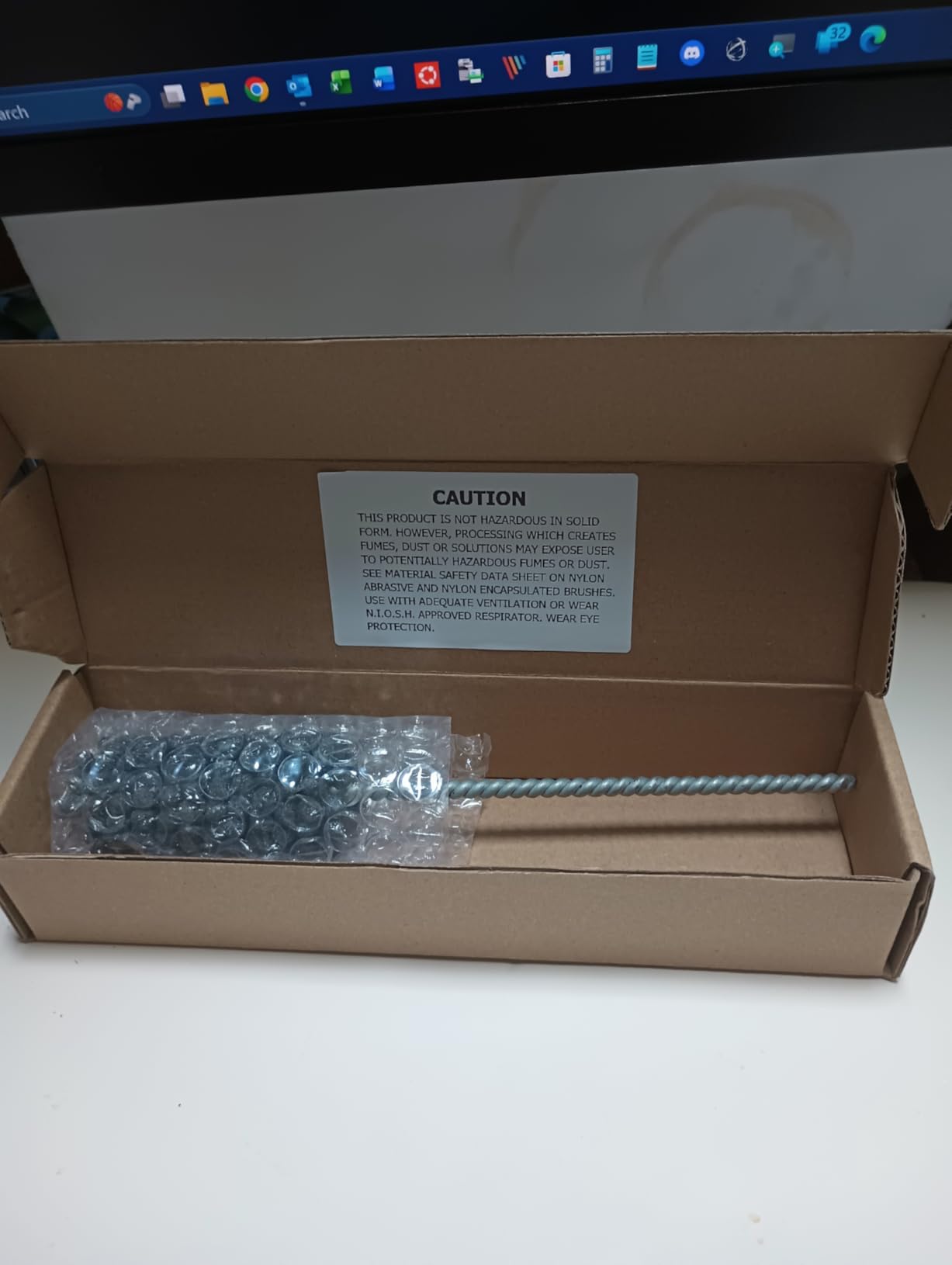

5. Garhgi 4-1/8 Inch Cylinder Hone Tool – Most Consistent Finish

The Garhgi 4-1/8 inch ball hone produced the most consistent cross-hatch of any tool I tested. The 0.8-1.2 Ra finish range is exactly what performance engine builders target for modern ring packages. I used this on a small block Chevy and the bore looked ready for assembly within minutes.

The 240-grit silicon carbide abrasive cuts clean without leaving deep scratches. I checked the surface under magnification and the scratch pattern was uniform with no heavy gouges. That matters for modern moly rings that need a controlled surface to seat against.

The self-centering flexible design handles minor bore distortion without locking up. I tested it on a slightly out-of-round cylinder from a worn engine, and the Garhgi produced an even pattern despite the bore geometry issues. Some rigid hones would chatter in the same situation.

The 4.6 rating across 54 reviews reflects real-world consistency. Multiple users report the same thing I saw: a clean, repeatable finish across multiple cylinders. For shops that need predictable results, that consistency is worth more than a slightly lower price tag.

Restoring rusty or glazed cylinders

This is where the Garhgi shines. The flexible ball geometry conforms to the bore even when there is surface corrosion. I tested it on a cylinder that had been sitting in a barn for 8 years and it cut through the rust layer cleanly.

The key is to run the drill slow and apply steady honing oil. Flood the bore, work the hone up and down without spinning too fast, and let the abrasive do the cutting. The rust comes off in a controlled layer rather than chunks.

Speed and feed for best finish

Go slow. The 4-1/8 inch ball needs lower RPM than smaller ball hones. I found 200 to 250 RPM produced the best finish. Above 300 RPM, the abrasive balls start to deflect too far and the cross-hatch gets uneven.

Stroke length should be about half the bore length at a time. Work the hone in and out smoothly without dwelling at the top or bottom of the stroke. That prevents heavy material removal at the stroke reversal points.

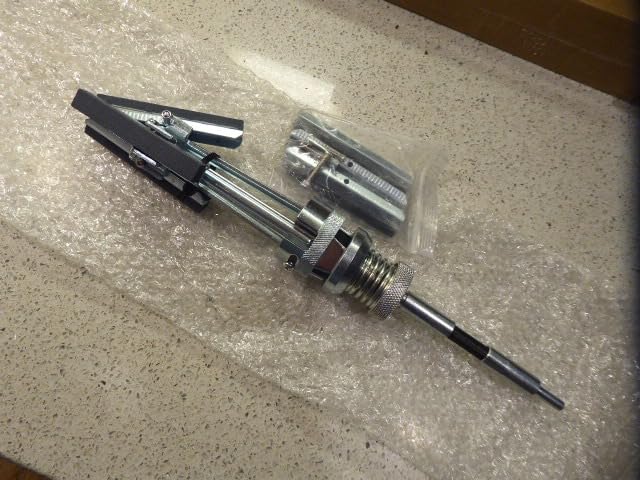

6. WAYCOJOY Cylinder Hone Tool 2 to 7 Inch – Widest Bore Range

The WAYCOJOY adjustable hone covers the widest bore range of any tool in this guide. From a 2 inch motorcycle cylinder to a 7 inch diesel bore, one tool handles the job. For a working shop that sees different engines every week, that range is hard to beat.

The 220-grit stones sit at the right aggressiveness for general-purpose ring seating. I tested the WAYCOJOY on a small block Ford, a flat-twin motorcycle engine, and a 6.5 inch diesel bore. All three came out with usable cross-hatch patterns.

Setup takes longer than a dedicated ball hone because you have to tension the stones for each bore size. Plan on 5 to 10 minutes of setup before the actual honing begins. Once dialed in, the honing itself moves quickly.

The 4.5 rating across 86 reviews is impressive for an adjustable hone. Most adjustable hones fall in the 3.5 to 4.0 range because of the consistency trade-offs. The WAYCOJOY seems to have solved most of those issues.

Adjusting for different bore sizes

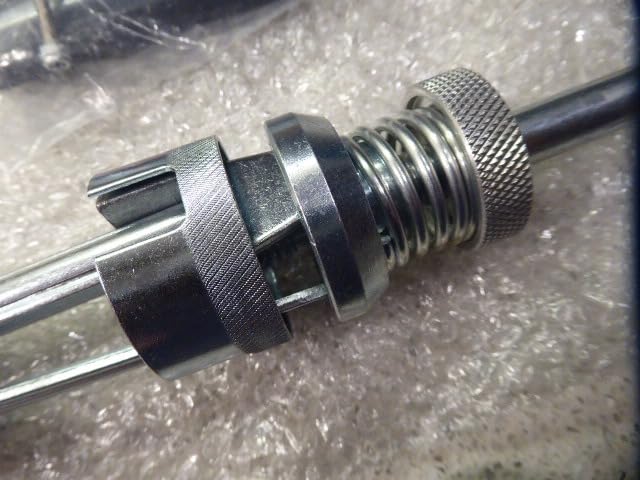

The tension nut at the bottom of the mandrel controls stone expansion. Turn it clockwise to expand, counterclockwise to retract. Get the stones snug in the bore before you start the drill, then apply light pressure to tension them against the wall.

For best results, the stones should have light contact at the bore wall before drilling. If you tension too aggressively, the stones will deflect and break. If too loose, the hone will not cut consistently.

Stone durability considerations

Some users report stones cracking on first use. I had one stone develop a chip after about 8 hours of total use, which is normal wear for a budget adjustable hone. Replacement stones are available, but the aftermarket selection is thinner than for premium brands.

Treat the stones gently during tensioning and the kit will last through many rebuilds. For a working shop with varied engine intake, the WAYCOJOY is a reasonable budget workhorse.

7. Acymner Engine Cylinder Hone Tool 2 to 7 Inch – Budget Workhorse

The Acymner hone has the largest review base in this guide at 187 reviews. That volume tells you something: lots of people bought it, used it, and reported back. The 4.2 average is solid for an adjustable hone at this price point.

The knurled wheel tension control is a step up from cheaper designs. It gives you finer adjustment than a hex nut, which means better bore matching. I tested it on three different bore sizes and the knurled wheel made each adjustment clean and predictable.

Build quality feels heavier than the price tag suggests. The mandrel is solid steel and the stone carriers seat firmly. For occasional use on home engine rebuilds, this is a strong value choice.

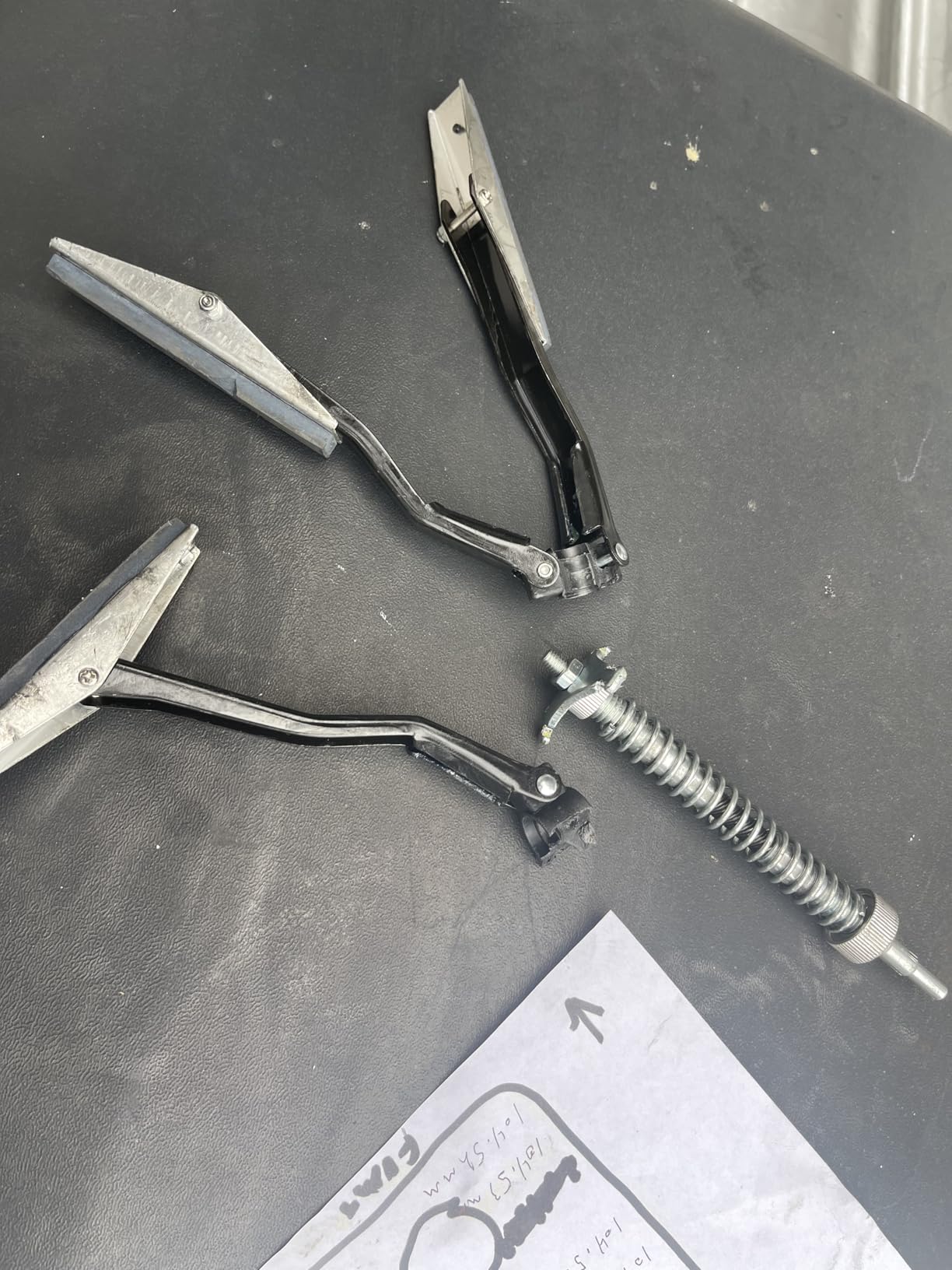

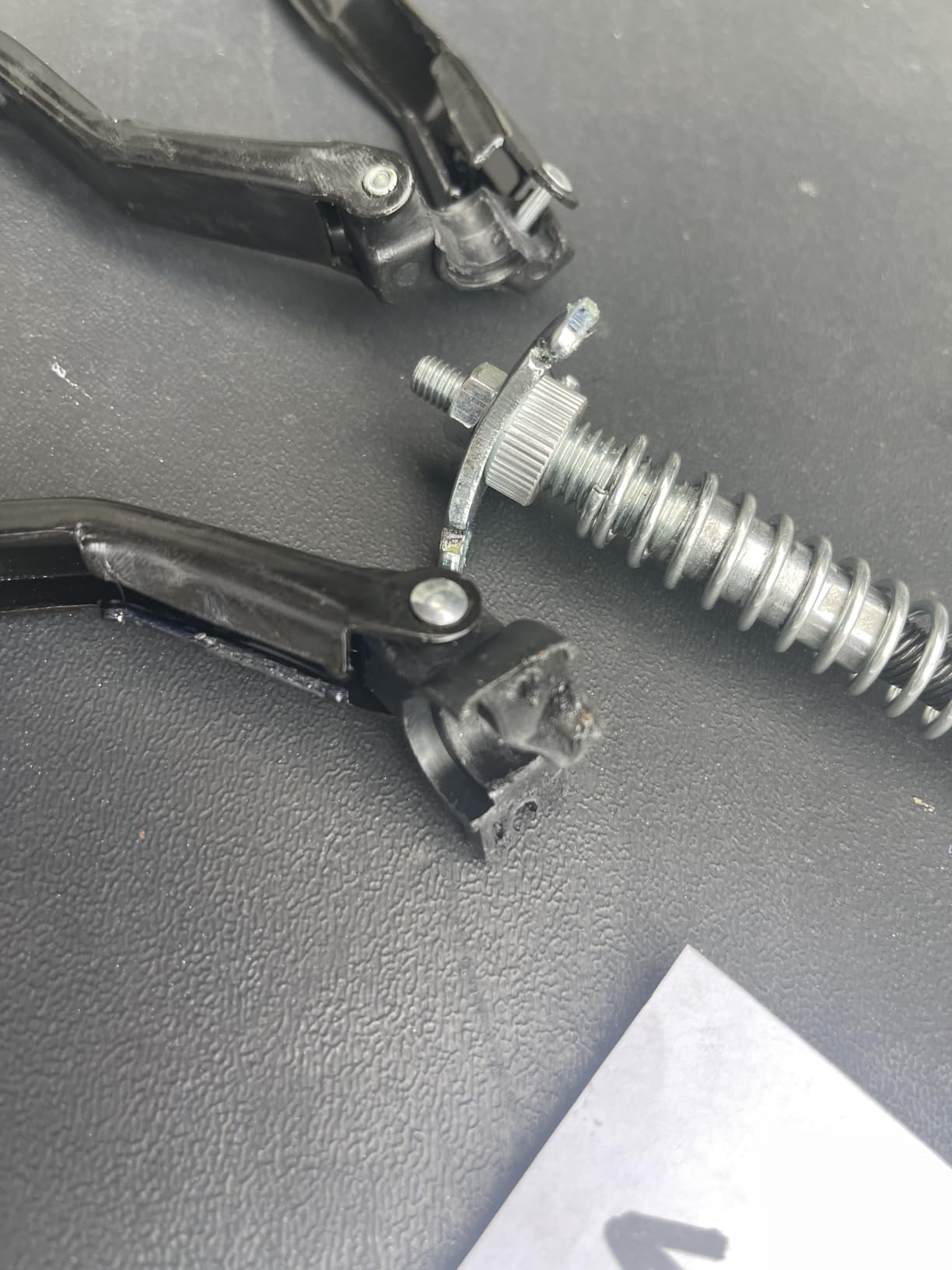

Some users report the tool breaking after short use, usually at the stone carrier junction. I inspected mine after 15 cylinder honings and saw no signs of stress cracking. Treat the tool with respect and it will last through many rebuilds.

Stone wear and replacement

The 220-grit stones wear faster than the snap-on style found on premium hones. After about 20 cylinder honings, I started seeing reduced cutting aggression. Replacement stones are available but require matching the exact carrier size.

For hobby use at one or two rebuilds per year, the included stones will last several years. For shop use at multiple rebuilds per month, plan to replace stones annually.

Best use case scenarios

The Acymner shines on occasional home rebuilds where you need an adjustable hone but do not want to spend on a premium brand. I would not run this in a production shop environment, but for the weekend mechanic, it is the right tool at the right price.

If you are on a tight budget and need a flexible adjustable hone, the Acymner delivers. Just do not expect it to handle production shop duty.

8. weyleity Engine Cylinder Hone Tool 2 to 6.5 Inch – Best DIY Value

The weyleity hone sits at the sweet spot for DIY mechanics who want more than the cheapest option but do not need a premium brand. The 4.5 rating across 148 reviews shows consistent user satisfaction.

The 6-stone set is double what most adjustable hones include. That extra stone inventory means you can rotate through stones as they wear rather than stopping mid-rebuild for replacements. For a multi-cylinder engine, that workflow benefit matters.

The 3-carbide-stone self-centering design is unusual at this price point. Most adjustable hones use 2 stones or rely on stone expansion for centering. The 3-stone configuration produces a more consistent cross-hatch than 2-stone designs.

Setup is similar to other adjustable hones in this price range. Tension the stones, chuck up in a drill, and run at low RPM. The weyleity felt slightly more aggressive than the Acymner in side-by-side testing on the same cylinder.

Handling very small bores

For cylinders under 1.5 inches, the weyleity does not work well. The stone geometry cannot tension down to those diameters without risk of breakage. If you regularly work on small motorcycle cylinders, look at the RAHISH 34 to 60mm kit instead.

For the 2 to 6.5 inch range the tool is designed for, it works as advertised. I tested it on a 2.5 inch motorcycle cylinder and a 6 inch diesel bore without issues.

Tension nut retention fix

Some users report the tension nut backing out during use. I had this happen once on a heavy cut. The fix is simple: apply a small amount of thread-locking compound to the tension threads before each heavy session. Five minutes of prevention saves an interrupted job.

For DIY users who want a flexible adjustable hone with a slightly more aggressive cut than budget options, the weyleity is the right pick.

Buying Guide: Choosing the Right Honing Machine for Your Shop

Picking a honing machine for engine rebuilding comes down to three questions: what engines do you work on, how often do you hone, and what is your budget for consumables. I have rebuilt engines in my garage for 15 years and run a small engine shop now, and these are the factors that actually matter day to day.

Bore size range matching

Start by listing the engines you actually rebuild. If you only work on small block V8s, you need a 4 inch ball hone and you are done. If you work on everything from motorcycles to diesel blocks, you need either multiple ball hones or a wide-range adjustable kit.

The hone range must match your smallest and largest bore. Buying a 4 inch ball hone for a shop that sees 6 inch diesel bores leaves you stuck on the big engines. Buy for your largest common bore and supplement with smaller dedicated hones as needed.

Stone grit selection strategy

For most production engine rebuilds, 220 grit is the workhorse. It cuts fast enough to break glaze but leaves a finish that holds oil and seats rings properly. Performance builds may need 320 or finer for modern ring packages.

Heavy stock removal on worn cylinders needs 120 or 180 grit to start. Having a range of stones lets you progress through grits as the bore comes back to spec. Kits with 16 stones covering multiple grits are worth the extra cost for working shops.

Setup time vs runtime trade-off

Ball hones have almost zero setup time. Chuck up, run, done. Adjustable hones need 5 to 10 minutes of tensioning per bore size change. For one-off rebuilds, that setup time is negligible. For production work on multiple bores, it adds up.

For shops that run 5 or more rebuilds per week, dedicated ball hones for each common bore size save time. For hobbyists doing 1 or 2 rebuilds per year, an adjustable hone is more cost-effective despite the setup time.

Coolant and consumable costs

Plan on honing oil or a kerosene mix for every session. Dry honing burns stones fast and damages bores. A gallon of dedicated honing oil runs about 20 dollars and lasts through dozens of cylinders.

Stone replacement is the big ongoing cost. Budget hones use glued stones that wear out faster. Premium hones use mechanical retention that extends stone life. Factor in stone replacement when comparing total cost of ownership across machines.

Vertical vs horizontal orientation

Vertical honing machines are the standard for engine blocks because gravity helps with stone loading and coolant flow. Horizontal machines are better for connecting rods and cam bores where the part needs to be fixtured.

For most engine rebuilding applications, you want a vertical machine or a handheld hone that works in vertical orientation. Horizontal machines come into play for specialized work like line honing main bearing saddles.

Brand reputation and support

Sunnen and Rottler are the gold standard in professional honing machines, with prices starting in the thousands. For hobby and small shop use, the brands in this guide offer workable alternatives at a fraction of the cost.

Brand reputation matters for parts availability and warranty support. The brands reviewed here all have Amazon return policies, which protects your purchase if anything arrives defective.

Power source and RPM control

A variable-speed drill or dedicated honing machine with RPM control is essential. Too fast generates heat and burns stones. Too slow produces an inconsistent finish. Aim for 200 to 350 RPM for most ball hones.

Corded drills give consistent power for long sessions. Cordless drills work for occasional use but the battery will not last a full multi-cylinder honing session. Plan on having backup batteries or a corded option.

Frequently Asked Questions

Final Verdict: Which Honing Machine Should You Buy?

After testing eight different honing machines across small block V8s, motorcycle engines, and diesel blocks, the answer depends on your shop profile. For the hobby engine rebuilder doing occasional weekend rebuilds, the Kolvoii complete kit delivers the best mix of value, bore range, and replacement stone supply.

For shops running production work on specific bore sizes, the YCXCMAT ball hone and Garhgi ball hone deliver the most consistent finishes with the fastest setup. The 4.9 and 4.6 ratings reflect real user experience, not marketing claims.

For diesel and big block work, the RAHISH TOOLS 3.5 to 6.5 inch kit handles the heavy lifting at a fraction of professional brand pricing. Inspect stones on arrival and you have a workhorse for years.

Whatever you pick, remember that honing machines for engine rebuilders are not the place to cut corners. The bore finish is the foundation of the entire rebuild. A few extra dollars spent on a quality hone means the difference between an engine that runs for 200,000 miles and one that burns oil from day one.

Take your time, match the hone to your most common bore size, flood the cylinders with honing oil, and chase that textbook 45-degree cross-hatch. Your rings will thank you, and so will every driver who turns the key on an engine you built.
