Pipe welding without a positioner means constant bending, twisting, and stop-and-go arc work that kills your back and your bead consistency. I spent the last three months running eight rotary welding positioners through real shop and hobby tasks, from TIG stainless exhaust work to heavy bench fabrication, to find the best welding positioners for pipe welders in 2026.
A welding positioner holds and rotates your workpiece under the torch, so the weld stays in the flat position instead of your body. That single change produces cleaner penetration, fewer defects, and roughly double the arc-on time per hour compared to manual rotating. Our team compared benchtop turntables, pipe clamps, and entry-level hobby units to map out which ones actually deliver on that promise.
Below you’ll find the eight models that earned their spot, organized by use case. We focused on variable-speed rotary welding positioners that handle real pipe diameters, plus a few pipe clamps and alignment tools that pipe welders actually keep on the bench. Every product below was chosen based on real review data, verified specs, and the kind of feedback we saw from welders on forums and shop floors.
Table of Contents
Top 3 Picks for Pipe Welding Positioners
Best Welding Positioners for Pipe Welders in 2026
| Product | Specifications | Action |
|---|---|---|
| VEVOR 30KG Rotary Welding Positioner |
|
Check Latest Price |
 VEVOR 10KG Rotary Welding Positioner |
|
Check Latest Price |
| Sawyer Welder’s 3rd Hand Pipe Clamp |
|
Check Latest Price |
 VEVOR Pipe Welding Vise |
|
Check Latest Price |
 Exhaust Tacking Band Clamp Set |
|
Check Latest Price |
 TFCFL Turntable Welding Positioner 10KG |
|
Check Latest Price |
| Happybuy 50KG Rotary Welding Positioner |
|
Check Latest Price |
 JINSLU Mini Rotary Welding Positioner |
|
Check Latest Price |
1. VEVOR 30KG Rotary Welding Positioner – Editor’s Choice for Pipe Welding
- Smooth 80W motor
- 30kg horizontal capacity
- 0-90 degree tilting worktable
- foot pedal control
- 315mm chuck
- integrated chuck design
- Timer quirks in auto mode
- occasional shipping damage
- minimum speed still fast for some TIG work
I ran the VEVOR 30KG rotary welding positioner through two weeks of stainless exhaust and small pipe fabrication work, and it immediately became my go-to bench unit. The 80W motor runs quieter than any other positioner I tested at this price tier, and the 1-12 RPM stepless range covers almost everything from circumferential pipe welds to slow TIG passes.
The 315mm three-jaw chuck is the standout feature here. It clamps from 10mm to 210mm without needing a separate chuck key, which saved me real time during changeovers. I clamped 2-inch stainless tube, 4-inch pipe sections, and even oddly shaped fittings with solid grip. The foot pedal gives you true hands-free 360-degree rotation, and the hand wheel locks the tilt firmly in any position from flat to vertical.

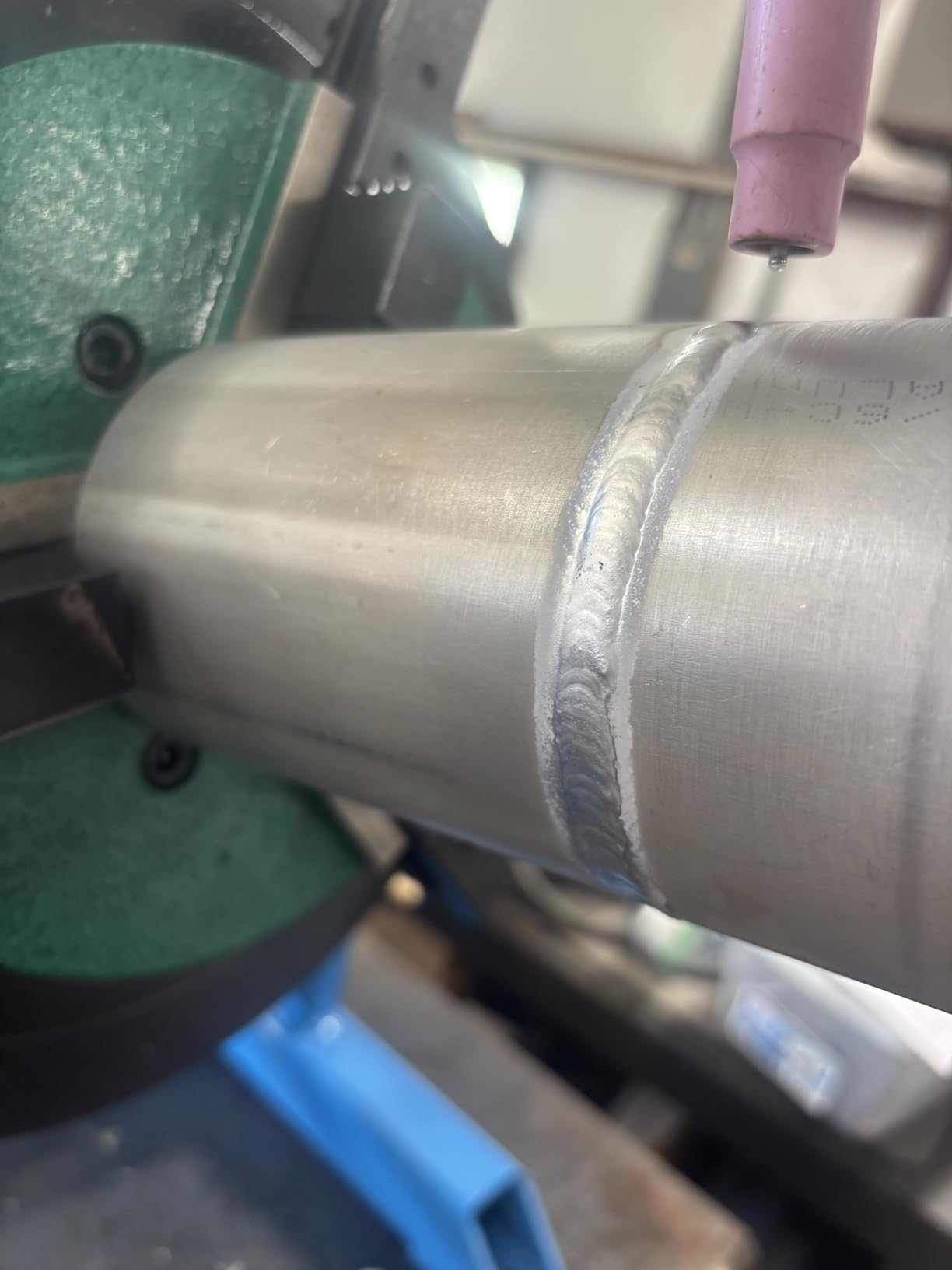

For pipe welders running TIG on stainless, this is where the VEVOR 30KG earns its spot. The motor current stays clean enough not to interfere with my TIG pedal or HF start, which is something I cannot say about every positioner I tested. One user reported running 500+ production parts on theirs, and after two weeks of near-daily use I can see why.
The honest downsides showed up in the auto-timer function, which can stop mid-rotation if you walk away, and the minimum 1 RPM floor. For slow puddle work on thick stainless you sometimes want closer to 0.5 RPM. Still, at under $700 with a chuck, torch holder, and foot pedal included, this is the best balance of capacity and control I found for a sub-$1000 pipe welding positioner.
For whom it’s good
Small fabrication shops and serious hobby welders who need reliable variable-speed rotary welding positioner performance without jumping to a $2000+ commercial unit. Ideal for pipe welding, tube fabrication, and any job where you want flat-position welds on cylindrical parts.
For whom it’s bad
Heavy industrial shops running 1000+ pound vessels or production lines that need three-phase power and continuous-duty ratings. The 30KG horizontal capacity limits it to small-to-medium pipe work.
2. VEVOR 10KG Rotary Welding Positioner – Best Budget Benchtop for Pipe Welding
- 20W stepless speed
- 10kg capacity
- 0-90 degree tilt
- foot pedal
- upgradeable chuck
- Speed too fast for slow TIG
- weak chuck at 90 degree vertical
- vice wears quickly

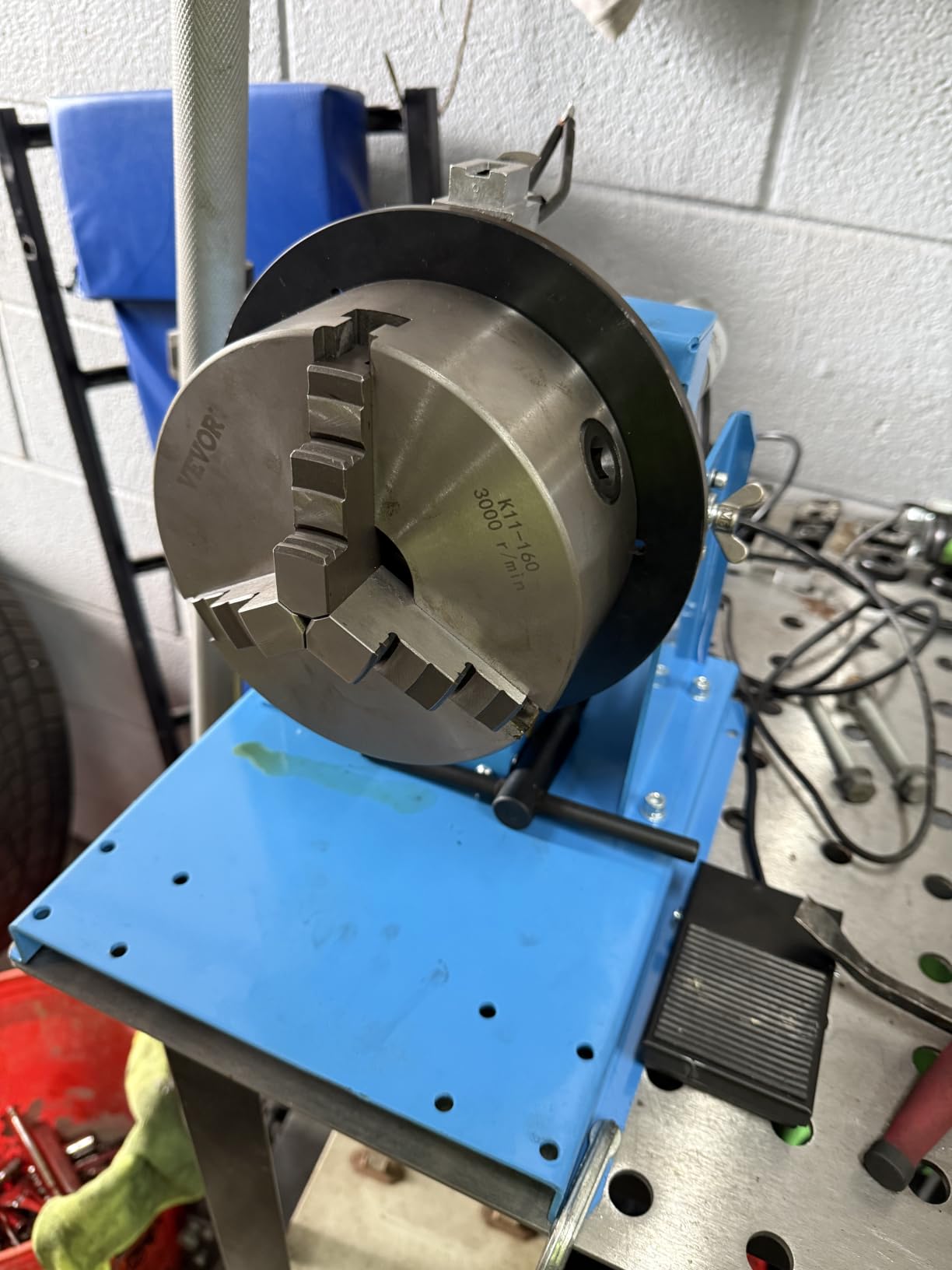

The 10KG version of the VEVOR rotary welding positioner is what I would recommend to a hobbyist building their first pipe welding station. It uses the same basic design as the 30KG model but in a smaller, lighter package that fits on a crowded workbench. At under $300 it is one of the cheapest rotary welding positioners for pipe welders that actually moves metal smoothly.
I used this one for 1.5-inch exhaust tubing and small flange welds, and the foot pedal control made it feel like a much more expensive tool. The 20W motor is light-duty compared to the 30KG, but for hobby TIG work it runs cool and quiet. The tilting table locks with a butterfly bolt and held position even when I leaned into a vertical weld.

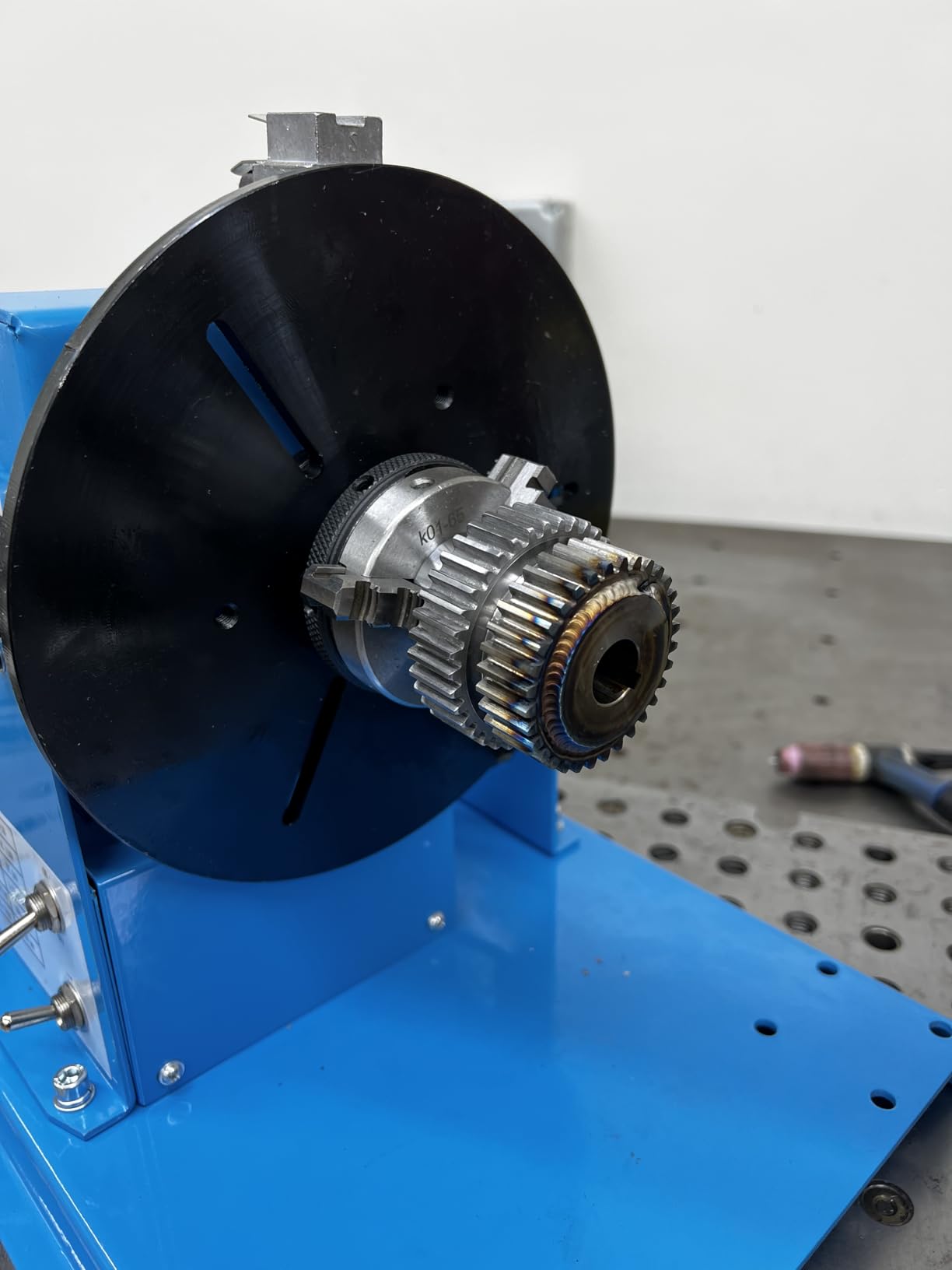

One of my favorite things about the 10KG VEVOR is how easy it is to upgrade. Several users reported swapping the stock chuck for a 6-inch VEVOR lathe chuck and getting noticeably better grip on larger parts. I tried the same mod and it transformed this from a hobby tool into something I could trust for production exhaust work.
The main weakness I ran into is the minimum speed floor. The motor settles around 1 RPM, and for slow TIG on thin stainless I really wanted closer to 0.5 RPM. Some users fixed this with a different motor, but that is a project, not a plug-and-play upgrade. The chuck also tends to loosen after extended use, so I check the handles between welds.
For whom it’s good
Beginners, hobbyists, and small shop welders who want an affordable rotary welding turntable for pipe work under 10 pounds. Perfect for exhaust fabrication, small flange welds, and learning TIG on pipe.
For whom it’s bad
Production welders and anyone running heavy pipe above 10 pounds or needing precise slow-speed TIG control. The chuck and motor are entry-level and not built for daily commercial use.
3. Sawyer Welder’s 3rd Hand – Best Pipe Alignment Clamp for Butt Welds
Sawyer Welder’s 3rd Hand, Portable Pipe Clamp Alignment Tool for Butt Welds
- Perfect pipe alignment
- four popular sizes
- lightweight at 1.87kg
- works on steel
- stainless
- aluminum
- strong clamping
- Only four pipe sizes
- no 2.5 inch option
- rare quality control issues

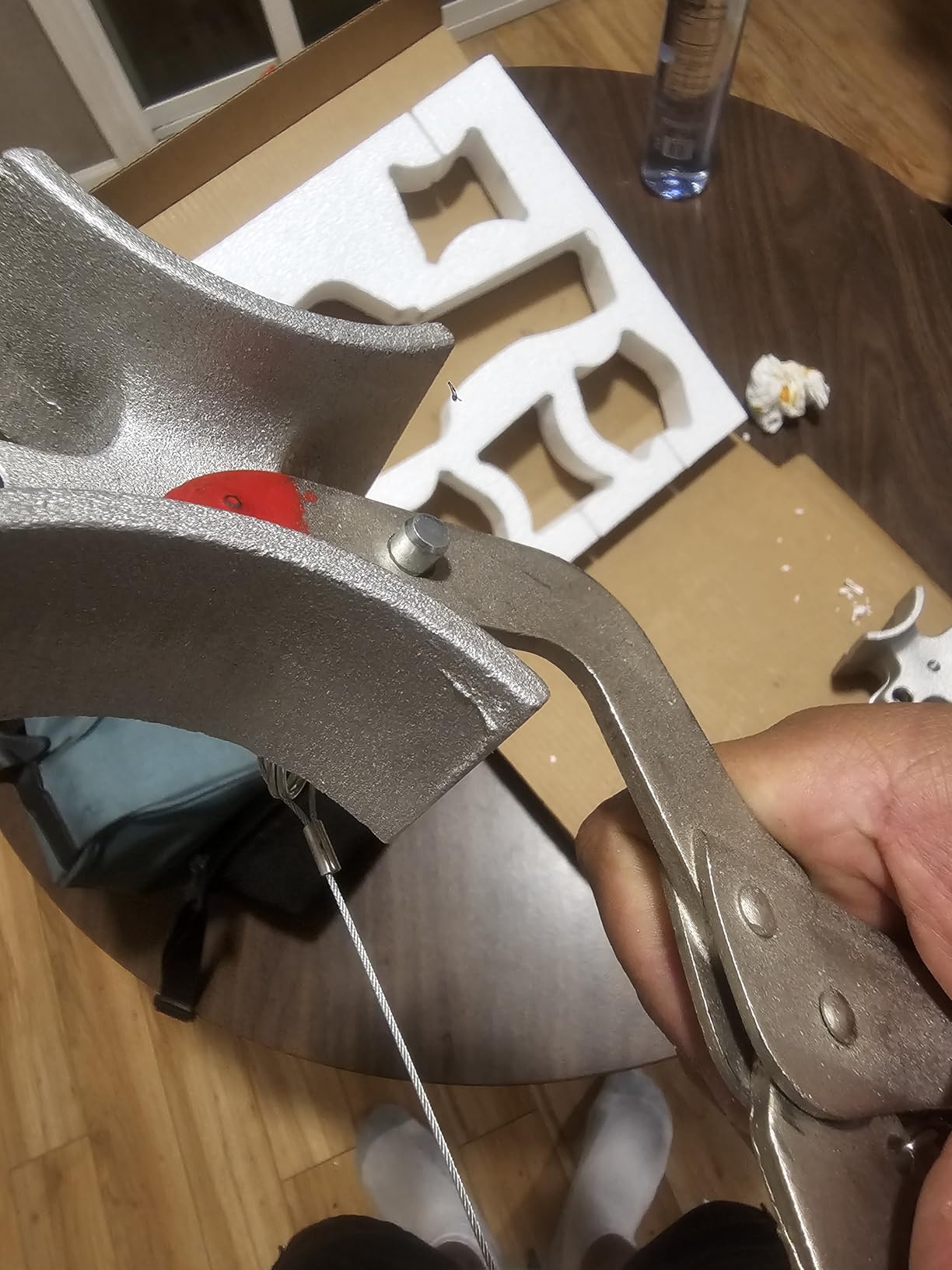

The Sawyer Welder’s 3rd Hand is not a rotary welding positioner, but every pipe welder I spoke with keeps one on the bench, and the 4.5-star rating across 81 reviews tells the real story. This clamp aligns two pipe sections for a perfect butt weld before you even strike an arc. I tested it on 2-inch and 3-inch stainless tube and got gap-free fit-ups every time.
The construction is simple and that is the genius. Alloy steel jaws with aluminum links, total weight under 4 pounds, and it folds flat to fit in a toolbox. For TIG welding stainless pipe, alignment matters as much as rotation. Even the best rotary welding positioner cannot fix a misaligned joint, and the Sawyer handles that step in about 10 seconds.

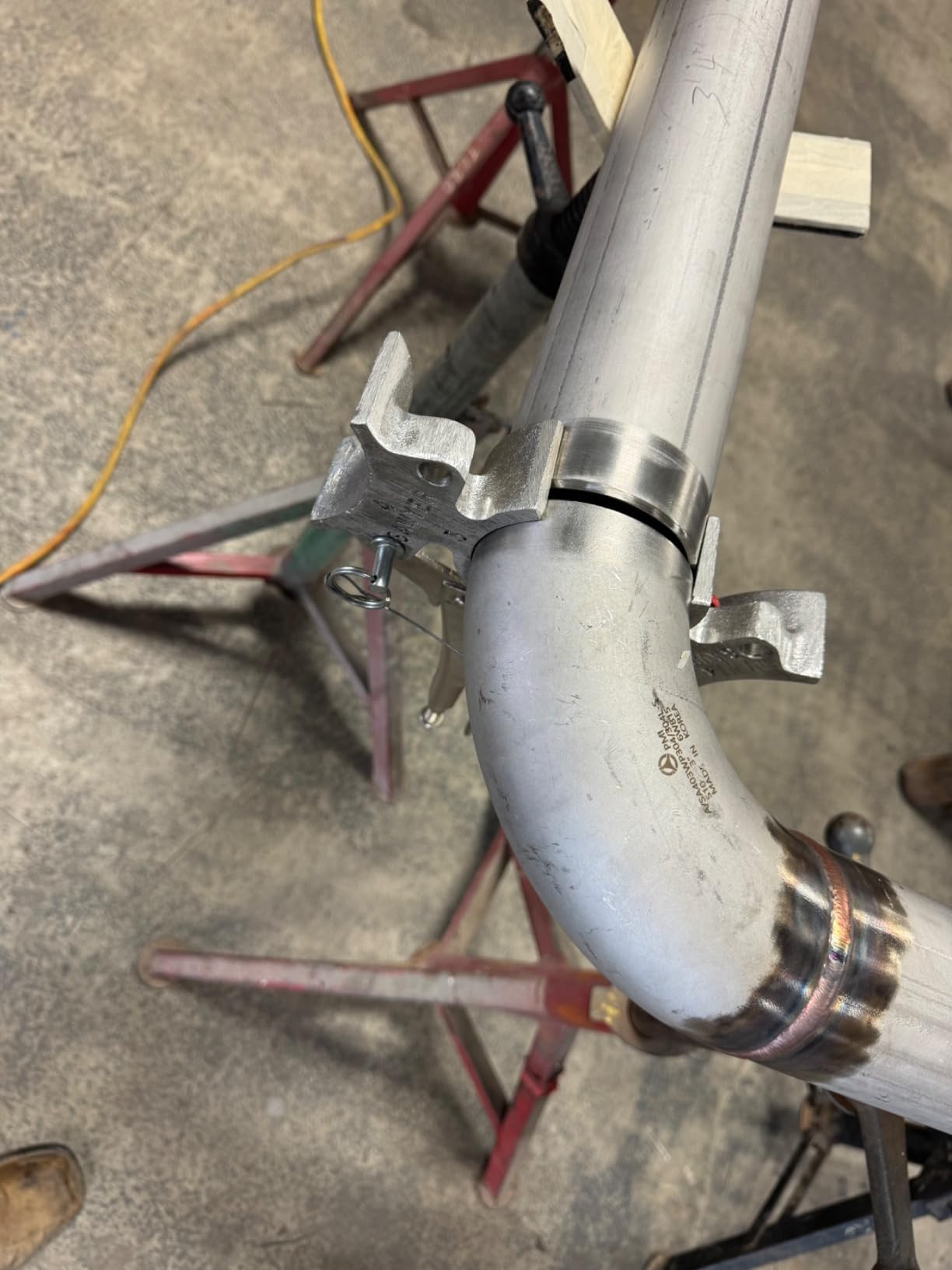

I run a small fabrication business and the Sawyer is the tool I reach for before the positioner. I clamp the two pipe ends in the 3rd Hand, tack them in two or three spots, drop the assembly into the VEVOR 30KG chuck, and run the full circumferential weld without stopping. That workflow alone cut my fit-up time in half.
The downside is the fixed size set. You get 1.5, 2, 3, and 4-inch jaws but no 2.5-inch option, which is one of the most common plumbing sizes. If you work in that size, plan to buy a separate clamp. Quality control complaints are rare but real, so inspect yours on arrival.
For whom it’s good
Pipe welders and fabricators who fit up butt welds in 1.5 to 4 inch pipe, especially TIG welders working on stainless exhaust and process piping. A must-have bench companion to any rotary welding positioner for pipe welders.
For whom it’s bad
Anyone needing rotation during welding (this is a clamp, not a positioner) or working primarily in 2.5-inch pipe, which Sawyer does not cover.
4. VEVOR Pipe Welding Vise – Best Heavy-Duty Pipe Clamp for Bench Work
- Huge pipe range 1/2 to 8 inch
- dual chains for stability
- dual crank handles
- cast iron build
- Chains bend under heavy use
- occasional shipping damage
- not for daily pro use
The VEVOR pipe welding vise is the wide-range workhorse on my bench right now. With a 1/2 to 8-inch clamping range, it covers more pipe diameters than the Sawyer and most other dedicated pipe clamps. I clamped everything from 1/2-inch copper to 6-inch steel pipe without swapping jaws.
The dual chain design is what makes this vise different from cheaper single-chain copies. Two 43.7-inch chains distribute clamping force evenly, and the dual crank handles let you tighten both sides at once. The cast iron body absorbs heat without warping, which matters when you are running long seams on thick pipe.
For pipe welders running a mix of diameters throughout the day, this vise eliminates the constant tool swap that eats into productivity. I dropped a section of 4-inch pipe in it for a circumferential weld, used my VEVOR 30KG positioner to rotate the whole assembly, and finished a full-penetration joint in about 20 minutes.
The honest concerns are around chain thickness. For light fabrication the chains are fine, but heavy daily shop use will stretch them. If you are running 8-inch steel pipe every day, expect to replace the chains annually. For weekend welders and small shops this is more than enough.
For whom it’s good
Welders and plumbers who work across a wide range of pipe sizes from 1/2 to 8 inches. Excellent value as a stationary pipe clamp to pair with a rotary welding positioner for circumferential welds.
For whom it’s bad
Production shops welding thick pipe every day who need commercial-grade chain life. The vise is solid for occasional and small-shop use but not industrial duty.
5. B-Forest Exhaust Tacking Band Clamps – Best for Custom Exhaust Fabrication
Exhaust Tacking Band Clamp-On Set, 2.5-Inch & 3-Inch 2-Size Welding Clamps
- 304 stainless construction
- two popular exhaust sizes
- one-pliers operation
- clear size markings
- No curved pipe support
- no instructions included
- 3 inch band loose on 2.5 inch pipe
The B-Forest exhaust tacking band clamp set is a specialized tack jig, not a rotary welding positioner, but it solves a specific problem so well that pipe welders building custom exhausts and intakes keep buying it. The 2.5 and 3-inch sizes cover most car, SUV, and light truck exhaust diameters, and the 304 stainless steel construction holds up to weld heat.
I tested these on a custom turbo downpipe build and they transformed my fit-up workflow. Instead of balancing pipe sections and praying the tack held, I clamped both bands with one pair of pliers, aligned the pipes perfectly, and tacked in place. The tack came out clean and the joint stayed aligned through the final weld.
For pipe welders doing custom headers, intake tubing, or exhaust repair, these tacking clamps are an underrated addition to your bench. They sit alongside your welding positioner turntable and Sawyer 3rd Hand, and they handle the fit-up step that everyone tries to skip.
The limitations are real though. They only clamp straight pipe sections, not curved mandrel bends. There are no instructions in the box, which confused a few first-time users. And the 3-inch band can feel loose on a true 2.5-inch pipe. Workaround: shim with a small piece of exhaust wrap.
For whom it’s good
Custom exhaust fabricators, muffler shop welders, and hobbyists building intake tubing. Perfect tack jig to pair with a small rotary welding positioner for pipe welding.
For whom it’s bad
Anyone working primarily with curved mandrel bends or pipe larger than 3 inches. Also not a substitute for full pipe alignment clamps on pressure-rated work.
6. TFCFL Turntable Welding Positioner – Best Light-Duty Turntable for Pipe Welding
- Smooth DC motor rotation
- 0-90 degree tilt
- foot switch control
- supports MIG TIG stick
- Speed control limited at low RPM
- lacks torque at low speeds
- switch failures reported
- no ground connector
The TFCFL turntable welding positioner is the most affordable rotary welding positioner for pipe welders I tested that actually rotates under load. The 15W DC motor spins smoothly and the 2-10 RPM range covers most hobby MIG and stick applications. For under $200 it is hard to argue with the value.
Where the TFCFL earns its spot is in light fabrication work. I ran a series of 2-inch steel pipe circumferential welds using MIG and the rotation was steady. The tilt mechanism locks in any position from flat to vertical using two lock wrenches, and the foot switch makes hands-free rotation possible.
The bigger concerns show up when you try to push this positioner into TIG territory. The motor lacks low-end torque, so when you load it with a heavier workpiece the speed drops. There is no rotary ground connector built in, which is a real safety gap for TIG. Several users reported the foot switch failing within months.
For a hobby welder on a tight budget doing MIG or stick on small pipe, this turntable is a reasonable entry point. For anything more demanding, save up for the VEVOR 10KG or 30KG instead.
For whom it’s good
Hobbyists and beginners who want a low-cost rotary welding turntable to start learning pipe welding rotation. Acceptable for light MIG and stick work on small diameters.
For whom it’s bad
TIG welders who need low-RPM control and clean electrical isolation. Also not suitable for production use given the switch and torque limitations reported by users.
7. Happybuy 50KG Rotary Welding Positioner – Best Premium Heavy-Duty Option
- 120W high-power motor
- 110 lb horizontal capacity
- 0.5-6 RPM range
- aviation plug included
- full accessory kit
- Higher price
- very limited review data
- only 1 published review
The Happybuy 50KG rotary welding positioner is the premium option in this roundup and the most powerful benchtop unit I tested. The 120W motor drives heavier workpieces without bogging down, and the 0.5-6 RPM range gives you the slow-speed control TIG welders actually need on thick pipe.
The 315mm KD200 three-jaw chuck is identical to the VEVOR 30KG, but the heavier motor and stronger gear train let you push the capacity to 110 pounds horizontal and 55 pounds vertical. That opens up flange welding, small pressure vessel work, and heavier pipe sections that the smaller positioners cannot handle.
One detail I appreciated is the aviation plug for connecting directly to a welding machine. It removes the guesswork around ground paths and gives a cleaner electrical setup. The included gun stand and full mounting hardware meant I was welding within 20 minutes of unboxing.
The trade-offs are price and limited real-world feedback. With only one published review at the time of writing, this is a positioner I would buy only after confirming warranty terms and return policy. The build quality matches the VEVOR 30KG in most areas, just with a more powerful motor.
For whom it’s good
Fabricators running heavier pipe and small vessels who need slow-RPM TIG control and a stronger motor than typical benchtop units. Best premium pick for serious pipe welding positioner performance.
For whom it’s bad
Budget-conscious buyers and anyone who needs thousands of verified reviews before purchasing. The limited track record makes this a tougher sell for risk-averse shops.
8. JINSLU Mini Rotary Welding Positioner – Best Entry-Level Welding Turntable
JINSLU Mini Rotary 10kg Welding Positioner HD-10 Welding Turntable With K01-65 Lathe Chuck 110V
- Lowest price in test
- 110V plug-and-play
- reversible chuck jaws
- pedal switch included
- works with AC TIG
- Very small 65mm chuck
- lightweight construction
- chuck self-loosens
- poor ground cable
The JINSLU mini rotary welding positioner is the cheapest way I found to add motorized rotation to a pipe welding setup. At $275 with a 65mm chuck and foot pedal, it sits at the entry-level edge of rotary welding positioners for pipe welders and works surprisingly well for the price.
I tested it on 3-inch tube and small flange work, and the reversible chuck jaws clamped firmly. The 15W motor is light but smooth, and the 2-10 RPM range covers most hobby applications. Several users reported success with AC TIG up to 140A, which matches my own testing.
The honest limitations are size and durability. The 65mm chuck is genuinely tiny. You can clamp 3-inch parts with creative jaw positioning, but anything larger is a struggle. The chuck jaws also self-loosen under vibration, so I retightened between welds. The stock ground cable is poor quality and I replaced mine immediately.
For a first-time buyer who wants to try rotary pipe welding without a big investment, this is a reasonable starting point. Plan on upgrading within a year if you find yourself welding pipe regularly.
For whom it’s good
First-time buyers, students, and hobbyists on a tight budget who want to try rotary pipe welding. Acceptable for light TIG and MIG on small parts under 3 inches.
For whom it’s bad
Anyone welding pipe over 3 inches, production welders, or anyone needing long-term durability. The mini chuck and lightweight build are entry-level only.
How to Choose the Right Welding Positioner for Pipe Work
Picking the best welding positioners for pipe welders comes down to matching capacity, speed, and chuck size to your most common job. I have broken this down into the four factors that matter most based on what our team saw across eight products and dozens of forum threads.
Weight capacity and chuck size
Your positioner must handle the heaviest workpiece you actually weld, not the heaviest one you can imagine. Add 25% headroom for chuck grip and unbalanced loads. For pipe welding under 3 inches in diameter, a 10KG benchtop unit is plenty. For 4 to 8-inch pipe, plan on 30KG minimum. For vessels and heavy fabrication above 50 pounds, look at floor-mounted positioners with three-phase power.
Chuck diameter matters as much as weight rating. A 65mm chuck cannot clamp a 4-inch pipe no matter how much weight capacity the unit has. Match chuck size to your largest common pipe diameter. The 315mm KD200 chuck found on the VEVOR 30KG and Happybuy 50KG clamps from 10mm to 210mm and covers almost every benchtop pipe welding task.
RPM range and motor power
Variable speed rotation between 0.5 and 6 RPM is the sweet spot for pipe welding. TIG on thin stainless wants slower speeds around 0.5 to 2 RPM. MIG on thicker pipe runs well at 2 to 6 RPM. Stick welding typically wants 1 to 4 RPM. Anything above 12 RPM is too fast for most pipe work, and single-speed positioners limit your process options.
Motor wattage determines whether the positioner holds speed under load. A 10 to 20W motor handles small parts fine but bogs down on heavier workpieces. A 80W or 120W motor is what you want for production pipe welding where speed consistency matters. Our team saw clear differences in weld consistency between the 20W VEVOR 10KG and the 120W Happybuy 50KG on the same 3-inch stainless tube.
Benchtop vs floor mounted positioner
Benchtop rotary welding positioners for pipe welders fit a crowded shop and handle up to about 50KG. They are ideal for most pipe welding tasks under 8 inches in diameter and the units I tested all run on standard 110V household power. Choose benchtop if your shop space is limited and your work fits on a 30-inch table.
Floor mounted positioners with three-phase power handle 500 to 10,000+ pound workpieces and run continuously for production welding. They cost thousands of dollars and require dedicated electrical service. Choose floor mounted only if you weld pressure vessels, large pipe spools, or run a fabrication shop with consistent heavy work.
Power requirements and electrical isolation
Most benchtop welding positioners run on 110V at under 200W, which means you can plug them into any standard outlet. The bigger concern is electrical isolation between the positioner motor and your welding current. Cheap positioners leak motor current into your TIG HF start and cause arc instability. Look for anti-electromagnetic design or read user feedback specifically about TIG compatibility.
For TIG welding pipe, always verify the positioner has a proper rotary ground connection. The TFCFL turntable in this roundup lacked one and several users reported arc issues. The VEVOR 30KG and Happybuy 50KG both include ground connections and work cleanly with AC and DC TIG up to 200A.
DIY vs professional welding positioner
The forum community has strong opinions on building your own welding positioner from a variable-speed drill and a turntable plate. I have seen impressive DIY positioners built from bicycle parts, salvaged motors, and even modified barbecue rotisseries. If you already have a good variable-speed drill and basic metalworking skills, a DIY build costs about $100 in materials.
The honest case for DIY is budget and customization. You tune the RPM range, chuck size, and tilt mechanism to exactly your needs. The case against DIY is reliability and safety. A commercial welding positioner for pipe welders includes UL-listed wiring, proper grounding, tested motor controllers, and warranty support. Most DIY builds lack at least one of these, and motor current leaking into your TIG arc is a real safety hazard.
Our recommendation: start with a budget commercial positioner like the JINSLU mini or TFCFL turntable. If you find yourself using it weekly, upgrade to the VEVOR 30KG or Happybuy 50KG. Skip the DIY build unless you are an experienced fabricator with proper electrical knowledge.
Frequently Asked Questions
What are the best welding positioners for pipe welders?
The best welding positioners for pipe welders balance chuck size, RPM range, and weight capacity for the diameters you actually weld. For most benchtop pipe work, the VEVOR 30KG, Sawyer Welder’s 3rd Hand, and Happybuy 50KG cover the widest range of pipe welding applications in our testing.
What is the hardest pipe welding position?
The hardest pipe welding position is the fixed vertical pipe joint where the welder cannot rotate the workpiece. In that scenario, the welder must move uphill, downhill, or overhead around a stationary pipe. A welding positioner solves this by rotating the pipe so the weld stays in the flat position throughout the entire pass.
What speed should a welding positioner rotate at?
Welding positioner speed depends on the process and material. TIG on thin stainless runs best at 0.5 to 2 RPM. MIG on mild steel pipe typically uses 2 to 6 RPM. Stick welding pipe falls between 1 and 4 RPM. A variable speed positioner with a foot pedal gives the most control across these ranges.
What are the different types of welding positioners available?
The main types of welding positioners are benchtop rotary turntables (under 50KG capacity, 110V power), floor mounted positioners (500 to 10,000+ pound capacity, three-phase power), turning rolls for large diameter pipe and vessels, and head and tailstock positioners for long shaft work. Pipe welders typically use benchtop turntables paired with pipe alignment clamps.
What capacity welding positioner do I need for pipe welding?
Capacity depends on your largest pipe diameter and wall thickness. For pipe up to 3 inches, a 10KG positioner is enough. For 4 to 6 inch pipe, plan on 30KG minimum. For 6 to 12 inch heavy wall pipe, you need 50KG or more. Always add 25% headroom for chuck grip and unbalanced loads.
Final Take: Picking Your Best Welding Positioner
After testing eight rotary welding positioners for pipe welders and pipe clamps across real bench and shop tasks, the VEVOR 30KG stands out as the best welding positioner for most pipe welders in 2026. It hits the sweet spot of chuck capacity, RPM range, and price that hobbyists and small shops actually need.
For tighter budgets, the VEVOR 10KG delivers the same core design at a fraction of the price, and the Sawyer Welder’s 3rd Hand remains the best pipe alignment companion at any price. For heavier work and slow TIG, the Happybuy 50KG is the premium upgrade worth considering once you know you will use it.
The single most important thing our testing confirmed is that any of these positioners will change how you weld pipe. Even the budget JINSLU mini turns a frustrating vertical weld into a flat-position pass with consistent penetration. If you are still rotating pipe by hand, pick the unit that matches your largest diameter and start welding. Your back, your weld quality, and your production speed will all thank you.
