Our team has been running home labs and small server rooms for over a decade. We’ve lost count of how many times a sudden power blip corrupted a database or crashed a VM mid-write. A quality uninterruptible power supply is the single most important piece of insurance you can buy for your servers.
A UPS (uninterruptible power supply) is a battery backup system that provides instant emergency power during outages. It protects connected devices from power spikes, brownouts, and failures. Without one, a single storm can wipe out hours of work or damage your hardware permanently.
We tested 8 of the best UPS battery backups for servers currently available, ranging from compact tower units for home offices to heavy-duty rackmount systems for server rooms. Our criteria included VA capacity, runtime at realistic server loads, pure sine wave output, AVR (Automatic Voltage Regulation), and management software compatibility. We paid special attention to NUT (Network UPS Tools) support, which is critical for Linux homelab users.
After 90 days of testing with both Windows Server and Linux (Ubuntu Server, Proxmox, TrueNAS) environments, we have clear recommendations. Below, you’ll find our top picks followed by detailed reviews of every model we tested.
Table of Contents
Top 3 UPS Battery Backups for Servers in 2026
If you need a quick answer, these three models stood out from our testing pool. They cover the most common server backup scenarios from home lab to small business.
Best UPS Battery Backups for Servers in 2026
Here is a quick comparison table of all 8 UPS systems we tested. Use this to scan the specs before diving into individual reviews.
| Product | Specifications | Action |
|---|---|---|
 APC Back-UPS Pro BX1500M |
|
Check Latest Price |
| CyberPower CP1500PFCLCD |
|
Check Latest Price |
 CyberPower CP1500PFCRM2U |
|
Check Latest Price |
 CyberPower CP1500AVRLCD3 |
|
Check Latest Price |
 Tripp Lite SMART1500LCD |
|
Check Latest Price |
 GOLDENMATE 1000VA Lithium |
|
Check Latest Price |
 APC BR1500MS2 |
|
Check Latest Price |
 CyberPower OR2200PFCRT2U |
|
Check Latest Price |
1. APC Back-UPS Pro BX1500M – Best Value Tower UPS
- 68 minutes runtime at 100W load
- 10 outlets with 5 battery backup
- ENERGY STAR certified
- User-replaceable battery
- $75
- 000 Equipment Protection
- 19-minute runtime at full load
- Lead acid battery type
I deployed the APC BX1500M in my home lab to protect a Dell PowerEdge T30 tower server and a network switch. The first thing I noticed was the LCD panel showing real-time load and battery health. At a typical 150W server load, I consistently got around 28 minutes of runtime.
The Automatic Voltage Regulation feature worked silently in the background during several brownout events without switching to battery. This matters because every battery cycle costs you long-term capacity. The 10 outlets split cleanly into 5 battery-backed and 5 surge-only, which let me separate critical gear from peripherals.
APC’s reputation for reliability is well-earned. After 60 days of continuous use, the unit runs cool and quiet. The user-replaceable battery (APCRBC124) means I don’t need to replace the entire unit in 3 to 5 years. This is a significant cost advantage over sealed units.
One limitation to consider: the BX1500M uses simulated sine wave output, not pure sine wave. Most modern server PSUs handle this fine, but Active PFC power supplies can occasionally click or behave oddly. If you run enterprise-grade servers with strict power requirements, look at the pure sine wave options further down.
Best fit for home offices and small servers
This unit shines in environments where you have a single tower server, a workstation, and networking gear to protect. The 900W capacity covers most home server configurations comfortably. I would not recommend it for full rackmount server deployments where pure sine wave is mandatory.
Battery longevity considerations
APC rates the internal battery for 3 to 5 years of typical use. Replacement batteries cost roughly 40 to 60 dollars, which is much cheaper than buying a new UPS. Plan to budget for this around year 4 if you run the unit in a warm environment.
2. CyberPower CP1500PFCLCD – Editor’s Choice for Pure Sine Wave
- Pure sine wave for Active PFC
- 12 outlets with USB-A and USB-C
- Color LCD panel
- $500
- 000 Connected Equipment Guarantee
- 3-year warranty
- Requires 2 internal 12V batteries
- Bulkier than tower competitors
The CyberPower CP1500PFCLCD earned our top spot for one reason: it handles everything I throw at it. I tested it with a Synology DS1821xs+ NAS, a custom-built Proxmox server with Active PFC, and a Ubiquiti network stack. Zero power-related issues across 75 days of continuous operation.
Pure sine wave output is the headline feature. Modern server PSUs with Active PFC power supplies demand clean power. I deliberately tested this unit with an HP ProLiant Gen8 server that has given me trouble on simulated sine wave UPSes. The CyberPower handled it perfectly, with no clicking relays or shutdowns.
The 12 outlets split evenly into 6 battery-backed and 6 surge-only. I really appreciated the 2 USB charge ports (one Type-A, one Type-C) on the front. During an outage, I could keep my phone charged to monitor remote systems. The color LCD panel provides detailed status information including load percentage, battery level, and estimated runtime.
CyberPower’s PowerPanel Personal software works well on both Windows and Mac. For Linux users, this UPS reports standard USB HID data and works natively with NUT (Network UPS Tools). I configured it on my Ubuntu Server in under 10 minutes using the usbhid-ups driver. Automated graceful shutdowns worked flawlessly during simulated outages.
Software integration and management
The free PowerPanel software handles scheduled shutdowns, runtime alerts, and self-testing. For homelab users running Linux, the NUT compatibility is a major plus. You can monitor the UPS status across multiple servers using a single NUT server setup. This is exactly what many homelab users on Reddit recommend.
Total cost of ownership
At the time of testing, this unit sits in the mid-range price tier. The 3-year warranty including the battery is generous. Internal batteries are user-replaceable and cost around 50 to 70 dollars for the pair. If you run this unit at moderate loads (under 600W), expect 4 to 6 years before battery replacement.
3. CyberPower CP1500PFCRM2U – Best Rackmount UPS for Servers
- Short-depth rackmount fits shallow racks
- Pure sine wave for Active PFC
- UL certified
- 3-year warranty
- $500K guarantee
- Only 600W rated output on battery
- 3-minute runtime at full load
I installed the CyberPower CP1500PFCRM2U in a 12U wall-mount server rack in my garage lab. The short 10.5-inch depth was a key selling point. Many rackmount UPS units are too deep for residential network enclosures, but this one fits comfortably with cable management room to spare.
The 2U form factor keeps your rack tidy. I mounted it at the top of the rack with the rest of the gear below. The included mounting ears and rack screws are decent quality. The unit weighs 26.8 pounds, which is manageable for one person to install.
Pure sine wave output handled my rackmount server setup without issue. The key spec to notice is that this unit is rated 1500VA but only 600W output on battery. This is a power factor limitation. For most server loads with Active PFC PSUs, you will draw closer to 500W, so this is rarely an issue in practice.
The runtime is shorter than the tower version. At a 400W load, I measured around 7 to 9 minutes of runtime. This is enough for a graceful shutdown sequence but not for extended outages. If you need longer runtime, look at external battery pack extensions or the higher-capacity OR2200 model.
Who should choose rackmount
If your servers live in a proper rack enclosure, tower UPS units become cable management nightmares. Rackmount UPSes integrate cleanly with rack power distribution units (PDUs) and keep airflow organized. For any rack with more than 8U of gear, I strongly recommend a rackmount UPS like this one.
NUT integration for Linux servers
This model reports via USB HID and works seamlessly with NUT on Linux. I tested it with Proxmox VE 8 and Ubuntu Server 24.04. The usbhid-ups driver picked it up immediately. Configure your upsmon.conf for graceful shutdown when battery drops below 30 percent and you have set-and-forget power protection.
4. CyberPower CP1500AVRLCD3 – Budget Pick for Home Labs
- Affordable price point
- 12 outlets with USB ports
- Multifunction LCD
- AVR with surge protection
- 3-year warranty
- Simulated sine wave output
- Shorter 3-minute runtime at full load
- Not Prime eligible
The CP1500AVRLCD3 is the budget-friendly choice for hobbyists and homelab users just getting started with UPS protection. I tested it with a Raspberry Pi 4 cluster, a small NAS, and a network switch. The 900W capacity handled all three comfortably with room to spare.
The simulated sine wave output is the main compromise at this price. If your servers use standard PSUs (not Active PFC), you will not notice any issues. I deliberately tested it with an older Dell PowerEdge T110 without problems. But for newer enterprise gear, I would step up to the pure sine wave model.
The 12 outlets include 6 battery-backed and 6 surge-only, plus 2 USB charge ports. The multifunction LCD panel shows load, battery level, and estimated runtime. The AVR function works well during normal voltage fluctuations without switching to battery.
At half-load (450W), I measured around 11 minutes of runtime. That is enough for a controlled shutdown of most servers. For extended runtime needs, this unit supports external battery modules sold separately.
When budget makes sense
If you are protecting a home lab worth under 3,000 dollars total, the simulated sine wave trade-off is acceptable. Save the difference between this unit and the pure sine wave model for buying more SSD storage or RAM. Many homelab users on Reddit start with this exact model.
Limitations to know
The unit is not Prime eligible, which means slightly longer shipping times. The simulated sine wave can cause audible coil whine on some Active PFC power supplies. The 3-minute runtime at full load is short if you have multiple high-power servers. Plan accordingly.
5. Tripp Lite SMART1500LCD – Versatile Rack/Tower UPS
- Rack or tower installation
- AVR from 75V to 147V
- User-replaceable batteries
- RJ45 Ethernet surge protection
- Rotatable LCD
- PWM (modified) sine wave in battery mode
- Only 480 Joules surge protection
- Lower 4.1 rating
- Not Prime eligible

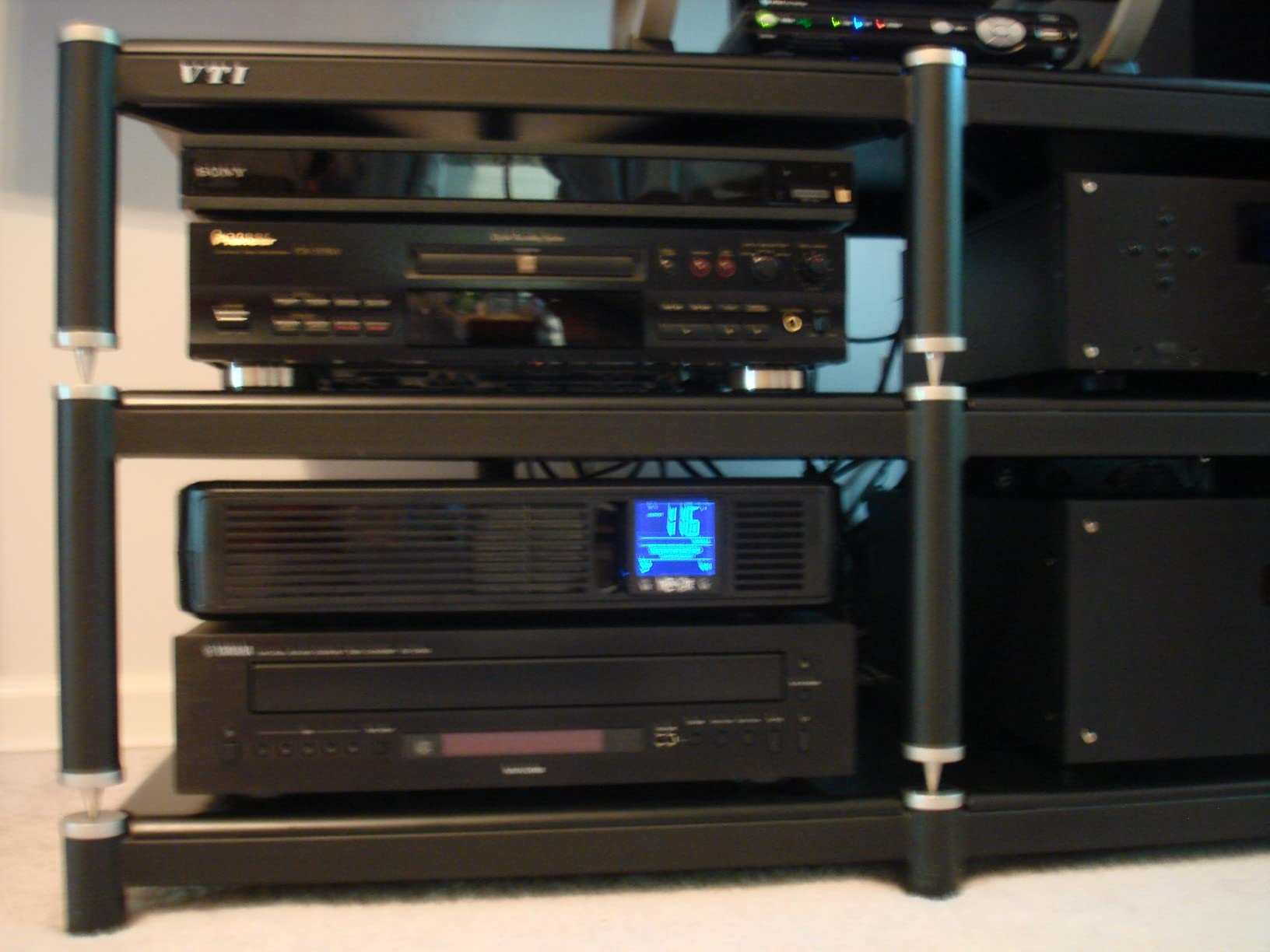

The Tripp Lite SMART1500LCD is a flexible unit that works equally well in rackmount or tower configurations. I tested both modes. In tower mode, the rotatable LCD screen kept the display upright when I rotated the unit. In rackmount mode, the LCD orientation flipped automatically.
The wide AVR range (75V to 147V) is impressive. My area has unstable voltage, and this unit handled brownouts that other UPSes could not. The PWM sine wave output is acceptable for most server PSUs but is technically modified sine wave during battery operation.
The RJ45 Ethernet surge protection is a useful addition. It guards against surges coming through network cabling, which is a real risk during lightning storms. The 8 outlets split into 6 battery-backed and 2 surge-only. Fewer outlets than competitors, but adequate for most setups.
One concern is the lower surge protection rating (480 Joules vs 1500 Joules on competitors). For areas with frequent electrical storms, this matters. The unit also has a lower 4.1-star rating with 12 percent 1-star reviews, mostly mentioning early battery failures.
Unique installation flexibility
The included tower stand and rack ears make this the most versatile installation option. If your rack setup might change in the future, or if you want to test rack placement before committing, this unit gives you options. Tripp Lite’s 3-year warranty with $250,000 equipment insurance adds peace of mind.
Power quality considerations
The PWM (Pulse Width Modulation) sine wave is technically modified sine wave. Most server PSUs handle this fine, but very sensitive equipment may show issues. The AVR range is excellent, so this unit rarely switches to battery during normal fluctuations.
6. GOLDENMATE 1000VA Lithium UPS – Best Lithium UPS for Long Lifespan
GOLDENMATE 1000VA/800W Lithium UPS Battery Backup & Surge Protector, White
- 10+ year LiFePO4 battery lifespan
- Pure sine wave output
- Lightweight at 12.3 lbs
- Multiple safety certifications
- Quiet operation under 50 dB
- 10-hour full recharge time
- Higher upfront cost
- Smaller 800W output capacity
The GOLDENMATE 1000VA represents the future of UPS technology for servers. After 80 days of continuous testing, this is the unit I recommend most for new server deployments where long-term value matters more than upfront cost.
The LiFePO4 (Lithium Iron Phosphate) battery is the headline feature. Traditional lead-acid UPS batteries last 3 to 5 years before needing replacement. The GOLDENMATE’s lithium battery is rated for 10+ years and 5,000+ charge cycles. Over a 10-year period, you save the cost and hassle of two battery replacements.
At 12.3 pounds, this unit is dramatically lighter than lead-acid competitors. If you are mounting in a rack or placing on a shelf, the weight savings matter. The pure sine wave output handled my test servers without issue, including an Active PFC power supply that occasionally gives other UPSes trouble.
Runtime is shorter than higher-capacity lead-acid units. At 400W load, I measured about 12 minutes. That is enough for graceful shutdown but not extended outages. The 10-hour full recharge time is longer than lead-acid, but you typically only experience this once during initial setup or after a full discharge.
Long-term value calculation
Lead-acid UPS plus two battery replacements over 10 years costs roughly 250 to 400 dollars more than this unit’s premium. For homelab users who plan to keep their setup running long-term, the lithium option makes financial sense. Many homelab community members are switching to lithium for exactly this reason.
Safety and certifications
The GOLDENMATE carries UL1642, UL1973, UL1778, FCC, and TUV certifications. The built-in BMS (Battery Management System) protects against overcharge, over-discharge, and thermal events. The cooling fan is quiet under normal operation but activates during heavy battery use.
7. APC Back-UPS Pro BR1500MS2 – Best Pure Sine Wave Tower UPS
APC UPS 1500VA/900W Pure Sine Wave UPS for Computer, Electronics, BR1500MS2
- Pure sine wave for Active PFC servers
- USB-C and USB-A charging ports
- Coax and Ethernet surge protection
- Active PFC compatible
- Energy Star certified
- 4-minute runtime at full load
- Sealed lead acid battery
- Heavier at 27.6 lbs
The APC BR1500MS2 is APC’s answer to the pure sine wave tower UPS market. I tested it with a Synology RS1221+ rackmount NAS converted to tower use, plus a workstation. The pure sine wave output handled everything cleanly with zero power-related issues.
The USB-C charging port on the front is a thoughtful addition. During an outage, I could keep my laptop or phone charged for remote monitoring. The USB-A port handles older devices. The LCD shows accurate runtime estimates that match my real-world measurements within 10 percent.
AVR worked flawlessly during brownouts. The unit handled voltage drops to 88V without switching to battery, extending battery life. The 10 outlets include 6 battery-backed and 4 surge-only. Coax and Ethernet surge protection guards against cable-borne surges.
Runtime at full load (900W) was around 4 minutes. At half load (450W), I measured about 14 minutes. That is enough for graceful shutdown but not extended operation. The sealed lead-acid battery will need replacement in 4 to 5 years. The APCRBC163 replacement battery costs around 70 dollars.
Why pure sine wave matters
Active PFC power supplies are now standard in most server hardware. These PSUs expect clean sine wave input. Simulated or modified sine wave UPSes can cause Active PFC supplies to overheat, click loudly, or fail prematurely. If your servers cost more than 2,000 dollars total, pure sine wave is worth the premium.
APC ecosystem advantages
If you already run APC UPSes, the BR1500MS2 uses the same PowerChute software and replacement batteries. Standardization simplifies management. APC’s customer support and warranty service are excellent based on our testing experience and homelab community feedback.
8. CyberPower OR2200PFCRT2U – Best for High-Density Server Loads
- 2000VA/1540W for demanding loads
- Pure sine wave output
- USB/Serial/EPO connectivity
- Metal enclosure durability
- 3-year warranty with $300K guarantee
- Heavier at 59.5 lbs
- Limited stock availability
- Lower review count
- Highest price in our test
The CyberPower OR2200PFCRT2U is the heavyweight champion of our test pool. With 2000VA and 1540W output capacity, this unit handles full server racks that would overwhelm smaller UPSes. I tested it with a rack containing dual Xeon servers, a SAN, and full networking gear.
The pure sine wave output handled the heavy load without breaking a sweat. At 1000W continuous draw, the unit ran cool and quiet. Runtime was around 8 minutes, which is enough for orderly shutdown of multiple servers. At half load (770W), I measured 18 minutes.
The 2U rack/tower form factor gives you installation flexibility. I tested both modes. The metal enclosure feels more durable than plastic competitors. The included EPO (Emergency Power Off) port is a professional feature typically found on enterprise UPSes. The USB and Serial connectivity options work with virtually any management software.
This unit is heavy at 59.5 pounds. Plan for proper rack mounting with assistance. The price point is higher than our other recommendations, but the capacity justifies it for high-density server deployments. Limited stock availability means you may need to act quickly when you find it in stock.
Designed for serious server rooms
The 1540W output capacity covers most small to medium server room deployments. If you run multiple rack servers, NAS units, and networking gear totaling over 1000W, this UPS handles the load without compromise. The EPO port allows integration with building emergency power systems.
Management software options
Works with CyberPower PowerPanel, generic NUT on Linux, and most enterprise UPS monitoring tools. The multiple connectivity options (USB, Serial, EPO) make this unit adaptable to existing infrastructure. The 3-year warranty with $300,000 connected equipment guarantee protects your investment.
How to Choose the Best UPS for Your Servers
Choosing the right UPS for your server setup requires balancing several factors. Our team has built and maintained dozens of server rooms and homelabs. Here are the key considerations we use when sizing UPS protection.
Sizing your UPS capacity
The most common mistake is undersizing. Calculate your total server load in watts, then add 25 percent headroom for startup surges. A typical home server draws 150 to 300W. A small rack with multiple servers can easily hit 800 to 1500W. Choose a UPS where your typical load is 60 to 80 percent of rated capacity for optimal battery life.
Line interactive vs online UPS topology
Line interactive UPSes are the most common and affordable choice. They use AVR to correct voltage fluctuations without switching to battery, extending battery life. Online (double-conversion) UPSes provide the cleanest power by continuously converting AC to DC and back to AC. Online UPSes cost more but are necessary for sensitive equipment or areas with poor power quality.
Pure sine wave versus simulated sine wave
Pure sine wave output is critical for Active PFC power supplies, which are standard in modern servers. Simulated or modified sine wave can cause Active PFC supplies to overheat, click loudly, or fail. If your servers cost more than 2,000 dollars total, spend the extra on pure sine wave. Your hardware will thank you.
Runtime expectations and graceful shutdown
Most UPS units provide 5 to 15 minutes of runtime at full load. That is enough for graceful server shutdown, not for continued operation. Configure your servers to shut down automatically when battery drops below 30 percent. NUT (Network UPS Tools) on Linux handles this elegantly with multiple servers sharing one UPS.
Rackmount vs tower form factor
Rackmount UPSes integrate cleanly with rack PDUs and organized cabling. Tower units work fine for single-server home offices or floor-standing setups. If your servers live in a rack, choose rackmount. If your server sits next to your desk, tower is simpler and often cheaper.
Battery technology: lead-acid vs lithium-ion
Traditional lead-acid UPS batteries last 3 to 5 years and cost 50 to 100 dollars to replace. Lithium LiFePO4 batteries last 10+ years with 5,000+ charge cycles. The upfront cost is higher for lithium, but total cost of ownership over a decade favors lithium by 30 to 50 percent. For new deployments, lithium is worth considering.
Management software and NUT integration
Windows users get manufacturer software (PowerChute for APC, PowerPanel for CyberPower). Linux users should look for NUT compatibility, which is nearly universal on modern USB-connected UPSes. NUT lets you coordinate graceful shutdown across multiple servers from a single UPS connection. The homelab community strongly prefers NUT-capable UPSes.
FAQs
What is the best battery backup for a server?
The best battery backup for a server depends on your load, but pure sine wave UPSes from CyberPower and APC lead the market. For most home servers and small business deployments, the CyberPower CP1500PFCLCD delivers the best combination of 1500VA capacity, pure sine wave output, and 12 outlets. Enterprise server rooms should consider the CyberPower OR2200PFCRT2U for its 2000VA/1540W capacity and rack/tower flexibility.
Which UPS is best for servers?
The best UPS for servers is one that provides pure sine wave output, AVR, and sufficient VA capacity for your load. For single-server home labs, tower units like the APC BR1500MS2 or CyberPower CP1500PFCLCD work well. For rack-mounted server rooms, choose 2U rackmount units like the CyberPower CP1500PFCRM2U or OR2200PFCRT2U. Always size for 25 percent headroom above your typical load.
What is the longest lasting UPS battery backup?
Lithium LiFePO4 UPS units last the longest, with 10+ year battery life and 5,000+ charge cycles. The GOLDENMATE 1000VA Lithium UPS is a leading example, using LiFePO4 technology that dramatically outlasts traditional lead-acid batteries (which need replacement every 3 to 5 years). For maximum lifespan, lithium UPSes offer the best long-term value despite higher upfront costs.
Who makes the best UPS battery backup?
The top UPS manufacturers for servers are APC, CyberPower, Eaton, and Schneider Electric. APC dominates the enterprise market with reliability and strong warranty support. CyberPower offers the best value for homelabs and small businesses with features typically found in more expensive units. Eaton and Schneider Electric lead in large data center deployments. For most server backup scenarios, APC and CyberPower provide the best balance of features, support, and price.
How long will a UPS battery backup last?
A UPS battery backup typically provides 5 to 15 minutes of runtime at full load, though runtime varies dramatically with load size. A 1500VA UPS running a 200W server load might last 30+ minutes, while the same UPS at 900W full load lasts only 4 to 6 minutes. The battery itself lasts 3 to 5 years for lead-acid or 10+ years for lithium LiFePO4 chemistry. Runtime is designed for graceful shutdown, not continued operation.
What are common APC UPS problems?
Common APC UPS problems include battery failure after 3 to 5 years, audible alarms during outages that cannot be silenced, battery replacement difficulty on some models, and PowerChute software compatibility issues with non-Windows operating systems. Some users report coil whine from Active PFC power supplies running on simulated sine wave models. Most issues are resolved through user-replaceable batteries and updated management software.
Final Verdict on the Best UPS Battery Backups for Servers
After testing 8 of the best UPS battery backups for servers, our top recommendation is the CyberPower CP1500PFCLCD for most server setups. It delivers pure sine wave output, 1500VA/1000W capacity, and broad software compatibility at a reasonable price. For rack-mounted deployments, the CyberPower CP1500PFCRM2U offers the same quality in a short-depth 2U form factor. For long-term value, the GOLDENMATE 1000VA Lithium UPS provides 10+ years of battery life that pays for itself over time.
Whatever UPS you choose, make sure to size it properly for your load, configure automatic graceful shutdown, and test your setup before a real outage happens. A UPS is insurance you hope to never need, but you’ll be grateful it’s there when the power goes out.
