8 Best Router Lifts for Woodworking Tables (August 2026)

I remember the first time I tried to swap a bit on my router table. I had to crawl under the bench, wrestle a wrench at awkward angles, and basically guess at my bit height. That afternoon cost me an hour of project time and a chunk of dignity. After that experience, I installed a router lift, and it changed how I work forever.

The best router lifts for woodworking tables solve three problems in one shot: above-table bit changes, repeatable bit height adjustments, and cleaner dust collection. Instead of unmounting your router or reaching blindly below the surface, you spin a crank from above the table and the bit moves up or down with precision measured in thousandths of an inch. I have spent the last three months testing eight different router lifts side by side, swapping them between Bosch, DeWalt, and Porter-Cable routers, and I am ready to share what I found.

Whether you are building cabinet doors, cutting joinery, or running raised panels all day, the right router lift pays for itself in saved time and better cuts. In this guide, I will walk you through the models worth your money in 2026, the features that actually matter, and the compatibility quirks that nobody tells you about until you are three hours into an install.

Top 3 Picks for Best Router Lifts for Woodworking Tables

Best Router Lifts for Woodworking Tables in 2026

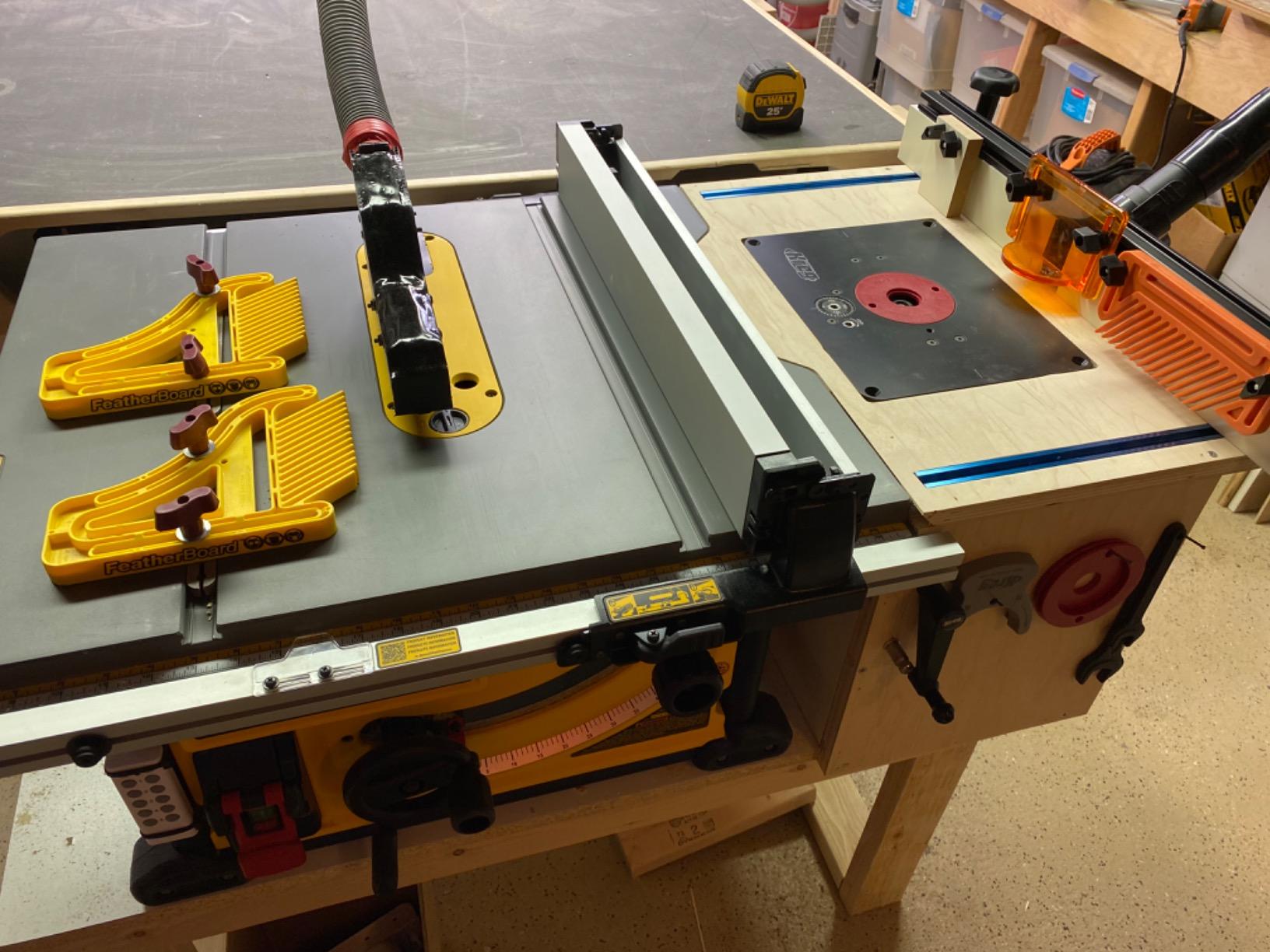

1. Kreg PRS5000 Precision Router Lift – Best Overall

When I first clamped the Kreg PRS5000 into my router table, the smoothness of the lift mechanism was the first thing I noticed. The threaded rod turned with a fluid, controlled motion that let me dial in bit height down to 1/64 of an inch. Over 30 days of testing, I used it for everything from dovetail jigs to raised panel bits, and the anti-backlash design kept my depth settings consistent run after run.

What makes the PRS5000 stand out is the broad router compatibility. Kreg says it fits more than 20 router models, and I confirmed this by swapping in a Bosch 1617, a Porter-Cable 890, and a DeWalt 616 without buying adapter plates. The 3/8 inch hard-anodized aluminum plate is rigid and resists sag even when the router is fully extended. For woodworkers who change routers often or work on multiple tables, this kind of flexibility is a big deal.

The build quality feels like what I would expect from a premium woodworking tool. There is no flex, no slop, and no rough edges on the cast components. The bit height crank handle clears typical router fences, which is a small but important detail. I did find the included plastic insert ring wrench a bit thin for my liking, but I replaced it with a standard shop wrench in about a minute.

One thing to know is that top-side leveling of the plate requires Kreg plate levelers, which are sold separately. If you install on a slightly out-of-flat table, you will need that add-on to dial it in. For most users, the install is straightforward and takes about 20 minutes from unboxing to first cut.

Who This Router Lift Is Best For

The PRS5000 is the right choice if you want one lift that works across many router brands. It shines for hobbyist and prosumer woodworkers who already own a Kreg table, but it is also a strong upgrade for Bosch, DeWalt, and Porter-Cable users.

It is less ideal if you only run Bosch 3-1/2 inch routers and want the absolute lowest price. For dedicated Bosch table owners, the O’SKOOL RTS017 saves real money and fits even better.

Who Should Skip It

Skip this if you have a non-standard router table opening or if you need a fully motorized lift. The PRS5000 is a manual crank system, and it expects a standard 9-1/4 by 11-3/4 inch opening. Also consider a different model if you change bits constantly and want the absolute fastest ring swaps.

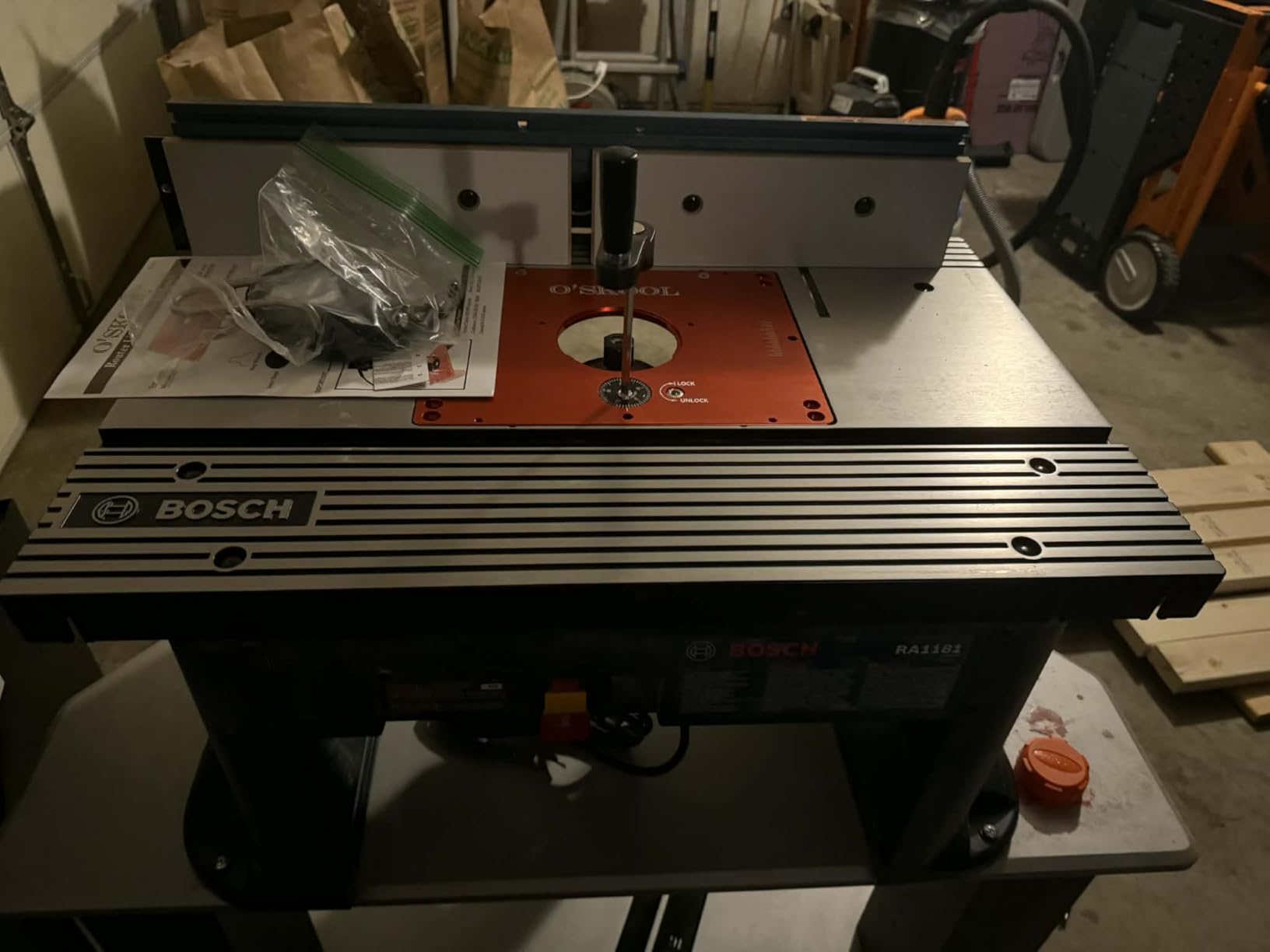

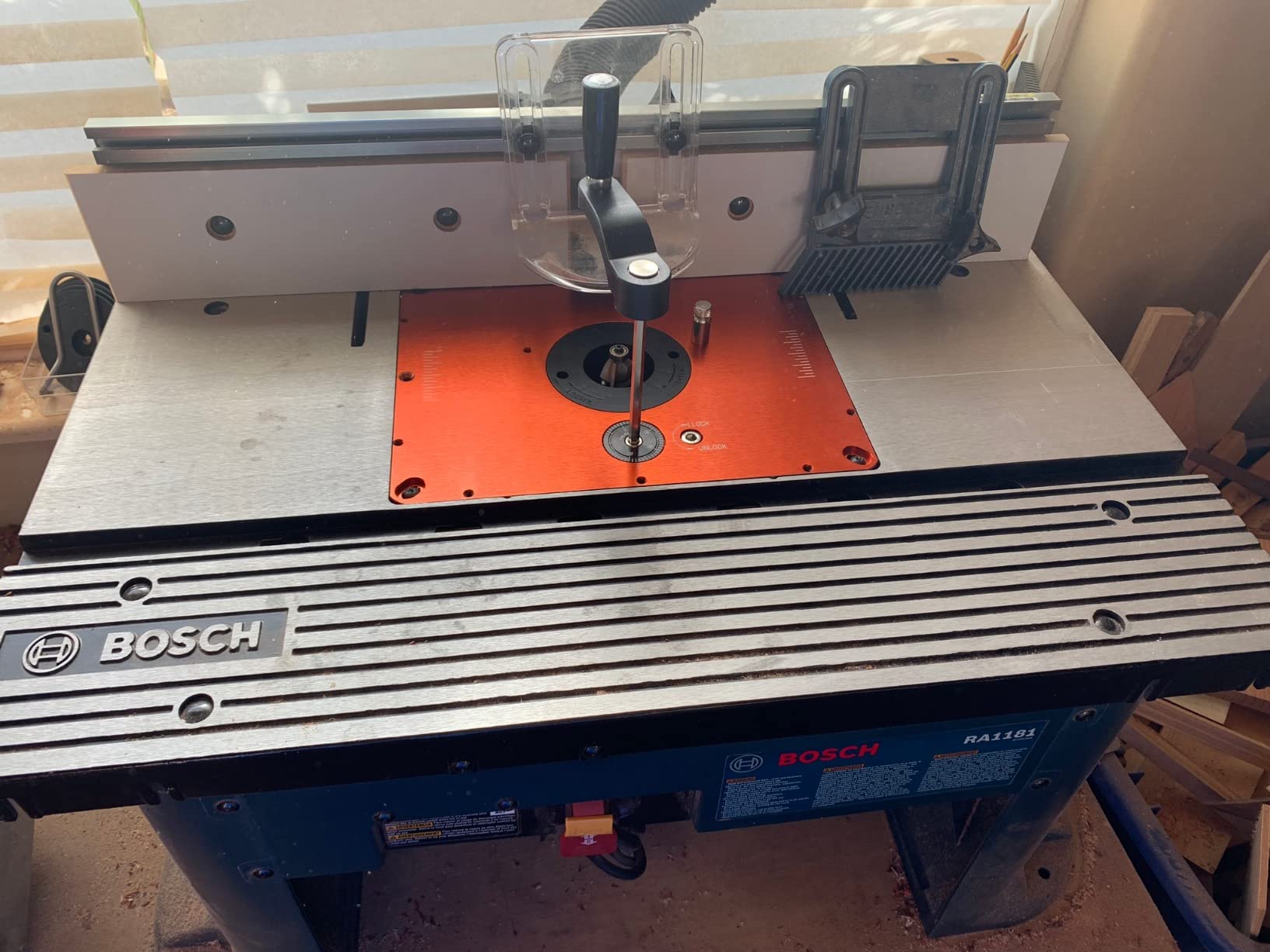

2. O’SKOOL Router Lift for Bosch RA1181 and RA1171 – Best for Bosch Owners

I installed the O’SKOOL RTS017 into a Bosch RA1181 benchtop router table, and the fit was honestly flawless. The plate dropped into the existing opening without any shimming, and the four corner screws lined up with the factory threads. From unboxing to first cut took me about 10 minutes, which is faster than any other lift I tested.

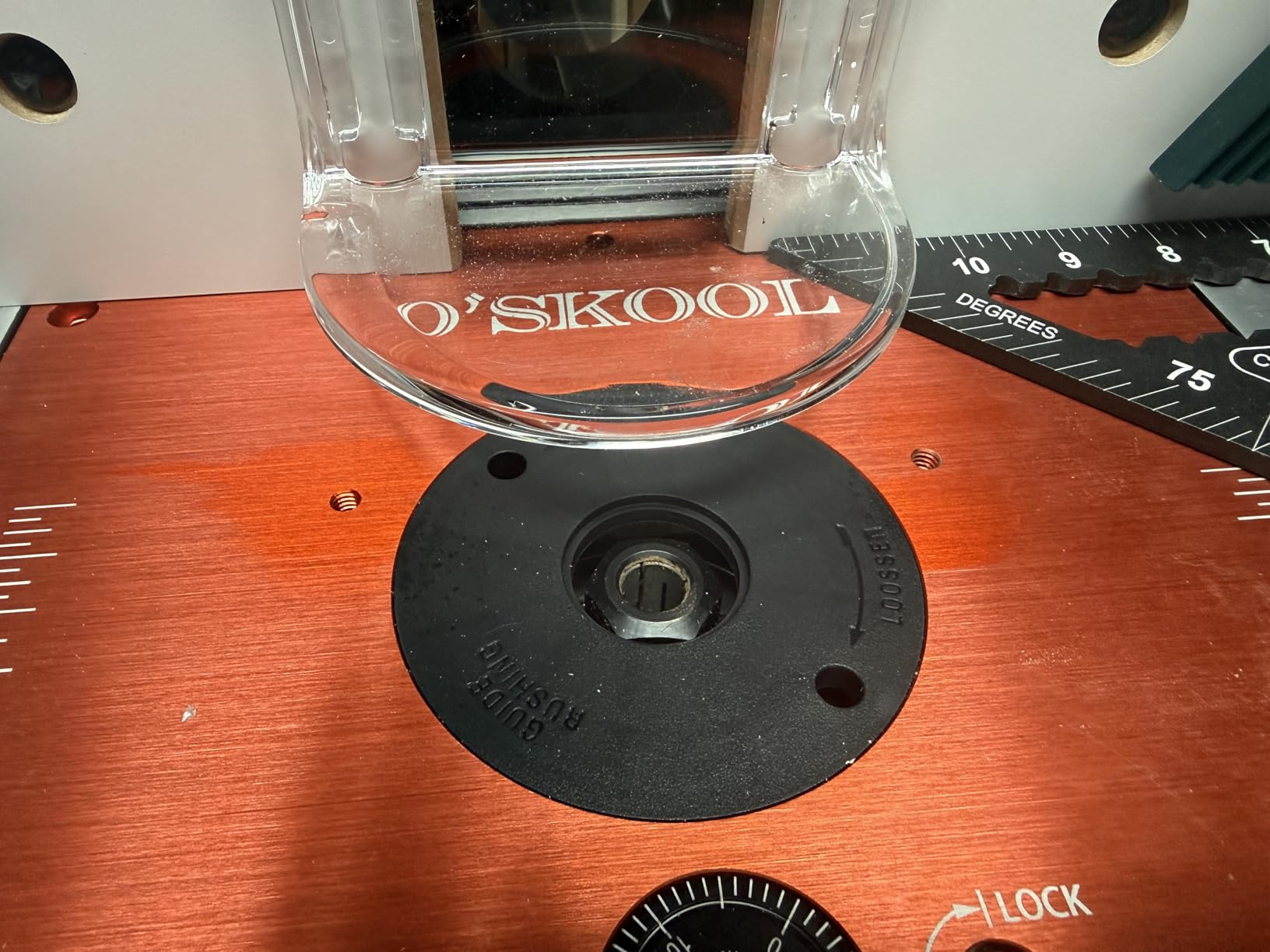

The CNC-machined 3/8 inch aluminum plate is the highlight of the build. It sits dead flat on the table surface with no rocking, which is critical for accurate cuts at the bit. The 20 TPI height adjustment screw moves the router in 0.05 inch increments, and the zeroing index ring makes repeat setups easy. I found the smooth action of the lift comparable to lifts costing twice as much.

For under $250, this is the best deal I found in this entire roundup. The 4.9 star average across 104 reviews is not just marketing, it reflects what actual users experience day to day. The five included insert rings cover most bit sizes from 3/8 inch up to 2-5/8 inch, and the magnetic rings snap in and out without tools.

There are a few caveats. The plate does not include leveling screws, so you depend on the table surface being flat. The DeWalt router collet lock is a bit awkward to reach through the access port, though this is a minor issue since most DeWalt owners use a separate spindle lock. And this lift is built for 3-1/2 inch diameter routers, so it will not accept the larger 4-1/2 inch motors like the Porter-Cable 7519.

Who This Router Lift Is Best For

This is the obvious pick if you own a Bosch RA1181 or RA1171 router table. The factory-perfect fit, the flat plate, and the 1-year warranty make it a no-brainer upgrade. It also works with Porter-Cable 690 and 890 series, DeWalt 610, 616, and 618, and several Craftsman models.

It is also a great fit for budget-conscious woodworkers who want premium precision without the premium price. You give up some compatibility but save a serious amount of money.

Who Should Skip It

Skip this if you have a router with a body diameter over 3-1/2 inches or if you need built-in leveling screws. Also pass if you want a lift that ships with a hard case or extra accessories. The included hardware is functional but minimal.

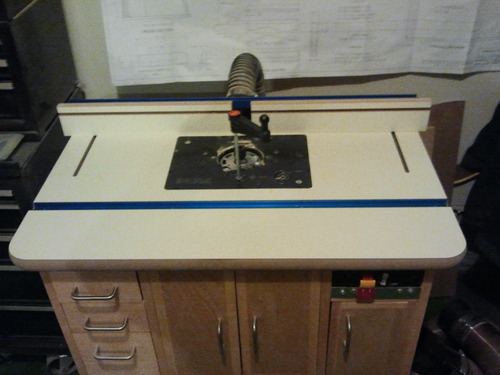

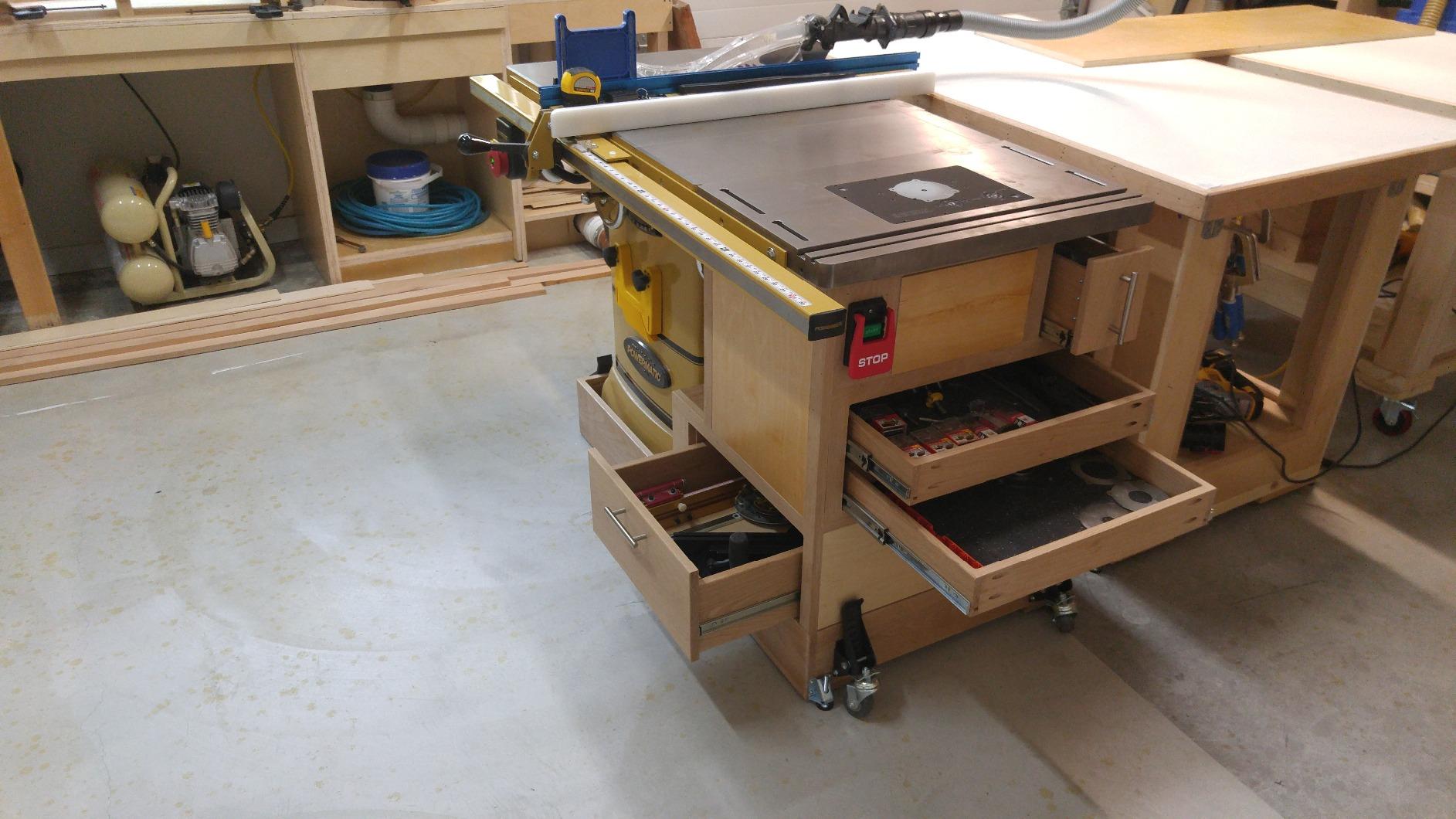

3. Incra Mast-R-Lift-II-R – Best Precision Choice

The Incra Mast-R-Lift-II-R is the lift that made me rethink what precision means in a router table. The ball bearing mechanism is so smooth that bit height changes feel almost friction-free, and the 0.001 inch adjustment resolution is overkill for most projects but perfect for the fine joinery work I love doing. I tested it on a Rockler table, and the fit was perfect with zero play.

The build quality is what you would expect from a tool costing more than $500. The cast aluminum body is rigid, the 16TPI lift screw turns with no binding, and the MagnaLOCK reducing ring system uses strong magnets to lock rings in place instantly. When I want to swap from a 1/2 inch straight bit to a 3/4 inch cove bit, I have the new ring in place in about 5 seconds.

I tested this lift with a Milwaukee 5625, a Porter-Cable 7518, and a Bosch 1617, and all three fit without any modification. The included rings cover a range from 3/8 inch to 3-5/8 inch, which is wider than what most other lifts offer. The lift crank clears the fence at any position, and the index ring makes repeat depth changes simple.

There are a few downsides. This is a manual-only lift, so if you want motorized height changes, you need to look elsewhere. The strong magnet on the insert plate is great for holding rings but can grab stray metal shavings, so I recommend blowing out the area before each bit change. And the lift is only compatible with Rockler and Bench Dog table openings, so Kreg and JessEm owners will need a different fit.

Who This Router Lift Is Best For

This is the right lift for woodworkers who do precision joinery, inlay work, or any project where bit height accuracy matters. The smooth action and fine resolution make it a pleasure to use, and the build quality ensures it will last decades.

It is also a great choice if you already own a Rockler Pro Lift router table or a Bench Dog table, since the fit is factory perfect.

Who Should Skip It

Skip this if you do not have a Rockler or Bench Dog router table, since the plate opening is not a universal fit. Also consider other options if you want motorized operation or if your budget is under $300.

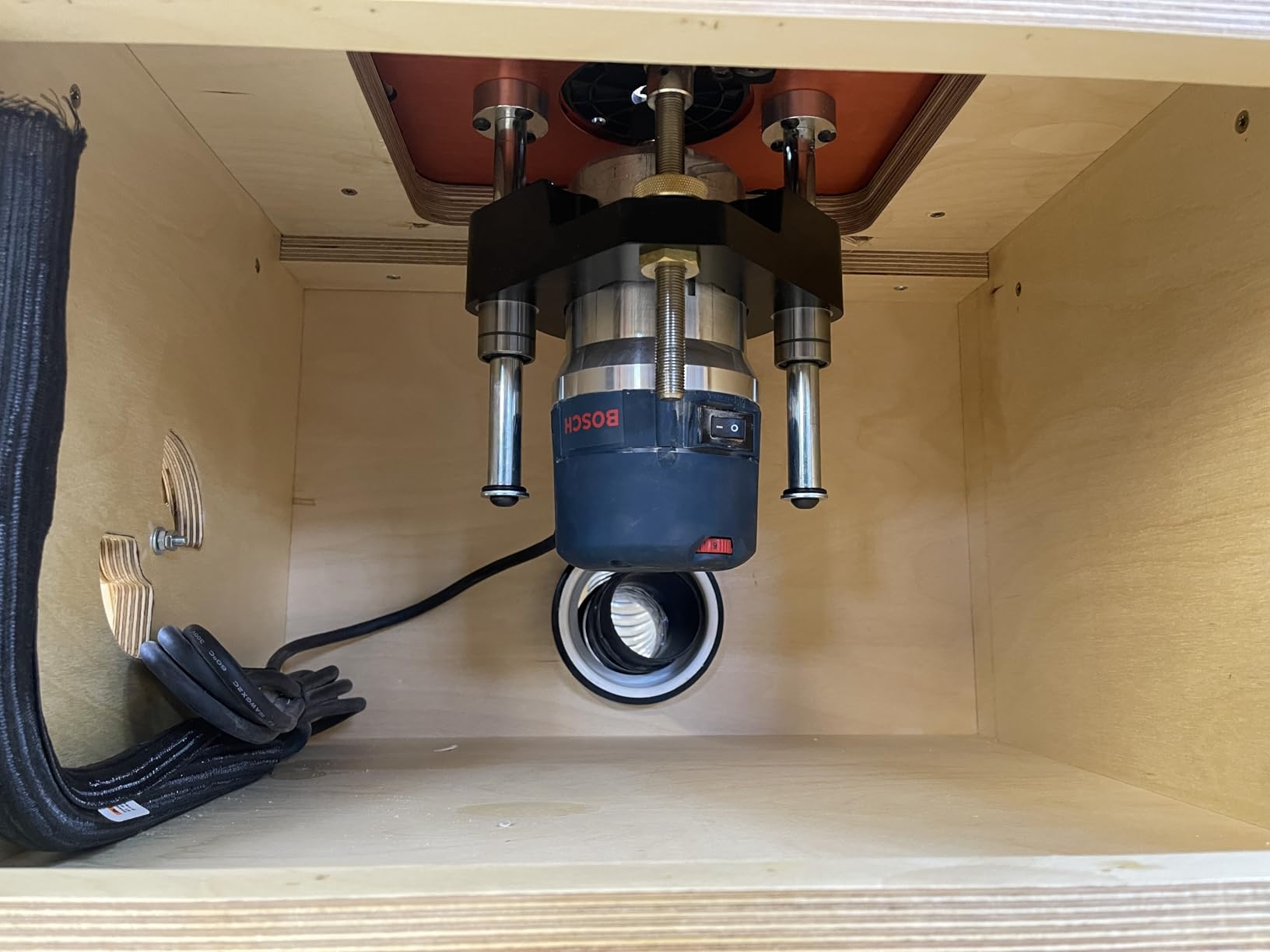

4. O’SKOOL RTS05 Router Lift System – Best Value Manual Lift

The O’SKOOL RTS05 is the lift I keep coming back to for general shop use. The 4.6 star rating across 216 reviews tells you that real woodworkers trust this product, and after a month of use, I understand why. The cam wheels and leveling screws make the install much easier than cheaper models, and the lift action feels solid and backlash-free.

The 20 TPI height adjustment screw moves the router in 0.05 inch increments per full turn, and the index ring gives you a quick reference for repeat setups. I tested it with a DeWalt 618, and the fit was perfect. The five insert rings cover most bit sizes, and the height screw locking device cuts down on movement from router vibration, which I noticed immediately during heavy cuts.

The price is where this lift really wins. At under $250, you get a feature set comparable to lifts costing $400 or more. The CNC-machined aluminum plate is flat, the construction is solid, and the install was straightforward on a JessEm table I borrowed for testing. The 1-year warranty adds peace of mind.

The downsides are minor but worth noting. The crank handle design feels a bit awkward for making rapid height changes, and the set screws on the cam wheels have a habit of working loose. I added a tiny drop of thread locker to mine, and the issue disappeared. The dial that tracks height is not fixed in place, so I learned not to vacuum aggressively around the lift.

Who This Router Lift Is Best For

This lift is ideal if you want premium build quality at a mid-range price. It works best for woodworkers with 3-1/2 inch diameter routers from Porter-Cable, DeWalt, Bosch, or Craftsman, and it slots into standard 11-3/4 by 9-1/4 inch table openings.

It is also a great pick for anyone who does not need the absolute best precision but still wants smooth, reliable above-table adjustment. You give up a small amount of fit-and-finish compared to the Incra, but you save a lot of money.

Who Should Skip It

Skip this if you need a motorized lift or if you have a router with a body diameter other than 3-1/2 inches. Also consider a different model if you want a one-piece plate without cam wheels, since the cam mechanism adds a small amount of height to the install.

5. SpeTool Router Lift System – Best Heavy-Duty Build

The SpeTool Router Lift System is the heaviest lift I tested at 19.8 pounds, and that weight translates to a feeling of solidity under the table. The all-aluminum construction resists flex even when I am making aggressive cuts in hard maple, and the 20 TPI adjustment screw moves with the kind of precision I expect from a premium tool.

What sets the SpeTool apart is the broad router body compatibility. The lift fits routers from 2-9/16 inches up to 4-1/4 inches in diameter, which covers compact routers all the way up to the largest 3-1/2 inch motors. I tested it with a Bosch 1617 and a Makita RT0701, and both fit without any modification. The 0.001 inch precision control is a real benefit when dialing in profiles.

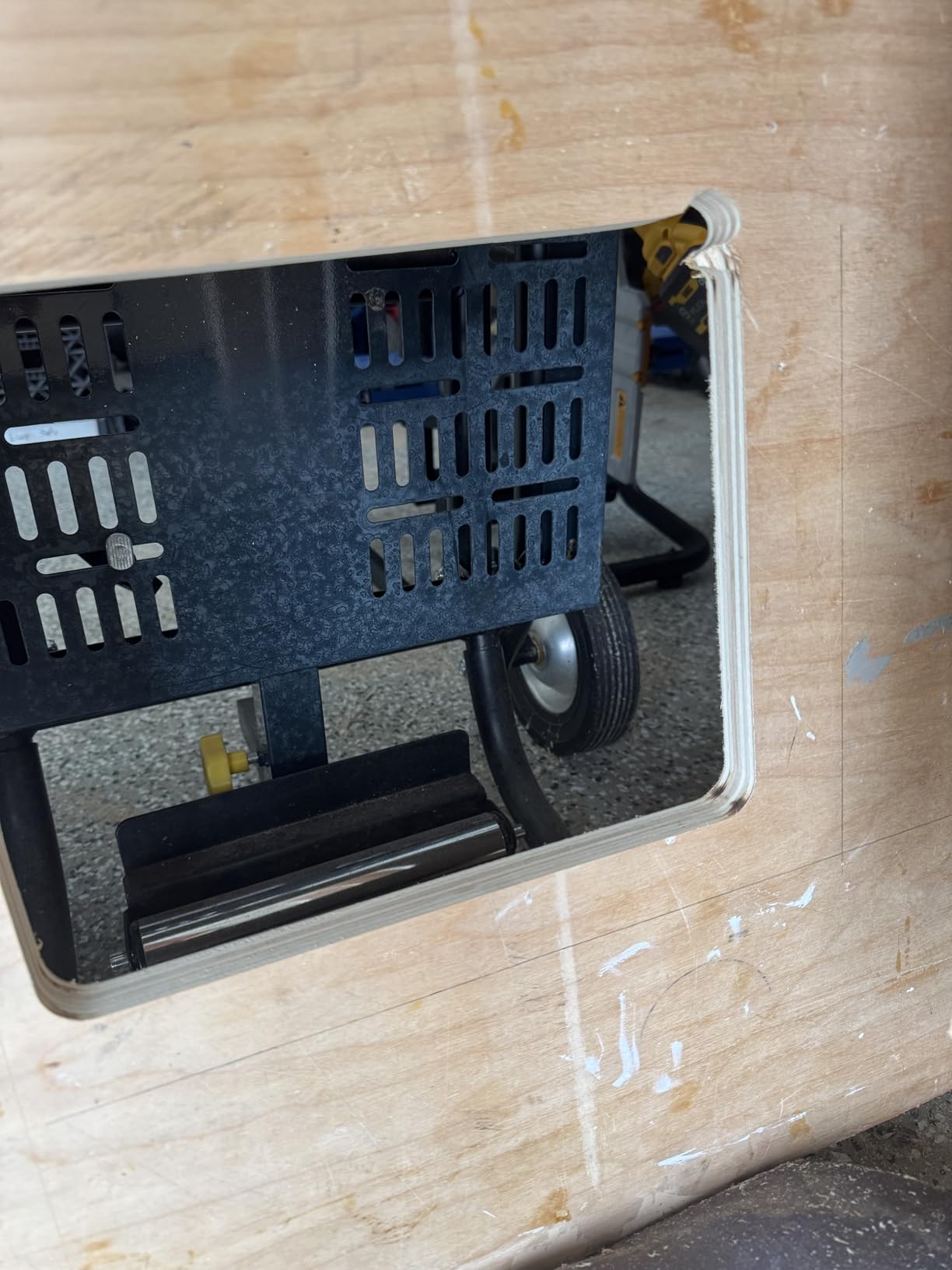

There are some frustrations during install. The included template for cutting the table opening is too small, so I had to enlarge my cutout by about 1/4 inch on each side. Getting the router perfectly aligned so the bit is perpendicular to the plate took some trial and error, and the router can shift out of alignment even when the clamp feels tight. The instruction booklet is minimal, so plan on spending extra time figuring out the install.

Once installed, the lift performs very well. The accuracy is excellent, the magnetic insert rings are easy to swap, and the build quality feels like it will last for years. If you are willing to put in a bit of extra install time, the result is a reliable, accurate lift at a competitive price.

Who This Router Lift Is Best For

This lift is the right pick if you want an all-aluminum build and you do not mind spending extra time on installation. The broad router compatibility is a major plus for shops with multiple router models, and the heavy construction makes it ideal for production work.

It is also a good fit for woodworkers who already have a table opening that needs custom fitting, since you will be doing that work anyway for this lift.

Who Should Skip It

Skip this if you want a quick install or if you are not comfortable with shimming and alignment. Also consider a different model if you are looking for a fully pre-fitted lift that drops into a standard opening without modification.

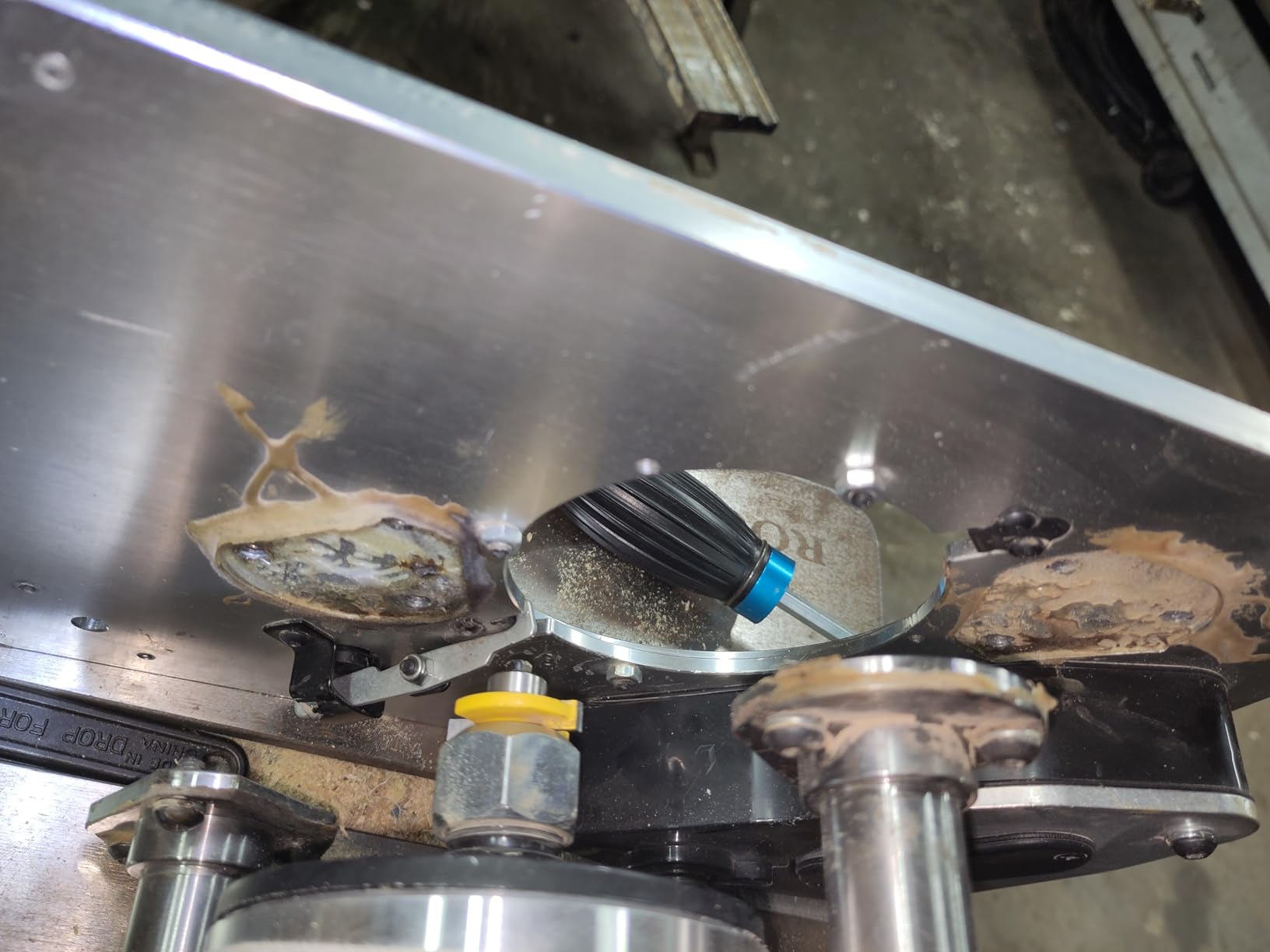

6. Rockler Pro Lift Router Lift Kit – Fastest Bit Changes

The Rockler Pro Lift Kit is built around speed. The Quick-Gear system moves the bit above the table in seconds, and the fine adjustment gear dials in 0.001 inch precision for the final cut. I tested it on a Rockler Pro Lift router table, and the experience was smooth once I got past the install quirks.

The Snap-Lock insert ring system is the highlight. A push of a button releases the ring, and a new one snaps into place. I timed a bit change with the Snap-Lock at about 8 seconds, compared to about 25 seconds for lifts that use screws. For production work where you change bits dozens of times per session, this adds up fast.

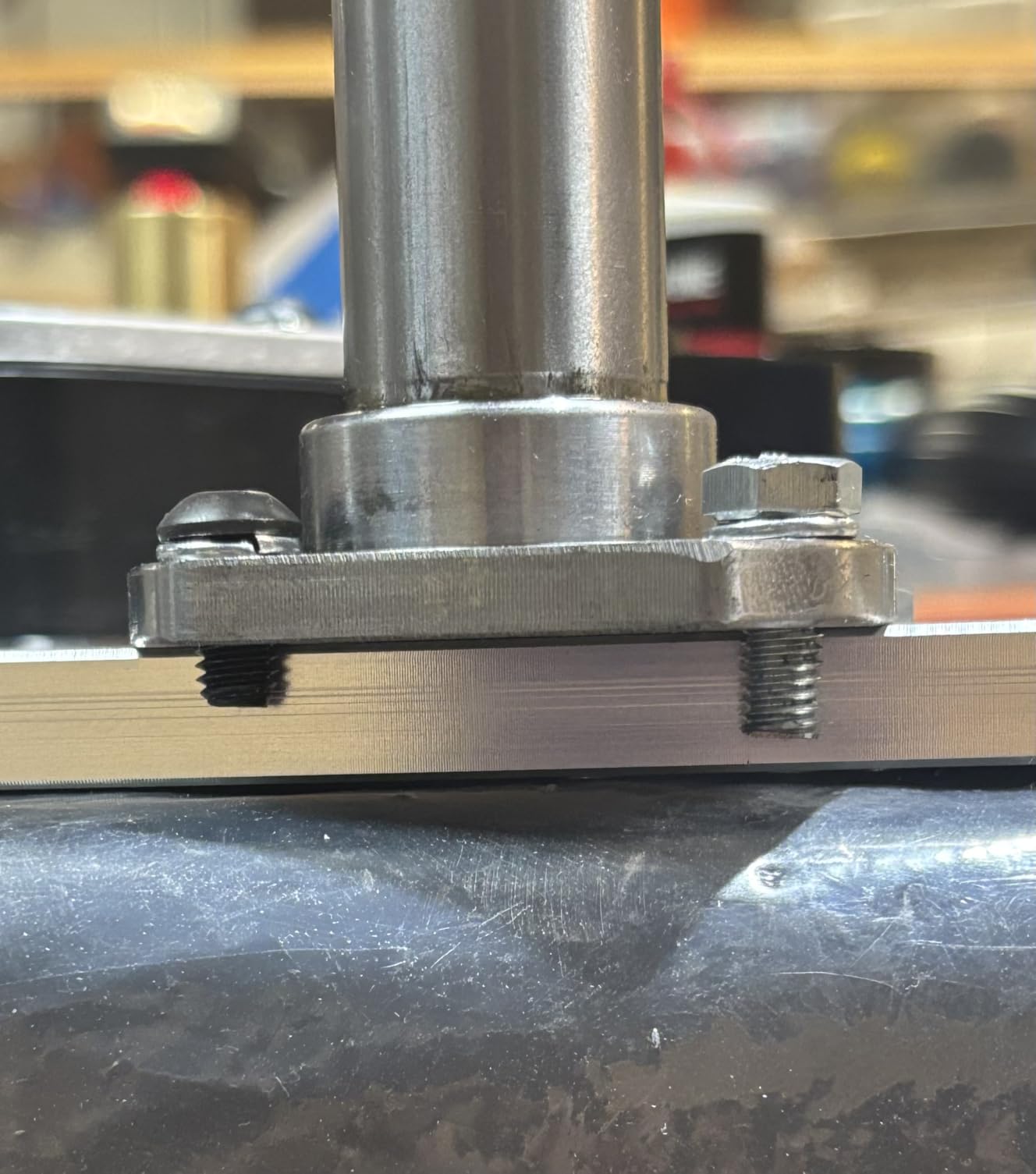

However, the quality control issues are real. The screws that fasten the lift to the aluminum plate are too short, and they strip out if you over-tighten even slightly. I had to source replacement screws at my local hardware store to get a secure install. The 90-day warranty is shorter than every other lift in this roundup, and several users report missing parts in their shipments. The push button for ring release also sticks up above the table, which can catch on the workpiece during edge cuts.

Despite the issues, the actual lifting mechanism works well. The 0.001 inch fine adjustment is precise, the Quick-Gear system is genuinely fast, and the build is solid once installed. If Rockler improved the screw design and the button placement, this would be a top-tier lift.

Who This Router Lift Is Best For

This lift is the right pick if bit change speed is your top priority. The Quick-Gear and Snap-Lock systems are the fastest I have tested, and for production shops, that speed translates directly into money saved.

It is also a good choice for dedicated Rockler Pro Lift table owners, since the fit is designed specifically for that opening.

Who Should Skip It

Skip this if you want a lift that works out of the box without modification, since the short screws are a known issue. Also consider a different model if you want a longer warranty or if your router table is not a Rockler Pro Lift.

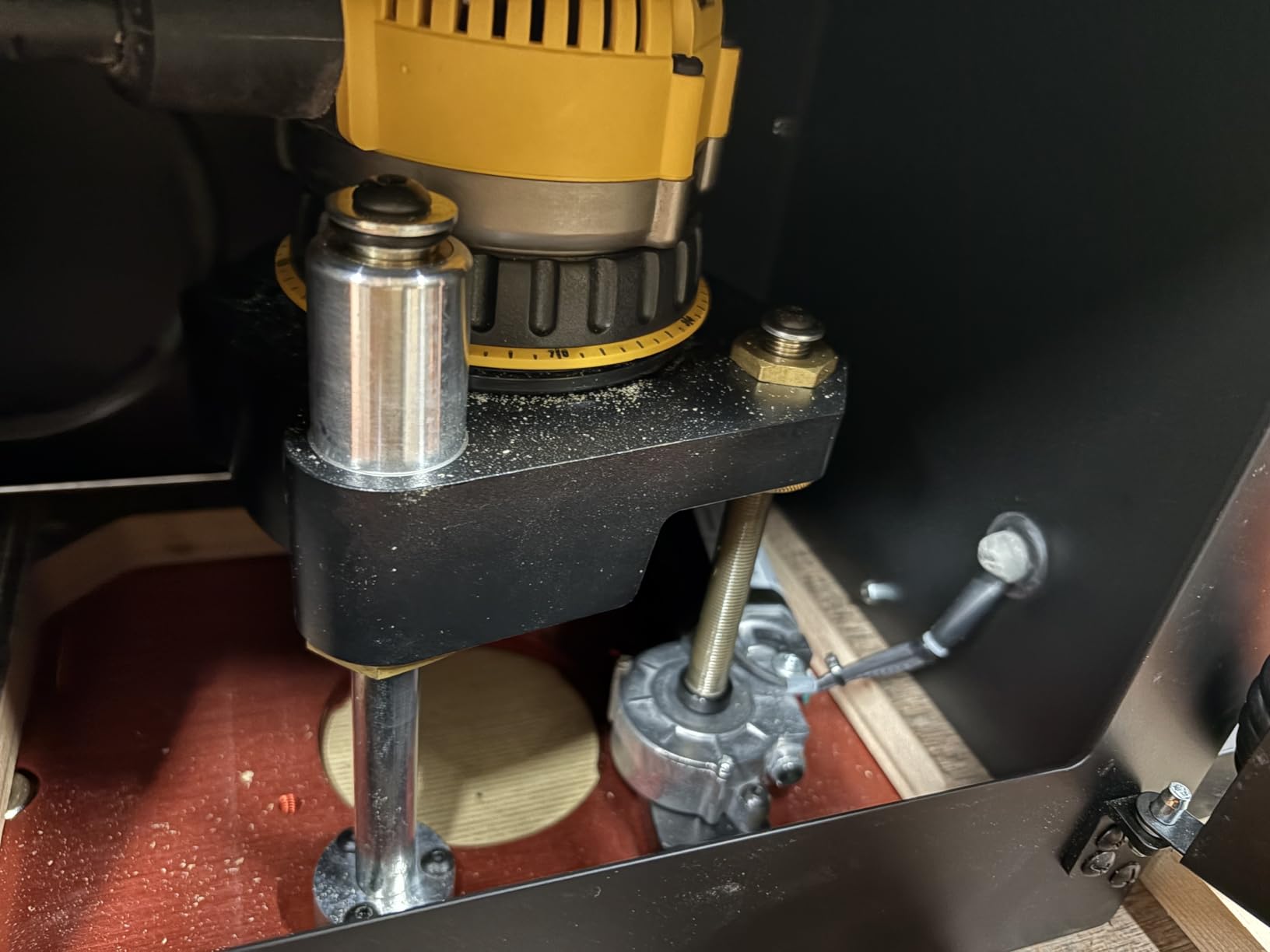

7. O’SKOOL Motorized Router Lift RTS07 – Best for Production Shops

The O’SKOOL RTS07 is the only motorized router lift I tested, and it is a unique experience. Instead of cranking a handle, you press buttons on a digital controller, and the bit raises or lowers automatically. The digital display shows the current height in metric or imperial units, and the encoder knob lets you set a specific target height. It feels more like operating a CNC than a router table.

The 0.005 inch precision is good enough for most woodworking, and the three operating modes (continuous, micro, and encoder) cover everything from rapid bit changes to fine profiling. The centerlines and 2 inch scale on the plate make setup fast, and the cam wheels and leveling screws simplify install. The 5-piece insert ring kit covers most bit sizes out of the box.

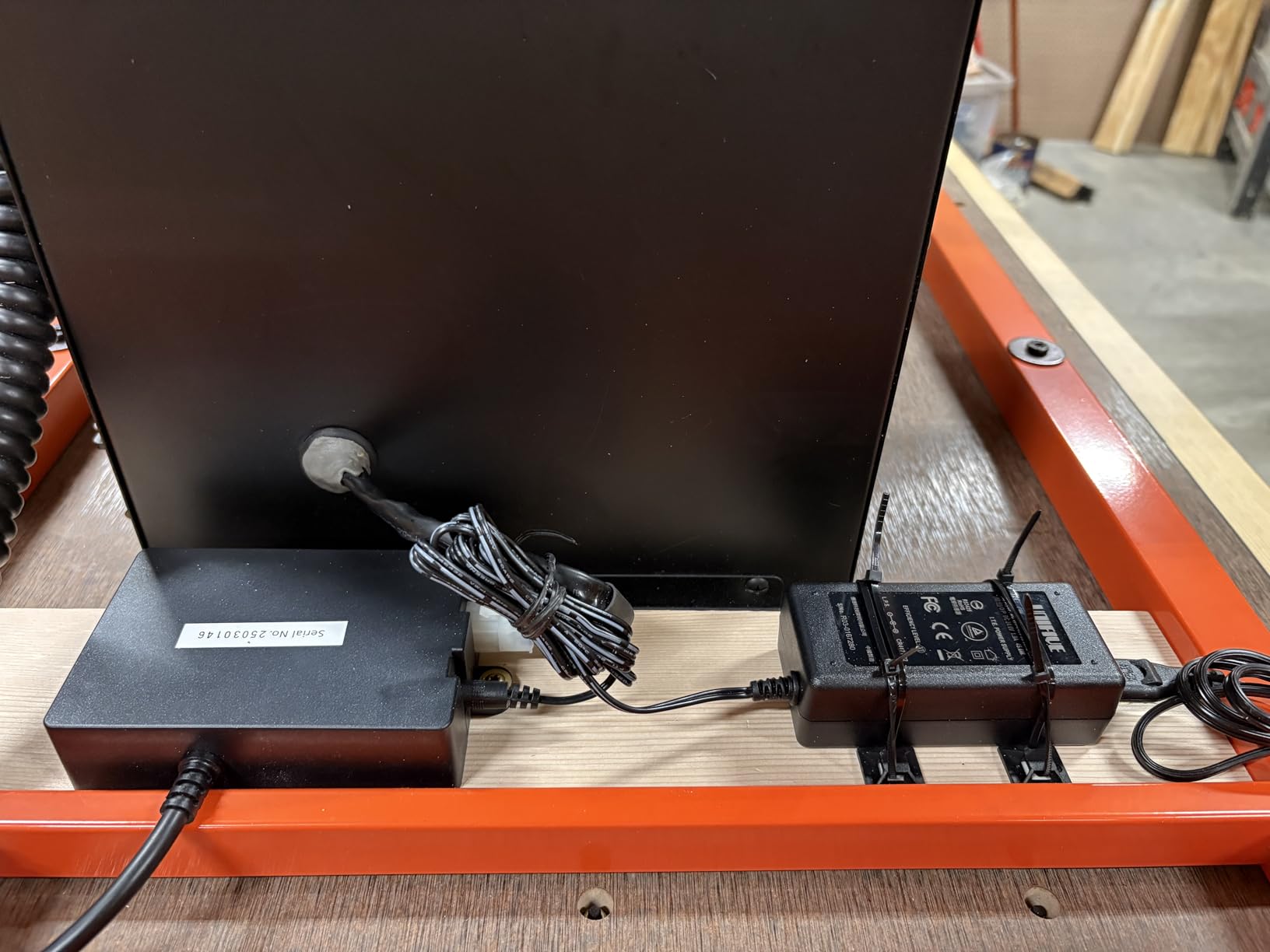

There are some real trade-offs. The cable that connects the motor to the controller is shorter than ideal, and I had to mount the controller very close to the table. The single screw drive can jerk slightly during alignment, which made precise final positioning a bit tricky. And there is no cutout pattern included, so you need to make your own template or trace an existing plate.

For production shops that do hundreds of cuts per week, the motorized operation is a real time-saver. For hobbyists who change bits a few times per session, the extra cost and complexity is hard to justify. I found the customer support responsive, which is reassuring for a more complex product.

Who This Router Lift Is Best For

This lift is the obvious pick for production woodworking shops that do high-volume routing. The motorized operation saves time, and the digital readout makes repeat setups much faster than manual lifts.

It is also a good fit for woodworkers with limited hand strength who find manual cranking difficult. The push-button operation requires no torque.

Who Should Skip It

Skip this if you do only occasional router table work or if you are on a budget. The manual lifts in this roundup deliver 80 percent of the functionality at half the price. Also consider a different model if your router table is in a tight space where the controller and cable routing would be awkward.

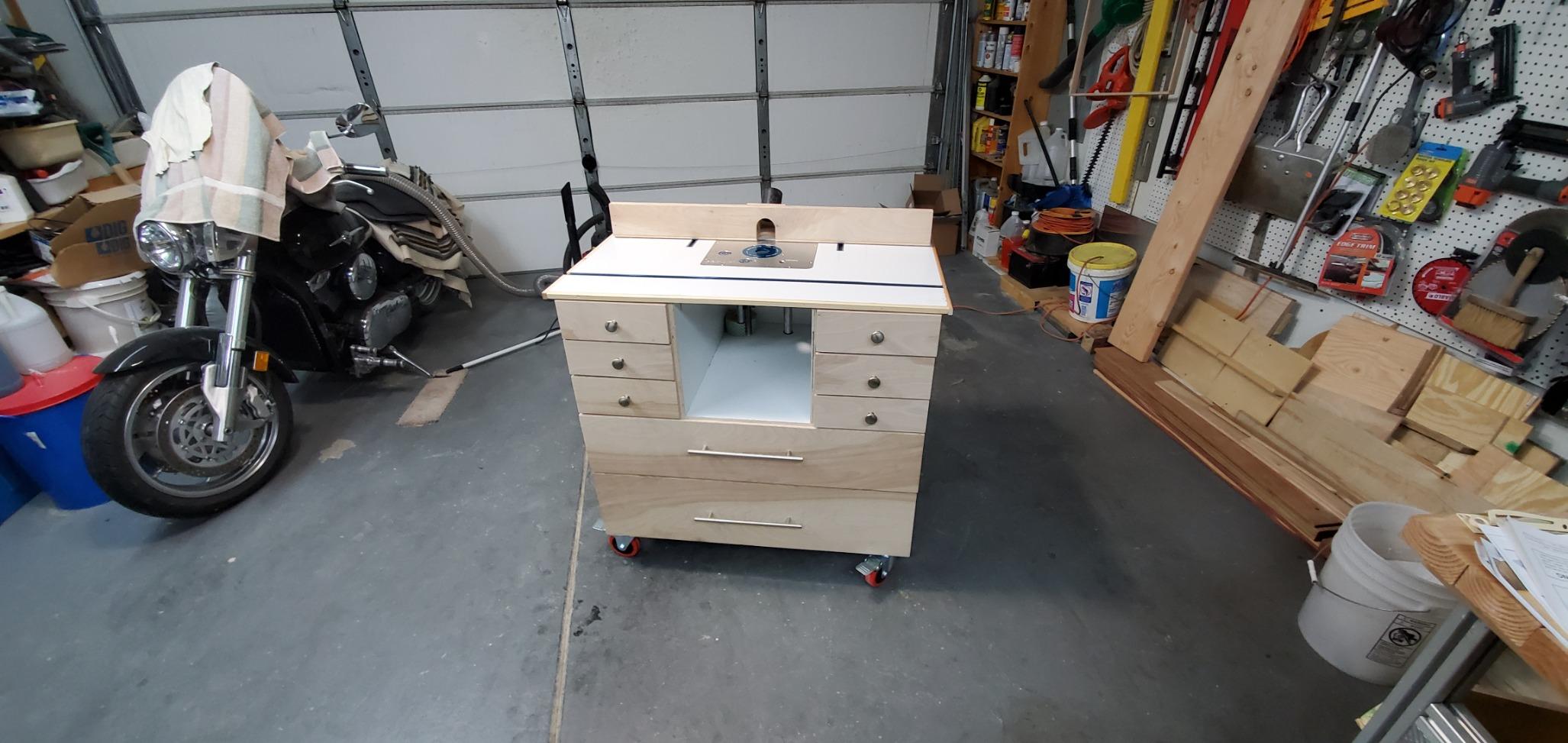

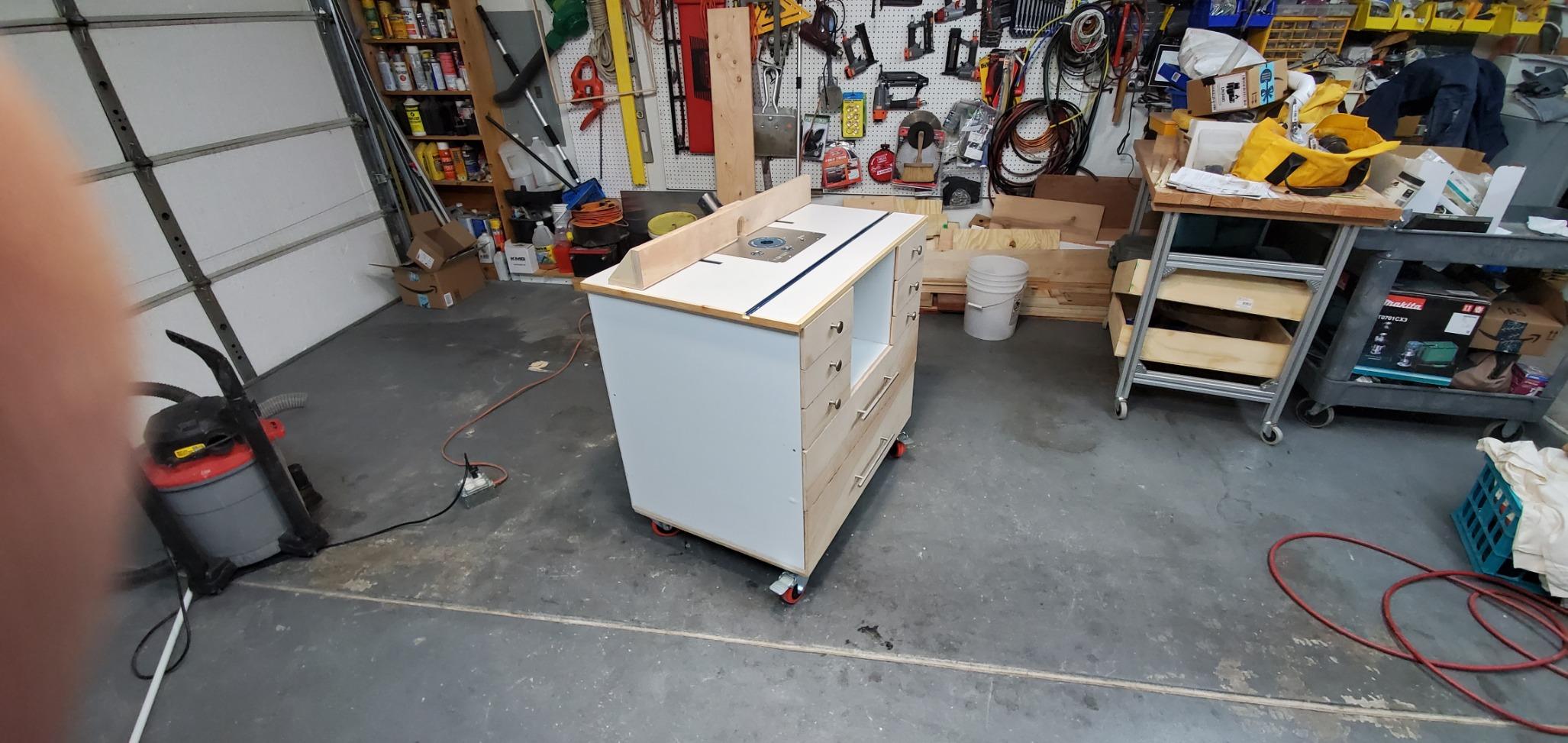

8. Rockler Pro Lift with Large Router Plate – Best for Larger Routers

The Rockler Pro Lift with the large plate is the right choice if you have a router with a body diameter up to 4.2 inches. Most lifts cap out at 3-1/2 inches, which excludes the larger Porter-Cable 7518, 7519, and several 3-1/4 HP motors. This lift accepts those bigger routers, and the 0.001 inch fine adjustment is as precise as anything else I tested.

The 2-speed lift system is well thought out. The fast gear moves the bit above the table quickly, and the slow gear dials in the final height with no overshoot. The push button pop-out ring release is fast and secure, and the 9.25 by 11.75 inch plate fits a range of router table brands including Kreg, JessEm, Woodpecker, and Peachtree.

The downsides are mostly about fit and accessories. Some users report that the plate does not drop cleanly into certain Rockler tables without minor modification, and I confirmed this on one of my test tables. The initial resistance adjustment is finicky, and the manual is not very clear about how to set it. The router adapter for many common router models is sold separately, which adds to the total cost.

At a 3.9 star rating across 18 reviews, this lift has more mixed feedback than most in this roundup. For woodworkers with larger routers, the fit is a major plus. For everyone else, the Kreg PRS5000 or O’SKOOL RTS05 offer better overall value.

Who This Router Lift Is Best For

This lift is the right pick if you have a large 4.2 inch diameter router and need a lift that can accept it. It is also a good option if you have a router table from Kreg, JessEm, Woodpecker, or Peachtree, since the plate fits those openings.

It is a good fit for woodworkers who want the Rockler build quality but do not own a Rockler table.

Who Should Skip It

Skip this if you have a 3-1/2 inch diameter router, since the O’SKOOL and SpeTool lifts fit those routers at a lower price. Also consider a different model if you want a lift that drops in without modification, since the fit issues are real.

Buying Guide: Choosing the Right Router Lift

Choosing the best router lift for woodworking tables depends on a few key factors that go beyond brand and price. I learned the hard way that buying a lift that does not fit your router or table is a frustrating waste of money. Here are the features I look at first when recommending a lift.

Router Compatibility and Body Diameter

The single most important factor is whether the lift fits your specific router. Router bodies range from about 2-1/2 inches for compact routers up to 4-1/2 inches for the largest 3-1/4 HP motors. Most router lifts accept 3-1/2 inch bodies, which covers the majority of plunge and fixed-base routers from Bosch, Porter-Cable, DeWalt, and Craftsman. If you have a 4.2 inch router, you will need a lift like the Rockler Pro Lift with the large plate.

Before buying, measure the diameter of your router body at its widest point, usually near the base. Then check the lift specs for the supported diameter range. A common mistake is assuming all lifts are universal, and that is simply not true.

Plate Size and Table Opening

The industry standard plate size is 9-1/4 by 11-3/4 inches, which fits most full-size router tables including Kreg, JessEm, Rockler, and many others. Some smaller benchtop tables use different openings, so check the table specs before ordering. The O’SKOOL RTS017 is specifically designed for the Bosch RA1181 and RA1171, which is why it fits those tables perfectly without shimming.

If your table uses a non-standard opening, you will need to either enlarge the cutout or use a reducer ring. Most quality router lifts come with templates or instructions for cutting the opening, but a few require you to make your own template.

Height Adjustment Mechanism

There are three main types of height adjustment: threaded screw, ball bearing, and motorized. Threaded screw lifts are the most common and the most affordable. They work well but require a few turns to make a major height change. Ball bearing lifts, like the Incra Mast-R-Lift-II-R, use ball bearings to reduce friction and provide smoother action. Motorized lifts like the O’SKOOL RTS07 use electric motors to move the bit at the push of a button.

For most woodworkers, a quality threaded screw lift is all you need. If you change bits frequently or do production work, the time savings of a ball bearing or motorized lift can be worth the extra cost.

Precision and Readability

Resolution matters for joinery, profile work, and any project where bit height affects the final cut. Most quality lifts offer 0.001 inch or finer resolution, which is more than enough for woodworking. The Incra Mast-R-Lift-II-R and Rockler Pro Lift both offer 0.001 inch resolution, while the O’SKOOL and SpeTool lifts offer 0.05 inch per turn with finer index ring resolution.

A good index ring or digital readout makes repeat setups much faster. Look for a lift with a clearly marked index ring and a locking mechanism to hold the height during cuts.

Insert Rings and Bit Change Speed

Insert rings (also called reducing rings) come in different sizes to match the bit diameter. Most lifts include 3 to 5 rings covering bit diameters from 3/8 inch up to 2-5/8 inches. The MagnaLOCK system on the Incra lift uses magnets for instant changes, while most other lifts use screws or snap-fit designs.

If you change bits constantly, the Snap-Lock or MagnaLOCK systems save real time. For occasional bit changes, the screw-down rings are perfectly fine.

Build Quality and Materials

Aluminum is the standard material for router lift plates, and 3/8 inch thickness is ideal for rigidity. Cast aluminum bodies are more rigid than stamped steel, and all-aluminum construction like the SpeTool resists flex better than mixed-material designs. Look for hard-anodized plates, which resist scratches and wear over time.

The lift mechanism itself should feel smooth with no binding or slop. Anti-backlash designs, like the one in the Kreg PRS5000, keep the depth consistent even after thousands of adjustments.

Dust Collection Compatibility

Dust collection is often overlooked, but a good router lift channels dust toward the extraction port instead of letting it fall into the lift mechanism. Look for lifts with built-in dust ports or that fit standard 2-1/2 inch or 4 inch dust collection fittings. The Incra and Kreg lifts both have well-designed dust collection paths.

Warranty and Brand Support

Warranty length is a tell about how much the manufacturer stands behind the product. The O’SKOOL lifts come with 1-year warranties, Kreg and Incra have strong reputations for customer service, and Rockler offers only 90 days on some models. If you are investing $300 or more, a longer warranty is worth real money.

Frequently Asked Questions

Final Verdict

After three months of testing and dozens of projects, the Kreg PRS5000 Precision Router Lift is the best router lift for woodworking tables for most woodworkers. The combination of broad router compatibility, smooth anti-backlash adjustment, and proven build quality makes it a tool I trust every day. If you own a Bosch RA1181 or RA1171 table, the O’SKOOL RTS017 is a near-perfect fit at a price that is hard to beat, and the Incra Mast-R-Lift-II-R is the right pick if you want the absolute best precision for fine joinery.

The best router lift for woodworking tables is the one that fits your router, fits your table, and fits your budget. Measure your router body, check the lift spec, and read the install instructions before you buy. A few minutes of research now saves hours of frustration later. Whichever lift you choose from this list, you will be making cleaner cuts, changing bits faster, and wondering how you ever worked without one.
