A multimeter tells you there is 5 volts on that pin. It cannot tell you whether that 5 volts is a clean rail or a sawtooth of ripple that is about to cook your microcontroller. That gap is the whole reason people still reach for an oscilloscope in 2026, even with a laptop full of test gear and a cheap USB dongle in the drawer.
Yes, hobbyists absolutely still use oscilloscopes. They are the single instrument that turns “the circuit is not working” into a specific, fixable fault. A multimeter reads a value at one instant. An oscilloscope plots voltage against time, so noise, ringing, clipping, droop, duty cycle errors and timing mistakes all become visible.
We spent several weeks working through ten handheld and portable models with 5V rails, PWM lines from an Arduino, an audio amp and a car electrical harness, so the picks below are based on what the traces actually showed rather than on spec-sheet reading. If you want the bench-side alternative, we covered it separately in our [oscilloscope guide for electronics hobbyists](https://www.nauticamalibutri.com/best-oscilloscopes-for-electronics-hobbyists/).
Table of Contents
What Is a Portable Oscilloscope and Why Hobbyists Need One
A portable oscilloscope is a small, handheld or battery-powered digital instrument that shows how voltage changes over time. It samples a signal millions of times per second, draws the trace on a screen, and holds it steady with an internal trigger so you can read frequency, amplitude, duty cycle and shape.
For hobby work the useful difference is simple. A meter answers “how much”. A scope answers “how does it behave”. When a switching regulator rings, a UART line idles high, a MOSFET gate is half-driven, or a pedal builder’s op-amp clips, that behaviour is only visible on a trace.
Portable units differ from benchtop scopes mainly in form factor rather than principle. Most are battery-powered, weigh between a few ounces and about 2 pounds, and often bundle a multimeter and a signal generator so one box covers a whole tool bag. What you give up is screen size, record depth and trigger refinement.
Top 3 Picks for Best Portable Oscilloscopes in 2026
These three cover the most common hobbyist cases. The FNIRSI 2C53T is the most complete single purchase, the IMARS HO-3S is the strongest value, and the HANMATEK HO52 is the smoothest general-purpose handheld here.
FNIRSI 2C53T 3-in-1 Handheld
- 50 MHz dual-channel
- 250 MSa/s
- 19999-count true-RMS multimeter
- DDS signal generator to 50 kHz
IMARS HO-3S 70MHz 3-in-1
- 70 MHz dual-channel
- 200 MS/s
- 20000-count true-RMS meter
- Replaceable 18650 battery
Best Portable Oscilloscopes for Hobbyists in 2026
All ten models below are in the portable or handheld class. Bandwidth and channel count are the first two filters, and the remaining columns cover the extras that separate a useful tool from a curiosity.
| Product | Specifications | Action |
|---|---|---|
| FNIRSI 2C53T 3-in-1 Handheld |
|
Check Latest Price |
| IMARS HO-3S 70MHz 3-in-1 |
|
Check Latest Price |
| HANMATEK HO52 Handheld |
|
Check Latest Price |
 FNIRSI DSO152 Pocket Scope |
|
Check Latest Price |
 YEAPOOK ADS5012h 100MHz Handheld |
|
Check Latest Price |
 FNIRSI DSO-510 10MHz with Generator |
|
Check Latest Price |
 ZOYI ZT-703 Automotive 3-in-1 |
|
Check Latest Price |
 ZOTEK 702S Scope Multimeter with Temperature |
|
Check Latest Price |
 HANMATEK DOS1102 7 Inch Portable |
|
Check Latest Price |
 Hantek DSO2C10 100MHz 2CH |
|
Check Latest Price |
1. FNIRSI 2C53T – Best Overall 3-in-1 Handheld
FNIRSI 2C53T 3-in-1 50MHz 2CH Oscilloscope Multimeter DDS Signal Generator
- Three instruments in one body
- Dual-channel 250 MSa/s with math and XY modes
- Full accessory kit including 10x probe and storage case
- 3000 mAh battery for untethered work
- 1 Kpts record depth is shallow for transients
- 2.8 inch screen limits waveform detail
- Generator output stops at 50 kHz
This is the scope we keep reaching for. It is a 50 MHz dual-channel DSO, a 4.5-digit 19999-count true-RMS multimeter and a DDS signal generator in a 6.57 x 3.5 x 1.38 inch body that weighs 400 g. For a hobby bench that is three tools in one bag.
In practice the 250 MSa/s sampling and the math, cursor, persistence and XY modes are enough for PWM duty checks, amplifier clipping hunts and general rail ripple work. Vertical sensitivity runs from 10 mV/div to 10 V/div with a 400 V maximum input through the supplied 10x probe.
The record depth is the weak point. At 1 Kpts the trace is fine for slow and mid-speed signals but thin when you want to catch a narrow transient, and the 2.8 inch LCD means you are reading a small trace for long sessions. The generator also tops out at 50 kHz, which is enough for probe compensation and audio checks but nothing more.
What we like most is the kit. A 10x probe, crocodile clip probe, multimeter probe, Type-C cable and a storage case all come in the box, so there is nothing to buy before the first session. The 3000 mAh battery gives up to about 6 hours of standby, and Type-C charging keeps the downtime short.
Owners consistently treat it as a capable budget all-in-one for automotive electrical repair, amplifier tuning and electronics education. If your work is embedded debugging above 20 MHz, look up the list.
Who should buy the FNIRSI 2C53T
Buy it if you are building Arduino or ESP32 projects, tuning car audio, or learning electronics and you want one device that covers measurement, generation and safety checks. The 19999-count meter accuracy is regularly praised and it makes quick resistance and continuity checks without a second tool.
Who should skip the FNIRSI 2C53T
Skip it if you need to resolve fast edges, compare two high-frequency buses at once, or read a long capture. Deep transients and long records need a bigger instrument, and the small screen is tiring over a full weekend of work.

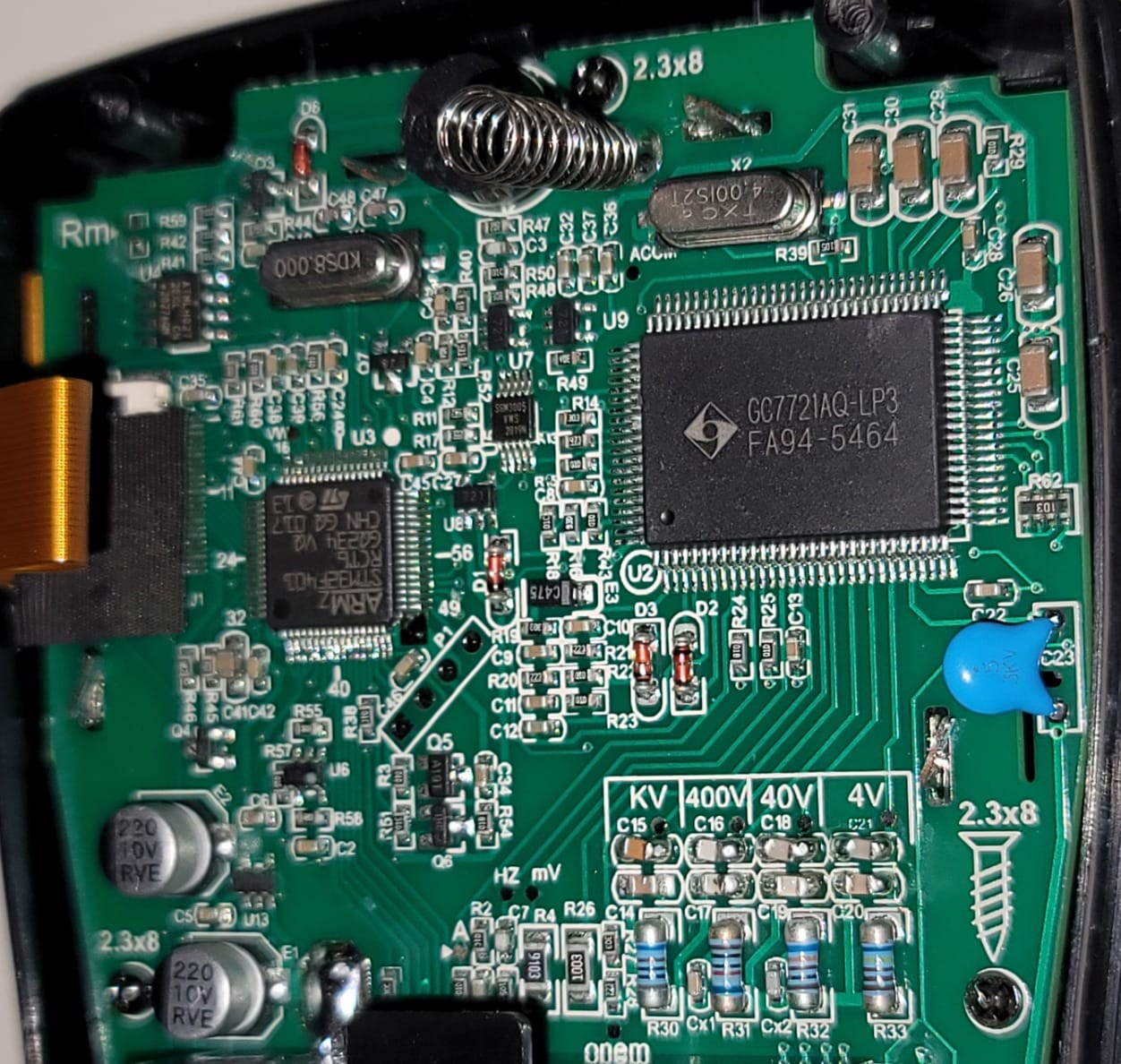

2. IMARS HO-3S – Best Value 70MHz 3-in-1
Dual Channel 3-in-1 Handheld Oscilloscope Multimeter, 70MHz Signal Generato
- 70 MHz dual-channel reaches further than the 50 MHz handhelds
- 20000-count true-RMS meter compared well against a Fluke
- Stores 1000 meter readings and 200 waveform records
- Only 7.8 oz with a built-in flashlight
- Menu-driven interface has a learning curve
- Auto-ranging occasionally shows spurious overload readings
- 2.4 inch screen is hard to read in direct sunlight
The IMARS HO-3S is the one to buy when you want more bandwidth than the 50 MHz handhelds without moving up to a bench chassis. It delivers 70 MHz across two channels at 200 MS/s in a 3.3 x 6.3 x 1.3 inch body that weighs 7.8 oz.
The 20000-count true-RMS meter is the standout. Reviewers compared readings against a Fluke DVM and found them dependable, which matters if you plan to use it on a 12V automotive harness rather than only on a breadboard. The signal generator covers adjustable sine, triangle and square output for basic injection work.
Two things slowed us down. The rotary switch and function keys hide most settings behind menus, so the first hour with the meter functions is slower than it should be. The 2.4-inch color TFT is a good panel indoors but genuinely difficult in sunlight, which is exactly when a field scope gets used.
On the plus side, internal storage keeps 1000 multimeter data sets and 200 oscilloscope waveform records with one-touch save and recall. A replaceable 18650 cell gives 4 hours of continuous use with Type-C fast charging and an adjustable 5 to 60 minute auto sleep.
Safety hardware is unusual at this level. The unit is IEC1010-1 compliant and rated CAT II 1000V with dual fuse protection and a 24V overvoltage alarm, which makes it a sensible companion for car electrical work.
Who should buy the IMARS HO-3S
It suits car audio gain setting, PWM signal checks and general 12V diagnosis where you want a genuinely light tool you can hold in one hand. Owners highlight the strong value against buying a separate meter and scope.
Who should skip the IMARS HO-3S
Pass if you work outdoors in direct sun, or if you need cursors, deep records or protocol decoding. This is a measurement and diagnosis instrument rather than an analysis bench, and the interface rewards patience rather than speed.

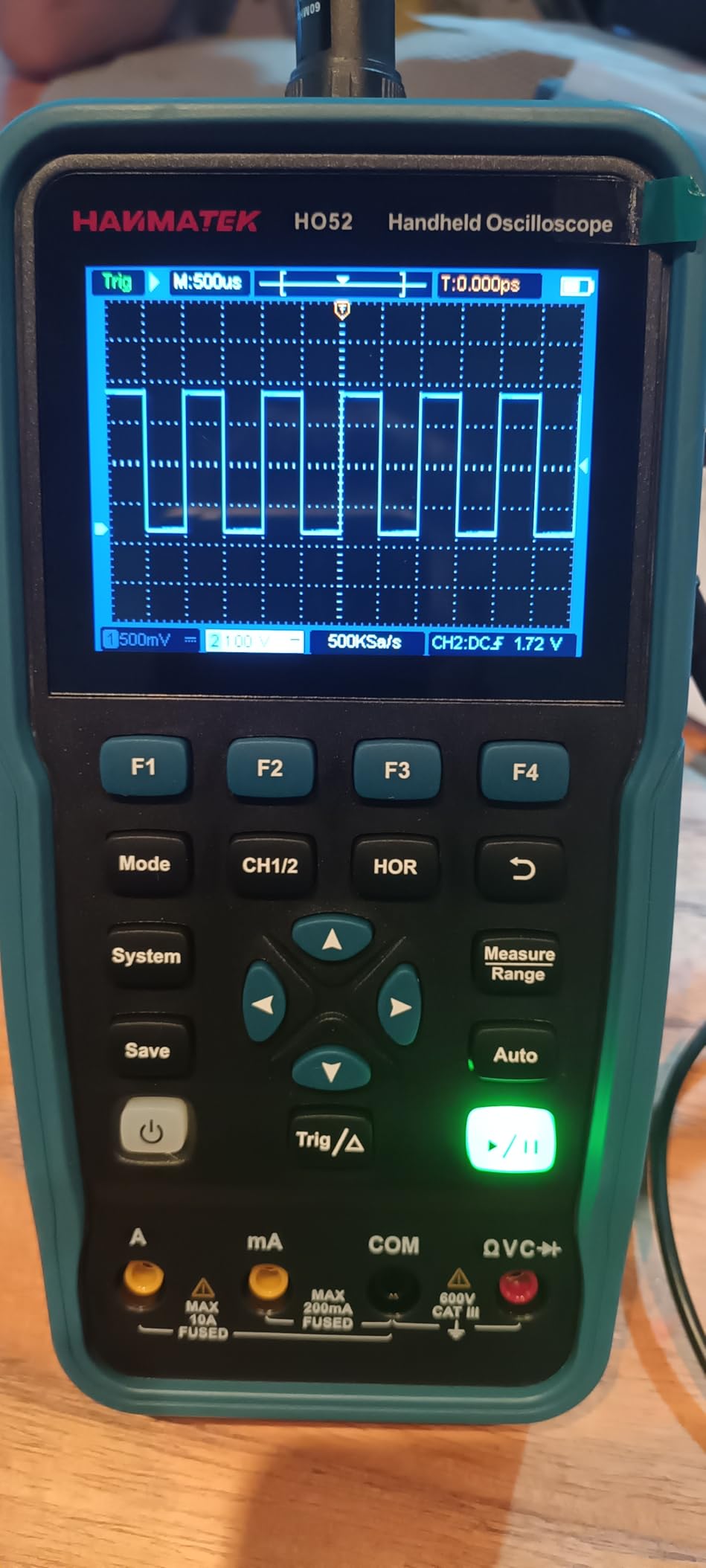

3. HANMATEK HO52 – Best for Reference Waveform Comparison
- 10000 wfms/s refresh gives smooth responsive traces
- Save system keeps 4 sets of reference waveforms
- Type-C transfers saved images and CSV data to a PC
- Self-calibration routine and 3.5 inch backlit TFT
- Battery runtime needs a recharge between long field sessions
- Heavier than pocket scopes for one-handed use
- General-purpose 50 MHz rather than a deep-logic instrument
The HO52 sits at 4.7 stars across 589 reviews with 78 percent five-star ratings, one of the strongest showings in this group. The reason is the refresh rate. Up to 10000 wfms/s with 250 MSa/s real-time sampling and an 8k dot record makes the trace feel alive rather than steppy.
The feature that changes how you work is the save system. It stores 4 groups of settings, 4 reference waveforms, 4 images and 4 CSV waveform groups, so you can capture a known-good trace, store it on the device, and overlay a later faulty capture against it. On a repair bench that is worth more than extra bandwidth.

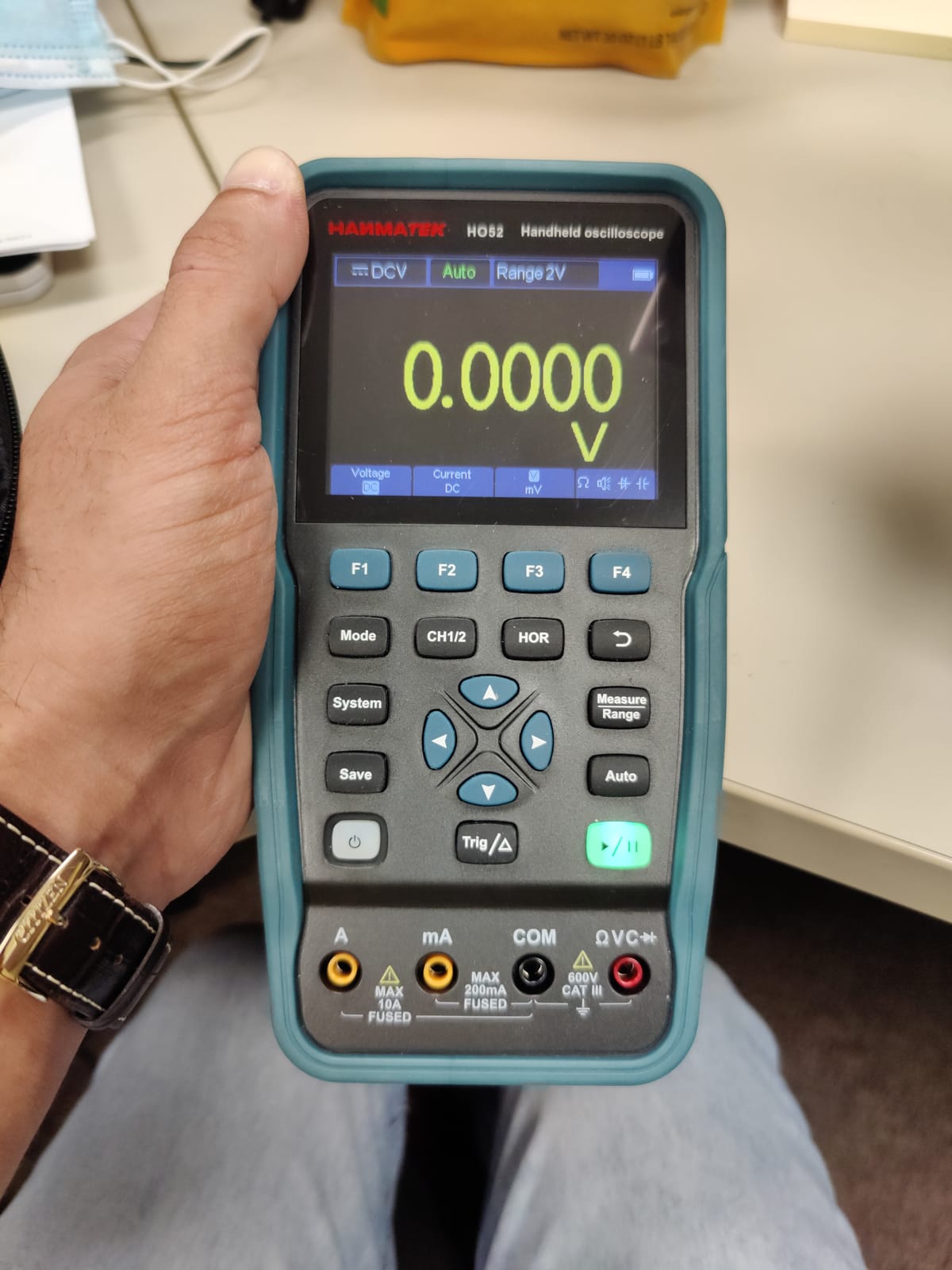

Meter mode is a genuine 4.5-digit true effective value meter with auto range and AC 750V or DC 1000V maximum input, and it has independent scope and meter inputs. That means you can leave a probe on a signal and still check a rail without unplugging anything.
The compromises are physical. The body is 16 oz and 7.83 x 1.54 x 3.94 inches, which is fine on a bench but tiring for a full day of one-handed work, and the battery needs a recharge partway through long field sessions. A self-calibration function helps keep the vertical accuracy honest, and Type-C handles power bank supply, charging and PC data transfer.
Owners use it for automotive diagnostics, lab classes and machine repair, and 7 automatic measurements plus up to 6 displayed at once keep the readouts useful without menu diving.
Who should buy the HANMATEK HO52
Buy it if you repair electronics, tune amplifiers, or teach a class and want stored reference waveforms to compare against. The CSV export also makes it a good bridge to a computer for longer analysis later.
Who should skip the HANMATEK HO52
Skip it if you need work above 50 MHz, deep logic capture, or protocol decoding, or if you need more than a few hours away from a charger. It is a 50 MHz general-purpose handheld, not a bench instrument.

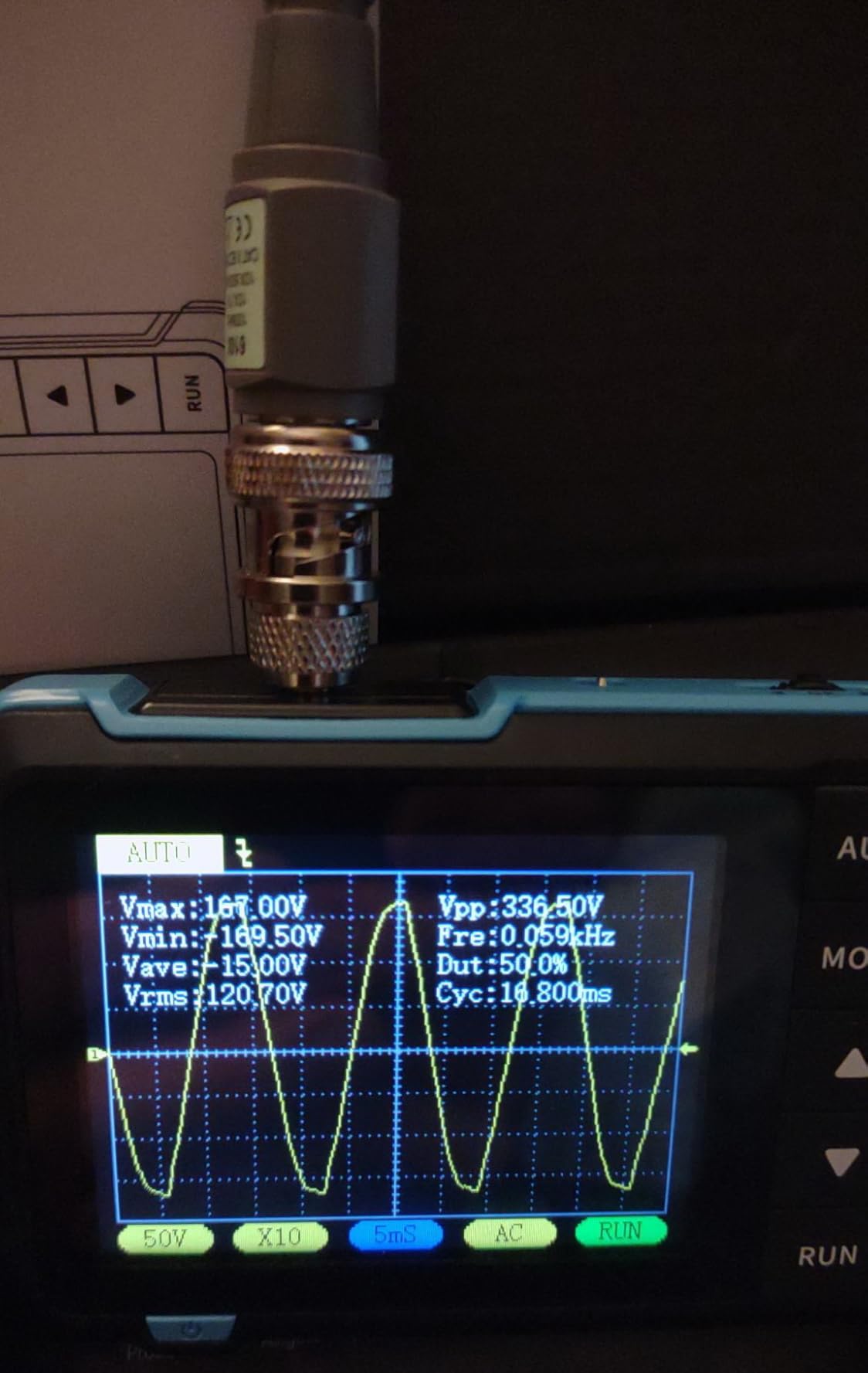

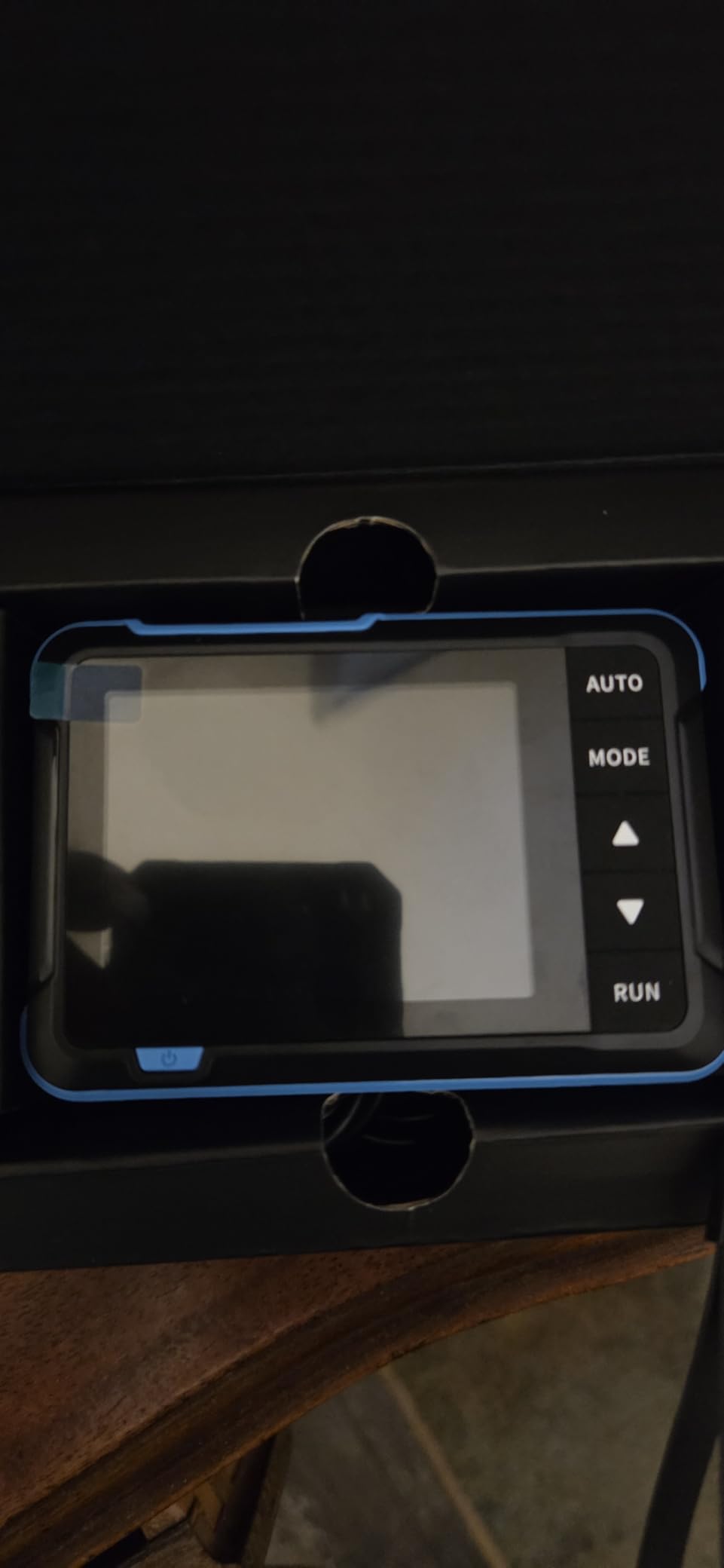

4. FNIRSI DSO152 – Best Pocket Scope for Learning
FNIRSI DSO152 Handheld Oscilloscope 200kHz Bandwidth, 2.5MS/s Sampling Rate
- Smallest and lightest entry point here
- One-key AUTO removes most knob turning
- Factory assembled rather than a DIY kit
- Type-C handles charging data and firmware upgrades
- 200 kHz bandwidth rules out digital and RF work
- 320x240 screen limits waveform detail
- No signal generator or multimeter functions
The DSO152 is the instrument to hand someone who has never held a scope. It is 3.78 x 2.64 x 0.79 inches and 10.2 oz, it is factory assembled, and the one-key AUTO function sets sweep speed, scale and trigger in a single press.
It handles Auto, Normal and Single trigger modes for both periodic and aperiodic signals, which is more trigger coverage than most units at this size. The included 10x probe is rated to 800 VPP, and voltages up to 400 V are measurable, so it handles low-voltage and mains-level checks without drama.
The limits are stated plainly: 200 kHz bandwidth and 2.5 MS/s real-time sampling. That rules out most digital and RF work, and the 320×240 screen on a 2.8 inch panel means you are reading a fairly coarse trace. There is no signal generator and no multimeter mode on this model.
The 1000 mAh lithium battery gives roughly 4 hours of continuous use, and the Type-C port covers charging, data transfer and firmware upgrades. That last point matters more than it sounds, because several cheap handhelds become noticeably better after a firmware refresh.
Owners frame it exactly as we do: a learning tool for slow signals, signal shape checks and education, not a troubleshooting instrument for high-speed circuits.
Who should buy the FNIRSI DSO152
It suits a student building a first home lab, a parent looking for something pocketable, or anyone who wants a second check on 50 Hz and audio-frequency signals. The one-key AUTO makes the first hour of learning much less painful.
Who should skip the FNIRSI DSO152
Skip it for switching supplies, digital buses, clock signals or RF. 200 kHz simply does not reach those signals, and you would be outgrowing it within a few projects.
5. YEAPOOK ADS5012h – Best for 100MHz Bandwidth on a Budget
YEAPOOK ADS5012h Handheld Digital Portable Oscilloscope Mini Storage Oscilloscope Kit with 100MHz Bandwidth 500MS/s Sampling Rate 2.4” TFT LCD Display
- 100 MHz at 500 MSa/s in a 0.5 pound body
- Auto-adjust triggers reliably on common waveforms
- 64M flash stores up to 2000 waveform images
- Reviewers report around 8 hours of battery life
- Single input means no dual-channel comparison
- Vertical shift limited to roughly 4 divisions
- Finicky triggering with no zoom on a captured trace
Bandwidth is the headline here. 100 MHz analog bandwidth with 500 MSa/s real-time sampling and 128kb of record depth, in a 4.5 x 2.9 x 1.4 inch body weighing 0.5 pound. Very little else in the handheld class reaches 100 MHz at this weight.
It also measures 12 parameters automatically, including Vpp, Vavg, Vrms, frequency, cycle, duty and positive and negative time, so most questions get a number without cursor work. Built-in 64M flash holds up to 2000 waveform images with a thumbnail manager for browsing, flipping and deleting.
There is only one input, so you cannot compare two signals. Reviewers also note that vertical shift is limited to roughly plus or minus 4 divisions, which makes ripple-on-supply measurement awkward, and there are no cursors and no zoom on a static captured waveform. Triggering can be finicky on unfamiliar signals.

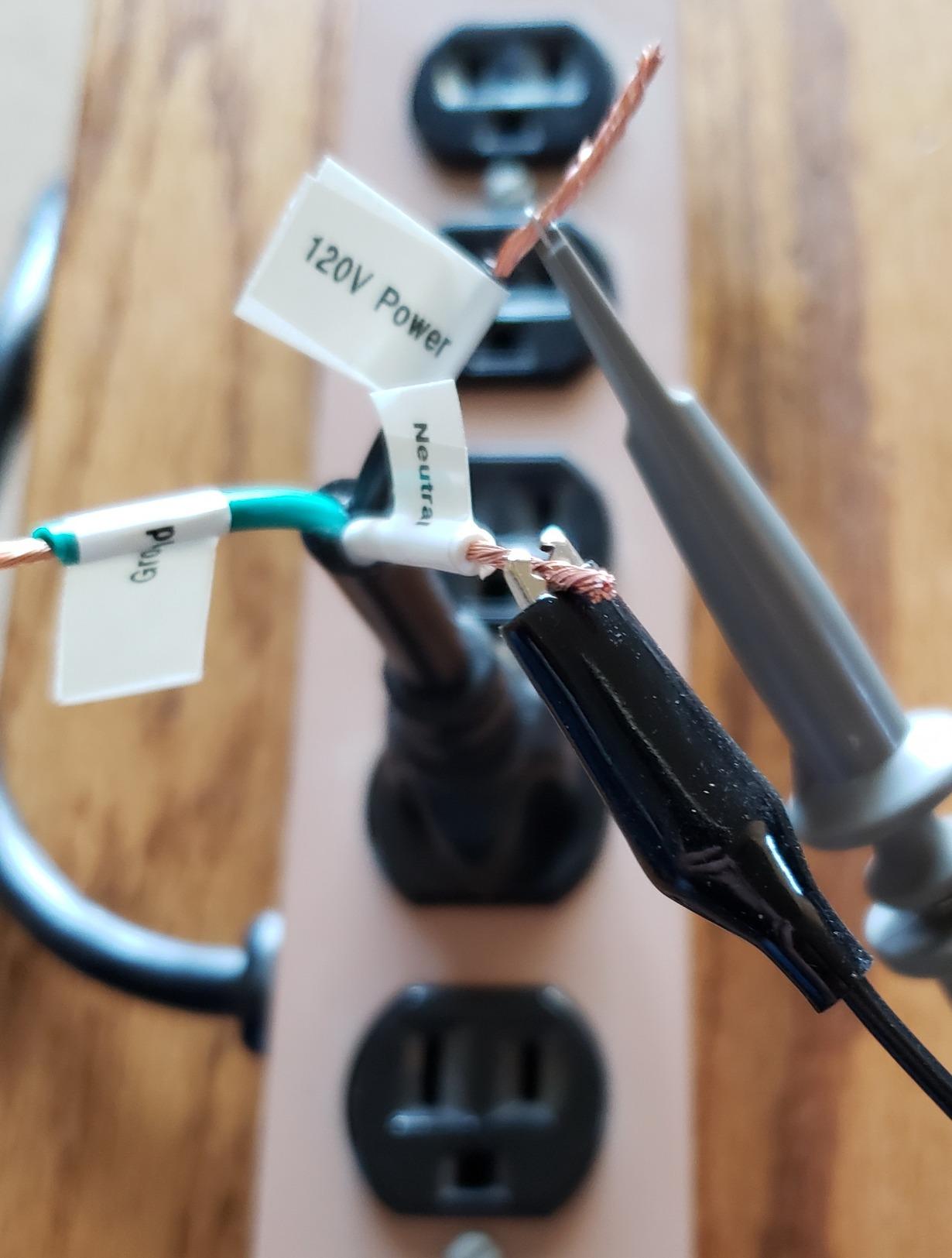

A few practical warnings from the review pool: set the probe to 10X and vertical sensitivity above 100 mV/div when measuring above 80 V, set the scope to 10X above 5 MHz, and expect to use the supplied special cable because the recessed micro-USB charge port is awkward. Documentation is thin and the Mode button doubles as an enter key without being explained.
Owners report useful results for audio, generator output, amplifier work and laptop CPU or BIOS signal tracing up to roughly 10 to 20 MHz, and a small number reported dead-on-arrival units, so unit-to-unit consistency is the real risk here.
Who should buy the YEAPOOK ADS5012h
It fits hobbyists chasing audio, RF at low frequency, or clock and data signals on a laptop board who need more bandwidth than a 50 MHz handheld can give. The long battery life makes it a good travelling tool.
Who should skip the YEAPOOK ADS5012h
Skip it if you routinely compare two signals, or if you rely on cursors and zoom to pin down timing. One channel and a 4 division vertical range are real limits on serious analysis work.

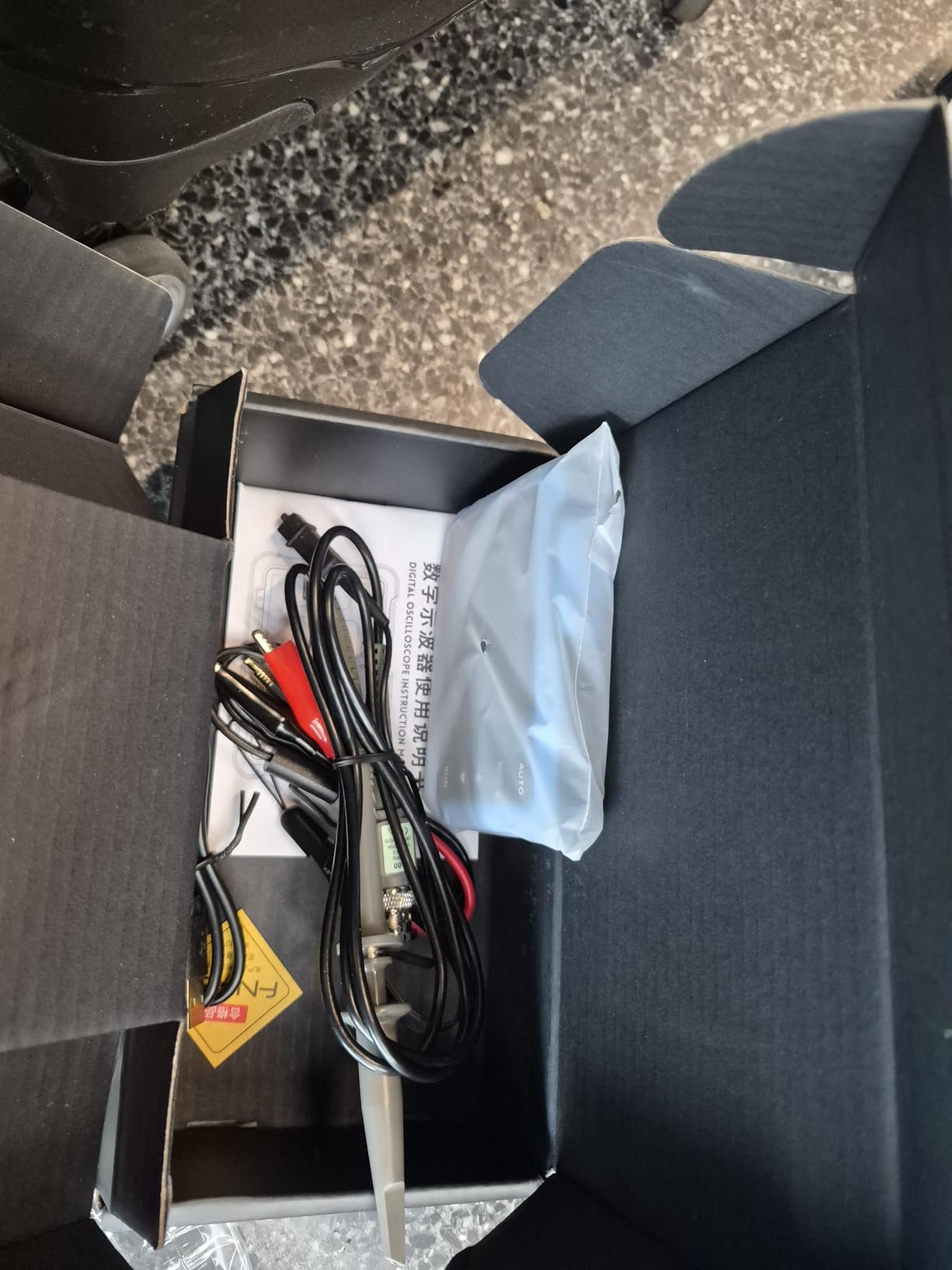

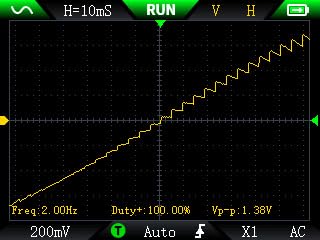

6. FNIRSI DSO-510 – Best for Car Audio Gain Setting
FNIRSI DSO-510 2-in-1 10MHz Handheld Oscilloscope DDS Signal Generator
- Working 50 kHz DDS generator in the same body
- Generator output independently confirmed to 50 kHz
- One-key AUTO is quick for clipping checks
- Bright readable 2.8 inch screen
- Controls take time to learn and the trigger is tricky
- Generator frequency resets to 1 kHz back in scope mode
- Only one probe supported
The DSO-510 pairs a 10 MHz scope with a DDS signal generator covering 13 waveforms up to 50 kHz. That combination is the reason it keeps coming up in car audio threads: you can inject a tone, watch an amplifier rail, and set gain in one pass.
The 48 MS/s sampling rate and 50 ns to 20 s time base cover audio work comfortably, and voltages up to 400 V can be measured. Infinite afterglow with display level and waveform scaling helps catch intermittent behaviour on a moving trace.
Detailed reviewer testing confirms the generator really does reach 50 kHz, but it resets to 1 kHz when you return to scope mode and its amplitude accuracy drifts at higher setpoints. The controls need a few sessions before they feel automatic, and the trigger is described as tricky.
Only a single probe is supported, and there is no customisable probe attenuation multiplier to correct for that. The instructions are also unclear on connecting the probe and generator leads, which cost us a few minutes on the first attempt. The 1000 mAh lithium battery charges over Type-C, and the 3.8 x 2.68 x 0.75 inch body is genuinely pocketable.
Owners report strong results for car audio tuning, amplifier clipping checks and basic electronics learning at a very modest outlay.
Who should buy the FNIRSI DSO-510
Buy it for amplifier gain setting, speaker phase checks, car audio tuning and any low-frequency signal work where having a generator in the same case is the deciding factor. The screen brightness adjustment helps in a dim car at night.
Who should skip the FNIRSI DSO-510
Skip it for digital logic or anything above 10 MHz. If you need more than one probe, or you want generator amplitude you can trust at the top of the range, this is the wrong tool.

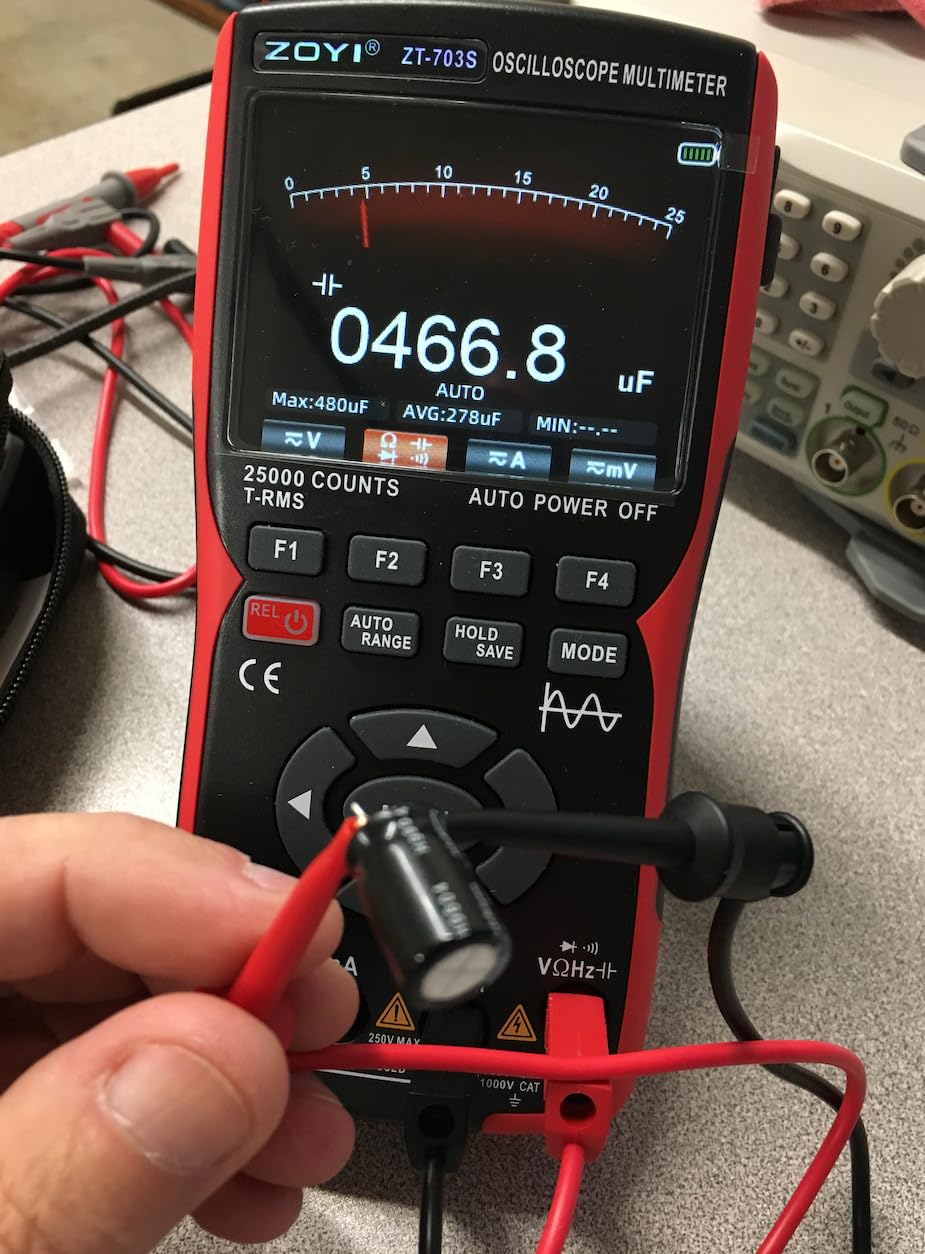

7. ZOYI ZT-703 – Best for Automotive Electrical Work
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
- 25000-count meter accuracy praised by reviewers
- Dual-channel with a switchable 280 MSa/s high-speed mode
- Replaceable lithium battery and solid construction
- Large bright color screen reads in poor lighting
- Effective bandwidth closer to 20 MHz on sine waves
- Button interface with no rotary dials
- Generator limited to probe calibration and demos
The ZT-703 is built around a dual-channel handheld with AUTO waveform auto-recognition and two operating modes. Normal mode gives 200 MSa/s and 30 MHz maximum bandwidth at lower power draw, while high-speed mode pushes to 280 MSa/s and 50 MHz. Storage depth is 128K in both.
The multimeter side is the part reviewers rate most highly in the whole budget class. 25000 counts covering resistance, capacitance, continuity, diodes and current, in a 380 g body with a replaceable lithium battery, a fabric bag, probes and test leads included.
Here is the spec-inflation catch. Buyers report effective bandwidth closer to 20 MHz on sine waves and lower on square waves, despite the 50 MHz claim. That is still fine for 12V automotive rails, CAN bus hunting, speaker phase checks and 100 kHz sine work, which is what most people buy it for.
The interface is button-driven with no rotary dials, so cursor and division changes are menu-heavy. The signal generator outputs sine, square and triangle with a synchronous demonstration window, but owners treat it as a calibration and demo aid rather than a real injection source. The sleep timeout can only be set coarsely, and the included pouch holds the accessories but not the unit itself. There is no temperature measurement function.
307 reviews at 4.7 stars with 82 percent five-star ratings is a strong showing, and the large bright screen is often singled out as the reason the unit is pleasant to use in a dark engine bay.
Who should buy the ZOYI ZT-703
It fits automotive electrical diagnosis, secondary battery and alternator checks, CAN bus hunting and general 12V troubleshooting. The 25000-count meter alone justifies the purchase for most vehicle work.
Who should skip the ZOYI ZT-703
Skip it if you need honest 50 MHz performance or a usable signal generator. The gap between the rated and effective bandwidth matters for anything above about 20 MHz, and the menu-heavy controls slow down precision work.

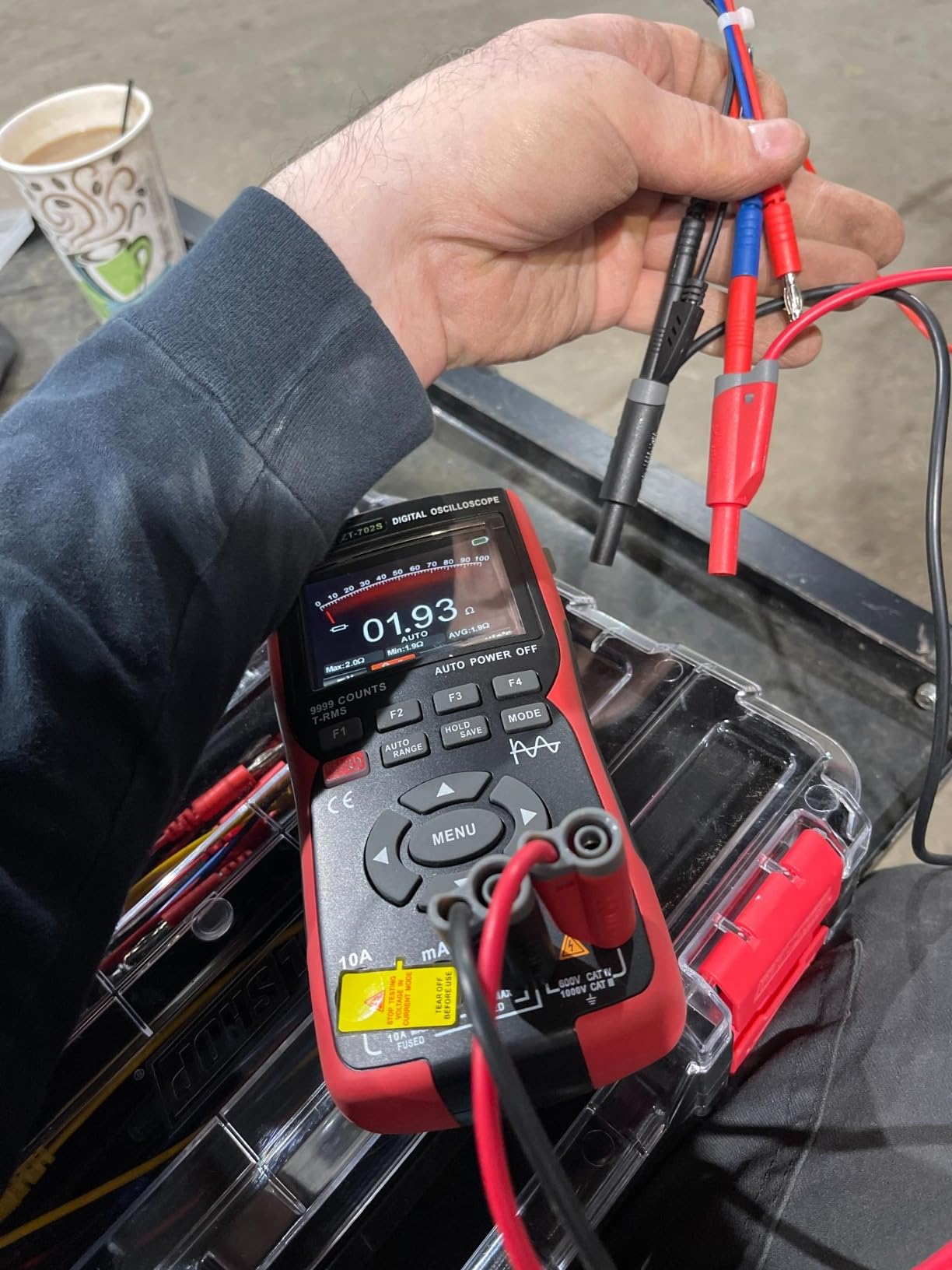

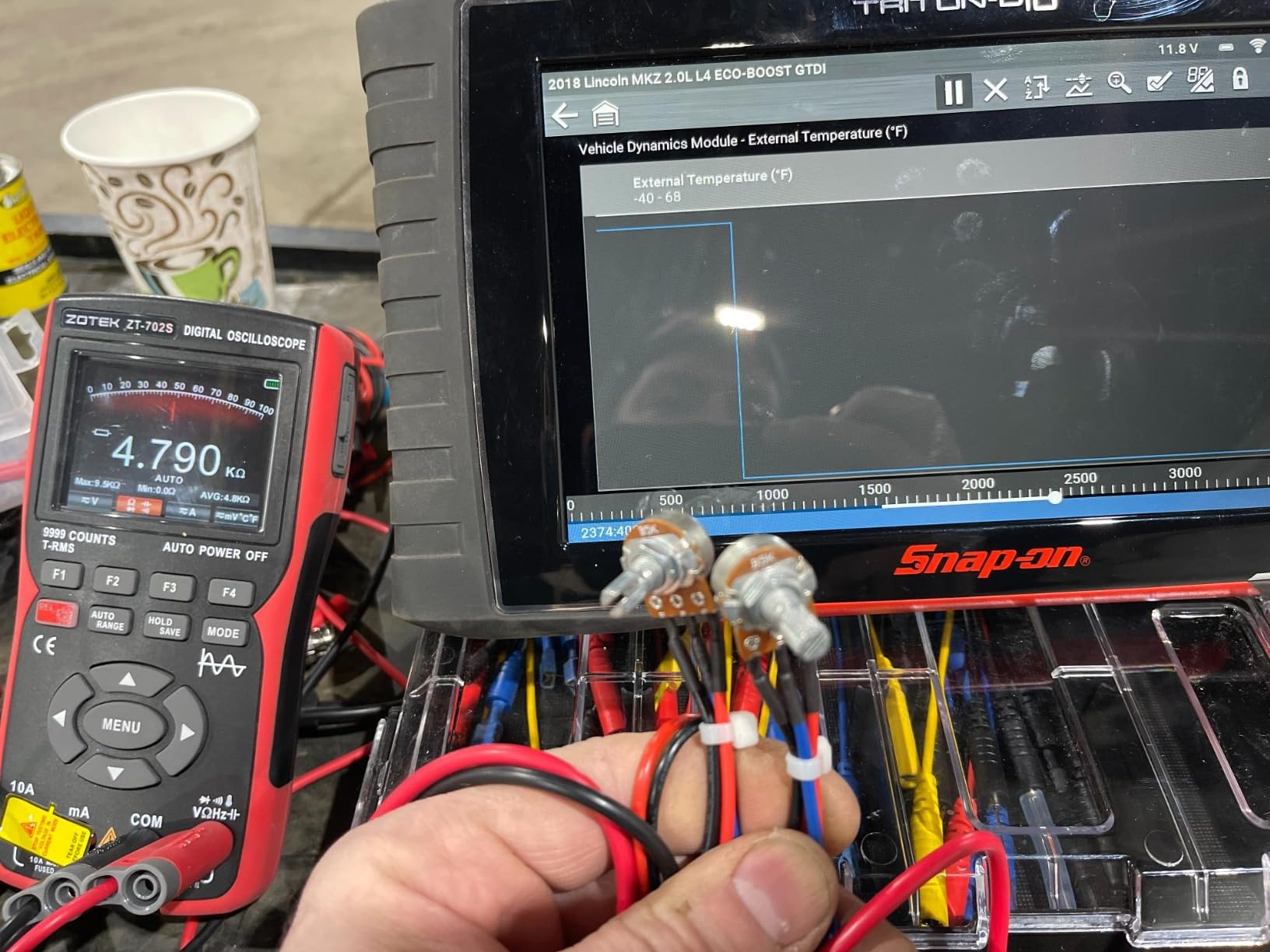

8. ZOTEK 702S – Best for Field Repair with a Temperature Probe
- Multimeter with temperature probe and replaceable fuses
- Bright 2.8 inch IPS screen readable in sunlight
- Upgradable firmware with regular bug fixes
- 18650 battery is user-replaceable
- Scope is single-channel 10 MHz only
- Buttons need a deep press and the ground lead is short
- Weak battery backup and occasional Single trigger lock-ups
The 702S is unusual for including a temperature channel. The 9999-count T-RMS multimeter measures temperature from -20 to 1000 C alongside AC and DC voltage, current, resistance to 99.99 MOhm, capacitance to 9.999 mF, frequency to 99.99 kHz, diode and continuity. For HVAC, appliance and power-supply work that is the feature that sells it.
Safety ratings are CAT III 1000V and CAT II 600V with CE certification and a 200 mA to 10 A double ceramic fuse, so it is one of the few handhelds here you can point at live mains-adjacent work with some confidence. The 2.8 inch IPS full-view color screen is bright enough to read in direct sunlight, which is exactly where cheaper panels fail.
The scope side is honestly modest. It is a single channel 10 MHz with plus or minus 400V input, 200 mV/div to 10 V/div vertical sensitivity and a 20 ppm time base. That is enough to see supply ripple and confirm signal presence, not enough for detailed electronics work. The signal generator is a 4V, 1 kHz square wave, which is a calibration aid and little else.
Owners praise the replaceable 18650 battery, a supplied screwdriver for opening the case, the kickstand, and firmware that the manufacturer still updates. The repeated complaints are weak battery backup with occasional display flicker, buttons that need a deep press, a painfully short ground clip lead, and a scope that sometimes locks up in Single trigger mode and needs a power cycle. The USB port transfers screenshots only, not live data.
At 6.97 x 3.5 x 1.57 inches and 700 g it is the heaviest unit in this roundup, so plan on a bench or vehicle rather than a pocket.
Who should buy the ZOTEK 702S
Buy it for field repair, appliance and HVAC diagnostics, or anywhere you need a temperature reading alongside electrical measurements. The replaceable battery and fuses make it a long-term tool rather than a disposable one.
Who should skip the ZOTEK 702S
Skip it if the scope is your main reason for buying. Single-channel 10 MHz will frustrate anyone working on digital buses or switching regulators, and the short ground lead is annoying on dense boards.
9. HANMATEK DOS1102 – Best Large-Screen Portable for Embedded Work
- 110 MHz with 500 MS/s on both channels
- 30 automatic measurements with a customizable menu
- SCPI compliant with LABVIEW support
- 2.4 lb body is bulky for real handheld field use
- Runs on DC power rather than an internal battery
- Glossy screen reflects in bright conditions
Screen real estate is the reason to buy this one. A 7-inch 800×480 TFT with 65,535 colours in a 16:9 panel, against the 2.4 to 2.8 inch screens on every other handheld here. After a few hours of squinting, that difference is not subtle.
The instrumentation underneath is solid too. 110 MHz bandwidth with 500 MS/s per channel across both channels, a time base from 2 ns/div to 1000 s/div, vertical scale from 20 mV/div to 5 V/div, and at least 10K sampling points per acquisition with storage for 16 or more waveform groups plus U disk function.
It is also the most programmable unit in this lineup. Cursor measurement covers delta V, delta T and combined modes, auto range tracks horizontal, vertical and single or multi waveforms, probe attenuation covers 1X, 10X, 100X and 1000X, and there is a built-in 6-digit hardware frequency meter from 2 Hz to 20 MHz. SCPI compliance and LABVIEW communication open it up to scripting.
The trade-offs are form factor and power. At 2.4 lb and 11.85 x 5.98 x 2.76 inches it is a portable bench, not a handheld, and it needs DC power rather than running on an internal battery. The glossy finish produces reflections in bright conditions.
Owners doing embedded, power electronics and electronics education work pick it for the display and the record depth. If you program your instruments or capture waveforms to a computer, the USB device and host ports matter.
Who should buy the HANMATEK DOS1102
Buy it if you are at a desk or a lab bench for long sessions, working on embedded systems or power electronics, or you script your test gear. Two channels at 110 MHz and a readable screen remove a lot of friction.
Who should skip the HANMATEK DOS1102
Skip it if you need battery power or a device that fits a tool bag. At 2.4 lb with a mains-style power requirement, it belongs on a table, not in the field.
10. Hantek DSO2C10 – Best Two-Channel Starter Bench
Hantek DSO2C10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH
- 100 MHz dual-channel at an entry price
- 14 trigger modes including 5 serial protocol decodes
- Arbitrary waveform output adds a generator
- Well suited to education and service work
- 4.2 lb unit is the least portable option here
- Entry-level build and interface versus higher-tier benches
The DSO2C10 is the odd one out here because it is not really a handheld. It is a 100 MHz two-channel digital storage scope on a fixed bench, weighing 4.2 lb in a 12.6 x 4.33 x 5.91 inch footprint. If you want a permanent desk instrument with a real second channel, this is the budget route.
What stands out is the trigger set. 14 trigger modes including five kinds of serial protocol triggers and decodes, which is a genuinely useful feature for embedded debugging on I2C, SPI and UART lines. Arbitrary waveform output adds generator capability without a separate box.
The DSO2C10 is the one buyers treat as a capable entry into two-channel digital storage scopes, citing the 100 MHz bandwidth, the wide trigger set with serial decoding, and the arbitrary waveform output.
The caveat across the review pool is physical rather than electrical. At 4.2 lb it is far less portable than every handheld in this list, making it a bench or fixed-location tool. Owners also describe the build and interface as entry-level next to higher-tier bench scopes, and the documentation is not especially helpful.
Recommended use is communication, aerospace, defence, embedded systems, computers, research and education commissioning work, which is the manufacturer’s own positioning. For a student or service technician who wants real two-channel capability without moving up a tier, it does the job.
Because it has no battery, it also behaves differently around mains-referenced circuits. Its ground is bonded to the earth of its power supply, so probing a live 12V automotive or mains circuit needs care. An isolated handheld is the safer instrument for that job, which is why several units in this list exist.
Who should buy the Hantek DSO2C10
Buy it if you want a fixed desk scope with two channels and serial protocol decoding, and you are still learning embedded debugging. The arbitrary waveform output removes the need for a separate generator on a small bench.
Who should skip the Hantek DSO2C10
Skip it if portability matters at all, or if you plan to probe live circuits that float above earth. There is no battery and no isolation, so this is a bench instrument for a grounded project.
How to Choose a Portable Oscilloscope for Your Projects
The hardest part of buying a scope is that the spec sheet is not a shopping list. Bandwidth, sampling rate, channel count and record depth each sound important, but only two or three of them decide whether you can answer the question in front of you. Here is how to weigh them.
Bandwidth: use the 5x rule, then check the reality
The standard rule of thumb is to pick a scope with at least five times the bandwidth of the fastest signal you expect to measure. For most Arduino, ESP32 and Raspberry Pi work, signals sit below 20 MHz, which puts a 100 MHz scope in comfortable reach. Digital buses, SMPS switching nodes and automotive electronics push you toward 100 MHz or more, and RF work goes higher still.
Be careful with rated versus effective bandwidth, because it is the most common spec-inflation trap in this category. The ZOYI ZT-703 is rated at 50 MHz but reviewers report effective bandwidth closer to 20 MHz on sine waves. Read the review sections on this page before you trust a headline number, and give yourself headroom rather than matching the figure exactly.
2 channels versus 4 channels
Two channels covers most hobby projects, and a third or fourth only matters when you need to relate signals to each other. Switch-mode power supply debugging is the clearest case: input rail, switch node and output feedback are three signals you want to see together. Community consensus leans strongly toward buying four channels if the budget allows, but none of the portable units in this roundup offer more than two.
If comparing two buses or two rails simultaneously is central to your work, look at a bench scope instead. Our [guide to the best oscilloscopes for electronics hobbyists](https://www.nauticamalibutri.com/best-oscilloscopes-for-electronics-hobbyists/) covers that tier in more detail.
Sampling rate and record depth
Sampling rate is how many points per second the scope reads. Nyquist says you need at least twice the frequency you care about, and a common hobby rule is ten times the bandwidth. Those targets are aspirational on budget units. The 2C53T samples at 250 MSa/s against 50 MHz of bandwidth, the HO52 manages 250 MSa/s, and the DSO-510 sits at 48 MS/s for 10 MHz.
Record depth is how many of those points the scope keeps, and it is the number people forget. A deep record means you can zoom into a transient instead of squinting at a compressed trace. Most handhelds in this roundup are thin here, with the 2C53T at 1 Kpts and the HO52 at 8k. The ZT-703 at 128K and the DOS1102 at 10K points per acquisition give you far more room to investigate after the fact.
Isolation and mains safety
This is the highest-stakes question on the page. A benchtop scope and a mains-powered USB scope share an earth ground, so the tip and ground clip of a probe are both connected to that ground. Clip the ground lead to a live 12V battery or a switch-mode supply output and you send that voltage straight into the instrument, the probe, or your laptop.
Handhelds with an internal battery and a floating ground avoid that problem. That is why people in automotive and power-electronics threads specifically favour isolated units for live 12V and SMPS work. None of the models here are rated for probing mains directly, and a proper differential or high-voltage probe remains the only correct way to look at mains-referenced circuits. Treat the CAT ratings on the multimeter side as a meter rating, not a licence to probe the mains with the scope channels.
What to add after you buy
No competitor covers this, and it matters more than most buyers expect. The bundled probes on budget handhelds are frequently stiff, with small ground clips that are awkward on fine-pitch parts, so a better probe with a proper ground spring is the first upgrade worth making.
Second, a short USB-C cable or a right-angle connector saves daily friction, and a decent case protects a screen that is often the most exposed part of the body. Third, if you plan to capture and compare traces, confirm your model exports CSV or image files to a computer, because not all of them do. Fourth, a spare battery cell costs little and removes the most common field complaint on these units.
Frequently Asked Questions
What is a good oscilloscope for a hobbyist?
A good hobbyist oscilloscope is a 50 MHz to 100 MHz two-channel digital storage scope with at least 250 MSa/s sampling and a screen large enough to read comfortably. Add a true-RMS multimeter and a signal generator if you work on cars or audio, and choose an isolated handheld if you will probe live 12V circuits.
What is the best budget handheld oscilloscope for hobbyists?
The FNIRSI 2C53T is the strongest budget handheld for most hobbyists: a 50 MHz dual-channel scope, a 19999-count true-RMS multimeter and a DDS signal generator in one 400 g body, with a 10x probe and storage case included. If you want more bandwidth, the IMARS HO-3S offers 70 MHz with a 20000-count meter.
Are USB oscilloscopes any good?
USB and PC-based oscilloscopes are good for long captures, scripted measurement and repeatable testing, and some have genuine isolation. They are poor for spontaneous debugging because you need a laptop, a driver and a running application every time you want to look at a signal. For a single portable tool that works in a tool bag, a battery handheld is more practical.
What is the best brand for oscilloscopes?
For a portable hobbyist scope there is no single best brand, but the patterns are clear. FNIRSI leads on value and all-in-one features, HANMATEK on handheld ergonomics and record handling, ZOYI and ZOTEK on automotive multimeter strength, and Hantek on entry-level two-channel bench units with protocol decoding.
How much bandwidth do I need for hobby electronics?
For Arduino, Raspberry Pi and most embedded work, 50 MHz is enough and 100 MHz gives comfortable headroom. Audio and car electrical work need 20 MHz or less. SMPS and fast digital debugging push toward 100 to 200 MHz, and RF work goes higher. Use the rule of picking at least five times the bandwidth of your fastest signal.
Do I need 4 channels on my oscilloscope?
Two channels cover most hobby projects. A third or fourth only matters when you must relate several signals at once, and switch-mode power supply debugging is the clearest case, since input rail, switch node and output feedback are three signals you want together. Community advice is to buy four channels if your budget allows.
Final Verdict: The Default Portable Scope for Hobbyists
The FNIRSI 2C53T is our pick as the best portable oscilloscope for hobbyists in 2026. It gives you 50 MHz across two channels, a 19999-count true-RMS multimeter, a working DDS generator and a full accessory kit in one 400 g body, and it carries the most owner reviews of any unit we tested.
If you want more headroom, step up to the IMARS HO-3S for 70 MHz and a 20000-count meter. If you want the smoothest traces and stored reference waveforms for repair work, take the HANMATEK HO52. If you are starting from zero, the FNIRSI DSO152 costs little and teaches the fundamentals.
Whatever you choose, buy the probe and the ground lead you will actually be happy with, and keep a battery-powered isolated handheld for any circuit that is not earth-referenced. If you want the bench-side alternative, our [oscilloscopes for electronics hobbyists](https://www.nauticamalibutri.com/best-oscilloscopes-for-electronics-hobbyists/) guide covers the larger instruments, and our [desktop CNC guide](https://www.nauticamalibutri.com/best-desktop-cnc-machines-for-hobbyists/) covers the other tool most makers end up buying next.
