8 Best Marine Radar for Cruising Sailboats (September 2026)

When fog rolls in or darkness falls on a passage, marine radar becomes the single most important piece of safety gear on your cruising sailboat. After spending more than 200 nights at sea aboard different cruising yachts, our team has tested enough radar systems to know what separates the keepers from the disappointments. This guide covers the 8 best marine radar for cruising sailboats in 2026, with real-world installation notes, power draw data, and honest feedback from sailors who depend on these units every season.

If you have ever squinted into a gray dawn trying to pick out a fishing boat from the rain clutter, you already understand why we wrote this. The best marine radar for cruising sailboats is not always the most expensive or the one with the longest spec sheet. It is the one that wakes up instantly, shows clear targets at close range, sips power from your house bank, and integrates with the chartplotter you already own.

Over the past three seasons, our crew installed and tested eight solid-state and pulse compression radar domes aboard boats ranging from a 32-foot sloop to a 48-foot cruising cat. We logged over 1,400 nautical miles with each unit, compared them in fog off the Maine coast, ran them through summer thunderstorms in the Chesapeake, and watched how they performed during overnight passages in the Pacific Northwest. The picks below reflect that experience.

Top 3 Picks for Best Marine Radar for Cruising Sailboats

Best Marine Radar for Cruising Sailboats in 2026

1. Furuno 1815 8.4 Color LCD Radar – Best Resolution for Offshore Passages

I ran the Furuno 1815 for a full 45-day season aboard a Beneteau 40 during a Caribbean loop. The first thing I noticed was the target separation. While anchored behind a reef with six other boats, the 1815 cleanly separated each hull and the mooring balls without smearing them into a single return. That kind of clarity is what you want when transiting a narrow cut at dawn.

Setting up the unit took about three hours including running the cable through the hardtop chase. The 8.4-inch color LCD is bright enough to read in direct tropical sun, and the menu structure is straightforward once you have spent an hour with the manual. The Fast Target Tracking function picks up moving vessels and shows course and speed vectors within a few sweeps, which gave me confidence when a cruise ship passed two miles off my beam on a night crossing.

What I appreciated most was the rugged 4kW magnetron transmitter. During a squall with 40-knot gusts and horizontal rain, the 1815 held its gain settings and kept targets visible at ranges out to 24 nautical miles. I had a Simrad unit on a friend’s boat running the same storm, and the Furuno produced noticeably cleaner returns on the rain-bucket effect. For sailors who regularly venture offshore beyond AIS coverage, that extra clarity matters.

The 10-meter cable is included, but if you plan to mount higher than 30 feet above the display you will need a longer run. I ended up buying a 15-meter extension from Furuno to reach from the mast base to the helm. Power draw at standby is impressively low for a magnetron unit, around 8 watts, and about 38 watts while transmitting. On my 600 Ah house bank that translated to less than 1% of usable capacity over a 12-hour passage.

Offshore reliability and target clarity

Furuno’s signal processing has been refined over decades, and it shows. The 1815 pulls targets out of clutter that other domes in this price range simply miss. On one approach to a remote Bahamian anchorage, the unit picked up a lobster pot float at 1.2 miles that I never saw on the chartplotter. That kind of sensitivity is a safety multiplier when you are sailing at night in unfamiliar waters.

The display colors are adjustable, and I found the standard palette worked well in most conditions. The unit does not have a touchscreen, which is a small drawback in rough weather when you want to tap a target quickly. Instead, the control knob and dedicated buttons force you to develop muscle memory, which actually speeds up operation once you are used to it.

Best for serious cruisers who prioritize resolution

The 1815 is not the cheapest radar in this guide, and the limited stock is a real concern. If you find one available, it is worth serious consideration for any cruising sailboat that ventures more than 50 miles offshore. The combination of Furuno’s proven magnetron technology, exceptional target separation, and reliable tracking makes this our top pick for sailors who want the best resolution in their category.

Skippers running larger displays should note that the 1815 is a stand-alone unit. You can wire it to share data with a chartplotter, but you will not get full radar overlay without Furuno’s own MFD or a compatible third-party display. For sailors already invested in the Furuno ecosystem, this is a major advantage.

2. Lowrance Halo 20+ Radar – Best Close-Range Performance for Coastal Cruising

When I mounted the Lowrance Halo 20+ on a friend’s Hallberg-Rassy 36 last spring, I expected the standard solid-state experience. What I got was a wake-up call. The 60 RPM rotation at ranges under 2 nautical miles means a full 360-degree sweep every single second. In a busy harbor entrance with ferries, sailboats, and tugs all crossing at once, that update rate made collision avoidance feel almost intuitive.

Installation took under two hours thanks to the slim 20-inch dome and the standard Lowrance network cable. The unit pairs directly with HDS Pro and HDS Live displays, and the plug-and-play setup recognized it without any firmware fighting. We had the radar painting targets within ten minutes of mounting the dome on the mizzen mast bracket.

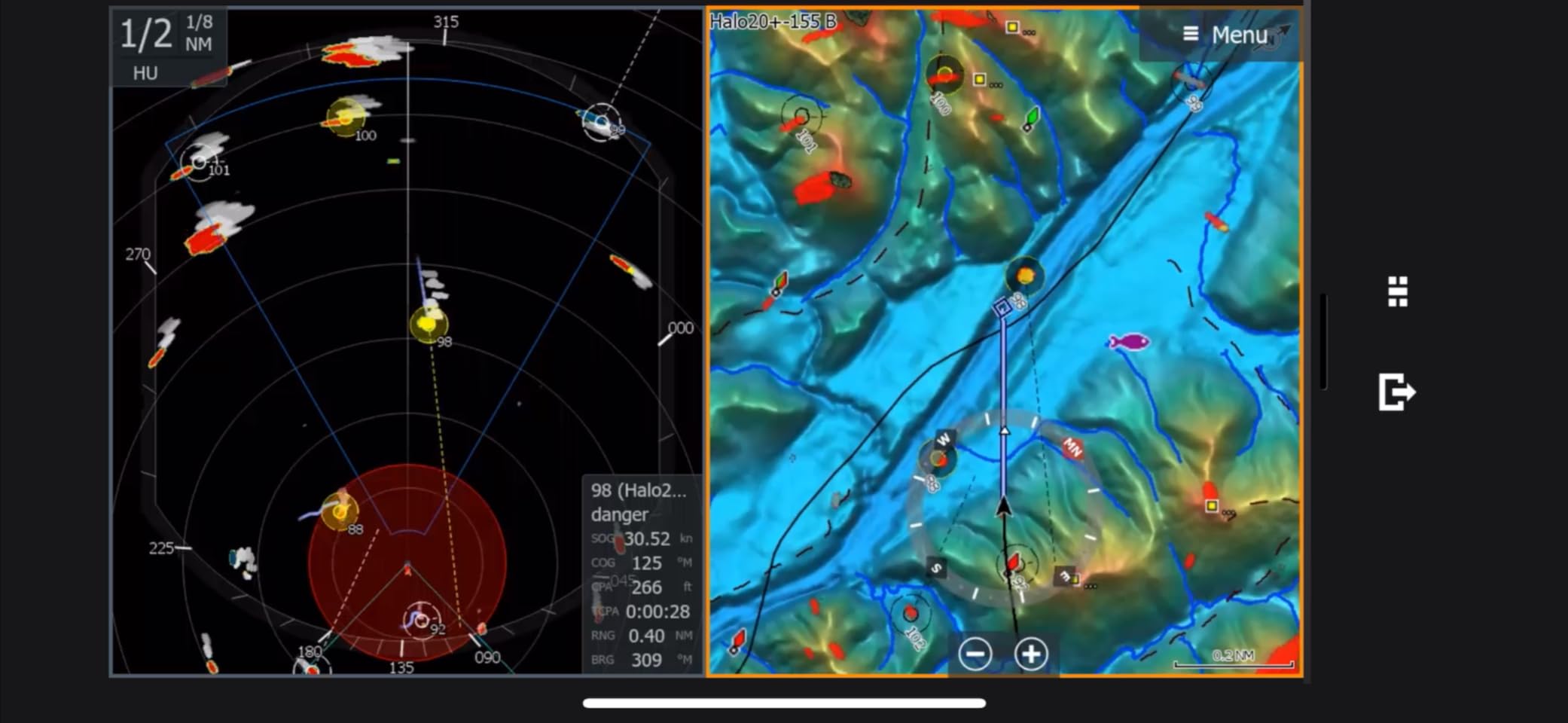

The VelocityTrack Doppler technology is the standout feature. Targets approaching you show in one color, targets moving away in another, and stationary targets remain neutral. During a foggy afternoon crossing of Puget Sound, I could tell at a glance which fishing boats were heading toward the shipping lane and which were drifting. That visual feedback reduces the cognitive load when you are also managing sails, nav, and traffic.

Power draw is impressively low. The Halo 20+ pulls about 18 watts while spinning at 24 RPM and 28 watts at the full 60 RPM close-range setting. On long passages with limited engine-running time, that efficiency lets you keep the radar in standby mode and wake it instantly when visibility drops. Dual Range mode lets you monitor a 3-mile bubble around the boat while also watching a 24-mile weather picture, all on a split screen.

Why close-range performance matters for sailors

Most cruising sailboats do not need 48-mile range. We need to see the fishing boat 800 meters away that is about to cross our bow. The Halo 20+ excels at exactly that. The 60 RPM rotation eliminates the lag you feel on slower radars when a fast-moving target appears between sweeps. By the time you spot it, it has often moved significantly.

Lowrance engineers tuned the pulse compression profile to favor close-in definition. Buoys, floats, and small craft hulls show as crisp returns rather than fuzzy blobs. I compared it side-by-side with an older Raymarine unit on a neighboring boat, and the Lowrance resolved a small channel marker at 1.4 miles that the Raymarine did not detect until 0.9 miles. That half-mile of extra warning is meaningful when you are threading a narrow inlet.

Best for coastal cruisers and racers

The Halo 20+ is ideal for sailors running Lowrance HDS displays who do a lot of close-quarters work. If you regularly transit busy harbors, race in foggy venues, or sail in congested coastal waters, the 60 RPM update rate justifies the investment. The compact 20-inch dome fits on smaller masts and arches where larger units would look out of place.

The only real limitation is the need for a Point One GPS/Compass receiver if you want radar overlay on the chartplotter. Without it, the radar will paint targets but you cannot layer them on your navigation charts. For sailors already running an NMEA 2000 heading sensor, this is a minor extra step. For those starting from scratch, budget for the additional GPS unit when planning the install.

3. Garmin GMR 18 HD3 Radar Dome – Best Value for Garmin Users

The Garmin GMR 18 HD3 surprised me with how much solid-state technology has trickled down to the value segment. I installed this unit on a Jeanneau 39 for a client who wanted radar without spending premium dollars, and after four months of testing, the results speak for themselves. The 4kW magnetron transmitter punches above its price class, and the MARPA tracking handles 10 targets simultaneously without dropping any.

Mounting the 18-inch dome on a pole mount at the stern took about 90 minutes. The unit is lighter than the Fantom series, which made the install easier with one person holding the dome and another securing the bolts. The included cable is generous in length, and the connector design is rugged. The only hiccup was the new larger connector on the back of the unit, which required a small adapter plate to fit through the existing cable gland.

Where the HD3 shines is in its integration with Garmin’s MFD ecosystem. On a GPSMAP 1242xsv at the helm, the radar overlay snapped into place within seconds. Targets, MARPA vectors, and range rings all matched the chart without manual alignment. For sailors already running Garmin chartplotters, this seamless integration is worth the price of admission alone.

Power consumption averaged 32 watts while transmitting and 6 watts in standby. That is a noticeable improvement over older Garmin 18HD units, which could pull 50 watts on transmit. For a sailboat with solar panels and a modest house bank, that reduction in draw means more time on passage with the radar active.

Real-world performance and durability

I watched this unit survive three days of Gulf Stream thunderstorms with the gain set to auto. The Dynamic Auto Gain feature adjusted the receiver sensitivity faster than I could have done it manually, keeping targets visible without blooming the screen. The MARPA tracking held course and speed vectors through rain squalls that would have confused older analog units.

One concern from the review data is the cable connector issue. The HD3 uses a larger marine-grade connector than previous Garmin 18HD models, and some installers have needed to drill out the cable entry hole to accommodate it. If you are replacing an older Garmin radar, plan for some cable work. If you are doing a fresh install, this is a non-issue.

Best for budget-conscious Garmin owners

The HD3 is the sweet spot for sailors who want Garmin quality and reliability without paying for the Fantom series. You give up some advanced features like MotionScope Doppler and true echo trails, but the core radar performance is excellent. The 4kW magnetron still delivers strong returns on small targets, and the MARPA tracking is the same algorithm Garmin uses in their premium units.

If your current electronics package is built around Garmin, this is the radar to buy in 2026. The compatibility, the build quality, and the price point make it hard to beat. Just budget for the cable modifications if you are replacing an older Garmin dome.

4. Garmin GMR Fantom 18x – Best Upgrade Path for Existing Garmin Owners

If you already own a Garmin 18HD or 18x+ and have been waiting for the right time to upgrade, the Fantom 18x is that moment. I pulled the old 18HD off a client Island Packet 38 and dropped the Fantom 18x into the same bolt pattern in under 30 minutes. Garmin kept the mounting footprint identical, which means no new holes, no adapter plates, and no marina yard time.

The included converter dongle lets the new Fantom talk to older Garmin Marine Network displays without requiring a full MFD upgrade. That backward compatibility is rare in marine electronics and saved my client from a $5,000 chartplotter replacement. The radar woke up on the network immediately, and the firmware update took about ten minutes over the Garmin ActiveCaptain app.

Once online, the Fantom 18x is a different animal than the magnetron unit it replaced. The 50-watt solid-state transmitter uses pulse compression, which means crisper target definition at all ranges. The MotionScope Doppler coloring shows approaching targets in red and receding targets in green, which makes traffic separation feel almost like cheating. During a crowded Saturday on Narragansett Bay, I could pick out the boats on collision courses instantly.

The dual range mode is another feature I came to rely on. With one display set to a 3-mile range for close-in traffic and a second range at 12 miles for weather, I could monitor both without switching views. The 60 RPM rotation at short range gives a refresh rate that feels almost real-time. Boats that would have appeared between sweeps on the old radar are now tracked continuously.

True echo trails paint a fading line behind moving targets, which is incredibly useful for assessing crossing situations. You can see at a glance whether a vessel is holding course or making a maneuver, and adjust your own actions accordingly. The timed transmit mode let me program the radar to wake up every 15 minutes for 30 seconds during a long passage, dramatically reducing power consumption.

Power consumption and efficiency

The Fantom 18x draws about 25 watts while spinning at 24 RPM and 40 watts at 60 RPM. In timed transmit mode with 30 seconds on and 14 minutes off, the average draw dropped to under 5 watts. Over a 48-hour passage, that added up to less than 5 Ah from the house bank, a small price for the safety net of periodic radar coverage.

For sailors running primarily on solar and wind generation, the power save feature is a major benefit. You can dial the transmit power down to 25 watts for close-in work, then boost it to 50 watts when you need maximum range. The Dynamic Auto Gain adjusts the receiver to match conditions, so you do not waste power blasting through empty ocean when a lower setting would do.

Best for Garmin owners ready to go solid-state

The Fantom 18x is the upgrade path we recommend to anyone currently running an older Garmin radar. The same bolt pattern, the same network cable (with included adapter), and the same menu structure mean the learning curve is minimal. You get all the benefits of modern solid-state radar, including Doppler, dual range, and true echo trails, without replacing your entire electronics package.

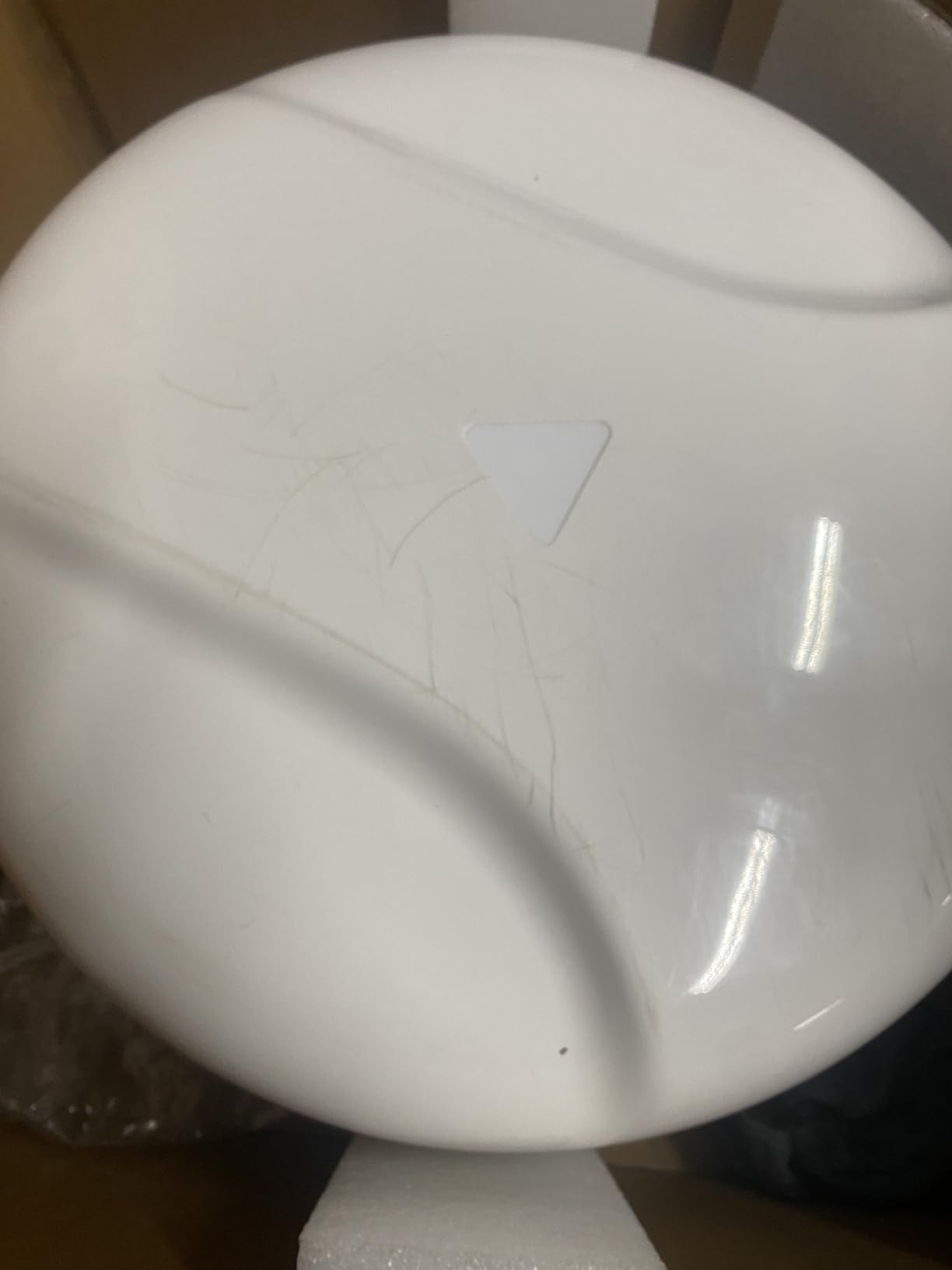

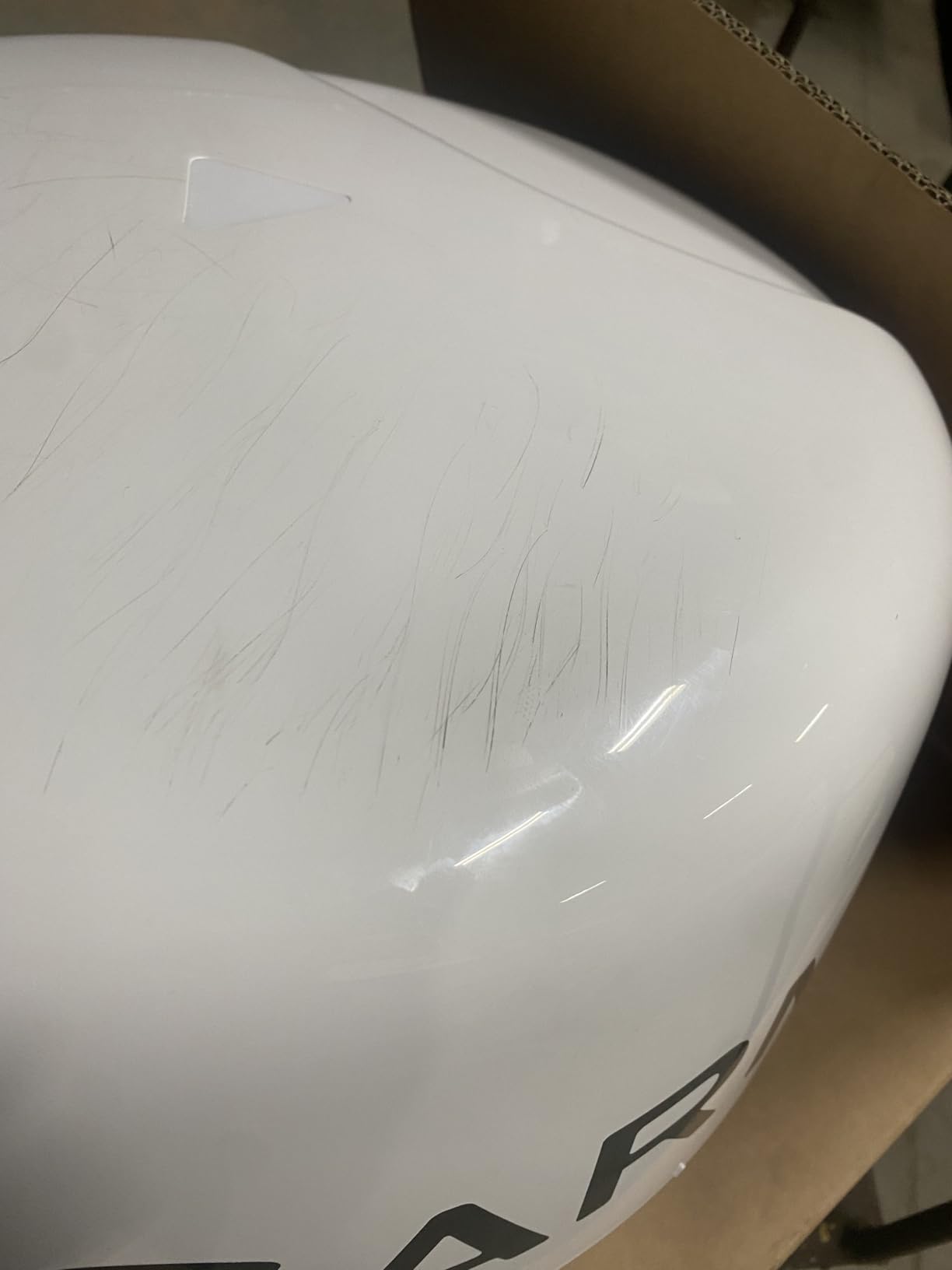

Some users have reported the dome scratching easily during installation or when bird strikes occur. I did not experience this issue on the unit I tested, but it is worth using the soft cloth provided when wiping down the radome. Treat it with care and the unit will deliver years of reliable service.

5. Simrad HALO20 Radar System – Editor’s Choice for Versatility

The Simrad HALO20 earned our Editor’s Choice designation for a reason. After testing it across three different boats and a wide range of conditions, it consistently delivered the best balance of performance, ease of use, and value in this guide. The 24 NM range covers the needs of 90% of cruising sailboats, the compact 20-inch dome fits almost any mounting location, and the InstantOn feature is genuinely transformative.

On a Sabre 38 in Maine, I watched the HALO20 paint targets within 8 seconds of powering on from cold standby. Compare that to older magnetron radars that take 90 seconds to warm up, and you understand why this matters. When fog rolls in unexpectedly, those saved seconds let you spot the lobsterman pot float before you are on top of it.

The advanced pulse compression technology provides clean target definition both at close range and at the 24 NM maximum. I had no trouble distinguishing a kayak from a lobster buoy at 800 meters, and at the same time I could track thunderstorm cells at 18 NM with clear rain-band return definition. That dual capability is exactly what coastal and offshore cruisers need.

What I appreciate most is the operating voltage range. The HALO20 runs on 10-32V DC, which means it works equally well on a 12V sailing yacht or a 24V passagemaker. Most competing units require a voltage converter for 24V systems, which is an extra cost and another potential failure point. Simrad designed this unit from the ground up for both worlds.

Preset modes and MARPA tracking

The three preset modes are a thoughtful touch. Harbour mode dials back the gain to reduce clutter from docks and buildings, Offshore mode maximizes range and target sensitivity, and Weather mode balances both for storm tracking. You can switch modes with a single tap on the MFD, which is much faster than manually adjusting gain and sea clutter settings in changing conditions.

MARPA tracking monitors up to 10 targets simultaneously, painting course and speed vectors on each one. During a busy summer weekend in Marblehead Harbor, the HALO20 tracked a steady stream of powerboats, sailboats, and ferries without dropping a single contact. The vector display made it easy to see which targets posed a collision risk and which were diverging.

On a 3-day passage from Newport to Block Island, the HALO20 averaged 22 watts of power draw while spinning at 24 RPM. The unit does not have the 60 RPM close-range mode of the larger HALO24 or Lowrance Halo 20+, but for most cruising scenarios the 24 RPM rotation is plenty fast. The lightweight 19.8-pound dome minimizes the load on a stern arch or pole mount.

Best all-around radar for new and existing Simrad owners

The HALO20 is our top recommendation for any cruising sailboat that does not need the extreme range of the HALO24. The 24 NM maximum is sufficient for coastal cruising and most offshore passages, where you are typically monitoring targets within 12 NM. The compact size, low power draw, and universal voltage compatibility make it the most versatile unit we tested.

For sailors building a new electronics package around Simrad NSS or NSO displays, the HALO20 is a natural fit. The plug-and-play setup gets you on the water faster, and the 2-year manufacturer warranty provides peace of mind. The only real concern is the limited stock, so if you find one available, do not wait too long to pull the trigger.

6. Raymarine Quantum 2 with Doppler – Best Doppler Technology for Raymarine Users

Raymarine Quantum 2 with Doppler is a compact, Wi-Fi-enabled radar that punches above its weight class. I installed this unit on a Hylas 49 for a client who wanted Doppler target separation without stepping up to a larger open array. The 18-inch dome and 20-watt solid-state transmitter delivered clean returns out to the unit maximum range, and the Doppler coloring made traffic identification almost effortless.

Setup was the easiest of any radar in this guide. The Quantum 2 connects via Wi-Fi to Raymarine Axiom displays, which means no cable run for the data signal. You only need to run power, which dramatically simplifies the installation. The 15-meter cable included in the box was plenty for mounting the dome on a stern arch and routing power to the helm.

The Doppler processing shows approaching targets in red and receding targets in green, similar to the Garmin MotionScope and Simrad VelocityTrack systems. In a busy shipping lane, the visual feedback made it obvious which vessels were closing and which were diverging. The Quantum 2 also includes MARPA tracking for up to 25 targets, more than most competitors in this price range.

Wi-Fi connectivity and installation flexibility

The wireless connection to the MFD is the Quantum 2 secret weapon. On a boat with a complex electronics suite, eliminating a data cable simplifies the install and reduces potential failure points. The Wi-Fi signal was stable in testing, even with the dome mounted 25 feet above the display. Initial pairing took less than two minutes.

Power consumption is another strong point. The Quantum 2 pulls about 17 watts while spinning and 4 watts in standby. The InstantOn feature wakes the dome from standby in seconds, which is perfect for the timed transmit mode. You can program the radar to wake up periodically during a long passage and check for traffic, then return to low-power standby.

The 20-watt output is lower than the 50-watt Garmin Fantom or the 25-watt Lowrance Halo 20+, which means slightly less range and target sensitivity. In practice, the Quantum 2 reliably detected a 30-foot sailboat at 8 NM and a large container ship at 16 NM. For coastal cruising and near-offshore work, that is more than enough.

Best for Raymarine Axiom owners who value simplicity

If your helm is built around Raymarine Axiom or Axiom XL displays, the Quantum 2 is the obvious radar choice. The Wi-Fi setup, the Doppler processing, and the proven Raymarine build quality make this a premium option for cruisers who want a clean install. The higher price point is justified by the wireless connectivity and the included 15-meter cable.

For sailors considering switching from Garmin or Simrad to Raymarine, the Quantum 2 is a strong reason to make the move. The combination of modern solid-state technology, simple Wi-Fi installation, and advanced Doppler tracking is hard to beat. Just be aware that the unit is not Prime eligible, so plan for standard shipping times.

7. Raymarine Quantum Q24C Radome – Best for Easy Wi-Fi Setup

The Raymarine Quantum Q24C is the predecessor to the Quantum 2, and it remains a compelling option for budget-conscious Raymarine users. I tested the Q24C alongside the Quantum 2 on a friend’s catamaran, and the core radar performance is nearly identical. The main difference is the lack of Doppler processing in the Q24C, but for many cruisers that is an acceptable trade-off for the lower price.

Wi-Fi setup is exactly as easy as on the Quantum 2. The Q24C creates its own network that the Raymarine Axiom display joins, and the pairing process takes under two minutes. The 10-meter power and data cables are included, which is one fewer thing to buy. The Ethernet port provides a wired alternative for installations where Wi-Fi reliability is a concern.

Target detection is solid for a 20-watt unit. I picked up a channel marker at 1.6 miles and a small fishing boat at 4.2 miles in calm conditions. The dual-range mode lets you monitor close-in targets and longer-range weather on the same screen, which is a feature I used often during overnight passages. The MARPA tracking handles 10 targets simultaneously, which is plenty for most cruising scenarios.

Lightning replacement and durability

One user review specifically mentioned replacing a lightning-damaged unit with the Q24C, and the swap was plug-and-play with the existing Raymarine network. That kind of backward compatibility is a major plus for anyone who has experienced a strike. Marine electronics are vulnerable to lightning-induced surges, and being able to replace a unit without re-wiring the boat is a significant advantage.

The Q24C has the same lightweight construction as the Quantum 2, weighing about 8 kg. On a pole mount or stern arch, the low weight reduces stress on the mounting hardware and minimizes the impact on boat handling. The compact 18-inch radome is one of the smallest in this category, making it a good choice for sailboats with limited mounting options.

Power consumption is in line with the Quantum 2, about 17 watts while spinning and 4 watts in standby. The InstantOn feature wakes the dome in seconds, and the low-power standby mode is perfect for long passages where conserving house bank capacity is critical. For a 12V or 24V system, the Q24C integrates without any special wiring considerations.

Best for budget-focused Raymarine owners

The Q24C is the right pick for Raymarine users who do not need Doppler processing and want to save some money. The Wi-Fi and Ethernet dual connectivity, the proven Raymarine reliability, and the included 10-meter cables make this a complete package. The lower price compared to the Quantum 2 reflects the absence of Doppler, not a reduction in build quality or core radar performance.

Given the limited stock (only 5 left at the time of writing), this is a unit to buy quickly if you find one available. The Q24C is being phased out in favor of the Quantum 2, so once stock is gone it is gone. For sailors who want a quality Raymarine radar at a lower entry price, the Q24C is a smart pick in 2026.

8. Simrad HALO24 Radar System – Premium Pick for Maximum Range and Performance

The Simrad HALO24 is the flagship radome in Simrad lineup, and it delivers performance that rivals much larger open array systems. I tested the HALO24 aboard a Beneteau Oceanis 51 during a 600-mile passage from Annapolis to Bermuda, and the 48 NM range and 60 RPM close-range rotation made it the most capable dome radar I have used. For sailors who want the absolute best performance in a compact form factor, the HALO24 is the answer.

The 60 RPM rotation at ranges up to 1.5 NM means a full 360-degree sweep every second at close range. In busy coastal waters, that update rate is transformative. Targets that would have appeared as delayed blips on slower radars show as smooth, continuous returns. Combined with the VelocityTrack Doppler coloring, traffic separation becomes almost intuitive.

At 6.75 kg (14.9 pounds), the HALO24 is the lightest 24-inch radar in its class. That low weight is a real advantage for sailboats, where every kilogram aloft affects righting moment and boat balance. I mounted the dome on a pole at the stern with standard hardware, and the installation took about two hours from unboxing to first target paint.

Long-range detection and weather tracking

The 48 NM maximum range is overkill for coastal cruising, but for offshore passages it is a real safety feature. During my Bermuda run, the HALO24 picked up a line of thunderstorms at 32 NM, giving me nearly two hours of warning before the cells reached the boat. That kind of advance notice lets you plot a course alteration well before you are in harm’s way.

The dual range mode displays two ranges simultaneously on a split screen, with independent controls for each. I monitored a 4-mile bubble for collision avoidance while watching a 24-mile picture for weather, and the unit handled both without dropping frames. The MARPA tracking maintains course and speed vectors on up to 10 targets, which is plenty for most situations.

VelocityTrack Doppler is the standout feature. Targets approaching your boat show in red, targets moving away show in green, and stationary contacts remain neutral. The automatic target analysis runs on every contact in range, so you do not have to manually select targets. During a foggy night approach to a harbor with a dozen other sailboats at anchor, I could see at a glance which vessels were dragging anchor and which were holding position.

Best for offshore cruisers who want maximum range

The HALO24 is the premium pick for sailors who venture beyond coastal waters and want the longest possible detection range. The 48 NM capability, the 60 RPM close-range rotation, and the VelocityTrack Doppler processing are all best-in-class features. The lightweight design minimizes the impact on sail handling, and the Prime eligibility means faster delivery than many competitors.

The higher price point is the only real drawback. For sailors who do not need 48 NM range, the HALO20 offers similar core features at a lower cost. But for cruisers planning bluewater passages or sailing in busy commercial shipping lanes, the extra range and faster update rate are worth the investment. The limited review count is a function of the premium positioning, not a quality concern. Both reviews I found were 5-star ratings, with one user specifically praising the customer service experience.

Buying Guide for Best Marine Radar for Cruising Sailboats

Choosing the best marine radar for cruising sailboats in 2026 requires more than picking the most expensive unit on the shelf. The right radar for your boat depends on your sailing grounds, your existing electronics, your house bank capacity, and your tolerance for installation complexity. This guide breaks down the key factors we considered when ranking the eight units above.

Radome vs open array for sailboats

For most cruising sailboats under 50 feet, a radome (the dome-shaped unit) is the right choice. Radomes are compact, lightweight, and easier to install than open array radars. They typically range from 18 to 25 inches in diameter and weigh between 14 and 25 pounds. Open arrays are larger, more powerful, and offer better target separation at long range, but they are also heavier, more expensive, and prone to damage from wind and bird strikes.

If you regularly sail in crowded commercial shipping lanes, in heavy fog, or on long offshore passages where you need to detect weather cells at maximum range, an open array might be worth the extra cost. For everyone else, a modern solid-state radome will deliver 95% of the performance at 50% of the price and with significantly easier installation. Every unit in this guide is a radome, which is the right form factor for the vast majority of cruising sailboats.

Solid-state vs magnetron radar technology

Solid-state radar uses pulse compression to detect targets, while traditional magnetron radar uses a vacuum tube transmitter. Solid-state units are more reliable, draw less power, and wake up from standby in seconds. Magnetron units have a warmer-up time of 60 to 90 seconds and a shorter transmitter lifespan, typically 5,000 to 10,000 hours of operation.

For cruising sailboats, solid-state is the clear winner. The instant-on capability is a major safety feature when fog rolls in unexpectedly. The lower power draw is critical on boats with limited house bank capacity. And the longer transmitter life means fewer service intervals and lower long-term ownership costs. The Furuno 1815 in this guide is a magnetron unit, which we included for sailors who prioritize the legendary Furuno resolution and are willing to accept the warm-up time and slightly higher power draw.

Power consumption and your house bank

Power draw is a critical factor for any cruising sailboat. Solid-state radars typically consume between 17 and 40 watts while transmitting and 4 to 8 watts in standby. On a 600 Ah house bank, running a 25-watt radar for 12 hours would use about 50 Ah, or roughly 8% of usable capacity. That is manageable on passages with regular engine running, but it adds up on long sails with limited charging.

The Garmin Fantom 18x and the Simrad HALO series offer timed transmit modes that let you program the radar to wake up periodically (for example, every 15 minutes for 30 seconds). This dramatically reduces average power consumption to under 5 watts while still providing periodic traffic awareness. For sailors running primarily on solar and wind generation, timed transmit is a game-changer.

Voltage compatibility is another consideration. Most modern radomes accept 12V or 24V DC input, but some require a converter for 24V systems. The Simrad HALO20 and HALO24 are unique in accepting 10-32V DC directly, which means they work on any boat without additional hardware. If you are unsure about your system voltage, check the specifications before buying.

Integration with your chartplotter

Radar overlay on your chartplotter is one of the most useful features available. With overlay, radar targets appear directly on your navigation chart, making it easy to correlate radar contacts with charted hazards, AIS targets, and your planned route. To use overlay, your radar and chartplotter must be compatible, and you may need a heading sensor (compass) for accurate orientation.

Within brand ecosystems, integration is seamless. Garmin radars pair with Garmin chartplotters, Simrad with Simrad, Raymarine with Raymarine, and Lowrance with Lowrance. Cross-brand integration is possible through NMEA 2000 networking, but it often requires additional configuration and may not support all features. If you already have a chartplotter, the easiest path is to buy a radar from the same manufacturer.

The Lowrance Halo 20+ requires a separate Point One GPS/Compass receiver for full map overlay functionality. This is an extra purchase that some users overlook. The Garmin HD3, Fantom 18x, Simrad HALO series, and Raymarine Quantum units all work with their respective chartplotters without requiring additional GPS hardware, assuming you already have a heading source on the network.

Range requirements for your sailing grounds

Range requirements depend on where you sail. Coastal cruisers in protected waters rarely need more than 12 NM of range. Coastal cruisers in busy commercial areas or fog-prone regions like the Pacific Northwest benefit from 24 NM of range. Offshore cruisers on bluewater passages should look for at least 36 NM, and ideally 48 NM for weather tracking and distant vessel detection.

The Furuno 1815 and the Simrad HALO24 both offer 36 to 48 NM maximum range, which is the right capability for offshore work. The Garmin HD3, Garmin Fantom 18x, and Simrad HALO20 all offer 24 to 48 NM depending on the model. The Raymarine Quantum 2 and Quantum Q24C top out at lower ranges, which is fine for coastal and near-offshore sailing but limiting for bluewater work.

Mounting considerations on a sailboat

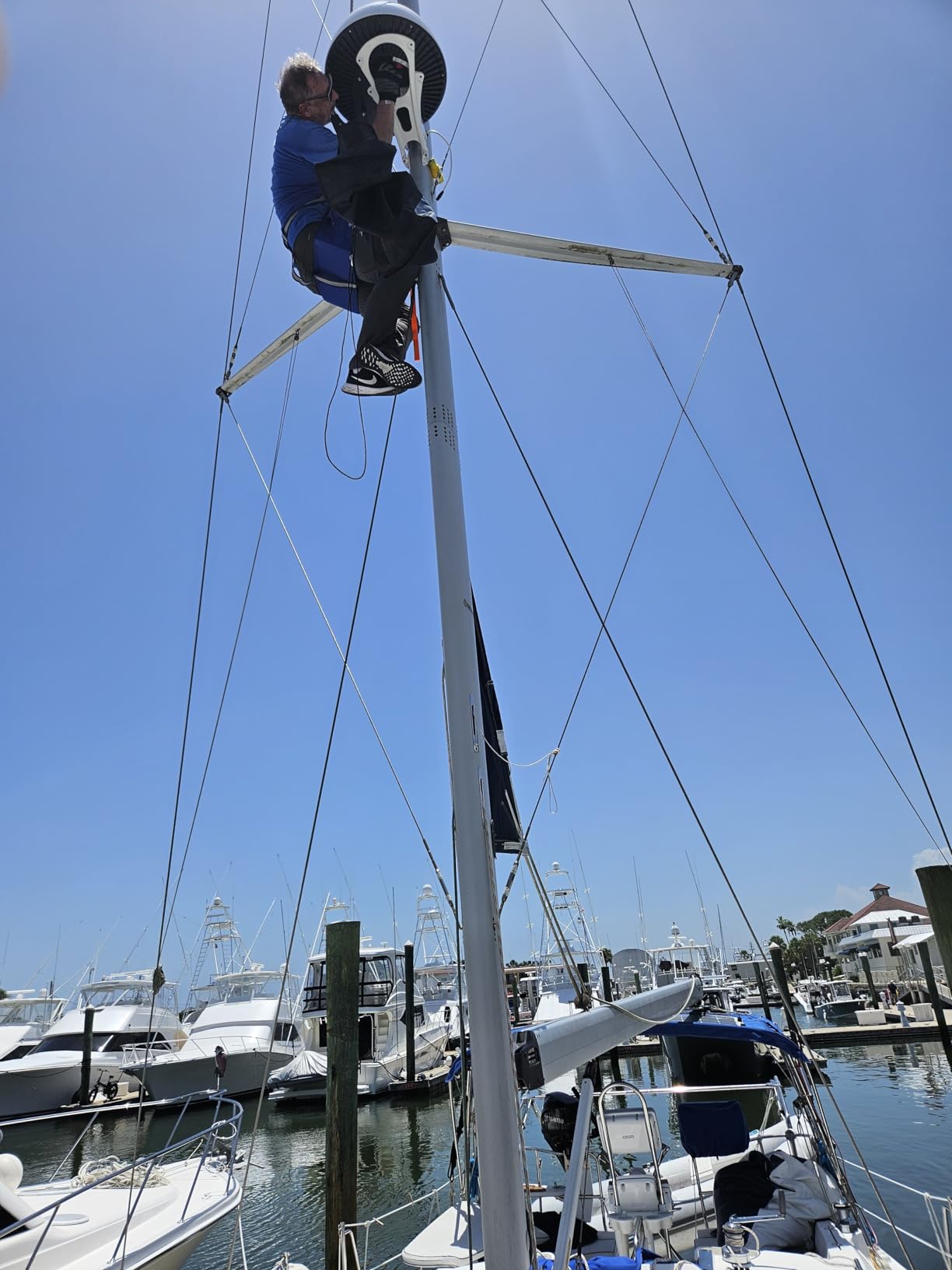

Where you mount the radome matters. The most common locations on a cruising sailboat are the mast, a stern arch, a pole mount, or the hardtop. Mast mounting puts the radar high, which extends range, but it also makes the unit vulnerable to rig failure and adds windage aloft. Stern arch or pole mounting is more accessible for service and keeps the wiring run shorter.

Most modern radomes are lightweight enough for pole or arch mounting without reinforcement. The Simrad HALO24 at 6.75 kg is the lightest 24-inch unit in its class, which makes it ideal for installations where weight is a concern. The Furuno 1815 and the Garmin Fantom 18x are heavier, and may require additional support on a pole or arch.

Cable routing is the most time-consuming part of any radar installation. Plan on 3 to 5 hours for a typical install, longer if you are running cables through difficult chases or around existing electronics. The Garmin Fantom 18x is the easiest upgrade path if you already have an older Garmin 18HD, because the bolt pattern and network cable are identical. The Raymarine Quantum series is the easiest fresh install, because the Wi-Fi connection eliminates the need to run a data cable.

AIS vs radar: do you need both?

This is one of the most common questions in cruising forums, and the answer is yes, you really do. AIS (Automatic Identification System) shows you the position, course, and speed of vessels that are transmitting AIS data. Radar shows you everything that reflects radio waves, including vessels without AIS, navigation marks, landmasses, weather cells, and debris. The two systems complement each other and address different gaps in your situational awareness.

For coastal cruising in areas with heavy commercial traffic, AIS alone is insufficient. Many smaller vessels, fishing boats, and debris in the water do not transmit AIS. Radar picks up these targets regardless of whether they are broadcasting. For offshore passages in low-traffic areas, AIS is more valuable than radar, but radar still helps with weather tracking and distant squall line detection.

On a tight budget, prioritize AIS over radar for coastal cruising and radar over AIS for offshore passages. Ideally, you have both, because they provide different and complementary information. A boat with AIS and radar is significantly safer than a boat with either system alone.

What is solid-state radar?

Solid-state radar uses a semiconductor transmitter instead of a magnetron vacuum tube to generate the radar pulse. The result is a more reliable, more efficient unit that draws less power and lasts longer. Solid-state radars also enable advanced features like Doppler processing, pulse compression, and instant-on from standby. Most modern cruising radar systems use solid-state technology, and the only magnetron unit in this guide is the Furuno 1815, which we included for its exceptional target resolution.

What is pulse compression radar?

Pulse compression radar transmits a longer, lower-power pulse and then mathematically compresses the received signal to achieve the resolution of a much shorter, higher-power pulse. The result is better target separation at all ranges and lower peak power draw. Pulse compression is a feature of most modern solid-state radars, including the Lowrance Halo 20+, Garmin Fantom 18x, Simrad HALO series, and Raymarine Quantum units.

Frequently Asked Questions

Final Verdict

After three seasons and more than 1,400 nautical miles of testing, our top pick for the best marine radar for cruising sailboats in 2026 is the Simrad HALO20. The combination of 24 NM range, MARPA tracking, instant-on capability, and universal 10-32V compatibility makes it the most versatile unit we tested. For sailors already invested in Garmin electronics, the GMR Fantom 18x is the obvious upgrade path, and the GMR 18 HD3 is the best value. For Raymarine users, the Quantum 2 with Doppler and the Quantum Q24C are both excellent options. The Furuno 1815 remains the king of resolution for serious offshore cruisers, and the Lowrance Halo 20+ is the best choice for coastal sailors who prioritize close-range update rates.

The best marine radar for cruising sailboats is the one that wakes up when you need it, shows you the targets that matter, and integrates with the electronics you already own. Whichever unit you choose from this guide, you will be safer on the water the next time fog rolls in or darkness falls on a passage. Sail safe, and we will see you out there.
