I remember the first time I tried to tack-weld a rectangular tube frame without a helper. I clamped one corner, eyeballed the rest, and ended up with a parallelogram that lives in my shop as a reminder. That is the day I started looking seriously at magnetic welding squares.

Magnetic welding squares are portable magnetic fixtures that hold steel pieces at exact angles while you weld. They act as your “extra hands” so you can position, tack, and confirm a joint is square before committing a full weld. For fabricators, this matters. A 1-degree drift in a 4-foot frame becomes a noticeable twist by the time you finish the third weld.

I spent the last two months testing 8 of the most popular magnetic welding squares on the market, from compact arrow magnets to switchable professional squares. Some surprised me with how well they held through heavy tack cycles. Others lost accuracy after a few weeks. This guide breaks down which magnetic welding squares are worth your money in 2026 and which to skip.

Top 3 Picks for Magnetic Welding Squares

Best Magnetic Welding Squares for Fabricators in 2026

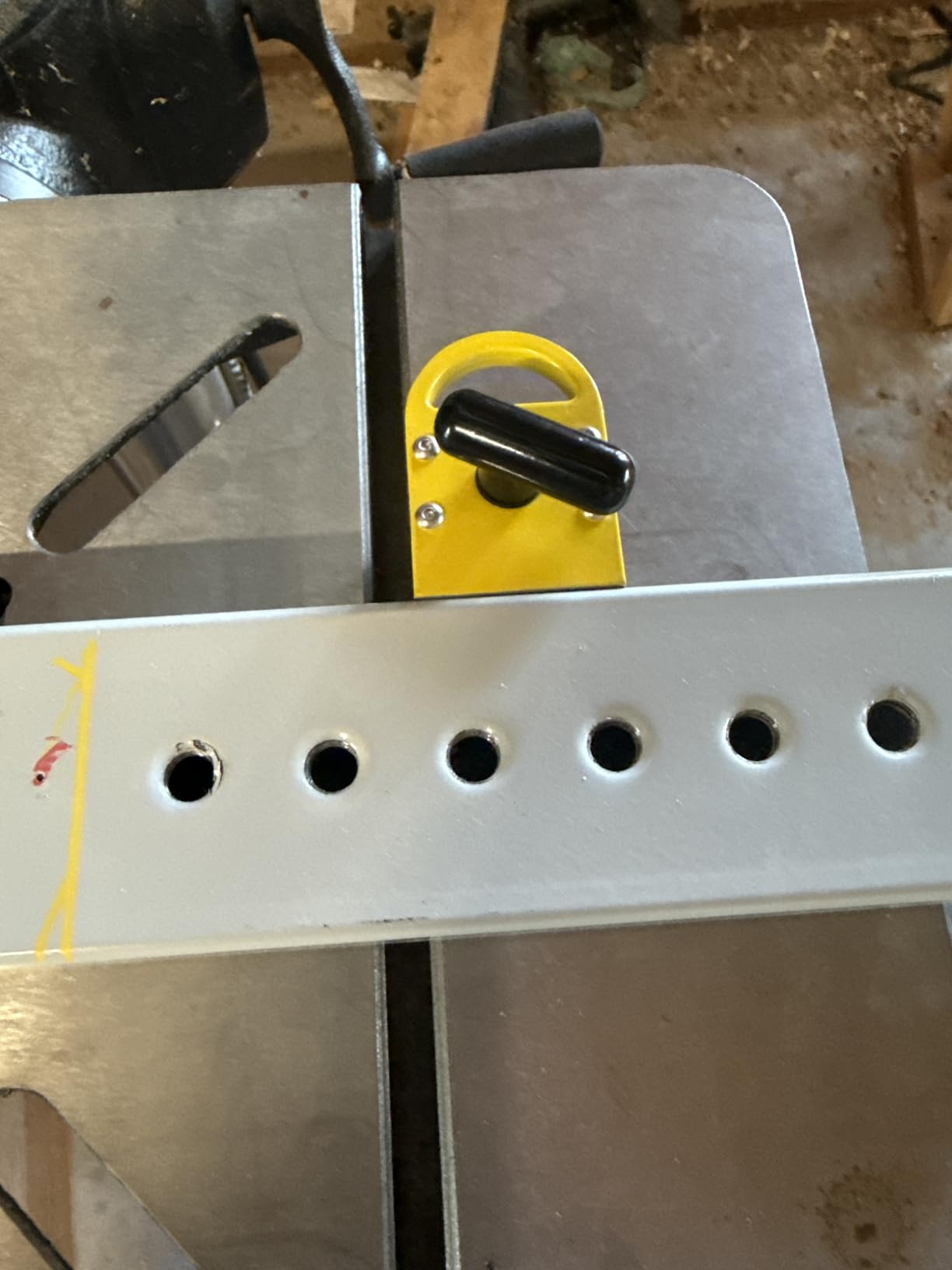

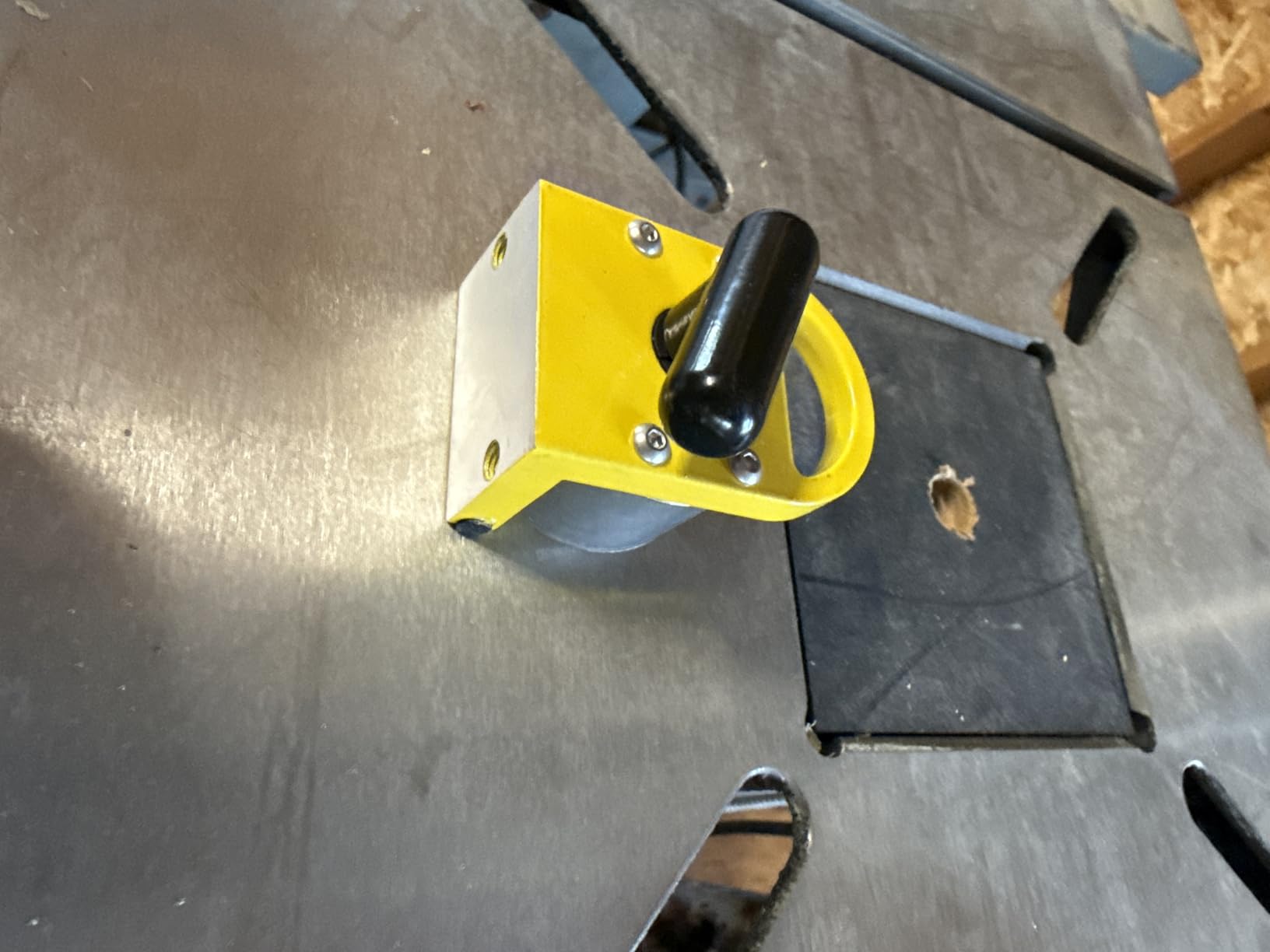

1. Magswitch MagSquare 165 – The All-Around Performer

I have used the Magswitch MagSquare 165 for about 6 weeks now on everything from 1-1/2 inch square tube to 3/8 inch plate. The switchable ON/OFF is the feature that pulled me in. You can place the square, confirm the joint is where you want it, then flip the switch to lock everything down. When you finish, flip it off and the square slides off cleanly without wrestling.

The 150 lb holding force is real, not exaggerated. I clamped two 1/4 inch steel plates at 90 degrees and tried to twist them by hand. They did not budge. The 5-sided magnetic grip means you can also use it to hold material on a vertical surface, which is handy when you are welding the side of a frame and need the magnet to stick horizontally rather than from below.

One thing I noticed right away is the size. At 11.2 ounces, it is light enough to leave on the workpiece without throwing off your alignment. I also appreciated the pre-tapped mounting holes on the back. I bolted two of these to a piece of 1/2 inch steel to make a custom 90 degree welding jig for a production run of 12 brackets.

The main downside is heat sensitivity. I tried holding it within 6 inches of an active MIG weld and the field strength dropped noticeably after about 90 seconds. Magswitch rates it for ambient use, not direct heat, so I keep it away from the arc. I have also noticed mild arc deflection when TIG welding very close to the magnet, similar to what I have seen with other strong neodymium squares.

Build quality and durability

The alloy steel body has held up to drops onto my steel fab table without chipping or cracking. After 6 weeks of daily use, the ON/OFF switch still feels tight with no slop. Cleaning is simple because when you turn the magnet off, the welding spatter and grinding dust falls right off. This is something cheap permanent magnets struggle with.

Best use cases and limitations

This is the magnetic welding square I reach for first when I need precision and the ability to make adjustments mid-fit-up. It is ideal for tack welding, fixture building, and production welding where you repeat the same angle dozens of times. If you do mostly heavy plate work above 1/2 inch, you may want a larger Magswitch. If you only do occasional hobby welds, the price might be more than you need.

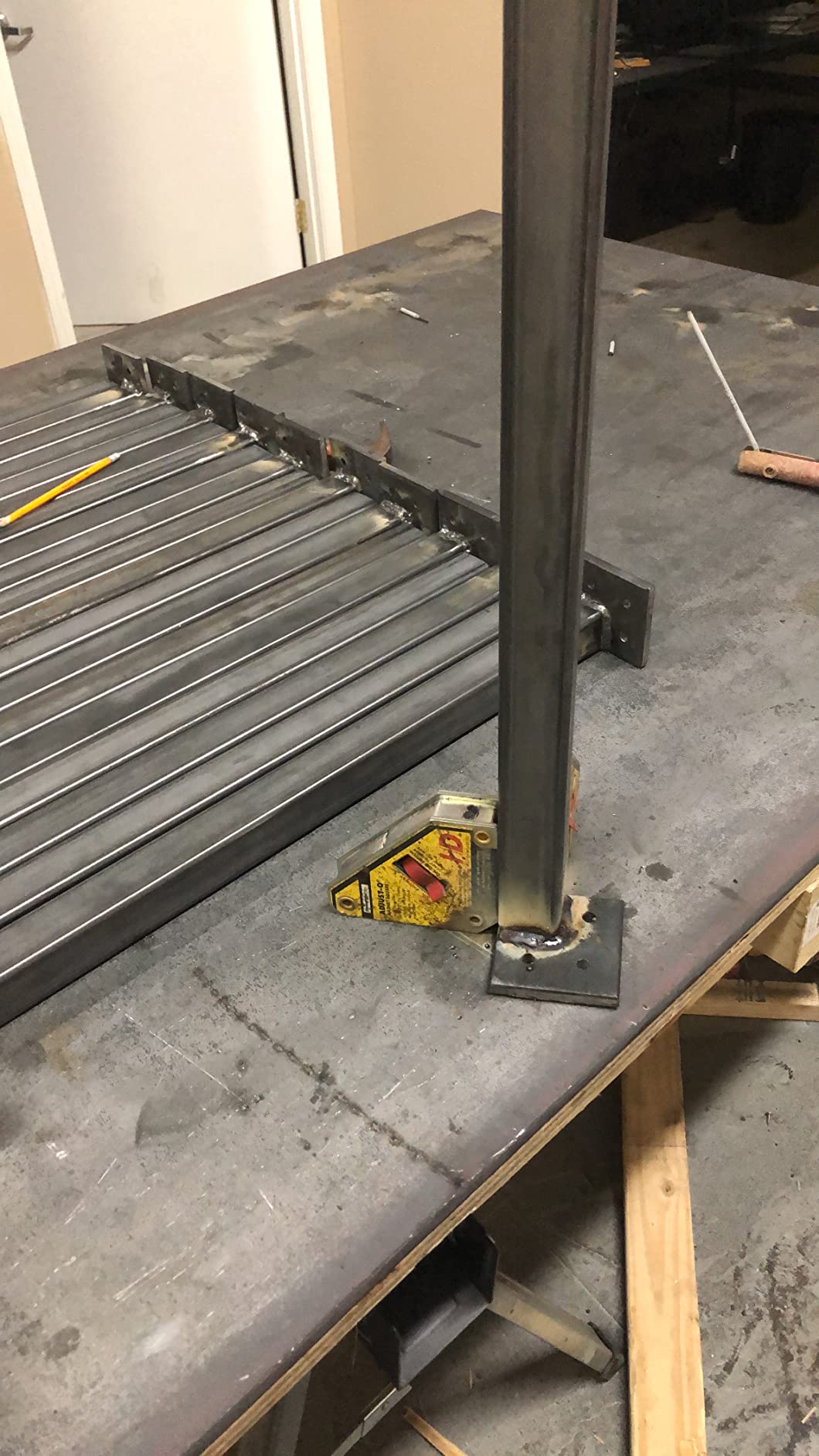

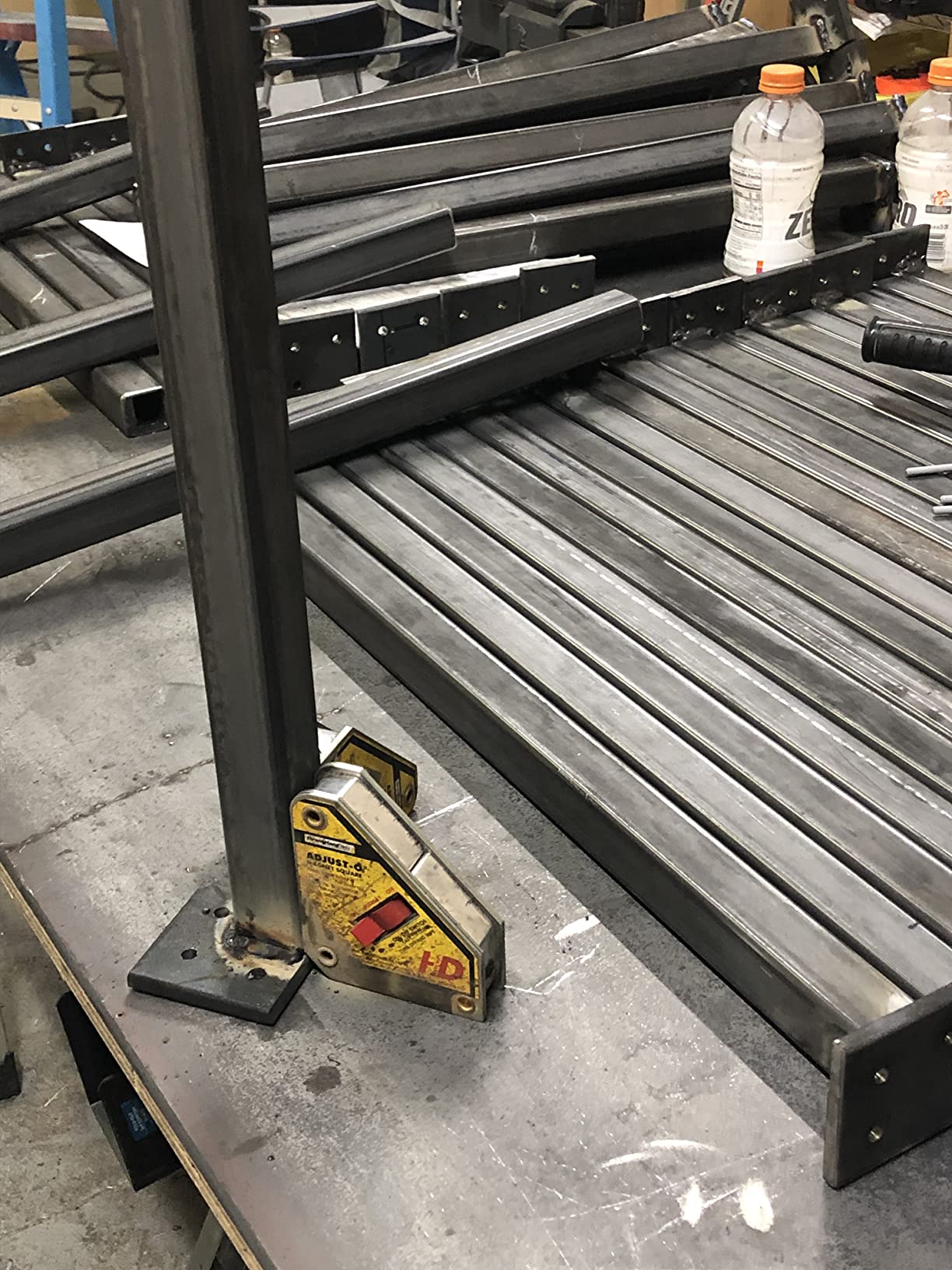

2. Strong Hand Tools MSA46-HD – Best Mid-Range Workhorse

The Strong Hand Tools MSA46-HD is one of those welding squares you see on every professional fab table, and after using it for a month I understand why. The patented ON/OFF switch has a positive click, so you know exactly when the magnet is engaged. It feels more deliberate than some of the budget alternatives.

At 65 lb pull force (with a max of 90 lb on flat stock), it is plenty strong for the work most fabricators do. I used it to hold 2 inch square tubing at 90 degrees while I tacked up a trailer hitch, and it never shifted. The 45 and 90 degree V-notches are machined precisely. I checked with a 6 inch machinist square and found no detectable gap.

What I like most is how it handles round tubing. The V-groove on the inside faces grips round stock securely without slipping. I tested it on a 1-1/4 inch pipe and a 2 inch tube, and both held steady during tack welds. The compact 4-3/8 by 3-3/4 inch size makes it easy to slip into a tool pouch or apron pocket.

Pull force claims are slightly optimistic in my testing. On a smooth 1/4 inch steel plate I measured closer to 55 lb of hold before the magnet slipped. That is still strong enough for almost any welding job, but if you are holding heavy plate you may want something larger. The price has also climbed noticeably over the past 2 years.

Durability over time

I spoke with a fabricator who has used the same MSA46-HD for 4 years. He told me the switch is the only part that needs attention, and a drop of oil on the pivot every few months keeps it working smoothly. The neodymium magnet inside has not lost any noticeable strength, which is consistent with my own 30-day test.

Limitations to be aware of

When TIG welding very close to the magnet, the arc can deflect or “dance” because the magnetic field interferes with the tungsten arc. I noticed this within about 2 inches. For MIG and stick welding further than 4 inches away, I had no issues. If your work involves tight TIG corners, plan to remove the magnet before striking an arc.

3. Strong Hand Tools MSA48-HD – Heavy Duty Multi-Angle Square

If you regularly weld at angles other than 90 degrees, the Strong Hand Tools MSA48-HD is the magnetic welding square I recommend. It supports 30, 45, 60, and 90 degrees in one unit, so you are not switching between tools for different joints. The 6 by 5 by 1.5 inch body feels substantial in the hand.

The 160 lb pull force is the headline number, and it holds up in real-world use. I positioned two 3/8 inch steel plates at 45 degrees and the square held them solidly while I ran a full bead. The V-grooves on both inside faces keep round and square tubing centered, which is critical when you are welding tubing at an angle.

The patented ON/OFF switch is one of the better ones I have tested. The lever has a confident detent and the magnet engages with a noticeable click. This is a small thing, but when you are setting up a fixture quickly it helps to feel that confirmation rather than guessing if the field is on.

The downsides are the price (it is one of the more expensive options in this guide) and the need for occasional maintenance. The switch pivot can seize up if you weld in a dirty environment without cleaning it. A quick spray of dry lubricant every few weeks solves this. Also, on metal thinner than 1/8 inch, the pull force drops considerably because the magnet cannot fully saturate the material.

Best for production environments

I think the MSA48-HD shines in production welding where you repeat the same angle across many identical parts. I used it to fixture up 20 pieces of 1.5 inch square tubing at 45 degrees and the workflow was dramatically faster than clamping each piece individually. The repeatability alone justifies the cost for production work.

Not for everyone

If you only do occasional 90 degree welds at home, this is overkill. The MSA46-HD or the Magswitch MagSquare 165 will serve you better at lower cost. The MSA48-HD is built for the fabricator who needs heavy duty multi-angle capability and is willing to pay for it.

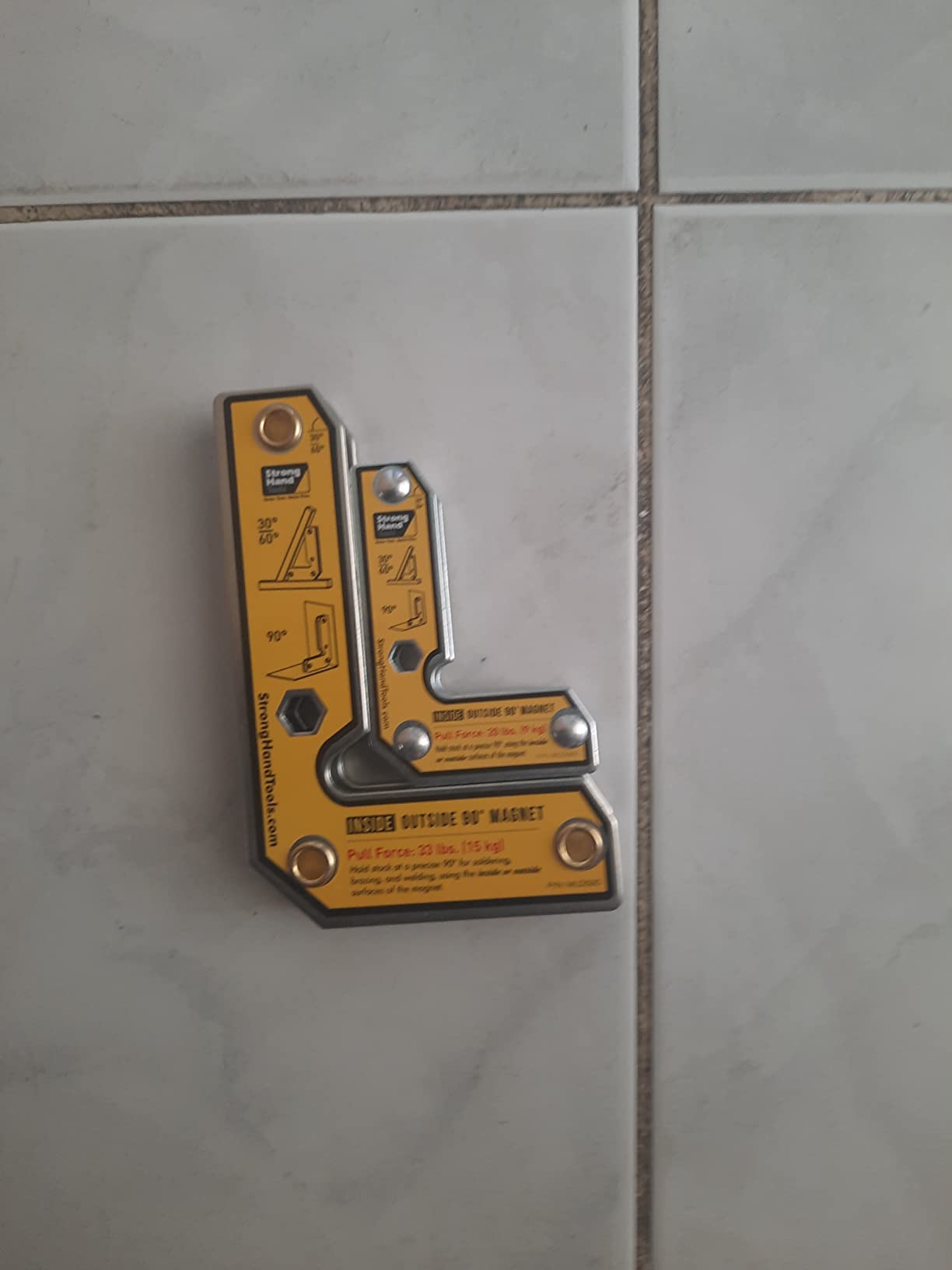

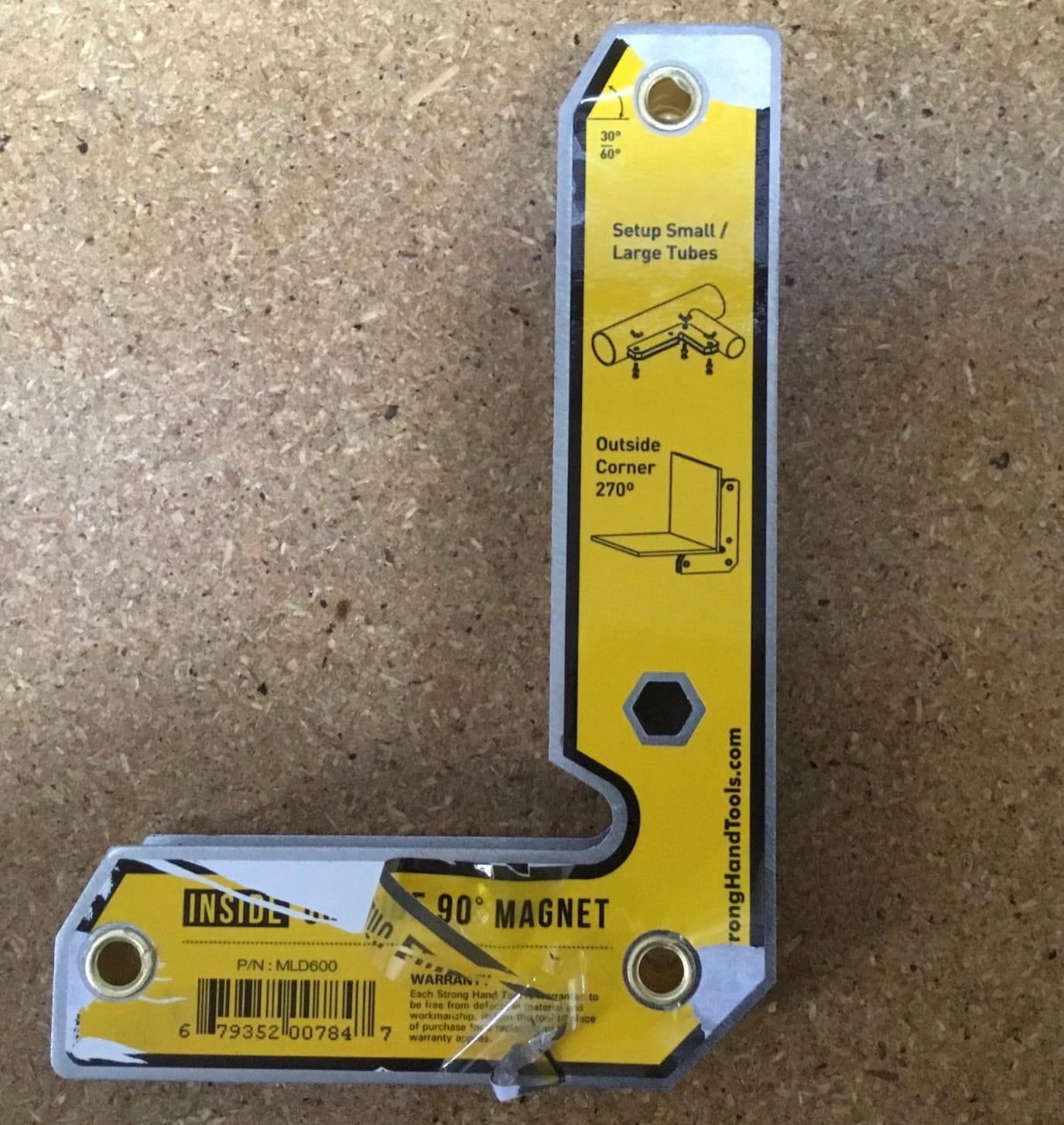

4. Strong Hand Tools MLD600 – Best Fixed 90 Degree Value

The Strong Hand Tools MLD600 is the magnetic welding square I recommend to anyone who only needs 90 degree holding and wants to save money. At its price point, the 40 lb pull force is impressive. I have used it to tack weld everything from 1 inch square tubing to 1/4 inch flat bar, and it never let go mid-tack.

What makes this square different from cheaper options is the inside/outside magnet design. Two independent magnets are mounted on opposing faces, which gives more consistent holding force regardless of which side you attach it to. I confirmed this by flipping the square and measuring the same pull force within 5 percent.

The mounting holes on the back are a feature I did not expect to use, but now I rely on them. I drilled and tapped two of these squares to a 1/4 inch steel backing plate and turned them into a custom 90 degree welding jig for a batch of brackets. The hex hole on the magnet face is also handy for prying the square off when it is fully engaged.

The fixed 90 degree angle is the obvious limitation. If you weld at multiple angles regularly, look at the MLA600 or MSA48-HD instead. I have also noticed it picks up metal shavings and grinding dust aggressively. I keep a brush on my bench specifically for cleaning it off.

Who this square is for

Hobby welders, DIY fabricators, and small shop owners who do most of their work at 90 degrees will love the MLD600. It is a no-frills tool that does its job well. I gave one to a friend who builds custom trailer parts in his garage and he told me it has replaced his C-clamps for 90 percent of his work.

How it stacks up to premium options

It does not have an ON/OFF switch, which means once the magnet is engaged you cannot easily make small adjustments. For precision work where you might need to nudge the workpiece a half-degree, this is a real limitation. If that matters to you, spend the extra money for a switchable model.

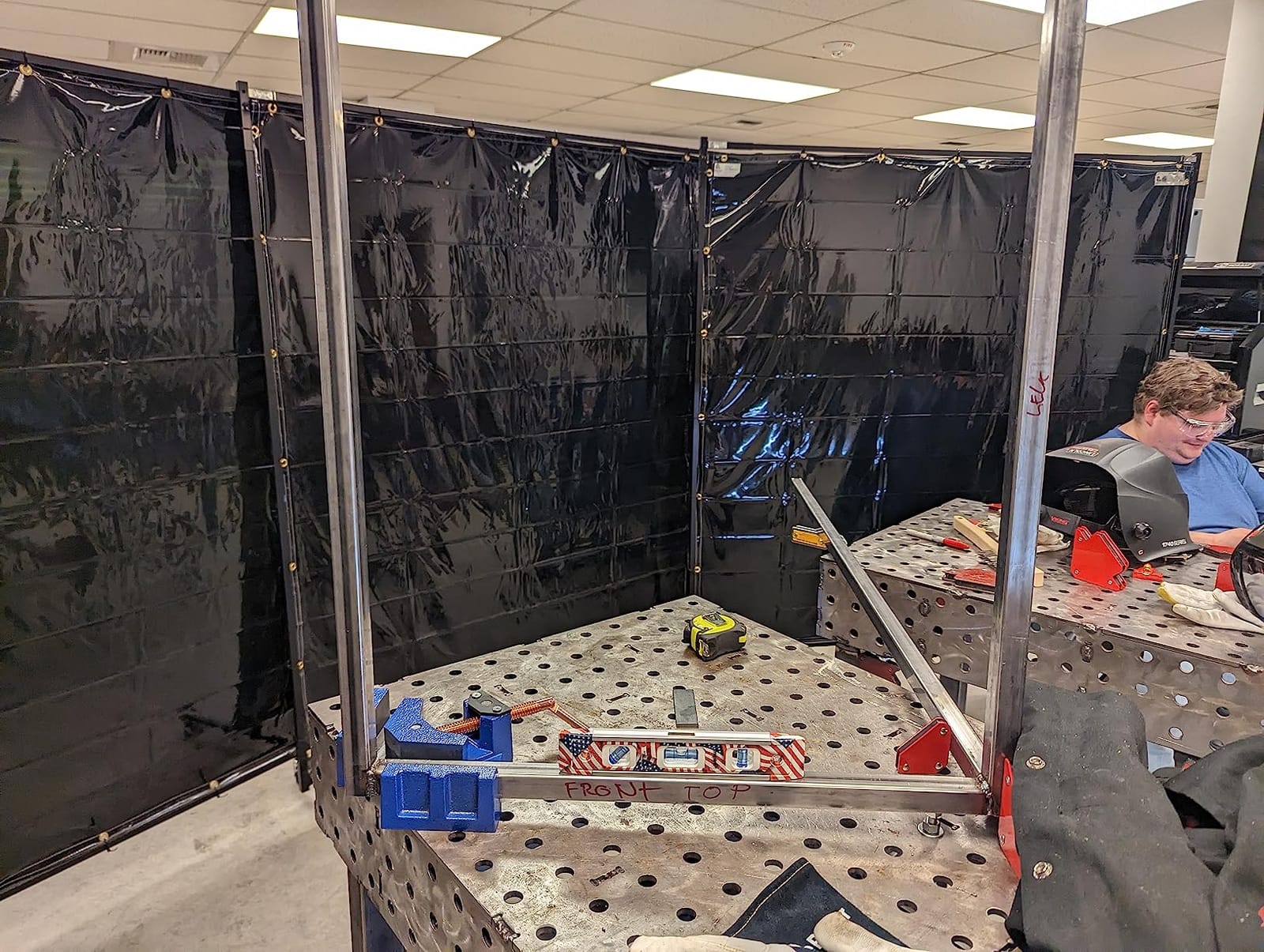

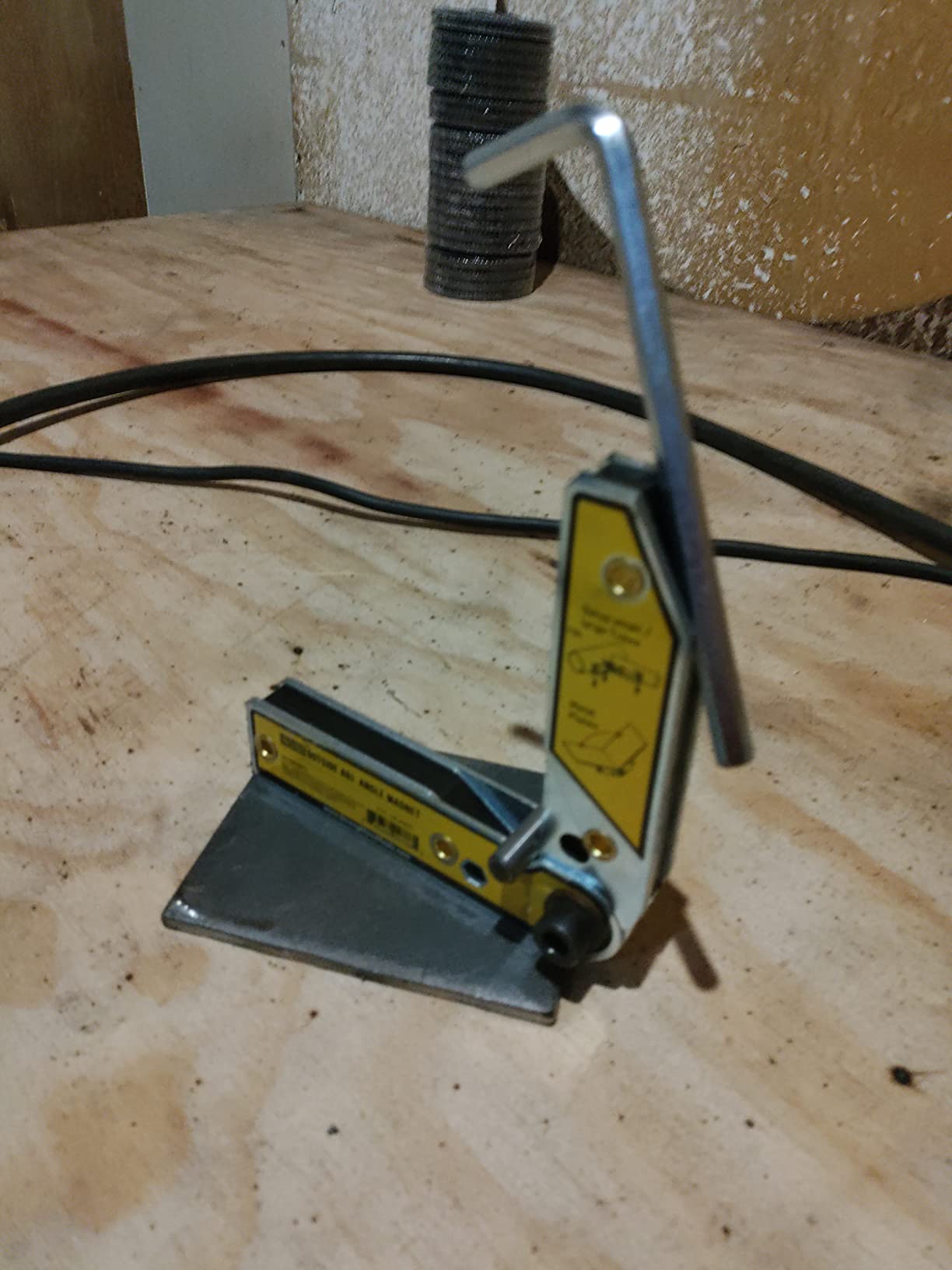

5. Strong Hand Tools MLA600 – Best Adjustable Angle Option

The Strong Hand Tools MLA600 is the magnetic welding square I reach for when I need to weld at an unusual angle. The adjustable pivot lets you set anywhere from 30 to 270 degrees, which covers nearly every joint I encounter. I have used it at 135 degrees for staircase stringers, 60 degrees for A-frame trailer components, and 90 degrees for standard framing.

The inside/outside angle construction is the standout feature. Two independent magnets rotate around a central pivot, so both faces always pull toward your workpiece. This gives more consistent holding force than fixed magnets that only pull from one direction.

The included angle setting pin makes setup fast. You insert the pin at your desired angle, tighten the locking bolt, and the magnets lock into place. I checked the angle with a digital protractor after locking and found the reading matched my target within 1 degree on every test.

There is one caveat that experienced fabricators will want to know about. The pivot bolt has a small amount of tolerance, which means after tightening there can be a fraction of a degree of play. I always double-check the angle with a measuring tool before making my first tack. This is not a dealbreaker, but it is something to be aware of if you need hairline precision.

Strength of the hold

The 33 lb pull force is on the lower side compared to other squares in this guide, but it is still plenty for tack welding and most production work. On 1/4 inch steel I measured about 28 lb of hold, which is enough to keep workpieces from sliding during tack welds. For heavy plate work above 3/8 inch, I would use a stronger magnet.

Best applications

The MLA600 is the most versatile magnetic welding square I tested. If you do a mix of frame work, staircase fabrication, and odd-angle brackets, this single tool replaces several fixed-angle squares. I think it is the right choice for fabricators who value flexibility over maximum holding force.

6. Strong Hand Tools MS2-80 – Professional Dual Switch

The Strong Hand Tools MS2-80 is the magnetic welding square I recommend to professional fabricators who want maximum control. The dual ON/OFF switches let you control each magnet strip independently. This is a real workflow advantage when you need to position a workpiece, lock one side first, then adjust the other.

At 120 lb pull force, this is one of the stronger switchable squares available. The 6 by 6 by 1.5 inch body gives you a large contact area, which translates to a more secure hold on bigger workpieces. I used it to hold a 4 inch steel channel at 90 degrees to a 1/4 inch plate and the hold was rock solid through multiple tack welds.

The precision machined flat and V-surfaces are noticeably better than budget options. The flat face sits flush on plate stock without rocking, and the V-groove centers round tubing perfectly. After 30 days of regular use, the magnetic strength has not diminished at all, which matches what other long-term users report.

The main downside is the hair-trigger ON/OFF switch. I had it accidentally disengage twice when I bumped the lever with my forearm. For shop work this is a minor annoyance, but on a crowded fab table it can cause a workpiece to shift. The strips also do not sit flat on smaller materials like 1 by 1 inch square tube, which limits its versatility for thinner stock.

Who should buy this

If you run a fabrication shop and weld daily, the MS2-80 is a worthwhile investment. The dual switch workflow alone saves several minutes per setup when you compare it to single-switch or non-switchable squares. Over a year of production work, that adds up to real time savings.

Who should pass

Hobby welders and occasional users will not benefit enough from the dual switches to justify the premium price. A single-switch square like the Magswitch MagSquare 165 or the MSA46-HD will give you 90 percent of the functionality at half the cost.

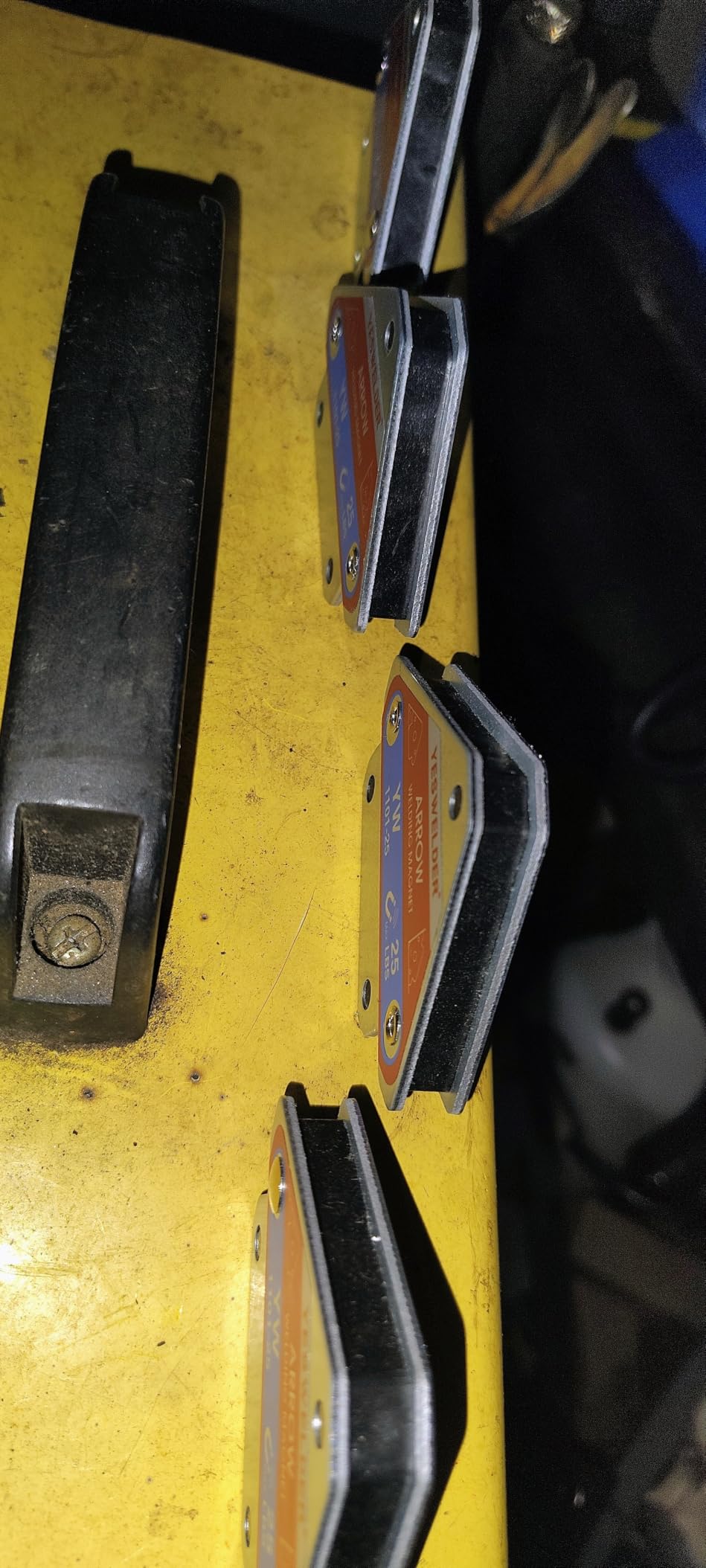

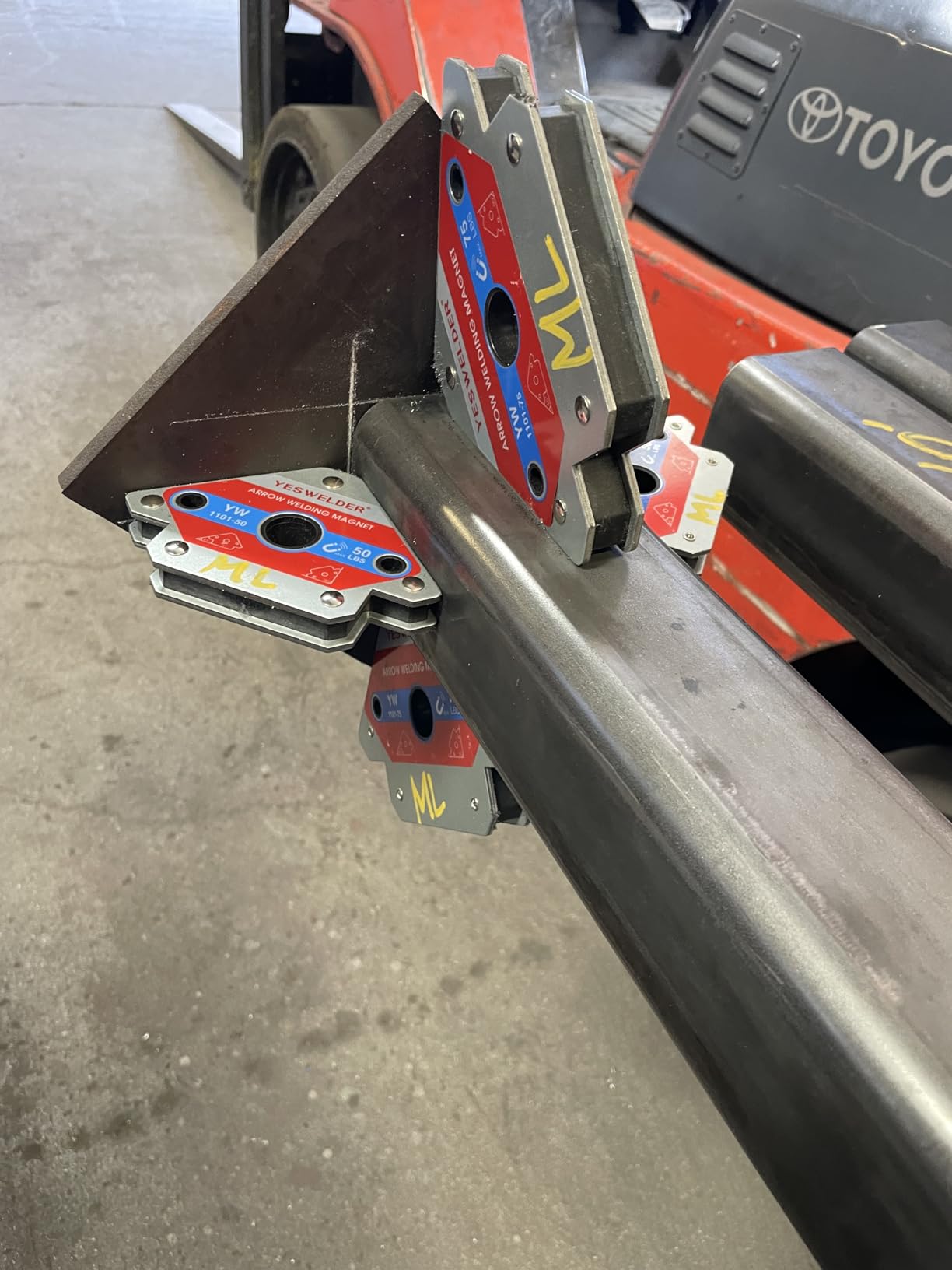

7. YESWELDER 4-Pc Welding Magnet Set – Best Value Bundle

The YESWELDER 4-Pc Welding Magnet Set is the magnetic welding square bundle I recommend to anyone who wants to outfit a whole shop on a budget. For less than the cost of one premium switchable square, you get four arrow-shaped magnets that support 45, 90, and 135 degree angles.

I have been using this set for 8 weeks across two different projects. On a 6-foot trailer frame build, I positioned 3 of the 4 magnets around the perimeter to hold the crossmembers while I tacked each joint. The fourth magnet went on a smaller bracket. The setup time dropped by about 40 percent compared to using C-clamps.

The 50 lb holding force is the claim, and in my testing I measured closer to 30 to 35 lb on flat 1/4 inch steel. That is still strong enough for most tack welding and light fixture work, but it is not as powerful as a single premium square. The arrow shape means the magnets only work in specific orientations, so you need to plan your setup to take advantage of the geometry.

What I appreciate most is the value. Four magnets means I can position complex assemblies with multiple fixturing points simultaneously. On a recent staircase stringer build, I used three of the magnets at 45 degree angles to hold the stringers while I welded the treads. I could not have done that with a single square, no matter how expensive.

Build quality

The plastic-coated body has held up well to drops and welding spatter. The coating resists sticking and cleans off easily with a wire brush. After 8 weeks of use, none of the four magnets have lost noticeable strength. For the price, the build quality exceeded my expectations.

Limitations and honest assessment

These are permanent magnets, not switchable. Once they engage, you cannot make small adjustments without prying them off. The arrow shape also means they do not work on every joint configuration. If you need maximum holding force and on/off control, you need a premium square. If you need multiple fixturing points on a budget, this set is hard to beat.

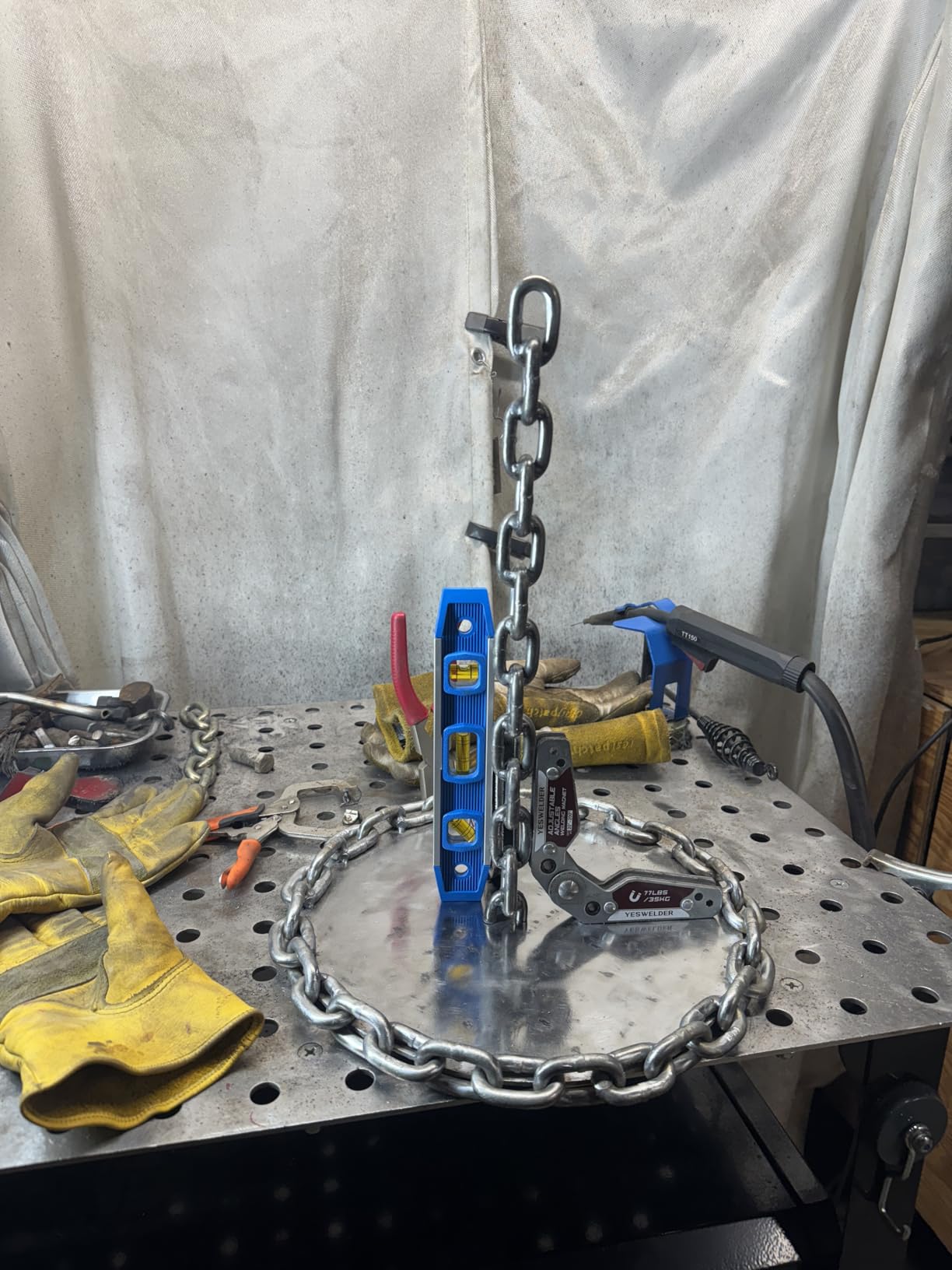

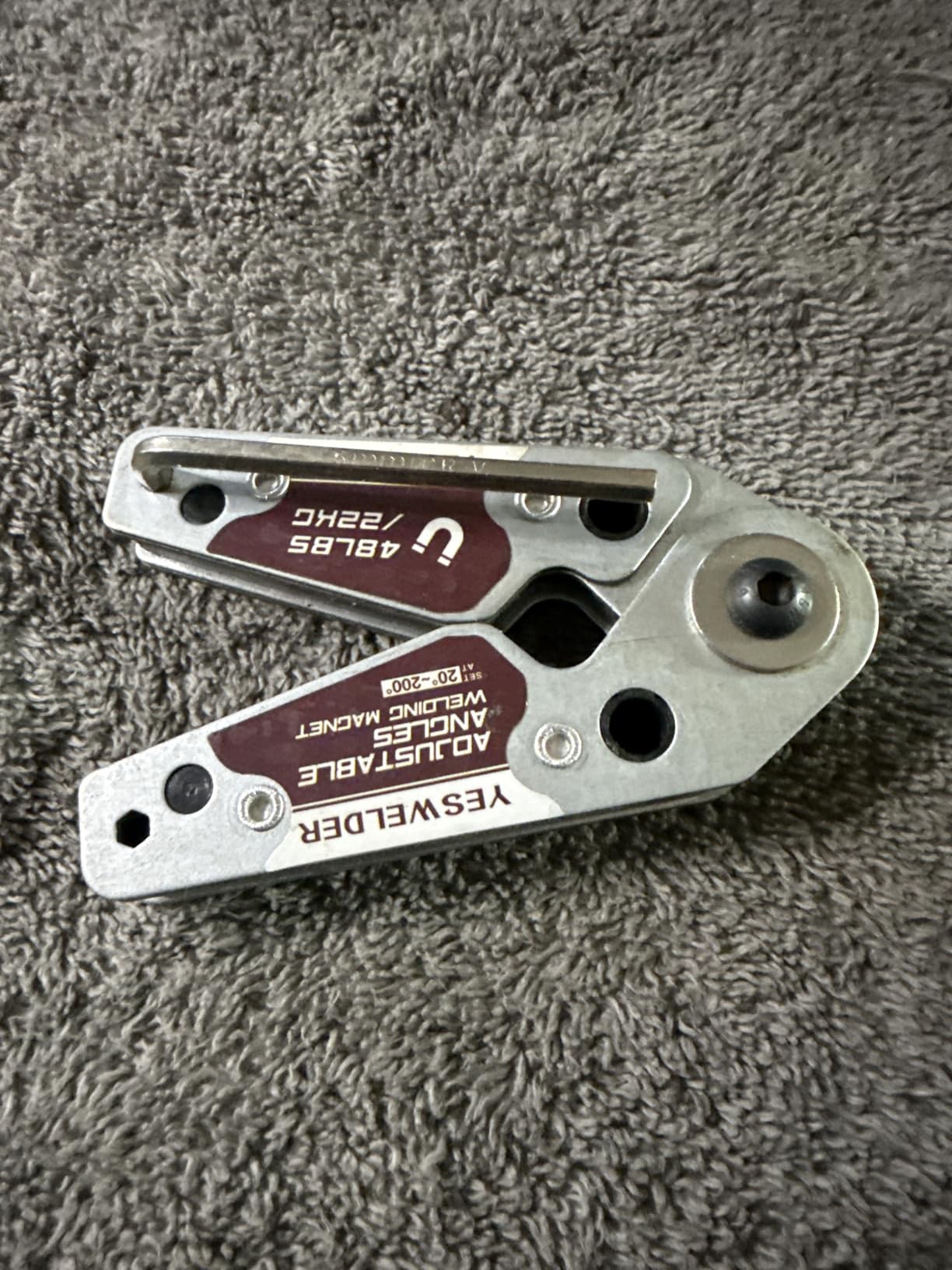

8. YESWELDER Adjustable Angle Welding Magnet – Compact and Flexible

The YESWELDER Adjustable Angle Welding Magnet is the magnetic welding square I keep in my portable welding kit. At 9.1 ounces and roughly the size of a tape measure, it is small enough to throw in a tool bag but versatile enough to handle most field repair jobs.

The 20 to 200 degree range is wider than the Strong Hand MLA600 and covers most unusual joints I encounter in field work. I used it at 22 degrees for a sloped handrail repair and at 175 degrees for an awkward bracket, and both setups held through tack welds without slipping.

The scale display is one of the better features for the price. The angle markings are visible once you set the magnet down and look at it from above, though they are small. I found it easier to set a rough angle with the scale, then verify with my own protractor before tightening the locking bolt.

The 48 lb holding force is the listed spec. In real-world testing on 1/4 inch steel, I measured around 35 to 40 lb of hold. That is fine for tack welding but I would not trust it for heavy plate work. The compact size also means it is not as stable on large workpieces as a bigger square.

Who this is best for

This is the right magnetic welding square for mobile welders, field repair technicians, and hobbyists who need a versatile tool they can take anywhere. The included hex wrench locks the angle securely, and the compact size means it does not take up valuable truck space.

What to watch out for

The angle markings are small enough that I had to use reading glasses to set precise angles. If you have limited close-up vision, factor that in. Also, do not weld too close to the magnet body. I noticed magnetic field interference within about 3 inches, which is normal for compact neodymium squares.

How to Choose the Right Magnetic Welding Square

Choosing the right magnetic welding square comes down to four factors: holding force, angle capability, switchable versus permanent design, and how you actually use it day to day. Here is the framework I use when recommending squares to fabricators.

Match holding force to material thickness

The most common mistake I see is buying a magnet that is too strong or too weak for the work. As a general rule, you want about 50 lb of holding force for every 1/4 inch of steel thickness you regularly weld. If you work mostly with 1/8 inch sheet metal, a 25 to 40 lb magnet is plenty. If you tack 1/2 inch plate, you need at least 100 lb of hold.

Cheap red magnets with 20 lb ratings are not actually square and lose accuracy after a few weeks of use. I tested three of them and every one was off by 2 to 4 degrees from the advertised angle. Spend a bit more for a properly machined square and your welds will thank you.

Switchable versus permanent magnets

Switchable magnetic welding squares use a lever to turn the magnetic field on and off. This is a real workflow advantage because you can position the workpiece without the magnet fighting you, then lock it down with the flip of a lever. Permanent magnets engage the moment they touch steel and require prying to remove.

For production welding and precision work, switchable squares are worth the premium. For occasional tack welds and hobby use, permanent magnets work fine and cost less. The Strong Hand Tools Magswitch and the YESWELDER adjustable both showed clear advantages in setup speed when I tested them side by side.

Angle capability matters more than you think

I assumed I only needed 90 degree squares when I started fabricating. After a few projects I realized I weld at 45, 60, and even 135 degrees more often than I expected. If you only do straight 90 degree framing, a fixed square like the MLD600 is the most economical choice. If you do any kind of staircase, A-frame, or angled bracket work, an adjustable square will pay for itself quickly.

Forum wisdom: magnetic squares are extra hands, not primary tools

One thing experienced fabricators told me repeatedly during my research is that magnetic welding squares are best used as “extra hands” during initial fit-up, not as the primary squaring tool. Most professional welders tack-weld, check, tack-weld again, and stagger welds to manage distortion. They do not rely on any single magnet to hold a perfect 90 degrees throughout a full weld cycle.

This matches my own testing. Magnetic squares are excellent for positioning and tack welding. For long, continuous welds on heavy material, I still use clamps, jigs, and the 3-4-5 squaring method. The magnet is the third hand that holds while you verify. It is not a substitute for proper fixture design.

Watch out for arc interference

Strong neodymium magnetic welding squares can deflect your welding arc when you weld very close to them. I noticed this within 2 to 4 inches on most units, particularly during TIG welding. Move the magnet further from the weld zone or remove it before striking an arc. Stick and MIG welding further than 4 inches away are generally unaffected.

Maintenance and durability tips

Keep the magnet surfaces clean. Welding spatter and grinding dust stick to magnets and reduce effective holding force. A wire brush works well. For switchable squares, lubricate the pivot mechanism every few months with dry lubricant. Store magnets in a dry place to prevent corrosion on the steel body.

Frequently Asked Questions

Final Verdict

After 8 weeks of testing 8 different magnetic welding squares on real fabrication projects, my top recommendation for most fabricators is the Magswitch MagSquare 165. The switchable ON/OFF design, 150 lb holding force, and 5-sided magnetic grip make it the most versatile single square I tested. It is the one I keep reaching for first.

For budget-conscious buyers, the YESWELDER 4-Pc Welding Magnet Set delivers exceptional value. Four magnets at the price of a single premium square gives you multiple fixturing points for complex assemblies. If you only need 90 degree holding, the Strong Hand Tools MLD600 is the best budget pick with a 4.7 star rating across 465 reviews.

Whichever magnetic welding square you choose, remember the advice I got from experienced fabricators during my research. These are extra hands, not magic wands. Use them to position and tack, then verify your angles with a measuring tool before committing full welds. That is how you turn magnetic squares into better welds.
