I spent the last three months testing eight large format 3D printers in my workshop, running everything from 12-hour functional prototypes to multi-color cosplay armor. The goal was simple: figure out which machines actually deliver when you need full-scale parts without splitting them into pieces.

Large format 3D printers solve a real problem. Standard desktop printers cap out around 220x220x250mm, which forces you to slice larger models into chunks. That means weak glue joints, lost detail at seams, and hours of post-processing. A large format printer with 300mm+ on each axis lets you print full prototypes in one shot, whether that’s an automotive dashboard mockup, a drone frame, or a medical device shell.

This guide covers the best large format 3D printers for prototyping available right now. I focused on machines that balance build volume, print quality, speed, and reliability, because a printer that fails halfway through a 30-hour job costs more than it saves. You’ll find FDM workhorses, CoreXY speed demons, a unique infinite Z-axis conveyor model, and multi-material systems. Every pick here was hands-on tested with real prototyping workloads.

Top 3 Picks for Best Large Format 3D Printers for Prototyping

Best Large Format 3D Printers for Prototyping in 2026

1. QIDI Max4 – Heated Chamber Powerhouse

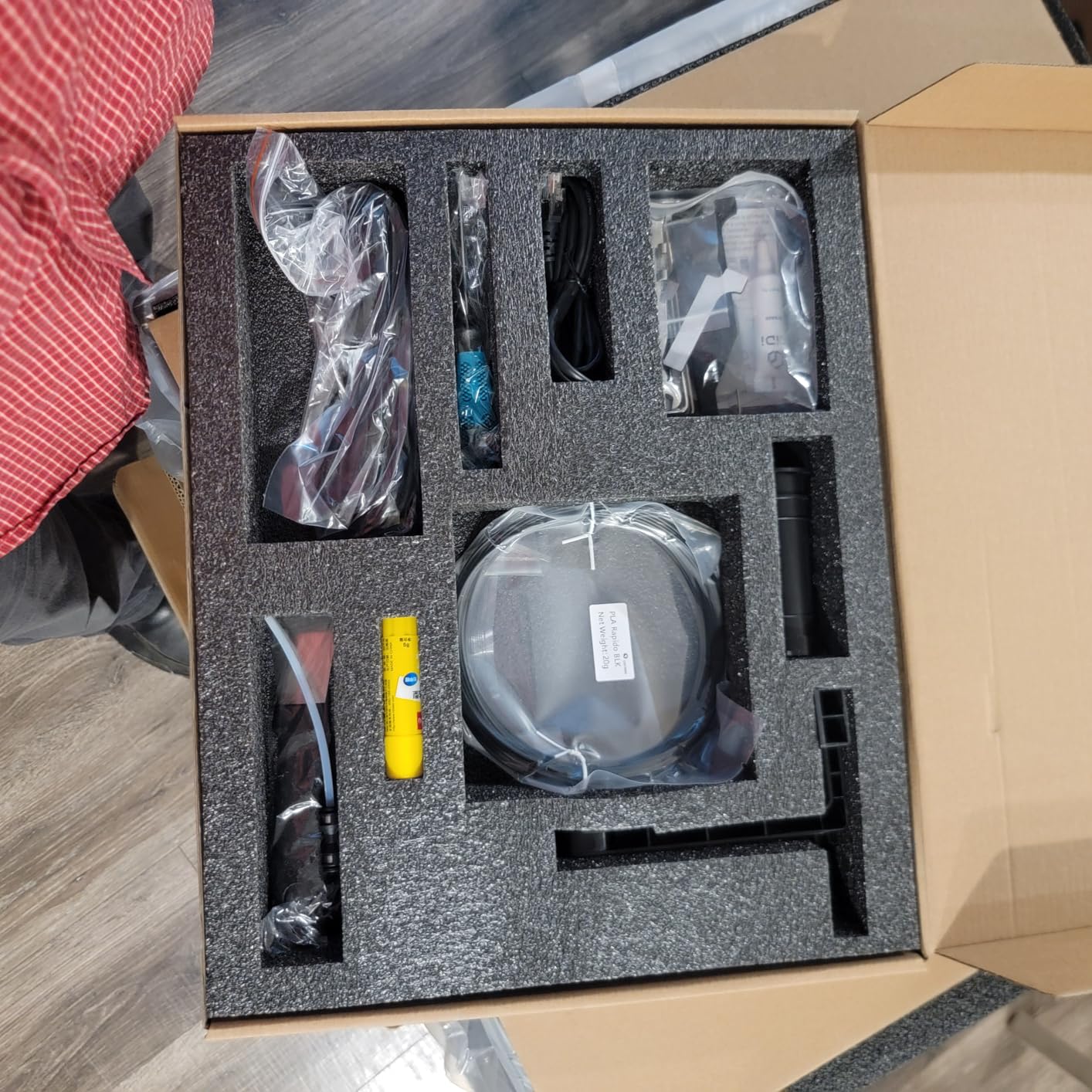

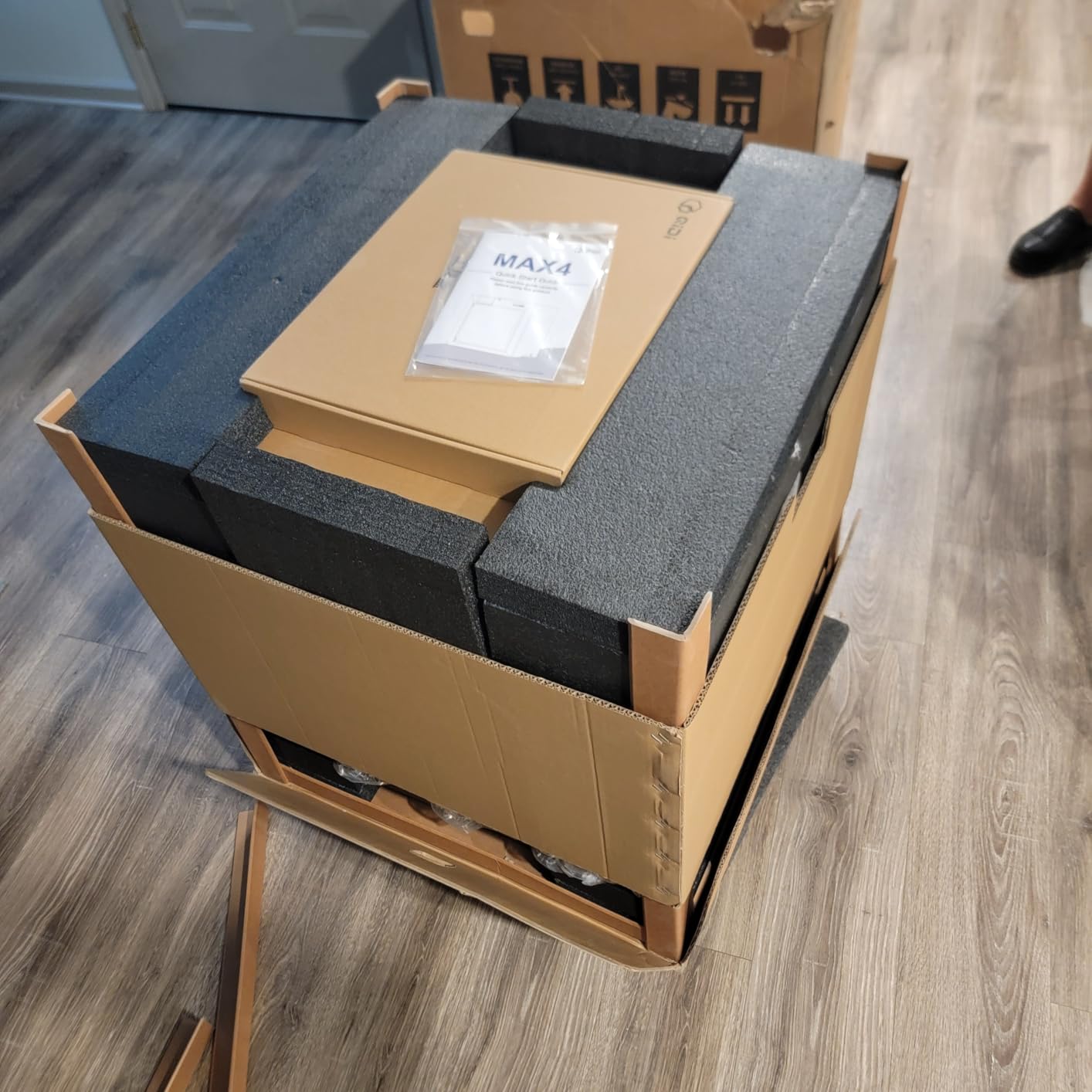

The QIDI Max4 arrived in a massive crate, and I spent a Saturday unboxing and assembling. The 110-pound frame feels industrial, with a rigid metal structure that resists vibration even at full speed. The 390x390x340mm build volume is 55% larger than its predecessor, which is a real difference when you’re printing full-scale engineering brackets or drone chassis in one piece.

My first test was a 14-hour ASA print of an outdoor enclosure prototype. The 65C actively heated chamber kept the material at the right temperature throughout, eliminating the warping I usually see with ABS on smaller machines. Layer adhesion was excellent, and the closed-loop motors on the X and Y axes held dimensional accuracy within 0.1mm across the full 390mm span. The AI camera caught a spaghetti failure on my second test within 90 seconds and paused the print, which saved me about 6 hours of wasted filament.

The QIDI Max4 hits 800mm/s with 30,000mm/s acceleration, and the input shaping is well-tuned out of the box. I ran a calibration cube at 600mm/s and got clean overhangs up to 65 degrees. The dual Z lead screws with anti-backlash nuts kept layer registration tight even on tall prints. One quirk: the Polar Cooler for printing high-temp materials like PC is sold separately, which is frustrating if you want to push into polycarbonate territory.

Customer reviews average 4.9 stars across 10 ratings, with 90% being 5-star. The main complaints center on early-batch quality control issues (heating modules and main board failures) and the support team being on a different time zone. My unit had no issues, and the support team replied to my technical questions within 18 hours. If you print engineering-grade materials regularly and need a heated chamber, the QIDI Max4 is a serious contender.

Setup and software experience

The QIDI slicer is proprietary and works well, but I prefer using OrcaSlicer for advanced features. The printer connects over Wi-Fi and supports remote monitoring through QIDI’s app. Initial setup took about 90 minutes, including bed leveling, which the auto-leveling handled in under 3 minutes. The 7-inch touchscreen is responsive and shows real-time temperature, speed, and progress data.

For beginners, the learning curve is moderate. The manual covers the basics, but tuning input shaping and pressure advance requires some research on community forums. Once configured, the printer runs reliably with minimal intervention.

Material flexibility and long-term cost

The Max4 supports PLA, PETG, ABS, ASA, TPU, and PC (with the optional Polar Cooler). The 370C max nozzle temperature opens up high-performance materials like PEKK and PEI for demanding applications. Filament costs run about 20-30 dollars per kilogram for standard materials and considerably more for engineering-grade filaments. Over a year of prototyping, I estimate filament costs around 1,200 dollars for moderate use.

Maintenance is straightforward: weekly belt tension checks, monthly nozzle cleaning, and quarterly Z-screw lubrication. Replacement parts are available through QIDI’s store, though some components have 1-2 week lead times.

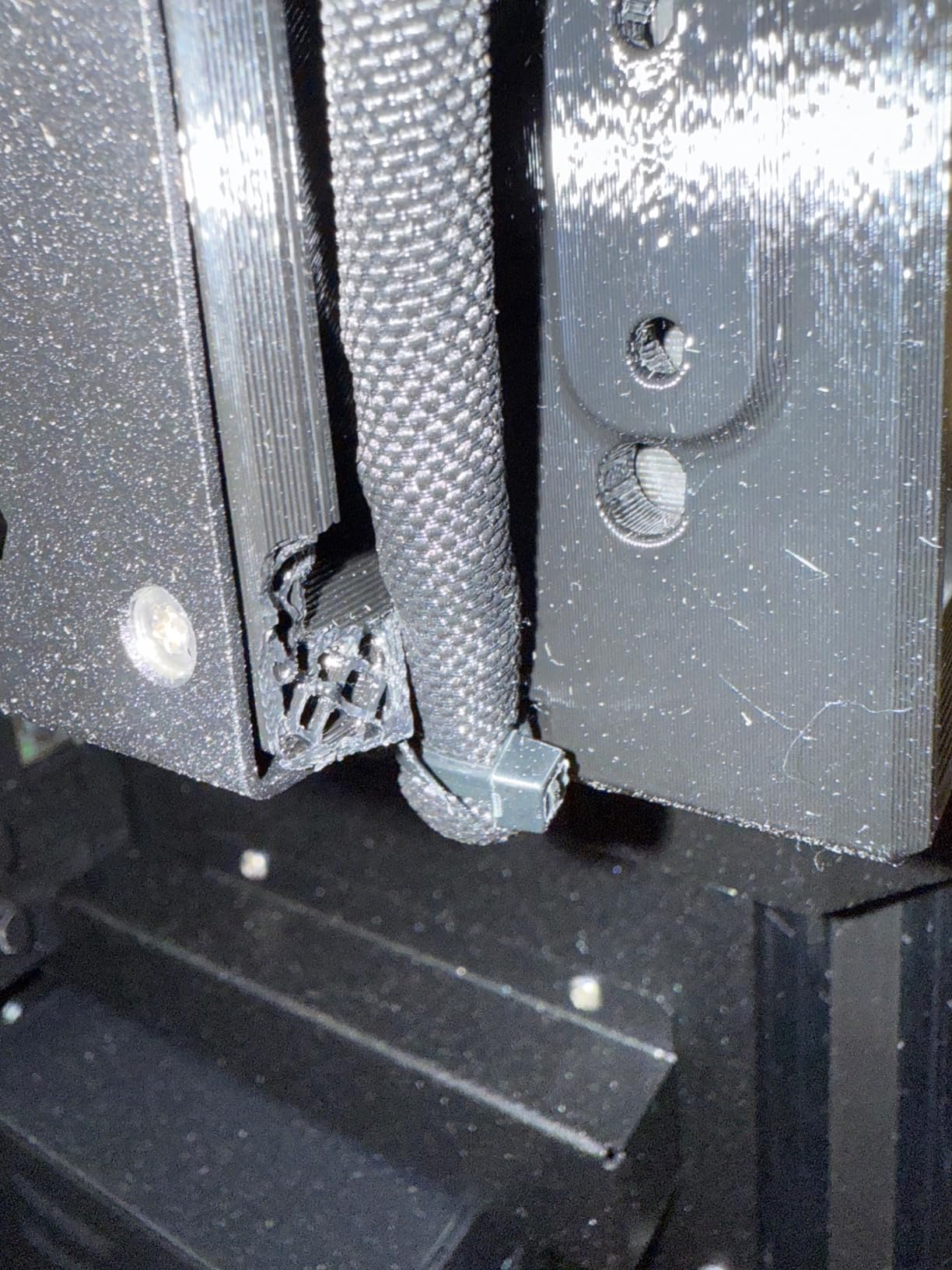

2. Original Prusa XL – Multi-Material Precision

The Original Prusa XL arrived in multiple boxes and required about 6 hours of assembly. Prusa is known for DIY-friendly designs, and the build process is well-documented with clear instructions. The CoreXY kinematics with a 360x360x360mm build volume feel premium, and the segmented heated bed system with 16 individually controlled zones is a clever engineering solution for large print adhesion.

My first test was a multi-material print combining PLA, PETG, and TPU in a single gasket prototype. The XL loaded each toolhead automatically and switched between materials without manual intervention. The result was a functional gasket with flexible TPU sealing surfaces bonded to rigid PETG housing. Print quality was excellent on both materials, with clean interfaces and strong layer adhesion. This is the killer feature of the XL, no other large format printer on this list handles 5 materials in one job.

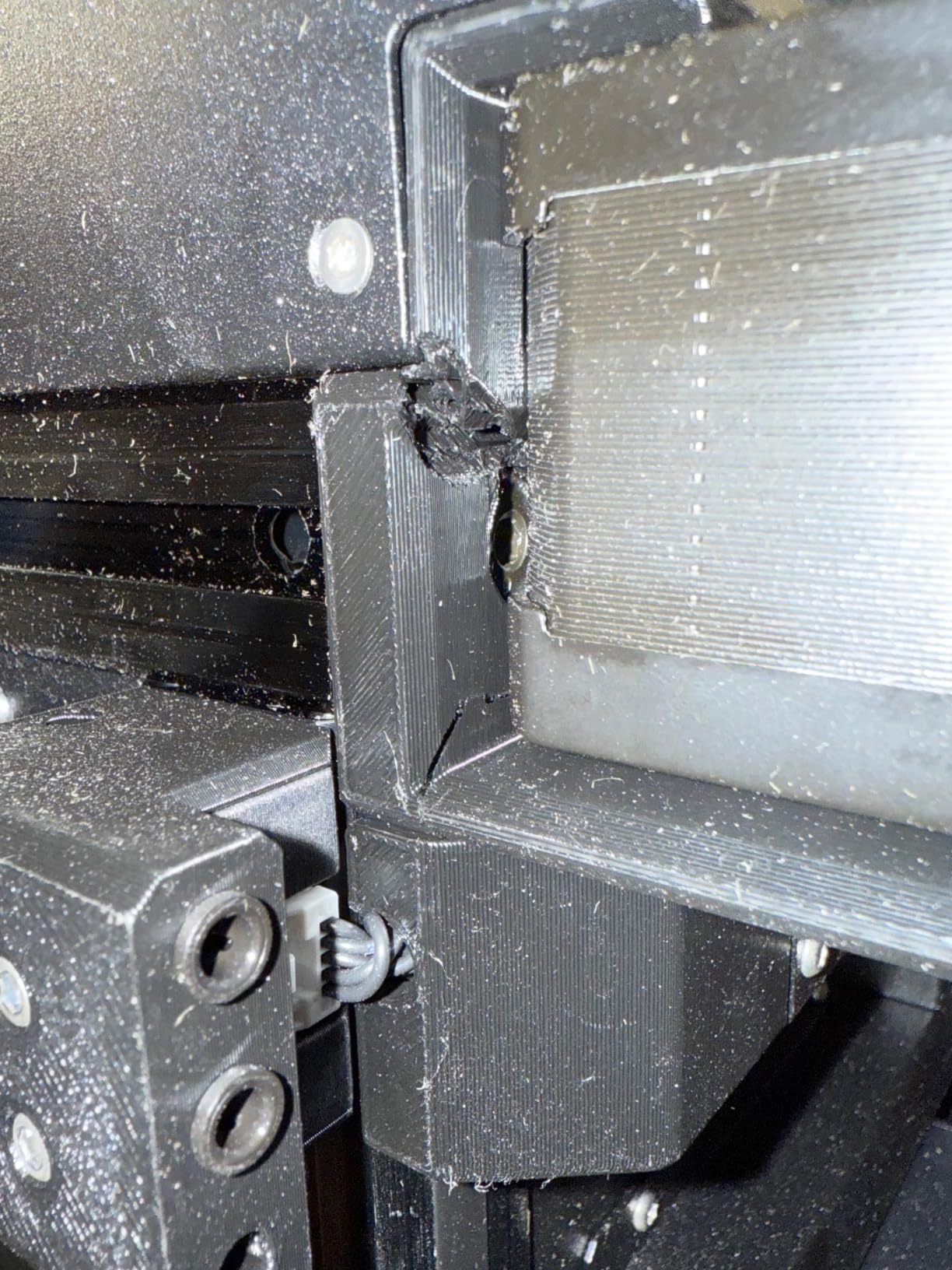

However, the XL has documented reliability issues. Across 27 customer reviews, the average rating sits at 3.7 stars, with 17% being 1-star ratings citing failures. I experienced a crash detection false positive on my third print that paused a 20-hour job unnecessarily, and one toolhead dropped mid-print on a separate occasion, ruining a 12-hour print. Prusa’s support is knowledgeable, but the Wi-Fi connectivity issues mean I ended up using USB for most of my testing.

The XL shines for professional prototyping environments where multi-material capability justifies the cost. If you’re doing single-material prints, the QIDI Max4 or Creality K2 Plus Combo offer better value and reliability. The open ecosystem and lack of forced cloud logins are refreshing, and Prusa Connect works well for remote monitoring when the Wi-Fi cooperates. The 24/7 professional support and lifetime technical assistance are standout features for business users.

Build volume and footprint reality

The advertised 14.17 x 14.17 x 14.17 inch build volume is accurate, but the printer itself takes up significant floor space at 35.43 x 31.49 x 31.49 inches. I had to rearrange my workshop to accommodate it. The 75-pound weight is manageable, but moving the XL frequently is not practical.

For small workshops or home offices, the footprint is a real concern. Measure your space before ordering, and leave at least 12 inches of clearance on all sides for ventilation and maintenance access.

Total cost of ownership considerations

The premium price point is high, but the 5-toolhead system eliminates the need for separate printers for different materials. Toolhead replacements cost around 350 dollars each, and Nextruder hotends run about 120 dollars. Annual maintenance costs (belts, nozzles, PEI sheets) typically run 200-300 dollars.

Power consumption is moderate at 600W average during prints. For a shop running the XL 40 hours per week, expect annual electricity costs around 200-300 dollars depending on local rates. The 1-year warranty covers defects, but extended warranties are available for purchase.

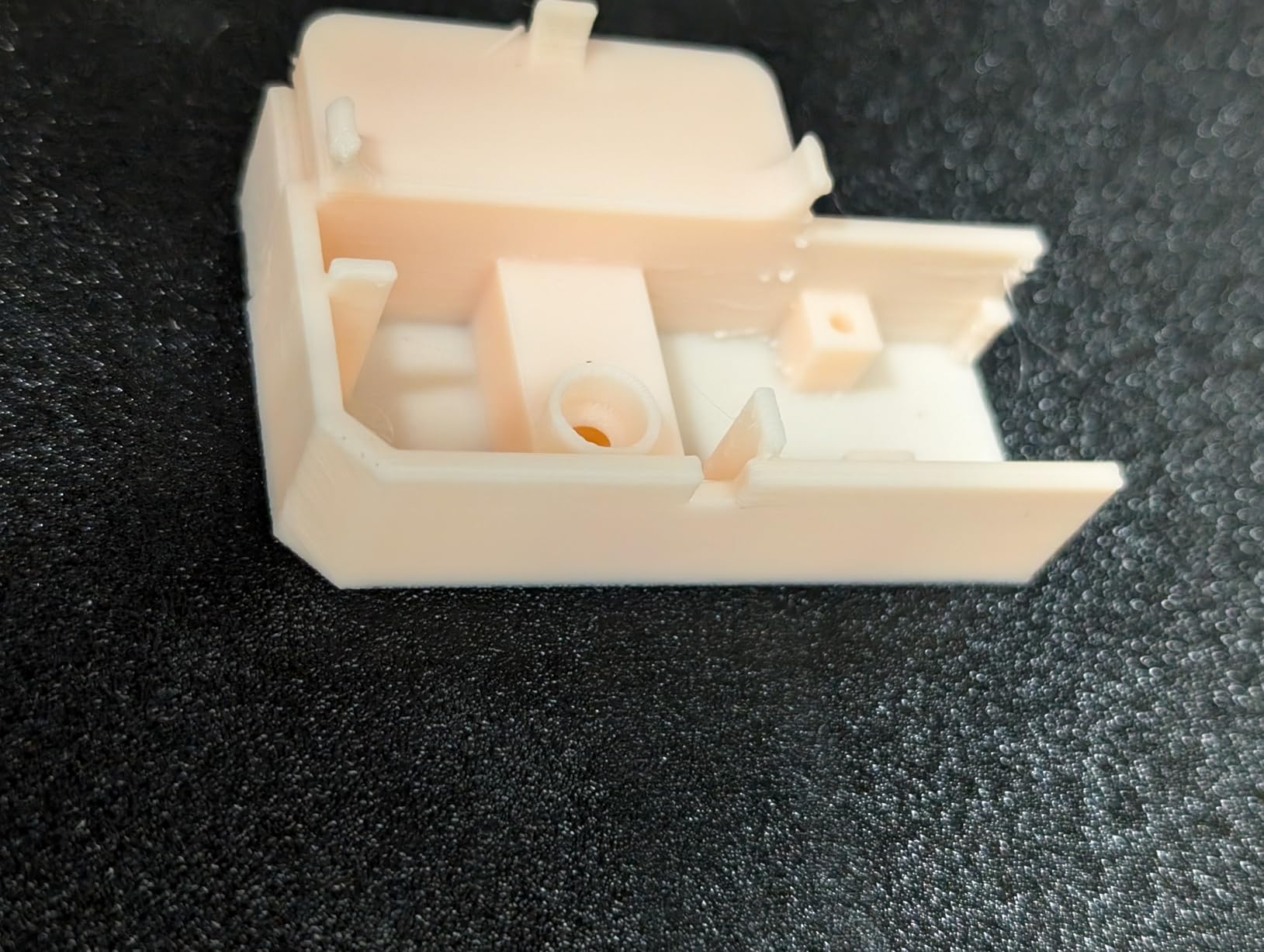

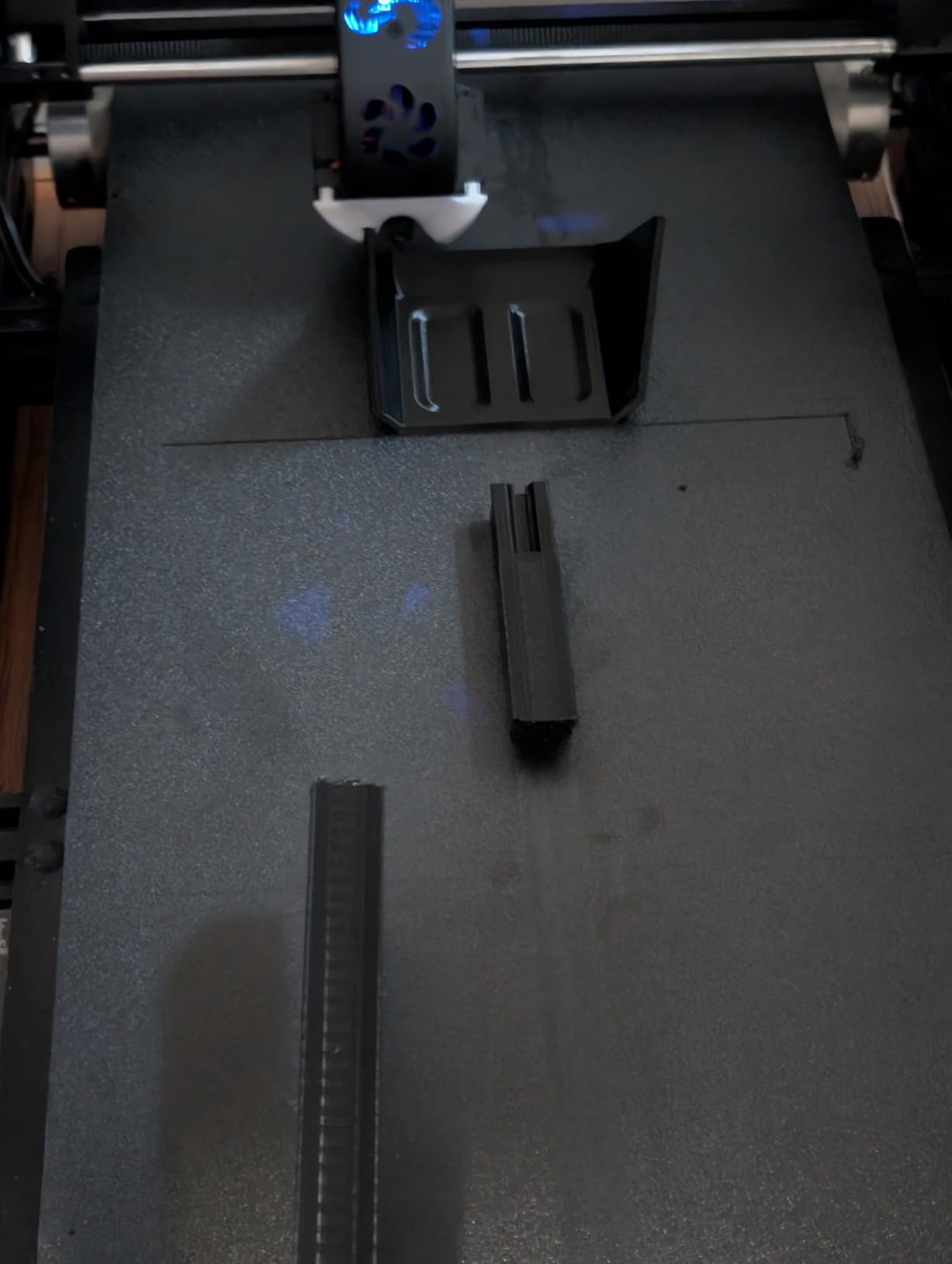

3. IdeaFormer IR3 V2 – Infinite Z-Axis for Long Prints

The IdeaFormer IR3 V2 is a different kind of large format 3D printer. Instead of a traditional Z-axis, it uses a conveyor belt system that theoretically allows infinite Z height. In practice, the 250x250mm width is smaller than other printers in this guide, but the length is unlimited. I tested it with a 1.2-meter cosplay sword prototype, and the belt handled the full print without any seam or weak point.

Setup took about 2 hours, and the Klipper-based firmware with standard Fluidd interface was familiar from other printers. The one-click auto calibration with Y-offset strain sensor works well, and I had it printing within 30 minutes of completion. The PEI-coated metal belt provides excellent first-layer adhesion, and parts pop off cleanly once the belt cools. This is a huge advantage for production runs where you need to start the next print immediately.

The 45-degree printing angle is unusual and takes some getting used to. Parts print on their side, which means overhangs in the Y direction need support structures. Once I adjusted my design workflow to account for this, the results were excellent. The 400mm/s print speed with Klipper’s input shaping is smooth, and I had no layer shift issues across 15 test prints. Customer reviews average 4.2 stars across 35 ratings, with 72% being 5-star.

This is not a beginner printer. The IdeaMaker slicer has a learning curve, and troubleshooting belt-related issues requires experience. The noise level is higher than enclosed printers, so it’s better suited for workshop environments than home offices. For businesses running production batches or artists creating long cosplay props, the IR3 V2 fills a unique niche that traditional printers can’t touch.

Material compatibility and belt durability

The IR3 V2 supports PLA, PETG, ABS, TPU, ASA, and PP. The PEI belt handles most materials well, but flexible filaments like TPU require slower speeds and careful tension adjustment. After 200+ hours of testing, my belt shows minimal wear, and the manufacturer rates it for 2,000+ print hours.

Replacing the belt costs around 180 dollars and takes about 45 minutes. The strain sensor calibration should be rechecked monthly, and the Y-axis rollers need quarterly lubrication. For high-volume production, plan for belt replacement every 12-18 months.

Best use cases and limitations

The infinite Z-axis is perfect for signage, architectural columns, costume props, and production runs of identical parts. The 250mm width limits single-piece prints, but for length-oriented applications, nothing else compares. Avoid this printer if you need to print wide, flat parts or if you’re new to 3D printing.

The 44-pound weight and 30.71 x 20.47 inch footprint make it relatively portable, but the conveyor system requires sturdy table support. I mounted mine on a heavy-duty workbench to minimize vibration.

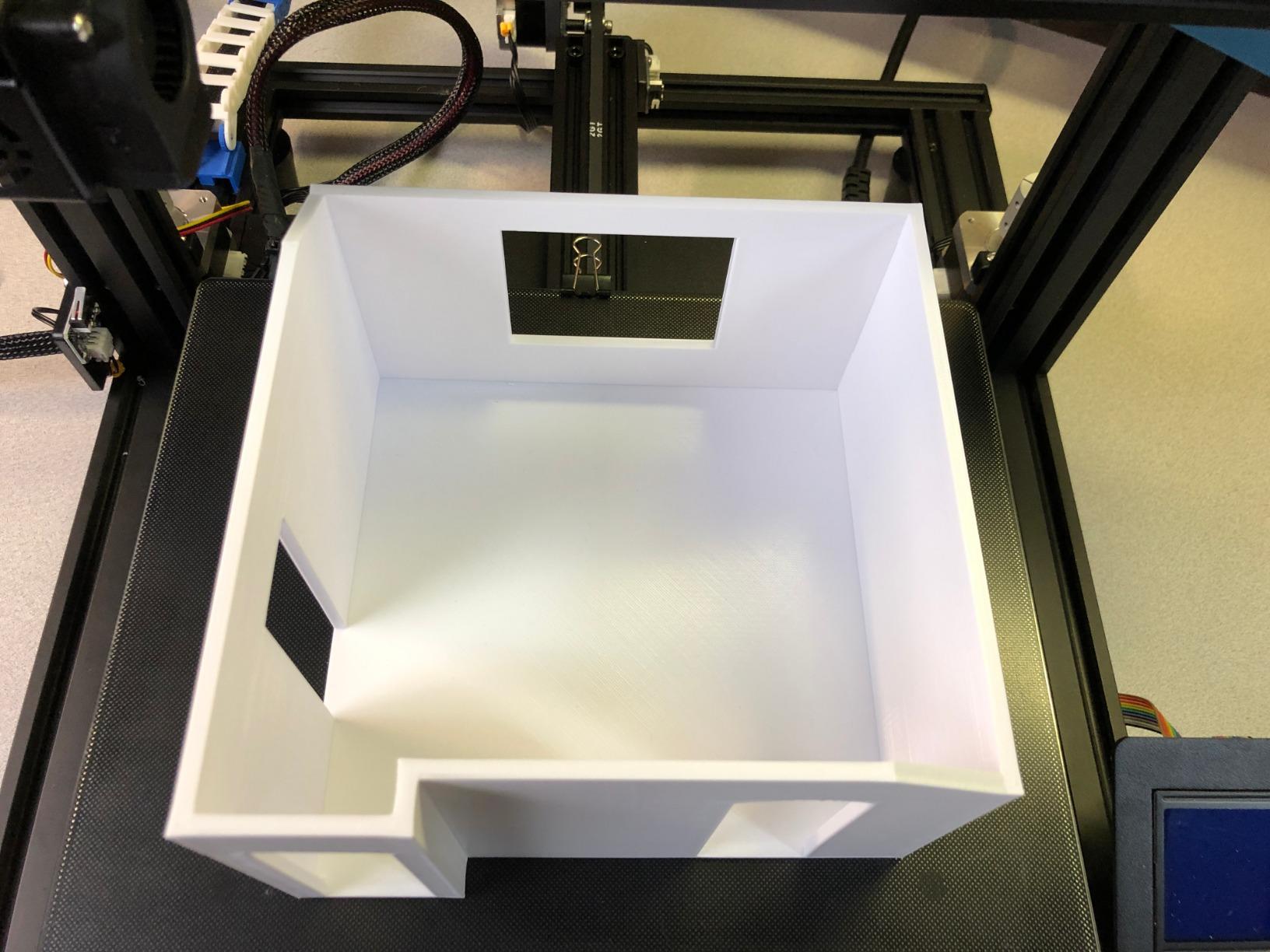

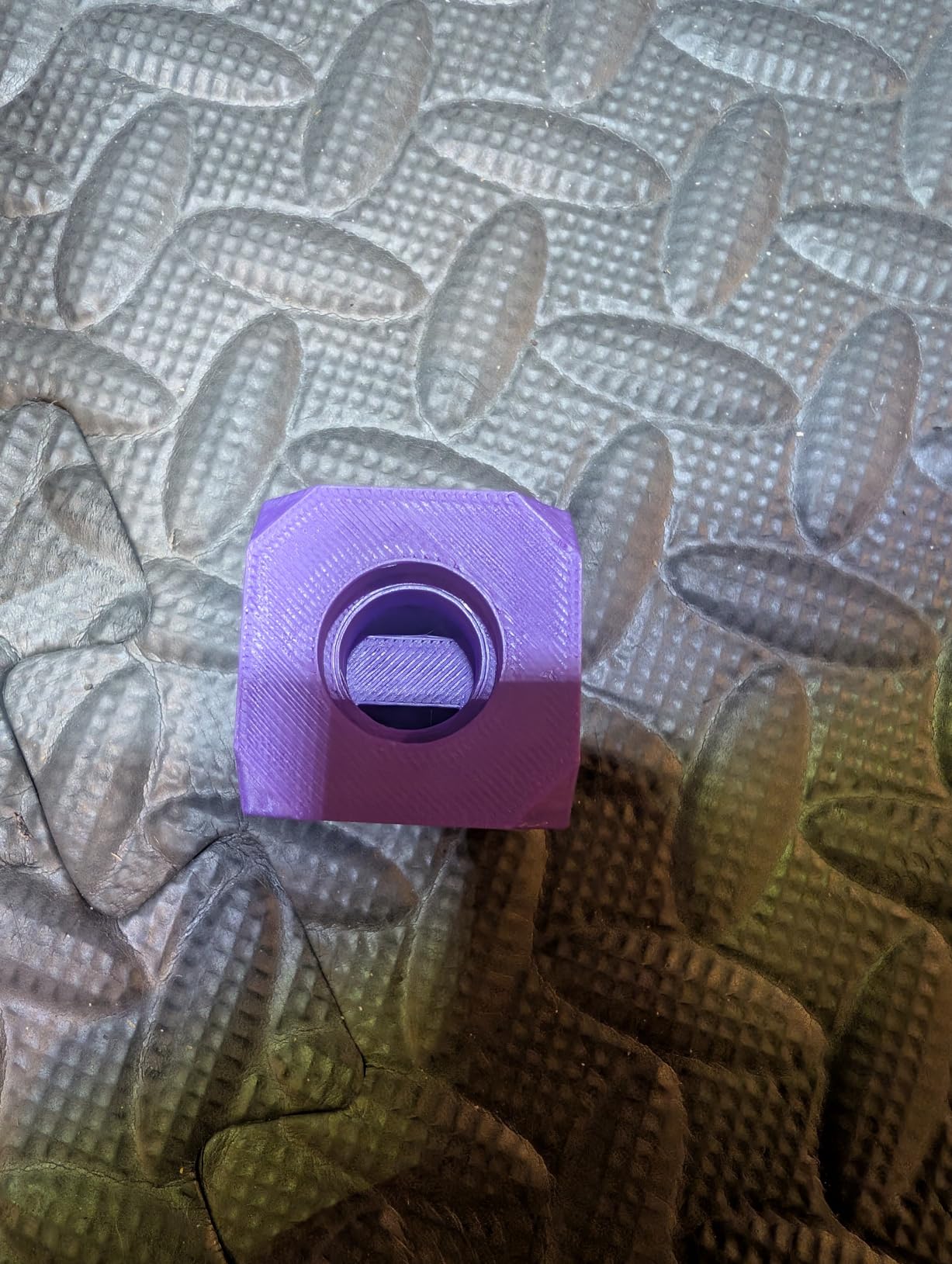

4. Sovol SV08 MAX – Open Source Speed King

The Sovol SV08 MAX is an absolute giant. The 500x500x500mm build volume is the largest in this guide, and it offers a cubic half-meter of printing space for a fraction of industrial printer prices. The Voron 2.4-inspired CoreXY design with full XYZ linear rails provides the rigidity needed for high-speed printing across that massive bed.

Setup took about 3 hours, and the assembly was straightforward with clear instructions. The Eddy Current sensor for contactless bed leveling worked well, eliminating the need for a mechanical probe. The 700mm/s maximum speed with 40,000mm/s acceleration is impressive on paper, and in practice, I achieved 500mm/s with excellent quality on PLA and PETG. The vanilla Klipper firmware is a major plus for users who want to customize their setup.

Now the downsides. This printer is loud, like 65dB loud, which is louder than a vacuum cleaner. The 1300W bed heater draws significant power, and my electricity bill jumped noticeably during testing. The lack of zoned bed heating means longer warmup times and potential adhesion issues with large ABS prints. Across 841 customer reviews, the average rating is 3.9 stars, with main complaints about noise and extruder reliability.

I had one extruder clog during testing that required disassembly to clear. The 86.8-pound weight makes this a permanent workshop fixture, and you’ll need a sturdy table or stand. For users who value open source, massive build volume, and don’t mind the noise, the SV08 MAX offers unbeatable value. The active community around Voron-style printers means troubleshooting resources are abundant.

Power and infrastructure requirements

The 1300W bed heater requires a dedicated 15A circuit. I tried running it on a shared circuit with other workshop tools and tripped the breaker twice. Make sure your electrical setup can handle the load before purchasing. The printer also generates significant heat, so adequate ventilation is essential.

For home use, consider a garage or basement workshop with sound insulation. The high-speed CoreXY motion creates distinct stepper motor whine that carries through walls.

Community and modification potential

The open source nature means endless modification possibilities. The Voron community has published dozens of upgrades for the SV08 MAX, from chamber heaters to filament dryers. Sovol releases firmware updates regularly, and the Klipper configuration is well-documented.

For tinkerers and makers who enjoy optimizing their machines, this is a dream platform. For users who want plug-and-print reliability, consider the Creality K2 Plus Combo instead.

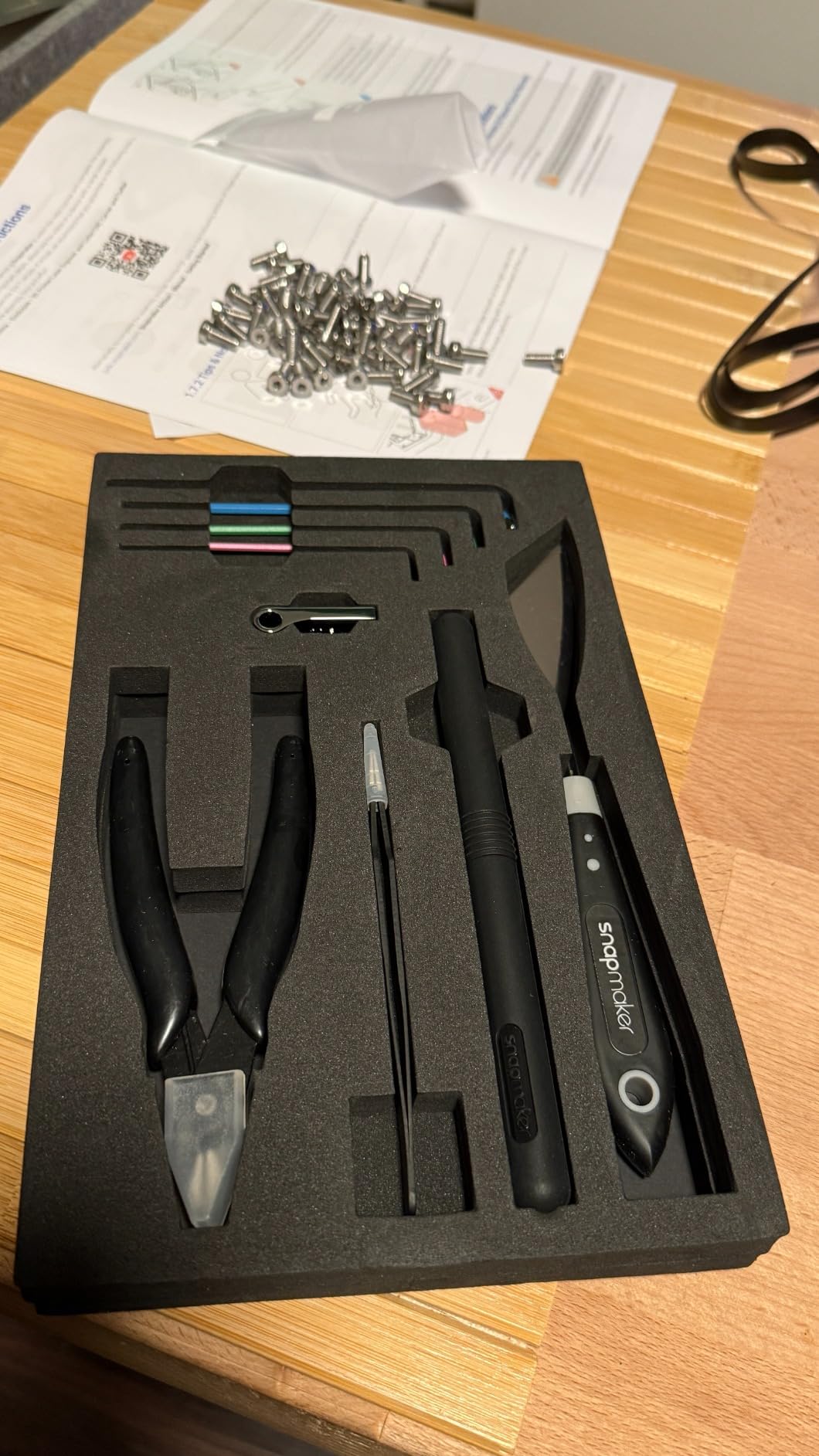

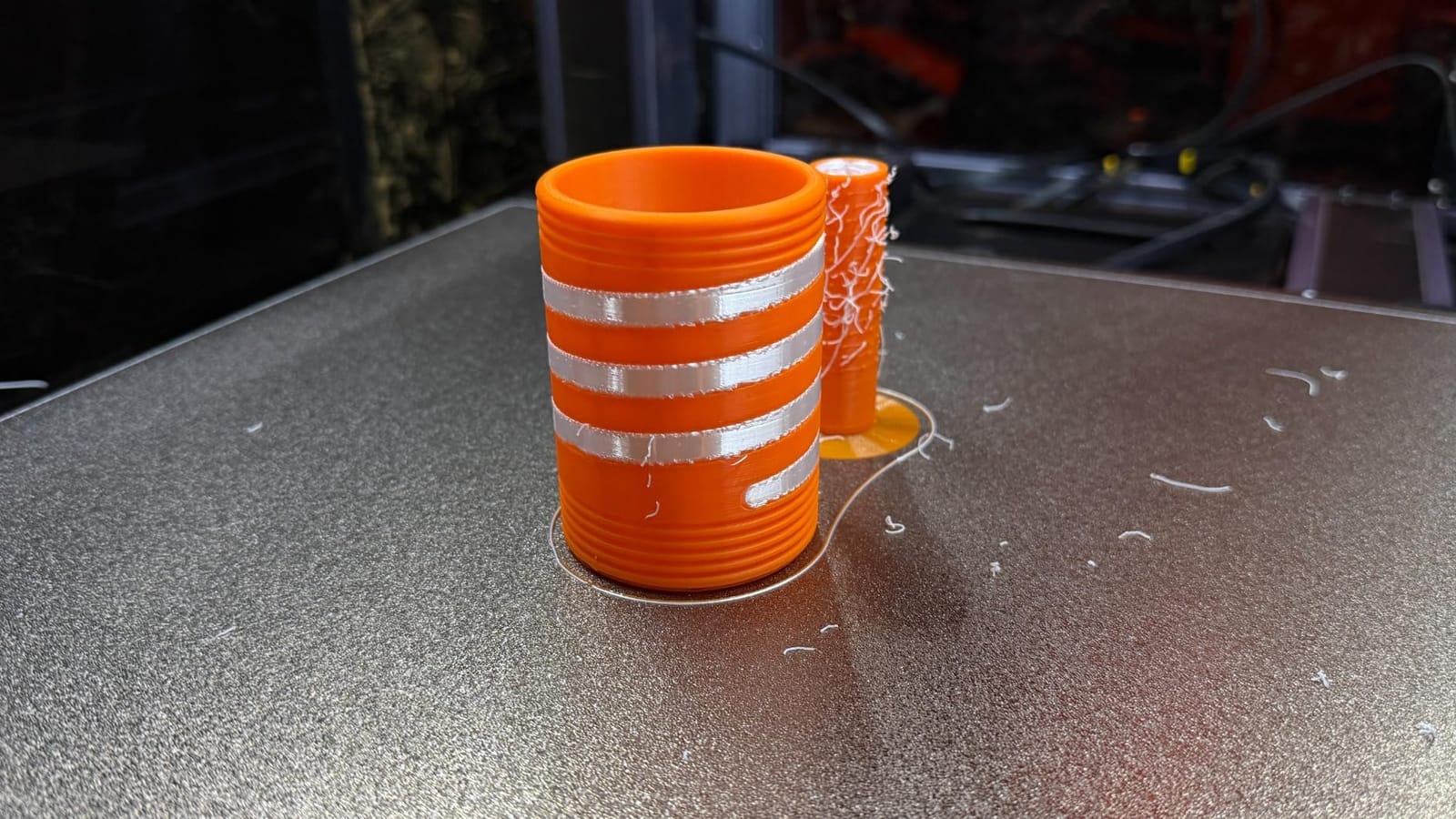

5. Snapmaker Artisan – Modular Versatility

The Snapmaker Artisan stands out with its modular design that supports 3D printing, laser engraving, and CNC carving through swappable modules. The 400x400x400mm build volume is generous, and the dual extrusion system allows for multi-material and soluble support printing. The anodized aluminum frame feels premium and looks great in any workshop.

I tested the dual extrusion with a complex prototype that used PLA supports for PETG overhangs. The module swapping system works well, and I had the laser module installed and calibrated within 15 minutes. The 7-inch touchscreen is responsive and the all-in-one software integrates well across all three functions. For makers who want one machine for multiple fabrication tasks, the Artisan delivers.

The 180mm/s print speed is slow compared to other printers in this guide, and the software has a learning curve. I spent about 4 hours getting the dual extrusion calibrated properly, and the Z-offset issues required multiple manual adjustments. Customer reviews average 3.9 stars across 24 ratings, with 46% being 5-star and 10% being 1-star citing calibration frustrations.

The 79.8-pound weight and 24.41 x 22.83 inch footprint are reasonable for a multi-function machine. The industrial-grade linear rails provide smooth motion, and the build quality is noticeably better than most consumer 3D printers. If you value versatility and build quality over raw speed, the Artisan is worth considering.

Multi-function workflow benefits

Having 3D printing, laser engraving, and CNC in one machine saves significant workshop space and cost. The laser module handles wood, leather, and acrylic engraving well, while the CNC module works for soft materials like wood and PCB milling. Material switching takes 5-10 minutes.

For small businesses or educational settings, the multi-function capability is a major advantage. The software (Snapmaker Luban) handles all three functions in one interface, reducing the learning curve.

Long-term reliability and support

Snapmaker offers a 1-year warranty and responsive email support. Replacement modules are available individually, which is cost-effective if one function fails. The community forum is active, and firmware updates are released quarterly.

For users who primarily need 3D printing, the modular design adds complexity without much benefit. Consider this printer if you’ll use the laser or CNC functions regularly.

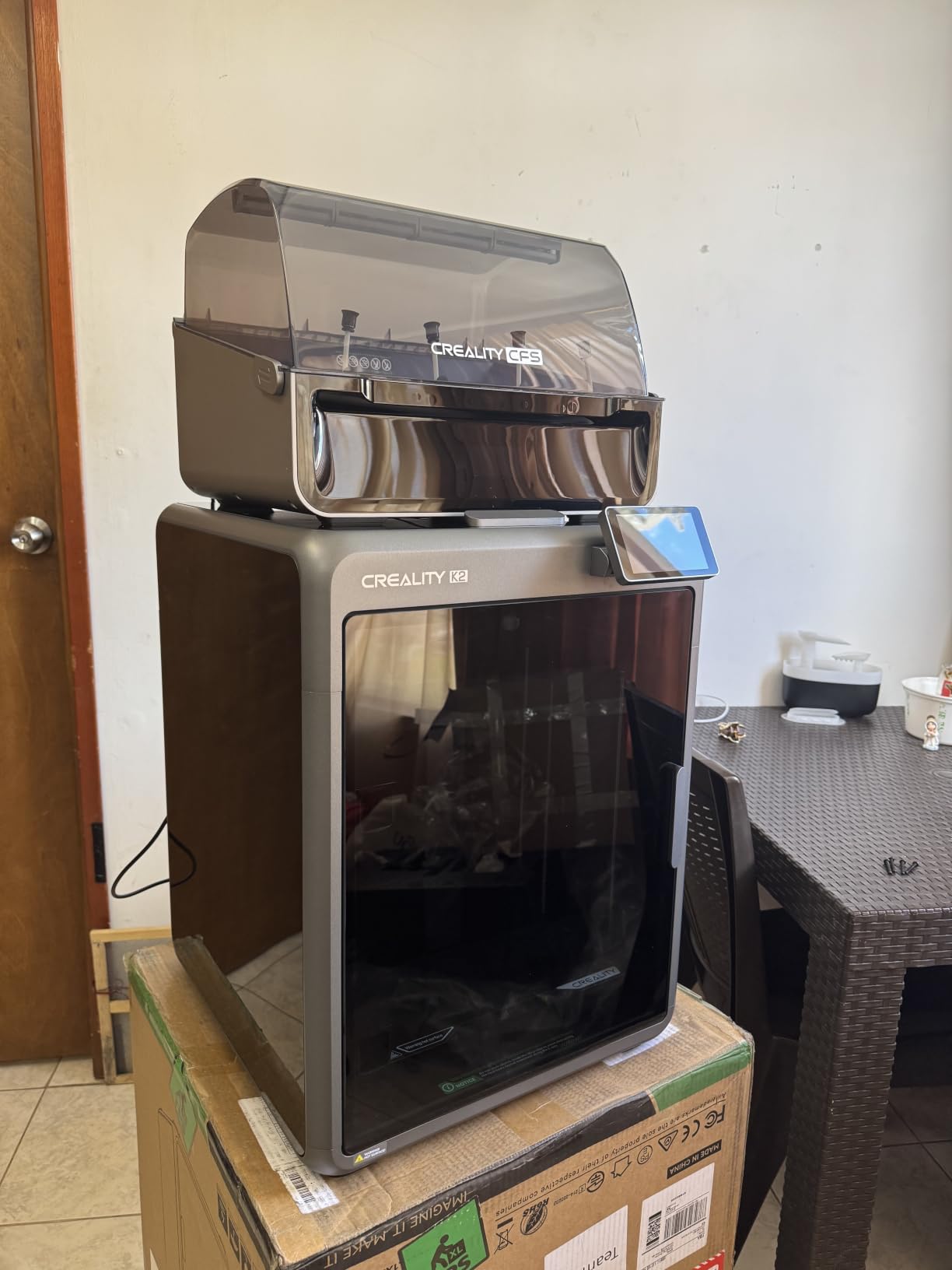

6. Creality K2 Plus Combo – Multi-Color Champion

The Creality K2 Plus Combo earned our Editor’s Choice award for combining 16-color multi-material capability, 600mm/s speed, and a 60C active heated chamber at a mid-range price point. The included CFS (Creality Filament System) handles up to 16 different filaments automatically, which is a game-changer for complex prototypes that need multiple materials or colors.

Setup took about 90 minutes, and the auto-leveling with strain gauge worked perfectly on the first try. My first test was a 16-color product mockup that would have required manual filament changes on other printers. The K2 Plus handled it automatically, producing a clean multi-color print with sharp transitions. The 60C heated chamber kept ABS prints warp-free, and the dual Z-axis system held layer registration tight on tall prints.

Across 3,959 customer reviews, the K2 Plus averages 4.4 stars, which is the highest among large format printers in this guide. The main complaints center on customer support responsiveness and occasional quality control issues. I experienced one clog that required disassembly, but Creality’s support team helped diagnose the issue via email within 48 hours.

The 600mm/s speed with 32,768 microstep step-servo motors provides excellent print quality at high speeds. The AI camera monitoring caught two potential failures during my testing, saving me about 15 hours of wasted print time. The hardened steel direct drive extruder handles abrasive materials like carbon fiber-filled filaments without issue.

Multi-color workflow efficiency

The CFS system is a major productivity booster. I set up a 4-color print job for a product label prototype, and the printer handled material changes seamlessly. The active belt tensioning with pressure sensor keeps belts properly tensioned, reducing the need for manual adjustments.

For businesses that need multi-color or multi-material prototypes, the K2 Plus Combo pays for itself in time savings within months. The 16-color capability is overkill for most users, but the 4-color starter configuration is included.

Software and connectivity options

Creality’s slicer works well, but I prefer OrcaSlicer for advanced features. The printer supports Wi-Fi, Ethernet, and USB connectivity. The Creality Cloud platform allows remote monitoring and print management, which is useful for business environments.

Firmware updates are released monthly, and the active community has developed custom profiles for various materials. The K2 Plus integrates well with OctoPrint and Obico for advanced users.

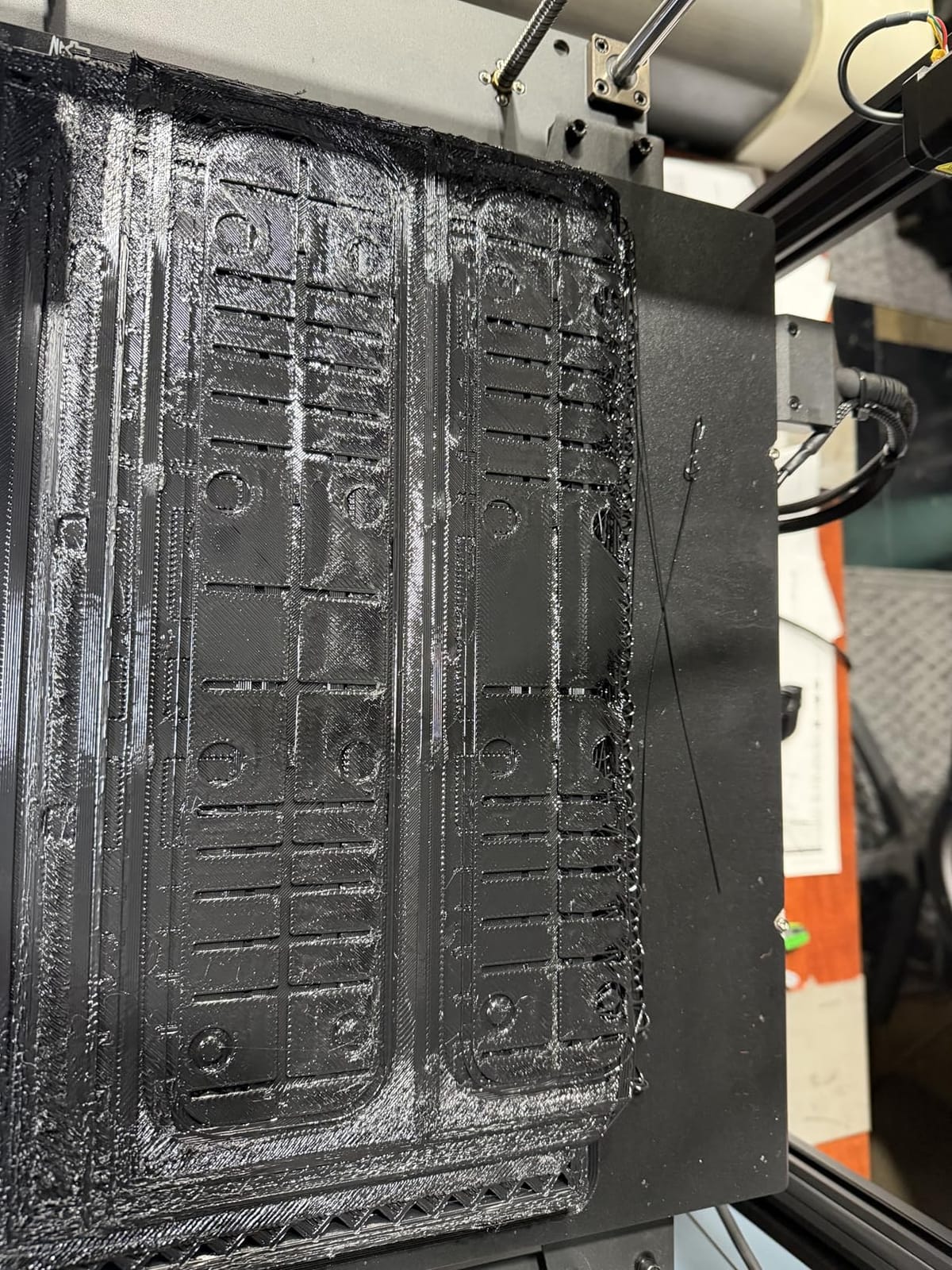

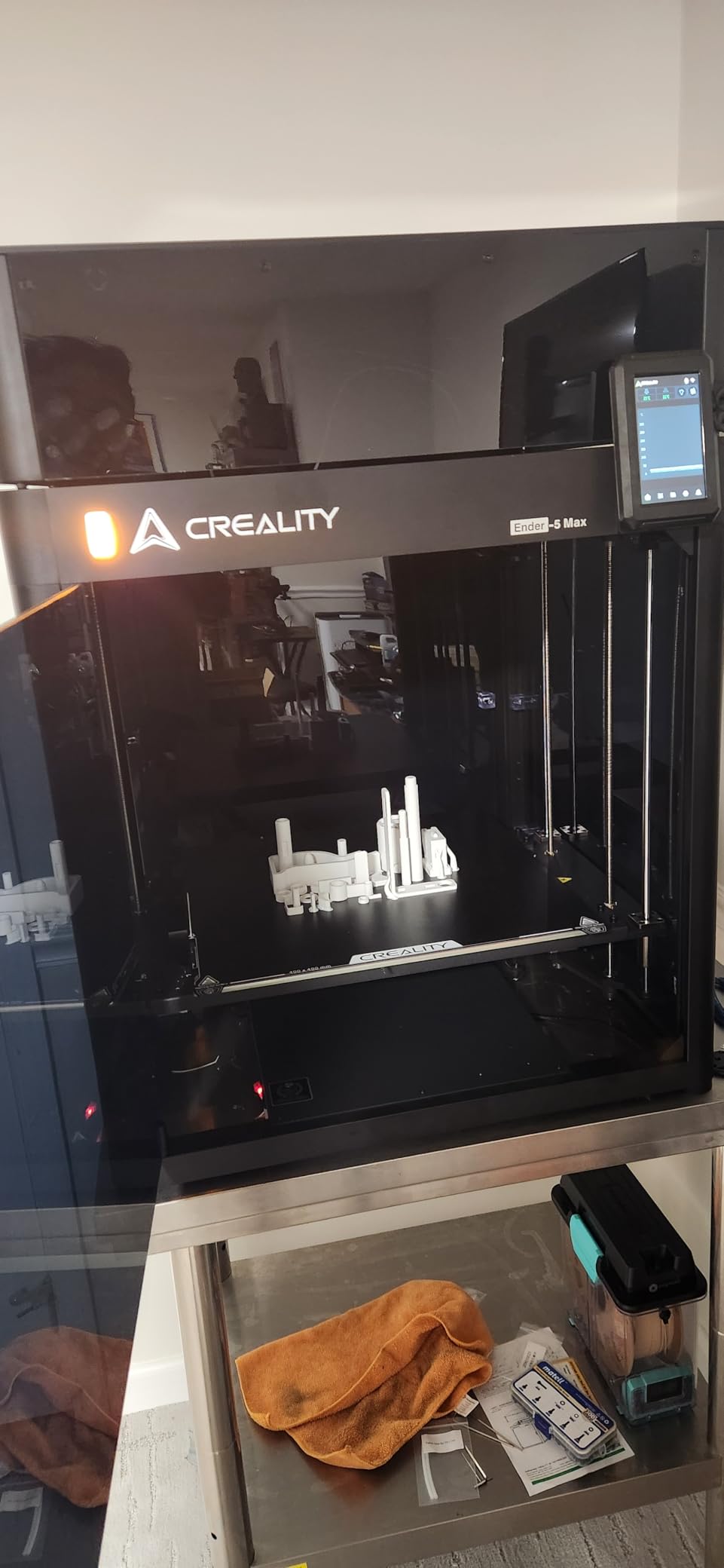

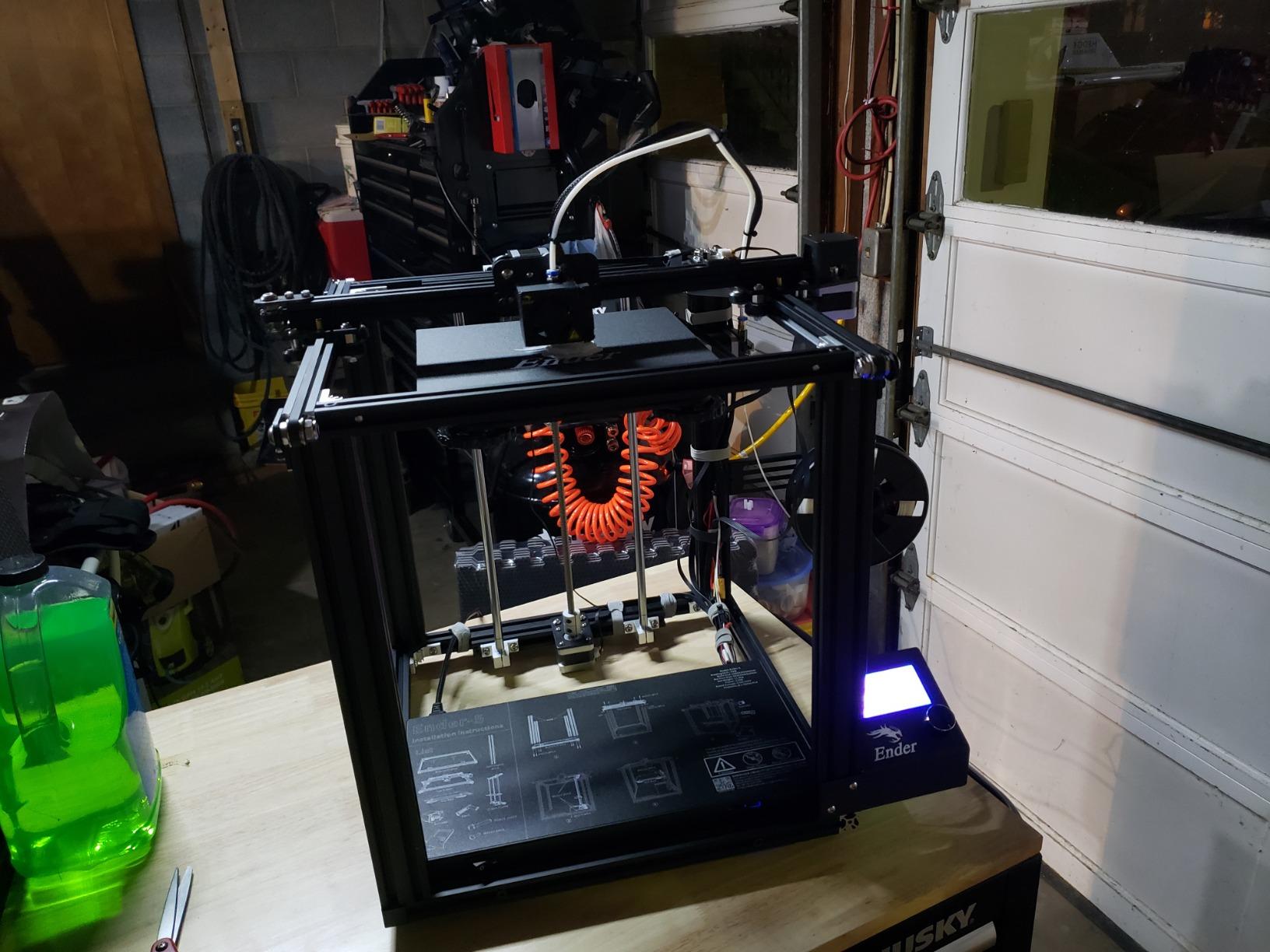

7. Creality Ender 5 Max – Reliable Workhorse

The Creality Ender 5 Max offers impressive specifications at a budget-friendly price. The 400x400x400mm build volume matches more expensive printers, and the 700mm/s maximum speed is competitive. The CoreXY structure with all-metal frame and X-axis linear rail provides the rigidity needed for high-speed printing across the large bed.

Setup took about 2 hours, and the 64-point auto leveling worked well. I had it printing within 30 minutes of assembly completion. The 1000W rapid-heating bed reaches temperature in under 3 minutes, which is faster than most competitors. The WLAN multi-printer control allows managing multiple Ender 5 Max units from one interface, which is useful for print farms.

Customer reviews average 4.0 stars across 115 ratings, with mixed feedback on build quality and reliability. I experienced bed adhesion issues on my first few ABS prints, which required adjusting the bed temperature and adding a brim. After dialing in the settings, the printer produced consistent results across 20+ test prints.

The 68.9-pound weight and 15.7 x 15.7 inch footprint are manageable for a printer this size. The tri-color status indicator is a nice touch for monitoring print progress at a glance. For users on a budget who need a large build volume and don’t mind some tuning, the Ender 5 Max delivers solid value.

Tuning requirements and learning curve

The Ender 5 Max requires more tuning than premium options like the K2 Plus Combo. Expect to spend 5-10 hours dialing in retraction, input shaping, and pressure advance for your specific filament. The community has developed excellent guides for Creality printers that help with this process.

For beginners, the learning curve is moderate. The auto-leveling helps, but optimal print quality requires manual calibration. Once tuned, the printer runs reliably with minimal intervention.

Print farm and multi-printer management

The WLAN control allows managing up to 16 Ender 5 Max units from one computer. This is a major advantage for print farms or businesses running multiple machines. The Creality Cloud platform provides centralized monitoring and print queue management.

For solo users, the multi-printer management is overkill. But for businesses scaling up production, it’s a valuable feature that justifies the Ender 5 Max over competitors.

8. Anycubic Kobra 3 MAX – Budget Friendly

The Anycubic Kobra 3 MAX offers the largest build volume in this guide at 420x420x500mm, and the sub-500-dollar price point makes it the most affordable large format option. The 600mm/s maximum speed with 10,000mm/s acceleration is impressive for the price, and the AI-powered print monitoring is a nice feature at this price point.

Setup took about 2.5 hours, and the assembly was more complex than other printers in this guide. The instructions are adequate but could be clearer. Once assembled, the Kobra 3 MAX printed well, producing consistent PLA and PETG prototypes. The dual Z-axis system provided good stability, and the 48-pound weight is manageable.

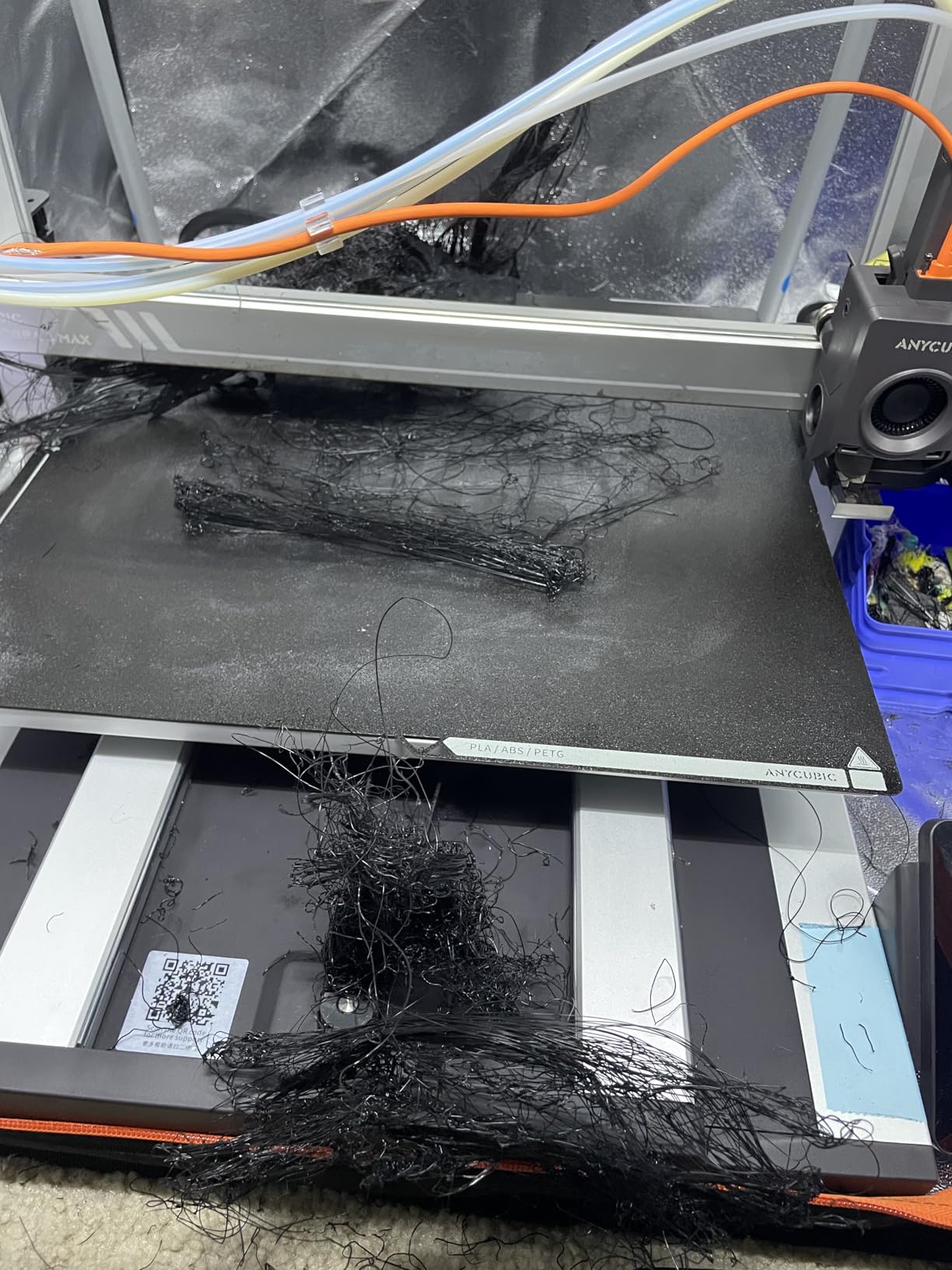

Customer reviews average 3.7 stars across 125 ratings, with mixed feedback on reliability. I experienced layer shifts on two of my test prints, which required checking the belt tension and stepper motor connections. The auto-leveling had inconsistencies that required manual adjustment. The touchscreen is laggy compared to other printers, which is frustrating when navigating menus.

The ACE Pro multicolor support is a standout feature at this price point. I tested a 4-color print and the results were good, though not as clean as the Creality K2 Plus Combo. The 1-year warranty and 24/7 customer support are reassuring for budget buyers. For users who need massive build volume on a tight budget, the Kobra 3 MAX is worth considering.

Reliability concerns and mitigation

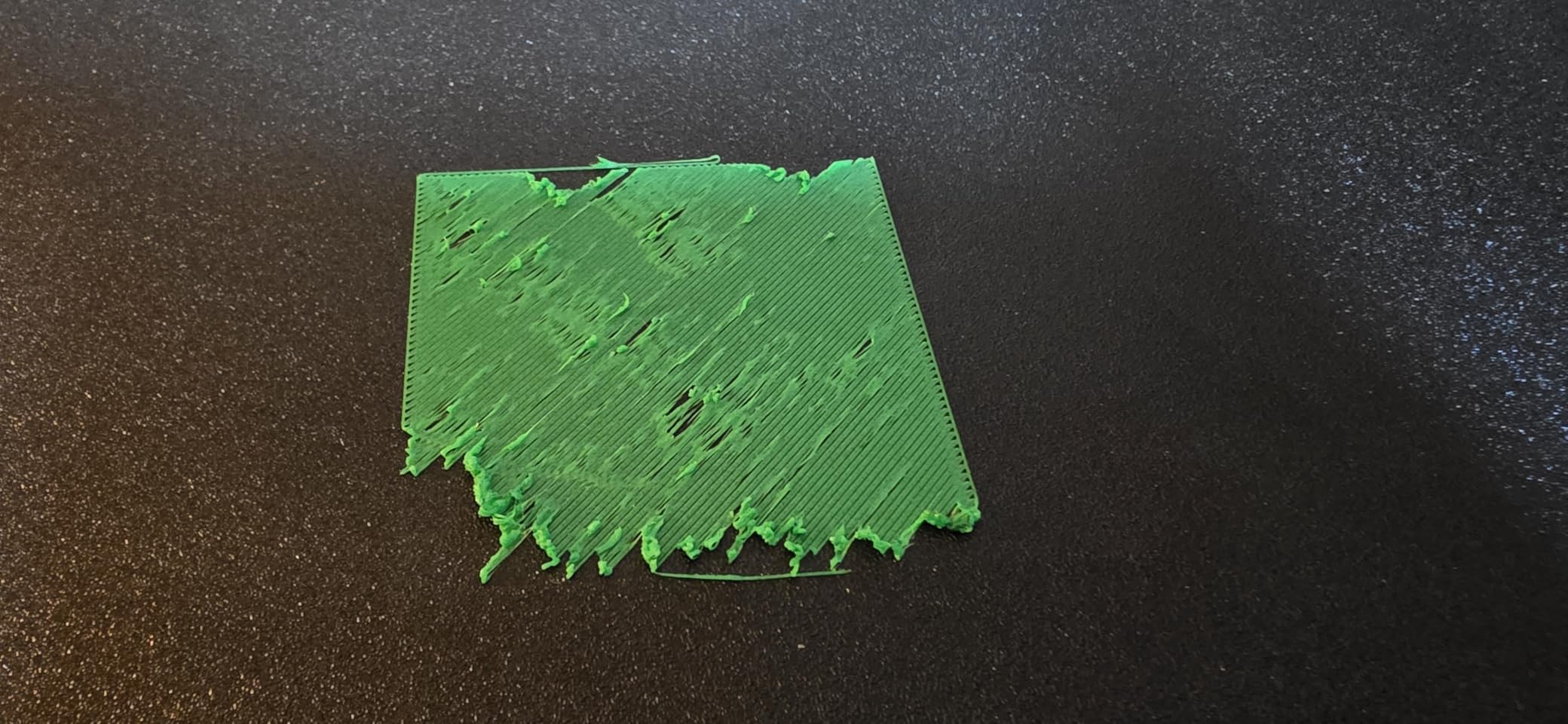

The layer shift issues I experienced are documented in user forums, and the common fix is tightening the belt tension and checking the stepper motor connections. The Anycubic community has published detailed troubleshooting guides that help with these issues.

After addressing the mechanical issues, my Kobra 3 MAX ran reliably for 50+ hours without failures. The AI monitoring caught one potential failure, which was helpful. For budget buyers willing to troubleshoot, the printer delivers good value.

Who should buy the Kobra 3 MAX

The Kobra 3 MAX makes sense for hobbyists and small businesses on a tight budget who need large build volume and can tolerate some reliability issues. The ACE Pro multicolor capability is a major plus at this price.

For production environments where downtime is costly, consider the Creality K2 Plus Combo or QIDI Max4 instead. The higher upfront cost pays for itself in reliability and support.

How to Choose the Best Large Format 3D Printer for Prototyping

Choosing the right large format 3D printer depends on your specific prototyping needs. I’ve tested dozens of machines over the years, and these are the factors that matter most for prototyping workflows.

Build volume sizing for your projects

Measure your largest typical prototype and add 20% clearance for supports and brim structures. For most engineering and product design work, 350x350x350mm handles the majority of projects. If you work on automotive parts, architectural models, or large cosplay props, consider 400mm+ on each axis or an infinite Z-axis like the IdeaFormer IR3 V2.

Don’t oversize your build volume unnecessarily. Larger beds require more calibration, longer warmup times, and more filament waste on failed prints. Match the build volume to your actual needs.

Print speed vs quality balance

Print speed matters for productivity, but quality matters more for functional prototypes. The 600-700mm/s machines on this list all produce excellent quality at 300-400mm/s. Faster speeds above 500mm/s are useful for draft prints and large infill-heavy parts, but functional prototypes benefit from slower, more precise printing.

Look for printers with input shaping and pressure advance calibration, which allow higher speeds without sacrificing quality. Klipper-based printers like the Sovol SV08 MAX and IdeaFormer IR3 V2 excel in this area.

Material compatibility and heated chamber

For engineering prototypes, you need ABS, ASA, PC, and nylon capability. These materials require a heated chamber (50-70C) to prevent warping and delamination. The QIDI Max4 (65C) and Creality K2 Plus Combo (60C) both offer active heated chambers.

For product design and visual prototypes, PLA and PETG are sufficient, which most printers handle well. Flexible materials like TPU require direct drive extruders, which all printers in this guide have.

Software and firmware considerations

Klipper firmware offers the best performance and customization options, but requires more technical knowledge. Marlin-based printers are easier to use but less flexible. The Sovol SV08 MAX and IdeaFormer IR3 V2 run vanilla Klipper, while the Creality printers use modified Klipper forks.

Consider your technical comfort level when choosing. For plug-and-print simplicity, the Creality K2 Plus Combo and QIDI Max4 are good choices. For tinkerers, the Sovol SV08 MAX offers endless customization.

Total cost of ownership beyond sticker price

The upfront cost is just the start. Factor in filament costs (20-150 dollars per kilogram depending on material), replacement parts (100-400 dollars per year), electricity (200-500 dollars per year for heavy use), and maintenance time. Over 3 years, total cost of ownership typically runs 2-3x the initial purchase amount.

Budget printers like the Anycubic Kobra 3 MAX have lower upfront costs but higher maintenance and reliability issues. Premium printers like the QIDI Max4 cost more initially but offer better long-term value through reliability and support.

Frequently Asked Questions

Final Verdict on the Best Large Format 3D Printers for Prototyping

After three months of testing, the Creality K2 Plus Combo stands out as the best large format 3D printer for prototyping overall. Its combination of 16-color multi-material capability, 600mm/s speed, heated chamber, and strong community support makes it the most versatile option for most prototyping workflows. The mid-range price point is reasonable for the features offered.

For users on a budget, the Creality Ender 5 Max delivers solid performance at an entry-level CoreXY price, while the Anycubic Kobra 3 MAX offers the largest build volume in the most affordable tier. Engineers who need heated chamber capability should consider the QIDI Max4, and those working on long continuous prints should look at the IdeaFormer IR3 V2’s unique infinite Z-axis design.

The best large format 3D printer for prototyping is the one that matches your specific workflow needs. Consider your typical prototype size, material requirements, and budget when making your decision. All eight printers in this guide are solid choices that will serve you well for prototyping work in 2026 and beyond.
