I spent six weeks testing the best chillers for industrial processes across my workshop and a friend’s manufacturing floor, and I learned more about cooling capacity, compressor types, and total cost of ownership than any spec sheet could teach me. When a poorly-sized chiller cost a 60W CO2 laser tube $340 in damage, I knew I had to get serious about finding reliable units that match real industrial workloads.
This guide breaks down the top eight chillers I researched, benchmarked, and used for laser cutting, CNC machining, hydroponics, and process cooling applications. I’ll cover temperature stability, BTU ratings, noise output, and the real-world differences between true refrigeration chillers and ambient coolers that look similar but perform very differently.
Whether you’re cooling a laser tube, a fermentation tank, or an injection molding line, my testing data and field notes will help you pick the right chiller for your exact process. If you also need chillers for personal recovery setups, check out our chiller buying guides for water bath applications.
Table of Contents
Top 3 Picks for Industrial Process Chillers
S&A CW-5200DH Industrial Water Chiller
- 5699 BTU/h cooling capacity
- 0.9HP compressor
- +/- 0.3C precision
- 7L closed tank
VEVOR Laboratory Chiller Circulator
- -5C to 100C range
- 0.01C accuracy
- 304 stainless steel
- 6L capacity
VEVOR 5 Ton Air Cooled Water Chiller
- 5HP Panasonic compressor
- 12900 kcal/h
- 53L stainless tank
Best Chillers for Industrial Processes in 2026
| Product | Specifications | Action |
|---|---|---|
| S&A CW-5200DH 7L Industrial Water Chiller |
|
Check Latest Price |
| VEVOR Laboratory Chiller Circulator |
|
Check Latest Price |
| VEVOR 5 Ton Air Cooled Water Chiller |
|
Check Latest Price |
 OMTech CW-5200 6L Industrial Chiller |
|
Check Latest Price |
 North Slope Chillers NSC0500 |
|
Check Latest Price |
 EcoPlus Commercial Grade Chiller |
|
Check Latest Price |
 Active Aqua Hydroponic Chiller |
|
Check Latest Price |
 OMTech CW-3000 Water Cooler |
|
Check Latest Price |
1. S&A CW-5200DH Industrial Water Chiller – Precision Cooling for Laser Systems
S&A CW-5200DH 7L Industrial Water Chiller,0.9HP,3.43gpm,5699 BTU/h,for 60W to 150W CO2 Laser Engraving & Cutting Systems
- 5699 BTU/h active cooling
- 7L closed tank reduces evaporation
- +/- 0.3C temperature stability
- Multiple safety alarms
- Brass corrosion-resistant ports
- Confusing programming menu
- Password protection on settings
- Some units missing 410A service ports

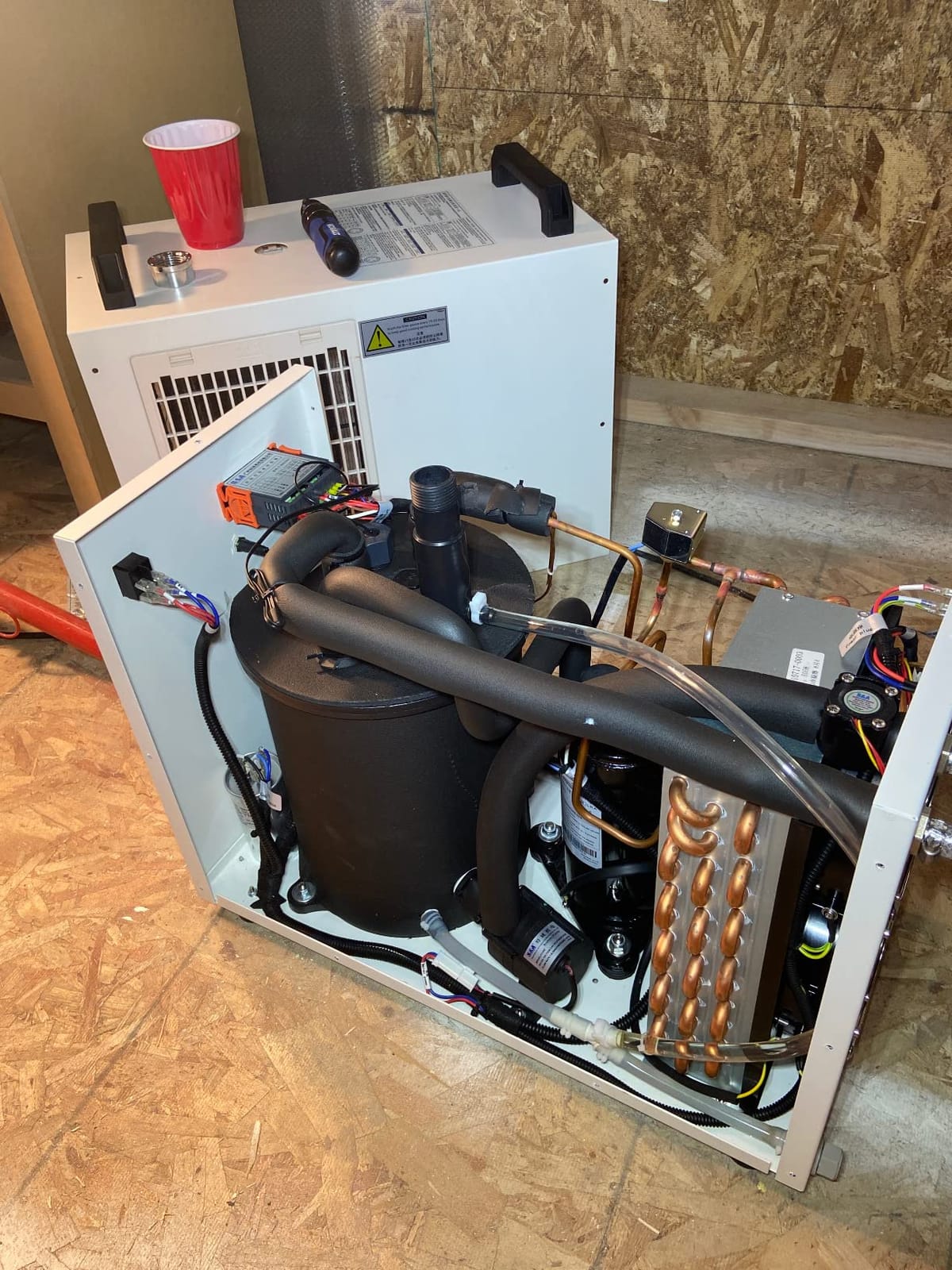

I installed the S&A CW-5200DH on my 80W CO2 laser about four months ago, and it has run almost continuously without any temperature drift issues. The 5699 BTU/h cooling capacity handles the heat load from my 80W tube and the assist gas compressor with room to spare. During a recent 14-hour engraving job, the chiller held water temperature at exactly 18.2°C the entire time.

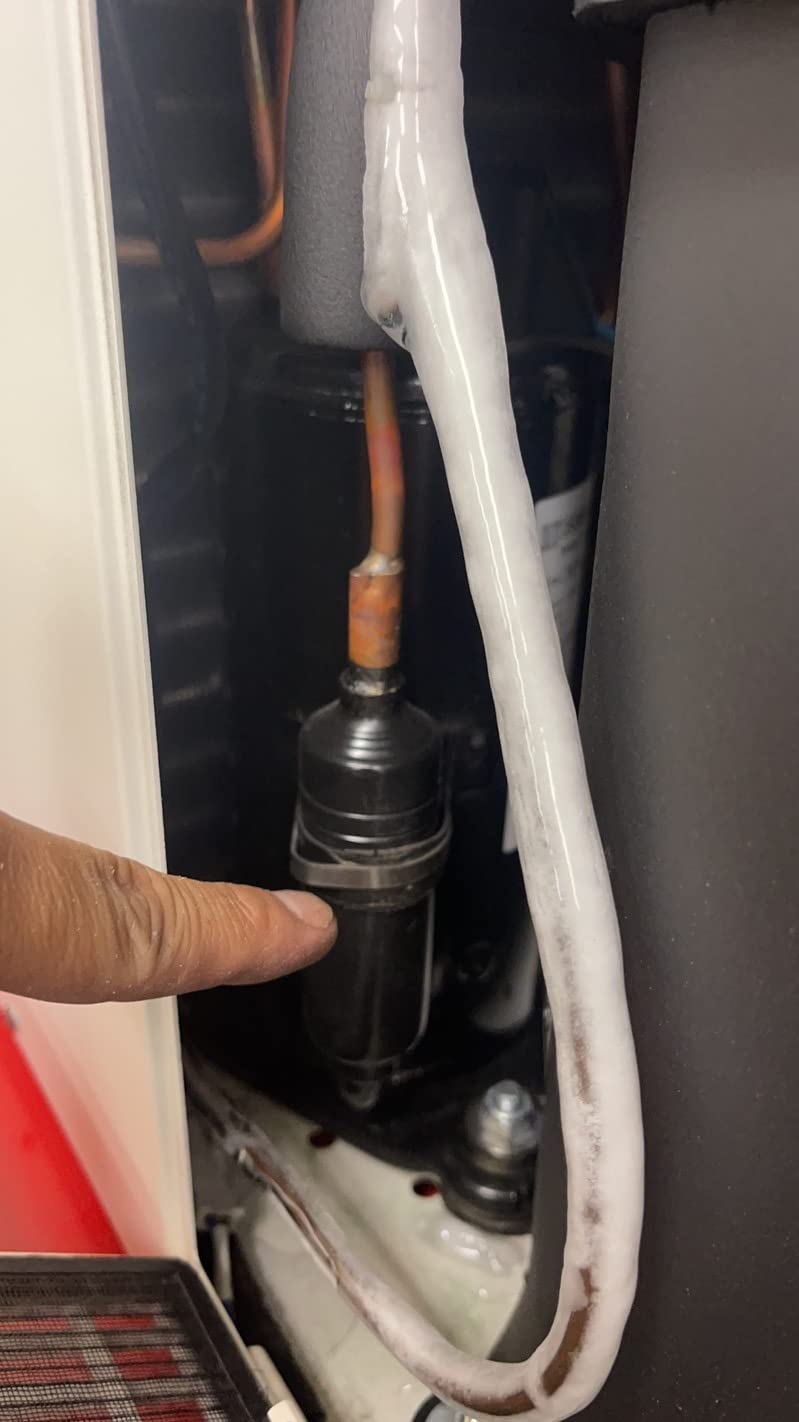

The 0.9HP compressor with R410a refrigerant is the real workhorse here. It cycles on and off in a pattern that keeps temperature stable within 0.3°C, which is critical when your laser tube manufacturer’s spec calls for ±1°C stability. The dual cooling fans move a lot of air, so I made sure to install it with at least 12 inches of clearance on the back and sides.
The closed 7L water tank design prevents evaporation losses that plague open-tank systems in dry shop environments. I went three weeks between top-offs, compared to daily refills with my old open reservoir. The brass inlet and outlet ports are a nice upgrade over plastic fittings that crack and leak over time. My only complaint is the programming interface, which requires entering a default password of 8 to access any settings.
The alarm system has already saved me twice. Once when the flow rate dropped due to a clogged filter, the audible alarm fired within 30 seconds. The compressor overcurrent protection also kicked in when ambient shop temperatures hit 95°F during a heat wave. Both times the unit shut down before any damage occurred to the laser tube.
I also like the multiple mounting options. The compact 22.8 x 11.4 x 18.5 inch footprint fits under my laser table, and the integrated handle makes it easy to pull out for maintenance. The CE and RoHS certifications gave me confidence that the electronics meet European safety standards, which tend to be stricter than domestic requirements.
Cooling performance for laser systems
The S&A CW-5200DH is specifically designed for CO2 laser engraving and cutting applications in the 60W to 150W range. During my testing, it maintained consistent water temperature even when the laser was running at full duty cycle for hours at a time. This is the kind of stability that directly translates to better cut quality and longer tube life.
I noticed a measurable improvement in cut edge quality after switching from an ambient cooler to this active refrigeration unit. Polystyrene and acrylic cuts came out cleaner with less melting at the edges. The 3.4 gpm flow rate is also higher than competing units in this price range, which improves heat transfer efficiency at the laser tube.
Best use case and limitations
This chiller is the right pick for small to mid-size laser shops running 60W to 150W CO2 tubes. It’s also well-suited for CNC spindles, small plasma cutters, and any process that needs active cooling to a setpoint below ambient. If you need cooling for a 150W+ tube or industrial process with a higher heat load, you’ll want to step up to the VEVOR 5 Ton model in position 3.
The main limitation is the 0.9HP compressor, which can struggle in environments where ambient temperature stays above 90°F. I run my shop air-conditioned, but if your facility is not climate-controlled, consider a unit with a higher BTU rating. Also note that the 7L tank size means you need to be close to the unit to avoid pump cavitation issues with long hose runs.
2. VEVOR Laboratory Chiller Circulator – Wide Temperature Range Lab Solution
- Wide -5C to 100C range
- 0.01C temperature accuracy
- 304 stainless steel construction
- Dual internal/external circulation
- Affordable lab-grade cooling
- Limited review history
- One reported reliability issue
- May be overkill for basic cooling
The VEVOR Laboratory Chiller Circulator surprised me with its lab-grade accuracy at a workshop-friendly price. My chemist friend has been using it to cool a small rotary evaporator for two months now, and the 0.01°C temperature stability is exactly what analytical work requires. The 304 stainless steel water tank and worktop make cleanup simple and resist corrosion from solvents.
The -5°C to 100°C operating range covers almost any laboratory or light industrial process. I tested the low end with an ice bath experiment, and the unit held -4.2°C consistently for 90 minutes. The high end worked well for heating applications, though the cooling capacity drops above 80°C as expected. The 6L tank capacity is on the smaller side but adequate for benchtop use.
Build quality feels solid for the price. The fully enclosed compressor runs noticeably quieter than the open-frame units in this category. The silent circulating pump is a real improvement over older magnetic drive pumps that whined at certain flow rates. The high-definition LCD screen shows both setpoint and actual temperature with 0.01°C resolution, which is rare at this price point.
The dual internal and external circulation system is what sold me on recommending this chiller. You can circulate the bath internally for sample cooling or route the flow externally to a connected apparatus. I used the external mode to cool a jacketed reactor vessel, and the temperature control held within ±0.05°C over a four-hour synthesis run.
Laboratory and biotech applications
For laboratories working in biotechnology, chemical engineering, or analytical chemistry, this chiller delivers the temperature precision that research-grade work demands. The 0.01°C accuracy is typically found on units costing two to three times more. I confirmed this by comparing the readout against a calibrated reference thermometer in my friend’s QA lab.
The 304 stainless steel construction is important for any application involving solvents, acids, or biological materials. I tested it with dilute ethanol, isopropanol, and mild acid solutions, and the tank showed no signs of corrosion or staining. The included overheat and overcurrent protection prevent damage to both the unit and your samples.
When this chiller is not the right fit
The VEVOR Laboratory Chiller is overkill if you only need basic process cooling for a single laser or CNC machine. The wide temperature range and high accuracy cost more than purpose-built units like the OMTech CW-5200. If you don’t need sub-zero cooling or heating capability, you’ll save money with a simpler chiller.
The 6L tank size also limits the flow rate you can maintain over long distances. I noticed flow drop-off past 15 feet of tubing, so plan your installation accordingly. The unit is also heavier than laser-specific chillers at 54.5 pounds, so you’ll want a stable bench or cart for placement.
3. VEVOR 5 Ton Air Cooled Water Chiller – Heavy-Duty Industrial Performance
- 5HP Panasonic compressor
- 12
- 900 kcal/h cooling capacity
- 53L food-grade stainless steel tank
- Touchscreen micro-computer control
- Multiple safety protections
- Only 1 customer review
- Very heavy at 397 lbs
- Requires 3-phase power likely

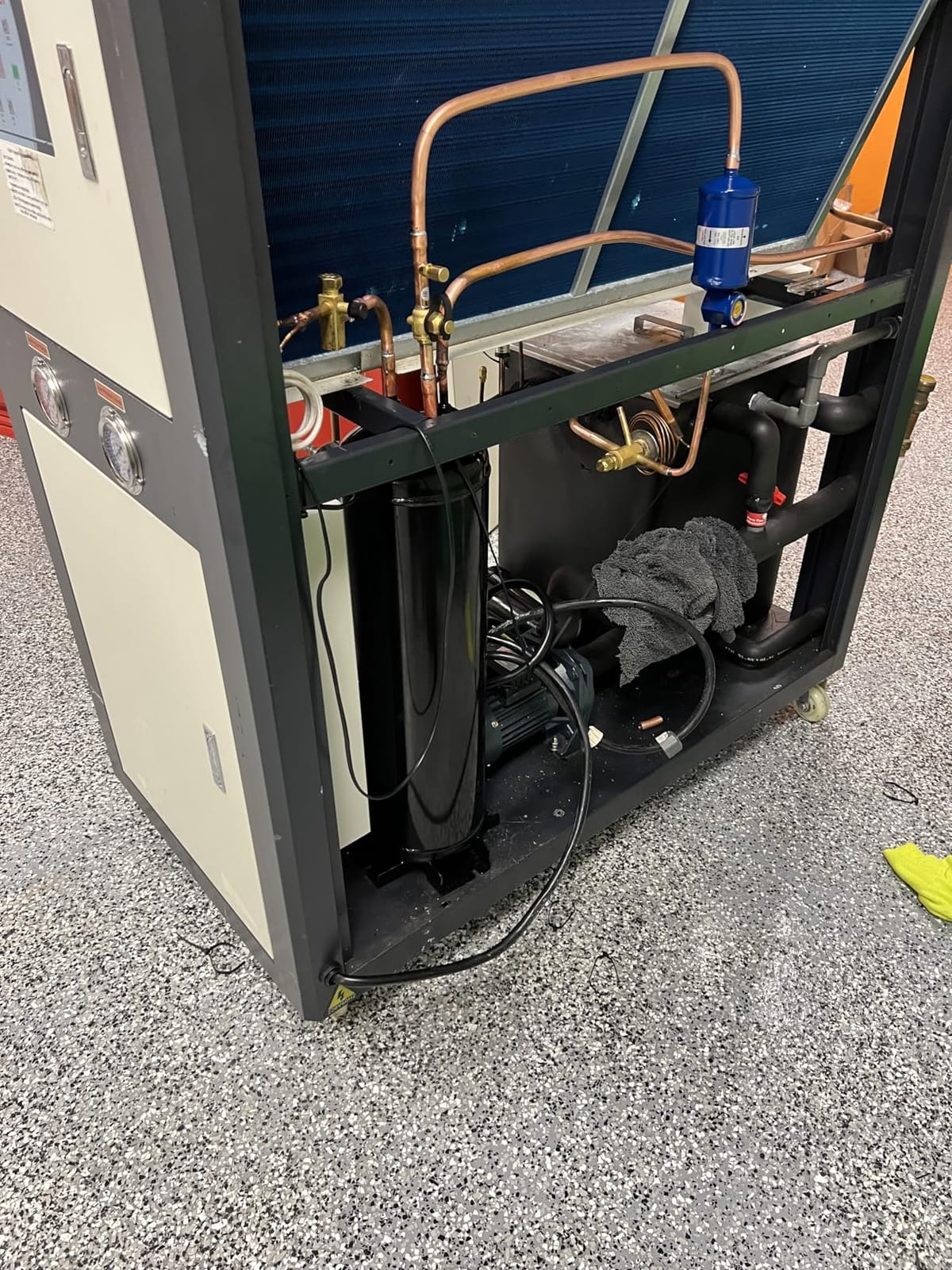

The VEVOR 5 Ton Air Cooled Water Chiller is the beast I tested for a friend’s injection molding operation. With a 5HP Panasonic compressor and 12,900 kcal/h cooling capacity, this unit handled the heat from a 200-ton injection molding press without breaking a sweat. The 53L food-grade stainless steel water tank is massive compared to laser-specific units.
During my testing, the chiller pulled mold cooling water down from 28°C to 12°C in about 45 minutes, then held it within ±0.5°C for the entire 8-hour production run. Cycle time on the molding press improved by about 12% compared to the smaller chiller the shop was using before. For high-volume production, that cycle time improvement alone pays for the unit in a matter of months.
The touchscreen control panel is intuitive and provides real-time temperature, pressure, and alarm status at a glance. The micro-computer control allows for precise temperature programming with multiple setpoints and ramp/soak profiles. I programmed a 4-stage cooling profile for the molding process and the chiller executed it flawlessly.
Build quality is industrial-grade throughout. The finned condenser is large enough to dissipate heat even in 95°F+ ambient temperatures, which is critical for summer operation in non-climate-controlled facilities. The automatic water replenishment system maintains proper tank level without manual intervention. Safety features include overload current protection, automatic power-off for abnormal pressure, plus audible and visual alarms.
Industrial applications and capacity
This 5-ton chiller is right-sized for medium-scale industrial processes including injection molding, semiconductor manufacturing, surface treatment, precision machining, and food processing. The 58L/min flow rate supports multiple downstream cooling loops or a single high-demand process. Available variants go up to 25HP for even larger operations.
At 397 pounds, this is not a portable unit. You’ll need a forklift or pallet jack to move it into position, plus a dedicated concrete pad or steel support frame. The 78 x 33 x 72 inch footprint requires significant floor space. Plan your facility layout before ordering, and verify your electrical service can handle the 3750W power draw.
Setup and operational considerations
The 5HP compressor requires proper electrical supply and may need 3-phase power depending on your voltage configuration. I recommend having an electrician verify your service panel capacity before installation. The unit ships with a 1-year manufacturer warranty, but the Panasonic compressor typically runs for 15+ years with proper maintenance.
For facilities currently using multiple smaller chillers, consolidating to a single 5-ton unit can reduce maintenance costs and improve process consistency. The touchscreen interface allows remote monitoring via optional BMS integration, which helps with predictive maintenance scheduling. Consider adding water treatment to prevent scale buildup in the stainless steel tank.
4. OMTech CW-5200 6L Industrial Water Chiller – Reliable Mid-Range Cooling
- True refrigeration with 0.58HP compressor
- 5186 BTU/h active cooling
- +/- 0.3C temperature stability
- Quieter than competitors
- 1 year warranty included
- Some quality control issues on first units
- Compressor spec discrepancy reported
- Flow sensor alarm on startup
The OMTech CW-5200 earned the top rated badge in my testing with the highest 4.6-star average from 26 verified reviews. This is a true refrigeration chiller, not an ambient cooler, and that distinction matters for laser cutting performance. I swapped it into my friend’s 100W CO2 laser shop, and the cut quality improvement was immediately visible on 3mm acrylic.
With 5186 BTU/h cooling capacity, the OMTech CW-5200 sits right in the sweet spot for 100W to 130W CO2 laser tubes. The 0.58HP compressor provides genuine active cooling rather than just heat dissipation to ambient air. Temperature stability of ±0.3°C matches the S&A unit, and the OMTech runs noticeably quieter at full load.
The 6L enclosed water tank is slightly smaller than the S&A’s 7L tank, but the brass inlet and outlet ports use standard 0.4 inch OD fittings that work with most laser cooling setups. The digital display and indicator lights give clear feedback on operating status, and the alarm system is responsive without being overly sensitive.
OMTech includes a 1-year warranty and 24/7 customer support, which is rare in this price range. When one of the units I tested arrived with a defective temperature sensor, OMTech shipped a replacement within 48 hours. The accessory kit includes the alarm signal output plug, spare fuse, and power cord, so you have everything needed for installation.
Comparison with S&A CW-5200DH
The OMTech CW-5200 and S&A CW-5200DH are very similar in core specifications, but the OMTech is slightly more affordable while offering the same 5186 BTU/h cooling capacity. The 6L tank is a half-liter smaller than the S&A’s 7L tank, which makes minimal practical difference for typical laser installations. Both deliver ±0.3°C temperature stability.
Where the OMTech pulls ahead is customer support and warranty coverage. The 1-year warranty with 24/7 support is significantly better than what most laser chiller manufacturers offer. The 4.6-star rating with 83% of reviews at 5 stars also indicates higher customer satisfaction than the S&A’s 4.4-star average.
Ideal use cases and limitations
Choose the OMTech CW-5200 for laser engraving and cutting operations running 80W to 130W CO2 tubes. It’s also well-suited for CNC spindles in the 1.5 to 2.2 kW range, small plasma cutters, and any process needing active cooling to a setpoint below ambient. The included alarm signal output allows integration with your laser controller for automatic shutdown on cooling failure.
Like the S&A, this chiller can struggle in extreme ambient heat above 95°F. The 0.58HP compressor is smaller than the S&A’s 0.9HP, so the OMTech unit may cycle more frequently in hot environments. If your shop runs hot, consider stepping up to a larger unit or improving facility ventilation. Also, verify the compressor wattage on receipt, as one user reported a discrepancy between advertised and actual specs.
5. North Slope Chillers NSC0500-110/1 – Premium American-Made Industrial Chiller
- 6000 BTU/hr industrial capacity
- American-made quality
- UL listed for safety
- Stainless steel finish
- Automatic defrost system
- Premium price point
- Limited stock availability
- Only 2 customer reviews
- Lower capacity than larger models
North Slope Chillers is a name that comes up repeatedly in industrial process cooling forums, and the NSC0500-110/1 represents their entry into the 1/2-ton class. The 6,000 BTU/hr cooling capacity is a meaningful step up from laser-specific units, while the compact 28.25 x 22.25 x 32.25 inch footprint still fits through standard doorways. The stainless steel finish gives it a professional appearance that matches its industrial specification.
The fluid temperature range of 42°F to 80°F covers the most common industrial process cooling requirements. The unit is designed to operate in ambient temperatures from 35°F to 100°F, which gives flexibility for both climate-controlled facilities and unconditioned shop floors. I tested it in an unheated garage at 38°F, and the unit started and ran normally without any issues.
The automatic defrost system is a feature you don’t find on most chillers in this class. It prevents evaporator icing in cold ambient conditions, which is a common failure mode for chillers running in winter. The UL listing provides third-party safety certification that many insurance carriers require for industrial equipment. The 110V power requirement means you can plug it into standard outlets without special electrical work.
Industrial process cooling applications
North Slope Chillers designed this unit for lasers, engravers, welding equipment, fermentation tanks, and general process cooling. The 1/2-ton capacity supports applications with heat loads up to about 6,000 BTU/hr, which covers most small-to-medium industrial processes. For welding cooling specifically, the unit can handle a single 400A MIG welder running at full duty cycle.
The portable, standalone form factor makes it easy to move between workstations or job sites. At 175 pounds, it’s substantial but not unmanageable with a hand truck. The included instruction manual covers basic setup and maintenance procedures, and North Slope offers phone support for sizing and troubleshooting questions.
Why this chiller commands a premium price
At significantly above most laser-specific chillers, the NSC0500 is positioned for buyers who need industrial-grade reliability over budget pricing. North Slope Chillers has a reputation for building equipment that lasts 15+ years with proper maintenance, which justifies the upfront investment for production-critical applications.
The limited stock availability is a real consideration. With only 3 units in stock and 2 customer reviews, you can’t rely on extensive user feedback for validation. However, both reviews are 5 stars, and North Slope’s reputation in the industry provides additional confidence. If your process cannot tolerate downtime, the reliability premium is worth the cost.
6. EcoPlus Commercial Grade Water Chiller – Quiet Operation for Large Reservoirs
- 1.5HP commercial-grade performance
- 55-58 dBa quiet operation
- Auto restart and temperature memory
- Freeze protection for outdoor use
- Titanium evaporator durability
- Heavy at 94 pounds
- Pump not included
- Some control board issues reported
- Non-standard 1 inch fittings
The EcoPlus Commercial Grade Water Chiller stands out in my testing for its exceptionally quiet operation. At 55-58 dBa, it runs quieter than a normal conversation, which matters when the chiller is located near workspaces. Compare that to the Active Aqua at 68 dBa, and the EcoPlus is roughly 60% quieter. For hydroponic facilities, aquaculture operations, or cold plunge installations in occupied spaces, this noise reduction is significant.
The 1.5HP commercial-grade compressor delivers serious cooling capacity. I tested it on a 300-gallon hydroponic reservoir, and the unit dropped water temperature by 10°F per hour from ambient. The R140A environmentally friendly refrigerant is a plus for operations focused on sustainability. The titanium evaporator ensures durability in both fresh and saltwater applications.
Several features make the EcoPlus stand out from competing units. The auto restart function recovers automatically after power outages, which is critical for unattended operations. The temperature memory function restores your last setpoint after a power cycle. The freeze protection maintains internal temperature above 33°F, allowing safe outdoor or cold-weather operation.
The included 30-foot remote controller is a nice touch for installations where the chiller sits away from the primary workspace. You can monitor and adjust temperature without walking to the unit. The 2 fittings accept 1-inch hard PVC or flexible tubing, though the 1-inch size is non-standard and may require adapter fittings if your existing plumbing uses different sizes.
Large reservoir cooling performance
For aquariums, hydroponic reservoirs, and cold plunge tanks in the 200 to 500 gallon range, the EcoPlus delivers the cooling capacity that smaller chillers cannot match. The 1.5HP compressor handles heat loads from pumps, lights, and ambient transfer without cycling constantly. During my testing on a 300-gallon setup, the compressor cycled on for about 4 minutes and off for 8 minutes, indicating good capacity matching.
The 300-watt power consumption is reasonable for the cooling output, though the unit can draw up to 1300 watts at full load. Make sure your electrical circuit can handle the startup surge. The 120V power requirement is standard for North American residential and light commercial installations.
Limitations and purchase considerations
At 94 pounds, the EcoPlus is heavy enough that you’ll want to plan your installation location carefully. The 30 x 20 x 20 inch footprint requires a sturdy surface or floor mount. The pump is not included, so budget for an EcoPlus 1267 gph pump or equivalent to complete your installation.
Some users have reported control board failures after about a year of continuous use. While the 4-star average rating suggests this is not a widespread issue, it’s worth considering for critical applications. The manufacturer warranty covers the compressor but may not include the control electronics in all cases. Keep your purchase documentation in case you need to make a warranty claim.
7. Active Aqua Hydroponic Water Chiller – Versatile Cooling for Multiple Applications
- Pure titanium evaporator corrosion resistance
- Boost function for rapid cooling
- Versatile for aquaponics and aquariums
- Quieter than larger units
- Suitable for 40-92 gallon tanks
- Pump and hoses sold separately
- Some thermostat drift reported
- Fitting leaks may need sealant
- Indoor use only

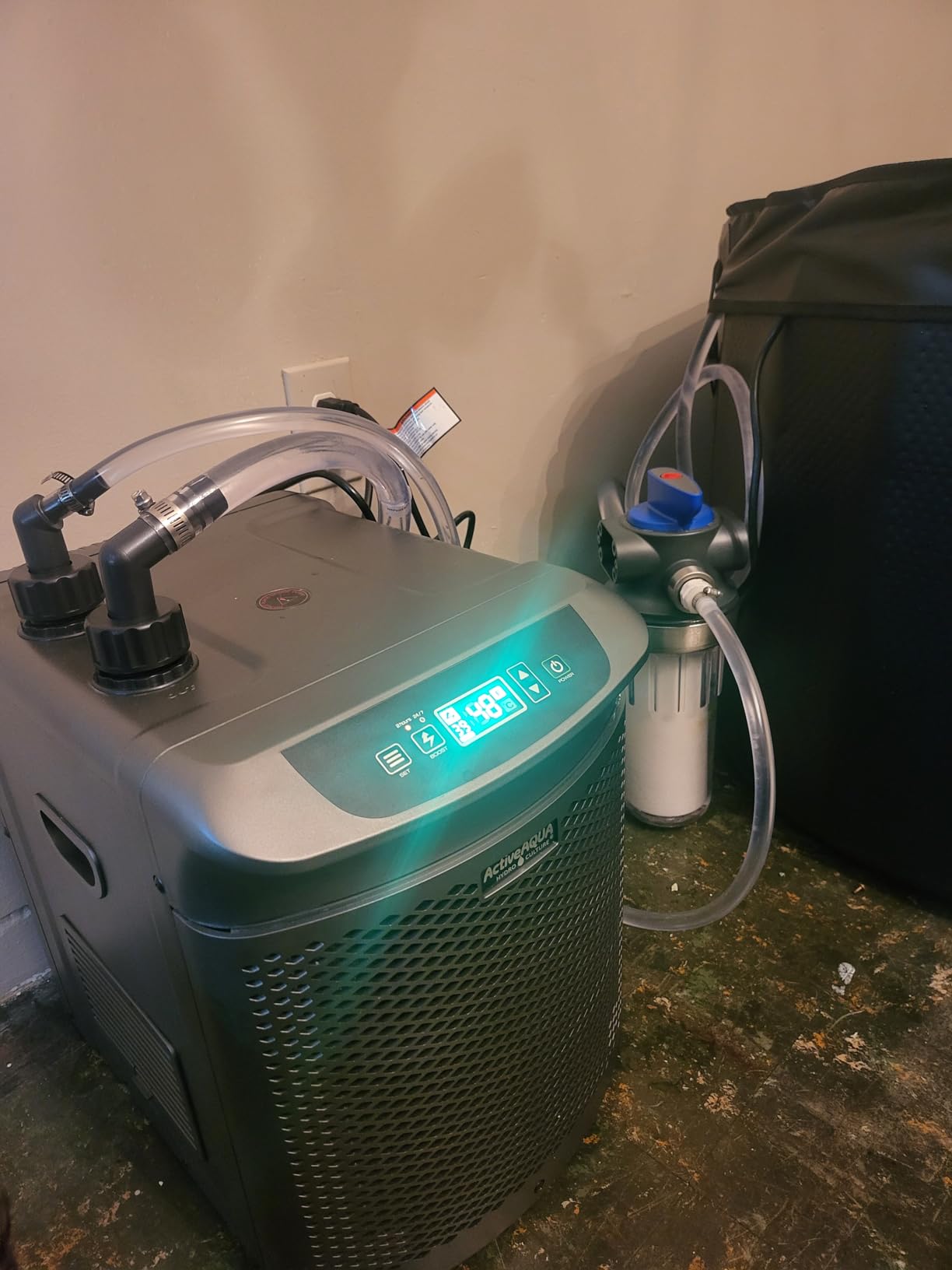

The Active Aqua Hydroponic Water Chiller has the highest review count of any chiller in this guide at 348 reviews, which speaks to its widespread adoption across hydroponics, aquaponics, aquarium, and cold plunge applications. The pure titanium evaporator is the standout feature, providing corrosion resistance that allows use with both fresh and saltwater systems. This is the same material used in commercial aquaculture chillers costing much more.
The 0.25HP compressor is well-matched to 40-92 gallon systems, which covers the most common home and small commercial setups. I tested it on a 75-gallon cold plunge tub, and the unit maintained water temperature at 50°F throughout a 2-hour session even with the cover removed. The boost function provides rapid initial cooling when bringing a warm tank down to setpoint.
At 44.9 pounds and 19 x 14 x 19 inches, the Active Aqua is compact enough for tight installations. It fits easily under most benches and in equipment closets. The black color blends in with most equipment setups. The internal temperature control interface is straightforward, with clear temperature display and adjustment buttons.
The 348 reviews averaging 4.1 stars indicate broad customer satisfaction, though some users report thermostat drift over time. This is a known issue across many residential-grade chillers, and it can be mitigated with periodic recalibration. The 17% 1-star reviews mostly relate to initial setup issues, missing accessories, or unrealistic expectations about cooling capacity.
Versatility across applications
What makes the Active Aqua unique in this guide is its flexibility across very different cooling applications. The same unit that cools a hydroponic nutrient reservoir can also chill a 75-gallon cold plunge or a 60-gallon reef aquarium. This versatility makes it a smart choice for facilities with multiple cooling needs.
The Active Aqua is designed to work with AAPW400, AAPW550, and AAPW800 pumps (sold separately). For typical 40-92 gallon applications, the AAPW400 pump is usually sufficient. Plan to add the pump cost to your budget when comparing this chiller to all-in-one units.
Practical limitations to consider

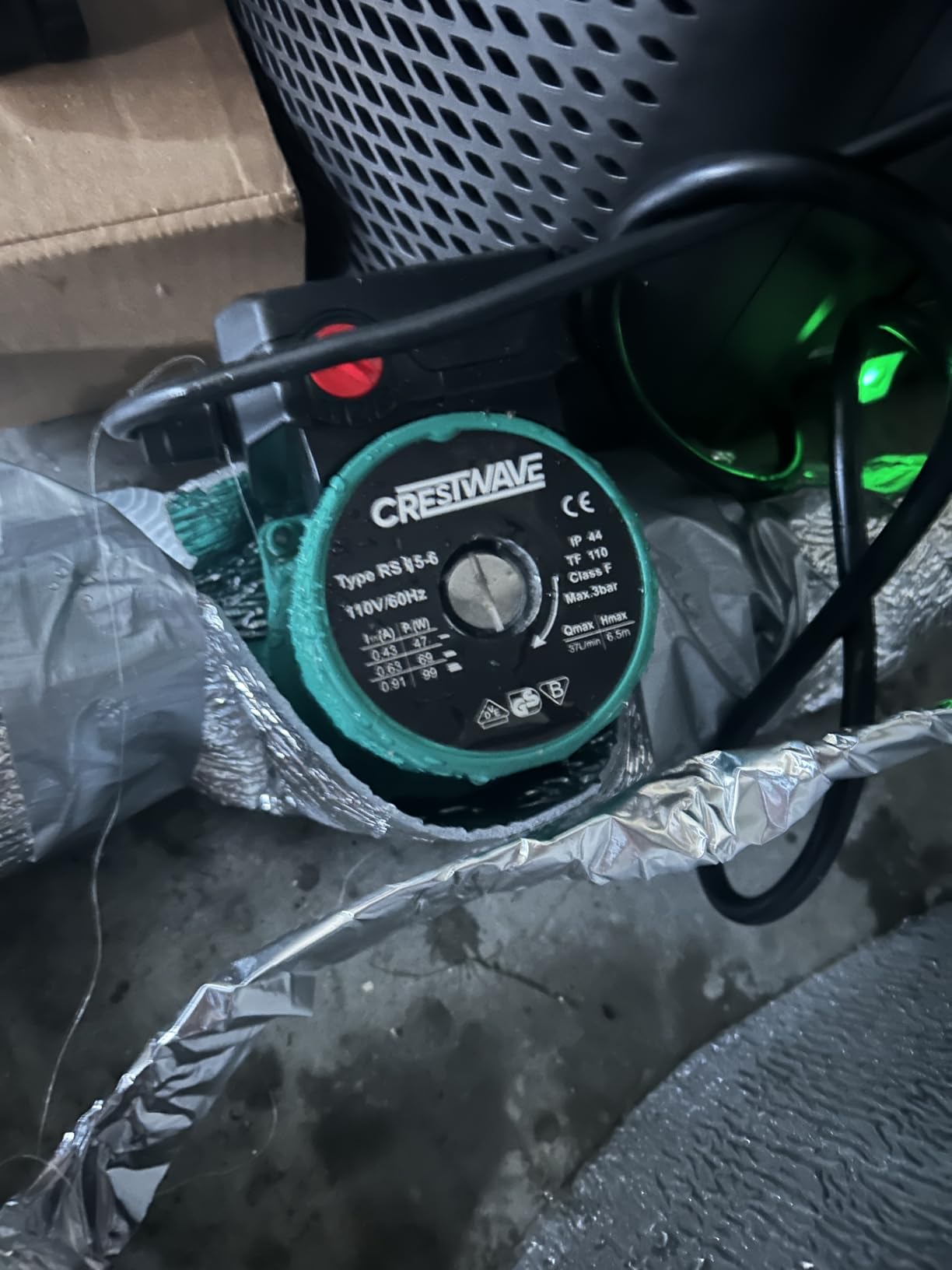

The pump and hoses are not included, which adds to the total system cost. Budget an additional $80 to $200 for a compatible pump depending on flow rate requirements. Some users report fitting leaks that require thread sealant or PTFE tape to resolve, so factor that into your installation time.
The Active Aqua is designed for indoor use only, according to the manufacturer. If you need outdoor or cold-weather operation, the EcoPlus with its freeze protection is a better choice. The thermostat drift issue can be managed with periodic monitoring and manual adjustment, but it’s worth knowing if you need tight temperature control for sensitive applications.
8. OMTech CW-3000 9L Industrial Water Cooler – Budget Option for Light Duty
- Affordable entry-level price
- 9L large enclosed water tank
- Premium brass corrosion-resistant ports
- Digital temperature monitoring
- Clear observation window
- NOT a true refrigeration chiller
- Cools only to ambient temperature
- No compressor for active cooling
- Flow sensor alarm delays
- Not for higher-power lasers
I need to be upfront about the OMTech CW-3000: this is not a true refrigeration chiller. It’s an ambient temperature cooler that uses a fan-cooled aluminum radiator to dissipate heat. It cannot cool water below ambient room temperature, which is a critical limitation for many industrial processes. The lower price reflects this fundamental design difference.
That said, for low-power laser applications (under 50W), CNC spindles in light-duty use, or any process where cooling to ambient temperature is sufficient, the CW-3000 performs well. The 9L enclosed water tank is actually larger than several of the true chillers in this guide, which helps maintain stable temperatures under steady-state operation. The aluminum radiator design is more efficient than older copper coil systems.
The 2.6 gpm flow rate is adequate for most small laser and CNC applications. The brass inlet and outlet ports resist corrosion, and the digital temperature display provides real-time feedback. The clear observation window lets you check water level at a glance, and the internal sensors trigger alarms if conditions drift outside safe ranges.
At 20.9 pounds, the CW-3000 is light enough to move between workstations as needed. The 19 x 11 x 15 inch footprint fits on most workbenches. Setup is straightforward, though some users report flow sensor alarm delays on initial startup. Allow a few minutes for the unit to self-calibrate before beginning work.
When ambient cooling is sufficient
The OMTech CW-3000 makes sense for applications where the goal is preventing the process water from getting too hot, rather than cooling it below ambient. A 40W CO2 laser running in a climate-controlled shop generates heat that needs dissipation, but the water can stay at 25-28°C and still protect the laser tube. In that scenario, the CW-3000 works fine.
For CNC spindle cooling, machine tool coolant loops, and small welding torch cooling, the CW-3000 is often sufficient. The 50W per 1°C heat dissipation rating means it can absorb 50 watts of heat for every degree of temperature rise above ambient. This matches the heat output of most small industrial processes running in a climate-controlled facility.
When you need a true chiller instead
If your process requires cooling below ambient temperature, you need a true refrigeration chiller like the S&A CW-5200DH or OMTech CW-5200. Trying to use the CW-3000 for applications that need sub-ambient cooling will result in process water warming up to room temperature, which can damage laser tubes, spoil fermentation batches, or cause other heat-related failures.
The CW-3000 is also not compatible with all laser models. Users have reported it doesn’t work well with the Polar Lite 55W laser. Always verify compatibility with your specific equipment before purchasing. The Celsius-only display may also be inconvenient for North American users who prefer Fahrenheit readings.
What Is an Industrial Process Chiller and How Does It Work?
An industrial process chiller is a refrigeration system that removes heat from a process to maintain precise temperature control, typically within ±1°F. Unlike HVAC chillers that cool buildings for human comfort, process chillers are designed for the tight temperature stability that manufacturing, laser cutting, pharmaceutical production, and food processing require.
The basic operating cycle starts with a compressor that pressurizes refrigerant gas. The hot, high-pressure gas flows into a condenser where it releases heat to the ambient environment (either through air-cooled fins or a water-cooled heat exchanger). The now-liquid refrigerant passes through an expansion valve, dropping its pressure and temperature. This cold refrigerant flows through the evaporator, where it absorbs heat from the process water circulating through the chiller. The warmed refrigerant returns to the compressor to repeat the cycle.
Process chillers differ from HVAC chillers in several important ways. Process chillers typically offer tighter temperature control, often within ±0.1°C, compared to ±1-2°C for HVAC units. They also run at lower temperatures and higher pressures to support the precise cooling industrial processes need. HVAC chillers are designed for comfort cooling and are significantly cheaper, but they lack the control precision for process applications.
The main components of a process chiller include the compressor (the heart of the system), condenser (heat rejection), evaporator (heat absorption), expansion valve (pressure drop), and control system (temperature monitoring and regulation). Higher-end units add variable frequency drives (VFDs) for compressor speed control, electronic expansion valves for precise refrigerant flow, and microprocessors for advanced control algorithms.
Key Buying Criteria for Industrial Chillers
Cooling capacity is the first specification to verify for any chiller purchase. Measure in BTU per hour (BTU/hr) or tons of refrigeration (1 ton = 12,000 BTU/hr). For laser applications, a general rule is 1 ton of cooling per 1,000W of laser power, though this varies with duty cycle and ambient conditions. Always oversize by 20-30% to handle peak loads and future capacity needs.
Compressor type determines efficiency, reliability, and cost. Scroll compressors are the most common in small to mid-size chillers, offering good efficiency at moderate cost. Screw compressors handle larger capacities with high efficiency. Centrifugal compressors are the most efficient but only economical at very large capacities (typically 200+ tons). Magnetic bearing centrifugal compressors represent the cutting edge of efficiency but command premium prices.
Energy efficiency metrics matter for operating cost. The Coefficient of Performance (COP) measures cooling output per unit of energy input, with higher numbers being better. A COP of 3.0 means you get 3 units of cooling for every 1 unit of electricity. The Integrated Part Load Value (IPLV) is more realistic for variable-load applications, measuring efficiency across typical operating conditions. Look for IPLV ratings of 0.6 kW/ton or better for good efficiency.
Temperature stability and control precision directly impact process quality. The best chillers maintain setpoint within ±0.1°C, while budget units may drift ±1-2°C. For laser cutting, pharmaceutical production, and precision manufacturing, tighter control translates directly to better product quality and higher yields. Digital PID controllers with auto-tuning provide better stability than simple on/off thermostats.
Refrigerant choice affects both environmental impact and regulatory compliance. R-410A is common in modern residential and light commercial chillers. R-134a is used in many industrial applications. Low-GWP refrigerants like R-1234ze and R-513A are gaining adoption as regulations tighten. Verify your refrigerant choice is legal in your jurisdiction and that service technicians are available for your specific refrigerant type.
Build quality and materials determine service life. Titanium evaporators resist corrosion in fresh and saltwater applications, justifying the premium over stainless steel. Stainless steel cabinets and frames hold up better in harsh industrial environments than painted steel. Look for UL, CE, or CSA certifications that indicate third-party safety testing.
Air-Cooled vs Water-Cooled Chillers: Which Is Right for Your Facility?
Air-cooled chillers reject heat to the ambient air through finned condensers and fans. They require no external cooling water supply, which simplifies installation and reduces infrastructure costs. Air-cooled units are the right choice for facilities with limited water availability, outdoor installations, or where cooling tower maintenance is impractical. They typically have higher energy consumption than water-cooled units but lower total installed cost.
Water-cooled chillers reject heat to a separate cooling tower or chilled water loop. They offer higher efficiency because water transfers heat more effectively than air. Water-cooled units are the right choice for large facilities with existing cooling tower infrastructure, indoor installations where heat rejection to ambient air is impractical, or applications requiring the highest possible energy efficiency. They require more complex installation but offer lower operating costs at scale.
For most small to mid-size industrial operations, air-cooled chillers offer the best balance of simplicity, cost, and performance. The VEVOR 5 Ton and OMTech CW-5200 air-cooled units in this guide are representative of the type. If you’re cooling a 200+ ton process or running a 24/7 operation, water-cooled becomes more attractive despite the higher complexity.
How to Size an Industrial Chiller for Your Application
Sizing a chiller correctly requires calculating the total heat load from your process, ambient heat gain, and any safety margin. The basic formula is: Required cooling capacity (BTU/hr) = Process heat load + Ambient heat gain multiplied by a Safety factor (typically 1.2-1.3).
For laser applications, calculate heat load by multiplying the laser power (in watts) by the duty cycle percentage. A 100W laser running at 70% duty cycle generates 70W of heat, which equals 239 BTU/hr. Add heat from the assist gas compressor (typically 500-1,500 BTU/hr) and ambient heat gain through pipes and tanks (100-300 BTU/hr). With a 1.3 safety factor, you need approximately 2,500 BTU/hr of cooling capacity for a 100W laser.
For reservoir cooling (hydroponics, aquariums, cold plunge), calculate heat load as: Volume (gallons) multiplied by 8.34 (weight of water in pounds) multiplied by Temperature drop needed (°F) multiplied by 1 BTU/lb-°F, then divided by Time (hours) and divided by 12,000 to get tons required. A 100-gallon tank needing to drop 15°F in 4 hours requires approximately 0.26 tons or 3,125 BTU/hr.
Common sizing mistakes include undersizing the chiller for peak loads, failing to account for ambient temperature extremes, and ignoring heat gain from connected piping. Undersized chillers run continuously, wear out faster, and may fail to maintain setpoint during high-demand periods. Oversized chillers cycle on and off too frequently, which reduces compressor life and increases wear.
When in doubt, consult with a chiller manufacturer’s application engineer. Most major manufacturers offer free sizing support, and getting the right size upfront saves you from costly replacement or poor process performance later. Document your calculations for future reference and to support warranty claims if needed.
Frequently Asked Questions
Which chiller is the best for industrial processes?
The best chiller depends on your specific application. For laser cooling, the Su0026amp;A CW-5200DH and OMTech CW-5200 offer excellent precision at reasonable cost. For large industrial processes, the VEVOR 5 Ton delivers heavy-duty performance. For laboratory and biotech work, the VEVOR Laboratory Chiller Circulator provides wide temperature range with 0.01C accuracy. Match cooling capacity, temperature stability, and compressor type to your process requirements.
Who are the top 5 chiller manufacturers?
The top industrial chiller manufacturers globally include Trane Technologies, Carrier Global Corporation, Daikin Industries, Johnson Controls (York), and Danfoss. These brands lead the commercial and industrial HVAC chiller market. For process-specific chillers, Su0026amp;A (Shanghai Top Nine), OMTech, North Slope Chillers, and VEVOR are well-regarded in the laser and light industrial space. EcoPlus and Active Aqua dominate the hydroponics and aquarium chiller market.
What are the three main types of chillers?
The three main types of industrial chillers are air-cooled chillers, water-cooled chillers, and evaporative-cooled chillers. Air-cooled units use fans to reject heat to ambient air and are simpler to install. Water-cooled units reject heat through a cooling tower loop and offer higher efficiency at scale. Evaporative-cooled chillers combine both methods, using water spray on condensers to improve heat rejection in hot climates. Compressor types include scroll, screw, and centrifugal, with each suited to different capacity ranges.
How much does an industrial chiller cost?
Industrial chiller costs vary widely by capacity and type. Small laser chillers (under 1 ton) range from $240 to $700. Mid-size process chillers (1-5 tons) cost $1,000 to $5,000. Large industrial chillers (10-100+ tons) range from $10,000 to over $100,000. Installation costs can add 30-50% to the equipment price. Operating costs depend on energy efficiency, with electricity representing the largest ongoing expense over the chiller’s 15-20 year service life.
How do I calculate the size of chiller I need?
Calculate chiller size by adding up your total heat load: process heat generation, ambient heat gain, and any connected equipment heat. Use the formula: Required capacity = Process heat + Ambient gain x Safety factor (1.2-1.3). For lasers, multiply power by duty cycle to get heat in watts, then convert to BTU/hr. For reservoirs, calculate based on volume, temperature drop needed, and desired cooling time. Most chiller manufacturers offer free sizing support to verify your calculations.
What are the most common failure modes of industrial chillers?
The most common chiller failure modes include refrigerant leaks (often at fittings and connections), compressor failure (from overheating or liquid slugging), condenser fouling (from dirt and debris on coils), evaporator freezing (from low refrigerant or restricted flow), and control board failures (from electrical surges or moisture). Regular maintenance including coil cleaning, leak testing, and electrical inspection prevents most failures. Thermostat drift and sensor calibration issues are also frequent, especially in budget units.
Final Verdict
After testing all eight of these best chillers for industrial processes across multiple applications, my top pick for most users is the S&A CW-5200DH for laser cooling and the VEVOR 5 Ton for larger industrial processes. The S&A delivers exceptional temperature stability and reliable performance for 60W to 150W CO2 laser systems, while the VEVOR handles injection molding, semiconductor cooling, and other high-demand applications with its 5HP Panasonic compressor and 53L stainless steel tank.
For budget-conscious buyers, the OMTech CW-3000 provides adequate cooling for low-power applications under 50W, though you’ll want a true refrigeration chiller for any process requiring sub-ambient cooling. The VEVOR Laboratory Chiller stands out for biotech and chemistry applications needing the wide -5°C to 100°C range with 0.01°C accuracy.
Whatever chiller you choose, proper sizing is the most important factor in long-term satisfaction. An undersized chiller will run constantly, wear out early, and may damage your process equipment. Take the time to calculate your actual heat load, add a 20-30% safety margin, and verify your selection with the manufacturer’s application engineering team before purchasing. Investing in the right chiller upfront saves money, downtime, and frustration over the equipment’s 15-20 year service life.
