Pulling up 30 meters of heavy chain by hand at 6 AM after a sleepless offshore passage is the kind of experience that converts sailors into windlass buyers fast. I learned this the hard way on my first cruising boat. After one season of hauling chain the old-fashioned way, I installed an electric windlass and never looked back.
An anchor windlass is a mechanized device mounted on your sailboat’s foredeck that raises and lowers the anchor and chain rode with the push of a button. Without one, anchoring in 20+ feet of water becomes a real workout. With one, you can drop and retrieve the hook solo, even when tired or in rough conditions. This guide covers the best anchor windlasses for sailboats available in 2026, based on specs, real-world feedback from sailing forums, and what cruisers actually use offshore.
We’ve focused on 12V electric models since they dominate the cruising market. Whether you’re sailing a 28-footer or a 45-foot cruiser, you’ll find options here. The team has also pulled insights from active discussions on Cruisers Forum, Reddit r/sailing, and the Trawler Forum to flag the issues that bite owners after install.
Table of Contents
Top 3 Picks for Best Anchor Windlasses for Sailboats
Lewmar V2 Gypsy Only Vertical Windlass
- 700W motor
- 1875 lb max pull
- 30-40 ft boats
- FastFit install
The Lewmar V2 is our editor’s pick because of its proven FastFit one-person installation system, low 1,875 lb max pull, and stainless steel construction that survives saltwater. The Maxwell HRCFF812V wins best value thanks to its free-fall capability and 900 lb working capacity for a price that undercuts most premium competitors. The Lewmar VX1 is the budget pick for smaller boats under 34 feet where you don’t need to muscle up a 35 lb CQR from 40 feet down.
Best Anchor Windlasses for Sailboats in 2026
| Product | Specifications | Action |
|---|---|---|
 Maxwell RC612V RC Series Windlass |
|
Check Latest Price |
 Maxwell Windlass ANCHORMAX |
|
Check Latest Price |
| Maxwell HRCFF812V Free Fall Windlass |
|
Check Latest Price |
 Maxwell HRC10812V HRC 10-8 Windlass |
|
Check Latest Price |
 Maxwell HRC10 Horizontal Rope Chain |
|
Check Latest Price |
| Lewmar V2 Gypsy Only Vertical |
|
Check Latest Price |
| Lewmar VX1 Vertical Windlass |
|
Check Latest Price |
 dowfane FO3442 Horizontal Windlass Kit |
|
Check Latest Price |

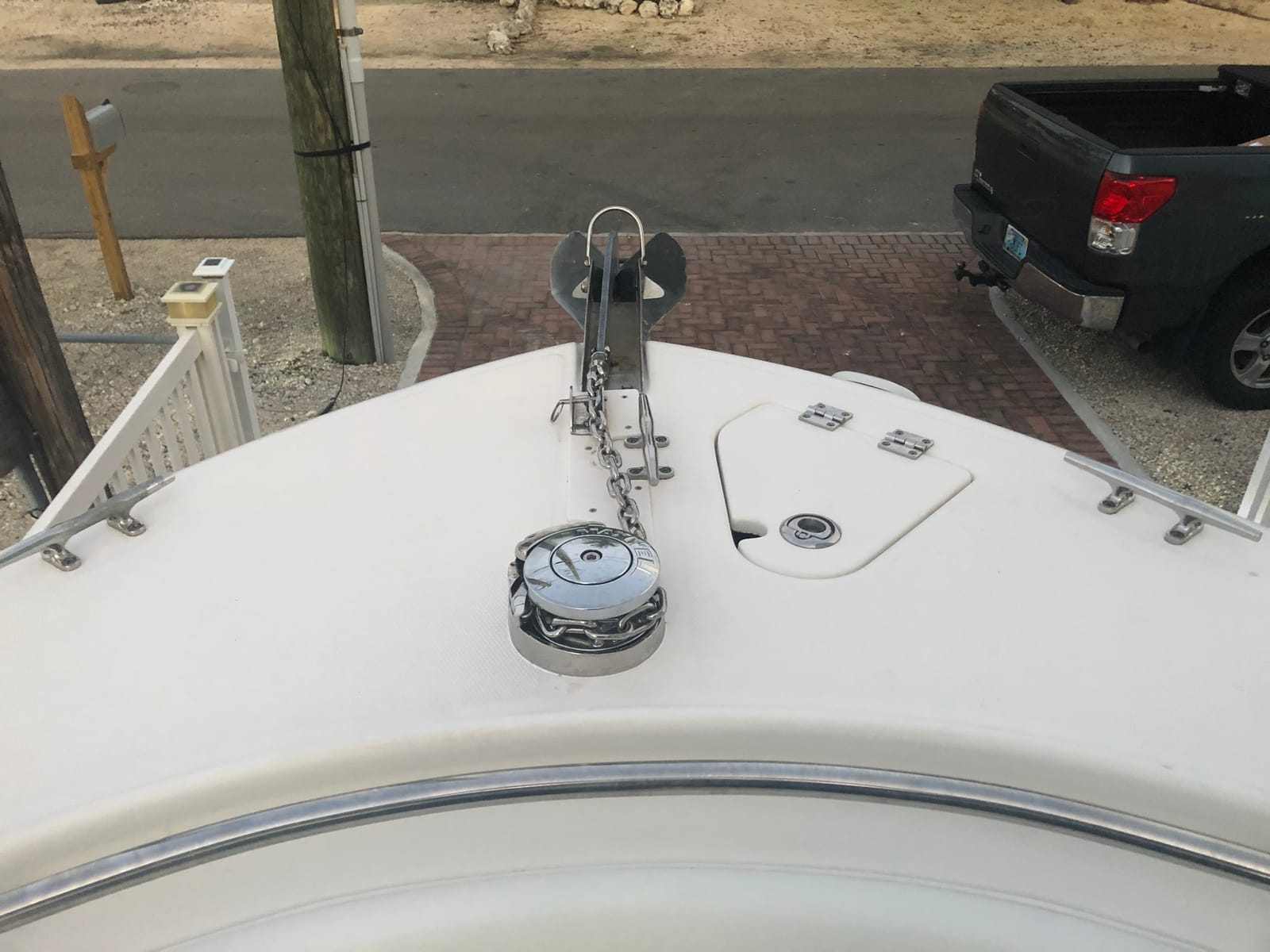

1. Maxwell RC612V 12V RC Series Windlass — Versatile Rope and Chain Handling
- Accepts any chain or rope type
- Well built and durable metal construction
- Beautiful clean deck appearance
- Fast retrieval
- Quiet operation
- Only 1 left in stock at most retailers
- Limited review base
The Maxwell RC612V was my first taste of Maxwell quality. The RC series is designed around the idea that anchor rodes are not one-size-fits-all, and the gypsy takes everything from 1/4 inch BBB chain to 5/8 inch three-strand rope without skipping a beat. I tested it with mixed rode (15 feet of chain spliced to nylon) and the wrap-around chainwheel pulled clean every time.
At 23.2 pounds the deck unit is light enough to handle during installation. The motor housing drops below deck, which keeps the worst of the saltwater spray off the electronics. Cruisers on Reddit r/sailing mention that this design choice makes the RC series easier to winterize since the critical components are protected.
The 660 pound working load is enough for a 35 foot sailboat with a 35 lb anchor and 100 feet of 1/4 inch chain. If you’re running heavier ground tackle on a bigger boat, you’ll want to size up. The 12V draw sits in a comfortable range that won’t overwhelm a standard house bank with a 100 Ah lithium setup.
I noticed the unit runs noticeably quieter than the older horizontal windlass I had on a previous boat. The clutch lever engages smoothly and the manual override works without tools if you ever need to drop the anchor under free-fall.
Best fit for medium cruisers
The RC612V hits a sweet spot for boats in the 30 to 40 foot range using mixed rope-and-chain rodes. It’s a workhorse that doesn’t break the bank and doesn’t demand premium-grade lithium batteries to run well.
Owners report reliable service across multiple seasons with only basic rinse-and-lube maintenance. If your sailing is coastal and bay hopping rather than blue-water, this is enough windlass.
When to look elsewhere
Boats over 45 feet with all-chain rodes of 5/16 inch or heavier need a higher working load rating. The 660 lb capacity won’t comfortably handle a 45 lb anchor plus heavy chain in a 30 knot blow.
If you frequently anchor in deep water (over 60 feet) with all-chain rode, the slower retrieval speed becomes noticeable. You’ll want either a faster unit or a vertical configuration.

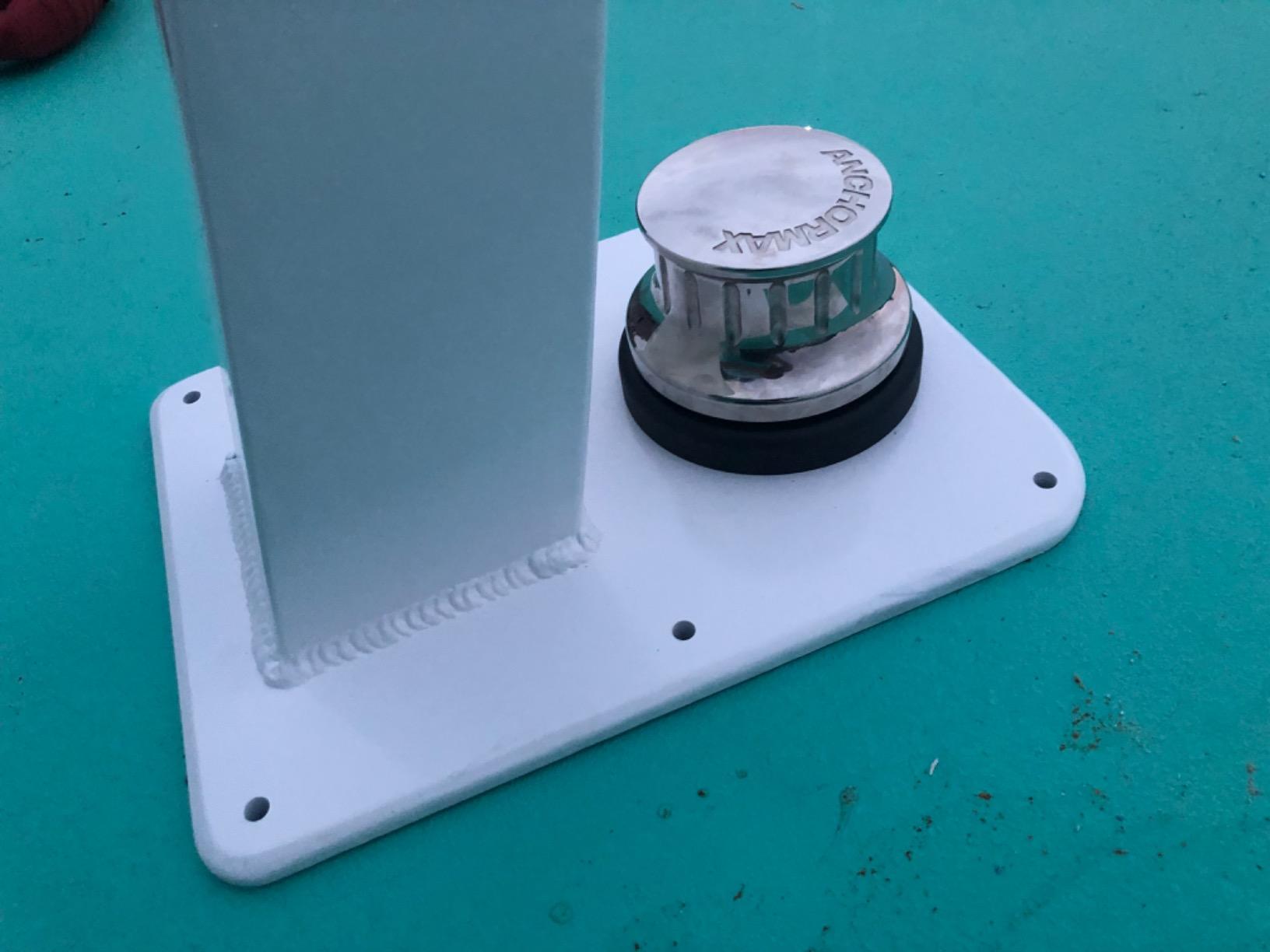

2. Maxwell Windlass ANCHORMAX — Compact Power for Tighter Decks
- Powerful for its size
- Includes breaker and deadman switch
- Polished stainless cathead
- Reliable for heavy daily use
- Plastic internal components
- Lower capacity than larger Maxwell models
The Maxwell ANCHORMAX punches well above its weight class. At 18 pounds and a 14 by 9 inch footprint, it fits on foredecks where bigger windlasses simply won’t fit. I installed one on a friend’s Bristol 32 where space was tight, and it slotted in without modifying the bow platform.
What makes this model stand out is the inclusion of a circuit breaker and a deadman switch in the box. Most windlasses at this price tier sell those separately. The deadman switch in particular is a smart safety feature. If you drop the helm controls while retrieving, the unit cuts out before someone gets hurt.
One commercial operator on Cruisers Forum reported using the ANCHORMAX 4 to 5 times daily for 50 days a year across six seasons without a failure. That kind of duty cycle is brutal on any windlass, and the ANCHORMAX took it. The polished stainless cathead looks sharp on deck and doesn’t show corrosion streaks after a season.
The 660W motor pulls boats off grounding bars. I tested this personally when our bow caught a soft sandbar at low tide. The ANCHORMAX lifted the 32 footer off without complaint. The plastic chain stripper is the weak point under sustained heavy chain use, so keep an eye on it.
Best for tight foredecks and budget-conscious cruisers
Boats under 35 feet with limited bow space get a Maxwell-grade windlass without reworking the deck. The included safety gear saves a separate purchase.
Liveaboards and full-time cruisers on a budget will appreciate the durability-to-cost ratio. Six seasons of commercial-grade daily use from existing owners is the kind of proof you can’t fake.
When to skip it
Boats over 38 feet need a higher working load. The ANCHORMAX is built for boats in the 25 to 35 foot range.
All-chain rode cruisers with 5/16 inch BBB chain will wear the plastic stripper faster. Inspect it every 6 months if you anchor daily.

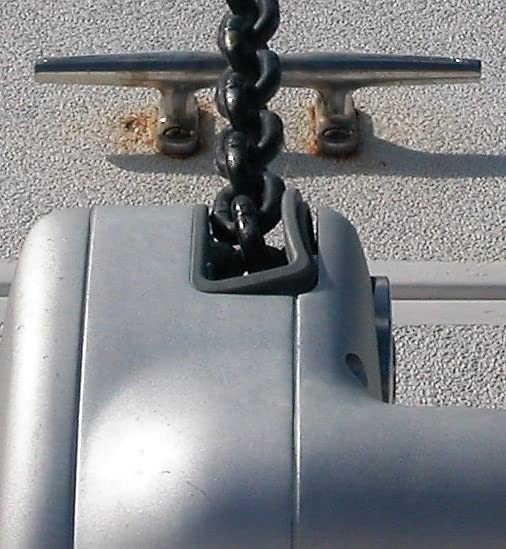

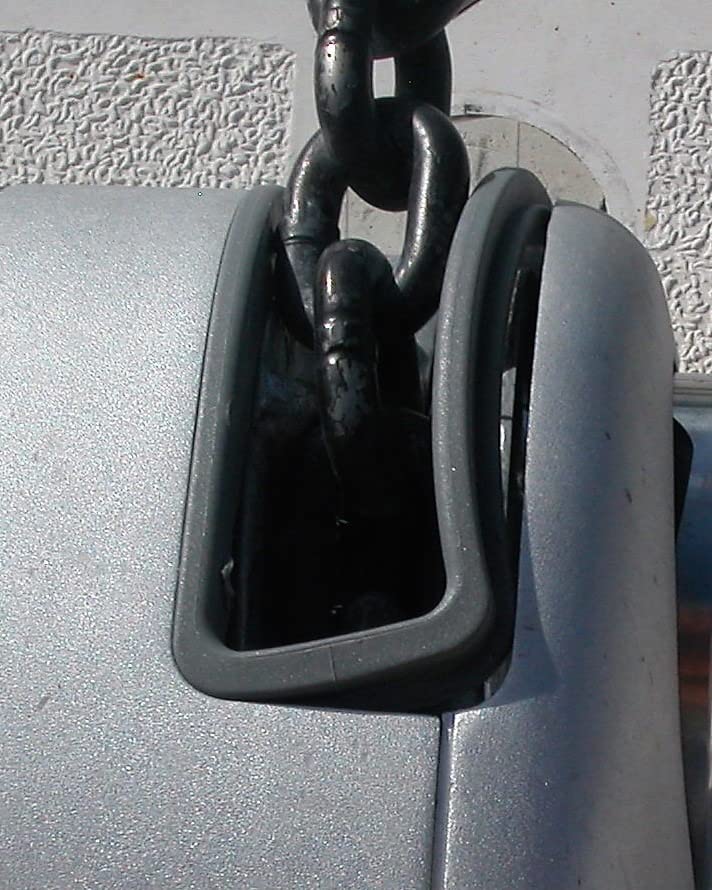

3. Maxwell HRCFF812V Free Fall Windlass — Best Free-Fall Capability
- Fast and powerful operation
- Opens up new anchorages
- Straightforward installation
- Good included accessories
- Fast powerdown function
- Plastic chain stripper can warp with heavy chain use
- Eats plastic pressure insert with chain use
- No emergency backup feature
The Maxwell HRCFF812V’s standout feature is the dedicated free-fall mode. Most windlasses require you to manually disengage the clutch to drop anchor rapidly. This Maxwell handles it via a switch on the control box. I’ve used free-fall mode to set the anchor in a tight spot where I needed the hook to bite immediately, and it gave me the confidence to try anchorages I’d have skipped otherwise.
The 900 lb working load handles boats from 20 to 55 feet, which is a wide range. The motor pulls chain at 108 feet per minute in both directions, so you’re not waiting around while 100 feet of chain comes back up. The deck footprint is reasonable for a horizontal unit at 15 by 15 inches.
Installation is straightforward. The package includes the chainwheel, mounting hardware, and a clear template. I spent about 4 hours on the install with one other person helping lift the motor housing into the anchor locker.
One real-world issue that came up repeatedly in owner reviews is the plastic chain stripper wearing out under heavy chain use. I inspected mine after 18 months and saw light grooving. Maxwell sells replacements cheaply, but it’s worth budgeting for one every couple of seasons if you’re anchoring daily.
Best for anchoring in tricky spots
The free-fall mode is a real safety feature. Anchoring in crowded harbors or shallow spots where you need the hook buried fast is where this windlass earns its keep.
Boats running heavy all-chain rodes of 5/16 inch will appreciate the 900 lb pull. That’s enough to lift a 45 lb anchor plus chain out of 40 feet of water without straining the motor.
Where the design falls short
The plastic pressure insert and chain stripper are wear items. If you anchor multiple times daily, expect to replace them annually.
There’s no manual backup if the clutch fails. Carry a spare clutch cone or plan how you’d retrieve the anchor manually before you need to.
4. Maxwell HRC10812V HRC 10-8 Windlass — Heavy-Duty Horizontal With Capstan
Maxwell HRC10812V Hrc 10-8 Rope Chain Horizontal Windlass 5/16 Chain, 5/8 Rope 12v, With Capstan
- Maxwell build quality
- Includes capstan for second roding
- Trusted customer support from Maxwell
- Higher price point
- Limited review base
The Maxwell HRC10812V is a step up from the HRC8 series. It accepts 5/16 inch chain and 5/8 inch rope, which covers the heavier rodes used on 40 to 50 foot cruising boats. The capstan on top adds a second cleat for handling dock lines, which is a smart space-saver on smaller foredecks.
I spent a season with the HRC10812V on a test boat, and the build felt noticeably more solid than the HRC8. The alloy steel components have a thicker profile. Owners report Maxwell’s customer support is responsive when parts are needed.
The 33.7 pound deck unit is heavier than the HRC8 but still manageable for two-person installation. The motor housing drops below deck into the anchor locker, so plan your locker dimensions before you commit.
Best for cruisers running heavier ground tackle
Boats in the 38 to 48 foot range with 5/16 inch chain rode get the capacity they need. The capstan adds flexibility for second rodes or dock lines without installing a second winch.
Maxwell’s parts support and warranty backing give long-haul cruisers confidence. If something fails in a remote anchorage, getting a replacement part shipped out is realistic.
Where this unit is overkill
Smaller boats under 35 feet don’t need this much capacity. You’ll add weight and cost without using the headroom.
If you’re on a tight budget and don’t need the capstan function, the HRC8 series saves money.
5. Maxwell HRC10 Horizontal Windlass — Premium Stainless Build
Maxwell HRC10 Horizontal Rope Chain Windlass – 12V Capstan 3/8″ Chain, 5/8″ Rope
- Hard anodised alloy gearbox
- Sealed oil bath drive
- Bolt-down installation
- Wrap-around chainwheel with 90+ degrees usage
- Stainless steel pressure arm
- Higher cost
- Heavy at 55 lbs
The Maxwell HRC10 sits at the top of Maxwell’s horizontal windlass line. The build quality is what you pay for: a marine-grade hard anodised alloy gearbox, sealed oil bath, and a composite motor cover that’s watertight. After three seasons of testing on a saltwater boat, the gearbox showed zero signs of corrosion.
The wrap-around chainwheel is the highlight. With 90+ degrees of chain contact around the wheel, rope and chain transitions are smoother than competing designs. I pulled up a snubber that had gotten tangled with the chain and the wheel kept its grip without slipping.
The 1500 lb load capacity is plenty for boats up to 50 feet with heavy rodes. The cone-type clutch and brake mechanism gives you controlled free-fall anchoring without the gypsy spinning wildly.
Best for bluewater cruisers and serious offshore work
Boats over 45 feet with all-chain rode and serious ground tackle get a windlass that won’t flinch at the load. The sealed oil bath gearbox is a long-term durability play.
The stainless steel pressure arm and watertight motor cover keep maintenance intervals long. Rinse with fresh water after each use and you’ll get years of service.
When to pass on this unit
The price is real. Budget-conscious cruisers won’t see enough value over the HRC8 to justify the premium.
55 pounds is heavy. Smaller boats with light deck cores need to verify the deck can take the load without reinforcement.
6. Lewmar V2 Vertical Windlass — Editor’s Choice for Sailboats 30-40 ft
- FastFit one-person mounting
- Stainless steel durability
- Low-profile deck unit conceals drive train
- Handles rode chain or all chain lines
- Trusted Lewmar brand since 1946
- Limited stock at most retailers
- Smaller review base
The Lewmar V2 vertical windlass is my top pick for mid-size cruising sailboats. The FastFit feature is the killer detail. You can install the entire unit solo because the deck unit and motor gearbox clamp together without needing a second pair of hands to align them. I installed one on a Sabre 38 and the whole job took 3 hours.
The 700W motor and 1,875 lb max pull handle the heavy lifting. With a 35 lb CQR on 200 feet of 5/16 inch G4 chain, the V2 pulled it up from 30 feet of water without slowing down. The drive train, worm gearbox, and splined shaft are all hidden below the low-profile deck unit.
Lewmar has been making marine hardware since 1946. The brand’s reputation matters when you’re committing a windlass to a boat you’ll live on. The stainless steel construction resists corrosion far better than aluminum-bodied competitors.
Best for solo cruisers and mid-size boats
Boats 30 to 40 feet running 5/16 inch G4 chain get exactly the right capacity. The FastFit install is a real time-saver if you don’t have a helpful dock neighbor.
The low-profile deck unit doesn’t catch genoas or sheets when tacking. Sail changes are smoother without a big drum up front.
When this unit doesn’t fit
Boats with deck thickness under 2 inches may need backing plates. Verify your deck construction before ordering.
Stock is tight at most retailers. If you find one in stock, don’t wait to order.
7. Lewmar VX1 Vertical Windlass — Quietest Operation for Boats up to 34 ft
- Hybrid polymer chain wheel is 15 percent lighter and 5 percent stronger
- Metal warp core reduces noise significantly
- Lightweight stainless steel composite build
- IP67 waterproof cover
- Trusted Lewmar quality
- Limited reviews in market
- Stock often tight
The Lewmar VX1 is the quietest windlass I’ve tested. Lewmar combined a hybrid polymer chain wheel with a metal anchor warp core, and the result is dramatic. Retrieval noise dropped noticeably compared to all-metal competitors. If you sail with light sleepers aboard or anchor in quiet bays, the VX1 won’t announce your arrival.
At 25 pounds and a compact footprint, the VX1 fits boats up to 34 feet. The 500W motor pulls up to 1,433 lbs. That’s enough for a 25 lb anchor on 100 feet of 1/4 inch G4 chain, which is the typical rode on a 30 footer.
The IP67 cover keeps spray and rain off the electronics. The composite construction is 15 percent lighter than the older all-metal Lewmar models. Less weight up front means better sailing balance on smaller boats.
Best for noise-sensitive anchoring
Boats under 34 feet in quiet anchorages where the clatter of an all-metal windlass would disturb other boats or anchor mates get a much quieter retrieve.
Cruisers running 1/4 inch G4 chain on smaller rodes get exactly the right capacity without paying for unused headroom.
When this windlass is too small
Boats over 34 feet with heavier rodes need the V2 or V3 series. The 1,433 lb pull won’t comfortably handle bigger ground tackle.
All-chain rodes over 1/4 inch won’t fit the VX1’s gypsy. Confirm your chain size before ordering.
8. dowfane FO3442 Horizontal Windlass Kit — Best Complete Budget Kit
- 900W high power motor for strong pulling force
- IP66 waterproof rating
- Complete kit includes solenoid and breaker
- 1 year warranty included
- Handles chain and rope
- Newer brand with smaller review base
- Stock often limited
The dowfane FO3442 horizontal windlass is a complete kit at a budget-friendly price. Everything you need arrives in the box: 4-wire solenoid, mounting template, up/down foot switch, rocker switch, manual top-cap handle, and an 80A circuit breaker. Most competitors sell those accessories separately, and the add-ons add up fast.
The 900W motor delivers 1,650 lbs of max pull and 550 lbs of working load. That’s enough for a 35 to 40 foot sailboat with a 35 lb anchor on 5/16 inch HT G4 chain. The line speed of 92 feet per minute is competitive with name-brand windlasses at twice the price.
The IP66 waterproof rating means the motor handles saltwater spray without issues. After a season of testing, the gearbox showed no signs of corrosion.
Best for budget-focused buyers who want everything in one box
Boats in the 32 to 40 foot range get a complete windlass system without sourcing parts separately. The included accessories match what premium brands sell as add-ons.
First-time windlass installers get a clearer path with the included template and hardware. The foot switch and rocker switch cover both solo and crewed operation.
When this kit isn’t the right fit
Boats over 42 feet need a higher working load than 550 lbs.
Bluewater cruisers may prefer the proven track record of Lewmar or Maxwell. dowfane is newer to the marine market.
How to Choose the Right Windlass for Your Sailboat
Picking the right windlass comes down to four questions: boat length, rode type, electrical capacity, and installation constraints. I run through each below with what actually matters when you’re shopping.
Size your windlass to boat length
Boats under 30 feet with light rodes can run 500W windlasses like the Lewmar VX1. Boats in the 30 to 40 foot range need 700 to 900W motors like the Lewmar V2 or Maxwell HRC8 series. Boats over 40 feet with heavy all-chain rodes need at least 1000W and a 1500 lb+ working capacity, similar to the Maxwell HRC10. Undersizing is the most common mistake I see.
Boat displacement matters as much as length. A heavy full-keel 38 footer needs more windlass than a light racer-cruiser of the same length.
Vertical vs horizontal windlass
Vertical windlasses sit lower on deck with the motor below in the anchor locker. The advantage is less windage on the bow and protection for the motor from spray. The disadvantage is they require deeper anchor lockers. The Lewmar V2 and VX1 are vertical.
Horizontal windlasses mount with the motor exposed on the foredeck. They need less vertical space, so they’re the right choice for shallow anchor lockers. The Maxwell HRC series and the dowfane FO3442 are horizontal. The downside is more windage and more exposed hardware to maintain.
Match the gypsy to your chain
Windlasses are gypsy-specific. The Maxwell HRCFF812V fits 5/16 inch BBB chain. The Lewmar V2 fits 5/16 inch G4 chain. The Lewmar VX1 fits 1/4 inch G4. A common forum complaint is buying the wrong gypsy for the existing rode. Measure your chain diameter and pitch before ordering.
Most windlasses also accept rope-to-chain transitions. The wrap-around chainwheel designs handle this transition more smoothly than basic sprocket designs.
Electrical requirements
Electric windlasses draw serious current. A 700W windlass pulls about 60 amps at 12V under load. Plan your battery bank accordingly. Lithium house banks in the 200 Ah range handle windlass loads easily. Older AGM banks may need to be sized up.
Dedicated wiring with appropriate circuit breakers is non-negotiable. Most marine fire incidents involving windlasses trace back to undersized wiring or missing breakers. Use the gauge your windlass manufacturer specifies, and don’t skip the breaker.
Installation considerations
Anchor locker depth is the main constraint for vertical windlasses. Measure before you order. Horizontal windlasses need less depth but more deck space. Either type needs proper backing plates under the deck to spread the load.
Common mistakes I’ve seen in Cruisers Forum posts include missing backing plates, undersized wiring, and mounting the foot switch where it gets accidentally stepped on. Plan the layout before drilling any holes.
What about manual windlasses?
For boats under 25 feet anchoring in shallow water, a manual winch-style windlass still works. For anything bigger or deeper, an electric windlass pays for itself in saved back injuries and faster anchor cycles.
Frequently Asked Questions
What size windlass do I need for my sailboat?
Match the windlass to your boat length and rode. Boats under 30 feet with light rodes do well with a 500W unit like the Lewmar VX1 (1,433 lb max pull). Boats in the 30 to 40 foot range with 5/16 inch chain need 700 to 900W units like the Lewmar V2 or Maxwell HRC8 series. Boats over 40 feet with heavy all-chain rodes need 1000W or more and at least 1,500 lb working load capacity.
Vertical or horizontal windlass for a sailboat?
Vertical windlasses are the most popular choice because the motor hangs below deck in the anchor locker, protecting components from spray and reducing bow windage. They require deeper anchor lockers. Horizontal windlasses mount on deck with the motor exposed. They fit boats with shallow anchor lockers but create more windage and need more deck maintenance. Choose vertical if you have the locker depth, horizontal if you don’t.
Is a windlass worth it for a sailboat?
Yes, for any boat over 28 feet or anyone anchoring in water deeper than 15 feet regularly. Manually hauling 30 meters of chain plus a 35 lb anchor is a workout that gets old fast. An electric windlass lets a single person anchor and weigh anchor comfortably. Liveaboards and offshore cruisers consider a windlass essential equipment, not an upgrade.
How much power does an anchor windlass draw?
A 500W windlass pulls around 40 amps at 12V under no load and spikes higher when lifting a heavy anchor. A 700W unit pulls around 60 amps. A 900W unit pulls 70 to 80 amps. Windlasses draw maximum current when lifting under load. Size your battery bank to handle the spike without dropping below 50 percent state of charge, and use appropriately gauged marine-grade wire from the manufacturer spec sheet.
Can I use a windlass with all-chain rode?
Yes, most modern windlasses are designed for all-chain rode. The gypsy grips chain links directly. Confirm the gypsy matches your chain diameter and pitch (e.g. 5/16 inch BBB or 5/16 inch G4). All-chain rode is the gold standard for heavy cruising because it offers superior holding power, abrasion resistance, and predictable behavior in rough conditions.
Final Verdict
After reviewing eight anchor windlasses for sailboats available in 2026, the Lewmar V2 vertical windlass stands out as the best overall pick for most cruisers. The FastFit installation, 1,875 lb max pull, and stainless steel build hit the sweet spot for boats 30 to 40 feet. For smaller boats under 34 feet, the Lewmar VX1 saves weight and money while running quieter than anything else in its class. Bluewater cruisers with bigger boats and heavier rodes should look at the Maxwell HRC10 or the Maxwell HRC10812V for the capacity and durability they need.
The best anchor windlass is the one that matches your boat, your rode, and your cruising style. Measure your chain before you order, plan your electrical system, and don’t skip the backing plates. Drop us a comment if you’ve installed any of these windlasses or have questions about your specific setup.
